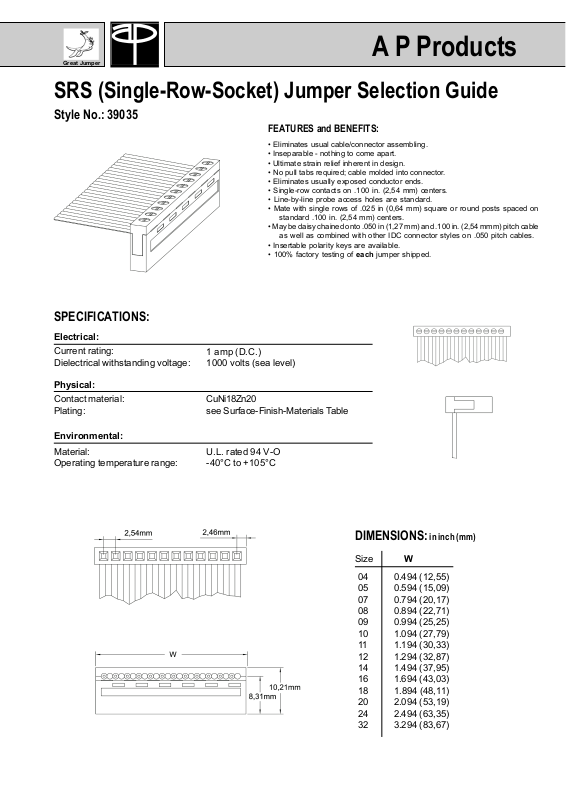

SRS (Single-Row-Socket) Jumper Selection Guide
Style No.: 39035
FEATURES and BENEFITS:
• Eliminates usual cable/connector assembling.
• Inseparable - nothing to come apart.
• Ultimate strain relief inherent in design.
• No pull tabs required; cable molded into connector.
• Eliminates usually exposed conductor ends.
• Single-row contacts on .100 in. (2,54 mm) centers.
• Line-by-line probe access holes are standard.
• Mate with single rows of .025 in (0,64 mm) square or round posts spaced on
standard .100 in. (2,54 mm) centers.
• May be daisy chained onto .050 in (1,27 mm) and .100 in. (2,54 mmm) pitch cable
as well as combined with other IDC connector styles on .050 pitch cables.
• Insertable polarity keys are available.
• 100% factory testing of each jumper shipped.
SPECIFICATIONS:
Electrical:
Current rating:
Dielectrical withstanding voltage:
Physical:
Contact material:
Plating:
Environmental:
Material:
Operating temperature range:
1 amp (D.C.)
1000 volts (sea level)
CuNi18Zn20
see Surface-Finish-Materials Table
U.L. rated 94 V-O
-40°C to +105°C
DIMENSIONS: in inch (mm)
WSize
04
05
07
08
09
10
11
12
14
16
18
20
24
32
0.494 (12,55)
0.594 (15,09)
0.794 (20,17)
0.894 (22,71)
0.994 (25,25)
1.094 (27,79)
1.194 (30,33)
1.294 (32,87)
1.494 (37,95)
1.694 (43,03)
1.894 (48,11)
2.094 (53,19)
2.494 (63,35)
3.294 (83,67)
Ordering Information
A P Products
DOWN
UP
DOWN
UP
LEFT-END...
SRS
Style 39035
STRIPE UP
STRIPE DOWN
RIGHT-END CONNECTOR STYLE NUMBERS
NO CONNECTOR
OPEN
OPEN
Style 39000
DOWN
UP
Stripped and
tinned available
DOWN
UP
Stripped and
tinned available
Style 39033
SRB
SRS
Style 39035
DOWN
UP
DOWN
UP
Easy 4-Step Jumper Description - EXAMPLE
LEFT CONTACTS
STEP 1
STEP 2
STEP 3
STEP 4
NOTES: Where connector sizes are different, the inactive contacts will be located farthest from the cable stripe unless
otherwise specified.
