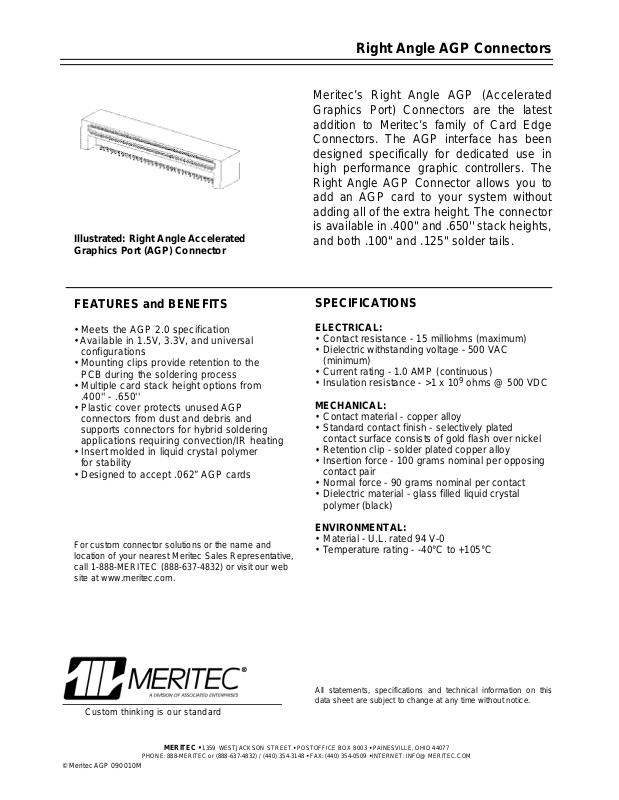

A P Products Right Angle AGP Connectors User Manual

Illustrated: Right Angle Accelerated

© Meritec AGP 090010M

Graphics Port (AGP) Connector

Right Angle AGP Connectors

M e r i t e c ’s Right Angle A G P ( A c c e l e r a t e d
Graphics Port) Connectors are the latest
addition to Meritec’s family of Card Edge
Connectors. The AGP interface has been
designed specifically for dedicated use in
high performance graphic controllers. The
Right Angle AGP Connector allows you to
add an AGP card to your system without
adding all of the extra height. The connector
is available in .400'' and .650'' stack heights,
and both .100'' and .125'' solder tails.

FEATURES and BENEFITS

• Meets the A G P 2.0 specification

• Available in 1.5V, 3.3V, and universal
configurations

• Mounting clips provide retention to the
PCB during the soldering process

• Multiple card stack height options from
.400'' - .650''

• Plastic cover protects unused A G P
connectors from dust and debris and
supports connectors for hybrid soldering
applications requiring convection/IR heating

• Insert molded in liquid crystal polymer
for stability

• Designed to accept .062” A G P c a r d s

For custom connector solutions or the name and
location of your nearest Meritec Sales Representative,
call 1-888-MERITEC (888-637-4832) or visit our web
site at www.meritec.com.

SPECIFICATIONS

ELECTRICAL:

• Contact resistance - 15 milliohms (maximum)

• Dielectric withstanding voltage - 500 VAC
(minimum)

• Current rating - 1.0 AMP (continuous)

• Insulation resistance - >1 x 109ohms @ 500 VDC

MECHANICAL:

• Contact material - copper alloy

• Standard contact finish - selectively plated
contact surface consists of gold flash over nickel

• Retention clip - solder plated copper alloy

• Insertion force - 100 grams nominal per opposing
contact pair

• Normal force - 90 grams nominal per contact

• Dielectric material - glass filled liquid crystal
polymer (black)

ENVIRONMENTAL:

• Material - U.L. rated 94 V-0

• Temperature rating - -40°C to +105°C

Custom thinking is our standard

All statements, specifications and technical information on this
data sheet are subject to change at any time without notice.

MERITEC • 1359 WESTJACKSON STREET • POSTOFFICE BOX 8003 • PAINESVILLE, OHIO 44077

PHONE: 888-MERITEC or (888-637-4832) / [phone] • FAX: [phone] • INTERNET: INFO@ MERITEC.COM

Right Angle AGP Connectors

© Meritec AGP 0900 10M

LAYOUT DRAWING ILLUSTRATED: RIGHT ANGLE UNIVERSAL AGP CONNECTOR

RECOMMENDED MOUNTING HOLE PATTERNS

PER AGP SPECIFICATIONS,REV.2.0

UNIVERSAL CONNECTORS

UNIVERSAL RIGHT ANGLE AGP CONNECTOR

Dimensions in mm, [ ] = inches

DIM "A" DIM "B" DIM "C" PART NUMBERS

10.16 [.400] 13.97 [.550] 2.54 [.100] 980933-124-2MCF

10.16 [.400] 13.97 [.550] 3.17 [.125] 980934-124-2MCF

16.51 [.650] 20.32 [.800] 2.54 [.100] 980935-124-2MCF

16.51 [.650] 20.32 [.800] 3.17 [.125] 980936-124-2MCF
