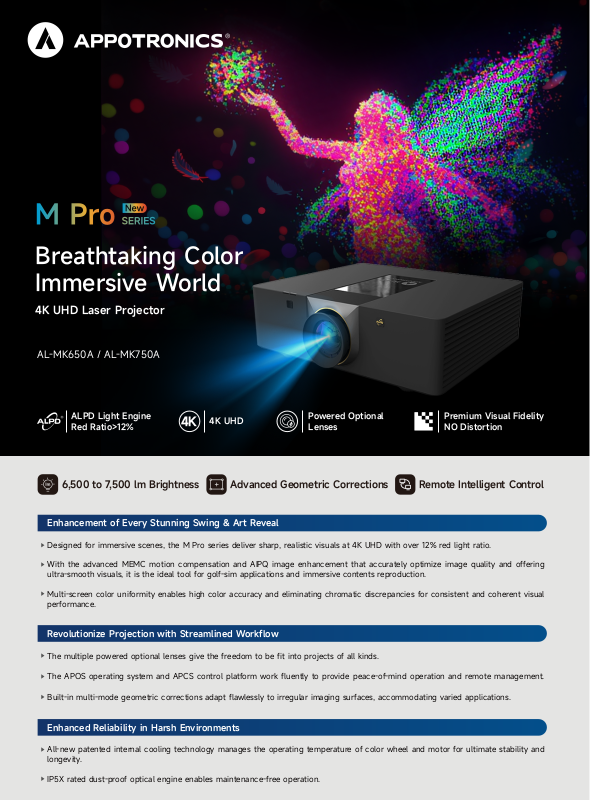

Page 1
Breathtaking Color
Immersive World
4K UHD Laser Projector
AL-MK650A / AL-MK750A
ALPD Light Engine
Red Ratio>12%
4K UHD
Powered Optional
Lenses
Premium Visual Fidelity
NO Distortion
Remote Intelligent Control6,500 to 7,500 lm Brightness Advanced Geometric Corrections
Enhancement of Every Stunning Swing & Art Reveal
Designed for immersive scenes, the M Pro series deliver sharp, realistic visuals at 4K UHD with over 12% red light ratio.
With the advanced MEMC motion compensation and AIPQ image enhancement that accurately optimize image quality and offering
ultra-smooth visuals, it is the ideal tool for golf-sim applications and immersive contents reproduction.
Multi-screen color uniformity enables high color accuracy and eliminating chromatic discrepancies for consistent and coherent visual
performance.
Revolutionize Projection with Streamlined Workflow
The multiple powered optional lenses give the freedom to be fit into projects of all kinds.
The APOS operating system and APCS control platform work fluently to provide peace-of-mind operation and remote management.
Built-in multi-mode geometric corrections adapt flawlessly to irregular imaging surfaces, accommodating varied applications.
Enhanced Reliability in Harsh Environments
All-new patented internal cooling technology manages the operating temperature of color wheel and motor for ultimate stability and
longevity.
IP5X rated dust-proof optical engine enables maintenance-free operation.
Page 2
Technical Specification
Model
Display Technology
Panel Size
Resolution
②
⑦
Video
Interfaces
Audio
Interfaces
Control
Interfaces
Standard
Standby
⑧
Measurements
④
Weight
Temperature
Humidity
①
⑥
③
⑤
Brightness Output
Light Source Lifetime
Contrast
Uniformity
Display Gamut
Optional Lenses
Screen Size
Geometric
Correction
Optical Axis Shift
Input Resolution
Terminal
Interfaces
Power Supply
Power
Consumption
Orientation
Noise
Structure
Working
Environment
①Based on ISO21118 standard. ② Full white/full black. ③ Not including protruding parts. ④ Including standard lens. Average value may vary from individuals. ⑤ Operation temperature will be 0℃-35℃ when working under high
altitude condition. Likewise, projection brightness will be reduced 50% if the ambient temperature exceeds 35℃. ⑥ The stated lifespan refers to the approximate usage time from the initial use of the projector until the light source
luminosity decreases to 50%, based on accelerated testing results under simulated usage environments. This duration is not a guaranteed figure, as actual longevity may vary significantly depending on usage patterns, environmental
conditions, and user habits. The brightness degradation of the projector mainly stems from laser light source attenuation, though it is not equivalent to direct laser source degradation. Operating in low-brightness mode can effectively extend the service life of the laser light source. ⑦ Calculated based on the equivalent area of the color gamut. ⑧ The test data was obtained at an environmental temperature of 25 ° . ⑨ The goods need to be pre-ordered three
months in advance.
AL-MK650A AL-MK750A
DLP*1, DLP Projection System
0.47″DMD
3840×2160
6,500lm 7,500lm
20，000h
≥100,000:1
95%
Rec.709
0.5:1（manual），0.7-0.9:1，1.0-1.6:1，1.54-2.48:1
80-300″
Vertical & Horizontal Adjustment: V: ±35°，H：±35°
4-Point Keystone Correction， Curved Surface Correction (9 Ponits), Multi-Point Correction
Vertical: ±100%， Horizontal: ±40%，Powered
4K 60HZ，1080P 120HZ
HDMI in ×2；HDMI out ×1；USB-A×2（Supports 5V/2A）；
S/PDIF×1
LAN(RJ45)×1；RS232(DB9)×1；3D SYNC×2(in/out)；3D IR OUT×1；USB-B×1
100~240VAC 50/60Hz
≤550W ≤600W
≤0.5W
360°Installation
36dB(Normal Mode)
460mm×388mm×138mm
12.5kg(Lens not included)
0℃~40℃（35℃~40℃ ECO Mode）
10%~85%（No Condensation）
Optional Lenses
Model
Type
Throw Ratio
Zoom/
Focus Mode
AL-ML050FR
Short focus
0.5:1
Manual Focus
AL-ML070FR
Short focus
0.7 ~ 0.9:1
Motorized Focus & Zoom
AL-ML100MA
Standard
1.0 ~ 1.6:1
Motorized Focus & Zoom
Product dimensions
Power Input
φD
Rear Infrared Remote
Control Window
Button Control Area
Adjustable feet ×2
Ceiling mount holes×4
specifications M4×12
Front infrared remote
control window
Lens Release
Button
Indicator
light
I/O Interface Area
Appotronics Corporation Ltd.
Address: Appotronics Headquarters Tower, No. 8, Xiandong Road, Nanshan District, Shenzhen,Guangdong,China
Email: [email protected] Web: en.appotronics.com
AL-ML153MA
Telephoto
1.54 ~ 2.48:1
Motorized Focus & Zoom
L (Overall length, including lens)
