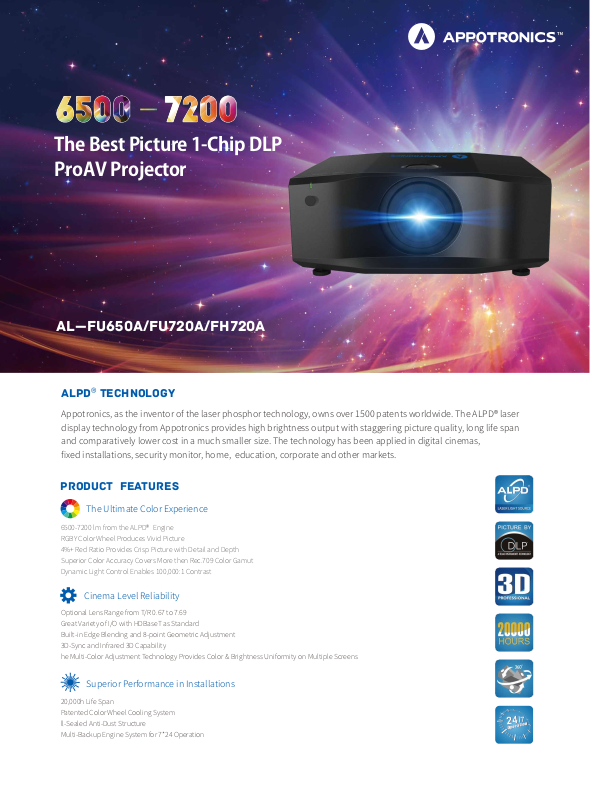

Page 1
The Best Picture 1-Chip DLP
ProAV Projector
AL—FU650A/FU720A/FH720A
ALPD® Technology
Appotronics, as the inventor of the laser phosphor technology, owns over 1500 patents worldwide. The ALPD® laser
display technology from Appotronics provides high brightness output with staggering picture quality, long life span
and comparatively lower cost in a much smaller size. The technology has been applied in digital cinemas,
fixed installations, security monitor, home, education, corporate and other markets.
product features
The Ultimate Color Experience
6500-7200 lm from the ALPD® Engine
RGBY Color Wheel Produces Vivid Picture
4%+ Red Ratio Provides Crisp Picture with Detail and Depth
Superior Color Accuracy Covers More then Rec.709 Color Gamut
Dynamic Light Control Enables 100,000:1 Contrast
Cinema Level Reliability
Optional Lens Range from T/R 0.67 to 7.69
Great Variety of I/O with HDBaseT as Standard
Built-in Edge Blending and 8-point Geometric Adjustment
3D-Sync and Infrared 3D Capability
he Multi-Color Adjustment Technology Provides Color & Brightness Uniformity on Multiple Screens
Superior Performance in Installations
20,000h Life Span
Patented Color Wheel Cooling System
ll-Sealed Anti-Dust Structure
Multi-Backup Engine System for 7*24 Operation
Page 2
Technical Specification
Product Series
Projection Technology
Chip Specifications
Resolution
Luminance Output
Light Source Types
Life
Contrast
Uniformity
Color
Edge Blending
Lens
Projection Size
Keystone Correction
Lens Shift
Input Resolution
AL-FU650A
TM
chip x1
DLP
0.67" DMD
1920×1200, WUXGA
6500 lumens
(light source mode: normal)
Optional motorized zoom and focus lens 0.67:1, 0.87:1, 1.3-1.68:1, 1.62-2.92:1, 2.86-4.85:1, 4.68-7.96:1
Vertical-50% to +80%,
Horizontal ± 20%, electric
1920x1200 pixels (higher resolution
will be scaled into1920x1200 pixels)
AL-FU720A
TM
chip x1
DLP
0.67" DMD
1,920×1,200,WUXGA
7200 lumens
(light source mode: normal)
ALPD laser light source (Laser class:class1)
20,000h(Laser mode: normal)
100,000 :1
90%
Rec.709
Horizontal and vertical edge blending
40" to 600" (projection distance depending on lens)
Vertical / horizontal ± 20 °
Vertical-50% to +80%,
Horizontal ± 20%, electric
1920x1200 pixels (higher resolution
will be scaled into1920x1200 pixels)
AL-FH720A
TM
chip x1
DLP
0.65" DMD
1920×1080, 1080P
7200 lumens
(light source mode: normal)
Vertical-56% to +89%,
Horizontal ± 21%, electric
1920x1080 pixels (higher resolution
will be scaled into1920x1080pixels)
AV Input
Power Specificationsn
Operating Power Consumption
Standby Power Consumption
Methods
Noise Levels
Dimensions
Weight
Working Temperature
Operating Humidity
Accessories
Optional Lenses
0.62
0.8
DVI-D × 1/HDMI× 1 /D-Sub HD × 1/BNC × 5，BNCx1/D-sub 9-pin x1 M3x1 (input/output)/RJ-45x1
100-220V AC, 50/60HZ
Normal mode 520W/650W
Ordinary energy saving 7W/standby 0.5W
360 ° free installation
32dB/35dB
17.9"X17.9"X7"/455mmx 455mmx180mm
44Ib/20kg
0℉-104℉(95℉ ‒ 104℉ Energy saving mode)/0°C-40°C(35°C-40°CEnergy saving mode)
20%~80%; No condensation
Power cable, HDMI cable, wireless/wired remote control unit, remote control, batteries,
software CD-ROM, warranty card, instruction manual
1.3~1.68 1.62~2.92 2.86~4.85 4.68~7.96
X1.7X1.7X1.7X1.3FixedFixed
Throw Ratio 0.62-7.96
6 lens optional
APPOTRONICS CO.,LTD.
For more information about Appotronics projector, please visit: www.appotronicsusa.com
1. All brightness and contrast figures mentioned in this document is in accordance with the ISO 21118 standard. The listed figures represent the average value in mass production;
2. The life span of the light source can be influenced by many factors including display modes, usage and others; 3. Measurements and measuring conditions of values mentioned in
this document are all in accordance with ISO 21118；4. Copyright Appotronics Co., Ltd. DLP, DLP logo and DLP Medallion logo are trademarks or registered trademarks of Texas Instruments；
