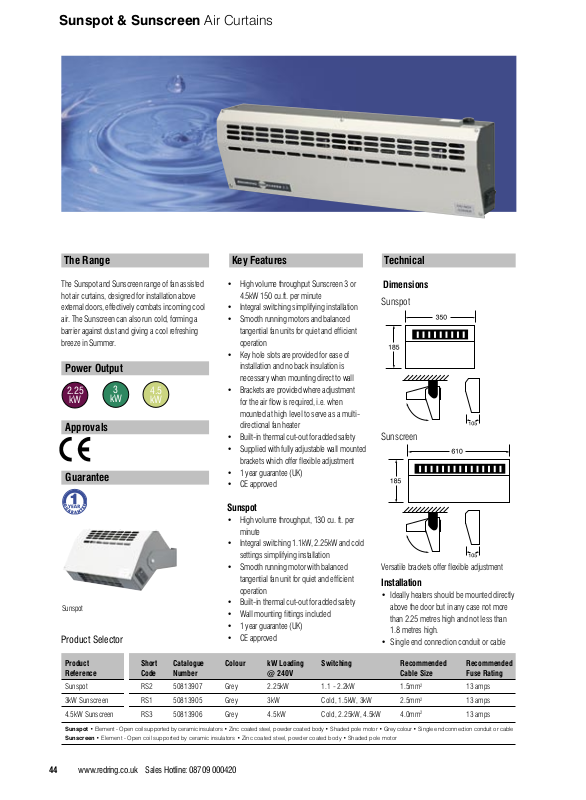

Sunspot & Sunscreen Air Curtains

The Sunspot and Sunscreen range of fan assisted
hot air curtains, designed for installation above
external doors, effectively combats incoming cool
air. The Sunscreen can also run cold, forming a
barrier against dust and giving a cool refreshing
breeze in Summer.

• High volume throughput Sunscreen 3 or

4.5kW 150 cu.ft. per minute

• Integral switching simplifying installation

• Smooth running motors and balanced
tangential fan units for quiet and efficient
operation

• Key hole slots are provided for ease of
installation and no back insulation is
necessary when mounting direct to wall

• Brackets are provided where adjustment
for the air flow is required, i.e. when
mounted at high level to serve as a multi­ directional fan heater

• Built-in thermal cut-out for added safety

• Supplied with fully adjustable wall mounted
brackets which offer flexible adjustment

• 1 year guarantee (UK)

• CE approved

Sunspot

• High volume throughput, 130 cu. ft. per
minute

• Integral switching 1.1kW, 2.25kW and cold
settings simplifying installation

• Smooth running motor with balanced
tangential fan unit for quiet and efficient
operation

• Built-in thermal cut-out for added safety

• Wall mounting fittings included

• 1 year guarantee (UK)

• CE approved

Dimensions

Product Short Catalogue Colour kW Loading Switching Recommended Recommended
Reference Code Number @ 240V Cable Size Fuse Rating

Sunspot RS2 50813907 Grey 2.25kW 1.1 - 2.2kW 1.5mm2 13 amps

3kW Sunscreen RS1 50813905 Grey 3kW Cold, 1.5kW, 3kW 2.5mm2 13 amps

4.5kW Sunscreen RS3 50813906 Grey 4.5kW Cold, 2.25kW, 4.5kW 4.0mm2 13 amps

Sunspot • Element - Open coil supported by ceramic insulators • Zinc coated steel, powder coated body • Shaded pole motor • Grey colour • Single end connection conduit or cable

Sunscreen • Element - Open coil supported by ceramic insulators • Zinc coated steel, powder coated body • Shaded pole motor

3

kW

4.5
kW

Sunspot

44 www.redring.co.uk Sales Hotline: [phone]

Installation

• Ideally heaters should be mounted directly
above the door but in any case not more
than 2.25 metres high and not less than

1.8 metres high.

• Single end connection conduit or cable

Sunspot

Versatile brackets offer flexible adjustment

Sunscreen

Product Selector

Power Output

Guarantee

Approvals

2.25
kW

TechnicalKey FeaturesThe Range

Guarantee

Approvals

Sunfan Wall Mounted Fan Heater

The Sunfan is a robust 3kW high volume air
throughput commercial/industrial wall mounted fan
heater designed to provide highly efficient heating
in winter, or cool air circulation in Summer.

• High air volume throughput of 300m3/hour

• Quiet running, totally enclosed motor

• Wall mounted with 2 part self supporting
bracket

• Multi-directional adjustment of 45°
vertically and 150° horizontally with single
screw locking

• Remote control switch available as an
option to provide a cool air circulation
facility

• 1 year guarantee (UK)

• BEAB and CE approved

Accessories

The dual control switch can be used to control
the Sunfan remotely, switching it both on and
off and to fan only, for cool air circulation in
the summer.

Product Short Catalogue kW Loading kW Loading Fan only Heater & fan Element
Reference Code Number @ 230V @ 240V @ 1m @3m @ 1m @3m Type

Sunfan SF3 50816401 3kW 3kW 49.5dBA 41.4dBA 47.9dBA 40.5dBA Open wound spiral

Dual Control Switch DCS 82815906 - - - - - - -

Sunfan • Flame retardant polycarbonate / glass filled nylon body • Single phase, 4 pole motor • Two tone grey (neutral colours)

• Safety features - Two thermal cut-outs, double insulated.

Dimensions

Installation

• Fan heating is not recommended for
rooms greater than 5 metres (15ft) high.

3

kW

www.redring.co.uk Sales Hotline: [phone] 45

Product Selector

Power Output

Guarantee

Approvals

TechnicalKey FeaturesThe Range

Power Output

Guarantee

Approvals

Sunbase Plinth Fan Heater

The Sunbase is an integrally controlled space
saving fan heater which provides warmth in winter
or cool air in summer. Specially designed to
occupy the space beneath cupboards, counters,
display units or plinth mounted in fitted kitchens.

Sunbase

• Saves valuable wall and floor space

• Low level mounting gives good heat
circulation

• SB1 integral switching simplifies fitting in
existing units

• Built-in variable capillary thermostat for
convenience and energy efficiency

• 2 heat settings 1kW - 2kW plus fan only
operation

• Built-in neon indicator

• Over temperature cut-out for safety

• Central support flange for easy installation

• Fit as initial equipment or retrofit in
existing units

• CE approved

Sunbase

Product Short Catalogue Colour kW Loading Heat Recommended Recommended
Reference Code Number @ 240V Setting Cable Size Fuse Rating

Sunbase SB1 50815404 Grey 2.0kW 1.0 - 2.0kW 1.5mm2 13 amps

Sunbase • Ele

2

kW

46 www.redring.co.uk Sales Hotline: [phone]

Dimensions

Product Selector

TechnicalKey FeaturesThe Range

Guarantee

Approvals

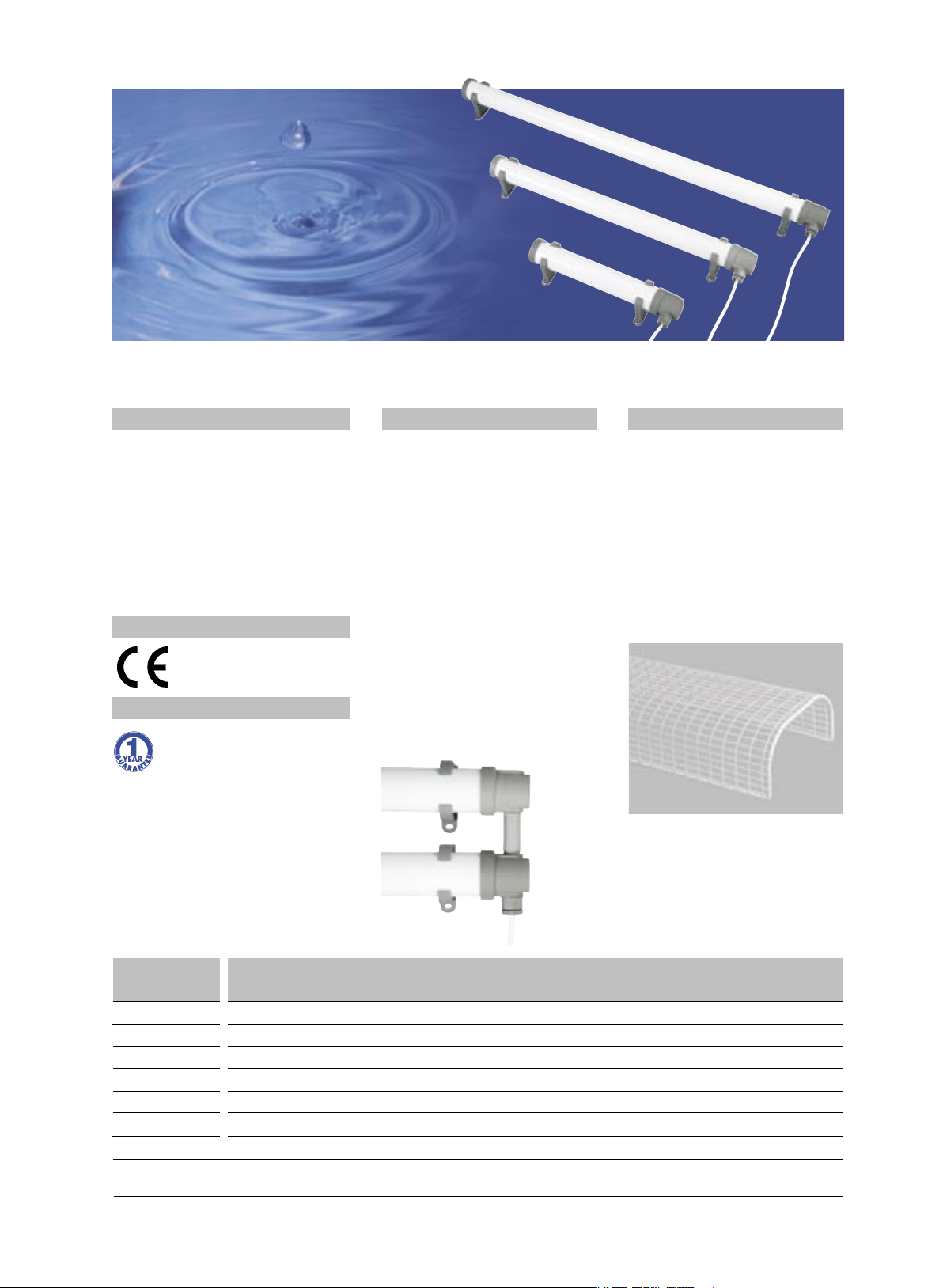

Suntube Tubular Heater

Suntubes are the perfect answer where a steady
energy efficient source of heat is needed, providing
gentle background warmth and frost protection for
both domestic and commercial applications. They
are highly effective as window demisters and for
horticultural use, providing invaluable, effective
heating and frost protection in greenhouses
and conservatories.

• 60-360W outputs @ 240V

• A range of 6 lengths and loadings

• Complete with universal mounting brackets
for floor or wall fixing and 1m of white
cable

• Optional interlinking kit available for
multiple installations (100mm mounting
centres)

• Can be stacked using purpose designed
inter-linking kit for greater degree of heating

• 1 year guarantee (UK)

• CE approved

• IPX4

Accessories

Interlinking Kit

Product Catalogue Suntube Guard Rating Length Diameter Depth
Reference Number Short Code Short Code 230-240V (mm) (mm) (mm)

Suntube 410 51731110 ST1 STG1 60 Watts 410 52 75

Suntube 670 51731101 ST2 STG2 120 Watts 670 52 75

Suntube 980 51731102 ST3 STG3 180 Watts 980 52 75

Suntube 1280 51731103 ST4 STG4 240 Watts 1280 52 75

Suntube 1590 51731105 ST5 STG5 300 Watts 1590 52 75

Suntube 1890 51731104 ST6 STG6 360 Watts 1890 52 75

Interlinking Kit 85731506 ILK - - - - -

Suntube • Elements - Metal sheathed throughout • Polyester epoxy powder coated aluminium body for corrosion resistance • Two Tone Grey colour

• High temperature glass filled nylon end caps/fixing brackets • Single end connection, conduit or cable

Product Selector

www.redring.co.uk Sales Hotline: [phone] 47

Dimensions

See Product Selector table below

Note

We recommend the use of guards for
additional safety in sensitive areas such as
schools, hospitals and old peoples homes.
These can be obtained from C.Aino Ltd.
Tel: [phone] quoting the short guard
code

TechnicalKey FeaturesThe Range

Power Output

Guarantee

Approvals

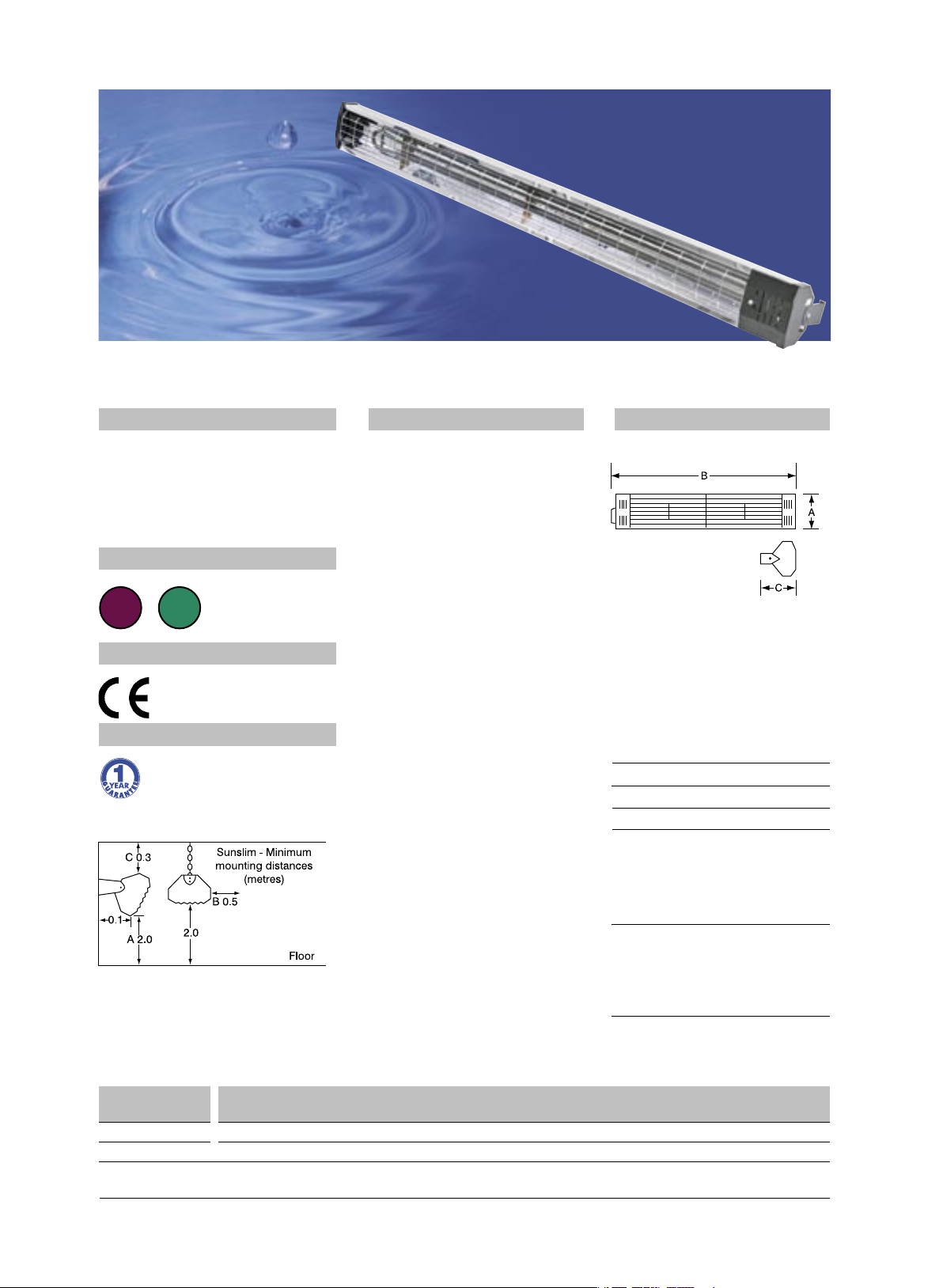

Sunslim Radiant Heater

The Sunslim is a low cost, robust and easy to
install radiant heater. Its tilt mounting allows heat
to be localised, or directed at a general area. The
Sunslim can be wall-mounted or ceiling hung.

Product Short Catalogue Rating A Height B Width C Depth
Reference Code Number 230-240V

2kW Sunslim SL2 51804902 2kW 108mm 1215mm 71mm
3kW Sunslim SL3 51804903 3kW 108mm 1671mm 71mm

Sunslim • Element - Metal sheathed throughout • Zinc coated steel body • Chrome plated steel guards • Matt black with bright zinc body • Single end

connection • Anodised aluminium reflector • Installation notes: High temperature cable must be used. We recommend the use of a residual current device (RCD)

• Instant, directional radiant heat

• Available in 2 and 3kW versions

• Completely silent in operation

• Lightweight, robust and good looking

• Corrosion resistant

• Suitable for bracket or chain mounting

• Easy to install

• Overhead mounting means no loss of floor
space

• Ideal for localised heating in large covered
areas

• 1 year guarantee (UK)

• CE approved

Installation

When planning a Radiant Heating installation,
refer to Table 1 to select the application and type
of environment you wish to heat.

Table 2 shows the area that can be heated by a
single Sunslim Radiant Heater in 3kW and 2kW
variants.

Note: Heating areas can be overlapped to
achieve the necessary heating index.

Installation Notes

• High temperature cable must be used. We
recommend the use of a residual current
device (RCD)

Applications Heating Index

Offices, Canteens, Waiting Rooms,

Entrance Halls, Dressing Rooms 10-14

Shops, Meeting Halls, Recreation Rooms, Clubs 12-16

Workshops, Garages, Public Buildings 14-18

Warehouses, Loading Bays, Hangars 16-20

Churches 18-20

Table 1 - Sunslim Heating Index

Heating 3kW 2kW
index H L W H L W

10 4.0 5.24 5.49 3.3 4.11 4.53
12 3.6 4.88 4.94 3.0 3.84 4.12
14 3.2 4.51 4.39 2.7 3.57 3.70
16 3.5 4.33 4.12 2.5 3.38 3.43
18 2.8 4.14 3.84 - - -

H = mounting height (determined by on-site
requirements), L = length of the heated area,
W = width of the heated area

Table 2 - Sunslim Heated Area

3

kW

2

kW

48 www.redring.co.uk Sales Hotline: [phone]

Product Selector

Dimensions

• Minimum mounting height 2 metres

• 300mm minimum clearance above the heater

• 500mm minimum clearance on either side

TechnicalKey FeaturesThe Range

Power Output

Guarantee

Approvals

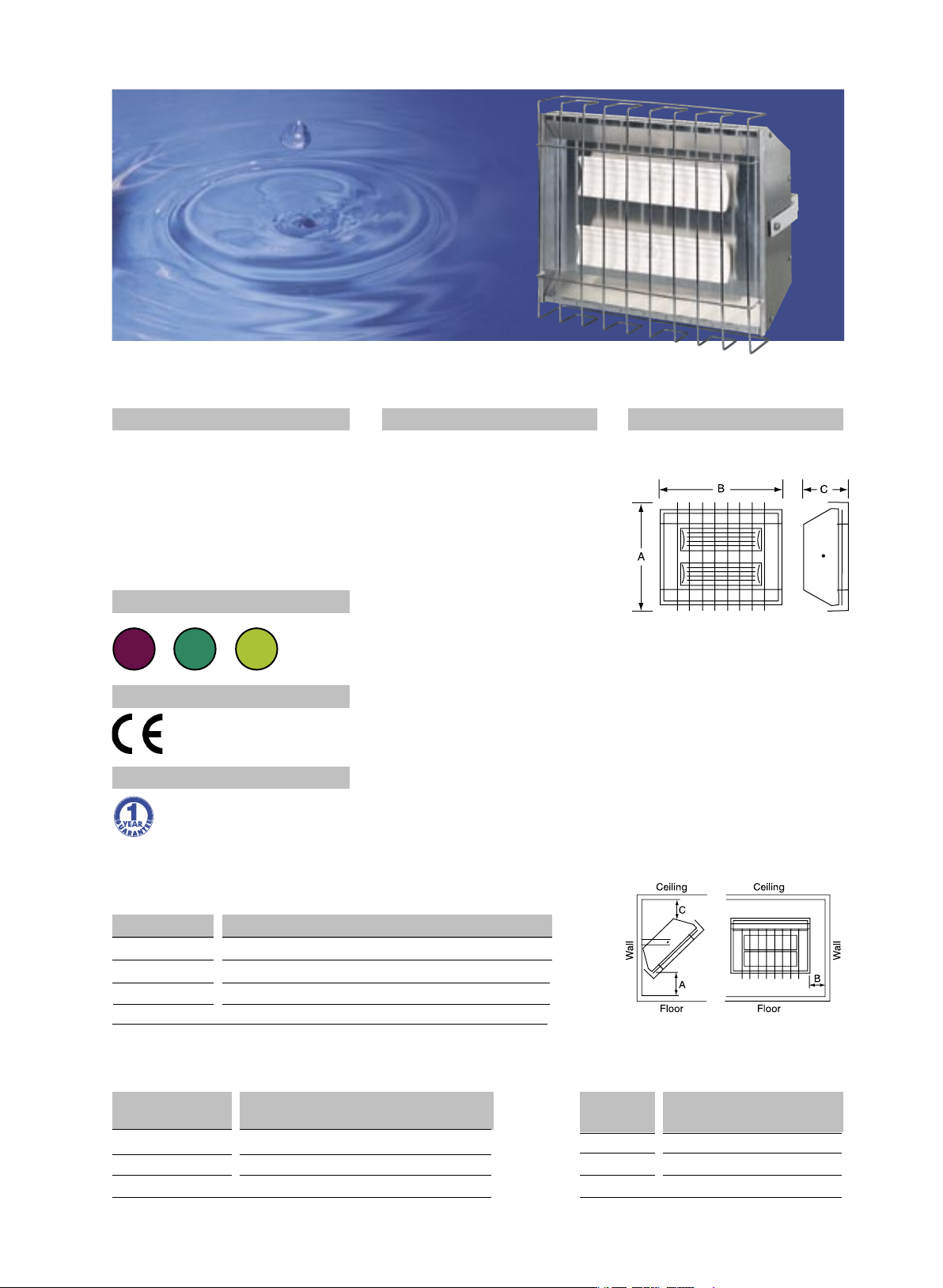

Ceramic Radiant Heater

Long wave infra-red heaters offer highly efficient,
silent, glare free localised heat. These heaters
incorporate dual ceramic emitters to rapidly
convert electrical energy into heat energy without
producing light. With no moving parts these
heaters are virtually maintenance-free.

• Durable ceramic emitters which rapidly
convert electrical energy into heat energy

• Available in 2, 3 and 4.5kW versions

• No fans or moving components so no dust
contamination to the environment

• Low maintenance

• Good vibration resistance

• Fitted with guards for personal protection

• Robust fitting brackets

• 1 year guarantee (UK)

• Silent

• CE approved

Dimensions

Installation

Dimensions Ceramic Model 2/3kW
A Height 340mm B Width 376mm
C Depth 140mm

Dimensions Ceramic Model 4.5kW
A Height 440mm B Width 376mm
C Depth 140mm

For mounting dimensions please refer
to the specification table below.

Product Short Catalogue Rating
Reference Code Number

2 kW Ceramic CR2 71821541 2kW

3 kW Ceramic CR3 71821542 3kW

4.5 kW Ceramic CR45 71821543 4.5kW

Area of Coverage at Minimum Mounting Height

Heating index Applications 2kW 3kW 4.5kW

130-150W/m2 Shops, Meeting Halls 7.2m2 12.0m2 18.8m

2

150-170W/m2 Offices, Canteens 6.8m2 11.3m2 17.7m

2

170-200W/m2 Workshops, Garages 6.0m2 10.0m2 15.7m

2

220-240W/m2 Churches 4.7m2 7.8m2 12.3m

2

4.5
kW

3

kW

2

kW

www.redring.co.uk Sales Hotline: [phone] 49

Product Selector

A B C

2kW 1800 300 200

3kW 2500 300 300

4.5kW 3000 500 500

Mounting Dimensions

Rating

InstallationsKey FeaturesThe Range

Guarantee

Approvals

Sunquartz Infra-red Heaters

The sensation and welcome of instant heat right
where it’s needed. Sunquartz short wave infra-red
heaters warm people, not the air. Their uses are
endless, from warehouses to churches. These
efficient sun-like heaters can penetrate damp air
with little waste to the atmosphere. A cost efficient
way to heat large open spaces.

• Up to 90% efficient at converting electricity
into energy

• Instant visible heat at switch on

• Penetrates damp air with minimum

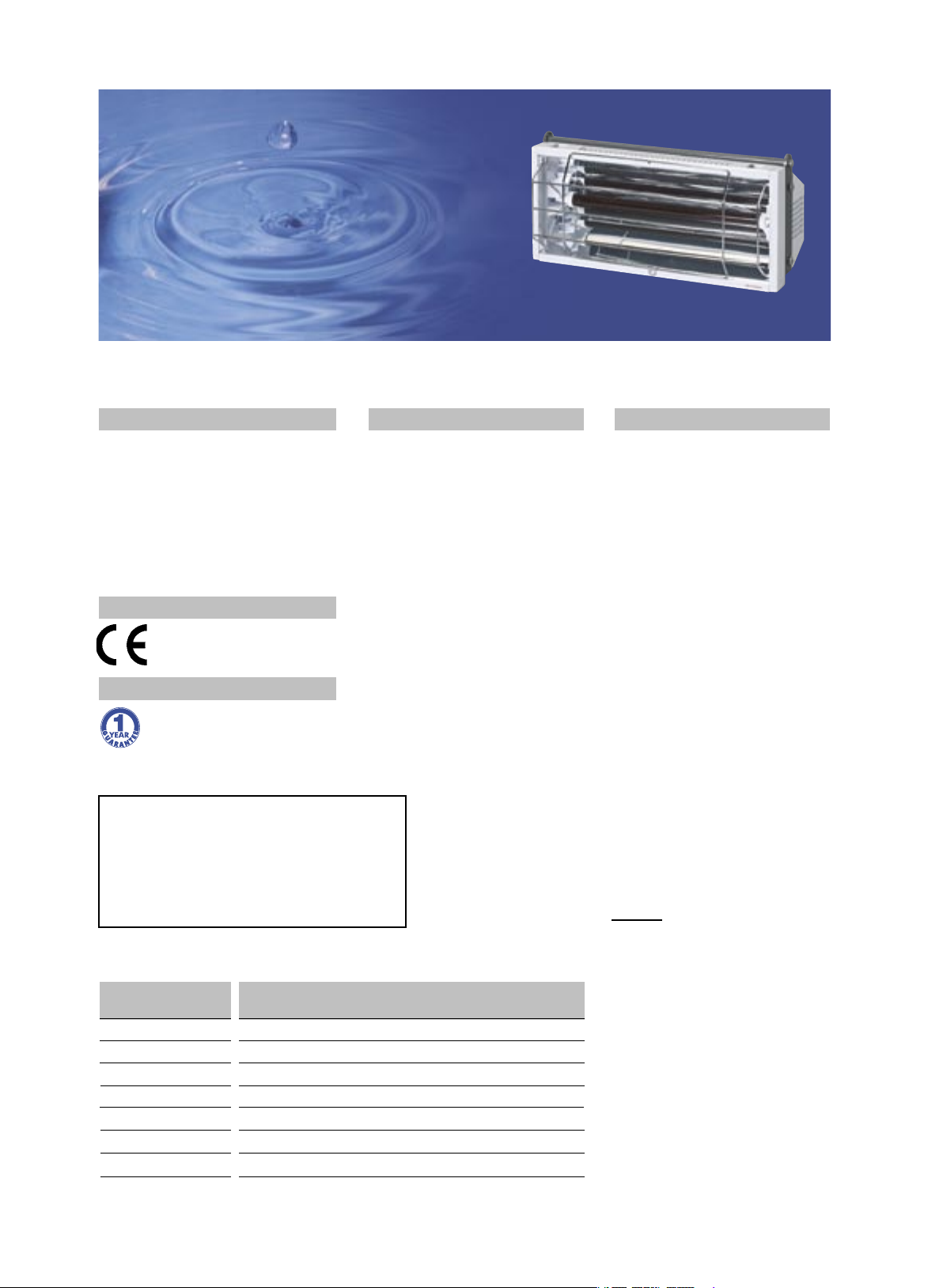

atmospheric heat loss

• Absolutely silent in operation

• Long range heat projection

• Modular design blends with all
environments

• Lightweight and silent

• Fitted with wire guard for safety

• 1 year guarantee (UK)

• CE approved

• High temperature cable must be used

• Miniature circuit breakers (type 3) must be used

• The heaters must never be rotated to face a
wall, ceiling or floor

• Units may be installed from the ceiling but
MUST be mounted at an angle

• Maximum benefit is gained from receiving
heat from both sides

• Prior to installation check that no hazardous
vapours will be present in the immediate
atmosphere

Use the following procedure when planning
a SunQuartz heating installation for buildings
having a floor area of up to 500m

2

1 Make a scaled plan of the area to be
heated, noting possible mounting heights and
positions

2 Determine the overall heating requirements

W x Y x K = Total kW loading
1000

Key:
W = Length to be heated in metres
Y = Width to be heated in metres
K = Intensity watts per m2, determined from

Heating Index Table 1

3 Determine the number of SunQuartz
heaters by dividing the kW rating of the
selected units into the total kW loading from
stage 2

Product Short Catalogue Rating Number Of Spare Tube
Reference Code Number Lamps Number

Sunquartz 1.5kW SQ 1.5 55821202 1.5 kW 1 85821421

Sunquartz 2.0kW SQ 2.0 55821203 2.0 kW 1 85822171

Sunquartz 3.0kW SQ 3.0 55821204 3.0 kW 2 85821421

Sunquartz 4.0kW SQ 4.0 55821205 4.0 kW 2 85822171

Sunquartz 4.5kW SQ 4.5 55821207 4.5 kW 3 85821421

Sunquartz 6.0kW SQ 6.0 55821208 6.0 kW 3 85822171

Automatic Controller 85822084

Sunquartz - Heating Index (K) Recommended Applications

130 - 170 Shops, Meeting halls, Recreation rooms, Clubs
150 - 170 Offices, Canteens, Waiting rooms, Entrance halls
150 - 200 Workshops, Garages, Public buildings
180 - 220 Warehouses, Loading bays, Hangars
220 - 240 Churches

50 www.redring.co.uk Sales Hotline: [phone]

Product Selector

Table 1

Please refer to Pages 52/53

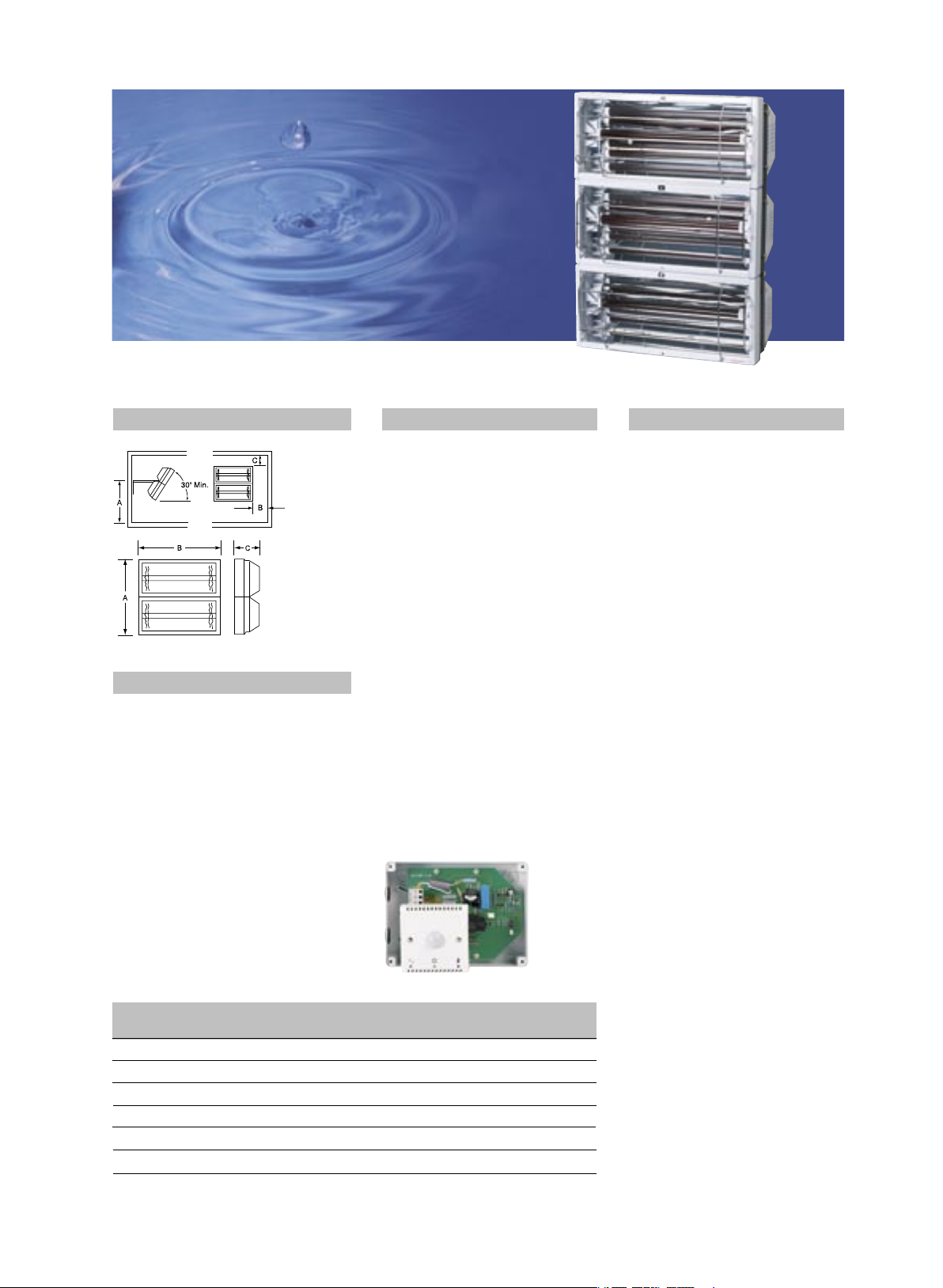

TechnicalDimensions

Sunquartz Infra-red Heaters

This automatic controller, which senses
movement by passive infra-red techniques,
will automatically switch on the Sunquartz
whenever movement is detected within its
range. The heater will remain switched on
for a preset time after the last movement
is detected and then will switch off
automatically. The unit is suitable for
220V/240V single phase operation and will
switch 500W-6000W of heaters.

Soft start circuitry is incorporated to reduce
the inrush current allowing cables and
fusegear to be rated as for resistive loads and
extending lamp life. The unit is wall mounted
and its passive infra-red sensor must face
the same directional plane as the heater. The
P I R range is adjustable and a temperature
hold off facility will inhibit operation when
ambient temperatures exceed a value selected
between 10° and 20°C.

Product Dimensions

Model Dimensions mm Min Mounting Distances
A Height B Width C Depth A mm B mm C mm

Sunquartz 1.5kW 185 390 115 1800 300 300

Sunquartz 2.0kW 185 390 115 2500 300 300

Sunquartz 3.0kW 340 390 115 3000 500 500

Sunquartz 4.0kW 340 390 115 3000 500 500

Sunquartz 4.5kW 510 390 115 3000 500 500

Sunquartz 6.0kW 510 390 115 4000 500 500

• Heaters
Tungsten halogen lamps, 240/230 volt
rating, with ruby red quartz outer sleeve,
7000 hours rated average life

• Reflectors
Bright rolled, specular 99.8% aluminium,
electro-chemically brightened

• Case
Electro zinc coated steel

• End Castings
High pressure die cast aluminium

• Finish
Epoxy polyester powder paint

• Colour
Case: BS4800 00A13 White side bars and
brackets: BS4800 0013 Grey

• Connection
Rear connection to terminal block via cable
clamp

• Voltage
The 1 and 2 lamp units are suitable
for a 230-240V single phase supply
only. The 3 lamp units are supplied wired
for 230-240V single phase supply, but
can be connected to a 380-415 volt three­ phase supply

www.redring.co.uk Sales Hotline: [phone] 51

Automatic Controller

Lamp Options

Sunquartz heaters are supplied with Tungsten
halogen lamps fitted with ruby red outer
sleeves as standard.
