When using electrical appliances, basic safety precautions should always
be followed, including the following:
❑
Read all instructions.
❑
Do not touch hot surfaces. Use handles or knobs.
❑
To protect against risk of electrical shock, do not immerse cord, plug, or
any non-removable parts of this oven in water or other liquid.
❑
Close supervision is necessary when any appliance is used by or near
children.
❑
Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts.
❑
Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions or is dropped or damaged in any manner.
Return the appliance to the nearest authorized service facility for
examination, repair, or electrical or mechanical adjustment. Or, call the
appropriate toll-free number listed on the cover of this manual.
❑
The use of accessory attachments not recommended by the appliance
manufacturer may cause injuries.
❑
Do not use outdoors.
❑
Do not let cord hang over edge of table or counter, or touch hot
surfaces.
❑
Do not place on or near a hot gas or electrical burner, or in a heated
oven.
❑
Extreme caution must be used when moving an appliance containing
hot oil or other hot liquid.
❑
Turn all controls to OFF before inserting or removing plug from wall
outlet.
❑
Do not use appliance for other than intended use.
❑
Oversize foods or metal utensils must not be inserted in this appliance,
as they may create a fire or risk of electric shock.
❑
To turn off toasting, press stop. To stop cooking or baking turn the
control
to stop.
❑
Do not place any of the following materials in the oven: paper,
cardboard, plastic wrap, and the like.
❑
To disconnect, grasp plug and remove from outlet. Do not pull by the
cord.
❑
A fire may occur if the appliance is covered or touching flammable
material including curtains, draperies, walls and the like, when in
operation. Do not store any item on top of unit when in operation.
❑
Do not clean with metal scouring pads. Pieces can break off the pad
and touch electrical parts resulting in a risk of electric shock.
❑
Do not store any material, other than manufacturer's recommended
accessories, in this oven when not in use.
❑
Extreme caution should be used when using containers constructed of
other than metal or glass.
❑
Do not cover crumb tray or any parts of the oven with metal foil. This
will cause overheating of the oven.
❑ To stop toasting, baking or broiling function, press the
START/STOP
button.
IMPORTANT SAFEGUARDS
ELECTRICAL CORD
a) A short power-supply cord (or detachable power-supply cord) is to be
provided to reduce the risk resulting from becoming entangled in or tripping
over a longer cord.
b) Longer detachable power-supply cords or extension cords are available and
may be used if care is exercised in their use.
c) If a long detachable power-supply cord or extension cord is used,
1) The marked electrical rating of the detachable power-supply cord or extension
cord should be at least as great as the electrical rating of the appliance,
2) If the appliance is of the grounded type, the extension cord should be a
grounding-type 3-wire cord, and
3) The longer cord should be arranged so that it will not drape over the
countertop or tabletop where it can be pulled on by children or tripped over.
SAVE THESE INSTRUCTIONS.
FC100Pub179685RV1 6/1/05 2:19 PM Page 2
Page 3
4
3
Congratulations on your purchase of the Infrawave™ Speed Cooking Countertop
Oven – the latest in cooking technology! The Infrawave™ Speed Cooking
Countertop Oven uses specific wavelengths in the electromagnetic spectrum. This
allows it to deliver the benefit of speed and the ability to cook a broad range of
foods to perfection.
There’s no wasted energy as with conventional ovens and none of the uneven
cooking you get with microwaves. Superior browning and crisping capabilities seal
in flavor — cooking meat, poultry and fish dishes to perfection. You’ll also get the
perfect toast every time.
With your Infrawave™ Speed Cooking Countertop Oven you'll enjoy:
•FASTER COOKING TIMES WITH NO PREHEATING
• Superior browning and crisping
• Even cooking on all types of food
• Energy and time savings
• Easy-to-use control options
HOW IS THE INFRAWAVE™OVEN DIFFERENT?
During cooking, the interior lights will cycle on and off. This is because the
Infrawave™ Oven doesn’t cook by a specific temperature. It cooks by cycling its
heater lights on and off according to the type of food you wish to prepare. This
"intelligent profiling" provides advanced cooking performance over conventional
ovens.
For example, when baking cookies, here is the difference between a conventional
oven and the Infrawave™ Oven.
Conventional Oven: Infrawave™ Oven:
Preheat oven to 350°. Place cookies in oven.
Wait approximately 10 minutes Press
for oven to preheat.
Bake at 350° for approximately Press again to accept default time
13 minutes. of 7 minutes (for most cookies).
The Infrawave™ Oven heater lights will
cycle on and off appropriately for baking
cookies. It’s that simple!
Should you have any questions or concerns, our dedicated Customer Service team
is ready to assist you.
Applica Customer Service
– Call us at 1-800-231-9786, 24 hours a day, 7 days a week.
– Visit us online at www.blackanddecker.com
†1. Slide rack (Part # 173820-00)
2. Curved glass door
3. Door handle
4. Digital control panel
†5. Slide-out, removable crumb tray (Part # 1000000730-00)
†6. Broil rack (Part # 179706-00)
†7. Bake pan (Part # 179705-00)
8. Heater lights
†Consumer replaceable
Product may vary slightly from what is illustrated.
FC100Pub179685RV1 6/1/05 2:19 PM Page 4
Page 4
5
6
FUNCTIONS
POWER
Turn the unit on and off. When you are finished cooking, remember to turn
off and unplug unit.
START/STOP
Press once to begin any cooking cycle.
During cooking, press once to Stop any cooking cycle.
Press twice to exit programming.
UP/DOWN ARROWS
Press to scroll through food selections and to adjust cooking time.
(Selections “wrap around” allowing you to scroll through all choices)
OPTIONS
With most cooking functions, the Infrawave oven gives you the option of increasing
or decreasing the cooking time even while it is cooking.
QUICK PICKS (PIZZA, COOKIES & QUICK FOOD buttons)

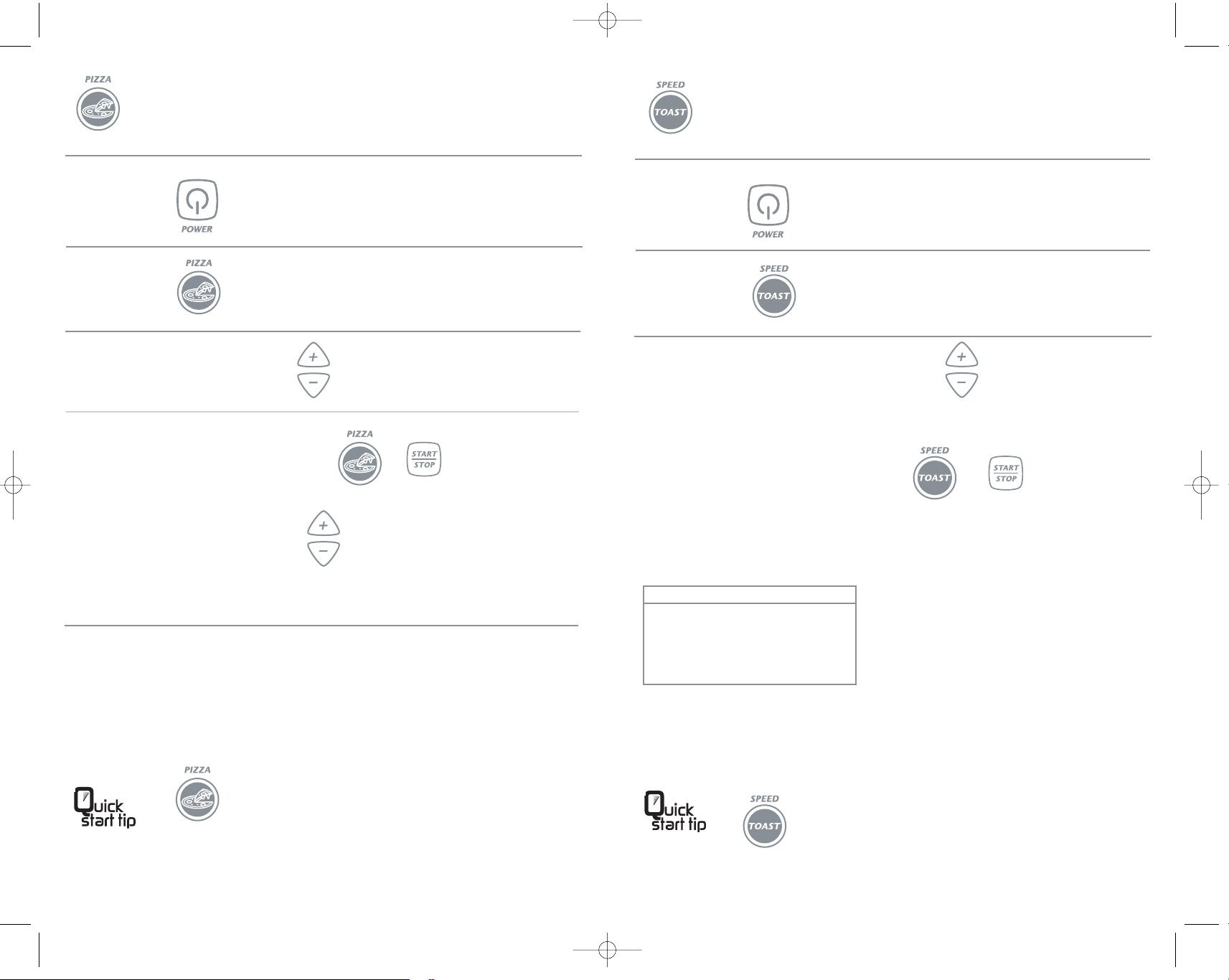

PIZZA
Lets you choose the type of pizza to cook and provides default cooking
times.

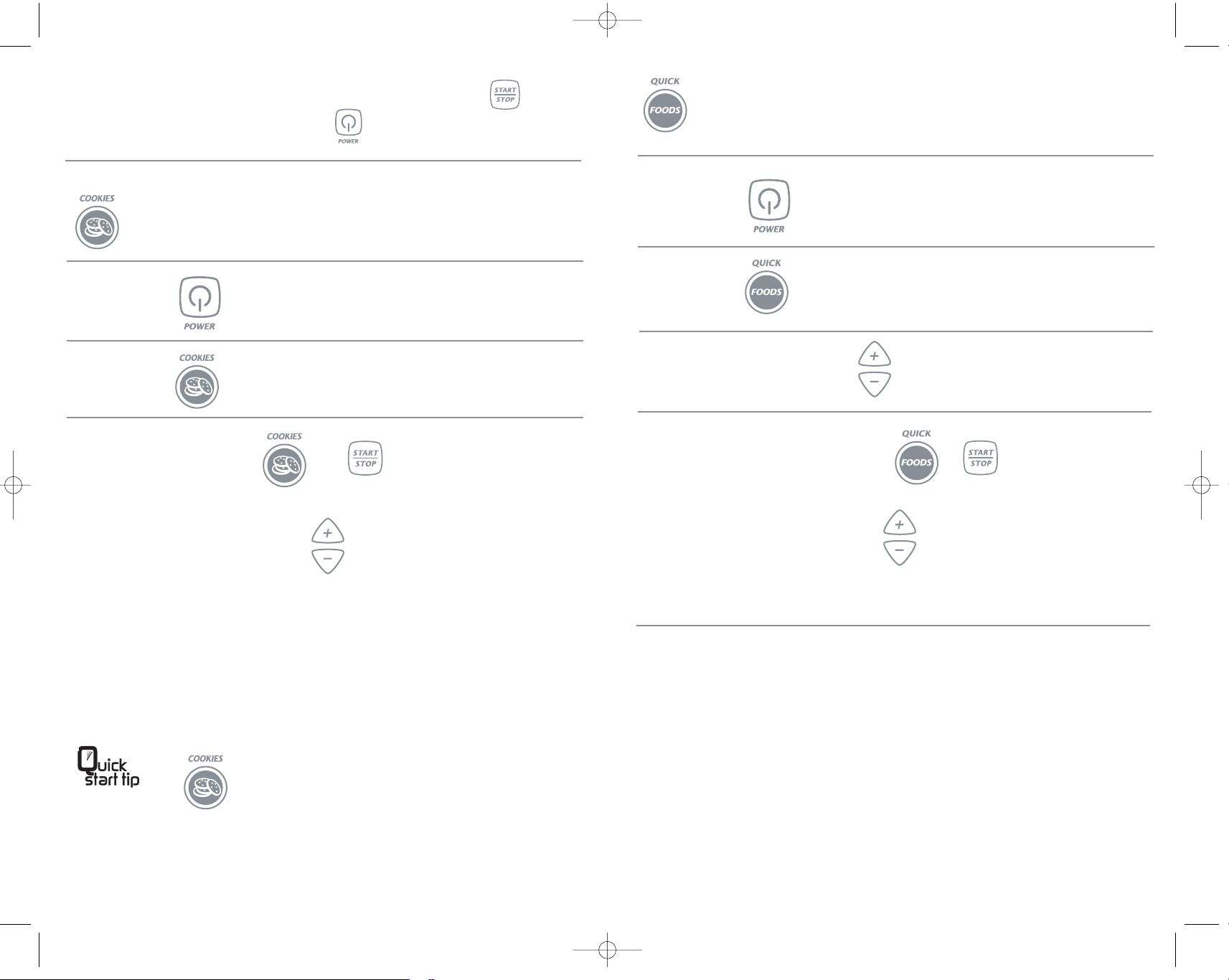

COOKIES
Bakes most cookies in 7 minutes. Adjust the cooking time, if necessary, for
your doneness preference.
QUICK FOODS
You choose the food type and the Infrawave™ Oven defaults to the correct
cooking cycle and time. Includes chicken nuggets, pizza rolls, potato skins,
poppers, chicken wings, bagel bites, potato crispers and fries.

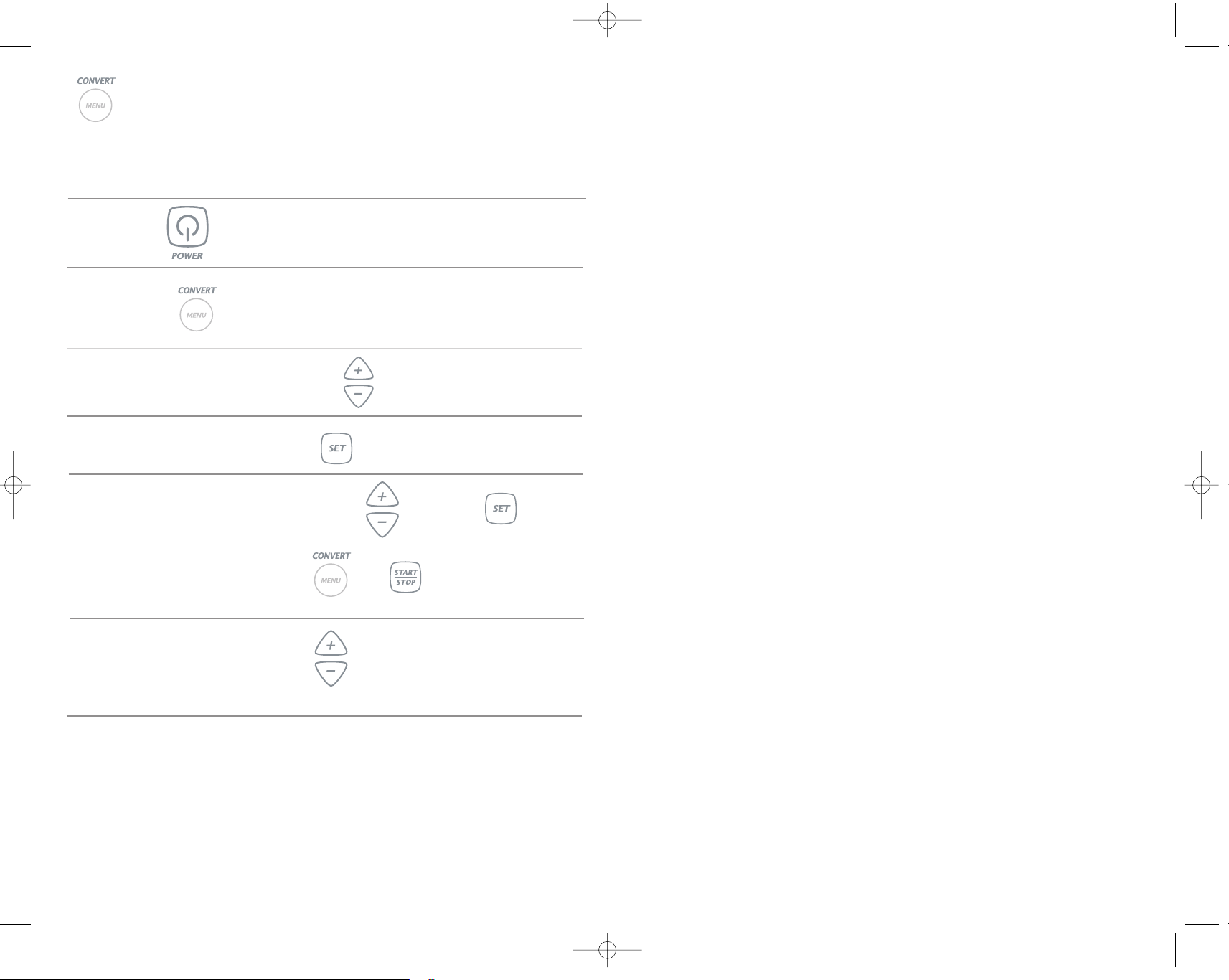

CONVERT MENU
The ConvertMenu™ function translates pre-packaged food or recipe
cooking instructions into Infrawave™ cooking times. Just enter the type of
food, time and temperature.
SET
Selects in a food choice, temperature or cooking time. It then brings up the
next menu options.
RE-HEAT
Reheat frozen entrees or leftovers. Unlike microwave technology, the
Infrawave™ Oven allows natural flavors and juices to be retained. You can
accept the suggested default time or, if necessary, adjust it to your
preference for doneness.
SPEED TOAST
The convenient Speed Toasting function cooks up to four slices of bread in
about 2 minutes.

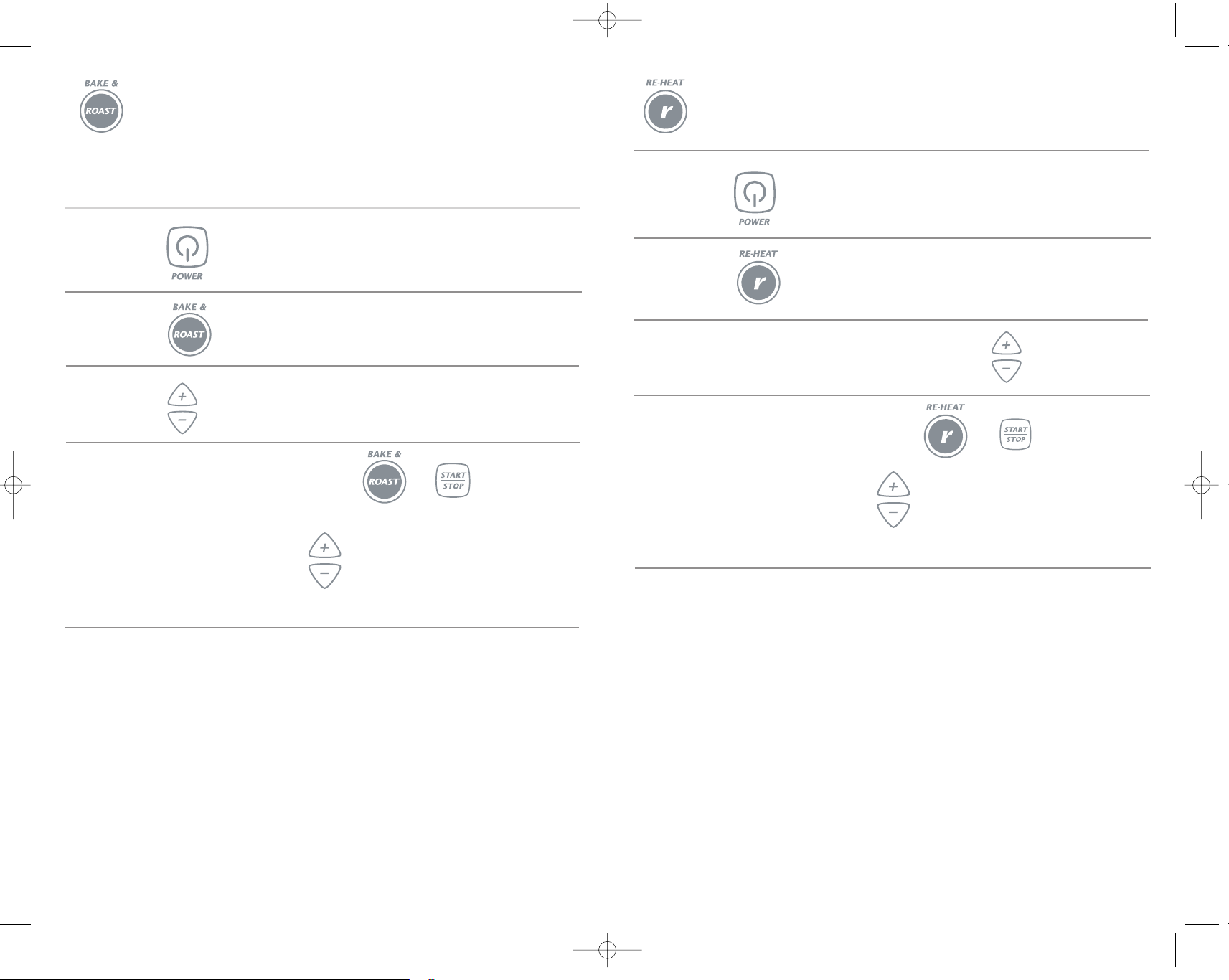

BAKE & ROAST
Choose from several pre-programmed selections. You can accept the
suggested default time or, if necessary, adjust it to your preference for
doneness.

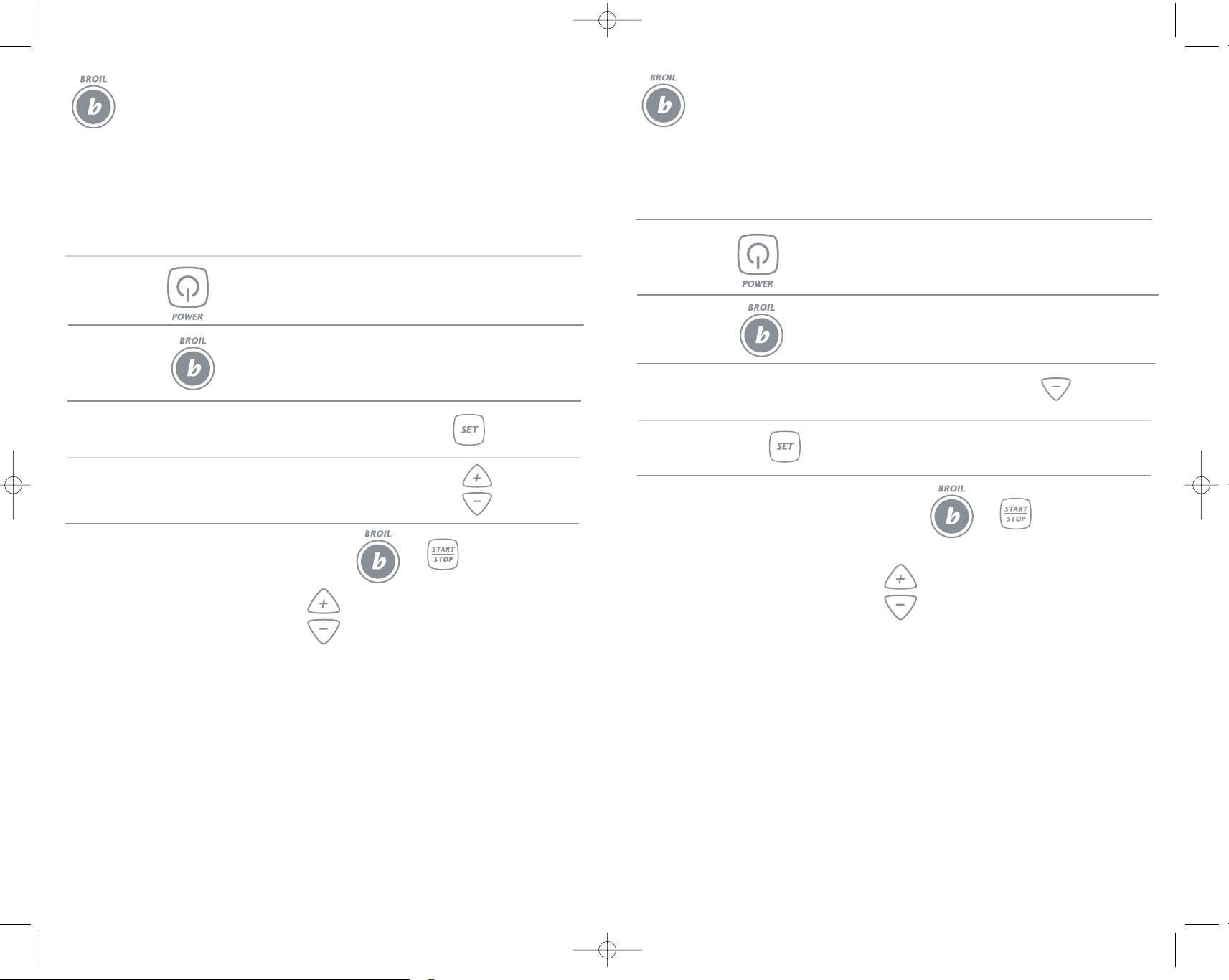

BROIL
Use the BROIL function to broil pork, chicken, hamburgers, hot dogs, steak
and all your favorite meats. LOW BROIL cooks chicken, HIGH BROIL is for
all other meats. You can accept the suggested default time or, if necessary,
adjust it to your preference for doneness.
This product is for household use only.
Before first use, remove the slide rack, broil rack and bake pan from oven. Wash in
warm, sudsy water, rinse and dry with dishtowel or paper toweling. Replace slide
rack in oven.
IMPORTANT: Before cleaning any part, be sure the oven is off, unplugged, and
cool.
After cleaning, always dry parts thoroughly before using oven.
1. Clean the glass door with a nylon pad and sudsy water. Do not use a spray glass
cleaner.
2. To remove the slide rack, open the door, pull the rack forward and out. Wash the
slide rack in warm, sudsy water or in a dishwasher. To remove stubborn spots,
use a polyester or nylon pad. To replace the slide rack, open the door completely
and slide the rack into the rack support grooves of the interior of the oven and
close the door.
3. Wash the bake pan and broil rack in warm, sudsy water or in a dishwasher.
To minimize scratching, use a polyester or nylon pad.
Digital Control Panel
FC100Pub179685RV1 6/1/05 2:19 PM Page 6
Page 5
8
7
Crumb Tray
Grasp the handle at the front of the oven and pull out the crumb tray. Dispose of
crumbs and wash the tray in warm, sudsy water. Remove stubborn spots with a
nylon mesh pad. Be sure to dry thoroughly before slipping the Tray back into the
oven.
Cooking Containers
1. The inside dimensions of this Oven are 10-5/16" x 11" x 6" This size allows for
many different types of baking containers. Keep interior dimensions in mind
when purchasing cooking containers.
2. Metal, ovenproof glass without lids or ceramic bakeware may be used in your
oven. Follow manufacturer’s instructions. Be sure the edge of the container and
the food being cooked is at least 1" (2.54 cm) away from upper heating
elements.
3. Some frozen foods are packaged in paper or plastic containers suitable for
microwave or regular ovens. Do not use paper or plastic containers in the
Infrawave™ Oven. Simply transfer food to an Infrawave™ Oven compatible
container: If there are any questions regarding the use of a specific container,
contact the food manufacturer.
4. Some items which should never be used in your Oven:
• Glass lids on glass or metal bakeware. (If a cover is needed, use aluminum foil
and be careful that it does not touch the heating elements.)
• Air-tight packages such as sealed pouches or cans.
• Plastic wrapping such as oven roasting bags or paperboard covers.
• Containers larger than those recommended.
• Containers with warnings against use in range-type or toaster ovens.
A few notes on your Infrawave™ Speed Cooking Countertop Oven:
• During cooking, the interior lights will cycle on and off. This is because the
Infrawave™ Oven doesn’t cook by a specific temperature. It cooks by cycling
its heater lights on and off.
•Abeep will sound when pressing most control panel buttons.
• Since infrared waves can go through glass, cooking can be improved with an
oven-safe, glass dish.
TROUBLESHOOTING
Cooking Problem Solution
Food is cooking too quickly. Because the Infrawave™ Oven cooks
food quickly, you may want to use
default cooking times the first time
you cook a dish.
When I open the oven door If the oven door is opened during the
to check on food, the heating cooking cycle, heaters will pause.
cycle seems to stop. To resume cooking, close oven door
and PRESS the Start/Stop button.
Sometimes when I’m cooking, When using non-stick sprays, butter
I notice smoke from the surface or margarine for cooking, you may
of the pan. notice a small amount of smoke and
browning. This occurs because these
coatings will cook first.
NOTE: Always start with a clean tray,
pan or aluminum foil since any baked
on food residue will also cause
smoke.
When I make a casserole, it tends With deep-dish casseroles (including
to brown too quickly on the top. lasagne), the top may brown more
quickly than with conventional ovens.
Place a piece of aluminum foil over
your casserole dish during the
cooking process and remove it at the
end of the cooking cycle.
I want to adjust the number During cooking, you can adjust the
of minutes my food has left to cooking time with the Up and Down
cook, but I’ve already arrows.
started the cooking process.
I can’t find the exact food I want Choose the food that is closest to the
to cook in the selection menu. one you want to cook.
FC100Pub179685RV1 6/1/05 2:19 PM Page 8
Page 6
10
9
To accept default time,
Quick Foods
SELECTIONS INCLUDE:
Frozen chicken nuggets
Frozen pizza rolls
Frozen potato skins
Frozen poppers
Frozen wings (chicken)
Frozen bagel bites
Frozen potato crispers
Frozen oven fries
to turn ON the unit.PRESS
1
2
PRESS
To find the type of food
you want to cook, PRESS
until your selection appears.
3
4
to start cooking.
or
To adjust cooking time, PRESS
PRESS
to turn ON the unit.
PRESS
To accept
default time,
To Stop any process before cooking cycle is complete, PRESS.
When you are finished cooking, PRESS and unplug the unit.
to start baking.
To adjust cooking time, PRESS
Bake Cookies
1
2
3
PRESS
Press twice to start cooking with default time.
or
PRESS
*
FC100Pub179685RV1 6/1/05 2:19 PM Page 10
Page 7
11
12
TOAST SETTING GUIDE
1-2 Very light
3 Medium
4-5 Medium-Dark
6-7 Dark
Toast
to turn ON the unit.
You see default setting 4.
PRESS
1
2
PRESS
To accept default setting 4, PRESS
3
to start toasting.
or
To choose another setting (1-7), PRESS
Press twice to start toasting with default setting.
*
To select the type of Pizza
and accept default time,
Pizza
SELECTIONS INCLUDE:
Regular (Frozen)
Rising crust (Frozen)
French bread pizza (Frozen)
Fresh/Deli
to turn ON the unit.
PRESS
1
2
PRESS
To find the type of Pizza
you want to cook, PRESS
until your selection appears.
3
4
to start cooking.
or
To adjust cooking time, PRESS
Press twice to start cooking to cook regular pizza at default
times.
*
PRESS
FC100Pub179685RV1 6/1/05 2:19 PM Page 12
Page 8
13
14
Reheat (For large portions of refrigerated foods. *Reduce cooking
time if reheating single serving or small portions.)
(See chart below
for options.)
If you don’t find the exact food you are cooking, select the food type that is closest.
SELECTIONS INCLUDE:
1 Pizza slice
Pizza slices
Ribs
Chicken pieces
Casserole
to turn ON the unit.PRESS
1
2
PRESS
To find the food you would like to reheat, PRESS
3
to start broiling.
4
To accept default cooking time, PRESS
or
To adjust cooking time, PRESS
to find the food category you would like to cook.
Bake and Roast
Can’t find the exact food type in the pre-programmed options? Select the food type
that is closest to the one you are cooking. Or you may prefer to use the CONVERT
function (page 17)
to turn ON the unit.PRESS
1
2
PRESS
3
PRESS
4
To accept default cooking time, PRESS
to start baking.
or
To adjust cooking time, PRESS
Yellow cake
Chocolate cake
Cupcakes, yellow
Cupcakes, chocolate
Muffins
Coffee cake
Brownies
Bar cookies
Potatoes
Pie crust
2-crust pastry
Fridge biscuits
Homemade biscuits
Crescent rolls
Frozen biscuit
Casserole
Lasagne
Chicken (whole chicken, chicken parts,
chicken breast)
Turkey (1/2 turkey breast, frozen breast
roll)
Meat loaf
Beef
Rib roast
SELECTIONS INCLUDE:
FC100Pub179685RV1 6/1/05 2:19 PM Page 14
Page 9
15
16
To select LOW broil for chicken and other poultry PRESS
3
then PRESS
4
to turn ON the unit.PRESS
1
2
PRESS
to start broiling.
5
To accept default cooking time, PRESS
or
To adjust cooking time, PRESS
LOW BROIL SELECTION:
Chicken parts (or similar - duck, turkey and other poultry)
Broil
LOW
(During LOW BROIL, top and bottom heater lights cycle ON
and OFF.)
to start broiling.
To find the type of meat you would like to broil, PRESS
To select HIGH broil (See food choices above) PRESS
Broil
HIGH
(During HIGH BROIL, top and buttom heater lights remain ON.)
HIGH BROIL SELECTIONS INCLUDE:
Pork loin/rib/chops
Burgers
Hot dogs
Beef steaks
to turn ON the unit.PRESS
1
2
PRESS
3
4
5
To accept default cooking time, PRESS
or
To adjust cooking time, PRESS
FC100Pub179685RV1 6/1/05 2:19 PM Page 16
Page 10
NEED HELP?
For service, repair or any questions regarding your appliance, call the appropriate
"800" number on the cover of this book. Do not return the product to the place of
purchase. Do not mail the product back to the manufacturer nor bring it to a service
center. You may also want to consult the website listed on the cover of this manual.
One-Year Limited Warranty
(Applies only in the United States and Canada)
What does it cover?
• Any defect in material or workmanship; provided; however, Applica’s liability will
not exceed the purchase price of the product.
For how long?
• One year after the date of original purchase.
What will we do to help you?
• Provide you with a reasonably similar replacement product that is either new or
factory refurbished.
How do you get service?
• Save your receipt as proof of the date of sale.
• Check our on-line service site at www.prodprotect.com/applica, or call our toll-
free number, 1-800-231-9786, for general warranty service.
• If you need parts or accessories, please call 1-800-738-0245.
What does your warranty not cover?
• Damage from commercial use
• Damage from misuse, abuse or neglect
• Products that have been modified in any way
• Products used or serviced outside the country of purchase
• Glass parts and other accessory items that are packed with the unit
• Shipping and handling costs associated with the replacement of the unit
• Consequential or incidental damages (Please note, however, that some states do
not allow the exclusion or limitation of consequential or incidental damages, so
this limitation may not apply to you.)
How does state law relate to this warranty?
• This warranty gives you specific legal rights, and you may also have other rights
that vary from state to state or province to province.
Convert
Use the ConvertMenu™ to cook recipes that include cooking directions or to
cook pre-packaged foods. Infrawave™ Oven cooking time will appear after you
enter recipe or package cooking instructions.
SELECTIONS INCLUDE:
Meat
Fish
Poultry
Dessert
Baked Goods
Casserole
EXAMPLE:
To cook pre-packaged frozen lasagne:
- Choose casserole from ConvertMenu
™ selections. Press SET.
- Using the UP and DOWN arrows, enter pre-packaged
cooking temperature of 375°. Press SET.
- Using the UP and DOWN arrows, enter pre-packaged
cooking time of 40 minutes. Press START/STOP
or CONVERT MENU.
- Cooking time is converted to Infrawave
™ Oven cooking
time of only 25 minutes! And there’s no need to pre-heat!
to turn ON the unit.PRESS
1
2
PRESS
To select food type to cook, PRESS
3
To make your selection, PRESS
4
To accept default time, PRESS
5
To input the recipe temperature, PRESS
then PRESS
6
To adjust cooking time, PRESS
or
17
18
FC100Pub179685RV1 6/1/05 2:19 PM Page 18
Page 11
Copyright © 2004-2005 Applica Consumer Products, Inc.
Pub. No.179685-00-RV01
Product made in Mexico
Printed in Mexico
Fabricado por: Applica Manufacturing S. de R.L. de C.V.
Acceso III No. 26, Fracc. Industrial Benito Juárez.
C.P. 76120, Querétaro. QRO.
Teléfono: (442) 211-7800
Producto fabricado
en México
Impreso en México
R12003/7-18-66
is a trademark of The Black & Decker Corporation, Towson, Maryland, USA
1500 W 120 V 60Hz
FC100Pub179685RV1 6/1/05 2:19 PM Page 20
Loading...
