UniCode™ Series Factory Sealed Control Stations and Pilot Lights
CONTROLS: NEC/CEC EXPLOSIONPROOF CONTROL STATIONS AND SWITCHES
© June 2017
NEC/CEC:
Class I, Division 2, Groups B, C, D
Class I, Zone 2, Group IIC
Class II, Groups E, F, G
Class III
NEC/CEC:
Type 3, 3R, 4, 4X
IP66
Applications
• For use in hazardous areas as dened by the National Electrical
Code (NEC), and Canadian Electrical Code (CEC).
• For use in washdown areas and other damp, wet and highly
corrosive areas.
• Push buttons and selector switches are used in conjunction with
contactors or magnetic starters for remote control of motors
in hazardous locations. They provide circuit control and/or
selection.
• Pilot lights provide visual assurance that an electrical function is
being performed at a remote or local hazardous location.
• For installation in:
— Chemical and petrochemical plants
— Reneries
— Pulp and paper processing plants
— Other industrial applications
Features
• Corrosion resistant captive stainless steel screws hold covers
to body.
• Available with two types of explosion proof protection. The
Labyrinth switch is rated A600 heavy pilot duty and P150.
• Durable materials and construction exceeds UL environmental
requirements including impact.
• Enclosures constructed of specially formulated berglass
reinforced thermoset polyester with low surface resistivity that
will not hold a static charge.
• Wide variety of devices and options results in a control station
tailor made to the application.
• Pilot light employs LED cluster with lifetime of 100,000 hours
that can be used at either 120 Vac or 240 Vac.
• Optional pilot light has 12 Vac/24 Vdc ratings.
• Both the standard hub and union hub provide ground path
continuity in feed-thru applications.
• Factory sealed –– no external seals required.
• Optional union hub allows temporary rotation of hub for ease
of installation.
Standard Materials
• Body and cover: berglass reinforced thermoset polyester
• Standard hub, union hub and ground plate: stainless steel and
®
Noryl
• UCPB push button and UCSS selector switch operators:
polyester, Valox™, and stainless steel
• Screws: stainless steel
• Pilot light: glass jewel
Options
• UCPL Pilot Light is red as standard; if green is desired, add
sufx -JGBG; if amber is desired, add sufx -JGBA; if blue is
desired, add sufx -JGBB.
• Stainless steel mounting feet available, add sufx -SSMTG.
• For Vdc pilot light, add sufx -DC to catalog number (push
buttons and selector switches have Vac and Vdc ratings as
standard).
• Push button front operated mushroom head (maintained
contact): standard color is red. Also available in green, add
sufx -NMRBMGR; and black, add sufx -NMRBMBL.
• Push button front operated mushroom head (momentary
contact): standard color is black. Also available
in red, add sufx -NMRBRE; in green, add sufx -NMRBGR;
or black, add sufx -NMRBBL.

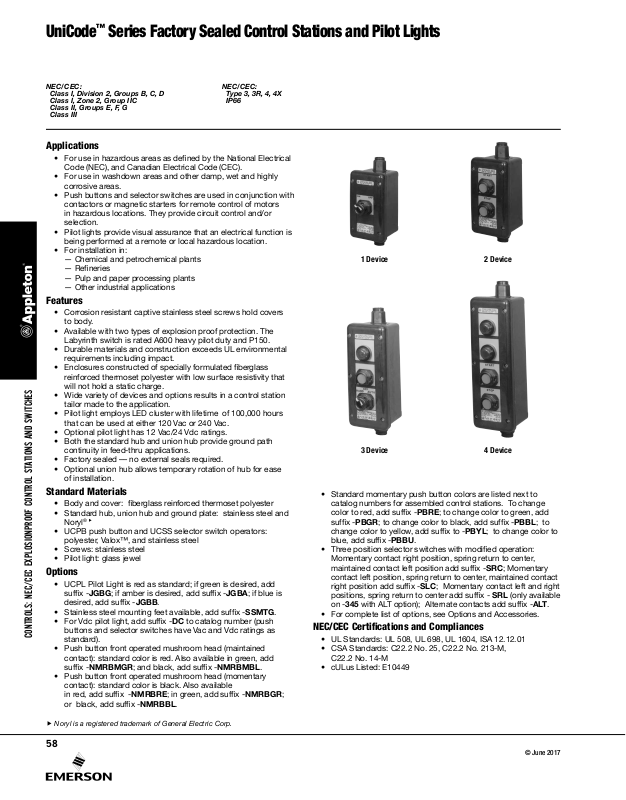

1 Device 2 Device
3 Device 4 Device
• Standard momentary push button colors are listed next to
catalog numbers for assembled control stations. To change
color to red, add sufx -PBRE; to change color to green, add
sufx -PBGR; to change color to black, add sufx -PBBL; to
change color to yellow, add sufx to -PBYL; to change color to
blue, add sufx -PBBU.
• Three position selector switches with modied operation:
Momentary contact right position, spring return to center,
maintained contact left position add sufx -SRC; Momentary
contact left position, spring return to center, maintained contact
right position add sufx -SLC; Momentary contact left and right
positions, spring return to center add sufx - SRL (only available
on -345 with ALT option); Alternate contacts add sufx -ALT .
• For complete list of options, see Options and Accessories.
NEC/CEC Certifications and Compliances
• UL Standards: UL 508, UL 698, UL 1604, ISA 12.12.01
• CSA Standards: C22.2 No. 25, C22.2 No. 213-M,
C22.2 No. 14-M
• cULus Listed: E10449
Noryl is a registered trademark of General Electric Corp.
58
UniCode™ Series Factory Sealed Control Stations and Pilot Lights
CONTROLS: NEC/CEC EXPLOSIONPROOF CONTROL STATIONS AND SWITCHES
© June 2017
NEC/CEC:
Class I, Division 2, Groups B, C, D
Class I, Zone 2, Group IIC
Class II, Groups E, F, G
Class III
NEC/CEC:
Type 3, 3R, 4, 4X
IP66
Illustrated Features
Labyrinth Switch Details Hub Details
Glass
Reinforced
Stainless Steel
Shaft and Bushing
Thermoplastic
Body
Silver Cadmium
Oxide Contacts
Enclosed
Helper
Spring
Stainless
Steel
Terminal
Screw
Brass Terminal Plate
The standard Labyrinth switch is available with universal contacts
(1 NO/1 NC). The switch is a UL recognized component and is
rated for A600 heavy pilot duty (AC) and P150 (DC) as defined by
UL 508. Hazardous Location ratings include Class I, Division 2,
Groups B, C, D.
A600 Rating Designation
10 Amp Continuous @ 600 Vac – 7200VA (Make) 720VA (Break)
Make Amp Break Amp
120 Vac 60 6
240 Vac 30 3
480 Vac 15 1.5
600 Vac 12 2
P150 Rating Designation
5 Amp Continuous @ 125 Vdc
138VA @ 300 Vdc
1.1 Amp @ 125 Vdc
Two different hubs are available on the
UniCode line. Both Versions exceed the
UL conduit torque requirements. However,
different features are offered by each:
Standard hubs are of stainless steel and Noryl
Stainless steel ground plate is threaded and includes stainless
steel set-screw and ground screw.
Stainless Steel/Noryl
Stainless Steel
Ground Screw
Self Sealing
Threads
Threaded Stainless Steel
®
Hub
Stainless Steel
Ground Screw
Self Sealing
Threads
Un-threaded Stainless
Steel Grounding Plate
Stainless Steel
Set-screw
Grounding Plate
®
Stainless Steel
Set-screw
Steel Zinc plated
Locknut
construction.
Noryl is a registered trademark of General Electric Corp.
®
Optional union hubs are of stainless steel and Noryl
construction. Ground plate is stainless steel and not threaded.
Hub spins freely for ease of installation; then steel
locknut is tightened to secure hub.
59
UniCode™ Series Factory Sealed Control Stations and Pilot Lights
CONTROLS: NEC/CEC EXPLOSIONPROOF CONTROL STATIONS AND SWITCHES
© June 2017
NEC/CEC:
Class I, Division 2, Groups B, C, D
Class I, Zone 2, Group IIC
Class II, Groups E, F, G
Class III
Catalog Numbering Guide
UCSC 1 75 U1 NMRBRE UCLPB
NEC/CEC Certified
UniCode Series
Control Stations:
UCS – Dead-End
UCSC – Feed-Thru
UCSK – Cover Only
Number of Devices:
1 – 1 Device
2 – 2 Devices
3 – 3 Devices
4 – 4 Devices
Momentary Push Button - 1NO/NC
Momentary Push Button - 2NO/NC UD1
Maintained Push Button - 1NO/NC UM1
Maintained Push Button - 2NO/NC UDM1
Pilot Light
2-POS 2-CKT Selector Switch 12
3-POS 2-CKT Selector Switch 102
2-POS 4-CKT Selector Switch 35
3-POS 4-CKT Selector Switch (Labyrinth Switch Only) 345
Close-up Plug PLG
Amber Pilot Light JGBA
Green Pilot Light JGBG
Blue Pilot Light JGBB
DC Rating for Pilot Light DC
Red Mushroom Head - Momentary Push Button NMRBRE
Green Mushroom Head - Momentary Push Button NMRBGR
Black Mushroom Head - Momentary Push Button NMRBBL
Black Mushroom Head - Maintained Push Button NMRBMBL
Green Mushroom Head - Maintained Push Button NMRBMGR
Spring Return from Right - Selector Switch (3 Position Only) SRC
Spring Return from Left - Selector Switch (3 Position Only) SLC
Spring Return from Right and Left - Selector Switch (3 Pos, 4 Ckt and Alt Contacts Only) SRL
Alternate Contacts - Selector Switch ALT
Red Momentary Push Button PBRE
Green Momentary Push Button PBGR
Stainless Steel Mounting Feet SSMTG
Mushroom Head Push Button Locking Guard UCMPBLG
Hub Size:
50 – 1/2”
75 – 3/4”
10 – 1”
50U – 1/2” Union
75U – 3/4” Union
10U – 1” Union
NEC/CEC:
Type 3, 3R, 4, 4X
IP66
Legend Plate for
Device in First
Position:
See Options and
Accessories
Device in Top
Position:
See Options and
Accessories
Device Descriptions Device Code
Options Descriptions Device Code
Accessories Descriptions Accessory Code
Special
Nameplate:
See Options and
Accessories
Device/Options/
Legend Plate for
Second Position:
See Options and
Accessories
See Options and
Device/Options/
Legend Plate for
Forth Position:
See Options and
Accessories
Device/Options/
Legend Plate for
Third Position:
Accessories
U1
J1
Momentary push buttons are black. Add —PBRE for red or —PBGR for green.
Pilot lights are red. Add —JGBA for amber, —JGBG for green or —JGBB for blue.
60
UniCode™ Series Factory Sealed Control Stations and Pilot Lights
CONTROLS: NEC/CEC EXPLOSIONPROOF CONTROL STATIONS AND SWITCHES
© June 2017
NEC/CEC:
Class I, Division 2, Groups B, C, D
Class I, Zone 2, Group IIC
Class II, Groups E, F, G
Class III
Push Buttons
NEC/CEC:
Type 3, 3R, 4, 4X
IP66
Hub Size
(Inches) Description Diagram
Momentary Contact
1/2
3/4 UCS175U1 UCSC175U1
1 Circuit Universal
1 UCS110U1 UCSC110U1
1/2
2 Circuits Universal
3/4 UCS275U2 UCSC275U2
1 UCS210U2 UCSC210U2
1/2
3/4 UCS375U3 UCSC375U3
3 Circuits Universal
1 UCS310U3 UCSC310U3
1/2
3/4 UCS475U4 UCSC475U4
4 Circuits Universal
1 UCS410U4 UCSC410U4
Standard Legend
Plate Marking
and Device Color
UCS150U1 UCSC150U1
Start/Green
UCS250U2 UCSC250U2
Start/Green
Stop/Red
UCS350U3 UCSC350U3
Blank/Black
UCS450U4 UCSC450U4
Blank/Black
Catalog Number
Dead-End Feed-Thru
Pilot Lights
Maintained Contact
1/2
1 Circuit Universal
3/4 UCS175UM1 UCSC175UM1
1 UCS110UM1 UCSC110UM1
Pilot Light has terminals for 120 or 240 Vac — Uses 8 cluster LED
1/2
3/4 UCS175J1 UCSC175J1
1 UCS110J1 UCSC110J1
1/2
3/4 UCS275J2 UCSC275J2
1 UCS210J2 UCSC210J2
1/2
3/4 UCS375J3 UCSC375J3
1 UCS310J3 UCSC310J3
1/2
3/4 UCS475J4 UCSC475J4
1 UCS410J4 UCSC410J4
1 Pilot Light
2 Pilot Lights
3 Pilot Lights
4 Pilot Lights
Emergency
Stop/Red
Blank/Red
Blank/Red
Blank/Red
Blank/Red
UCS150UM1 UCSC150UM1
UCS150J1 UCSC150J1
UCS250J2 UCSC250J2
UCS350J3 UCSC350J3
UCS450J4 UCSC450J4
61
UniCode™ Series Factory Sealed Control Stations and Pilot Lights
CONTROLS: NEC/CEC EXPLOSIONPROOF CONTROL STATIONS AND SWITCHES
© June 2017
NEC/CEC:
Class I, Division 2, Groups B, C, D
Class I, Zone 2, Group IIC
Class II, Groups E, F, G
Class III
Hub
Size
(Inches) Description

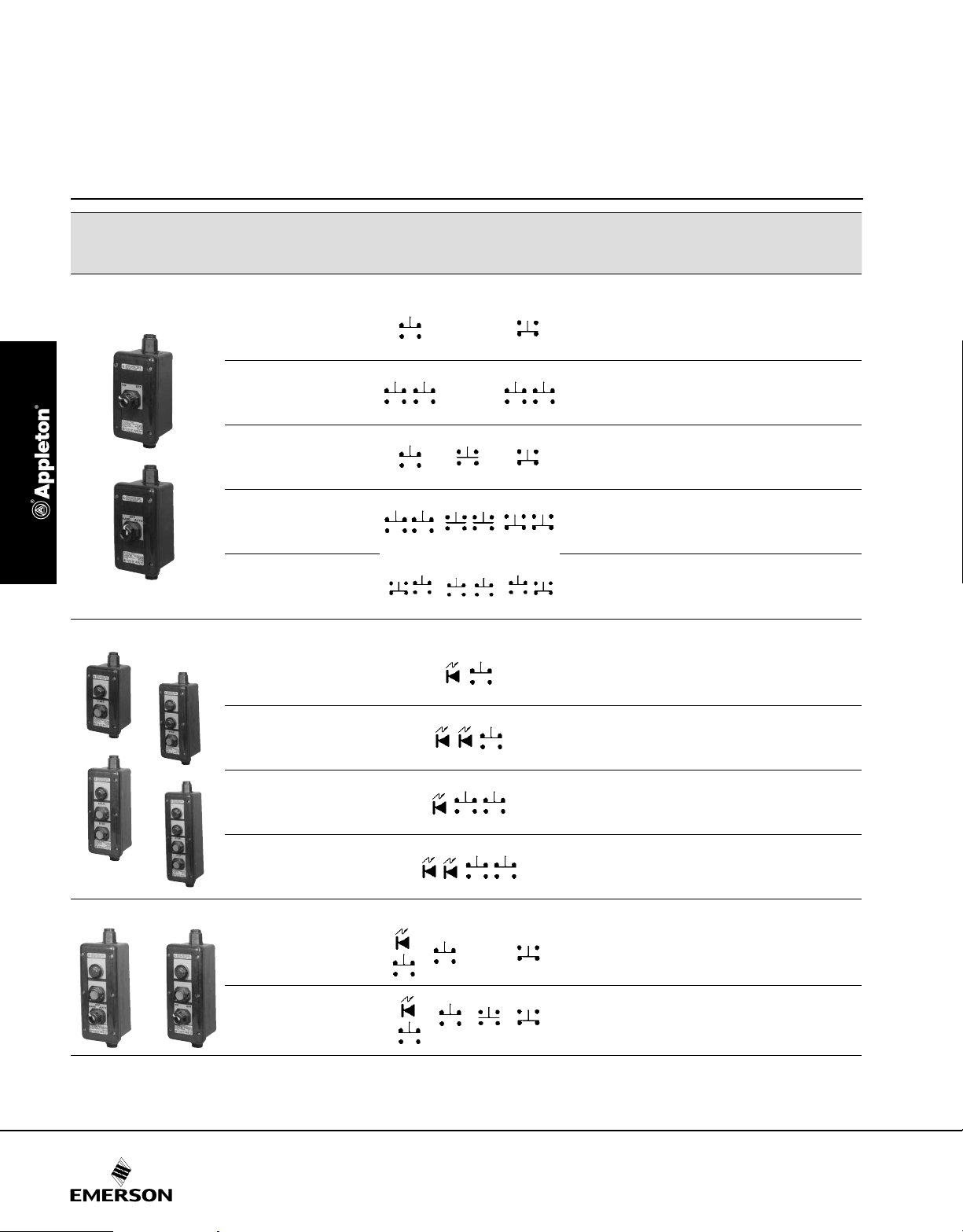

Selector Switches
1/2
3/4 UCS17512 UCSC17512
2 Positions, 2
Circuits
1 UCS11012 UCSC11012
1/2
3/4 UCS17535 UCSC17535
2 Positions, 4
Circuits
1 UCS11035 UCSC11035
1/2
3/4 UCS175102 UCSC175102
3 Positions, 2
Circuits
1 UCS110102 UCSC110102
1/2
3/4 UCS175345 UCSC175345
3 Positions, 4
Circuits
1 UCS110345 UCSC110345
1/2
3 Positions, 4 Circuits,
3/4 UCS175345ALT UCSC175345ALT
Alternate Contacts
1 UCS110345ALT UCSC110345ALT
Pilot Lights and Push Buttons
1/2
1 Circuit Universal and
3/4 UCS275J1U1 UCSC275J1U1
1 Pilot Light
1 UCS210J1U1 UCSC210J1U1
1/2
1 Circuit Universal and
3/4 UCS375J2U1 UCSC375J2U1
2 Pilot Lights
1 UCS310J2U1 UCSC310J2U1
1/2
2 Circuits Universal
3/4 UCS375J1U2 UCSC375J1U2
and 1 Pilot Light
1 UCS310J1U2 UCSC310J1U2
1/2
2 Circuits Universal
3/4 UCS475J2U2 UCSC475J2U2
and 2 Pilot Lights
1 UCS410J2U2 UCSC410J2U2
Pilot Lights, Push Buttons and Selector Switches
1/2
1 Circuit Universal, 1
3/4 UCS375J1U112 UCSC375J1U112
1/2
3/4 UCS375J1U1102 UCSC375J1U1102
Pilot Light and 1
2 Positions, 2 Circuits,
Selector Switch
1 UCS310J1U112 UCSC310J1U112
1 Circuit Universal, 1
Pilot Light and 1
3 Positions, 2 Circuits,
Selector Switch
1 UCS310J1U1102 UCSC310J1U1102
NEC/CEC:
Type 3, 3R, 4, 4X
IP66
Left Center Right Dead-End Feed-Thru
Diagram
None
None
None
Standard Legend
Plate Marking and
Device Color
On/Off
On/Off
Hand/Off/Auto
Hand/Off/Auto
Hand/Off/Auto
Pilots: Blank/Red; Push
Button: Start/Green
Pilots: Blank/Red; Push
Button: Start/Green
Pilot: Blank/Red; Push
Button: Start/Green,
Stop/Red
Pilot: Blank/Red; Push
Button: Start/Green,
Stop/Red
Pilot: Blank/Red; Push
Button: Blank/Black;
Sel. Switch: On/Off
Pilot: Blank/Red; Push
Button: Blank/Black;
Sel. Switch: Hand/
On/Off
Catalog Number
UCS15012 UCSC15012
UCS15035 UCSC15035
UCS150102 UCSC150102
UCS150345 UCSC150345
UCS150345ALT UCSC150345ALT
UCS250J1U1 UCSC250J1U1
UCS350J2U1 UCSC350J2U1
UCS350J1U2 UCSC350J1U2
UCS450J2U2 UCSC450J2U2
UCS350J1U112 UCSC350J1U112
UCS350J1U1102 UCSC350J1U1102
62
UniCode™ Series Factory Sealed Control Stations and Pilot Lights
CONTROLS: NEC/CEC EXPLOSIONPROOF CONTROL STATIONS AND SWITCHES
© June 2017
Mounting Bodies Covers and Replacement Hubs
NEC/CEC:
Class I, Division 2, Groups B, C, D
Class I, Zone 2, Group IIC
Class II, Groups E, F, G
Class III
Covers Only
Covers sold separately are marked Class I, Division 2, Groups B, C, D; Class I, Zone 2, Group IIC; NEMA 3, 3R, 4, 4X only.
Replacement Hubs — For use with Threaded Metal Conduit
NEC/CEC:
Type 3, 3R, 4, 4X
IP66
Description Catalog Number
1 Device UCC1
2 Device UCC2
3 Device UCC3
4 Device UCC4
Hub Size (Inches)
1/2 UCHUB50 UCHUB50U
Catalog Number
Standard Hub Union Hub
Standard Union
Mounting Bodies
Description
1 Device or
2 Device
3 Device
4 Device
3/4 UCHUB75 UCHUB75U
1 UCHUB10 UCHUB10U
Hub Size
(Inches)
1/2 UCBB250 UCBBC250 UCBB250U UCBBC250U
3/4 UCBB275 UCBBC275 UCBB275U UCBBC275U
1 UCBB210 UCBBC210 UCBB210U UCBBC210U
1/2 UCBB350 UCBBC350 UCBB350U UCBBC350U
3/4 UCBB375 UCBBC375 UCBB375U UCBBC375U
1 UCBB310 UCBBC310 UCBB310U UCBBC310U
1/2 UCBB450 UCBBC450 UCBB450U UCBBC450U
3/4 UCBB475 UCBBC475 UCBB475U UCBBC475U
1 UCBB410 UCBBC410 UCBB410U UCBBC410U
Standard Hub Union Hub
Dead-End Feed-Thru Dead-End Feed-Thru
63
UniCode™ Series Factory Sealed Control Stations and Pilot Lights
CONTROLS: NEC/CEC EXPLOSIONPROOF CONTROL STATIONS AND SWITCHES
© June 2017
Selector Switches. Component Parts
NEC/CEC:
Class I, Division 2, Groups B, C, D
Class I, Zone 2, Group IIC
Class II, Groups E, F, G
Class III

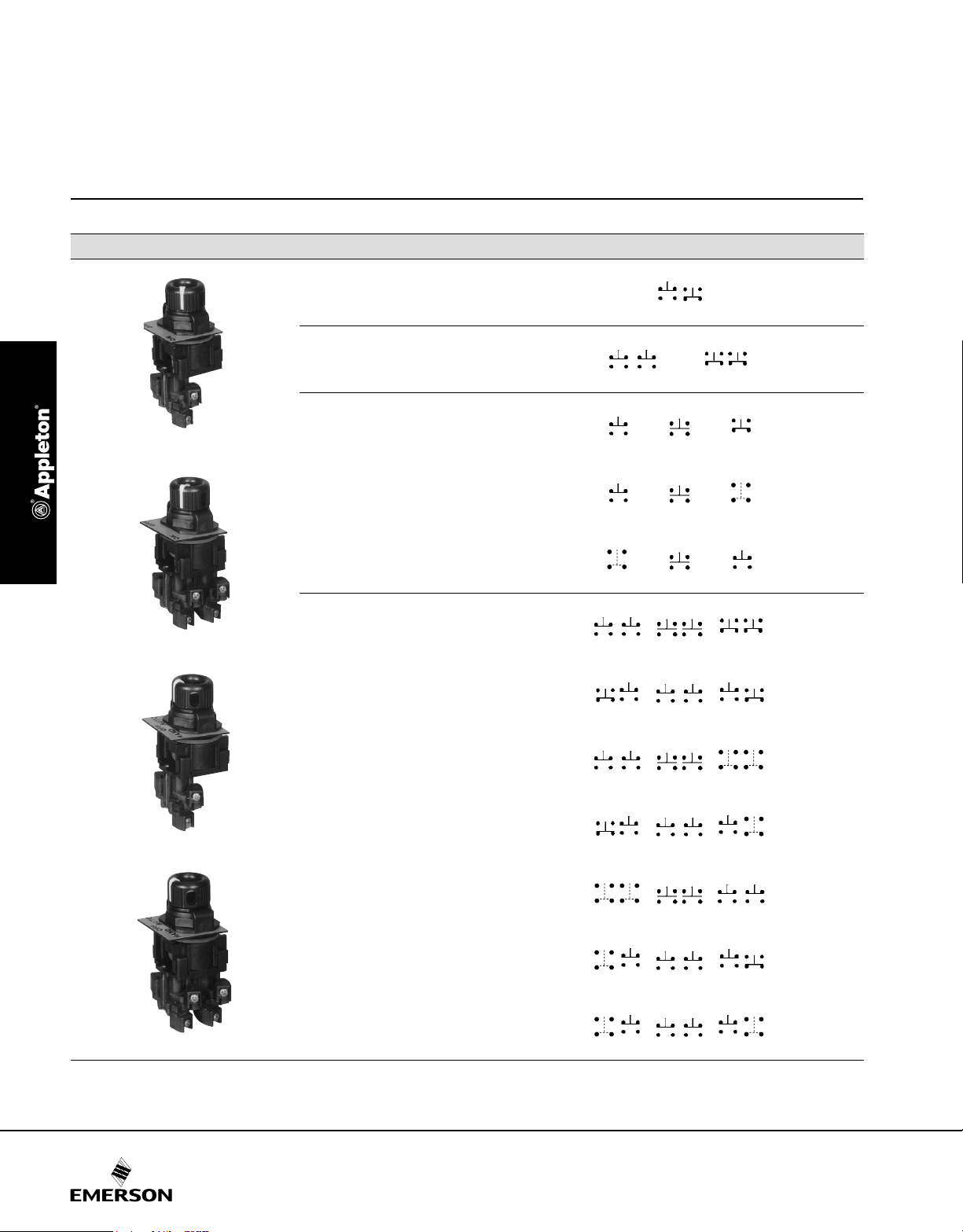

Selector Switch
Description Diagram Catalog Number
2 Position, 2 Circuit
2 Position, 4 Circuit
2 Position, 2 Circuit, Maintain Contact Left
Position, Maintain Contact Right Position
On/Off nameplate
2 Position, 4 Circuit, Maintain Contact Left
Position, Maintain Contact Right Position
On/Off nameplate
3 Position, 2 Circuit, Maintain Contact Left
Position, Maintain Contact Right Position
Hand-Off-Auto nameplate
3 Position, 2 Circuit, Momentary Contact Right
Position, Spring Return to Center, Maintain
Contact Left Position
3 Position, 2 Circuit, Momentary Contact Left
Position, Spring Return to Center, Maintain
Contact Right Position
3 Position, 4 Circuit
Maintain Contact Left Position
Maintain Contact Right Position
3 Position, 4 Circuit, Alternate Contacts
Maintain Contact Left Position
Maintain Contact Right Position
UCSS12
UCSS22
UCSS13
UCSS13SRC
UCSS13SLC
UCSS23
UCSSA23
64
3 Position, 2 Circuit
3 Position, 4 Circuit
3 Position, 4 Circuit
Momentary Contact Right Position
Spring Return to Center
Maintain Contact Left Position
3 Position, 4 Circuit, Alternate Contacts,
Momentary Contact Right Position, Spring Return
to Center, Maintain Contact Left Position
3 Position, 4 Circuit, Momentary Contact Left
Position, Spring Return to Center, Maintain
Contact Right Position
3 Position, 4 Circuit, Alternate Contacts,
Momentary Contact Left Position; Spring Return to
Center, Maintain Contact Right Position
3 Position, 4 Circuit, Alternate Contacts,
Momentary Contact Left Position, Spring Return to
Center, Momentary Contact Right Position
UCSS23SRC
UCSSA23SRC
UCSS23SLC
UCSSA23SLC
UCSSA23SRL
UniCode™ Series Factory Sealed Control Stations and Pilot Lights
CONTROLS: NEC/CEC EXPLOSIONPROOF CONTROL STATIONS AND SWITCHES
© June 2017
Component Parts
NEC/CEC:
Class I, Division 2, Groups B, C, D
Class I, Zone 2, Group IIC
Class II, Groups E, F, G
Class III
Description Catalog Number
Assembled Push Buttons
Momentary Black - One Labyrinth Switch UCPB1BL
Momentary Black - Two Labyrinth Switches UCPB2BL
Momentary Red - One Labyrinth Switch UCPB1RE
Momentary Red - Two Labyrinth Switches UCPB2RE
Momentary Green - One Labyrinth Switch UCPB1GR
Momentary Green - Two Labyrinth Switches UCPB2GR
Momentary Yellow - One Labyrinth Switch UCPB1YL
Momentary Yellow - Two Labyrinth Switches UCPB2YL
Momentary Blue - One Labyrinth Switch UCPB1BU
Momentary Blue - Two Labyrinth Switches UCPB2BU
Sub Components For Push Buttons
Pilot Lights
Maintained Black - One Labyrinth Switch UCPBM1BL
Maintained Black - Two Labyrinth Switches UCPBM2BL
Maintained Red - One Labyrinth Switch UCPBM1RE
Maintained Red - Two Labyrinth Switches UCPBM2RE
Maintained Green - One Labyrinth Switch UCPBM1GR
Maintained Green - Two Labyrinth Switches UCPBM2GR
Green Momentary Mushroom Head UCMHGR
Red Momentary Mushroom Head UCMHRE
Black Momentary Mushroom Head UCMHBL
Green Maintained Mushroom Head UCMHMGR
Red Maintained Mushroom Head UCMHMRE
Black Maintained Mushroom Head UCMHMBL
Green Cap for Momentary Push button UCPBCAPGR
Red Cap for Momentary Push button UCPBCAPRE
Black Cap for Momentary Push button UCPBCAPBL
Yellow Cap for Momentary Push button UCPBCAPYL
Blue Cap for Momentary Push button UCPBCAPBU
Red LED Pilot Light (120/240 Vac) UCPLR
Green LED Pilot Light (120/240 Vac) UCPLG
Amber LED Pilot Light (120/240 Vac) UCPLA
Blue LED Pilot Light (120/240 Vac) UCPLB
Red LED Pilot Light (12/24 Vdc) UCPLRDC
Green LED Pilot Light (12/24 Vdc) UCPLGDC
Amber LED Pilot Light (12/24 Vdc) UCPLADC
Blue LED Pilot Light (12/24 Vdc) UCPLBDC
65
UniCode™ Series Factory Sealed Control Stations and Pilot Lights
CONTROLS: NEC/CEC EXPLOSIONPROOF CONTROL STATIONS AND SWITCHES
© June 2017
Component Parts
NEC/CEC:
Class I, Division 2, Groups B, C, D
Class I, Zone 2, Group IIC
Class II, Groups E, F, G
Class III
Actuators Without Contact Blocks
Description
2 Position Selector Switch UCSS2
3 Position Selector Switch UCSS3
3 Position Selector Switch - Spring Return From Right UCSS3SRC
Selector Switch
Momentary
Push Button
Maintained Mushroom
Head Push Button
Contact Block
Labyrinth Switch
Accessories
3 Position Selector Switch - Spring Return From Left UCSS3SLC
3 Position Selector Switch - Alternate Contacts UCSSA3
3 Position Selector Switch - Alternate Contacts Spring, Return From Right UCSSA3SRC
3 Position Selector Switch - Alternate Contacts Spring, Return From Left UCSSA3SLC
3 Position Selector Switch - Alternate Contacts Spring, Return From Right and Left UCSSA3SRL
For LAB1 Switch Catalog Number
Momentary Push button - Black UCPBBL
Momentary Push button - Red UCPBRE
Momentary Push button - Green UCPBGR
Momentary Push button - Blue UCPBBU
Momentary Push button - Yellow UCPBYL
Maintained Mushroom Head - Black UCPBMBL
Maintained Mushroom Head - Red UCPBMRE
Maintained Mushroom Head - Green UCPBMGR
Momentary Mushroom Head - Black UCPBMYBL
Momentary Mushroom Head - Red UCPBMYRE
Momentary Mushroom Head - Green UCPBMYGR
Labyrinth Switch — Universal (1 NO, 1 NC) LAB1
The Standard labyrinth switch is available with universal contacts (1 NO/1 NC). The switch is a UL recognized component and is
rated for A600 heavy pilot duty (Vac) and P150 (Vdc) as defined by UL 508. Hazardous location ratings include Class I, Division
2, Groups B, C, D.
A600 Rating Designation Vac Make Amp Break Amp P150 Rating Designation
10 Amp Continuous @ 600 Vac 120 60 6 5 Amp Continuous @125 Vdc
7200VA (Make) 720VA (Break) 240 30 3 138VA @ 300 Vdc
480 15 1.5 1.1 Amp @ 125 Vdc
600 12 2
Description Catalog Number
Close-Up Plug UCPLUG
Momentary Push Button Locking Guard
(Included as standard with push button)
Maintained Mushroom Head Push Button Locking Guard
(Locks Button in Down Position)
Catalog Number
For LAB1
UCLG1
UCMPBLG
2 Stainless Steel Mounting Feet SSMTG
Requires a padlock with 6 mm (0.25”) hasp.
66
UniCode™ Series Factory Sealed Control Stations and Pilot Lights
CONTROLS: NEC/CEC EXPLOSIONPROOF CONTROL STATIONS AND SWITCHES
© June 2017
Component Parts
NEC/CEC:
Class I, Division 2, Groups B, C, D
Class I, Zone 2, Group IIC
Class II, Groups E, F, G
Class III
Legend Plates
Gray With Black Letters Green With White Letters Red With White Letters
For Push button and Selector Switches For Push button and Selector Switches For Push button and Selector Switches
UCLP - ________ (Add Desired Marking) UCLPG - ________ (Add Desired Marking) UCPLR - ________ (Add Desired Marking)
For Pilot Lights For Pilot Lights For Pilot Lights
UCPLP - _____ (Add Desired Marking) UCPLPG - _____ (Add Desired Marking) UCPLPR - _____ (Add Desired Marking)
Standard Legend Plates
Description Catalog Number Description Catalog Number
Two Position Selector Switch
Forward—Reverse UCLP-FR Run—Jog UCLP-RG
Hand—Auto UCLP-HA Off—Remote UCLP-OR
On—Off UCLP-OO Auto—Hand UCLP-AH
Start—Stop UCLP-SS Auto—Off UCLP-AO
Local—Remote UCLP-LR Blank UCLP-B
Up—Down UCLP-UD
Three Position Selector Switch
Reverse—Off—Forward UCLP-ROF Hand—Off—Remote UCLP-HOR
Forward—Off—Reverse UCLP-FOR Local—Off—Remote UCLP-LOR
Hand—Off—Auto UCLP-HOA Remote—Off—Local UCLP-ROL
Auto—Off—Hand UCLP-AOH Auto—Off—Manual UCLP-AOM
Job—Off—Run UCLP-JOR Open—Off—Close UCLP-OOC
Run—Off—Jog UCLP-ROJ Test—Off—On UCLP-TOO
Off—Run—Start UCLP-ORS 1—Off—2 UCLP-1O2
Stop—Run—Start UCLP-SRS Blank UCLP-B
Push Buttons (Standard, Momentary and Maintained Mushroom Heads)
Blank UCLP-B
Off UCLP-OFF Slow UCLP-SLOW
On UCLP-ON Raise UCLP-RAISE
Forward UCLP-FWD Lower UCLP-LOWER
Reverse UCLP-REV Open UCLP-OPEN
Jog UCLP-JOG Close UCLP-CLOSE
Run UCLP-RUN Low UCLP-LOW
Start UCLP-ST High UCLP-HIGH
Stop UCLP-SP Test UCLP-TEST
Up UCLP-UP Reset UCLP-RESET
Down UCLP-DOWN
Pilot Lights
Blank UCPLP-B
Run UCPLP-RUN Off UCPLP-OFF
Fast UCLP-FAST
On UCPLP-ON
Standard legend plate markings listed above.
67
UniCode™ Series Factory Sealed Control Stations and Pilot Lights
CONTROLS: NEC/CEC EXPLOSIONPROOF CONTROL STATIONS AND SWITCHES
© June 2017
NEC/CEC:
Class I, Division 2, Groups B, C, D
Class I, Zone 2, Group IIC
Class II, Groups E, F, G
Class III

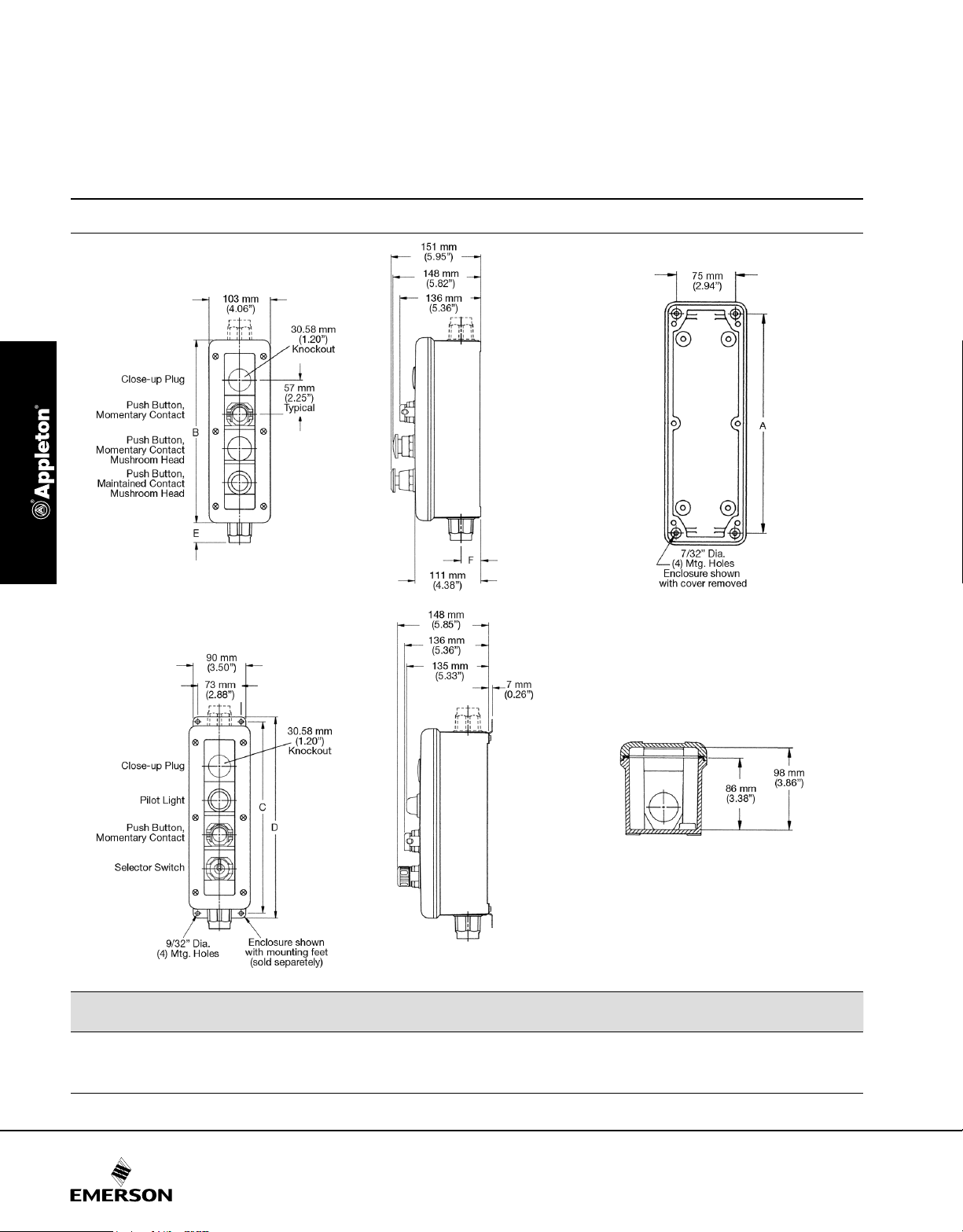

Dimensions in Millimeters (Inches)
NEC/CEC:
Type 3, 3R, 4, 4X
IP66
Enclosures
1 or 2 Device 1/2 162.1 (6.38) 192.0 (7.56) 206.5 (8.13) 222.8 (8.77) 31.2 (1.23) 26.9 (1.06)
3-Device 3/4 219.2 (8.63) 249.2 (9.81) 263.7 (10.38) 279.9 (11.02) 31.8 (1.25) 26.9 (1.06)
4 Device 1 276.4 (10.88) 306.3 (12.06) 320.8 (12.63) 337.1 (13.27) 32.5 (1.28) 33.3 (1.31)
Hub Size
(Inches)
A B C D E F
Dimensions in Millimeters (Inches)
68
Loading...
