Unicode™ 2 Series Polyamide Control Stations
CONTROLSCONTROLS: NEC/CEC, ATEX/IECEX INCREASED SAFETY CONTROL STATIONS
© June 2017
Increased Safety
For use in IEC governed hazardous areas. Polyamide is not recognized for use in any NEC/CEC governed hazardous areas.
ATEX:
Zone 1 and 2 – 21 and 22
II 2 GD
Ex de IIC/Ex demb IIC/Ex tD A21
IP66 – IK09
Applications
• For use in IEC governed hazardous areas. Polyamide is not
recognized for use in any NEC/CEC governed hazardous areas.
• Local control stations and motor control stations for use in
hazardous areas covering the broadest possible range of
applications.
• Control of equipment at:
— Power plants
— Chemical and petrochemical plants
— Petroleum reneries
— Reverse osmosis plants
— Pulp and paper processing plants
— Various industrial applications
• Push buttons and selector switches are used in conjunction
with contactors or magnetic starters for remote control of
motors in hazardous locations. They provide circuit control
and/or selection.
• Pilot lights provide visual assurance that an electrical function
is being performed at a remote or hazardous location.
• For use in washdown areas.
Features
• Employs Ex de method of protection which eliminates the need
for external seals.
• Operators include push buttons, illuminated push buttons,
selector switches, control and load break switches and LED
pilot lights.
• Pilot light employs high intensity single LED with lifetime of
100,000 hours that can be used at:
— 12 Vac to 254 Vac 50/60 Hz
— 12 Vdc to 60 Vdc
• Up to 3 contact blocks per actuator can be used.
• Contact block technical data:
— IEC rated operating voltage (Ue): 500 Vac – 110 Vdc
— IEC switching capacity:
– AC12: 16 Amp/400 Vac
– AC14: 10 Amp/400 Vac
– AC15: 6 Amp/500 Vac
– DC13: 2 Amp/24 Vdc and 1 Amp/110 Vdc
— NEMA switching capacity: A600: 10 Amp/600 Vac
• Selector switch technical data:
— IEC rated operating voltage: 690 Vac
— IEC rated operating current: maximum 16 Amp
— IEC switching capacity:
– AC1: 16 Amp/690 Vac
– AC15: 16 Amp/415 Vac
– AC3: 8 Amp/500 Vac
– AC3: 4 Amp/690 Vac
– AC3: 16 Amp/690 Vac
– DC1: 10 Amp/24 Vdc
– DC1: 6 Amp/60 Vdc
– DC1: 6 Amp/110 Vdc (2 contacts wired in series)
– DC1: 6 Amp/220 Vdc (3 contacts in series)
— NEMA switching capacity: A600: 10 Amp/600 Vac
• Enclosures are rated for IP66 with rmly secured gasket.
• Operators and contact blocks are spaced for easy wiring.
• Wide selection of termination methods available.
• Choice of DIN rail mounted high performance contact
block suitable for low intensity (less than 5 mA).
• TS35 rail mounted components held securely in place
during operation and easily removed for service.
• Brass Inserts are provided for TS35 DIN rails or mounting
plate to be installed inside the enclosure.
• Captive, corrosion resistant stainless steel cover screws.
Standard Materials
• Body, cover, cable gland and blanking plug: polyamide,
black nish
• Cover screws: stainless steel
• Optional nameplates: stainless steel

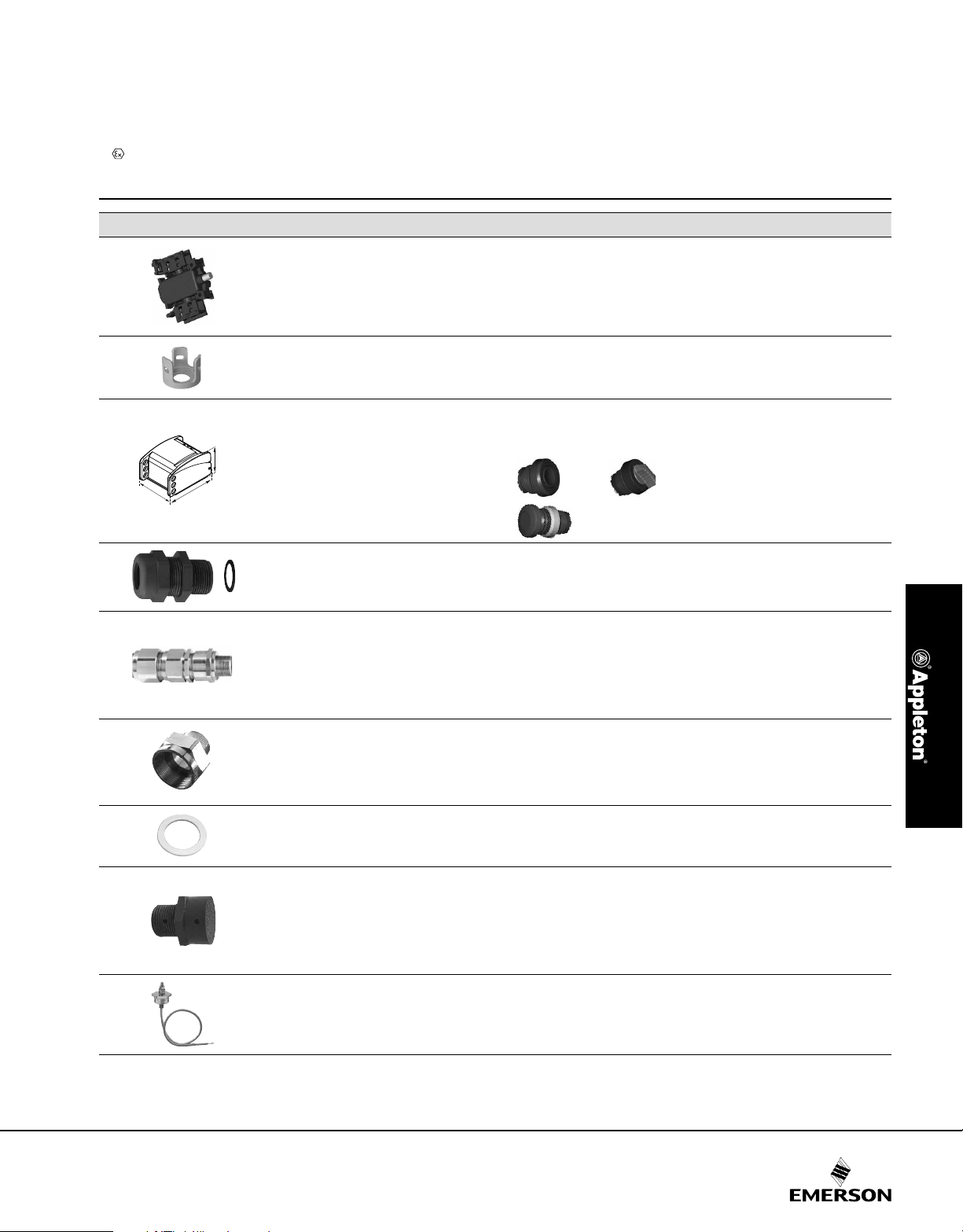

Accessories
• Key for changing actuator blocks.
• Guard for mushroom head actuator.
• Padlockable guard.
• M5 earth stud.
• Combination drain and breather available in brass, polyamide
and stainless steel.
Options
• Nameplates: Lamacoid with different color combinations.
• Padlocking ability at left, center, right or any position on
selector switches.
• Padlocking ability for momentary and maintained push buttons.
• Special contact arrangements available, see Unicode 2 Series
Customized Control Stations.
U43W2 VA13A5A9
U42W2 A5A9
173
Unicode™ 2 Series Polyamide Control Stations
CONTROLS CONTROLS: NEC/CEC, ATEX/IECEX INCREASED SAFETY CONTROL STATIONS
© June 2017
Increased Safety
For use in IEC governed hazardous areas. Polyamide is not recognized for use in any NEC/CEC governed hazardous areas.
ATEX:
Zone 1 and 2 – 21 and 22
II 2 GD
Ex de IIC/Ex demb IIC/Ex tD A21
IP66 – IK09
ATEX Certifications and Compliances
• Certification Type PCe
— Gas: Zone 1 and 2
– Conforming to ATEX 94/9/CE: II 2 G
– Type of Protection: Ex de IIC/Ex demb IIC (depending of the
actuator)
– Temperature Class: T6
— Dust: Zone 21 and 22
– Conforming to ATEX 94/9/CE: II2 D
– Type of Protection: Ex tD A21
— Surface Temperature: T75 °C (T167 °F)
— Ambient Temperature: -20 °C to +55 °C (-4 °F to +131 °F)
— CE Declaration of Conformity: 50221
— ATEX Certicate: LCIE 00 ATEX 6047
— Index of Protection according EN/IEC 60529: IP66
— Impact Resistance (shock): IK09
EURASEC Certification
• EURASEC RU C-FR ГБ05.B.00911
Other Certification
• INMETRO Certicate: BVC 11.0640-X
INMETRO certification available on special request only. Contact your local sales representative for more information.
174
Unicode™ 2 Series Polyamide Control Stations
CONTROLSCONTROLS: NEC/CEC, ATEX/IECEX INCREASED SAFETY CONTROL STATIONS
© June 2017
Increased Safety
For use in IEC governed hazardous areas. Polyamide is not recognized for use in any NEC/CEC governed hazardous areas.
ATEX:
Zone 1 and 2 – 21 and 22
II 2 GD
Ex de IIC/Ex demb IIC/Ex tD A21
IP66 – IK09
Size 1 Polyamide Control Station:
Included: 1 white self-adhesive laminated plastic nameplate, 2 x M20
bottom clearance entries, 1 blanking plug, 1 cable gland in polyamide
[Ø 6.5 mm to 14.5 mm (0.26” to 0.57”)], 2 locknuts.
Momentary Push Button
Green insert ‘I’ + red insert ‘O’
with 1NO + 1NC momentary
contacts
Description/Function Diagram
Bottom
Entries
2 x M20
Weight
kg (lb)
0.48
(1.06)
Volume
dm3 (in3)
2.5
(152.56)
Catalog
Number
U41W2A3
1x green push button ”I”
with 1NO momentary contact
1x red push button ”O” with
1NC momentary contact
Emergency Stop
Red mushroom head push-pull
1NC maintained contact
Red mushroom head push-pull
1NO + 1NC maintained contacts
Red mushroom head key release
1NC maintained contact
Red mushroom head key release
1NO + 1NC maintained contacts
Mushroom Head Push Button
Black mushroom head push
button
1NO + 1NC momentary contacts
Red mushroom head push button
1NC momentary contact
2 x M20
2 x M20
2 x M20
2 x M20
2 x M20
2 x M20
2 x M20
2 x M20
0.48
(1.06)
0.48
(1.06)
0.48
(1.06)
0.48
(1.06)
0.48
(1.06)
0.48
(1.06)
0.48
(1.06)
0.48
(1.06)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
U41W2A5
U41W2A9
U41W2D9
U41W2D3
U41W2C9
U41W2C3
U41W2B3
U41W2R9
Key Push Button
With key removable in both
positions
1NO + 1NC maintained contacts
2 x M20
0.48
(1.06)
2.5
(152.56)
U41W2E3
175
Unicode™ 2 Series Polyamide Control Stations
Green
Red
CONTROLS CONTROLS: NEC/CEC, ATEX/IECEX INCREASED SAFETY CONTROL STATIONS
© June 2017
Increased Safety
For use in IEC governed hazardous areas. Polyamide is not recognized for use in any NEC/CEC governed hazardous areas.
ATEX:
Zone 1 and 2 – 21 and 22
II 2 GD
Ex de IIC/Ex demb IIC/Ex tD A21
IP66 – IK09
Size 1 Polyamide Control Station:
Included: 1 white self-adhesive laminated plastic nameplate, 2 x M20 bottom
clearance entries, 1 blanking plug, 1 cable gland in polyamide [Ø 6.5 mm to
14.5 mm (0.26” to 0.57”)], 2 locknuts.
Description/Function Diagram
Pilot Light
1x red pilot light
1x green pilot light
1x blue pilot light
1x yellow pilot light
1x white pilot light
2-Position Selector Switch
Bottom
Entries
2 x M20
2 x M20
2 x M20
2 x M20
2 x M20
Weight
kg (lb)
0.48
(1.06)
0.48
(1.06)
0.48
(1.06)
0.48
(1.06)
0.48
(1.06)
Volume
dm3 (in3)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
Catalog
Number
U41W2PR
U41W2PG
U41W2PB
U41W2PY
U41W2PW
2 fixed positions ‘ 0 - I ’
1NO + 1NC contacts
3-Position Selector Switch
3 fixed positions ‘ I - 0 - II ’
2NO contact
3 positions ‘ I - 0 - II ’
With spring return from I to 0
1NO + 1NC contacts
3 positions ‘ I - 0 - II ’
With spring return from II to 0
1NO + 1NC contacts
Size 2 Polyamide Control Station:
Included: 1 white self-adhesive laminated plastic nameplate, 2 x M20 bottom
clearance entries, 1 blanking plug, 1 cable gland in polyamide [Ø 6.5 mm to
14.5 mm (0.26” to 0.57”)], 2 locknuts.
Description/Function Diagram
Twin Push Button
1x green push button ‘I’ with 1NO
contact 1x red push button ‘O’
with 1NC contact
Momentary contacts
Green
Red
1x green push button ‘I’ with 1NO
+ 1NC contacts
1x red push button ‘O’ with
1NO + 1NC contacts
Momentary contacts
2 x M20
2 x M20
2 x M20
2 x M20
Bottom
Entries
2 x M20
2 x M20
0.48
(1.06)
0.48
(1.06)
0.48
(1.06)
0.48
(1.06)
Weight
kg (lb)
0.62
(1.37)
0.62
(1.37)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
Volume
dm3 (in3)
2.5
(152.56)
2.5
(152.56)
U41W2H3
U41W2J1
U41W2N3
U41W2M3
Catalog
Number
U42W2A5A9
U42W2A3A3
12 Vac to 254 Vac 50/60 Hz - 12 Vdc to 60 Vdc.
176
Unicode™ 2 Series Polyamide Control Stations
CONTROLSCONTROLS: NEC/CEC, ATEX/IECEX INCREASED SAFETY CONTROL STATIONS
© June 2017
Increased Safety
For use in IEC governed hazardous areas. Polyamide is not recognized for use in any NEC/CEC governed hazardous areas.
ATEX:
Zone 1 and 2 – 21 and 22
II 2 GD
Ex de IIC/Ex demb IIC/Ex tD A21
IP66 – IK09
Size 2 Polyamide Control Station:
Included: 1 white self-adhesive laminated plastic nameplate, 2 x M20 bottom
clearance entries, 1 blanking plug, 1 cable gland in polyamide
[Ø 6.5 mm to 14.5 mm (0.26” to 0.57”)], 2 locknuts.
Description/Function Diagram
Push Button + Push-Pull Emergency Stop
Bottom
Entries
Weight
kg (lb)
Volume
dm3 (in3)
Catalog
Number
1x green push button ‘I’
with 1NO momentary contact
1x red mushroom head push-pull
with 1NC maintained contact
1x green push button ‘I’
with 1NO + 1NC momentary contacts
1x red mushroom head push-pull
with 1NO + 1NC maintained contacts
Push Button + Push-Pull Emergency Stop
1x green light
1x green push button ‘I’ with 1NO
Momentary contact
1x green light
1x green push button ‘I’ with 1NO + 1NC
Momentary contacts
1x red light
1x red push button ‘O’ with 1NC
Momentary contact
1x red light
1x red push button ‘O’ with 1NO + 1NC
Momentary contacts
Green
2 x M20
Red
Green
2 x M20
Red
Green
Green
Green
Green
Red
2 x M20
2 x M20
2 x M20
Red
Red
2 x M20
Red
0.62
(1.37)
0.62
(1.37)
0.62
(1.37)
0.62
(1.37)
0.62
(1.37)
0.62
(1.37)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
U42W2A5D9
U42W2A3D3
U42W2PGA5
U42W2PGA3
U42W2PRA9
U42W2PRA3
Ammeter
1x ammeter 48 x 48 mm, (1.89” x 1.89”)
1A C.T., 3 F.L.C., with 0 - 1 - 3 scale
12 Vac to 254 Vac 50/60 Hz - 12 Vdc to 60 Vdc.
2 x M20
0.56
(1.23)
2.5
(152.56)
U42W2VA13
177
Unicode™ 2 Series Polyamide Control Stations
Red
CONTROLS CONTROLS: NEC/CEC, ATEX/IECEX INCREASED SAFETY CONTROL STATIONS
© June 2017
Increased Safety
For use in IEC governed hazardous areas. Polyamide is not recognized for use in any NEC/CEC governed hazardous areas.
ATEX:
Zone 1 and 2 – 21 and 22
II 2 GD
Ex de IIC/Ex demb IIC/Ex tD A21
IP66 – IK09
Size 3 Polyamide Control Station:
Included: 1 white self-adhesive laminated plastic nameplate, 2 x M20 bottom
clearance entries, 1 blanking plug, 1 cable gland in polyamide [Ø 6.5 mm to
14.5 mm (0.26” to 0.57”)], 2 locknuts.
Description/Function Diagram
Twin Push Buttons + Push-Pull Emergency Stop
Bottom
Entries
Weight
kg (lb)
Volume
dm3 (in3)
Catalog
Number
1x green push button ‘I’ with 1NO contacts
1x red push button ‘O’ with 1NC contact
Momentary contacts
1x red mushroom head push-pull emergency
button with 1NO + 1NC maintained contacts
1x green push button ‘I’ with 1NO + 1NC
contacts
1x red push button ‘O’ with 1NO + 1NC contacts
Momentary contacts
1x red mushroom head push-pull emergency
button with 1NO + 1NC maintained contacts
Pilot Light + Twin Push Buttons
1x green light
1x green push button ‘I’ with 1NO contact
1x red push button ‘O’ with 1NC contact
Momentary contacts
1x red light
1x green push button ‘I’ with 1NO contact
1x red push button ‘O’ with 1NO contact
Momentary contacts
1x green light
1x green push button ‘I’ with 1NO + 1NC
contacts
1x red push button ‘O’ with 1NO + 1NC contacts
Momentary contacts
1x red light
1x green push button ‘I’ with 1NO + 1NC
contacts
1x red push button ‘O’ with 1NO + 1NC contacts
Momentary contacts
Green
Red
Red
Green
Red
2 x M20
2 x M20
2 x M20
Green
Red
2 x M20
2 x M20
Green
Red
2 x M20
0.78
(1.72)
0.78
(1.72)
0.78
(1.72)
0.78
(1.72)
0.78
(1.72)
0.78
(1.72)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
2.5
(152.56)
U43W2A5A9D3
U43W2A3A3D3
U43W2PGA5A9
U43W2PRA5A9
U43W2PGA3A3
U43W2PRA3A3
12 Vac to 254 Vac 50/60 Hz - 12 Vdc to 60 Vdc.
178
Unicode™ 2 Series Polyamide Control Stations
CONTROLSCONTROLS: NEC/CEC, ATEX/IECEX INCREASED SAFETY CONTROL STATIONS
© June 2017
Increased Safety
For use in IEC governed hazardous areas. Polyamide is not recognized for use in any NEC/CEC governed hazardous areas.
ATEX:
Zone 1 and 2 – 21 and 22
II 2 GD
Ex de IIC/Ex demb IIC/Ex tD A21
IP66 – IK09
Size 3 Polyamide Control Station:
Included: 1 white self-adhesive laminated plastic nameplate, 2 x M20 bottom
clearance entries, 1 blanking plug, 1 cable gland in polyamide [Ø 6.5 mm to 14.5
mm (0.26” to 0.57”)], 2 locknuts.
Description/Function Diagram
Ammeter + Twin Push Button
1x ammeter 1.89 x 1.89 in/48 x 48 mm,
1A C.T., 3 F.L.C., with 0 - 1 - 3 scale
1x green push button ‘I’ with 1NO contact
1x red push button ‘O’ with 1NC contact
Momentary contacts
Ammeter + 3-Position Selector Switch
Green
Red
Bottom
Entries
2 x M20
Weight
kg (lb)
0.80
(1.76)
Volume
dm3 (in3)
2.5
(152.56)
Catalog
Number
U43W2VA13A5A9
1x ammeter 1.89 x 1.89 in/48 x 48 mm,
1A C.T.,3 F.L.C., with 0 - 1 - 3 scale
1x 3-position selector switch ‘I - 0 - II’
with spring return from II to 0
1NO + 1NC contacts
Special Accessories for Polyamide Enclosure
Brass Earthing Plate for 2 x M20
Equipped with 2 earth connections
Tube or Frame Fixing
FOR SIZE 1 ONLY
For all tube diameter ≥ 80 mm (3.15”)
Using a metal strip (not supplied) maximum width 22 mm (0.87”)
2 x M20
0.80
(1.76)
2.5
(152.56)
U43W2VA13M3
098661
098656
179
Unicode™ 2 Series Polyamide Control Station Accessories
CONTROLS CONTROLS: NEC/CEC, ATEX/IECEX INCREASED SAFETY CONTROL STATIONS
© June 2017
Increased Safety
For use in IEC governed hazardous areas. Polyamide is not recognized for use in any NEC/CEC governed hazardous areas.
ATEX:
Zone 1 and 2 – 21 and 22
II 2 GD
Ex de IIC/Ex demb IIC/Ex tD A21
IP66 – IK09
Nameplates — Set of 10
Blank self-adhesive, laminated plastic 58 mm x 18 mm (2.29” x 0.71”).
Color Catalog Number Pack
White (black letters) UNPW 1
Yellow (black letters) UNPY 1
Red (white letters) UNPR 1
Blue (white letters) UNPB 1
Black (white letters) UNPN 1
Green (white letters) UNPG 1
Inserts for Push Button — Set of 5
(unmarked) Green UIAG 1 Blank (set of 10) ULPS ULPL 1
(unmarked) Red UIAR 1 ON ULPSA01 ULPLA01 1
(unmarked) Yellow UIAY 1 OFF ULPSA02 ULPLA02 1
(unmarked) White UIAW 1 FORWARD ULPSA03 ULPLA03 1
(unmarked) Blue UIAB 1 REVERSE ULPSA04 ULPLA04 1
(unmarked) Black UIAN 1 JOG ULPSA05 ULPLA05 1
ON Green UIA01 1 RUN ULPSA06 ULPLA06 1
OFF Red UIA02 1 START ULPSA07 ULPLA07 1
START Green UIA03 1 STOP ULPSA08 ULPLA08 1
STOP Red UIA04 1 UP ULPSA09 ULPLA09 1
MARCHE Green UIA05 1 DOWN ULPSA10 ULPLA10 1
ARRET Red UIA06 1 FAST ULPSA11 ULPLA11 1
I Green UIA07 1 SLOW ULPSA12 ULPLA12 1
O Red UIA08 1 RAISE ULPSA13 ULPLA13 1
Inserts for Illuminated Push Button — Set of 5 OPEN ULPSA15 ULPLA15 1
Marking Color Catalog Number Pack
(unmarked) Green UILG 1 LOW ULPSA17 ULPLA17 1
(unmarked) Red UILR 1 HIGH ULPSA18 ULPLA18 1
Spare Key
For all key-operated buttons.
Spare key type 4 A 185 SK4A185 1 REMOTE - LOCAL ULPSH08 ULPLH08 1
(unmarked) Yellow UILY 1 TEST ULPSA19 ULPLA19 1
(unmarked) White UILW 1 RESET ULPSA20 ULPLA20 1
(unmarked) Blue UILB 1 EMERGENCY STOP ULPSA21 ULPLA21 1
ON Green UIL01 1 MARCHE ULPSA22 ULPLA22 1
OFF Red UIL02 1 ARRET ULPSA23 ULPLA23 1
START Green UIL03 1 ARRET D’URGENCE ULPSA24 ULPLA24 1
STOP Red UIL04 1 HAUT ULPSA25 ULPLA25 1
MARCHE Green UIL05 1 BAS ULPSA26 ULPLA26 1
ARRET Red UIL06 1 O - I ULPSH01 ULPLH01 1
I Green UIL07 1 ON - OFF ULPSH02 ULPLH02 1
O Red UIL08 1 START - STOP ULPSH03 ULPLH03 1
Description Catalog Number Pack
Standard Legend Plates
Two sizes available. Self-adhesive yellow laminated plastic (black lettering).
Small Size
ULPS ULPL
Tex t
LOWER ULPSA14 ULPLA14 1
CLOSE ULPSA16 ULPLA16 1
STOP - START ULPSH04 ULPLH04 1
HAND - AUTO ULPSH05 ULPLH05 1
MANU - AUTO ULPSH06 ULPLH06 1
FORWARD - REVERSE ULPSH07 ULPLH07 1
MARCHE - ARRET ULPSH09 ULPLH09 1
I - O - II ULPSJ01 ULPLJ01 1
OFF - O - ON ULPSJ02 ULPLJ02 1
START - NORMAL - STOP ULPSJ03 ULPLJ03 1
HAND - OFF - AUTO ULPSJ04 ULPLJ04 1
MANU - O - AUTO ULPSJ05 ULPLJ05 1
FORWARD - OFF - REVERSE ULPSJ06 ULPLJ06 1
LOCAL - REMOTE - AUTO ULPSJ07 ULPLJ07 1
LOCAL - O - REMOTE ULPSJ08 ULPLJ08 1
MARCHE - NORMAL - ARRET ULPSJ09 ULPLJ09 1
Large Size
Catalog Number
PackMarking Color Catalog Number Pack Small Large
180
Unicode™ 2 Series Polyamide Control Station Accessories
49.5 mm (1.95”)
33 mm (1.30”) UPLD2S
CONTROLSCONTROLS: NEC/CEC, ATEX/IECEX INCREASED SAFETY CONTROL STATIONS
© June 2017
Increased Safety
For use in IEC governed hazardous areas. Polyamide is not recognized for use in any NEC/CEC governed hazardous areas.
ATEX:
Zone 1 and 2 – 21 and 22
II 2 GD
Ex de IIC/Ex demb IIC/Ex tD A21
IP66 – IK09
Description Catalog Number
Additional Contacts
Each actuator is capable of activating 3 contacts.
Exception: Illuminated push button and all actuators with key: 2 contacts maximum
1NO contact UCB5R
1NC contact UCB9R
Yellow Guard
Mushroom head protection for emergency stop 098657
Padlockable Guard
Stainless steel and plastic cover, capacity: 3 padlocks diameter 6 mm (0.24”) maximum (not
supplied)
67.6 mm (2.66”)
26 mm (1.02”) UPLD1S
For push button and rotary actuator UPLD1S
For mushroom head actuator
UPLD2S
Cable Gland Exe
For unarmored cable Exe - IP66 - in polyamide entry thread seal
M20 (capacity 6.5-14.5 mm) 095605
For armored cable Exe/Exd - IP66 - in nickel plated brass (without entry thread seal)
Braid and Tape type:
M20 (inner: 6.4-14.0/outer: 12.5-20.9 mm) 20E1FX5
Single Wired Armor (SWA):
M20 (inner: 6.4-14.0/outer: 12.5-20.9 mm) 20E1FW5
Adaptors
Exd/Exe - IP66 in nickel plated brass (without entry thread seal)
Male M20 - Female 1/2” NPT 737DM2T15
Male M20 - Female 3/4” NPT 737DM2T25
Entry Thread Seal
M20 (in white nylon) 20ETS2
Combination Drain and Breather
Exe - IP66 - supplied with entry thread seal and locknut
M20 male thread in Polyamide DBE20P
M20 male thread in Brass DBE20B
M20 male thread in Stainless Steel DBE20S
Feed-Thru Earth Stud Terminal
Exe - IP66 – supplied with weatherproof seal and green/yellow earth
conductor — 300 mm (11.81”) length
M20 with M5 earth and 2.5 mm2 (0.004 in2) conductor PREESTM20
181
Unicode™ 2 Series Polyamide Control Stations
80 mm (1.15”) 90 mm (3.54”)
80 mm (1.15”) 90 mm (3.54”)
80 mm (1.15”) 90 mm (3.54”)
CONTROLS CONTROLS: NEC/CEC, ATEX/IECEX INCREASED SAFETY CONTROL STATIONS
© June 2017
Increased Safety
For use in IEC governed hazardous areas. Polyamide is not recognized for use in any NEC/CEC governed hazardous areas.
ATEX:
Zone 1 and 2 – 21 and 22
II 2 GD
Ex de IIC/Ex demb IIC/Ex tD A21
IP66 – IK09
Dimensions in Millimeters (Inches)
50 mm (1.97”)
104 mm (4.09”)
73 mm (2.87”)
Size 1 Enclosure Size 1 Mounting/Fixing Details
(2) Ø 5.5 mm
(0.22”)
(3.66” to 5.35”)
149 mm (5.87”)
73 mm (2.87”)
93 mm to 136 mm
(2) Ø 5.5 mm
(0.22”)
Size 2 Enclosure Size 2 and 3 Mounting/Fixing Details Size 3 Enclosure
149 mm (5.87”)
182
Loading...
