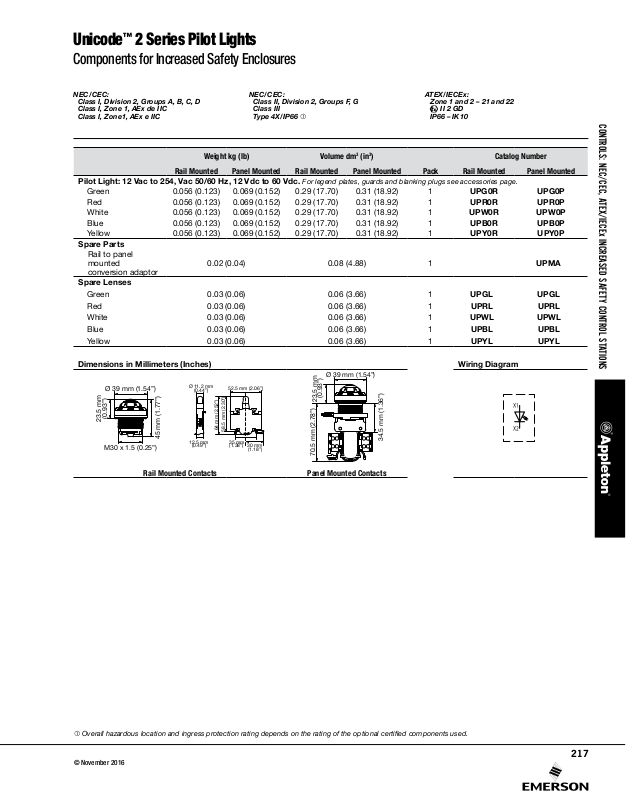

Unicode™ 2 Series Pilot Lights

Ø 39 mm (1.54”)

34.5 mm (1.36”)

70.5 mm (2.78”)

Controls: nEC/CEC, AtEX/IECEx InCrEAsEd sAfEty Control stAtIons

© November 2016

Components for Increased Safety Enclosures

NEC/CEC:

Class I, Division 2, Groups A, B, C, D
Class I, Zone 1, AEx de IIC
Class I, Zone1, AEx e IIC

Weight kg (lb) Volume dm3 (in3)

NEC/CEC:

Class II, Division 2, Groups F, G
Class III
Type 4X/IP66 

ATEX/IECEx:

Zone 1 and 2 – 21 and 22

II 2 GD

IP66 – IK10

Catalog Number

Rail Mounted Panel Mounted Rail Mounted Panel Mounted Pack Rail Mounted Panel Mounted

Pilot Light: 12 Vac to 254, Vac 50/60 Hz, 12 Vdc to 60 Vdc.

For legend plates, guards and blanking plugs see accessories page.

Green 0.056 (0.123) 0.069 (0.152) 0.29 (17.70) 0.31 (18.92) 1 UPG0R UPG0P
Red 0.056 (0.123) 0.069 (0.152) 0.29 (17.70) 0.31 (18.92) 1 UPR0R UPR0P
White 0.056 (0.123) 0.069 (0.152) 0.29 (17.70) 0.31 (18.92) 1 UPW0R UPW0P
Blue 0.056 (0.123) 0.069 (0.152) 0.29 (17.70) 0.31 (18.92) 1 UPB0R UPB0P
Yellow 0.056 (0.123) 0.069 (0.152) 0.29 (17.70) 0.31 (18.92) 1 UPY0R UPY0P

Spare Parts

Rail to panel
mounted

0.02 (0.04) 0.08 (4.88) 1 UPMA

conversion adaptor

Spare Lenses

Green 0.03 (0.06) 0.06 (3.66) 1 UPGL UPGL
Red 0.03 (0.06) 0.06 (3.66) 1 UPRL UPRL
White 0.03 (0.06) 0.06 (3.66) 1 UPWL UPWL
Blue 0.03 (0.06) 0.06 (3.66) 1 UPBL UPBL
Yellow 0.03 (0.06) 0.06 (3.66) 1 UPYL UPYL

Dimensions in Millimeters (Inches) Wiring Diagram

Ø 39 mm (1.54”)

(0.93”)

23.5 mm

M30 x 1.5 (0.25”)

Ø 11.2 mm

(0.44”)

45 mm (1.77”)

12.5 mm
(0.49”)

52.5 mm (2.06”)

64 mm (2.52”)

58.5 mm (2.30”)

35 mm

(1.38”)

30 mm
(1.18”)

(0.93”)

23.5 mm

Rail Mounted Contacts Panel Mounted Contacts

 Overall hazardous location and ingress protection rating depends on the rating of the optional certified components used.
