650612-000 INSTRUCTION SHEET
Installation Instructions for Appleton™ Contender™ LED Luminaire
FOR PROPER AND SAFE INSTALLATION OF THIS PRODUCT, PLEASE READ THE FOLLOWING INSTRUCTIONS.
Product Safety
Signal Words Defined
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous
situation which, if not avoided, could result in death or serious injury. CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury. NOTICE is used to address practices not related to physical injury.
Safety Instructions for Complete Luminaire
WARNING
• Do not open or remove the luminaire with the circuit energized.
• Do not use this luminaire on ungrounded systems. Failure to ground the luminaire can result in an electric shock, which may be fatal.
• Before installation, ensure that the unit complies with the hazardous area classication. Refer to luminaire nameplate, located on
exterior of housing body, for suitability in specic hazardous locations.
• Do not use on ungrounded 480 volt circuits.
• Do not open when explosive atmospheres are present.
• Beware of electrostatic charges. Use a moist cloth to clean polycarbonate globe.
• Supply wires are to be rated for minimum 90°C.
CAUTION:
• Do not look directly at the LEDs when energized.
• Disconnect the luminaire from the supply circuit before opening to reduce the risk of ignition in hazardous atmospheres.
• It is necessary that the globe and all conduit plugs are tightly secured and all luminaire ttings (mounting hood and optic) are tightly
secured to the LED housing to prevent water and dust entry. The optic should be cleaned periodically to maintain lighting efciency.
NOTICE:
• Do not touch the LEDs; touching could leave oily deposits, causing hot spots and potential premature failure.
• This luminaire is designed for and should be installed with hazardous locations wiring method required in accordance with the
National Electrical Code®/Canadian Electrical Code and all applicable local codes.
• This product must be installed in accordance with the applicable installation code by a person familiar with the construction and
operation of the product and hazards involved.
• Do not use this equipment for anything other than its intended use.
Applications/Intended Use
• To reduce the risk of ignition of hazardous atmosphere, disconnect the luminaire from the supply circuit before opening. Keep
tightly closed when in operation.
• Areas where ammable gases and vapors are present under conditions dened by the ratings below.
• Areas of low clearance, low ceiling heights, or where luminaire weights must be minimized.
• Non-hazardous locations where severe weather conditions, excessive moisture, dirt, dust, corrosive atmospheres, and
high ambient temperatures are encountered.
Agency Ratings j
• Class I, Division 2, Groups A, B, C, D • Zone 21, AEx/Ex tb IIIC Db
• Class II, Division I, Groups E, F, G • Zone 22, AEx/Ex tc IIIC Dc
• Class II, Division 2, Groups F, G • Wet Locations
• Class III • Marine Outside Type (Salt Water) for USA only
• Simultaneous Exposure • Type 3R, 4, 4X
• Class I, Zone 2, AEx/Ex ec IIC Gc • IP66/67
NOTES:
j Refer to product nameplate, located on the exterior of the housing body for details.
To be installed in accordance with CG-259 of American Bureau of Shipping and Coast Guard.
Appleton • 1.800.621.1506 • www.appletonelec.com 650612-000 Rev. A 05/20/19 • Page 1 of 10
Electrical Parameters and Tcodes
Electrical Specification
Lumens
Model Line Current Amps (50/60 Hz) Input Power Power Factor THD
NEMA Type V
.28 @120VAC 28.0
>.94
.13 @277VAC 28.0
VMV3L
.16 @170VDC 27.2
-
.09 @300VDC 27.2
.38 @120VAC 38.0
>.96
.16 @277VAC 38.0
VMV4L
.22 @170VDC 37.4
-
.13 @300VDC 39.0
.48 @120VAC 48.0
>.97
.20 @277VAC 48.0
VMV5L
.29 @170VDC 49.3
-
.16 @300VDC 48.0
<20%
<20%
<20%
Lamp
Model Type
LED 40 (104) 90 (194) T4A T4 T6 T6 T85°C T4A
VMV3L
VMV4L
VMV5L
LED 55 (131) 90 (194) T4 T4 T6 T6 T85°C T4
LED 65 (149) 90 (194) T4 T4 T5 T5 T100°C T4
LED 40 (104) 90 (194) T4A T4 T6 T6 T85°C T4A
LED 55 (131) 90 (194) T4 T4 T6 T6 T85°C T4
LED 65 (149) 90 (194) T4 T4 T5 T5 T100°C T4
LED 40 (104) 90 (194) T4A T4 T6 T6 T85°C T4A
LED 55 (131) 90 (194) T4 T4 T6 T6 T85°C T4
LED 65 (149) 90 (194) T4 T4 T5 T5 T100°C T4
Ambient
Temperature
°C (°F)
Supply Wire
Temperature
°C (°F)
Class I, Division 2,
Groups A, B, C, D
Technical Data
NEC/CEC
Gas Dust Gas/Dust
AEx/Ex Class I,
Zone 2 Group IIC
Class II, Division 1,
Groups E, F and G
Zone 20,
Group IIIC
AEx/Ex
Zone 21
Simultaneous
Class I, Division 2/
Class II, Division 1
650612-000 Rev. A 05/20/19 • Page 2 of 10Appleton • 1.800.621.1506 • www.appletonelec.com

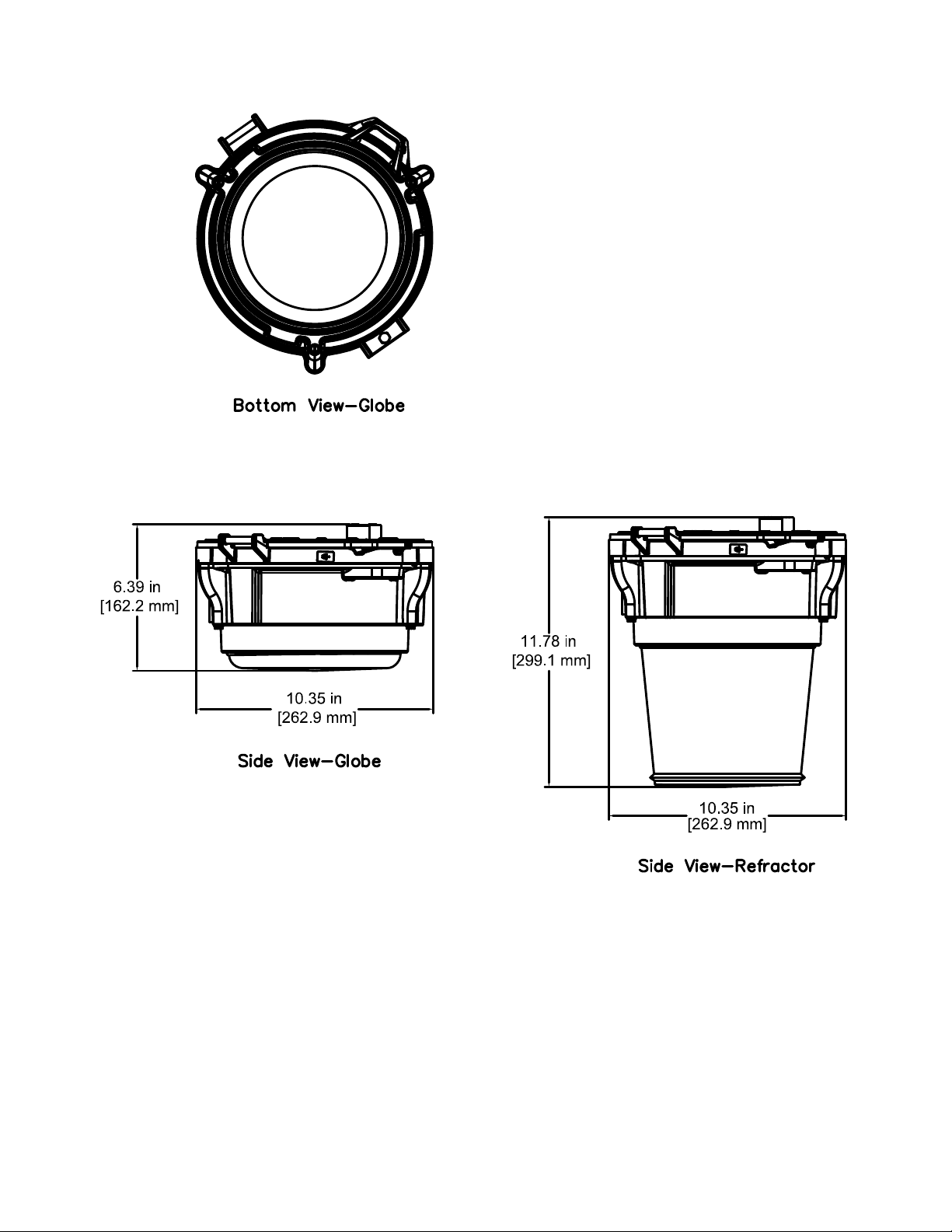

Luminaire Dimensions
FIGURE 1: CONTENDER LED LUMINAIRE
650612-000 Rev. A 05/20/19 • Page 3 of 10Appleton • 1.800.621.1506 • www.appletonelec.com
