Class I, Div. 1 and 2
Groups C, D
Class II, Div. 1 and 2
Groups F, G
Class III
Type 3R
NEMA 7CD, 9F*G
300880-3
INSTRUCTION SHEET
U.S. Patent No. 3,735,078

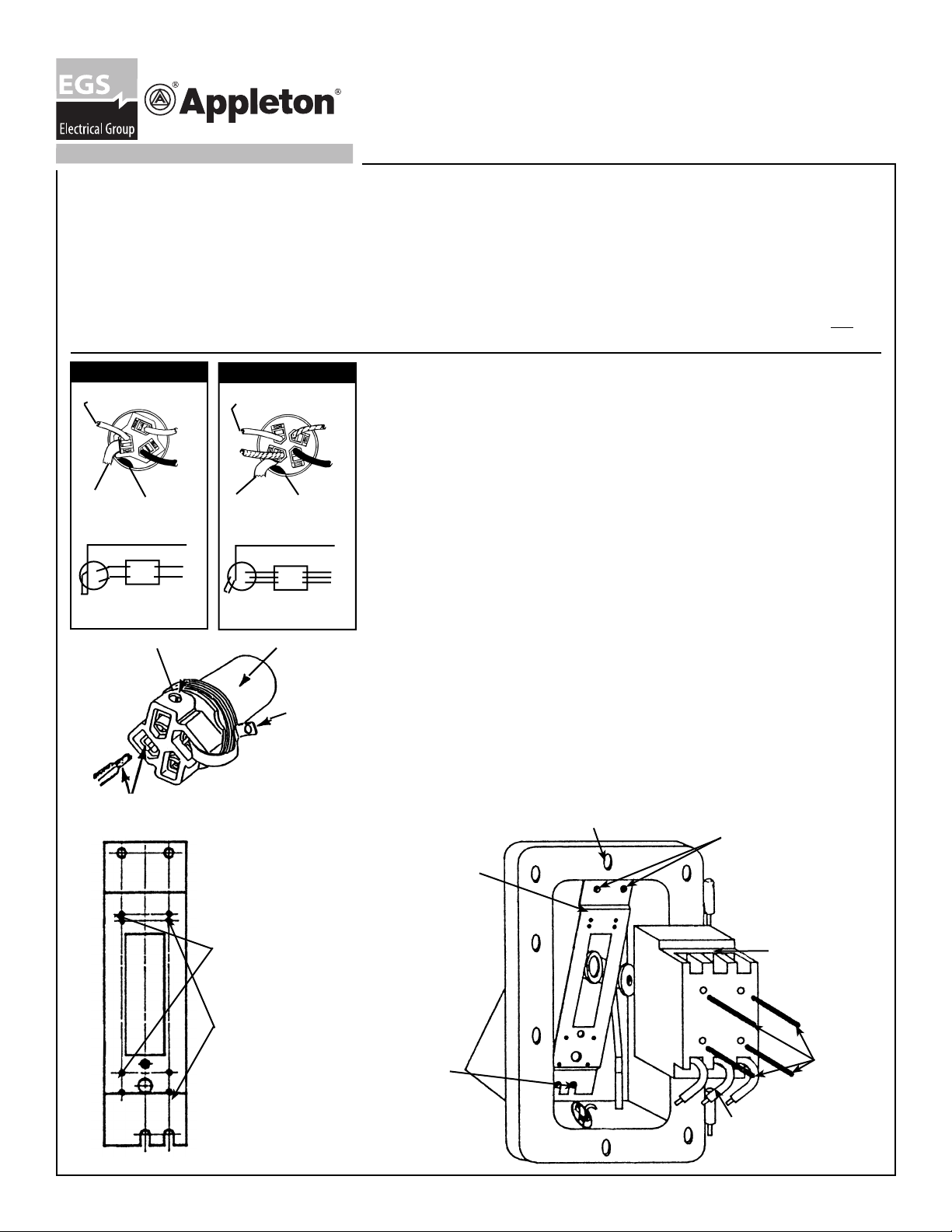

EBR Receptacles with Interlocked Circuit Breaker:
Explosion-Proof, Dust-lgnition-Proof.
Weatherproof Spring Cover—30, 60 and 100 Amps at 600V A.C. Max.
Interlocked Circuit Breaker Safety Construction. Grounding thru Extra Pole and Shell
*CAUTION: To prevent Ignition of hazardous atmospheres, do not use in Class II,
Group F locations that contain electrically conductive dusts. Most coal dusts are not
electrically conductive.
2 WIRE - 3 POLE
GREEN WIRE
2
1
GROUNDING
STRIP
CONTACT SET SCREW
CONDUCTOR INSULATION BELOW THIS SURFACE
HALF MOON
CONFIGURATION
GREEN WIRE
GROUNDING
STRIP
MOUNTING PLATE
3 WIRE - 4 POLE
GREEN WIRE
2
GROUNDING
STRIP
3
1
HALF MOON
CONFIGURATION
GREEN WIRE
GROUNDING
STRIP
CONTACT BLOCK
GROUNDING
STRAP
WIRING
1. Conductors from Receptacle are connected to the circuit breaker
as shown.
CIRCUIT BREAKER REPLACEMENT
1. Loosen the two screws #1 located on the mounting plate on the
load side of the breaker.
Note - only loosen enough for the mounting plate #2 to slide
from under the screw heads.
2. Remove the remaining two screw #3 that secure the mounting
plate #2 in place.
3. Loosen the breaker screws #4 that connect the breaker phase
locations to the conductors which are attached to the contact
block pins. Loosening of these screws will allow removal of the
breaker and mounting plate assembly.
4. Loosen and remove the four breaker mounting screws #5 which
secure the breaker to the mounting plate.
5. Discard the old breaker & four mounting screws #5. Insert the four
new mounting screws #5 through the back of the new breaker.
Fasten to the mounting plate #2 as shown. Cut off surplus length
of screw protruding through the plate and fasten the mounting
plate #2 to the inside of the cover #6 by reversing steps 1 to 3
above, making sure to tighten all screws securely.
#6
COVER
#3
BREAKER SCREWS
#2
CIRCUIT
BREAKER
FIELD WIRING
TERMINALS
#5
#1
#4
BREAKER WIRING SET SCREWS
(4) MOUNTING
SCREWS
UPPER SIDE
(LINE SIDE OF BREAKER)
WEST BREAKER
GE BREAKER
LOWER SIDE
(LOAD SIDE OF BREAKER)
MOUNTING PLATE
BREAKER SCREWS
EGS Electrical Group • 800-621-1506 • www.appletonelec.com Rev. D 10/03/2007 Page 1
APPLETON RECEPTACLE CAT.NO. AMPS VOLTS - AC APPLETON PLUG CROUSE-HINDS PLUG
INTERMATEABILITY CHART
EBR3023EH15, EHD15 15 480 ACP3023BC APJ3385
EBR3023EH20, EHD20 20 480 ACP3023BC APJ3385
EBR3023EH25, EHD25 25 480 ACP3023BC APJ3385
EBR3023EH30, EHD30 30 480 ACP3023BC APJ3385
EBR3023EH35, EHD35 30 480 ACP3023BC APJ3385
EBR3023EH40, EHD40 30 480 ACP3023BC APJ3385
EBR3023FB15, FBD15 15 600 ACP3023BC APJ3385
EBR3023FB20, FBD20 20 600 ACP3023BC APJ3385
EBR3023FB25, FBD25 25 600 ACP3023BC APJ3385
EBR3023FB30, FBD30 30 600 ACP3023BC APJ3385
EBR3023FB35, FBD35 30 600 ACP3023BC APJ3385
EBR3023FB40, FBD40 30 600 ACP3023BC APJ3385
EBR3023HFB15, FD15 15 600 ACP3023BC APJ3385
EBR3023HFB20, FD20 20 600 ACP3023BC APJ3385
EBR3023HFB25, FD25 25 600 ACP3023BC APJ3385
EBR3023HFB30, FD30 30 600 ACP3023BC APJ3385
EBR3023HFB35, FD35 30 600 ACP3023BC APJ3385
EBR3023HFB40, FD40 30 600 ACP3023BC APJ3385
EBR3034EH15, EHD15 15 480 ACP3034BC APJ3485
EBR3034EH20, EHD20 20 480 ACP3034BC APJ3485
EBR3034EH25, EHD25 25 480 ACP3034BC APJ3485
EBR3024EH30, EHD30 30 480 ACP3034BC APJ3485
EBR3034EH35, EHD35 30 480 ACP3034BC APJ3485
EBR3034EH40, EHD40 30 480 ACP3034BC APJ3485
EBR3034FB15, FBD15 15 600 ACP3034BC APJ3485
EBR3034FB20, FBD20 20 600 ACP3034BC APJ3485
EBR3034FB25, FBD25 25 600 ACP3034BC APJ3485
EBR3034FB30, FBD30 30 600 ACP3034BC APJ3485
EBR3034FB35, FBD35 30 600 ACP3034BC APJ3485
EBR3034FB40, FBD40 30 600 ACP3034BC APJ3485
EBR3034HFB15, FD15 15 600 ACP3034BC APJ3485
EBR3034HFB20, FD20 20 600 ACP3034BC APJ3485
EBR3034HFB25, FD25 25 600 ACP3034BC APJ3485
EBR3034HFB30, FD30 30 600 ACP3034BC APJ3485
EBR3034HFB35, FD35 30 600 ACP3034BC APJ3485
EBR3034HFB40, FD40 30 600 ACP3034BC APJ3485
EBR6023EH35, EHD35 35 480 ACP6023BC APJ6385
EBR6023EH40, EH040 40 480 ACP6023BC APJ6385
EBR6023EH45, EHD45 45 480 ACP6023BC APJ6385
EBR6023EH50, EHD50 50 480 ACP6023BC APJ6385
EBR6023EH60, EHD60 60 480 ACP6023BC APJ6385
EBR6023EH70, EHD70 60 480 ACP6023BC APJ6385
EBR6023FB35, FDB35 35 600 ACP6023BC APJ6385
EBR6023FB40, FDB40 40 600 ACP6023BC APJ6385
EBR6023FB45, FDB45 45 600 ACP6023BC APJ6385
EBR6023FB50, FDB50 50 600 ACP6023BC APJ6385
EBR6023FB60, FDB60 60 600 ACP6023BC APJ6385
EBR6023FB70, FDB70 60 600 ACP6023BC APJ6385
EBR6023HFB35, FD35 35 600 ACP6023BC APJ6385
EBR6023HFB40, FD40 40 600 ACP6023BC APJ6385
EBR6023HFB45, FD45 45 600 ACP6023BC APJ6385
EBR6023HFB50, FD50 50 600 ACP6023BC APJ6385
EBR6023HFB60, FD60 60 600 ACP6023BC APJ6385
EBR6023HFB70, FD70 60 600 ACP6023BC APJ6385
EBR6034EH35, EHD35 35 480 ACP6034BC APJ6485
EBR6034EH40, EHD40 40 480 ACP6034BC APJ6485
EBR6034EH45, EHD45 45 480 ACP6034BC APJ6485
EBR60S4EH50, EHD50 50 480 ACP6034BC APJ6485
EBR6034EH60, EHD60 60 480 ACP6034BC APJ6485
EBR6034EH70, EHD70 60 480 ACP6034BC APJ6485
EBR6034FB35, FDB35 35 600 ACP6034BC APJ6485
EBR6034FB40, FDB40 40 600 ACP6034BC APJ6485
EBR6034FB45, FDB45 45 600 ACP6034BC APJ6485
EBR6034FB50, FDB50 50 600 ACP6034BC APJ6485
EBR6034FB60, FDB60 60 600 ACP6034BC APJ6485
EBR6034FB70, FDB70 60 600 ACP6034BC APJ6485
EBR6034HFB35, FD35 35 600 ACP6034BC APJ6485
EBR6034HFB40, FD40 40 600 ACP6034BC APJ6485
EBR6034HFB45, FD45 45 600 ACP6034BC APJ6485
EBR6034HFB50, FD50 50 600 ACP6034BC APJ6485
EBR6034HFB60, FD60 60 600 ACP6034BC APJ6485
EBR6034HFB70, FD70 60 600 ACP6034BC APJ6485
Note:
The Appleton “EBR” Receptacles and “ACP” Plugs are UL Listed Combinations. The Appleton “ERB” Receptacles with Crouse-Hinds UL Listed “APJ” Series Plugs are
UL Classifi ed Combinations. Classifi cations are for Class I, Div. 1, Groups C and D. Receptacles with the P4 suffi x have the interior rotated 22 1/2˚ for special polariza-
tion applications. They are compatible only with Appleton plugs with the P4 option, or Crouse-Hinds plugs with the S4 option.
EGS Electrical Group • 800-621-1506 • www.appletonelec.comPage 2 300880-3 Rev. D 10/03/2007
