Appleton IndustrialMercmaster™ LED Generation 3 Series Luminaires with Emergency Battery Backup Catalog Page
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Applications
• Powerful, effi cient weatherproof lighting suitable for use in:
— Warehouses
— Storage facilities
— Machine shops
— Receiving areas
— Manufacturing plants
— Walkways and catwalks
— Locations requiring IP66, Type 4X, marine and wet location
— Locations requiring dependable, consistent lighting in
extreme hot/cold temperature environments
— Areas of low clearance, low ceiling heights or where fi xture
weights must be minimized
• Typical harsh industrial environments include:
— Power generation plants
— Foundries
— Waste and sewage treatment plants
— Steel and other metal processing facilities
— Pulp and paper mills
— Processing plants
— Other areas where dust, water, dirt and rough usage are a
problem
Features
• Provides up to 1400 lumens illumination for 90 minutes of
emergency lighting with clear lens or 800 lumens illumination for
180 minutes of emergency lighting.
Standard Mode
Nominal Lumens HID Equivalent
3500 70-100W
5500 100-150W
Nominal lumen value for 5000K, clear glass globe Type V Wide. Detailed
lumen information is provided in tables.
• Functional diagnostic test self-initiates every 14 days after initial
start up.
• Duration test is automatically performed once per year .
• Green and Red LED lights indicate charging status and provide
fault warning.
• Simple quick disconnect connector disconnects power between
LEDs and battery management module to allow maintenance in
hazardous locations.
• Suitable for mounting heights up to 14 feet.
• Choice of optics for optimal light distribution in a variety of
applications: Type I, T ype III, Type V or Type V Wide.
• Choice of color temperature (CCT): 5000K cool white, 4000K
neutral white or 3000K warm white.
• Customize to the application requirements with three differ ent
globe options: clear polycarbonate, diffused polycarbonate, and
clear glass.
• Seven standard mounting hood designs allow for mounting in
any location. Uses same mounting hoods as Mercmaster III.
• Retrofi t adapters for Crouse-Hinds™, Killark
hoods available. See Mercmaster™ CH Adapters.
Emergency Mode
Nominal Lumens Model Number
1450 IMLGL3H
800 IMLGL3E
1450 IMLGL5H
800 IMLGL5E
and Mercmaster II
• Hinge has high lip for added safety during installation
and servicing. Hinge and bolt construction assures 360°
compression at all points on fi xture housing gasket for
positive sealing. Swing away design of captive bolt and nut
simplifi es installation.
• Rugged housing with superior thermal design translates to long
luminaire life.
• Luminaire housing has wiring compartment with terminal block
separate for easy wiring access.
• Standard screw-type terminal block can accept
UL/CSA 26-10 AWG wire.
• Standard 6 kV surge protection.
• Heavy duty, high temperatur e silicone gaskets.
• Photometric data and electronic drawings available
upon request.
• Ambient Temperature: -20 ˚C to +55 ˚C (-4 ˚F to +131 ˚F)
• LED L70 reported at 60,000 hours.
• Field replaceable globes, battery management module (BMM),
battery pack and LED driver .
Options
• Globe guard available, purchase separately
• Safety cable available, purchase separately
• Drain is available to divert water existing in the
conduit system, purchase separately .
Standard Materials
• Mounting hoods and bodies: cast copperfree
(4/10 of 1% max.) aluminum
• Gaskets: silicone
• All hardware and catch assemblies: stainless steel
• Globe: polycarbonate or glass
Standard Finishes
• Mounting hoods and bodies: gray epoxy powder coat fi nish,
electrostatically applied for complete uniform protection
Related Products
• Mercmaster™ LED Generation 3 Luminaries
• Mercmaster™ LED Low Profi le Luminaires
• Mercmaster™ LED Mounting Adapters
IMLGL
LED/AREA: NEC/CEC EMERGENCY
Killark is a registered trademark of Hubbell Incorporated
% Crouse-Hinds is a registered trademarks of Cooper Crouse-Hinds.
© April 2019
1
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
NEC/CEC Certifications and Compliances
• UL Standard: UL 1598, Third Edition; UL 8750, Second Edition;
UL 924, Tenth Edition
• CSA Standard: C22.2 No. 250.0-.00; C22.2 No. 250.13-2017;
C22.2 No. 141-15
• cCSAus Listed: Master contract 164460
• Ambient Temperature: 120-277 Volts: -20 °C up to +55 °C
(-4 °F up to +131 °F)
Design Lights™ Consortium
• Check DLC QPL for current list of products.
LED/AREA: NEC/CEC EMERGENCY
2
© April 2019
IndustrialMercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
LED Flexibility and Modular Design
Type I - Long and narrow
distribution pattern designed
with walkways in mind.
Choose from three color temperatures (CCT): 3000K, 4000K, and 5000K
Four light distribution patterns: Type I, Type III, Type V and Type V wide for application flexibility.
Seven mounting hoods allow one fixture to be configured for ceiling, pendant, stanchion, or wall applications.
Three globes; clear and diffused polycarbonate and clear glass globe provide just the right level of diffusion.
Safety Features Type I & Type III Hinge System
Type III - Wall mounted
distribution pattern designed
where you need good forward
light projection.
Type V - Symmetrical circle
distribution pattern ideal when
you need even coverage in all
directions.
Type V Wide - Like the Type V
distribution pattern with more
vertical lumens designed to help
spread the light quicker and
more outwards.
2
3
Latch Assembly and Hinge: Captive, stainless steel latch
assembly (bolt and nut) closes securely while providing resistance
to corrosive atmospheres. Swing-away design simplifies wiring and
installation. Extra high hinge provides additional protection against
accidental driver housing disengagement during installation or
maintenance.
Designed for the
Environment Quick Disconnect
Watertight Pendant
Hood Safety Cable
1
Type I & Type III light distribution patterns use a multiple hinged
housing design which allows you to correctly line up the beam
pattern in your desired direction. By using one of the three available
hinges you can position the fixture for optimal light output.
LED/AREA: NEC/CEC EMERGENCY
Field Changeable
Duration Setting
Driver housing design
incorporates separate
sections for the terminal
block and driver. The
efficient thermal design
ensures reliable heat
transfer from the LED
assembly out via the
heatsink and the cast,
epoxy powder coat,
aluminum body.
© April 2019
Simple quick disconnect
connector disconnects
power between LEDs
and battery management
module to allow
maintenance in hazardous
locations.
New watertight pendant
hood provides protection
against water ingress in
the conduit utilizing an
IP68 cord grip with 3 wire
holes 4 mm in diameter.
Safety cable is slipped
around the housing
through retention points
that are casted in. Safety
cable has built in loops
combined with a locking
carabiner to allow for
a quick and secure
installation.
Easy field changeable
duration setting between
90 and 180 minutes.
3
IndustrialMercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Mercmaster™ LED Family Tree
Adapters
Wateright
Pendant
Hood
Trunnion
Mount
Pendant
Mount
Pendant
Cone
Mount
Ceiling
Mount
Wall Mount
25°
Stanchion
Mount
90° Stanchion
Mount
Wall and
Stanchion
Mount
Adapters
Pendant and
Ceiling Mount
Adapters
Glass Globes
LED/AREA: NEC/CEC EMERGENCY
KPA-WT KPCT KPA KPCH KPC KPWB KPS KPST
IMLGL

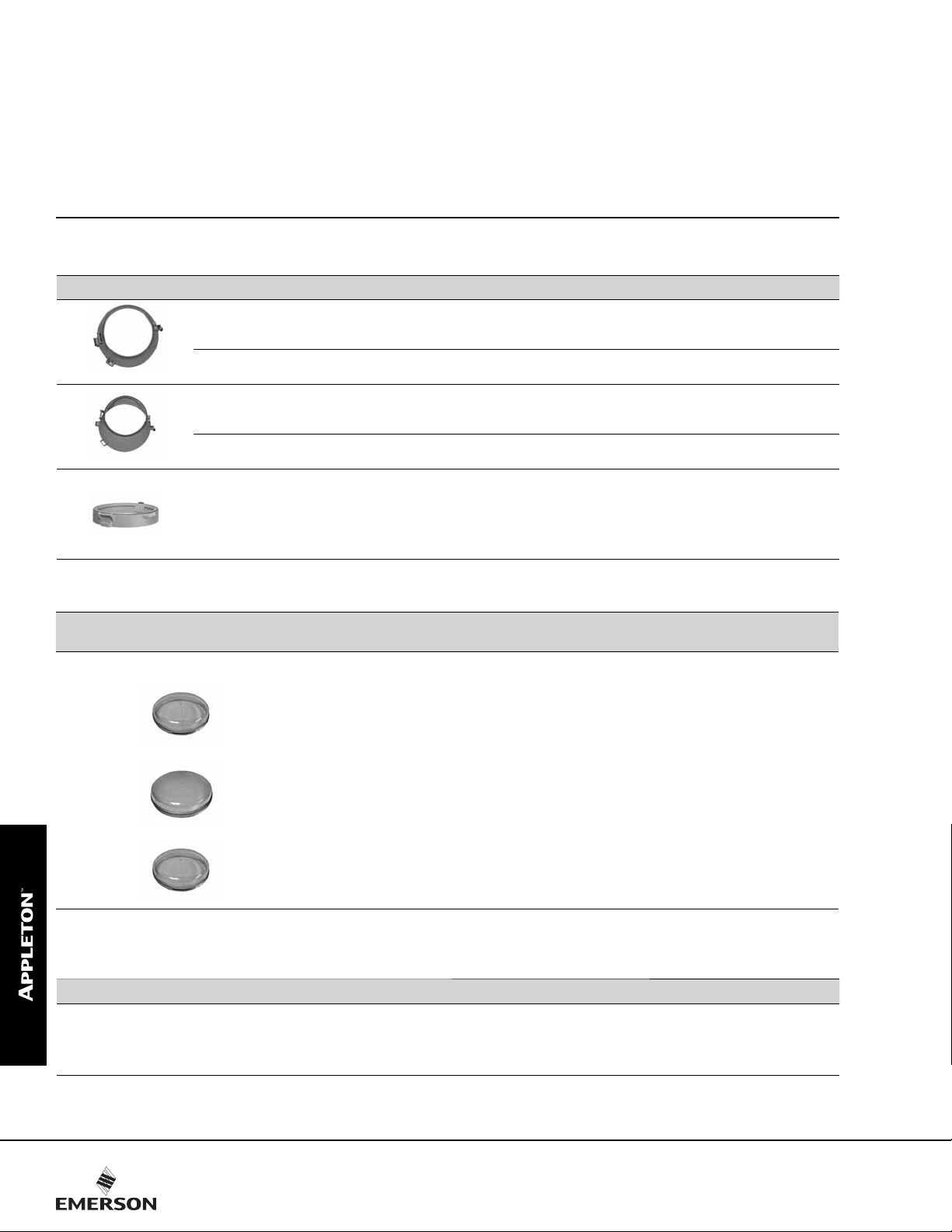

Polycarbonate Globes
VPGL-GLASS
(Clear)
Globe Guards
(Optional Accessory)
See mounting hood section for part numbers.
4
Emergency Exit Sign
(Optional Accessory)
MGU1 EXR400
VPGL-LED
(Clear)
VPGL-DIFF
(Diffused)
© April 2019
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Order using catalog numbering guides below or select catalog number from tables on following pages.
IMLG
Series:
IMLG - Industrial
Mercmaster™
LED
Generation 3
Series
Mounting:
A - Pendant
B - Watertight Pendant
C - Ceiling
D - Pendant Cone
R - 90º Stanchion
S - 25º Stanchion
T - Trunnion
K - Killark™ Adapter
Universal
U - Mercmaster™ II Adapter,
Ceiling
or Pendant
V - Mercmaster™ II Adapter,
Stanchion or Wall
W - Wall
X - Crouse Hinds™ Adapter,
Ceiling or Pendant
Y - Crouse Hinds™ Adapter,
Stanchion or Wall
Blank - No mounting hood
Lumen (nominal):
L3 - 3500
L5 - 5500
A L3 2 C P 5 BU H
BU - 120-277 Vac, 50/60Hz
Light Distribution Pattern:
Emergency:
H - 90 Minutes
E - 180 Minutes
Voltage:
LED/AREA: NEC/CEC EMERGENCY
1 - Type I
3 - Type III
5 - Type V
W - Type V Wide
Hub Size:
2 - 3/4" NPT
3 - 1" NPT
4 - 1-1/4" NPT stanchion
5 - 1-1/2" NPT stanchion
6 - Metric M20
Blank - If using adapter or
no hood
3/4” NPT, 1” NPT and Metric M20 hub entries are not offered in this mounting option
For lumen output information, see Lumen Values Table.
Guards for the globes are ordered separately. See the Accessories for more information.
Only allowed for Type V and Type V wide light distribution.
Type I and Type III use a multiple hinge housing.
Hub size does not apply to luminaires ordered with adapters.
Adapters only certified for cCSAus.
© April 2019
Color Temperature:
C - Cool, 5000K
N - Neutral, 4000K
W - Warm, 3000K
P - Clear Polycarbonate Globe
Globe Material:
D - Diffused Polycarbonate Globe
G - Clear Glass Globe
5
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Lumen Values Table
Lumen Output (Efficacy) for Clear Polycarbonate Globe
IMLGL3H IMLGL5H
Type I 5000K CCT, 70 CRI 3200 (107) 4800 (104)
Type III 5000K CCT, 70 CRI 3500 (117) 5200 (113)
Type V 5000K CCT, 70 CRI 3800 (127) 5700 (124)
Type V Wide 5000K CCT, 70 CRI 3600 (119) 6000 (129)
Type I 4000K CCT, 80 CRI 3000 (100) 4200 (91)
Type III 4000K CCT, 80 CRI 3000 (100) 4600 (100)
Type V 4000K CCT, 80 CRI 3300 (110) 5000 (109)
Type V Wide 4000K CCT, 80 CRI 2900 (97) 4800 (105)
Type I 3000K CCT, 80 CRI 2600 (87) 3800 (83)
Type III 3000K CCT, 80 CRI 2800 (93) 4100 (89)
Type V 3000K CCT, 80 CRI 3000 (100) 4500 (98)
Type V Wide 3000K CCT, 80 CRI 2900 (96) 4400 (94)
Type I 5000K CCT, 70 CRI 3500 (117) 5300 (115)
Type III 5000K CCT, 70 CRI 3700 (123) 5400 (117)
Type V 5000K CCT, 70 CRI 4000 (133) 6000 (130)
Type V Wide 5000K CCT, 70 CRI 3600 (120) 5400 (117)
Type I 4000K CCT, 80 CRI 3100 (103) 4600 (100)
LED/AREA: NEC/CEC EMERGENCY
Type III 4000K CCT, 80 CRI 3200 (107) 4800 (104)
Type V 4000K CCT, 80 CRI 3600 (120) 5300 (115)
Type V Wide 4000K CCT, 80 CRI 3200 (107) 4800 (104)
Type I 3000K CCT, 80 CRI 2800 (93) 4200 (91)
Type III 3000K CCT, 80 CRI 3100 (102) 4400 (96)
Type V 3000K CCT, 80 CRI 3100 (102) 4800 (104)
Type V Wide 3000K CCT, 80 CRI 3100 (101) 4600 (99)
Lumen Output (Efficacy) for Clear Glass Globe
IMLGL3H IMLGL5H
6
© April 2019
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Lumen Output (Efficacy) for Diffused Polycarbonate Globe
IMLGL3 IMLGL5
Type I 5000K CCT, 70 CRI 3200 (108) 4900 (107)
Type III 5000K CCT, 70 CRI 3300 (112) 5100 (110)
Type V 5000K CCT, 70 CRI 3700 (123) 5500 (120)
Type V Wide 5000K CCT, 70 CRI 3400 (113) 5100 (110)
Type I 4000K CCT, 80 CRI 2900 (95) 4400 (94)
Type III 4000K CCT, 80 CRI 3000 (101) 4600 (100)
Type V 4000K CCT, 80 CRI 3200 (107) 4800 (104)
Type V Wide 4000K CCT, 80 CRI 3000 (101) 4600 (100)
Type I 3000K CCT, 80 CRI 2700 (87) 4000 (85)
Type III 3000K CCT, 80 CRI 2800 (92) 4200 (91)
Type V 3000K CCT, 80 CRI 2900 (97) 4400 (96)
Type V Wide 3000K CCT, 80 CRI 2800 (91) 4200 (90)
90 Minute Emergency Mode
Model
IMLGL3H
IMLGL5H
IMLGL3H
IMLGL5H
IMLGL3H
IMLGL5H
Lumens
Polycarbonate Clear Globe Polycarbonate Diffused Globe Glass Clear Globe
5000K CCT, 70 CRI 1400 1350 1450
4000K CCT, 80 CRI 1280 1230 1330
3000K CCT, 80 CRI 1100 1150 1200
LED/AREA: NEC/CEC EMERGENCY
All lumen values are typical (tolerance +/-10%).
Diffused polycarbonate globe can be used with Type I, III and V wide. Refer to photometric files for lumen output information.
© April 2019
7
IndustrialMercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Automatic Testing System (ATS)
Functional Full Duration
Starts within 24 to 45 hours after the initial powerup of the module Starts within 5 to 26 days after the initial power of the module
Occurs every 14 days after the initial aforementioned functional test Occurs every 364 days after the initial aforementioned functional test
Lasts for 5 minutes Lasts for the full duration of the rated emergency period
At the completion of functional and full duration tests, LED indicator will display the status of the emergency luminaire when AC is present
Color Timing Description
Green 1 sec ON: 1 sec OFF
Green 0.25 sec ON: 0.25 sec OFF Functional / Duration Self-Test on-going
Green Steady ON
LED/AREA: NEC/CEC EMERGENCY
Red 1 sec ON: 1 sec OFF
LED Indicators OFF, LED Array ON LED Indicator Lights (Red and Green) OFF No AC, Emergency mode ON
LED Indicator
LED Array
LED Signals
Normal charging ok, Battery not yet fully
charged, No fault detected, Testing ok
Charging ok, Battery fully charged, No fault
detected, Testing ok
Fault condition. Installation issue. Battery is
reverse, not connected or shorted.
Functional test failure, full duration
test failure
8
© April 2019
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Electrical Ratings
Model Number Voltage Input Power Input Current (amp) Power Factor THD
120 Vac 30 0.26
IMLGL3H BU
IMLGL5H BU
>0.9 < 20%
277 Vac 30 0.12
120 Vac 46 0.39
>0.9 < 20%
277 Vac 46 0.17
LED/AREA: NEC/CEC EMERGENCY
All values are typical (tolerance +/-10%).
© April 2019
9
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Catalog Number for Driver Housing and Globe
Lumen
Level CCT Optics
Type I IMLGL3CP1BUH IMLGL3CP1BUE IMLGL3CD1BUH IMLGL3CD1BUE IMLGL3CG1BUH IMLGL3CG1BUE
Type III IMLGL3CP3BUH IMLGL3CP3BUE IMLGL3CD3BUH IMLGL3CD3BUE IMLGL3CG3BUH IMLGL3CG3BUE
3K 5000K
Type V IMLGL3CP5BUH IMLGL3CP5BUE IMLGL3CD5BUH IMLGL3CD5BUE IMLGL3CG5BUH IMLGL3CG5BUE
Clear Polycarbonate Globe
90 Min 180 Min 90 Min 180 Min 90 Min 180 Min
Polycarbonate Diffused Globe
Clear Glass Globe
Type V
Wide
Type I IMLGL5CP1BUH IMLGL5CP1BUE IMLGL5CD1BUH IMLGL5CD1BUE IMLGL5CG1BUH IMLGL5CG1BUE
Type III IMLGL5CP3BUH IMLGL5CP3BUE IMLGL5CD3BUH IMLGL5CD3BUE IMLGL5CG3BUH IMLGL5CG3BUE
5K 5000K
Type V IMLGL5CP5BUH IMLGL5CP5BUE IMLGL5CD5BUH IMLGL5CD5BUE IMLGL5CG5BUH IMLGL5CG5BUE
Type V
Wide
LED/AREA: NEC/CEC EMERGENCY
IMLGL3CPWBUH IMLGL3CPWBUE IMLGL3CDWBUH IMLGL3CDWBUE IMLGL3CGWBUH IMLGL3CGWBUE
IMLGL5CPWBUH IMLGL5CPWBUE IMLGL5CDWBUH IMLGL5CDWBUE IMLGL5CGWBUH IMLGL5CGWBUE
For other CCT options, change the 6th digit in part number from “C” to “W” for Warm 3000K CCT or “N” for Neutral 4000K CCT.
Example: MLGL7CP5BUH to “W” for Warm, MLGL7WP5BUH.
Guards are available. See following pages for accessory ordering information.
10
© April 2019
IndustrialMercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Mounting Hoods
Description
Weight in kg (lbs) Hub Size Catalog Number
Pendant
One Hub, Rigid Mounting
1.0 (2.3)
Watertight Pendant Hood
One Hub
Pendant Cone
One Hub, Rigid Mounting
1.1 (2.5)
Trunnion
Five Hubs, Four Close-Up Plugs
Ceiling
Five Hubs, Four Close-Up Plugs
1.4 (3.0)
Wall
Five Hubs, Four Close-Up Plugs
1.8 (4.0)
25° Stanchion
One Hub
1.5 (3.3)
90° Stanchion
One Hub
1.7 (3.8)
3/4 KPA-75
1 KPA-100
M20 KPA-M20
3/4 KPA-75-WT
1 KPA-100-WT
3/4 KPCH-75
1 KPCH-100
M20 KPCH-M20
3/4 KPCT-75
1 KPCT-100
3/4 KPC-75
1 KPC-100
M20 KPC-M20
3/4 KPWB-75
1 KPWB-100
M20 KPWB-M20
1-1/4 KPS-125
1-1/2 KPS-150
1-1/4 KPST-125
1-1/2 KPST-150
LED/AREA: NEC/CEC EMERGENCY
© April 2019
11
IndustrialMercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Mounting Hood Adapters
Manufacturer Installed Mounting Hood Appleton Adapter Catalog Number
Crouse-Hinds
Champ
Appleton
Mercmaster™ II
Crouse-Hinds
Appleton
Mercmaster™ II
™
Champ
™
™
™
LPS125, LPS150 - 25° Angle Stanchion
APM2/3 - Pendant
CM2/3 - Ceiling
HPM2 - Flexible Pendant
LPA75/100 - Pendant
LPC75/100 - Ceiling
TWM2/3 - Wall
JM5 - 25° Angle Stanchion
PM5 - 90° Straight Stanchion
LPWB75, LPWB100 - Wall
MMADCHVS
MMADIIS
MMADCHVA
MMADIIA
Accessories and Replacement Parts
Globes and Gaskets
LED/AREA: NEC/CEC EMERGENCY
Killark
VMX2B, VMX3B, VMX6B, VMX7B, VMX9B - Ceiling
™
VMD4B, VMD5B, VMS4B, VMS5B - Stanchion
VMA2B, VMA3B - Pendant
VMB2B, VMB3B - Wall
VMC2B, VMC3B - Pendant Cone
Description
Weight in kg (lbs) Catalog Number
Clear Globe (polycarbonate)
0.2 (0.5)
Diffused Globe (polycarbonate)
0.2 (0.5)
Glass Globe — Clear
0.8 (1.7)
MMADKVA
VPGL-LED
VPGL-DIFF
VPGL-GLASS
Luminaire Weights
12
Model Number Weight in kg (lbs)
IMLGL3H 10.5 (23.2)
IMLGL5H 10.5 (23.2)
© April 2019
IndustrialMercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations

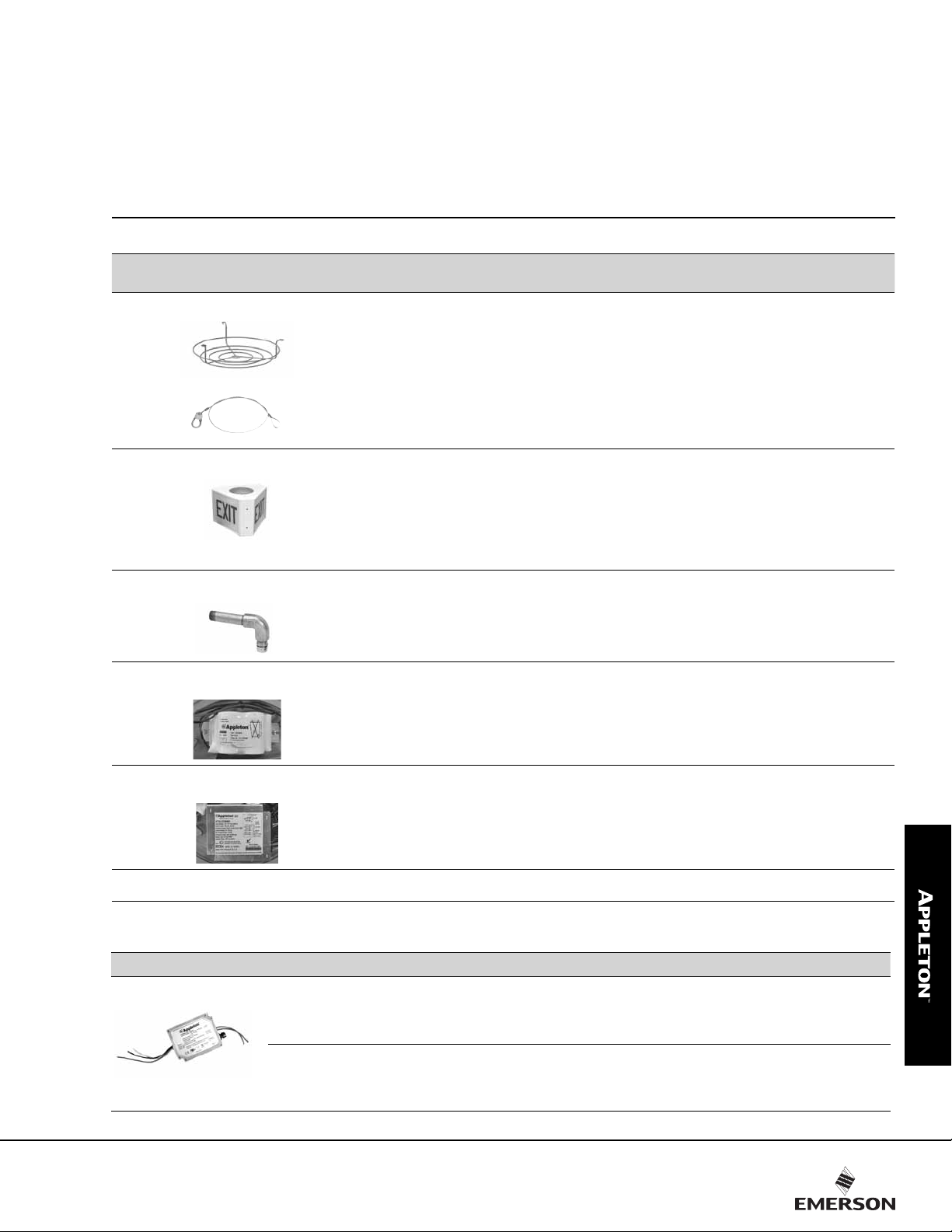

Accessories and Replacement Parts
Description
Weight in kg (lbs) Catalog Number
Globe Guards and Safety Chain
Exit Sign
Drain Plug
Replacement Battery Pack
Replacement Battery Management Module
Globe Guard
0.2 (0.4)
Safety Cable
0.2 (0.4)
Emergency Exit sign EXR-400
3” long, 1/2” trade size drain assembly used
to divert water existing in the conduit system
0.4 (0.9)
MGU1
LEDSC
LEDDR3
BPMLLED
LED/AREA: NEC/CEC EMERGENCY
BMMLLED
Replacement Fuse (Emergency system) MLF3
Replacement Drivers
Voltage Driver Wattage Luminaire Model Constant Current Settings Catalog Number
BU
50 Watt IMLGL3
BH 500mA APMS050C135HD50
BU
50 Watt IMLGL5
BH 780mA APMS050C135HD78
© April 2019
500mA APMS050C135UD50
780mA APMS050C135UD78
13
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations

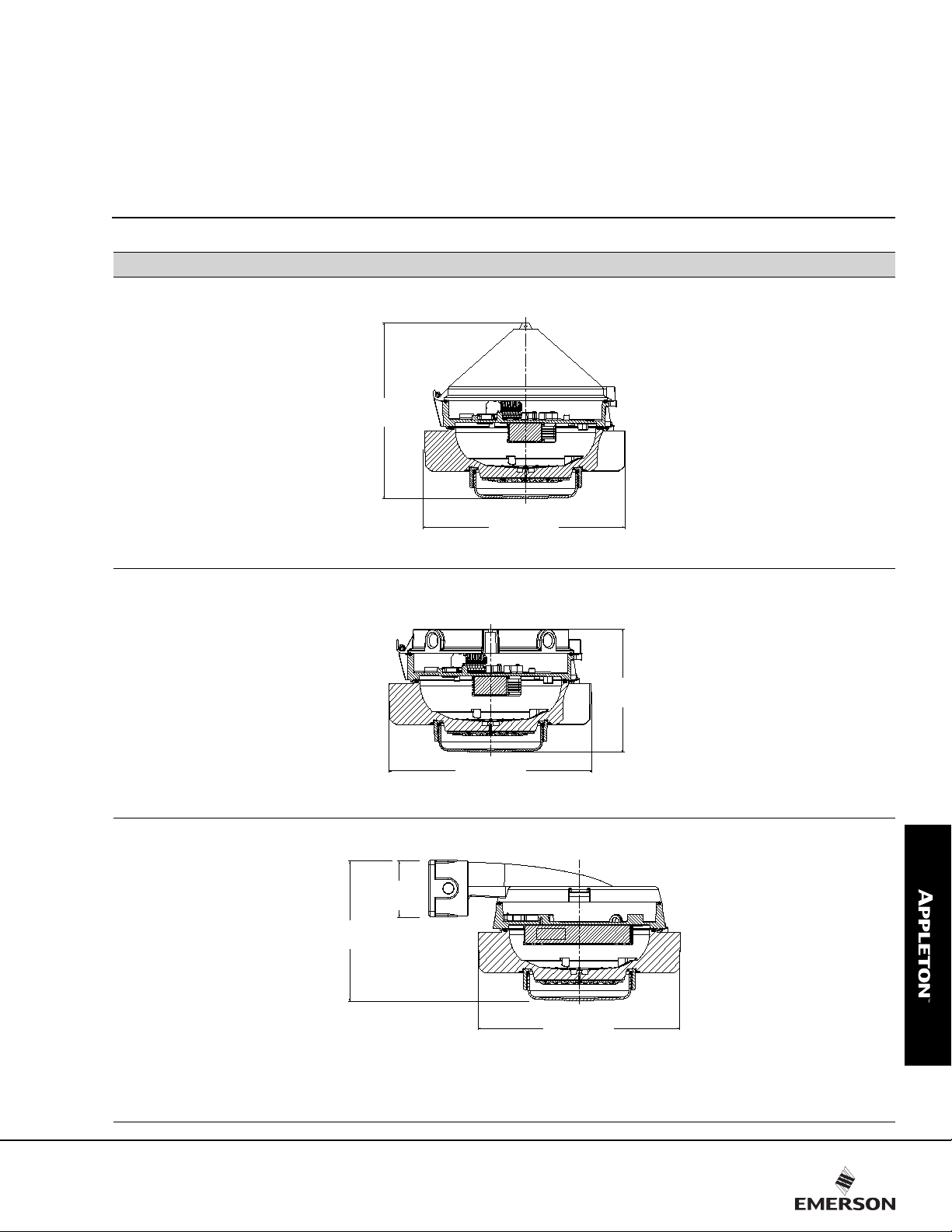

Dimensional Drawings
MLGL3H to MLGL5H
Driver Housing
198.1 mm
[7.80 in]
Ø375.0 mm
[14.76 in]
Watertight Pendant
LED/AREA: NEC/CEC EMERGENCY
Ø374.7 mm
[14.75 in]
Pendant
Ø374.6 mm
[14.75 in]
245.6 mm
[9.67 in]
209.6 mm
[8.25 in]
14
© April 2019
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Dimensional Drawings
MLGL3H to MLGL5H
Pendant Cone
321.9 mm
[12.67 in]
Ø374.6 mm
[14.75 in]
257.0 mm
[10.12 in]
Ceiling
LED/AREA: NEC/CEC EMERGENCY
224.3 mm
[8.83 in]
Ø374.6 mm
[14.75 in]
Wall Mount
103.1 mm
[4.06 in]
Ø374.6 mm
[14.75 in]
© April 2019
15
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Dimensional Drawings
MLGL3H to MLGL5H
Trunnion Mount
306.9 mm
[12.08 in]
Ø374.7 mm
[14.75 in]
LED/AREA: NEC/CEC EMERGENCY
232.3 mm
[9.15 in]
25°
25 Degree Stanchion
415.2 mm
[16.35 in]
383.6 mm
[15.10 in]
90 Degree Stanchion
469.0 mm
[18.46 in]
434.8 mm
248.6 mm
[9.79 in]
[17.12 in]
Ø374.6 mm
[14.75 in]
16
Ø374.6 mm
[14.75 in]
© April 2019
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Photometric Data — DATA SHOWN IS ABSOLUTE
Type V, Clear Polycarbonate 5000K CCT
REPORT NUMBER: MLLED2CP5BUH+EMR
Luminaire Lumens 1,404
POLAR CANDELA DISTRIBUTION ISOFOOT CANDLE PLOT
2
180° 170° 160° 150° 140°
630
525
420
315
210
105
0
105
210
315
420
525
630
- Max CD: 145°H
- 0° H
- 90° H
3
House Side
130°
120°
110°
100°
90°
80°
70°
60°
50°
40°30°20°10°0°
- 22.5° H
- 45° H
- 67.5° H
2
1
0
1
2
Street Side
3
1
5 fc
2 fc
1 fc
Point of Max FC: 3.96
30 fc
Type V, Diffused Polycarbonate 5000K CCT
REPORT NUMBER: MLLED2CD5BUH+EMR
Luminaire Lumens 1,369
POLAR CANDELA DISTRIBUTION ISOFOOT CANDLE PLOT
2
1
5 fc
2 fc
1 fc
Point of Max FC: 4.36
30 fc
180° 170° 160° 150° 140°
520
433
347
260
173
87
0
87
173
260
347
433
520
- Max CD: 145°H
- 0° H
- 90° H
3
House Side
130°
120°
110°
100°
90°
80°
70°
60°
50°
40°30°20°10°0°
- 22.5° H
- 45° H
- 67.5° H
2
1
0
1
2
Street Side
3
ZONAL LUMEN SUMMARY
Zone Lumens % Luminaire
2
1
0
3
0-30 407.0 29%
0-40 763.6 54.4%
0-60 1,388.0 98.8%
60-90 16.4 1.2%
70-100 3.5 0.3%
90-120 0.1 0%
0-90 1,404.4 100%
90-180 0.1 0%
0-180 1,404.5 100%
LUMENS PER ZONE
Zone Lumens % Total Zone Lumens % Total
0-10 44.3 3.2% 90-100 0.1 0%
10-20 130.2 9.3% 100-110 0 0%
20-30 232.5 16.6% 110-120 0 0%
30-40 356.6 25.4% 120-130 0 0%
40-50 424.6 30.2% 130-140 0 0%
0.5 fc
50-60 199.9 14.2% 140-150 0 0%
60-70 12.9 0.9% 150-160 0 0%
70-80 2.4 0.2% 160-170 0 0%
80-90 1.1 0.1% 170-180 0 0%
LED/AREA: NEC/CEC EMERGENCY
ZONAL LUMEN SUMMARY
Zone Lumens % Luminaire
2
1
0
3
0-30 395.3 28.9%
0-40 702.3 51.3%
0-60 1,231.5 89.9%
60-90 126.7 9.2%
70-100 44.8 3.3%
90-120 10.6 0.8%
0-90 1,358.2 99.2%
90-180 11.1 0.8%
0-180 1,369.3 100%
LUMENS PER ZONE
Zone Lumens % Total Zone Lumens % Total
0-10 43.5 3.2% 90-100 4.2 0.3%
10-20 129.9 9.5% 100-110 4.7 0.3%
20-30 221.9 16.2% 110-120 1.8 0.1%
30-40 307.0 22.4% 120-130 0.5 0%
40-50 321.3 23.5% 130-140 0 0%
50-60 208.0 15.2% 140-150 0 0%
60-70 86.0 6.3% 150-160 0 0%
70-80 31.5 2.3% 160-170 0 0%
0.5 fc
80-90 9.1 0.7% 170-180 0 0%
© April 2019
17
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Photometric Data — DATA SHOWN IS ABSOLUTE
Type V, Clear Glass 5000K CCT
REPORT NUMBER: MLLED2CG5BUH+EMR
Luminaire Lumens 1,460
POLAR CANDELA DISTRIBUTION ISOFOOT CANDLE PLOT
2
180° 170° 160° 150° 140°
670
558
447
335
223
112
0
112
223
335
447
558
670
- Max CD: 145°H
- 0° H
- 90° H
130°
120°
110°
100°
90°
80°
70°
60°
50°
40°30°20°10°0°
- 22.5° H
- 45° H
- 67.5° H
3
House Side
2
1
0
1
2
Street Side
3
Type V, Clear Polycarbonate 4000K CCT
REPORT NUMBER: MLLED4NG5BUH+EMR
Luminaire Lumens 1,330
POLAR CANDELA DISTRIBUTION ISOFOOT CANDLE PLOT
LED/AREA: NEC/CEC EMERGENCY
2
180° 170° 160° 150° 140°
610
508
407
305
203
102
0
102
203
305
407
508
610
- 0° H
- 90° H
130°
120°
110°
100°
90°
80°
70°
60°
50°
40°30°20°10°0°
- 22.5° H
- 45° H
- 67.5° H
3
House Side
2
1
0
1
2
Street Side
3
1
0
5 fc
2 fc
1 fc
Point of Max FC: 3.76
30 fc
1
0
5 fc
2 fc
1 fc
Point of Max FC: 3.40
30 fc
ZONAL LUMEN SUMMARY
Zone Lumens % Luminaire
2
1
3
0-30 420.1 28.8%
0-40 792.8 54.3%
0-60 1,443.4 98.8%
60-90 16.8 1.1%
70-100 3.0 0.2%
90-120 0.1 0%
0-90 1,460.2 100%
90-180 0.1 0%
0-180 1,460.2 100%
LUMENS PER ZONE
Zone Lumens % Total Zone Lumens % Total
0-10 44.3 3.0% 90-100 0.1 0%
10-20 133.9 9.2% 100-110 0 0%
20-30 242.0 16.6% 110-120 0 0%
30-40 372.6 25.5% 120-130 0 0%
40-50 444.7 30.5% 130-140 0 0%
50-60 205.9 14.1% 140-150 0 0%
60-70 13.8 0.9% 150-160 0 0%
70-80 2.1 0.1% 160-170 0 0%
0.5 fc
80-90 0.8 0.1% 170-180 0 0%
ZONAL LUMEN SUMMARY
Zone Lumens % Luminaire
2
1
3
0-30 392.5 29.5%
0-40 733.5 55.1%
0-60 1,315.4 98.9%
60-90 15.0 1.1%
70-100 2.6 0.2%
90-120 0 0%
0-90 1,330.4 100%
90-180 0 0%
0-180 1,330.4 100%
LUMENS PER ZONE
Zone Lumens % Total Zone Lumens % Total
0-10 41.9 3.1% 90-100 0 0%
10-20 125.8 9.5% 100-110 0 0%
20-30 224.8 16.9% 110-120 0 0%
30-40 341.0 25.6% 120-130 0 0%
40-50 399.6 30.0% 130-140 0 0%
50-60 182.3 13.7% 140-150 0 0%
60-70 12.4 0.9% 150-160 0 0%
70-80 1.9 0.1% 160-170 0 0%
0.5 fc
80-90 0.7 0.1% 170-180 0 0%
18
© April 2019
Industrial Mercmaster™ LED Generation 3 Series Luminaires with Emergency
Battery Backup
For Ordinary Locations
NEC/CEC:
CCSAus Listed
Type 3R, 4, 4X
IP66/IP67
Simultaneous Exposure
Suitable for Use in Wet Locations
Photometric Data — DATA SHOWN IS ABSOLUTE
Type V, Clear Glass 4000K CCT
REPORT NUMBER: MLLED4WG5BUH+EMR
Luminaire Lumens 1,207
POLAR CANDELA DISTRIBUTION ISOFOOT CANDLE PLOT
180° 170° 160° 150° 140°
550
458
367
275
183
92
0
92
183
275
367
458
550
- Max CD: 145°H
- 0° H
- 90° H
2
3
130°
120°
110°
100°
90°
80°
70°
60°
50°
40°30°20°10°0°
- 22.5° H
- 45° H
- 67.5° H
House Side
2
1
0
1
2
Street Side
3
1
5 fc
2 fc
1 fc
Point of Max FC: 3.06
30 fc
1
0
ZONAL LUMEN SUMMARY
Zone Lumens % Luminaire
2
3
0-30 355.1 29.4%
0-40 659.9 54.6%
0-60 1,193.4 98.8%
60-90 14.4 1.2%
70-100 2.4 0.2%
90-120 0 0%
0-90 1,207.8 100%
90-180 0 0%
0-180 1,207.8 100%
LUMENS PER ZONE
Zone Lumens % Total Zone Lumens % Total
0-10 38.1 3.2% 90-100 0 0%
10-20 114.1 9.4% 100-110 0 0%
20-30 202.9 16.8% 110-120 0 0%
30-40 304.8 25.2% 120-130 0 0%
40-50 360.5 29.8% 130-140 0 0%
50-60 173.0 14.3% 140-150 0 0%
60-70 12.0 1.0% 150-160 0 0%
70-80 1.7 0.1% 160-170 0 0%
LED/AREA: NEC/CEC EMERGENCY
80-90 0.7 0.1% 170-180 0 0%
0.5 fc
© April 2019
19
Loading...
