Powertite™ Series Pin and Sleeve Plugs, Connectors and Receptacles
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Applications
• Designed to supply power to portable or xed electrical
equipment such as motor generator units, welders, pumps,
compressors, cellular relay stations, and similar apparatus.
• Ideal for use on shipping docks, ports, and other
”ship to shore” applications.
• Suitable for use in locations where a weatherproof enclosure
is required.
• Rough usage construction.
Features
• Available in 30, 60, 100, 150, 200, and 400 Amp units.
• Available in two grounding styles: Style 1 (shell only) and
Style 2 (shell and extra pole).
• Neoprene bushing compressed by cable collar prevents
entrance of water. Bushing is highly resistant to hydrocarbon
deterioration and is self-extinguishing.
• Locking screw and slot prevents plug cable collar from
”backing off.”
• Contacts exert constant pressure along entire contact surface
and provide electrical continuity.
• Ambient temperature range of -25°C to +40°C
(-13°F to +104°F).
• Insulating blocks provide greatest dielectric and mechanical
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
strength and lowest arc tracking.
• Positive polarization: only plugs and receptacles of same style,
number of poles and ampere rating can be used together.
• Circuit breaking: in 30, 60, 100, 150 and 200 Amp units, any
arcing created as line and load terminals disengage is safely
conned deep within terminal cavities. Plugs may be withdrawn
in an emergency under full rated loads without separate
disconnect switches (400 Amp plug is for disconnecting use
only; not for current rupturing).
• 30, 60, 100, and 150 Amp Powertite™ plugs also suitable for
classied locations when used with Appleton EBR, EBRH, JBR,
MD2SR, or DBR explosionproof interlocking receptacles.
• Controlled length contacts ensure that ground makes rst and
breaks last for added safety.
• Intermatability : Intermateable with Crouse-Hinds Arktite
and Powermate™, and Killark Versamate®.
Standard Materials
• Plug, receptacle, connector and mounting box housings:
copperfree (4/10 of 1% max.) aluminum
• Insulating blocks: glass lled polyester
Standard Finishes
• Aluminum plug, receptacle, connector and mounting box
housings: epoxy powder coat
• Insulating blocks and contacts: natural nish
Options
NEC/CEC Certifications and Compliances
®
Related Products
30 and 60 Amp 100 and 150 Amp
200 Amp 400 Amp
• See Illustrated Options
• UL Standard: UL 1682, UL 1686 , UL 50E
• UL Listed: E145916, E145917
• CSA Standard: C22.2 No. 182.1
• CSA Certied: 065179
• NEMA 4X (30, 60, 100, 150, and 200 Amp)
• NEMA Conguration: FB11
• For classied location plugs and receptacles, see Plugs and
Receptacles: Hazardous Location.
The UL 1686 standard is applicable to units up to 100 Amps.
Classified by UL and Certified by CSA for use in specific combinations with Crouse-Hinds Arktite® or Killark Versamate®.
Arktite is a registered trademark of Cooper Crouse-Hinds.
Versamate is a registered trademark of Hubble Killark.
458
Powertite™ Series Pin and Sleeve Plugs, Connectors and Receptacles
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X

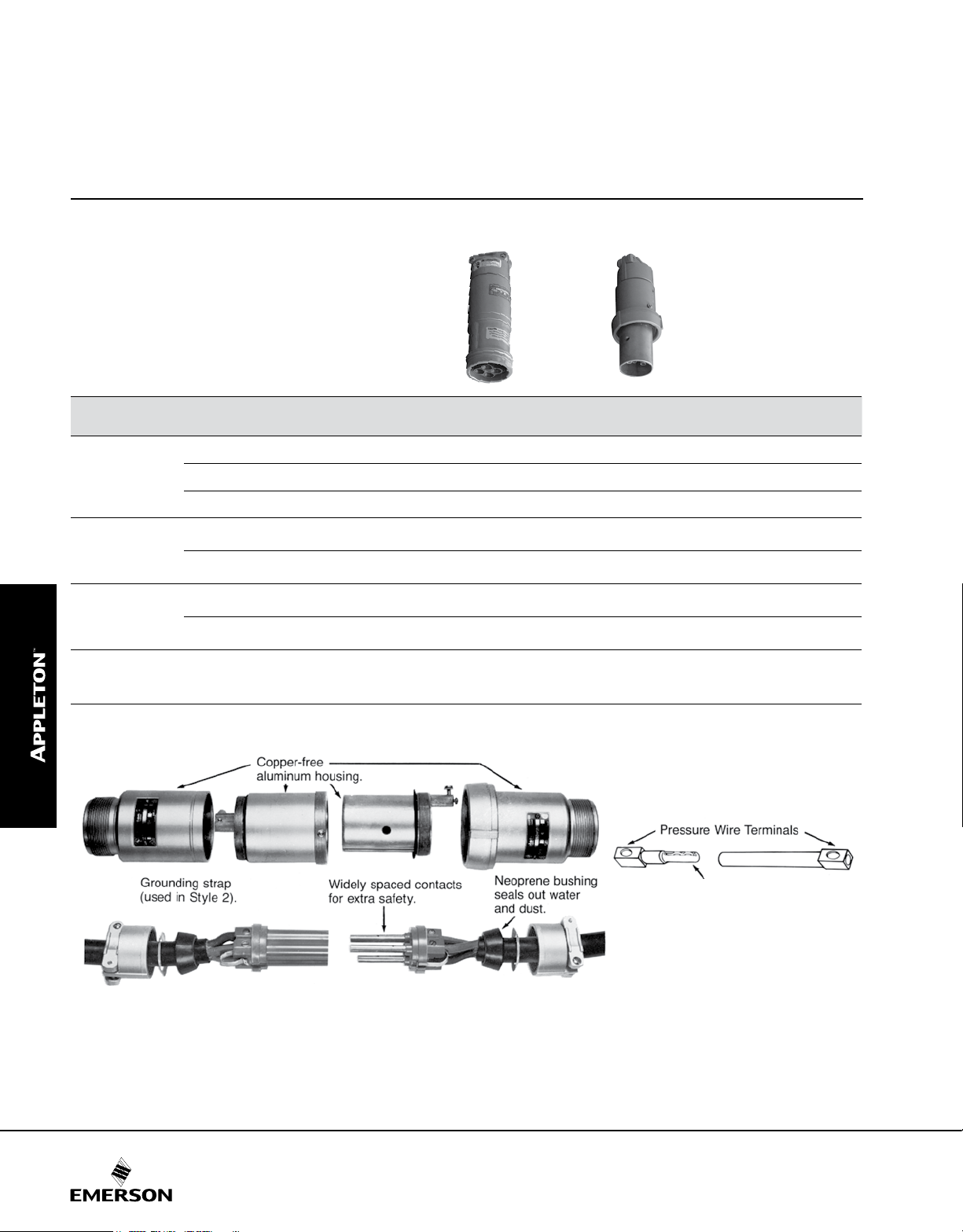

Illustrated Features
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Grounding strap in Style 2 receptacle from
extra pole to receptacle housing.
Screw locks receptacle housing and interior into
an assembly and permits easy field conversion to
reverse service for 30, 60, 100, 150, and 200 Amp.
Receptacle interior retaining washers.
Raintight mounting box gasket.
Grounding detent springs in Style 1 and Style 2.
Longer ground terminal in Style 2 receptacle
”makes first, breaks last.”
Floating-type plug terminal self-aligns to
receptacle contacts.
Screw locks plug housing and interior into an
assembly; also permits easy field conversion to
reverse service (30, 60, 100, and 150 Amp).
Grounding strap in Style 2 plug from
extra pole to plug housing.
Cable grip assembly.
Arc snuffing chamber.
Plug with clamping ring has neoprene gasket.
Ring threads onto screw cap receptacle to
provide NEMA 4X assembly when properly
tightened.
Available in 30, 60, 100, and 150 Amp units.
459
Powertite™ Series Pin and Sleeve Plugs, Connectors and Receptacles
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Illustrated Features
Grounding Styles
Style 1
(Shell Only)
Portable cord,
4-conductor
PLUG
Equipment
grounding
connected
to plug shell
Plug—Equipment grounding conductor is wired directly to
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
solderless lug which is connected to the plug housing with a
pressure connector. All terminals are ”current carrying.”
Receptacle—Two detent spring clips engage the grounded plug
housing on plug insertion-grounded plug shell makes contact with
receptacle ground spring before line and load poles are engaged.
Grounding path is maintained until after current-carrying contacts
disengage. All terminals are ”current carrying.”
Pin and Sleeve Design
RECEPTACLE
Grounding
thru conduit
system
Style 2
(Shell and Extra Pole)
Portable cord,
4-conductor
Equipment
grounding
connected
to extra pole
and plug shell
Plug—Equipment grounding conductor is not only connected to the
solderless lug in the plug housing, but also to an extra grounding
pole. Grounding pole has copper alloy grounding jumper strap that
connects to plug housing.
Receptacle—Two detent spring clips engage grounded plug
housing on plug insertion. Jumper from extra grounding pole is
electrically connected to a screw on receptacle housing. Longer
grounding pole ”makes first and breaks last.”
PLUG
RECEPTACLE
Factory
installed
jumper
Fourth
(grounding)
wire,
if desired
Grounding
thru conduit
system and
exrta pole
30, 60, and 100 Amp Pressure Wire Terminals.
Solid Brass Contacts with Beryllium Copper Springs.
200 Amp Pressure Wire Terminals. Solid Copper Split-Type Contact.
400 Amp 0.84” Solder Well Wire Terminals. Solid Copper Contacts with Four Spring-Loaded Borosilicate Bearings.
400 Amp 1.25” Solder Wire Well Terminals. Solid Copper Contacts with Four Spring-Loaded Borosilicate Bearings.
Pins and sleeves are not sold separately. Must be purchased as entire interior replacement. Available on the Replacement Interiors pages.
Solid Copper Contacts with Beryllium Copper Springs.
150 Amp Pressure Wire Terminals.
460
Powertite™ Series Pin and Sleeve Plugs, Connectors and Receptacles
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Illustrated Features
Spring Door and Screw Cap
30, 60, 100, and 150 Amp spring door and screw cap receptacles
are threaded to accept clamping ring ACP plug. The ring threads
onto the receptacle to form a raintight assembly with plug in
use-and also to prevent plug fallout. When the plug is withdrawn,
the gasketed spring door cover closes tightly against receptacle
opening automatically, providing weatherproof protection. Spring
door has stainless steel spring and shaft.
Spring Door Cover
30, 60, 100, and 150 Amp units may be located at any position in a
360° circle by adjusting a setscrew. Set screw also allows complete
removal of cover. Spring door available on 200 Amp units.
NOTE: Spring Door cover in open positions for illustration only.
ACP Plugs
Supplied with bushings to accommodate a wide variety of cable
diameters. 30 Amp plug clamp used in first position with smallest
inside diameter bushing provides positive grip on cables as small as
0.390 inches, such as those that are used in oil rig installations.
Reversible Cable Clamps
Permits wide cable range (just loosen screws and flip over).
Each position accommodates one of two bushings. Convenient in
installations having different cable sizes.
Illustrated Options
Standard Service
Energized receptacle has
recessed male contacts to
reduce danger of accidental
touching. Plug has female
contacts that are energized only
upon insertion in receptacle.
Special Polarization
Special polarization is available on 30, 60, 100, 200, and 400 Amp
units. Prevents plug insertion in a receptacle or connector wired
for a different voltage. In installations where there are different line
voltages, the special polarization option is desirable. This allows
only plugs and receptacles wired for the same line voltage to be
mated together. The receptacle or connector interior is positioned
22-1/2°, relative to the polarization rivet, to the right (as specified) of
standard, and plug is polarized to correspond. Add suffix -P4 to the
standard or reverse service plug, receptacle or connector.
Spring Door
Cover
Automatically
Closes
Reverse Service (Generator
Application)
Useful where a ”hot” plug feeds a
dead receptacle. Reverse service
is often used for generator
applications where the receptacle
houses a dead plug interior. Plug
houses an energized receptacle
interior, which has recessed
male contacts to reduce danger
of accidental touching. 30, 60,
100, 150, and 200 Amp units
can be easily converted to
reverse service in the field when
matching plug and receptacle
are ordered. 400 Amp unit is only
available as a factory assembled
item at extra cost. Add suffix -RS
to receptacle or connector.
Plug Threaded
into Receptacle
1st Position 2nd Position
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Screw Cap Plug with
Clamping Ring
461
Powertite™ Series Pin and Sleeve Plugs, Connectors and Receptacles
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Features at a Glance
Receptacle Types Contacts Reverse Service
Grounding
Amp
Styles
Weatherproof
Spring Door
NEMA 4X
Screw Cap
Raintight
Clamp Cover
30 1 and 2 X X X Style 2 X
60 1 and 2 X X X Style 2 X
100 1 and 2 X X X Style 2 X
150 2 X X
200 1 and 2
X
X
400 1 and 2 X Style 2 X
Application Chart
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Grounding
Style Wire/Pole
Style 1
(Shell Only)
Style 2
(Shell and
Extra Pole)
2W, 2P L1+N+G L1+L2+G
3W, 3P L1+L2+N+G 3W, 3P L1+L2+L3+G
4W, 4P 4W, 4P L1+L2+L3+N+G
2W, 3P L1+N+G L1+L2+G
3W, 4P L1+L2+N+G 3W, 4P L1+L2+L3+G
Single Phase Grounding
With Neutral Without Neutral With Neutral Without Neutral
Brass with
Beryllium Copper
Springs
X
Copper with
Borosilicte
Bearings
Style Wire/Pole
Style 1
(Shell Only)
Style 2
(Shell and
Extra Pole)
Split-type
Copper
Contacts
X Style 2
2W, 2P
2W, 3P
Brass
Ground
Contacts
Style 2 X
Three Phase
In
Field
X
Factory
Only
Powertite™ Horsepower Ratings Plug may be withdrawn in an emergency if within these maximum HP ratings. Not for normal starting/stopping.
Motor Horsepower Motor Horsepower
Phase Motor Amps 115 Vac 230 Vac 480 Vac 600 Vac Phase Motor Amps 115 Vac 230 Vac 480 Vac 600 Vac
For Emergency Disconnect Only
3-Phase
3W, 3P;
3W, 4P;
or
4W, 4P
30 3 7-1/2 15 20
60 7-1/2 15 30 30 60 3 10 20 20
100 10 20 40 40 100 7-1/2 15 30 30
150 Do Not Disconnect Under Load 200 15 30 40 40
200 20 40 50 50
1-Phase
2W, 2P
or
2W, 3P
30 2 3 10 10
Range of Wire Sizes Accommodated in Powertite™ Plug and Receptacle Terminals
60 °C (140 °F) minimum wire ratings.
30, 60, 100, and 150 Amp 200 Amp 400 Amp
Amps
30 .281 #10 – #6 #10 – #8
60 .312 #6 – #2 #6 – #4 4/0 General Wire 400 MCM Flex. Cable
100 .391 #4 – #1 #4 – #2 4/0 Flex. Cable 400 MCM Extra Flex.
150
NEMA 4X.
For receptacle only.
Copper with beryllium copper springs.
Dia. (Inches)
.525 #2 – 2/0 #2 – 2/0 3/0 Flex. Cable
Wire Recess
Wire Range
Wire Recess
Dia. (Inches)
0.687
Conductor
Size
250 General Wire
3/0 Extra Flex. 900 MCM General Wire
2/0 Flex. Cable 800 MCM Extra Flex.
Type
Conductor
Solder Recess
Dia. (Inches)
0.84
1.25
Conductor
Size
500 MCM General Wire
1000 MCM General wire
ConductorBuilding Extra Flex.
Type
462
Powertite™ 30 Amp Pin and Sleeve Plugs and Receptacles
600 Vac, 250 Vdc, 50-400 Hz
Pressure Wire Terminals – Wire Recess Diameter: .281”. Wire Size Range: #10—#6 Building; #10—#8 Extra Flex.
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Grounding
Style Wire/Pole
2W, 2P
Style 1
(Shell Only)
Style 2
(Shell and
Extra Pole)
Receptacles are provided with spring door and screw cover.
For Reverse Service, add suffix -RS to Catalog Number.
For Special Polarization, add suffix -P4 to Catalog Number.
Horsepower Ratings for Emergency Disconnect Under Load
Plug may be withdrawn in an emergency if within these maximum HP ratings. Not for normal starting and stopping.
Phase Motor Wire/Pole 120 Vac 240 Vac 480 Vac 600 Vac
1-Phase 2W, 2P or 2W, 3P 2HP 3HP 10HP 10HP
3-Phase 3W, 3P; 3W, 4P; or 4W, 4P 3HP 7-1/2HP 15HP 20HP
3W, 3P
4W, 4P
2W, 3P
3W, 4P
Receptacle with AEE
Mounting Box
ADRE3022-50 1/2
ADRE3022-75 3/4
ADRE3033-75 3/4
ADRE3033-100 1
ADRE3044-75 3/4
ADRE3044-100 1
ADRE3023-75 3/4
ADRE3023-100 1
ADRE3034-75 3/4
ADRE3034-100 1
Hub Size
(Inches)
Receptacle
Only
ADR3022 ACP3022BC — .500 to 1.250
ADR3033 ACP3033BC — .500 to 1.250
ADR3044 ACP3044BC — .500 to 1.250
ADR3023 ACP3023BC — .500 to 1.250
ADR3034 ACP3034BC NMACP3034BC .500 to 1.250
Metallic Clamping
Ring Plug
Motor Horsepower
Nonmetallic Clamping
Ring Plug
Plug Cable
Dia. (Inches)
For additional mounting boxes, see Aluminum Mounting Boxes.
Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle.
Receptacle is NEMA 4X rated when screw cover is fully engaged when the receptacle is not in use.
Reverse service and special polarization options are not available on nonmetallic plugs.
463
Powertite™ 30 Amp Pin and Sleeve Connectors and Plugs
600 Vac, 250 Vdc, 50-400 Hz
Pressure Wire Terminals – Wire Recess Diameter: .281”. Wire Size Range: #10—#6 Building; #10—#8 Extra Flex.
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Grounding
Style Wire/Pole
2W, 2P ARC3022BC ACP3022BC .500 to 1.250
Style 1
(Shell Only)
Style 2
(Shell and
Extra Pole)
For Reverse Service, add suffix -RS to Catalog Number.
For Special Polarization, add suffix -P4 to Catalog Number.
3W, 3P ARC3033BC ACP3033BC .500 to 1.250
4W, 4P ARC3044BC ACP3044BC .500 to 1.250
2W, 3P ARC3023BC ACP3023BC .500 to 1.250
3W, 4P ARC3034BC ACP3034BC .500 to 1.250
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Pin and Sleeve Design
Connector Body
Only
Metallic Clamping
Ring Plug
Connector/Plug
Cable Dia.
(Inches)
Energized contacts deeply recessed to reduce danger
of accidental touching, minimize possibility of exposed
arcs. Insulator quenches arcing, and is resistant to
abnormal heat and to fire.
Plug mechanical cable clamps provide strain relief
conductor connections, allow easy cable replacement.
Plug and connector body combination is NEMA 4X rated when clamping ring is fully tightened on connector body.
Pressure wire terminals allow cable to be readily
replaced when necessary. Terminal screws grip
conductors firmly. Spring contacts provide constant
pressure.
464
Powertite™ 60 Amp Pin and Sleeve Plugs and Receptacles
600 Vac, 250 Vdc, 50-400 Hz
Pressure Wire Terminals – Wire Recess Diameter: .312”. Wire Size Range: #6—#2 Building; #6—#4 Extra Flex.
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Grounding
Style Wire/Pole
2W, 2P
Style 1
(Shell Only)
Style 2
(Shell and
Extra Pole)
Receptacles are provided with spring door and screw cover.
For Reverse Service, add suffix -RS to Catalog Number.
For Special Polarization, add suffix -P4 to Catalog Number.
Horsepower Ratings for Emergency Disconnect Under Load
Plug may be withdrawn in an emergency if within these maximum HP ratings. Not for normal starting and stopping.
Phase Motor Wire/Pole 120 Vac 240 Vac 480 Vac 600 Vac
3W, 3P
4W, 4P
2W, 3P
3W, 4P
1-Phase 2W, 2P or 2W, 3P 3HP 10HP 20HP 20HP
3-Phase 3W, 3P; 3W, 4P; or 4W, 4P 7-1/2HP 15HP 30HP 30HP
Receptacle with AEE
Mounting Box
ADRE6022-100 ADJA6022-100 1
ADRE6022-125 ADJA6022-125 1-1/4
ADRE6033-100 ADJA6033-100 1
ADRE6033-125 ADJA6033-125 1-1/4
ADRE6044-125 ADJA6044-125 1-1/4
ADRE6044-150 ADJA6044-150 1-1/2
ADRE6023-100 ADJA6023-100 1
ADRE6023-125 ADJA6023-125 1-1/4
ADRE6034-125 ADJA6034-125 1-1/4
ADRE6034-150 ADJA6034-150 1-1/2
Receptacle with
AJA Mounting Box
Hub Size
(Inches)
Receptacle
Only
ADR6022 ACP6022BC — .500 to 1.250
ADR6033 ACP6033BC — .500 to 1.250
ADR6044 ACP6044BC — .500 to 1.250
ADR6023 ACP6023BC — .500 to 1.250
ADR6034 ACP6034BC NMACP6034BC .500 to 1.250
Metallic Clamping
Ring Plug
Nonmetallic Clamping
Ring Plug
Plug Cable
Dia. (Inches)
For additional mounting boxes, see Aluminum Mounting Boxes.
Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle.
Receptacle is NEMA 4X rated when screw cover is fully engaged when the receptacle is not in use.
Reverse service and special polarization options are not available on nonmetallic plugs.
465
Powertite™ 60 Amp Pin and Sleeve Connectors and Plugs
600 Vac, 250 Vdc, 50-400 Hz
Pressure Wire Terminals – Wire Recess Diameter: .312”. Wire Size Range: #6—#2 Building; #6—#4 Extra Flex.
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Grounding
Style Wire/Pole
Style 1
(Shell Only)
Style 2
(Shell and
Extra Pole)
For Reverse Service, add suffix -RS to Catalog Number.
For Special Polarization, add suffix -P4 to Catalog Number.
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Pin and Sleeve Design
2W, 2P ARC6022BC ACP6022BC .500 to 1.250
3W, 3P ARC6033BC ACP6033BC .500 to 1.250
4W, 4P ARC6044BC ACP6044BC .500 to 1.250
2W, 3P ARC6023BC ACP6023BC .500 to 1.250
3W, 4P ARC6034BC ACP6034BC .500 to 1.250
Connector
Body Only
Metallic Clamping
Ring Plug
Connector/Plug
Cable Dia.
(Inches)
Energized contacts deeply recessed to reduce danger of
accidental touching, minimize possibility of exposed arcs.
Insulator quenches arcing, and is resistant to abnormal heat
and to fire.
Plug mechanical cable clamps provide strain relief at
conductor connections, allow easy cable replacement.
Plug and connector body combination is NEMA 4X rated when clamping ring is fully tightened on connector body.
Pressure wire terminals allow cable to be readily
replaced when necessary. Terminal screws grip
conductors firmly. Spring contacts provide constant
pressure.
466
Powertite™ 100 and 150 Amp Pin and Sleeve Plugs and Receptacles
600 Vac, 250 Vdc, 50-400 Hz
Pressure Wire Terminals – 100 Amp: Wire Recess Diameter: .391”. Wire Size Range: #4—#1 Building; #4—#2 Extra Flex.
150 Amp: Wire Recess Diameter: .525”. Wire Size Range: #2—2/0 Building; #2—#2/0 Extra Flex.
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Grounding
Style Wire/Pole
2W, 2P
100 Amp
Style 1
(Shell Only)
100 Amp
Style 2
(Shell and
Extra Pole)
150 Amp Style 2
(Shell and Extra
Pole)
Receptacles are provided with spring door and screw cover.
For Reverse Service, add suffix -RS to Catalog Number.
For Special Polarization for 100 Amp units, add suffix -P4 to Catalog Number. (Not available for 150 Amp units.)
Horsepower Ratings for Emergency Disconnect Under Load
Not for normal starting and stopping, but plug may be withdrawn in an emergency if within these maximum HP ratings.
Amp Motor Phase Wire/Pole
100
150 3-Phase 3W, 4P
3W, 3P
4W, 4P
2W, 3P
3W, 4P
3W, 4P
1-Phase 2W, 2P or 2W, 3P 7-1/2HP 15HP 30HP 30HP
3-Phase
Receptacle with
AJA Mounting Box
ADJA1022-125 1-1/4
ADJA1022-150 1-1/2
ADJA1033-125 1-1/4
ADJA1033-150 1-1/2
ADJA1044-150 1-1/2
ADJA1044-200 2
ADJA1023-125 1-1/4
ADJA1023-150 1-1/2
ADJA1034-150 1-1/2
ADJA1034-200 2
ADJA15034-150 1-1/2
ADJA15034-200 2 ACP15034DE 1.250 to 2.187
3W, 3P; 3W, 4P;
or 4W, 4P
Hub Size
(Inches)
120 Vac 240 Vac 480 Vac 600 Vac
10HP 20HP 40HP 40HP
Receptacle
Only
ADR1022 ACP1022CD .875 to 1.906
ADR1033 ACP1033CD .875 to 1.906
ADR1044 ACP1044CD .875 to 1.906
ADR1023 ACP1023CD .875 to 1.906
ADR1034 ACP1034CD .875 to 1.906
ADR15034
Motor Horsepower
Do Not Disconnect Under Load
Clamping Ring
Plug
ACP15034CD .875 to 1.906
Plug Cable
Dia. (Inches)
For additional mounting boxes, see Aluminum Mounting Boxes.
Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle.
Receptacle is NEMA 4X rated when screw cover is fully engaged when the receptacle is not in use.
467
Powertite™ 100 and 150 Amp Pin and Sleeve Connectors and Plugs
600 Vac, 250 Vdc, 50-400 Hz
Pressure Wire Terminals – 100 Amp: Wire Recess Diameter: .391”. Wire Size Range: #4—#1 Building; #4—#2 Extra Flex.
150 Amp: Wire Recess Diameter: .525”. Wire Size Range: #2—2/0 Building; #2—#2/0 Extra Flex.
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Grounding
Style Wire/Pole
100 Amp
Style 1
(Shell Only)
100 Amp
Style 2
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
(Shell and
Extra Pole)
150 Amp
Style 2
(Shell and
Extra Pole)
For Reverse Service, add suffix -RS to Catalog Number.
For Special Polarization for 100 Amp units, add suffix -P4 to Catalog Number. (Not available for 150 Amp units.)
Pin and Sleeve Design
2W, 2P ARC1022CD ACP1022CD .875 to 1.906
3W, 3P ARC1033CD ACP1033CD .875 to 1.906
4W, 4P ARC1044CD ACP1044CD .875 to 1.906
2W, 3P ARC1023CD ACP1023CD .875 to 1.906
3W, 4P ARC1034CD ACP1034CD .875 to 1.906
3W, 4P ARC15034CD ACP15034CD .875 to 1.906
3W, 4P ARC15034DE ACP15034DE 1.250 to 2.187
Connector Body
Only
Clamping Ring
Plug
Connector/Plug
Cable Dia. (Inches)
Energized contacts deeply recessed to reduce danger of accidental
touching, minimize possibility of exposed arcs. Insulator quenches
arcing, and is resistant to abnormal heat and to fire.
Plug mechanical cable clamps provide strain relief at conductor
connections, allow easy cable replacement.
Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle.
Powertite 150 Amp ARC connectors are not UL listed or CSA certified.
Pressure wire terminals allow cable to be readily
replaced when necessary. Terminal screws grip
conductors firmly. Spring contacts provide constant
pressure.
468
Solid Brass (100A) or Copper (150A)
Contact with Beryllium Copper Springs
Powertite™ 30, 60, 100, and 150 Amp Caps
For Plug
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X

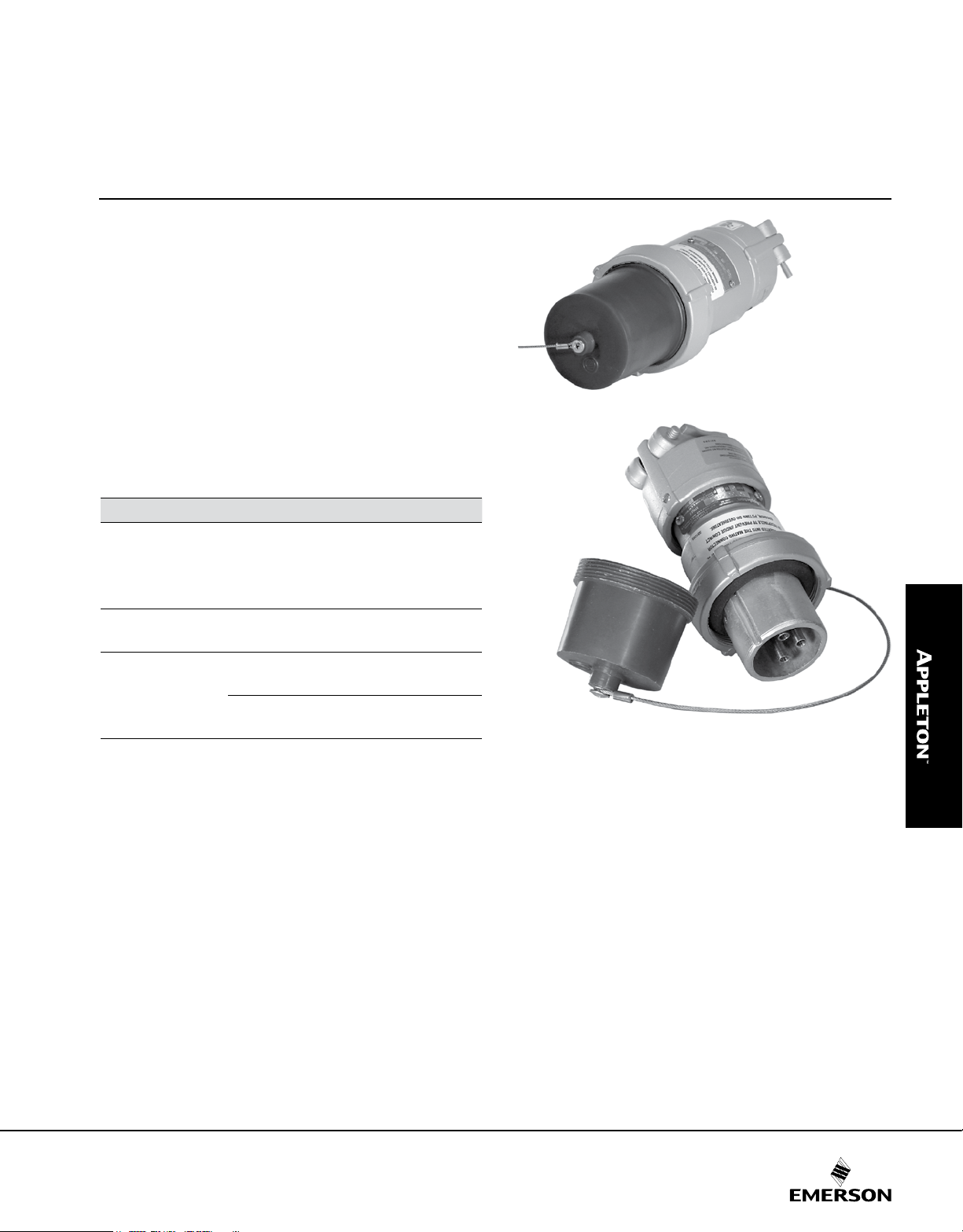

Applications
• Protects insulation and plug contacts from excessive moisture,
dirt, dust, and corrosion when portable equipment is not in use.
• For use with 30 Amp 3-Pole and 4-Pole, 60 Amp 4-Pole and
100 and 150 Amp 4-Pole plugs.
• Cap is secured to plug by aviation cable. When in use the cap
is held in place with standard plug clamping ring.
Standard Materials
• Cap: ABS plastic
Ordering Information
Catalog Number Amp For Use With
ACP3023BC
ACPCAP3034 30
ACPCAP6004 60
100
ACPCAP1004
150
ACP3033BC
ACP3034BC
ACP3044BC
ACP6034BC
ACP6044BC
ACP1034CD
ACP1044CD
ACP15034CD
ACP15034DE
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
469

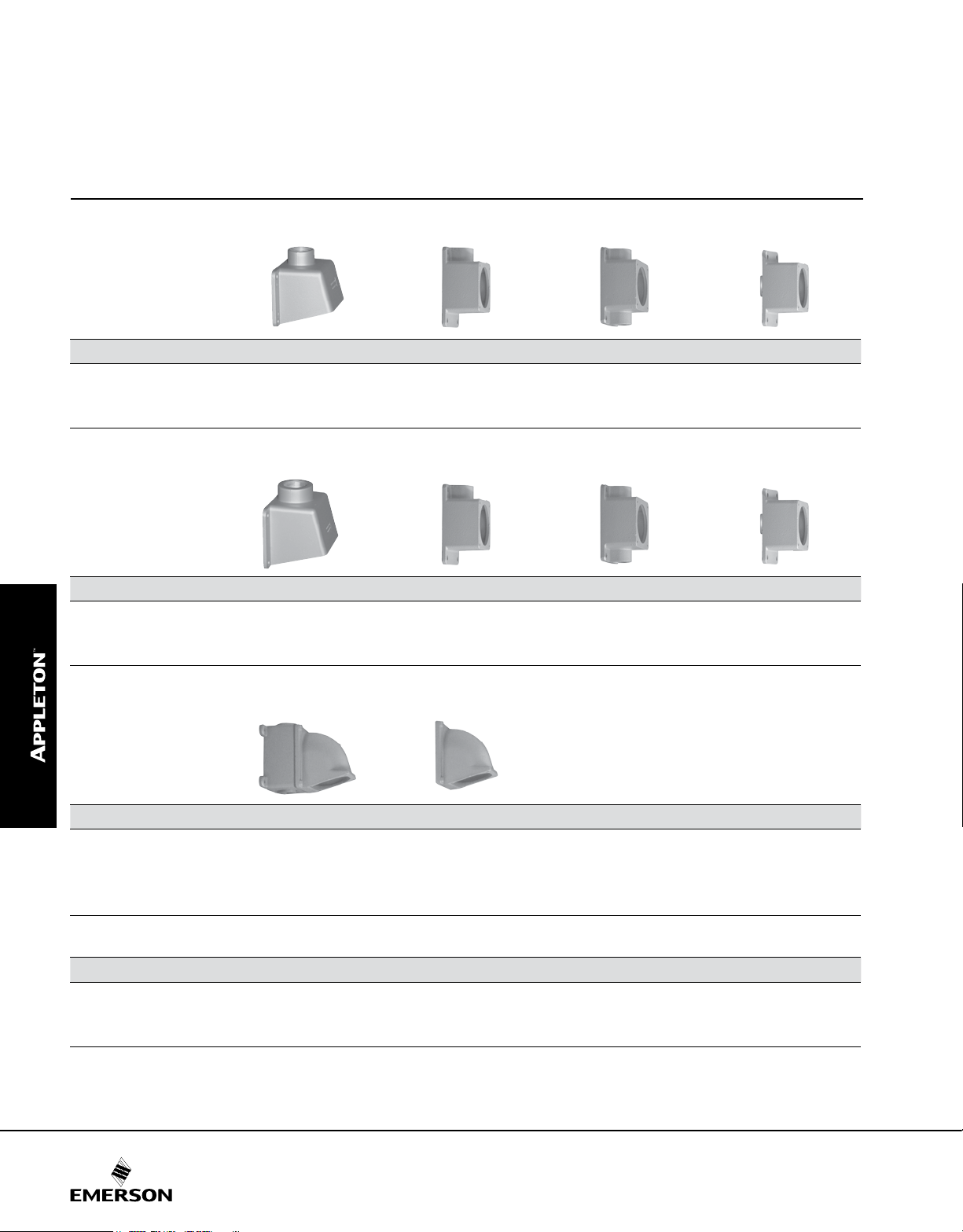

Aluminum Mounting Boxes
For Powertite™ 30, 60, 100, and 150 Amp Receptacles
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
30 Amp
Hub Size (Inches) AEE AERH AERC AERA
1/2 AEE13 AERH13 AERC13 AERA13
3/4 AEE23 AERH23 AERC23 AERA23
1 AEE33 AERH33 AERC33 AERA33
60 and 100 Amp
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Hub Size (Inches) AEE AERH AERC AERA
1 AEE36 AERH36 AERC36 AERA36
1-1/4 AEE46 AERH46 AERC46 AERA46
1-1/2 AEE56 AERH56 AERC56 AERA56
60, 100, and 150 Amp
Hub Size (Inches) AJA Back Box and Adapter Angle Adapter Only
1 AJA310
1-1/4 AJA410
1-1/2 AJA510
2 AJA610
Replacement Receptacle Mounting Gasket
Amp Back Box Type Part Number
30 AEE, AERH, AERC, AERA PWRTITRECPGSKT1
60, 100 AEE, AERH, AERC, AERA PWRTITRECPGSKT2
60, 100, 150 AJA PWRTITRECPGSKT3
AJA100
Feed-Thru box furnished with one close-up plug in bottom recessed hub.
470
Powertite™ 30, 60, 100, and 150 Amp Replacement Interiors
600 Vac, 250 Vdc, 50-400 Hz
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
30 Amp
Grounding Style Wire/Pole Receptacle Plug Receptacle Plug
Style 1
(Shell Only)
Style 2
(Shell and Extra Pole)
60 Amp
2W, 2P ARI-3022 API-3022 –– ––
3W, 3P ARI-3033 API-3033 –– ––
4W, 4P ARI-3044 API-3044 –– ––
2W, 3P –– –– ARI-3023 API-3023
3W, 4P –– –– ARI-3034 API-3034
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Grounding Style Wire/Pole Receptacle Plug Receptacle Plug
Style 1
(Shell Only)
Style 2
(Shell and Extra Pole)
100 and 150 Amp
Grounding Style Wire/Pole Receptacle Plug Receptacle Plug
Style 1
(Shell Only)
Style 2
(Shell and Extra Pole)
150 Amp
Style 2
(Shell and Extra Pole)
2W, 2P ARI-6022 API-6022 –– ––
3W, 3P ARI-6033 API-6033 –– ––
4W, 4P ARI-6044 API-6044 –– ––
2W, 3P –– –– ARI-6023 API-6023
3W, 4P –– –– ARI-6034 API-6034
2W, 2P ARI-1022 API-1022 –– ––
3W, 3P ARI-1033 API-1033 –– ––
4W, 4P ARI-1044 API-1044 –– ––
2W, 3P –– –– ARI-1023 API-1023
3W, 4P –– –– ARI-1034 API-1034
3W, 4P –– –– ARI-15034 API-15034
Pins and sleeves are not sold separately.
471
Powertite™ 30, 60, 100, and 150 Amp Replacement Parts
600 Vac, 250 Vdc, 50-400 Hz
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
ACP Plug Clamping Ring — Includes Gasket
30 Amp — 2-, 3- and 4-Pole CLMPR30
30 Amp — 3-Wire, 4-Pole
60 Amp — 2- and 3-Pole CLMPR23P60
60 Amp — 4-Pole CLMPR4P60
100 Amp — 2- and 3-Pole CLMPR23P100
100 and 150 Amp — 4-Pole CLMPR4P100
Receptacle Spring Cover — Includes Gasket and Chain
30 Amp — 2-, 3- and 4-Pole PTSC30
60 Amp — 2- and 3-Pole PTSC60A
60 Amp — 4-Pole PTSC60B
100 Amp — 2- and 3-Pole PTSC100A
100 and 150 Amp — 4-Pole PTSC100B
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Receptacle Threaded Cover — Includes Gasket and Chain
30 Amp — 2, 3, and 4-Pole PTTC30
30 Amp — 3 Wire, 4-Pole
60 Amp — 2- and 3-Pole PTTC60A
60 Amp — 4-Pole PTTC60B
100 Amp — 2- and 3-Pole PTTC100A
100 and 150 Amp — 4-Pole PTTC100B
Description
Catalog Number
30CRING
30SCAP
Bushing Bags and Crown Bushings for Plugs and Cable Connectors
30 Amp PTGB30
60 Amp PTGB60
100 Amp and 150 Amp (CD) PTGBCD
150 Amp (DE) PTGBDE
Universal Plug Bushing
30 and 60 Amp
Cable Range 0.300” – 9.00”
Package of 10
Receptacle Ground Lug Kit
30 Amp Receptacle Ground Lug Kit. Wire Well ID 0.272” PTRGL30
60 Amp Receptacle Ground Lug Kit. Wire Well ID 0.312” PTRGL60
100 Amp Receptacle Ground Lug Kit. Wire Well ID 0.389”
For use with 30 Amp Powertite™ plugs and WSR/WSRD/JBR/EBR/DBR receptacles.
Ground lug is cast into the housing after 09/2008.
472
PTGBUBC
PTRGL100
Powertite™ 30, 60, 100, and 150 Amp Mounted Receptacle
600 Vac, 250 Vdc, 50-400 Hz
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Dimensions in Millimeters (Inches)
Receptacle Mounted on AEE Box
Dimensions in Millimeters (Inches)
Amp A B C D E F
30 174.7 (6.88) 89.6 (3.45) 100.3 (3.95) 181.1 (7.13) 107.9 (4.25) 127.0 (5.00)
60 247.6 (9.75) 120.1 (4.73) 126.4 (4.98) 254.0 (10.00) 136.6 (5.38) 162.0 (6.38)
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn

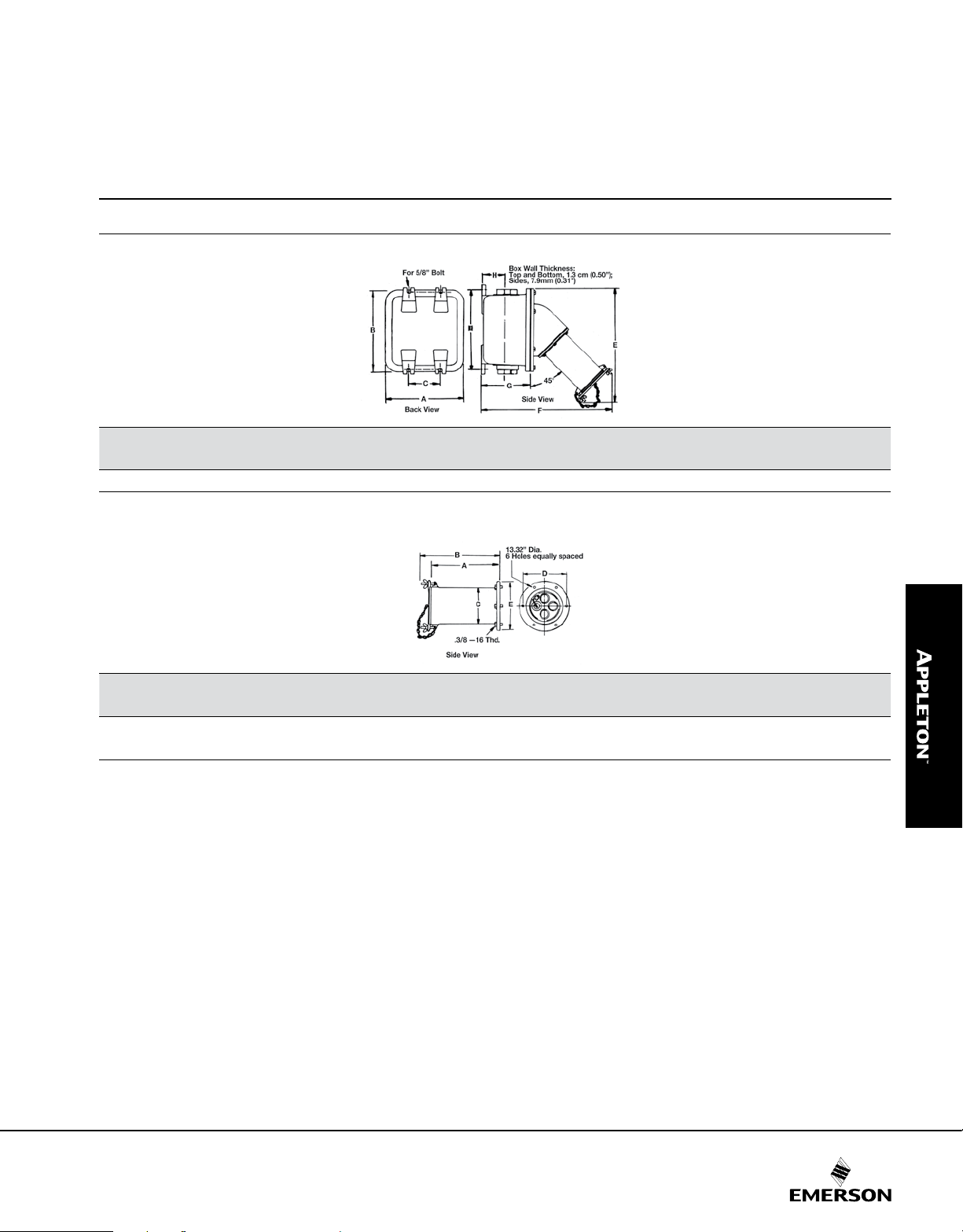

Receptacle Mounted on AJA Box
Dimensions in Millimeters (Inches)
Amp A B C D E F G
60 244.6 (9.63) 203.2 (8.00) 223.7 (8.81) 271.5 (10.69) 123.9 (4.88) 174.7 (6.88) 200.15 (7.88)
100 and 150 290.5 (11.44) 228.6 (9.00) 233.4 (9.19) 300.2 (11.82) 123.9 (4.88) 174.7 (6.88) 200.15 (7.88)
ADR Receptacle
Dimensions in Millimeters (Inches)
Amp No. Poles A B C D E F
30 2,3,4 71.1 (2.80) 81.0 (3.19) 85.8 (3.38) 69.0 (2.72) 52.3 (2.06) 69.8 (2.75)
60 2,3 123.9 (4.88) 117.6 (4.63) 107.9 (4.25) 88.9 (3.50) 58.6 (2.31) 78.7 (3.10)
60 4 123.9 (4.88) 117.6 (4.63) 107.9 (4.25) 88.9 (3.50) 61.9 (2.44) 85.0 (3.35)
100 2,3 129.5 (5.10) 139.7 (5.50) 107.9 (4.25) 88.9 (3.50) 61.9 (2.44) 86.3 (3.40)
100 and 150 4 129.5 (5.10) 139.7 (5.50) 107.9 (4.25) 88.9 (3.50) 65.0 (2.56) 91.4 (3.60)
473
Powertite™ 30, 60, 100, and 150 Amp Connector and Plug
A
Ø
B
600 Vac, 250 Vdc, 50-400 Hz
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Dimensions in Millimeters (Inches)

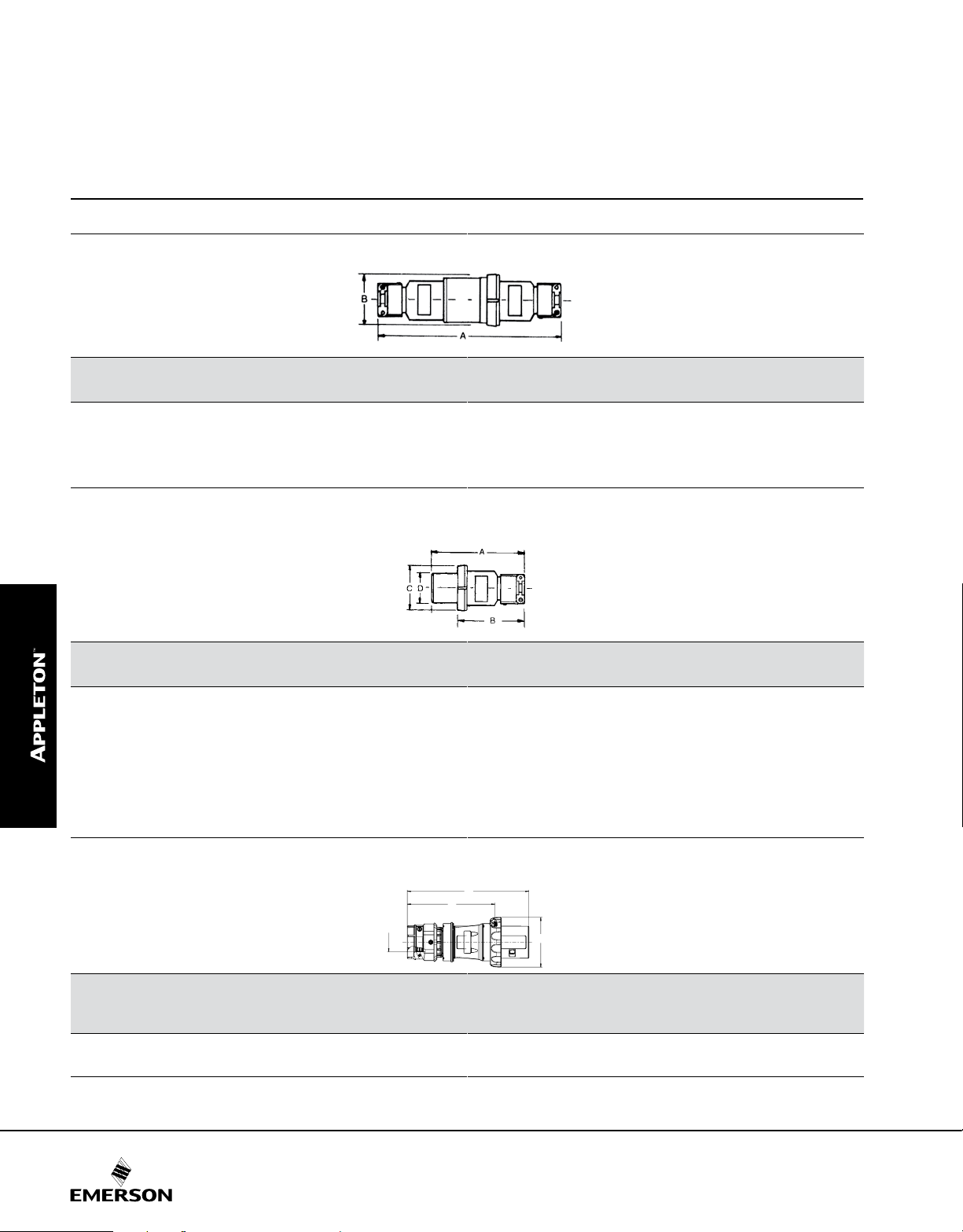

ARC Cable Connector
Dimensions in Millimeters (Inches)
Amp A B
30 266.7 (10.50) 79.5 (3.13)
60 336.5 (13.25) 96.7 (3.81)
100 406.4 (16.00) 107.9 (4.25)
150 406.4 (16.00) 107.9 (4.25)
ACP Plug
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
NMACP Plug
Dimensions in Millimeters (Inches)
Amp No. Poles A B C D
30 2,3,4 152.4 (6.00) 120.6 (4.75) 79.5 (3.13) 47.2 (1.86)
60 2,3 198.3 (7.81) 125.4 (4.94) 88.9 (3.50) 56.6 (2.23)
60 4 198.3 (7.81) 125.4 (4.94) 96.7 (3.81) 64.7 (2.55)
100 2,3 266.7 (10.50) 168.4 (6.63) 101.6 (4.00) 62.7 (2.47)
100 4 266.7 (10.50) 168.4 (6.63) 107.9 (4.25) 69.0 (2.72)
150 (CD) 4 266.7 (10.50) 168.4 (6.63) 107.9 (4.25) 69.0 (2.72)
150 (DE) 4 340.3 (13.40) 247.1 (9.73) 107.9 (4.25) 69.0 (2.72)
C
D
Ø
Dimensions in Millimeters (Inches)
D
Amp No. Poles A B C
Min — Max
30 4 187.0 (7.36) 63.0 (2.48) 145.0 (5.71) 11.0 - 24.5 (0.43 - 0.97)
60 4 245.0 (9.65) 100.0 (3.94) 174.0 (6.85) 14.5 - 36.0 (0.57 - 1.42)
474
Powertite™ 30, 60, 100, and 150 Amp Mounting Box
600 Vac, 250 Vdc, 50-400 Hz
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Dimensions in Millimeters (Inches)
AJA Mounting Boxes
Dimensions in Millimeters (Inches)
Amp Hub Size (Inches)
1 28.7 (1.13) 14.2 (0.56) 203.2 (8.0)
60, 100
and
150
1-1/4 28.7 (1.13) 14.2 (0.56) 203.2 (8.0)
1-1/2 38.1 (1.50) 14.2 (0.56) 203.2 (8.0)
2 38.1 (1.50) 14.2 (0.56) 203.2 (8.0)
A B C
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
AJA100 Angle Adapter
149.0 (5.87) 131.5 (5.18) 149.0 (5.87) 131.5 (5.18) 88.9 (3.50) 122.1 (4.81)
11/32” holes for 5/16” bolt
5/16-18 threaded holes
Dimensions in Millimeters (Inches)
A B C D E F
AJA has two hubs. Close-up plug furnished in bottom recessed hub.
475
Powertite™ 30, 60, 100, and 150 Amp Mounting Box
600 Vac, 250 Vdc, 50-400 Hz
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Dimensions in Millimeters (Inches)
AERA , AERC and AERH Mounting Boxes
Amp
30 1/2 17.5 (0.69) 134.8 (5.31) 85.8 (3.38) 85.8 (3.38) 63.5 (2.50) 66.8 (2.63) 115.8 (4.56) 69.0 (2.72) 23.8 (0.94)
30 3/4 19.0 (0.75) 134.8 (5.31) 85.8 (3.38) 85.8 (3.38) 63.5 (2.50) 66.8 (2.63) 115.8 (4.56) 69.0 (2.72) 23.8 (0.94)
30 1 20.5 (0.81) 134.8 (5.31) 85.8 (3.38) 85.8 (3.38) 63.5 (2.50) 66.8 (2.63) 115.8 (4.56) 69.0 (2.72) 23.8 (0.94)
60 1 20.5 (0.81) 165.1 (6.50) 107.9 (4.25) 107.9 (4.25) 79.5 (3.13) 88.9 (3.50) 149.3 (5.88) 88.9 (3.50) 35.0 (1.38)
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
60 1-1/4 23.8 (0.94) 165.1 (6.50) 107.9 (4.25) 107.9 (4.25) 79.5 (3.13) 88.9 (3.50) 149.3 (5.88) 88.9 (3.50) 35.0 (1.38)
60 1-1/2 25.4 (1.00) 165.1 (6.50) 107.9 (4.25) 107.9 (4.25) 79.5 (3.13) 88.9 (3.50) 149.3 (5.88) 88.9 (3.50) 35.0 (1.38)
AEE Mounting Box
Amp Hub Size (Inches)
30 1/2, 3/4, 1 104.6 (4.12) 127.0 (5.00) 84.5 (3.33) 107.9 (4.25) 85.8 (3.38) 29.9 (1.18) 27.9 (1.10)
60 1, 1-1/4, 1-1/2 137.4 (5.41) 162.0 (6.38) 107.4 (4.23) 136.6 (5.38) 107.9 (4.25) 38.1 (1.50) 38.1 (1.50)
Hub Size
(Inches)
Dimensions in Millimeters (Inches)
A B C D E F G H J
Dimensions in Millimeters (Inches)
A B C D E F G
Dimension ”A” for AERA only.
Dimension ”B” for AERC only.
476
Powertite™ 200 Amp Pin and Plugs and Receptacles
600 Vac, 250 Vdc, 50-400 Hz. Sleeve Spring Door. Wire Recess Diameter: .687”. Wire Size Range: 250 MCM-#2/0. Pressure Wire Terminals .
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Grounding
Style Wire/Pole
3W, 3P
Style 1
(Shell Only)
4W, 4P
2W, 3P
Style 2
(Shell and
Extra Pole)
3W, 4P
For Reverse Service add suffix -RS to Catalog Number.
For Special Polarization, add suffix -P4 to Catalog Number.
Maximum Conductor Size
Wire Recess
Dia. (Inches) Conductor Size Max. Strand Type Conductor
0.687
Receptacle with AJA
Mounting Box
ADJA20033-150 1-1/2
ADJA20033-200 2
ADJA20033-250 2-1/2
ADJA20044-200 2
ADJA20044-250 2-1/2 AP20044E 1.875 to 2.500
ADJA20023-150 1-1/2 ADR20023 AP20023CD .875 to1.906
ADJA20023-200 2
ADJA20023-250 2-1/2
ADJA20034-150 1-1/2
ADJA20034-200 2
ADJA20034-250 2-1/2
250 MCM 37 General Wire
4/0 19 General Wire
4/0 516 Flexible Cable
3/0 427 Extra Flexible Cable
2/0 259 Flexible Cable
1/0 259 Flexible Cable
Hub Size
(Inches)
Receptacle
Only
ADR20033
ADR20044
ADR20023 AP20023E 1.875 to 2.500
ADR20034
Plug
Only
AP20033CD .875 to 1.906
AP20033E 1.875 to 2.500
AP20044CD .875 to 1.906
AP20034CD .875 to1.906
AP20034E 1.875 to 2.500
Cable Dia.
(Inches)
Horsepower Ratings for Emergency Disconnect Under Load
Plug may be withdrawn in an emergency if within these maximum HP ratings. Not for normal starting and stopping.
Motor Phase Wire/Pole
1-Phase 2W, 3P 15HP 30HP 40HP 40HP
3-Phase 3W, 3P; 3W, 4P; or 4W, 4P 20HP 40HP 50HP 50HP
Adapters for #4-#1 wire available, see Powertite™ 200 and 400 Amp Replacement Parts.
For additional mounting boxes, see Aluminum Mounting Boxes.
Receptacle meets NEMA 3R with spring door closed and NEMA 3, 3R, 4, 4X with plug fully inserted and wing nuts fully tightened or cover closed with wing nuts
fully tightened.
120 Vac 240 Vac 480 Vac 600 Vac
Motor Horsepower
477

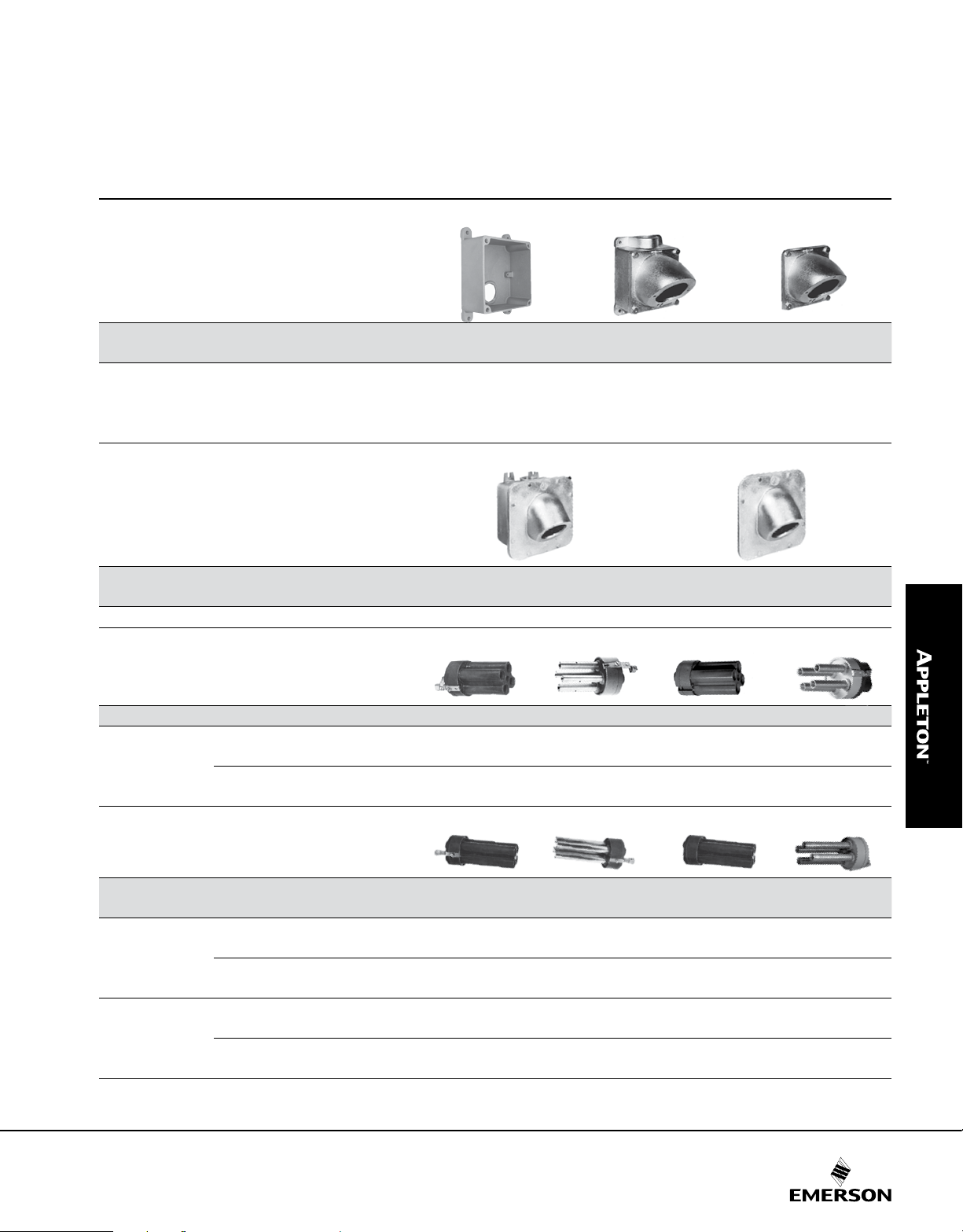

Powertite™ 200 Amp Pin and Sleeve Plugs, Connectors and Receptacles
600 Vac, 250 Vdc, 50-400 Hz. Clamp Cover. Wire Recess Diameter: .687”. Wire Size Range: 250 MCM-#2/0. Pressure Wire Terminals .
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Grounding
Style Wire/Pole
Style 1
(Shell Only)
Style 2
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
(Shell and
Extra Pole)
For Reverse Service add suffix -RS to Catalog Number.
For Special Polarization, add suffix -P4 to Catalog Number.
Pin and Sleeve Design
3W, 3P
4W, 4P
2W, 3P
3W, 4P
Receptacle with AJA
Mounting Box
AJA20033-150 1-1/2
AJA20033-200 2
AJA20033-250 2-1/2
AJA20044-200 2
AJA20044-250 2-1/2 ARC20044E AP20044E 1.875 to 2.500
AJA20023-150 1-1/2
AJA20023-200 2
AJA20023-250 2-1/2 ARC20023E
AJA20034-150 1-1/2
AJA20034-200 2
AJA20034-250 2-1/2 ARC20034E
Hub Size
(Inches)
Receptacle
Only
AR20033
AR20044
AR20023
AR20034
Connector
Body Only Plug Only
ARC20033CD AP20033CD .875 to 1.906
ARC20033E AP20033E 1.875 to 2.500
ARC20044CD AP20044CD .875 to 1.906
ARC20023CD
ARC20034CD
AP20023CD .875 to1.906
AP20023E 1.875 to 2.500
AP20034CD .875 to1.906
AP20034E 1.875 to 2.500
Cable Dia.
(Inches)
Energized contacts deeply
recessed to reduce danger of
accidental touching, minimize
possibility of exposed arcs. Insulator
quenches arcing, and is resistant to
abnormal heat and to fire.
Plug mechanical cable clamps
provide strain relief at conductor
connections, allow easy cable
replacement.
Note: Adapters for #4-#1 wire available, see Powertite™ 200 and 400 Amp Replacement Parts.
For additional mounting boxes, see Aluminum Mounting Boxes.
Receptacle meets NEMA 3, 3R, 4, 4X with plug fully inserted and wing nuts fully tightened or clamp cover installed with wing nuts fully tightened.
Plug and connector body combination is NEMA 4X rated when wing nuts are fully tightened on connector body.
478
Powertite™ 400 Amp Pin and Sleeve Plugs and Receptacles
Weatherproof
600 Vac, 250 Vdc, 50-400 Hz. Clamp Cover. Wire Recess Diameter: .84” or 1.25”. Wire Size Range: 400MCM—1000MCM. Solder Wire Terminals.
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 4 —Optional
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Wire Recess
Dia. (Inches)
0.84
1.25
Solder wire terminals standard on all models.
For Reverse Service add suffix -RS to Catalog Number.
For Special Polarization add suffix -P4 to Catalog Number.
Note: Box can be turned for vertical or horizontal mounting.
Maximum Conductor Size
400 Amp not horsepower rated. Plug is for disconnecting use only — not for current rupturing.
Solder Recess
Dia. (Inches) Conductor Size Max. Strand Type Conductor
0.84
1.25
Pressure terminal kits available for .84 wire recess size only to convert solder terminal to pressure terminal. See Replacement Parts page.
400 Amp versions with the -N4 suffix are NEMA 4 rated.
Has feed-thru 4” tapped openings. Supplied with one 4” to 3” reducer and one 4” close-up plug.
Grounding
Style Wire/Pole
Style 1
(Shell Only)
Style 2 (Shell and
Extra Pole)
Style 1
(Shell Only)
Style 2 (Shell and
Extra Pole)
Receptacle with AJA
Mounting Box
3W, 3P AJA40033-400
4W, 4P AJA40044-400 AR40044 AP40044E 1.875 to 2.500
4W, 4P AJA40044-400N4 AR40044N4 AP40044E 1.875 to 2.500
2W, 3P AJA40023-400
3W, 4P AJA40034-400 AR40034 AP40034E 1.875 to 2.500
3W, 4P AJA40034-400N4 AR40034N4 AP40034E 1.875 to 2.500
3W, 3P AJA40133-400 4 AR40133
4W, 4P AJA40144-400 4 AR40144
4W, 4P AJA40144-400N4 4 AR40144N4 AP40144G 3.000 to 3.500
2W, 3P AJA40123-400 4 AR40123
3W, 4P AJA40134-400 4 AR40134
3W, 4P AJA40134-400N4 4 AR40134N4 AP40134G 3.000 to 3.500
500 MCM 37 General Wire
400 MCM 259 Flexible Cable
400 MCM 427 Extra Flexible Cable
1000 MCM 61 General Wire
900 MCM 427 Flexible Cable
800 MCM 703 Extra Flexible Cable
Hub Size
(Inches) Receptacle Only Plug Only
AR40033 AP40033E 1.875 to 2.500
4
AR40023 AP40023E 1.875 to 2.500
4
AP40133F 2.500 to 3.000
AP40133G 3.000 to 3.500
AP40144F 2.500 to 3.000
AP40144G 3.000 to 3.500
AP40123F 2.500 to 3.000
AP40123G 3.000 to 3.500
AP40134F 2.500 to 3.000
AP40134G 3.000 to 3.500
Cable Dia.
(Inches)
479
Powertite™ 400 Amp Pin and Sleeve Connectors and Plugs
Weatherproof
600 Vac, 250 Vdc, 50-400 Hz. Wire Recess Diameter: .84” or 1.25”. Wire Size Range: 400MCM—1000MCM. Solder Wire Terminals.
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 4 —Optional
Wire Recess Dia. (Inches) Grounding Style Wire/Pole Connector Body Only Plug Only Cable Dia. (Inches)
Style 1
0.84
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Solder wire terminals standard on all models.
For Reverse Service add suffix -RS to Catalog Number.
For Special Polarization add suffix -P4 to Catalog Number.
1.25
(Shell Only)
Style 2
(Shell and Extra Pole)
Style 1
(Shell Only)
Style 2
(Shell and Extra Pole)
3W, 3P ARC40033E AP40033E 1.875 to 2.500
4W, 4P ARC40044E AP40044E 1.875 to 2.500
2W, 3P ARC40023E AP40023E 1.875 to 2.500
3W, 4P ARC40034E AP40034E 1.875 to 2.500
3W, 3P
4W, 4P
2W, 3P
3W, 4P
ARC40133F AP40133F 2.500 to 3.000
ARC40133G AP40133G 3.000 to 3.500
ARC40144F AP40144F 2.500 to 3.000
ARC40144G AP40144G 3.000 to 3.500
ARC40123F AP40123F 2.500 to 3.000
ARC40123G AP40123G 3.000 to 3.500
ARC40134F AP40134F 2.500 to 3.000
ARC40134G AP40134G 3.000 to 3.500
Pin and Sleeve Design
Energized contacts deeply recessed to reduce danger of
accidental touching, minimize possibility of exposed arcs. Insulator
quenches arcing, and is resistant to abnormal heat and to fire.
Pressure terminal kits available for .84 wire recess size only to convert solder terminal to pressure terminal. See Replacement Parts page.
Plug mechanical cable clamps provide strain relief at conductor
connections, allow easy cable replacement.
480
Powertite™ 200 and 400 Amp Pin and Sleeve Connectors and Plugs
Mounting Boxes and Replacement Interiors. 600 Vac, 250 Vdc, 50-400 Hz.
NEC/CEC — 200 Amp:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
200 Amp Mounting Boxes and Angle Adapter
Hub Size
(Inches) AJB AJA
1-1/2 NPT –– AJA520 AJA200
2 NPT AJB620 AJA620 AJA200
2-1/2 NPT –– AJA720 AJA200
2-3/8 (Slip Hole) AJB238 –– ––
400 Amp Mounting Box and Angle Adapter
Hub Size
(Inches) AJAC
4 AJAC400 AJA400
NEC/CEC — 400 Amp:
Listed for Ordinary (Unclassied) Locations
NEMA 4 —Optional
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
AJA200
(Angle Adapter Only)
AJA400
(Angle Adapter Only)
200 Amp Interiors
Grounding Style Wire/Pole Receptacle Plug Receptacle Plug
Style 1
(Shell Only)
Style 2 (Shell and
Extra Pole)
400 Amp Interiors
Wire Recess
Dia. (Inches)
.84
1.25
Has feed-thru 4” tapped openings. Supplied with one 4” to 3” reducer and one 4” close-up plug.
Pins and sleeves are not sold separately.
Grounding
(Shell Only)
Style 2 (Shell and
Extra Pole)
(Shell Only)
Style 2 (Shell and
Extra Pole)
3W, 3P ARI20033 API20033 –– ––
4W, 4P ARI20044 API20044 –– ––
2W, 3P –– –– ARI20023 API20023
3W, 4P –– –– ARI20034 API20034
Style Wire/Pole Receptacle Plug Receptacle Plug
Style 1
Style 1
3W, 3P ARI40033 API40033 –– ––
4W, 4P ARI40044 API40044 –– ––
2W, 3P –– –– ARI40023 API40023
3W, 4P –– –– ARI40034 API40034
3W, 3P ARI40133 API40133 –– ––
4W, 4P ARI40144 API40144 –– ––
2W, 3P –– –– ARI40123 API40123
3W, 4P –– –– ARI40134 API40134
481
Powertite™ 200 and 400 Amp Replacement Parts
600 Vac, 250 Vdc, 50-400 Hz.
NEC/CEC — 200 Amp:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Receptacle Covers
Bushing Bags for Plugs and Cable Connectors
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
NEC/CEC — 400 Amp:
Listed for Ordinary (Unclassied) Locations
NEMA 4 —Optional
Description
Spring Cover — Includes Gasket
200 Amp — 2- and 3-Pole PTLC200A
200 Amp — 4-Pole PTLC200B
Clamping Cover — Includes Gasket and Chain
200 Amp — 2- and 3-Pole PTBC200A
200 Amp — 4-Pole PTBC200B
400 Amp — 2- and 3-Pole PTBC400A
400 Amp — 4-Pole PTBC400B
200 Amp - Suffix CD PTGBCD
200 Amp - Suffix E PTGB200E
400 Amp - Suffix E PTGB400E
400 Amp - Suffix F PTGB400F
400 Amp - Suffix G PTGB400G
Catalog Number
Receptacle Lockout Device
Optional Accessory for Wire Size #1 to #4
Check National Electrical Code for proper wire size and application.
400 Amp Pressure Terminal Kits
Lockout, 200 Amp 3- and 4-Pole Models PTLOCK2004
Lockout, 400 Amp 4-Pole Models PTLOCK4004
200 Amp, 3-Pole Wire Adapter Kit PTK200WA3
200 Amp, 4-Pole Wire Adapter Kit PTK200WA4
Use with 400-500 MCM Wire
0.84” I.D. Wire Recess
3 Adapters PTK84-3P
4 Adapters PTK84-4P
Use With 750 MCM General Wire or 500-777 MCM Flexible Wire
1.18” I.D. Wire Recess
3 Adapters PTK750-3P
4 Adapters PTK750-4P
482
Powertite™ 200 Amp Mounted Receptacle
600 Vac, 250 Vdc, 50-400 Hz.
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Dimensions in Millimeters (Inches)
Receptacle Mounted on AJA and AJAC Boxes
Dimensions in Millimeters (Inches)
A B C D E F G H J K
203.2 (8.00) 273.0 (10.75) 171.4 (6.75) 241.3 (9.50) 355.6 (14.00) 387.3 (15.25) 95.2 (3.75) 47.7 (1.88) 342.9 (13.50) 361.9 (14.25)
Receptacle
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Dimensions in Millimeters (Inches)
No. Poles A B C D E F G H
3 82.5 (3.25) 143.0 (5.63) 10.46 (4.19) 203.2 (8.00) 168.4 (6.63) 166.6 (6.56) 170.1 (6.70) 179.0 (7.05)
4 92.2 (3.63) 143.0 (5.63) 115.8 (4.56) 203.2 (8.00) 168.4 (6.63) 166.6 (6.56) 170.1 (6.70) 179.0 (7.05)
483
Powertite™ 200 Amp Connector, Plug and Adapter
600 Vac, 250 Vdc, 50-400 Hz.
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 3, 3R, 4, 4X
Dimensions in Millimeters (Inches)
Connector Body
Dimensions in Millimeters (Inches)
No. Poles A B C
3 330.2 (13.00) 106.4 (4.19) 136.6 (5.38)
4 330.2 (13.00) 115.8 (4.56) 146.0 (5.75)
Plug
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
No. Poles A B C D E
3 303.2 (11.94) 198.3 (7.81) 96.7 (3.81) 95.2 (3.75) 163.5 (6.44)
4 303.2 (11.94) 198.3 (7.81) 106.4 (4.19) 104.95 (4.13) 172.9 (6.81)
AJA200 Angle Adapter
A B C D E
203.2 (8.0) 177.8 (7.0) 203.2 (8.0) 177.8 (7.0) 152.4 (6.0)
Dimensions in Millimeters (Inches)
Dimensions in Millimeters (Inches)
484
Powertite™ 400 Amp Mounted Receptacle and Receptacle
600 Vac, 250 Vdc, 50-400 Hz.
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 4 —Optional
Dimensions in Millimeters (Inches)
Receptacle Mounted on AJAC Box
Dimensions in Millimeters (Inches)
Hub Size
4.00/10.16 403.3 (15.88) 403.3 (15.88) 165.1 (6.50) 384.3 (15.13) 558.8 (22.00) 615.9 (24.25) 215.9 (8.50) 98.5 (3.88)
A B C D E F G H
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Receptacle
Dimensions in Millimeters (Inches)
No. Poles
3 285.7 (11.25) 311.1 (12.25) 130.3 (5.13) 171.4 (6.75) 196.8 (7.75) 106.4 (4.19)
4 285.7 (11.25) 311.1 (12.25) 143.0 (5.63) 171.4 (6.75) 196.8 (7.75) 119.1 (4.69)
A B C D E F
AJAC box has feed-thru 101.6 mm (4”) openings. Supplied with one 101.6 mm (4”) to 76.2 mm (3”) reducer, and one 101.6 mm (4”) close-up plug.
485
Powertite™ 400 Amp Connector and Plug
600 Vac, 250 Vdc, 50-400 Hz.
NEC/CEC:
Listed for Ordinary (Unclassied) Locations
NEMA 4 —Optional
Dimensions in Millimeters (Inches)
Plug
Dimensions in Millimeters (Inches)
No. Poles
3 381.0 (15.00) 482.6 (19.00) 285.7 (11.25) 119.3 (4.70) 118.3 (4.66) 190.5 (7.50)
4 393.7 (15.50) 482.6 (19.00) 285.7 (11.25) 131.8 (5.19) 131.0 (5.16) 203.2 (8.00)
Connector Body
A B C D E F
Plugs and RecePtacles: nec/cec ORdinaRy lOcatiOn
Dimensions in Millimeters (Inches)
No. Poles
3 482.6 (19.00) 130.3 (5.13) 184.1 (7.25)
4 482.6 (19.00) 143.0 (5.63) 196.8 (7.75)
A B C
486
Loading...
