Appleton ATX™ FD Series Cylindrical Fluorescent Luminaires Catalog Page

™

FLUORESCENT/AREA: ATEX/IECEx STANDARD AND EMERGENCY BACK-UP

© May 2016

ATX

FD Series Cylindrical Fluorescent Luminaires

Standard and Emergency Battery Back-Up. Flameproof

ATEX/IECEx:

Zone 1 and 2 - 21 and 22

II 2 GD

IP66/68

Applications

• Can be installed in hazardous areas designated as Zone 1 and
2 – 21 and 22.

• For use in locations where a high degree of corrosion resistance
is required.

• For indoor/outdoor use where protection against dirt, water and
moisture is necessary.

• Typical applications include:

— Oil reneries

— Petrochemical facilities
— Pulp and paper, mills
— Painting, sewage and water treatment facilities
— Warehouses
— Underground tunnels
— General manufacturing facilities

Features

• Impact resistant borosilicate glass sealed tube.

• Easy access to lamps through gray painted Zamak threaded
entry cap.

• Supplied with O-ring for improved ingress protection.

• Corrosion-resistant gray painted Zamak.

• Supplied with energy efcient and self induction ferromagnetic

ballast on a removable gear tray.

• Quick and easy installation of uorescent lighting xtures with

2G11 and G13 lamp holders.

• Supplied with external and internal ground/earth connection.

• Fixture supplied with one M20 blanking plug.

• Easy connection to wire and disconnect with plug-in terminal
blocks.

• Bi-pin (G13) 18 and 36 W magnetic ballast versions operate at
70 °C (158°F) ambient temperature with T4 rating.

• Magnetic ballast versions 230 V 50 Hz or 240 V 50 Hz or 220 V
60 Hz or 230 V 60 Hz.

• Electronic ballast versions 110 to 254 Vac/Vdc, 50/60 Hz.

• 3 hour emergency version with automatic self test every month

• Plug in battery pack (6 V 4 Ah) is easy to remove for
maintenance.

Standard Materials

• End caps and cover: aluminum

• Glass tube: tempered borosilicate glass (18 W), or borosilicate
glass (36 W and 58 W)

• Internal reector: white powder coated galvanized steel

• Mounting accessories: several accessories in different material
such as zinc plated steel, galvanized steel or 316 stainless steel

Options

• 3 lamp versions.

• 8 W uorescent (Bi-pin G5) available, see section HBDC series.

2 x 58 W

2 x 36 W

2 x 18 W

ATEX/IECEx Certifications and Compliances

• Certication Type: FLd

— Gas: Zone 1 and 2:

– Conforming to ATEX 94/9/CE:
– Type of Protection: Ex d IIB, Ex d IIB+H2, Ex d IIC
– T-Rating: See Table on following page

— Dust: Zone 21 and 22:

– Conforming to ATEX 94/9/CE: II 2 D
– Type of Protection: Ex tD A21
– Surface Temperature: See Table on following page

• Ambient Temperature: -20 °C to +55 °C (-4 °F to +131 °F)

• CE Declaration of Conformity: 50203

• ATEX Certicate: LCIE 97 ATEX 6012

• IECEx Certicate: IECEx LCI 04.0018

• Index of Protection according EN/IEC 60529: IP66/68

• Impact Resistance (shock): IK08

• Internal Volume: > 2 dm

3

(122 in³) - 2 liters

II 2 G

EURASEC Certification

• EURASEC N° TC RU C-FR.ГБ05.B.00910

Other Certification

• INMETRO Certicate: BVC11.0492 

Related Products

• For labels see Labels for Emergency Lighting Units, ATX Self­Adhesive Signaling Labels for Emergency Lighting Units.

 Inmetro certication available on special request only. Contact your local sales representative for more information.

544

™

FLUORESCENT/AREA: ATEX/IECEx STANDARD AND EMERGENCY BACK-UP

© May 2016

ATX

FD Series Cylindrical Fluorescent Luminaires

Standard and Emergency Battery Back-Up. Flameproof

ATEX/IECEx:

Zone 1 and 2 - 21 and 22

II 2 GD

IP66/68

Order using catalog numbering guide below or select catalog number from tables on following pages.

Catalog Numbering Guide — FD Series Cylindrical Fluorescent Luminaires

FD B 1 18 BU M E

V

FD - FD Series

T Rating (Gas) and Surface Temperature (Dust) Table

Model Lamp Type

Series:

Zone 1 and 2 ­21 and 22
ATEX/IECEx Certified

B - Bi-pin (G13) Fluorescent
C - Compact Fluorescent (2G11)
F - Bi-pin (G5) Fluorescent

Compact Fluorescent 2G11

0.3
18 W max.

a) Fluorescent G13
Magnetic Ballast
1 x 18 W/2 x 18 W

b) Fluorescent G13

0.6

Electronic Ballast
1 x 18 W/2 x 18 W/3 x 18 W

c) Compact Fluorescent 2G11
1 x 36 W
2 x 36 W

a) Fluorescent G13
Magnetic Ballast
1 x 36 W/2 x 36 W/3 x 36 W

1.2
b) Fluorescent G13

Electronic Ballast
1 x 36 W/2 x 36 W/3 x 36 W

a) Fluorescent G13
Magnetic Ballast
1 x 58 W/2 x 58 W

1.5
b) Fluorescent G13

Electronic Ballast
1 x 58 W/2 x 58 W/3 x 58 W

Lamp Type:

Number of Lamps:

1 - Single
2 - Double
3 - Three Lamps

Without External Reflector With External Reflector

Ta =

40 °C (104 °F)

T6 T5 N.A. T5 T4

T6 T5 T4 T6 T5

T6 T6 N.A. T6 T5

T6 T5 N.A.

T6 T5 T4 T6 T5

T6 T6 N.A. T6 T6

T6 T6 N.A. T6 T5

T6 T5 N.A. T6 T5

Wattage:
18 - 18 Watt
36 - 36 Watt
58 - 58 Watt

Ta =

55 °C (131 °F)

Gas – T Rating Dust – Surface Temperature

70 °C (158 °F)

oltage (50/60 Hz):

Standard versions:
AA - 220 Vac, 60 Hz
XC - 230 Vac, 50 Hz
X3 - 240 Vac, 50 Hz
BU - 110 to 254 Vac/

Vdc, 50/60 Hz 

Ta =

Ta =

40 °C (104 °F)

T6
T5

55 °C (131 °F)

Cable Entry:
M - Metric M20
N - NPT 3/4"

Ta =

T4

Options:

(Options must be

listed

alphabetically)

E - 3h Emergency

(combined)
– Battery 6 V
4 Ah 

Without

External

Reflector

95 °C

(203 °F)

97 °C

(207 °F)

78 °C

(172 °F)

95 °C

(203 °F)

110 °C

(230 °F)

78 °C

(172 °F)

80 °C

(176 °F)

84 °C

(183 °F)

With

External

Reflector

130 °C

(266 °F)

95 °C

(203 °F)

95 °C

(203 °F)

130 °C

(266 °F)

95 °C

(203 °F)

80 °C

(176 °F)

95 °C

(203 °F)

95 °C

(203 °F)

 The 3 hour emergency version is only available on fluorescent, 2 lamp fixtures with BU voltage - 110 to 254 Vac/Vdc, 50/60 Hz.

545

™

FLUORESCENT/AREA: ATEX/IECEx STANDARD AND EMERGENCY BACK-UP

© May 2016

ATX

FD Series Cylindrical Fluorescent Luminaires

Standard and Emergency Battery Back-Up. Flameproof

ATEX/IECEx:

Zone 1 and 2 - 21 and 22

II 2 GD

IP66/68

Ordering Information – Standard Versions

Two M20 threaded entries, supplied with one M20 aluminum blanking plug.
Connection via 1 x 3 double deck terminals.
Capacity (flexible/solid): 0.75 mm

For Bi-pin (G13) Fluorescent Lamps - T8, 26 mm (1.02 in) or T12, 38 mm (1.50 in)
230 V - 50 Hz – Magnetic Ballast – Starter Ignition
Compensated power supply – power factor > 0.9

Wattage

(W)

18

2

to 2.5 mm2 (0.001 in2 to 0.004 in2).

No. of

Lamps

1 IIC 0.6 9.0 (19.8) 58 (3539.38) FDB118XCM

2 IIC 0.6 9.7 (21.38) 58 (3539.38) FDB218XCM

Gas

Group Model

Weight

kg (lb)

Volume

dm3 (in3) Catalog Number

36

58

240 V - 50 Hz – Magnetic Ballast – Starter Ignition

Compensated power supply – power factor > 0.9

18

36

58

220 V - 60 Hz – Magnetic Ballast – Starter Ignition

Compensated power supply – power factor > 0.9

18 2 IIC 0.6 9.7 (21.38) 58 (3539.38) FDB218AAM

36 2 IIB+H

58 2 IIB 1.5 18.2 (40.12) 119 (7261.83) FDB258AAM

1 IIB+H

2 IIB+H

1 IIB 1.5 17.0 (37.48) 119 (7261.83) FDB158XCM

2 IIB 1.5 18.2 (40.12) 119 (7261.83) FDB258XCM

1 IIC 0.6 9.0 (19.8) 58 (3539.38) FDB118X3M

2 IIC 0.6 9.7 (21.38) 58 (3539.38) FDB218X3M

1 IIB+H

2 IIB+H

1 IIB 1.5 17.0 (37.48) 119 (7261.83) FDB158X3M

2 IIB 1.5 18.2 (40.12) 119 (7261.83) FDB258X3M

2

2

2

2

2

1.2 14.7 (32.41) 99 (6041.35) FDB136XCM

1.2 15.3 (33.73) 99 (6041.35) FDB236XCM

1.2 14.7 (32.41) 99 (6041.35) FDB136X3M

1.2 15.3 (33.73) 99 (6041.35) FDB236X3M

1.2 15.3 (33.73) 99 (6041.35) FDB236AAM

546

™

L

L

L

FLUORESCENT/AREA: ATEX/IECEx STANDARD AND EMERGENCY BACK-UP

© May 2016

ATX

FD Series Cylindrical Fluorescent Luminaires

Standard and Emergency Battery Back-Up. Flameproof

ATEX/IECEx:

Zone 1 and 2 - 21 and 22

II 2 GD

IP66/68

Ordering Information – Standard Versions – Continued

Two M20 threaded entries, supplied with one M20 aluminum blanking plug.
Connection via 1 x 3 double deck terminals.
Capacity (flexible/solid): 0.75 mm2 to 2.5 mm2 (0.001 in2 to 0.004 in2).

For Bi-pin (G13) Fluorescent Lamps - T8, 26 mm (1.02 in) or T12, 38 mm (1.50 in)
110 to 254 Vac/Vdc, 50/60 Hz – Electronic Ballast
Power factor > 0.95

Wattage

(W)

No. of

Lamps

Gas

Group Model

Weight

kg (lb)

Volume

3

(in3) Catalog Number

dm

18 2 IIC 0.6 9.7 (21.38) 58 (3539.38) FDB218BUM

36

2 IIB 1.2 15.3 (33.73) 99 (6041.35) FDB236BUM

3 IIB 1.2 16.3 (35.94) 99 (6041.35) FDB336BUM

1 IIB 1.5 17.0 (37.48) 119 (7261.83) FDB158BUM

58

2 IIB 1.5 18.2 (40.12) 119 (7261.83) FDB258BUM

3 IIB 1.5 19.2 (42.33) 119 (7261.83) FDB358BUM

For 2G11 Compact Fluorescent Lamps – TC-L
230 V - 50 Hz – Magnetic Ballast – Starter Ignition
Compensated power supply – power factor > 0.9 – Lamps supplied

18

36

1 IIC 0.3 9.0 (19.8) 58 (3539.38) FDC118XCM

2 IIC 0.3 9.7 (21.38) 58 (3539.38) FDC218XCM

1 IIB+H

2 IIB+H

2

2

0.6 14.7 (32.41) 99 (6041.35) FDC136XCM

0.6 15.3 (33.73) 99 (6041.35) FDC236XCM

Emergency Versions

Two M20 threaded entries, supplied with one M20 aluminum blanking plug.
Connection via 1 x 4 double deck terminals.
Capacity (flexible/solid): 0.75 mm

For Bi-pin (G13) Fluorescent Lamps – T8, 26 mm (1.02 in) or T12, 38 mm (1.50 in)

2

to 2.5 mm2 (0.001 in2 to 0.004 in2).

N

N

110 to 254 Vac/Vdc, 50/60 Hz – Electronic Ballast
3 hour duration - battery pack 6 V 4 Ah - Power factor > 0.95 -
Self test every month.

Wattage

(W)

No. of

Lamps

Gas

Group Model

Line

Output

Weight

kg (lb)

Volume

3

dm

(in3) Catalog Number

N

18 2 IIC 0.6 29% 11.6 (25.57) 58 (3539.38) FDB218BUME

36 2 IIB 1.2 16% 17.2 (37.92) 99 (6041.35) FDB236BUME

58 2 IIB 1.5 11% 20.2 (44.53) 119 (7261.83) FDB258BUME

547

™

FLUORESCENT/AREA: ATEX/IECEx STANDARD AND EMERGENCY BACK-UP

© May 2016

ATX

FD Series Cylindrical Fluorescent Luminaires

Standard and Emergency Battery Back-Up. Flameproof

ATEX/IECEx:

Zone 1 and 2 - 21 and 22

II 2 GD

IP66/68

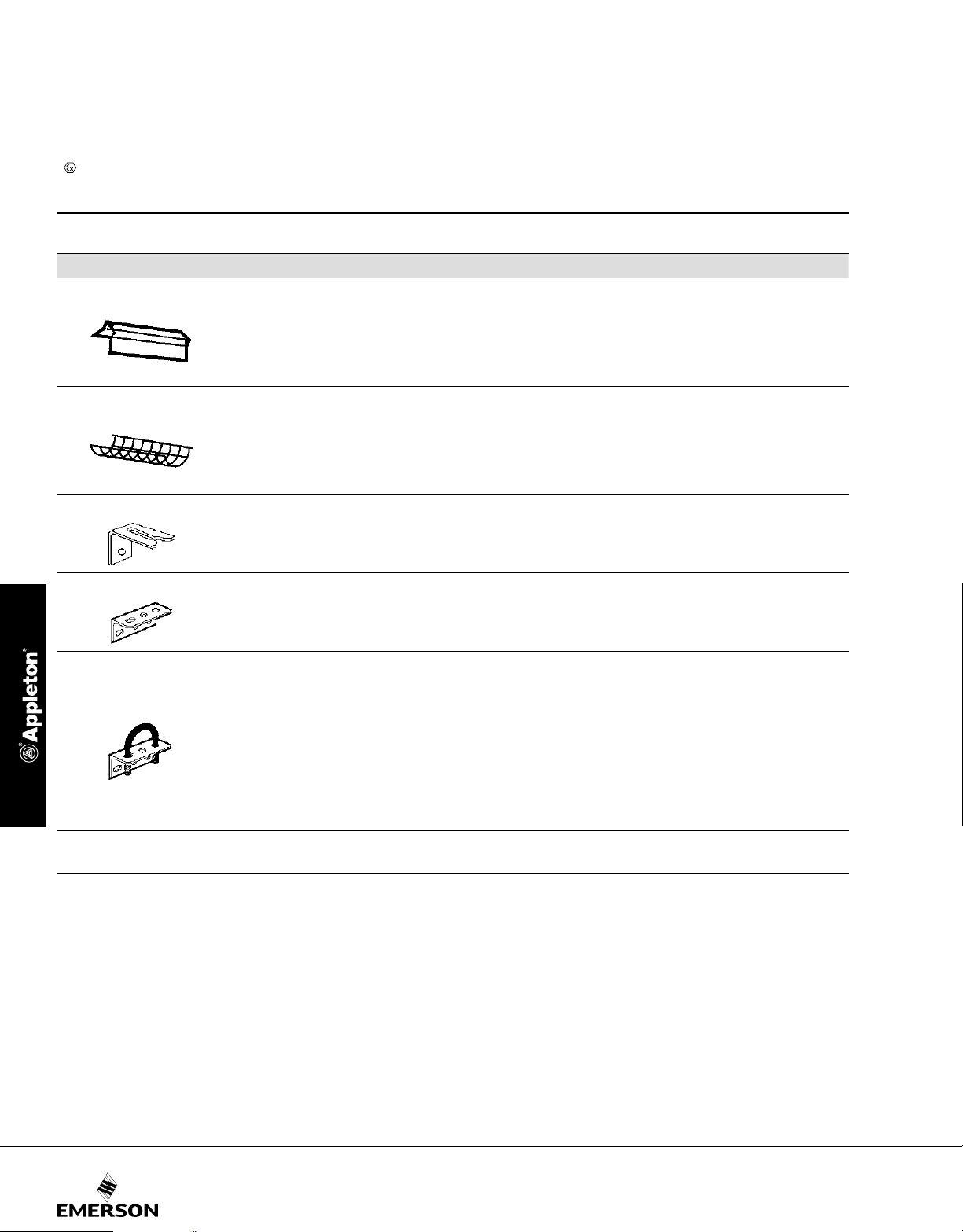

Accessories and Replacement Parts

Description

External Reflector – White Painted Galvanized Steel

Model 0.3 FDER1G

Model 0.6 FDER2G

Model 1.2 FDER3G

Model 1.5 FDER4G

Protective Guard – Zinc Plated Steel

Model 0.3 FDPG1Z

Model 0.6 FDPG2Z

Model 1.2 FDPG3Z

Model 1.5 FDPG4Z

Fixing Brackets for Ease of Surface Installation – Set of Two

Zinc plated steel FDFBZ

Catalog Number

316 stainless steel FDFBS

Surface Mounting Brackets – Set of Two

Half Clamp Brackets for Pole Mounting – Set of Two

Fall Prevention Kit

Zinc plated steel FDSBZ

316 stainless steel FDSBS

Pole diameter 42 to 49 mm (1.65 to 1.93 in)
Tube diameter 31.8 to 38.1 mm (1.25 to 1.5 in)

Zinc plated steel FDHC49Z

316 stainless steel FDHC49S

Pole diameter 60 mm (2.36 in)
Tube diameter 50.8 mm (2 in)

Zinc plated steel FDHC60Z

316 stainless steel FDHC60S

1.20 meter (3.94 foot) stainless steel chain FDSCS

548

™

FLUORESCENT/AREA: ATEX/IECEx STANDARD AND EMERGENCY BACK-UP

© May 2016

ATX

FD Series Cylindrical Fluorescent Luminaires

Standard and Emergency Battery Back-Up. Flameproof

ATEX/IECEx:

Zone 1 and 2 - 21 and 22

II 2 GD

IP66/68

Wiring Diagram

Mains

PE N L

LED Status

Color Indication Function

Green

Red

Yellow

Lighting
Switch

L1

Emergency Function Diagram

Two Lamp Version

Mains Lighting Switch ON Lighting Switch OFF

ON

L

Standard Fluorescent

N

Lighting Fixture

PE

L1

Emergency Fluorescent

L

Lighting Fixture

N
PE

Blinking 1:1 Mains good, battery quick charging

ON Mains good, battery trickle charging

Blinking 1:1 No battery connected or something is defective

Flashing 1:1 Mains faulty, battery empty or lamp defective

ON Mains faulty, output ON

OFF No mains, battery completely empty

Blinking 1:1 Mains good, performing self test

ON Result of self test was not good

OFF

Dimensions in Millimeters (Inches)

12.0 mm
(0.47”)

15.0 mm
(0.59”)

89.0 mm
(3.50”)

77.5 mm

B

A

(3.05”)

Model A B

0.3 430 (16.93) 335 (13.19)

0.6 745 (29.33) 650 (25.59)

1.2 1365 (53.74) 1260 (49.61)

1.5 1655 (65.16) 1560 (61.42)

549

™

FLUORESCENT/AREA: ATEX/IECEx STANDARD AND EMERGENCY BACK-UP

© May 2016

ATX

FD Series Cylindrical Fluorescent Luminaires

Standard and Emergency Battery Back-Up. Flameproof

ATEX/IECEx:

Zone 1 and 2 - 21 and 22

II 2 GD

IP66/68

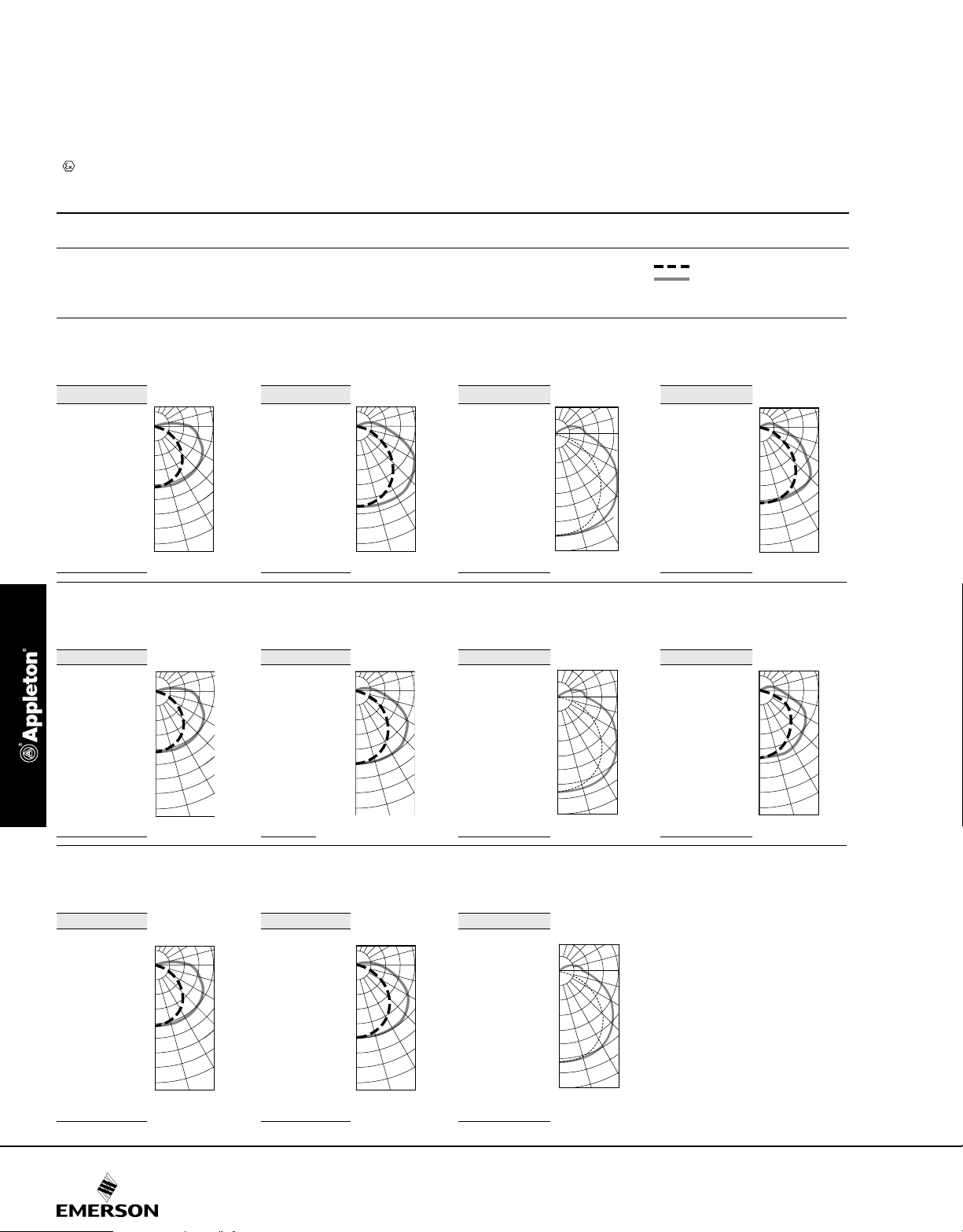

Photometric Data

Polar curves for a 1000 lm flux, according to NF C 71-120
Luminaire symbol according to NF C 71-121

Bi-pin (G13) Fluorescent 2G11 Compact Fluorescent

1 x 18 W
Efficiency 75.3%
NF C 71-121/0: 0.69 H + 0.06 T

CANDELA

DISTRIBUTION

0-180 90-270

0 167 167 0 161 161 0 141 141 0 154 154

5 166 167 5 160 162 5 141 141 5 153 154
10 164 168 10 157 163 10 141 139 10 151 154
15 160 168 15 153 164 15 140 135 15 147 153
20 154 168 20 148 164 20 139 130 20 142 153
25 147 168 25 141 164 25 138 124 25 136 152
30 139 167 30 133 164 30 136 117 30 128 150
35 129 166 35 123 163 35 133 109 35 119 147
40 118 164 40 112 130 40 128 100 40 108 142
45 151 162 45 100 153 45 121 89 45 95 143
50 106 160 50 86 147 50 113 77 50 81 127
55 77 157 55 73 141 55 105 65 55 66 113
60 61 152 60 58 134 60 96 51 60 49 101
65 45 144 65 41 121 65 87 38 65 32 88
70 28 135 70 26 106 70 78 25 70 17 75

1 x 36 W
Efficiency 74.3%
NF C 71-121/0: 0.69 H + 0.05 T

CANDELA

DISTRIBUTION

0-180 90-270

0 164 164 0 149 149 0 132 132 0 140 140

5 163 164 5 148 149 5 132 131 5 139 141
10 161 165 10 146 150 10 132 129 10 137 141
15 157 165 15 142 150 15 131 126 15 134 142
20 151 165 20 137 150 20 131 122 20 129 141
25 145 165 25 131 149 25 131 116 25 124 140
30 137 165 30 124 148 30 128 110 30 117 139
35 127 164 35 114 146 35 125 102 35 109 137
40 116 162 40 104 144 40 120 93 40 99 132
45 104 160 45 93 138 45 114 83 45 89 125
50 91 158 50 81 131 50 107 72 50 77 117
55 76 154 55 68 125 55 99 61 55 65 108
60 61 149 60 54 117 60 91 49 60 52 97
65 45 140 65 40 105 65 82 36 65 38 87
70 30 131 70 26 91 70 74 24 70 24 75

1 x 58 W
Efficiency 74.5%
NF C 71-121/0: 0.70 H + 0.05 T

CANDELA

DISTRIBUTION

0-180 90-270

0 167 167 0 148 148 0 125 125

5 167 167 5 147 149 5 125 125
10 164 167 10 145 148 10 125 124
15 160 167 15 142 149 15 124 122
20 154 167 20 137 150 20 123 119
25 147 166 25 131 149 25 121 114
30 139 165 30 124 148 30 118 108
35 130 164 35 115 146 35 115 101
40 119 163 40 105 144 40 109 92
45 106 161 45 94 140 45 103 82
50 93 158 50 82 134 50 96 72
55 78 155 55 69 128 55 89 60
60 63 149 60 55 119 60 81 48
65 47 142 65 42 108 65 73 36
70 31 132 70 28 95 70 65 24

150° 120°

0° 15°

150° 120°

0° 15°

150° 120°

0° 15°

2 x 18 W
Efficiency 68.1%
NF C 71-121: 0.63 G + 0.06 T

105°

90°
75°

60°

45°

30°

2 x 36 W
Efficiency 61.5%
NF C 71-121: 0.57 G + 0.04 T

105°

90°
75°

60°

45°

30°

2 x 36 W
Efficiency 61.5%
NF C 71-121: 0.57 G + 0.04 T

105°

90°
75°

60°

45°

30°

CANDELA

DISTRIBUTION

0-180 90-270

CANDELA

DISTRIBUTION

0-180 90-270

CANDELA

DISTRIBUTION

0-180 90-270

150° 120°

0° 15°

150° 120°

0° 15°

150° 120°

0° 15°

3 x 18 W
Efficiency 57%
NF C 71-121: 0.50 G + 0.07 T

DISTRIBUTION

105°

90°
75°

60°

45°

30°

3 x 36 W
Efficiency 53.3%
NF C 71-121: 0.47 G + 0.06 T

DISTRIBUTION

105°

90°
75°

60°

45°

30°

3 x 36 W
Efficiency 53.3%
NF C 71-121: 0.47 G + 0.06 T

DISTRIBUTION

105°

90°
75°

60°

45°

30°

CANDELA

0-180 90-270

CANDELA

0-180 90-270

CANDELA

0-180 90-270

165° 135° 120°

105°

90°
75°

60°

45°

30°

0° 15°

165° 135° 120°

105°

90°
75°

60°

45°

30°

0° 15°

165° 135° 120°

105°

90°
75°

60°

45°

30°

0° 15°

Longitudinal
Transverse

2 x 18 W
Efficiency 56.2%
NF C 71-121: 0.52 G + 0.04 T

CANDELA

DISTRIBUTION

0-180 90-270

2 x 36 W
Efficiency 53.6%
NF C 71-121: 0.50 G + 0.04 T

CANDELA

DISTRIBUTION

0-180 90-270

150° 120°

0° 15°

150° 120°

0° 15°

105°

90°
75°

60°

45°

30°

105°

90°
75°

60°

45°

30°

550
