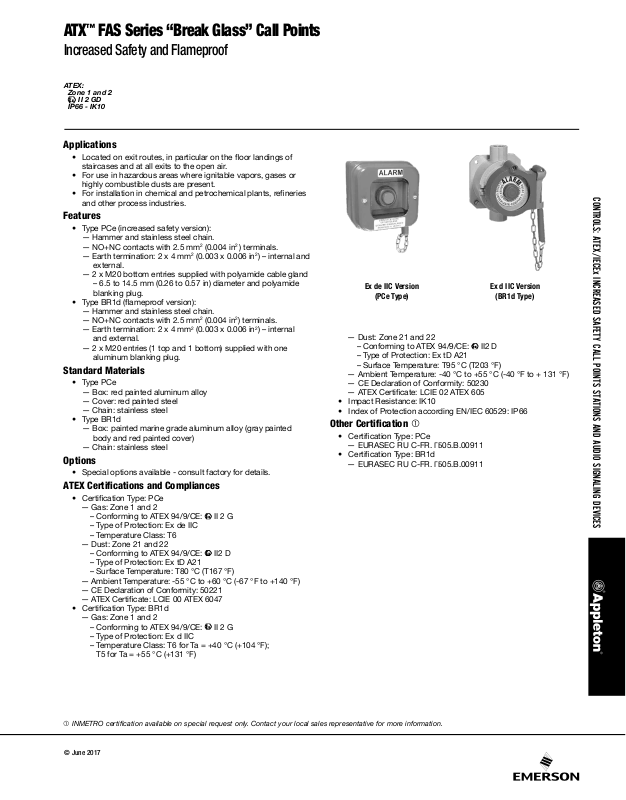

Appleton ATX™ FAS Series “Break Glass” Call Points Catalog Page

ATX™ FAS Series “Break Glass” Call Points

CONTROLS: ATEX/IECEx INCREASED SAFETY CALL POINTS STATIONS AND AUDIO SIGNALING DEVICES

© June 2017

Increased Safety and Flameproof

ATEX:

Zone 1 and 2

II 2 GD

IP66 - IK10

Applications

• Located on exit routes, in particular on the oor landings of

staircases and at all exits to the open air.

• For use in hazardous areas where ignitable vapors, gases or
highly combustible dusts are present.

• For installation in chemical and petrochemical plants, reneries

and other process industries.

Features

• Type PCe (increased safety version):
— Hammer and stainless steel chain.
— NO+NC contacts with 2.5 mm2 (0.004 in2 ) terminals.
— Earth termination: 2 x 4 mm2 (0.003 x 0.006 in2) – internal and

external.

— 2 x M20 bottom entries supplied with polyamide cable gland

– 6.5 to 14.5 mm (0.26 to 0.57 in) diameter and polyamide

blanking plug.

• Type BR1d (ameproof version):

— Hammer and stainless steel chain.
— NO+NC contacts with 2.5 mm2 (0.004 in2) terminals.
— Earth termination: 2 x 4 mm2 (0.003 x 0.006 in2) – internal

and external.

— 2 x M20 entries (1 top and 1 bottom) supplied with one

aluminum blanking plug.

Standard Materials

• Type PCe
— Box: red painted aluminum alloy
— Cover: red painted steel
— Chain: stainless steel

• Type BR1d
— Box: painted marine grade aluminum alloy (gray painted

body and red painted cover)

— Chain: stainless steel

Options

• Special options available - consult factory for details.

ATEX Certifications and Compliances

• Certication Type: PCe

— Gas: Zone 1 and 2

– Conforming to ATEX 94/9/CE: II 2 G
– Type of Protection: Ex de IIC
– Temperature Class: T6

— Dust: Zone 21 and 22

– Conforming to ATEX 94/9/CE: II2 D
– Type of Protection: Ex tD A21
– Surface Temperature: T80 °C (T167 °F)

— Ambient Temperature: -55 °C to +60 °C (-67 °F to +140 °F)
— CE Declaration of Conformity: 50221

— ATEX Certicate: LCIE 00 ATEX 6047

• Certication Type: BR1d

— Gas: Zone 1 and 2

– Conforming to ATEX 94/9/CE: II 2 G
– Type of Protection: Ex d IIC
– Temperature Class: T6 for Ta = +40 °C (+104 °F);

T5 for Ta = +55 °C (+131 °F)

Ex de IIC Version

(PCe Type)

— Dust: Zone 21 and 22

– Conforming to ATEX 94/9/CE:
– Type of Protection: Ex tD A21
– Surface Temperature: T95 °C (T203 °F)

— Ambient Temperature: -40 °C to +55 °C (-40 °F to + 131 °F)
— CE Declaration of Conformity: 50230

— ATEX Certicate: LCIE 02 ATEX 605

• Impact Resistance: IK10

• Index of Protection according EN/IEC 60529: IP66

Ex d IIC Version

(BR1d Type)

II2 D

Other Certification 

• Certication Type: PCe

— EURASEC RU C-FR. ГБ05.B.00911

• Certication Type: BR1d

— EURASEC RU C-FR. ГБ05.B.00911

 INMETRO certification available on special request only. Contact your local sales representative for more information.

ATX™ FAS Series “Break Glass” Call Points

125mm (4.9”)

9 mm (0.35”)

CONTROLS: ATEX/IECEx INCREASED SAFETY CALL POINTS STATIONS AND AUDIO SIGNALING DEVICES

© June 2017

Increased Safety and Flameproof

ATEX:

Zone 1 and 2

II 2 GD

IP66 - IK10

Catalog Numbering Guide

FAS D A

Series:

ATEX Certified

Description

Increased Safety Ex de IIC Version - Type PCe:

Manual breaking of the circuit after breaking the glass.

Momentary NO+NC contacts

Automatic breaking of the circuit as soon as glass is broken.

Momentary NO+NC contacts

Flameproof Ex d IIC Version - Type BR1d:

Automatic breaking of the circuit as soon as glass is broken.

Momentary NO+NC contacts

Dimensions in Millimeters (Inches)

D - Ex d
E - Ex e

A - Automatic

M - Manual

3

Weight kg (lb) Volume dm

1.2 (2.6) 5 (305.1) FASEM 1

1.2 (2.6) 5 (305.1) FASEA 1

1.2 (2.6) 3.8 (231.9)

(in3)

Catalog Number Pack

FASDA 

1

 Cable entry is M25. Old PN 093818 had M20 entry. Please confirm cable entry size.

7 mm
(0.28”)

41 mm (1.6”)

41 mm
(1.6”)

320 mm (13”)

7 mm
(0.28”)

140 mm (5.5”)
