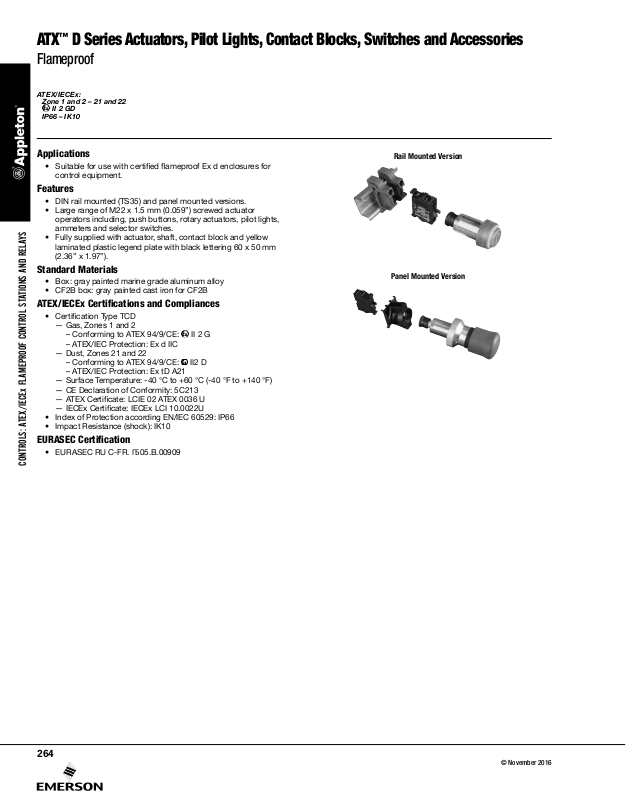

Appleton ATX™ D Series Catalog Page

ATX™ D Series Actuators, Pilot Lights, Contact Blocks, Switches and Accessories

Controls: AtEX/IECEx FlAmEprooF Control stAtIons And rElAys

© November 2016

Flameproof

ATEX/IECEx:

Zone 1 and 2 – 21 and 22

II 2 GD

IP66 – IK10

Applications

• Suitable for use with certied ameproof Ex d enclosures for
control equipment.

Features

• DIN rail mounted (TS35) and panel mounted versions.

• Large range of M22 x 1.5 mm (0.059”) screwed actuator
operators including, push buttons, rotary actuators, pilot lights,
ammeters and selector switches.

• Fully supplied with actuator, shaft, contact block and yellow
laminated plastic legend plate with black lettering 60 x 50 mm
(2.36” x 1.97”).

Standard Materials

• Box: gray painted marine grade aluminum alloy

• CF2B box: gray painted cast iron for CF2B

ATEX/IECEx Certifications and Compliances

• Certication Type TCD

— Gas, Zones 1 and 2
– Conforming to ATEX 94/9/CE: II 2 G
– ATEX/IEC Protection: Ex d IIC
— Dust, Zones 21 and 22
– Conforming to ATEX 94/9/CE: II2 D
– ATEX/IEC Protection: Ex tD A21
— Surface Temperature: -40 °C to +60 °C (-40 °F to +140 °F)
— CE Declaration of Conformity: 5C213
— ATEX Certicate: LCIE 02 ATEX 0036 U
— IECEx Certicate: IECEx LCI 10.0022U

• Index of Protection according EN/IEC 60529: IP66

• Impact Resistance (shock): IK10

EURASEC Certification

• EURASEC RU C-FR. ГБ05.B.00909

Rail Mounted Version

Panel Mounted Version

264

ATX™ D Series TS35 Rail Mounted Actuators and Contact Blocks

Controls: AtEX/IECEx FlAmEprooF Control stAtIons And rElAys

© November 2016

Flameproof

ATEX/IECEx:

Zone 1 and 2 – 21 and 22

II 2 GD

IP66 – IK10

Spring Return Push Button

Green spring return ‘I’ push button with 1NO momentary contact 0.2 (0.44) 0.4 (24.4) DA5GR
Red spring return ‘0’ push button with 1NC momentary contact 0.2 (0.44) 0.4 (24.4) DA9RR

Mushroom Head Push Button

Red mushroom head spring return with 1NC momentary contact
Padlockable in both positions

Red mushroom head push pull with 1NC maintained contact
Padlockable in both positions

Red mushroom head key release with 1NC maintained contact
Unlocked with key (MS1)

Rotary Actuator

2 maintained positions with 1NO maintained contact 0.2 (0.44) 0.4 (24.4) DH5R
2 maintained positions key operated with 1NO maintained contact key

removable in both positions (MS1)

Additional Contacts

1 x NO contact 0.1 (0.22) 0.2 (12.20) DCB5R
1 x NC contact 0.1 (0.22) 0.2 (12.20) DCB9R

LED Pilot Lights

Red 12 to 30 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPR12R
Green 12 to 30 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPG12R
White 12 to 30 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPW12R
Blue 12 to 30 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPB12R
Yellow 12 to 30 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPY12R
Red 48 to 60 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPR48R
Green 48 to 60 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPG48R
White 48 to 60 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPW48R
Blue 48 to 60 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPB48R
Yellow 48 to 60 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPY48R
Red 85 to 264 Vac 0.1 (0.22) 0.4 (24.4) DPR85R
Green 85 to 264 Vac 0.1 (0.22) 0.4 (24.4) DPG85R
White 85 to 264 Vac 0.1 (0.22) 0.4 (24.4) DPW85R
Blue 85 to 264 Vac 0.1 (0.22) 0.4 (24.4) DPB85R
Yellow 85 to 264 Vac 0.1 (0.22) 0.4 (24.4) DPY85R

Transfer Kit

To be used when replacing old catalog number range of contacts 094057
and 094058 and old catalog number range of indicators 093990-093991
and 094090-094091

16 A Switches

1-pole switch with non-padlockable handle ”0-1” 0.3 (0.66) 0.5 (30.51) DS116R
2-pole switch with non-padlockable handle ”0-1” 0.3 (0.66) 0.5 (30.51) DS216R
3-pole switch with non-padlockable handle ”0-1” 0.3 (0.66) 0.5 (30.51) DS316R
4-pole switch with non-padlockable handle ”0-1” 0.3 (0.66) 0.5 (30.51) DS416R
2 way 1-pole selector switch with non-padlockable handle ”1-2” 0.3 (0.66) 0.5 (30.51) DS21601R
3 way 1-pole selector switch with non-padlockable handle ”1-0-2” 0.3 (0.66) 0.5 (30.51) DS21602R

 Legend plate supplied.

Description/Function

Weight

kg (lb)

0.2 (0.44) 0.4 (24.4) DR9R

0.2 (0.44) 0.4 (24.4) DD9R

0.2 (0.44) 0.4 (24.4) DC9R

0.2 (0.44) 0.4 (24.4) DG5R

0.2 (0.44) 0.4 (24.4) 093958

Volume

3

(in3)

dm

Catalog

Number 

265

ATX™ D Series Panel Mounted Actuators and Contact Blocks

Controls: AtEX/IECEx FlAmEprooF Control stAtIons And rElAys

© November 2016

Flameproof

ATEX/IECEx:

Zone 1 and 2 – 21 and 22

II 2 GD

IP66 – IK10

 Legend plate supplied.

Weight

Description/Function

Spring Return Push Button

Green spring return ‘I’ push button with 1NO momentary contact 0.2 (0.44) 0.4 (24.4) DA5GP
Red spring return ‘0’ push button with 1NC momentary contact 0.2 (0.44) 0.4 (24.4) DA9RP

Mushroom Head Push Button

Red mushroom head spring return with 1NC momentary contact
Padlockable in both positions

Red mushroom head push pull with 1NC maintained contact
Padlockable in both positions

Red mushroom head key release with 1NC maintained contact
Unlocked with key (MS1)

Rotary Actuator

2 maintained positions with 1NO maintained contact 0.2 (0.44) 0.4 (24.4) DH5P
2 maintained positions key operated with 1NO maintained contact key

removable in both positions (MS1)

Additional Contacts

1 x NO contact 0.1 (0.22) 0.2 (12.20) DCB5P
1 x NC contact 0.1 (0.22) 0.2 (12.20) DCB9P

LED Pilot Lights

Red 12 to 30 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPR12P
Green 12 to 30 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPG12P
White 12 to 30 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPW12P
Blue 12 to 30 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPB12P
Yellow 12 to 30 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPY12P
Red 48 to 60 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPR48P
Green 48 to 60 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPG48P
White 48 to 60 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPW48P
Blue 48 to 60 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPB48P
Yellow 48 to 60 Vac/Vdc 0.1 (0.22) 0.4 (24.4) DPY48P
Red 85 to 264 Vac 0.1 (0.22) 0.4 (24.4) DPR85P
Green 85 to 264 Vac 0.1 (0.22) 0.4 (24.4) DPG85P
White 85 to 264 Vac 0.1 (0.22) 0.4 (24.4) DPW85P
Blue 85 to 264 Vac 0.1 (0.22) 0.4 (24.4) DPB85P
Yellow 85 to 264 Vac 0.1 (0.22) 0.4 (24.4) DPY85P

Transfer Kit

To be used when replacing old catalog number range of contacts 094055
and 094056 and old catalog number range of indicators 093992-093993
and 094092-094093

16 A Switches

1-pole switch with non-padlockable handle ”0-1” 0.3 (0.66) 0.5 (30.51) DS116P
2-pole switch with non-padlockable handle ”0-1” 0.3 (0.66) 0.5 (30.51) DS216P
3-pole switch with non-padlockable handle ”0-1” 0.3 (0.66) 0.5 (30.51) DS316P
4-pole switch with non-padlockable handle ”0-1” 0.3 (0.66) 0.5 (30.51) DS416P
2 way 1-pole selector switch with non-padlockable handle ”1-2” 0.3 (0.66) 0.5 (30.51) DS21601P
3 way 1-pole selector switch with non-padlockable handle ”1-0-2” 0.3 (0.66) 0.5 (30.51) DS21602P
2 way 2-pole selector switch with non-padlockable handle ”1-2” 0.3 (0.66) 0.5 (30.51) DS41601P
3 way 2-pole selector switch with non-padlockable handle ”1-0-2” 0.3 (0.66) 0.5 (30.51) DS41602P

kg (lb)

0.2 (0.44) 0.4 (24.4) DR9P

0.2 (0.44) 0.4 (24.4) DD9P

0.2 (0.44) 0.4 (24.4) DC9P

0.2 (0.44) 0.4 (24.4) DG5P

0.2 (0.44) 0.4 (24.4) 093959

Volume

3

dm

(in3)

Catalog

Number 

266

ATX™ D Series Accessories

Controls: AtEX/IECEx FlAmEprooF Control stAtIons And rElAys

© November 2016

Flameproof

ATEX/IECEx:

Zone 1 and 2 – 21 and 22

II 2 GD

IP66 – IK10

Weight

Description/Function

Spare Shrouds for Spring Return Push Buttons

Green shroud marked ”I” 0.1 (0.22) 0.2 (12.20) DSG
Red shroud marked ”0” 0.1 (0.22) 0.2 (12.20) DSR
Green shroud marked ”start” 0.1 (0.22) 0.2 (12.20) DSS
Red shroud marked ”A Réarmement” 0.1 (0.22) 0.2 (12.20) DSA
Black shroud (unmarked) 0.1 (0.22) 0.2 (12.20) DSN
Blue shroud (unmarked) 0.1 (0.22) 0.2 (12.20) DSB

Aluminum Guard Painted Red
Mushroom head actuator protection DGD1A

Stainless Steel Padlocking Devices

For spring return push button DPLD1S
For rotary actuator, red mushroom head spring return or push-pull DPLD2S

Spare Lenses for Pilot Lights

Red 0.1 (0.22) 0.2 (12.20) DPRLENS
Green 0.1 (0.22) 0.2 (12.20) DPGLENS
White 0.1 (0.22) 0.2 (12.20) DPWLENS
Blue 0.1 (0.22) 0.2 (12.20) DPBLENS
Yellow 0.1 (0.22) 0.2 (12.20) DPYLENS

Spare Handle for Switches

Non-padlockable handle 0.2 (0.44) 0.2 (12.20) DSNPH

kg (lb)

Volume

3

dm

(in3)

Catalog
Number

Padlockable handle — 48 mm x 48 mm (1.89” x 1.89”) 0.06 (0.13) 0.3 (18.31) DSPH

Laminated Plastic Legend Plate with Black Lettering

Large size — 60 mm x 50 mm (2.36 in x 1.97”) DLP00
Small size — 45 mm x 31.2 mm (1.77” x 1.24”) DLP01

Blanking Plug

Used to close up unused openings on cover M22 x 1.5 mm (0.059”) 0.2 (0.44) 0.2 (12.20) DBPM22
