Appleton MD2SR Factory Sealed Interlocked Switched Receptacles, 330140
Instruction Sheet
10 pgs
23.35 Mb
0
Table of contents
Loading...

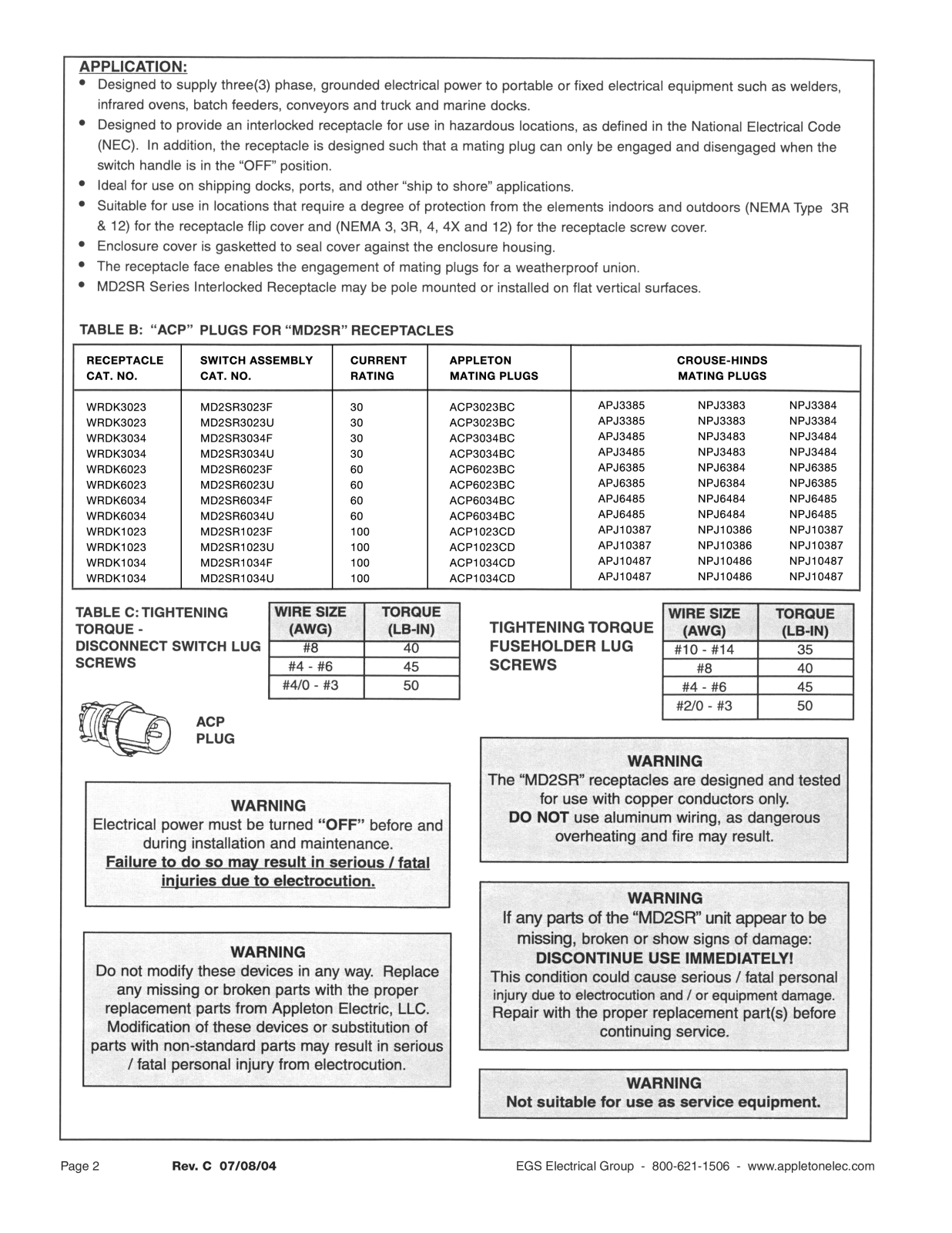

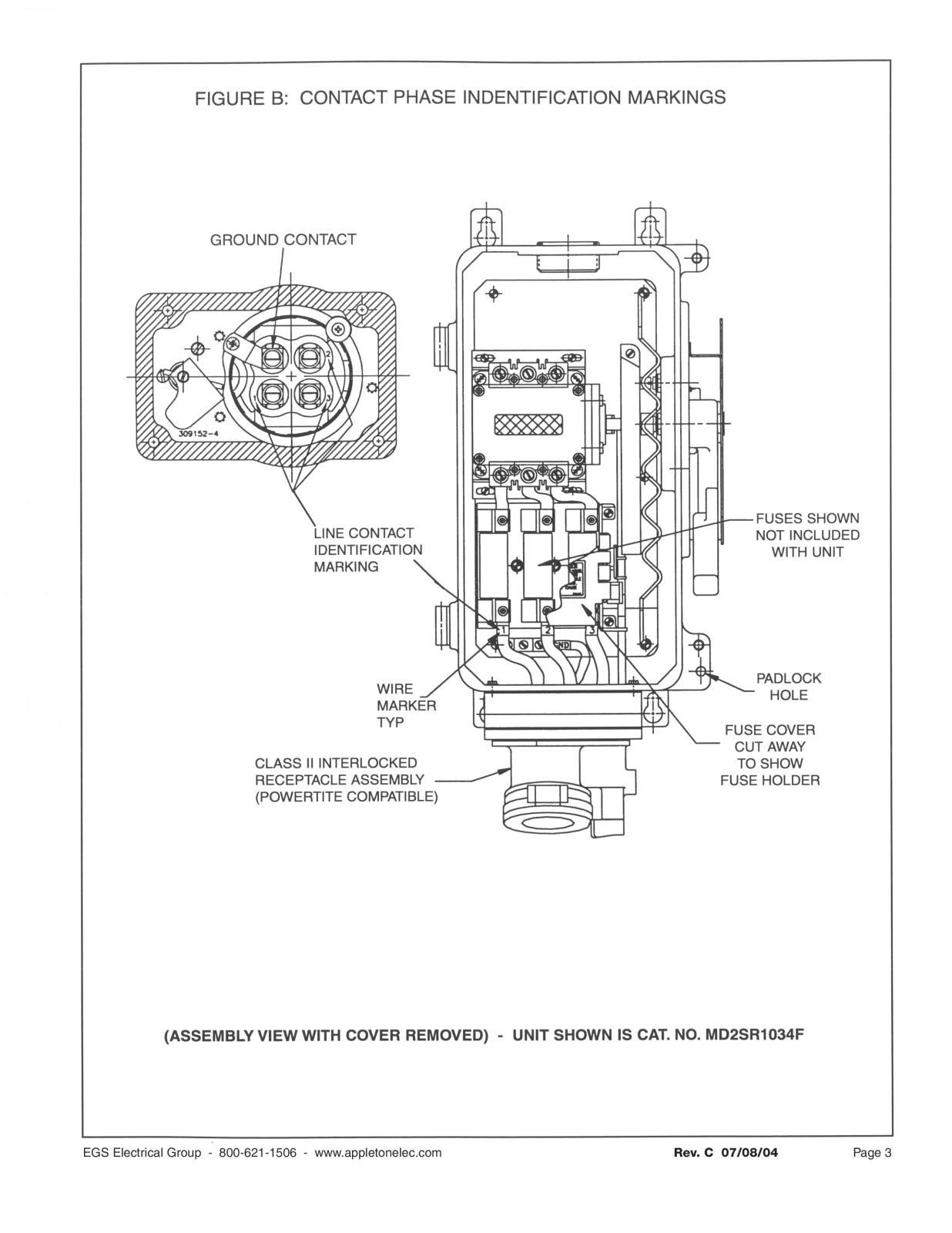

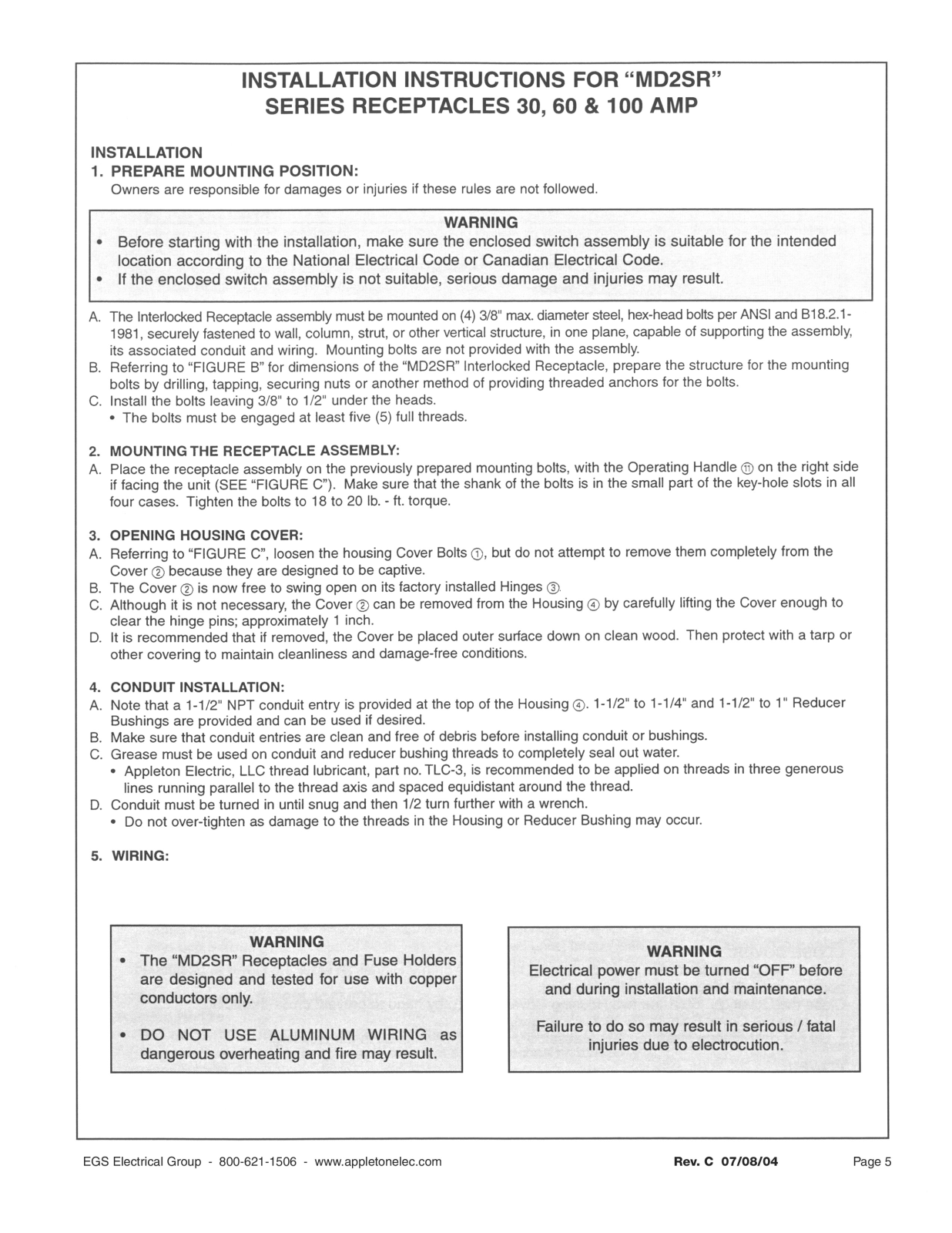

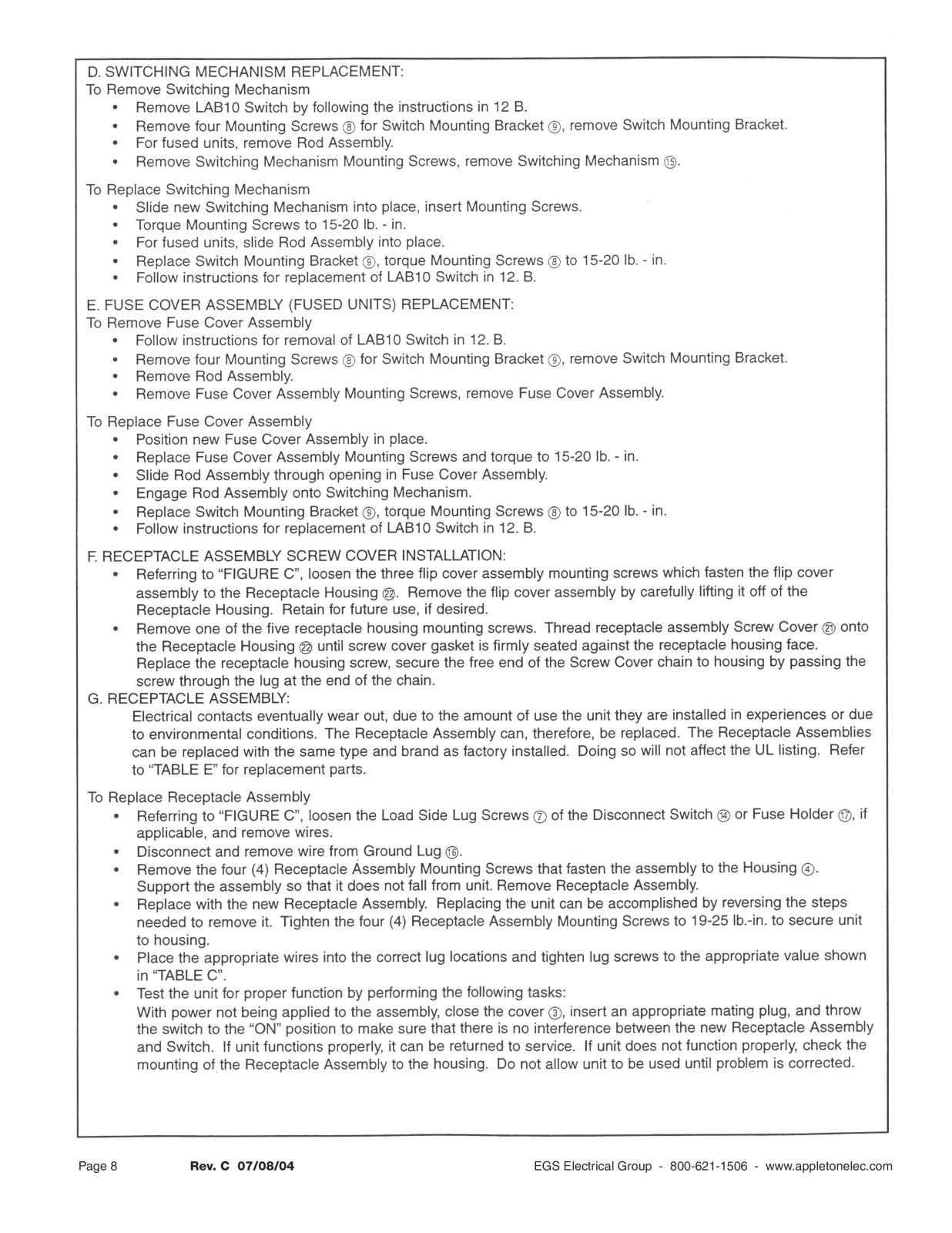

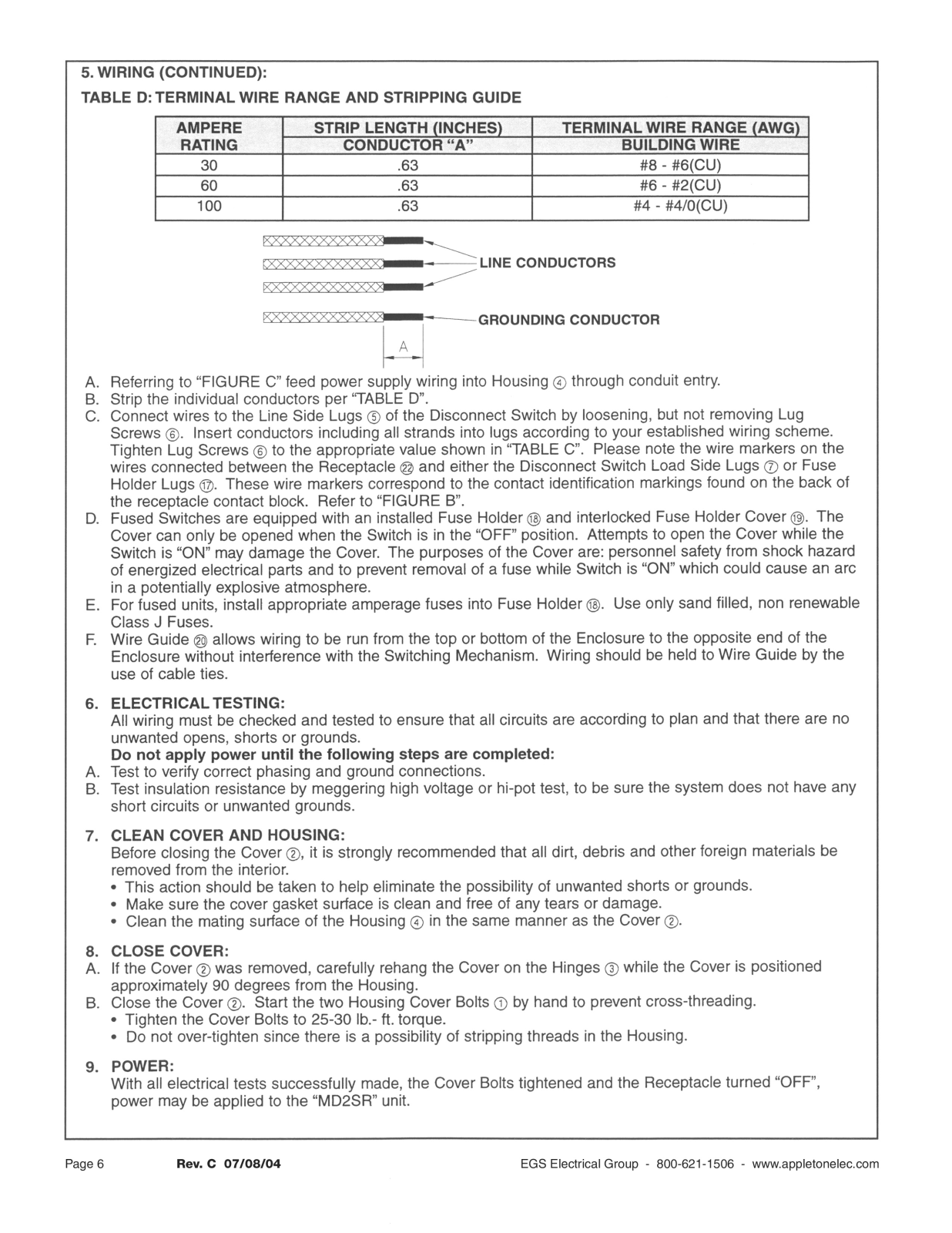

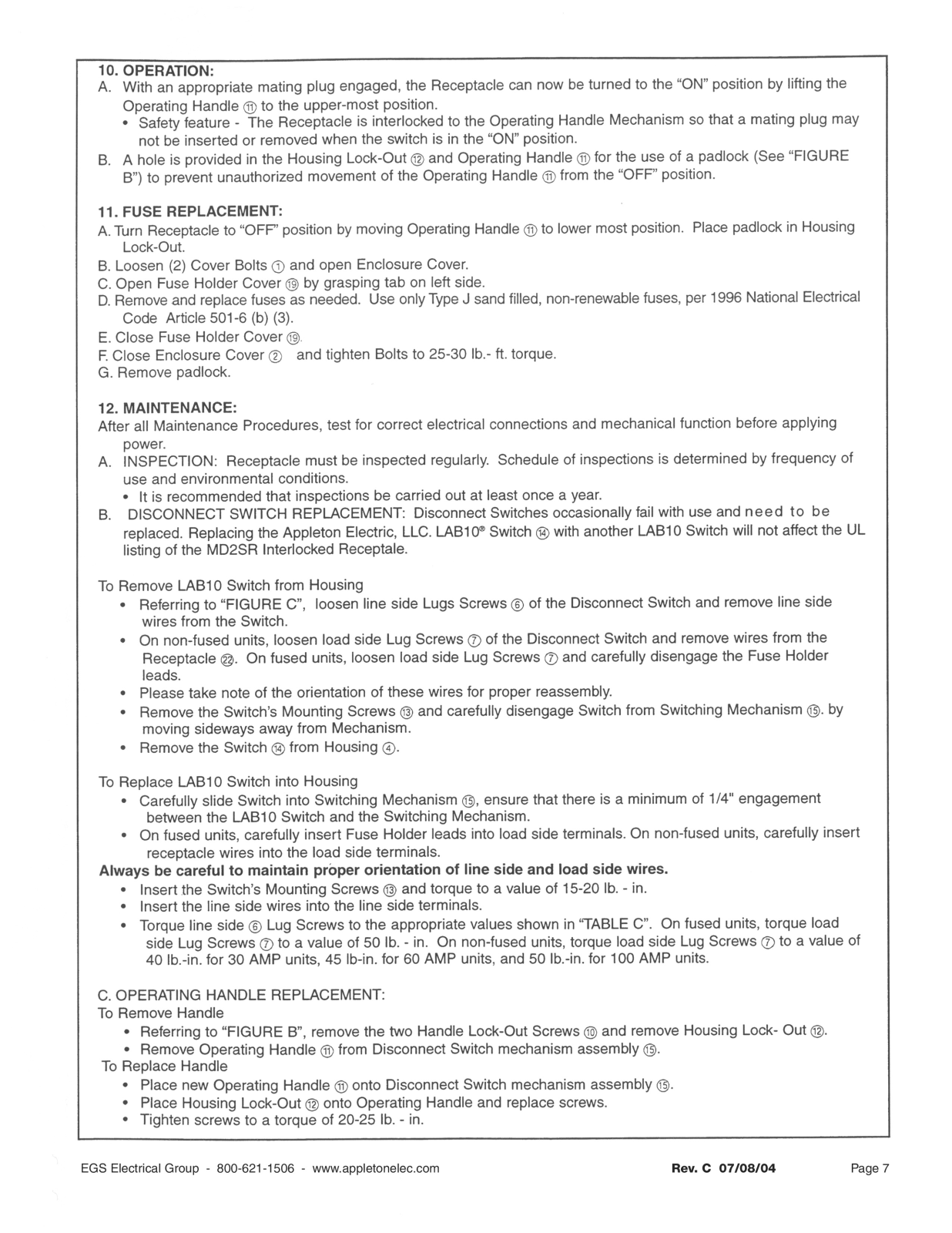

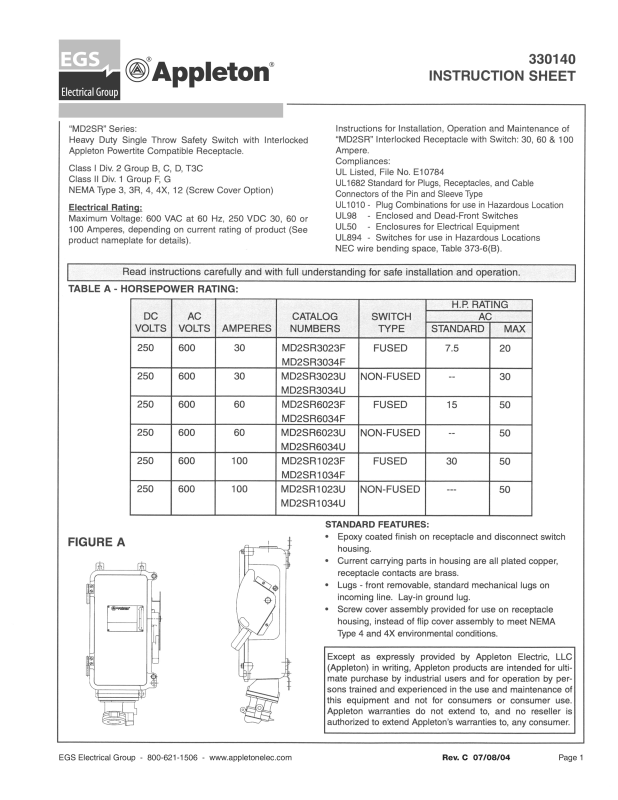

Appleton Appleton MD2SR Factory Sealed Interlocked Switched Receptacles, 330140 Instruction Sheet
...
Appleton Instruction Sheet
Download
Specifications and Main Features
Frequently Asked Questions
User Manual
Download
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
