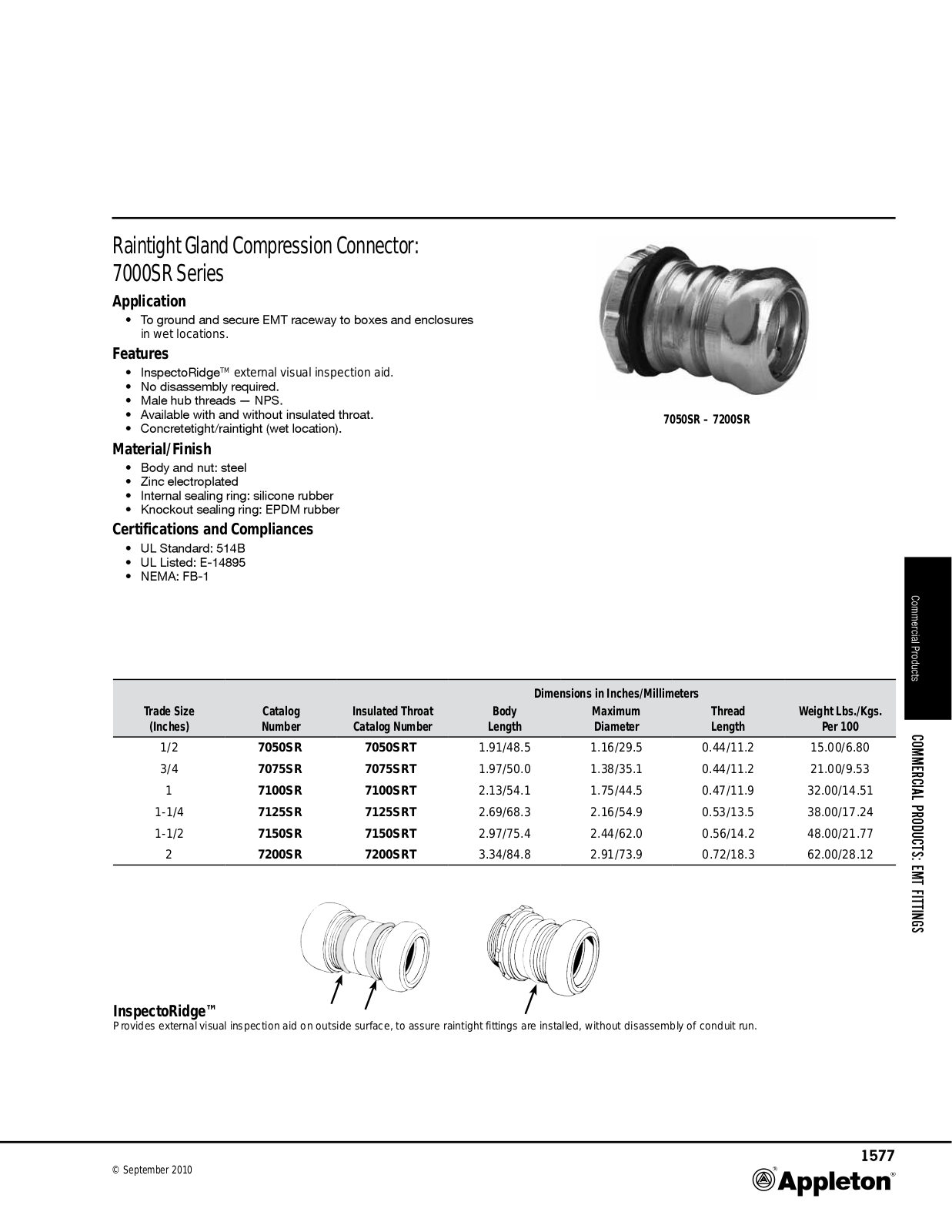

Appleton 7000SR Series Catalog Page

Raintight Gland Compression Connector:
7000SR Series

Application

in wet locations.

Features

Material/Finish

Certifications and Compliances

Trade Size

(Inches)

1/2 7050SR 7050SRT 1.91/48.5 1.16/29.5 0.44/11.2 15.00/6.80
3/4 7075SR 7075SRT 1.97/50.0 1.38/35.1 0.44/11.2 21.00/9.53

1 7100SR 7100SRT 2.13/54.1 1.75/44.5 0.47/11.9 32.00/14.51
1-1/4 7125SR 7125SRT 2.69/68.3 2.16/54.9 0.53/13.5 38.00/17.24
1-1/2 7150SR 7150SRT 2.97/75.4 2.44/62.0 0.56/14.2 48.00/21.77

2 7200SR 7200SRT 3.34/84.8 2.91/73.9 0.72/18.3 62.00/28.12

TM

external visual inspection aid.

Catalog
Number

Insulated Throat
Catalog Number

Dimensions in Inches/Millimeters

Body

Length

Maximum

Diameter

7050SR – 7200SR

Thread
Length

Weight Lbs./Kgs.

Per 100

InspectoRidge™

Provides external visual inspection aid on outside surface, to assure raintight fittings are installed, without disassembly of conduit run.

© September 2010
