appel APS62CS User Manual
APS62CS
Dryer
Secadora
Asciugatrice
Read this manual prior to initial operation of the product!
Dear Customer,
We hope that your product, which has been manufactured in modern facilities and passed
through a strict quality control procedure, will give you very good results.
We advise you to read through this manual carefully before using your product and keep it for
future reference.
This User Manual will
• Help you use your machine in a fast and safe way.
• Read the User Manual before installing and starting your product.
• In particular, follow the instructions related to safety.
• Keep this User Manual within easy reach for future reference.
• Please read all additional documents supplied with your product.
Remember that this User Manual is also applicable for several other models.
Explanation of symbols
Throughout this User Manual the following symbols are used:
A Important safety information. Warning for hazardous situations with regard to life and
property.
B Caution; Warning for supply voltage.
Caution; Warning for fire hazard.
Caution; Warning for hot surfaces.
Read the instructions.
C Useful information. Important information or useful hints about usage.
This appliance’s packaging material is recyclable. Help recycle it and protect the environment
by dropping it off in the municipal receptacles provided for this purpose. Your appliance also
contains a great amount of recyclable material. It is marked with this label to indicate the
used appliances that should not be mixed with other waste. This way, the appliance recycling
organised by your manufacturer will be done under the best possible conditions, in compliance
with European Directive 2002/96/EC on Waste Electrical and Electronic Equipment. Contact
your town hall or your retailer for the used appliance collection points closest to your home.
We thank you doing your part to protect the environment.
2 - EN
1 Important safety information
This section includes safety information that
will help protection from risks of personal
injuries or materialistic damages. Failure
to follow these instructions shall cause
any warranty and reliability commitment to
become void.
General safety
• Never place the machine on a carpet-
covered floor, otherwise, lack of airflow
beneath the machine may cause electrical
parts to overheat. This will cause problems
with your machine.
• If the power cable or mains plug is
damaged, you must call Authorised Service
Agent for repair.
• The product should not be plugged in
during installation, maintenance and repair
works. Such works should always be made
by the technical service. Manufacturer shall
not be held responsible for damages arising
from processes carried out by unauthorised
persons.
• Connect the product to a grounded outlet
protected by a fuse of suitable capacity as
stated in the technical specifications table.
• Operate your product at temperatures
between +5°C and +35°C.
• Do not use electrical devices in the product.
• Do not connect the air exit of the product
to the chimney holes which are used for the
exhaust fumes of the devices operating with
gas or other types of fuel.
• You must provide enough ventilation in
order to prevent gases exiting from devices
operating with other types of fuels including
the naked flame from accumulating in the
room due to the back fire effect.
• Always clean the lint filter before or after
each loading.
• Never operate your dryer without the lint
filter installed.
• Do not allow fibre, dust and dirt
accumulation around the exhaust exit and
at adjacent areas.
• Power cable plug must be within easy
reach after installation.
• Do not use extension cords, multi-plugs
or adaptors to connect the dryer to power
supply in order to decrease the risk of
electric shock.
• Do not make any changes on the plug
supplied with the product. If it is not
compatible with the socket, have a qualified
electrician change the socket with a
suitable one.
• Items cleaned or washed with gasoil/fuel oil,
• Do not dry items cleaned with industrial
• Do not dry unwashed items in the dryer.
• Items soiled with cooking oils, acetone,
• Garments or pillows bolstered with rubber
• Do not use fabric softeners and anti-static
• This product must be grounded. Grounding
• Do not install the product behind a door
• Do not install or leave this product in
• Do not tamper with the controls.
• Do not perform any repair or part replacing
• Inside and exhaust duct of the product
• Wrong connection of grounding conductor
dry-laundry solvents and other combustible
or explosive materials as well as the items
that are contaminated or spotted with such
materials should not be dried in the product
since they emit flammable or explosive
vapor.
chemicals in the dryer.
alcohol, fuel oil, kerosene, stain remover,
turpentine, paraffin and paraffin removers
must be washed in hot water with plenty of
detergent before being dried in the dryer.
foam (latex foam), shower bonnets, water
resistant textiles, materials with rubber
reinforcement and rubber foam pads should
not be dried in the dryer.
products unless they are recommended by
the manufacturers of the fabric softener or
the product.
installation decreases the risk of electric
shock by opening a path with low
resistance for the electricity flow in case of
a malfunction or failure. Power cable of this
product is equipped with a conductor and
a grounding plug that allows for grounding
the product. This plug must be installed
appropriately and inserted into a socket
which is grounded in accordance with the
local laws and regulations.
with a lock, sliding door or a door that has a
hinge against the hinge of the dryer.
places where it will be exposed to outdoor
conditions.
procedures on the product even if you
know or have the ability to perform unless
it is clearly suggested in the operating
instructions or the published service
manual.
must be cleaned by the qualified service
personnel periodically.
of the product can cause electric shock. If
you have any suspect about the grounding
connection, have it checked by a qualified
electrician, service representative or service
personnel.
3 - EN
• Do not reach into the machine when the
drum is spinning.
• Unplug the machine when it is not in use.
• Never wash down the appliance with water!
There is the risk of electric shock! Always
disconnect by unplugging from the mains
before cleaning.
• Never touch the plug with wet hands. Never
unplug by pulling on the cable, always
pull out by grabbing the plug only. Do not
operate the machine if the power cable or
plug is damaged!
• Never attempt to repair the machine
yourself, otherwise, you will be putting your
life and others’ lives in danger.
• For malfunctions that cannot be solved by
following the information given in the safety
instructions:
Turn off the machine, turn off and contact
an authorised service agent.
• Do not stop the dryer before the drying
cycle comes to an end unless you will
remove all laundry from the dryer fast in
order to lay them and dissipate the heat.
• Remove the door of the drying
compartment before decommissioning or
disposing of the product.
• The final step of the drying cycle (cool-
down cycle) occurs without applying
heat to ensure that the items are left at a
temperature that will not damage them.
• Fabric softeners or similar products should
be used as specified by the fabric softener
instructions.
• Underwear that contains metal
reinforcements should not be placed in
a dryer. Damage to the dryer can result if
metal reinforcements come loose during
drying.
• Check all garments for forgotten lighters,
coins, metal pieces, needles, etc. before
loading.
• At times when your dryer is not in use or
after the laundry is taken out following the
completion of drying process, turn off by
using the On/Off button. In cases when
the On/Off button is on (while the dryer
is energized), keep the door of the dryer
closed.
Intended use
• This product has been designed for
domestic use. It should not be used for
other purposes.
• Use the product only for drying laundry that
are marked accordingly.
• Dry only those articles in your product that
are stated in this manual.
• This product is not intended to be used by
persons with physical, sensory or mental
disorders or unlearned or inexperienced
people (including children) unless they
are attended by a person who will be
responsible for their safety or who will
instruct them accordingly for use of the
product.
Children’s safety
• Electrical appliances are dangerous for
the children. Keep children away from the
machine when it is operating. Do not let
them tamper with the machine.
• Packaging materials are dangerous to
children. Keep the packaging materials out
of reach of children or dispose them by
classifying according to waste directives.
• Do not allow children sit/climb on or enter in
the product.
• Children should be supervised to ensure
that they do not play with the product.
• Close the loading door when you leave the
area where the product is located.
4 - EN
2 Installation
Refer to the nearest Authorised Service Agent
for installation of your product.
CPreparation of location and electrical
installation for the product is under
customer’s responsibility.
BInstallation and electrical connections must
be carried out by a qualified personnel.
APrior to installation, visually check if the
product has any defects on it. If so, do not
have it installed. Damaged products will
cause risks for your safety.
Appropriate installation location
• Install the product in an environment which
has no risk of freezing and is in a stable and
level position.
• Operate your product in a well ventilated,
dust-free environment.
• Do not block the air ducts in front of and
under the product with materials such as
long pile rugs and wooden bands.
• Do not place your product on a long pile
rug or on similar surfaces.
• Do not install the product behind a door
with a lock, sliding door or a hinged door
which can strike the product.
• Once the product is installed, it should stay
at the same place where its connections
have been made. When installing the
product, make sure that the rear wall of it
does not touch anywhere (tap, socket, etc.)
and also pay attention to install the product
at a place where it will stay permanently.
BDo not place the product on top of the
power cable.
• Keep at least 1.5 cm distance to walls of
other furniture.
Under counter installation

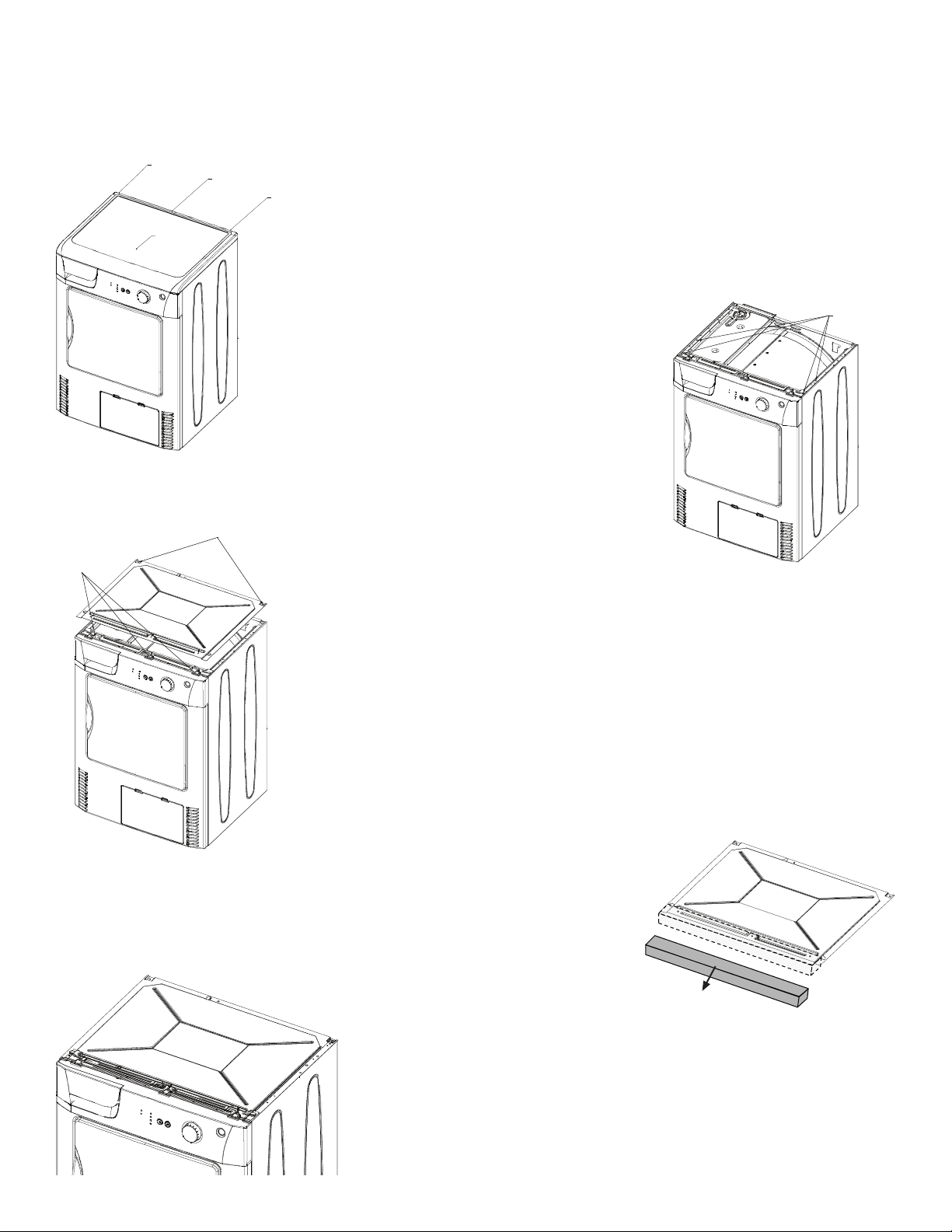

• A special part (Part no: 295 970 0100)
replacing the top trim must be provided
and installed by the Authorised Service
Agent in order to use the machine under a
counter or in a cupboard. It should never be
operated without the top trim.
• Leave at least 3 cm of space between
the side and rear walls of the product and
the walls of the counter/cupboard when
installing your product under a counter or in
a cupboard.

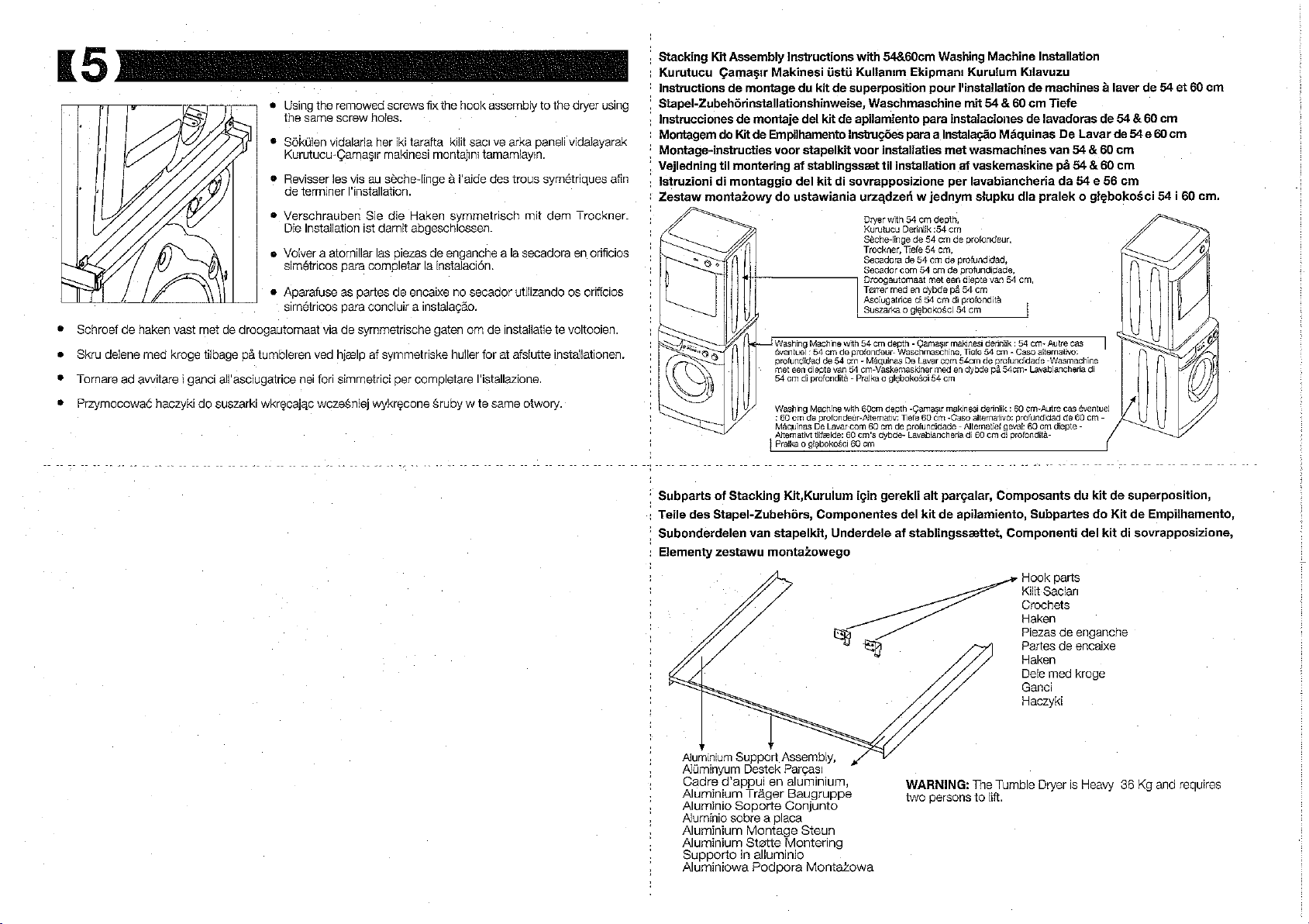

Mounting over a washing machine

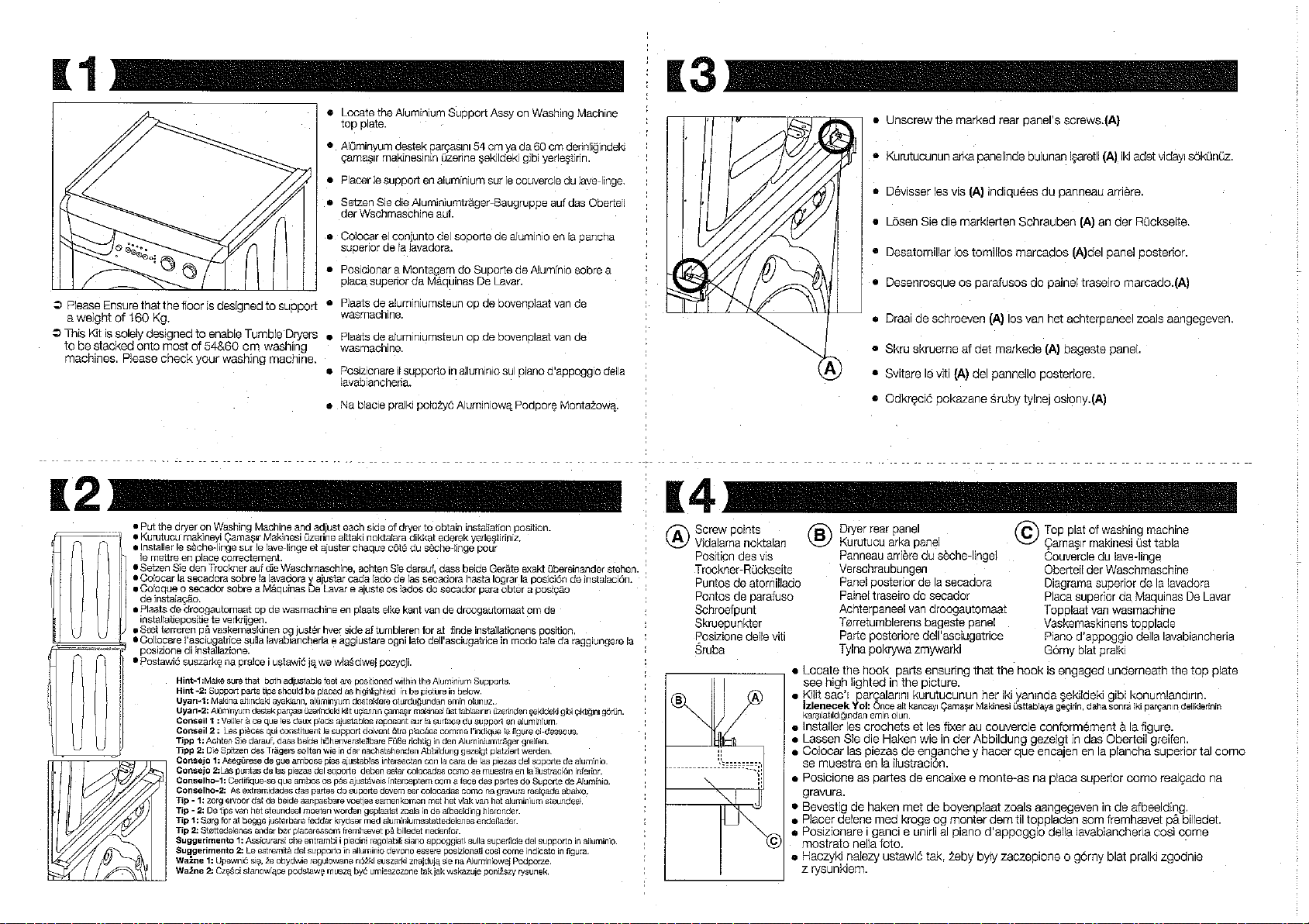

• A fitting device should be used between
the two machines when installing above a
washing machine. The bracket (Part no.
296 280 0100 white/296 280 0200 grey)
must be installed by the Authorised Service
Agent.
• Place the product on a firm floor. If it will be
placed on top of a washing machine, the
approximate weight of both machines may
reach 180 kg when they are full. Therefore,
the floor must be capable of carrying the
load on it!
Ventilation hose and connection (for products equipped with
an outlet vent)
Ventilation hose allows exhaust air from inside
the machine
Vented dryer has 1 air outlet.
Stainless sheet metal or aluminum pipes can
be used instead of a hose. The pipe diameter
should be minimum 10 cm.
Maximum hose and pipe lengths are given in
the table below.
Hose Pipe
Maximum length
1 elbow 45°
1 elbow 90°
1 elbow 90° short
1 wall passage
4 m 5 m
-1.0 m -0.3 m
-1.8 m -0.6 m
-2.7 m
-2.0 m -2.0 m
CEach elbow and other passages should be
subtracted from the maximum length stated
above.
To connect a ventilation hose;
1. Connect the air outlet hose to the hose
spacer piece by turning it counterclockwise.
2. Make the hose passages as shown below.
CExhaust of humid air from the dryer into the
room is inconvenient. It may damage the
walls and furniture in the room.
CThe ventilation hose can be routed
outdoors via a window or it can be
connected to the air outlet in the bathroom.
CAir outlet hose must be routed directly
to the outdoors. There must be a limited
number of elbows as not to hinder
ventilation.
CTo prevent water accumulation in the hose,
make sure that it is not folded on the floor.
5 - EN
BThe ventilation hose should not be
connected to the chimney of a stove or a
fireplace.
BDo not operate your product at the same
time with heaters such as a coal or gas
stove. Airflow may cause the chimney to
flare up.
Connection to water drain (Products
with a condenser);
In products equipped with condenser unit,
water accumulated during the drying cycle
accumulates in the water tank. You should
drain accumulated water after each drying
cycle.
You can directly drain accumulated water
through the water drain hose supplied with
the product instead of periodically draining the
water collected in the water tank.
Connecting the water drain hose:
1. Pull the hose out by its end to remove it
from the product. Do not use any tools to
remove the hose. Attach the drain hose
adaptor to the end of this hose.
2. Connect the special drain hose supplied
with the product to the hose adaptor fitting.
3. Connect the other end of the drain hose
directly to the wastewater drain or to the
washbasin. The fitting must always be
secured in every type of connection. Your
house may flood if the hose comes out of
its housing during water discharge.
CWhen you direct the water drain to outside,
“Water Tank” warning light will turn on at the
end of each programme.
Important:
• The hose should be attached to a height of
maximum 80 cm.
• Make sure that the hose is not pinched or
bend.
• The end of the hose should not be bent,
it should not be stepped on and it must
not be folded between the drain and the
product.
Connecting the water drain hose for
models with the water tank at the
bottom;
Connection pipe to water drain is at the
bottom rear of your machine.
1. Remove the bracket and the rubber cap.
2. Attach the drain hose and replace the
bracket to its position.
Important:
C There is no pump in the machine, so ensure
that the hose is placed to allow a easy
water flow.
C The end of the hose should never be higher
than the level of the water outlet on the
machine. Otherwise, the “tank full” light of
your machine will illuminate and stop the
6 - EN
Loading...
