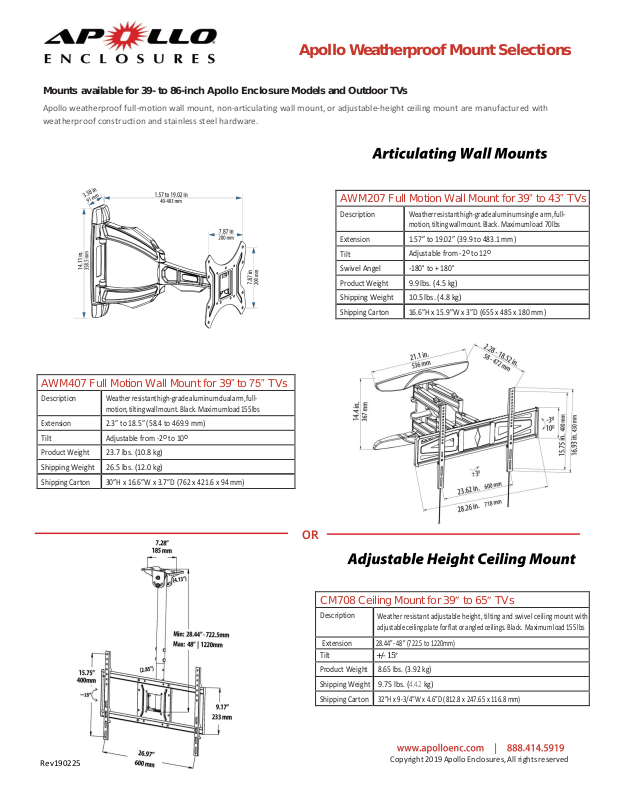

Apollo Weatherproof Mount Selections
Mounts available for 39- to 86-inch Apollo Enclosure Models and Outdoor TVs
Apollo weatherproof full-motion wall mount, non-articulating wall mount, or adjustable-height ceiling mount are manufactured with
weatherproof construction and stainless steel hardware.
OR
AWM207 Full Motion Wall Mount for 39” to 43” TVs
Description
Weather resistant high-grade aluminum single arm, fullmotion, tilting wall mount. Black. Maximum load 70 lbs
Extension
1.57” to 19.02” (39.9 to 483.1 mm)
Tilt
Adjustable from -2o to 12o
Swivel Angel
-180° to + 180°
Product Weight
9.9 lbs. (4.5 kg)
Shipping Weight
10.5 lbs. (4.8 kg)
Shipping Carton
16.6”H x 15.9”W x 3”D (655 x 485 x 180 mm)
AWM407 Full Motion Wall Mount for 39” to 75” TVs
Description
Weather resistant high-grade aluminum dual arm, fullmotion, tilting wall mount. Black. Maximum load 155 lbs
Extension
2.3” to 18.5” (58.4 to 469.9 mm)
Tilt
Adjustable from -2o to 10o
Product Weight
23.7 lbs. (10.8 kg)
Shipping Weight
26.5 lbs. (12.0 kg)
Shipping Carton
30”H x 16.6”W x 3.7”D (762 x 421.6 x 94 mm)
CM708 Ceiling Mount for 39” to 65” TVs
Description
Weather resistant adjustable height, tilting and swivel ceiling mount with
adjustable ceiling plate for flat or angled ceilings. Black. Maximum load 155 lbs
Extension
28.44”- 48” (722.5 to 1220mm)
Tilt
+/- 15°
Product Weight
8.65 lbs. (3.92 kg)
Shipping Weight
9.75 lbs. (
4.42
kg)
Shipping Carton
32”H x 9-3/4”W x 4.6”D (812.8 x 247.65 x 116.8 mm)
Rev190225
Page 2
Copyright 2019 Apollo Enclosures, All rights reserved
OR
WM607NA Flat Wall Mount with Tilt for 39 ”- 65” TVs
Description
Weather resistant flat wall mount with tilt includes stainless
steel hardware, Black. Maximum load 133 lbs
Tilt
Adjustable from 0o to 12o
Mount Weight
11.02 lbs. (5.0 kg)
Shipping Weight
12.13 lbs. (5.5 kg)
Shipping Carton
36.93”H x 6.61”W x 1.97”D (938.02 x 168 x 50mm)
WM808NA-HD Heavy Duty Flat Wall Mount with Tilt
for 70” - 86” TVs
Description
Heavy Duty Weather resistant flat wall mount
with tilt includes stainless
steel hardware,
Black. Maximum load 255 lbs.
Tilt
Adjustable from 0o to 12o
Mount Weight
9.5 lbs. (4.31 kg)
Shipping Weight
10.7 lbs. (4.85 kg)
Shipping Carton
37.25” H x 10” W x 2.375” D (946.15 x 254 x 60.325mm)
