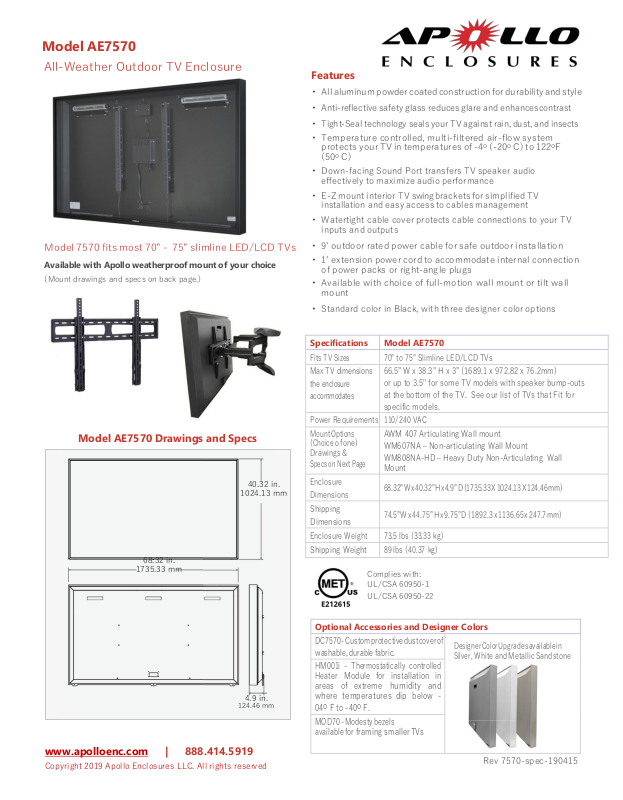

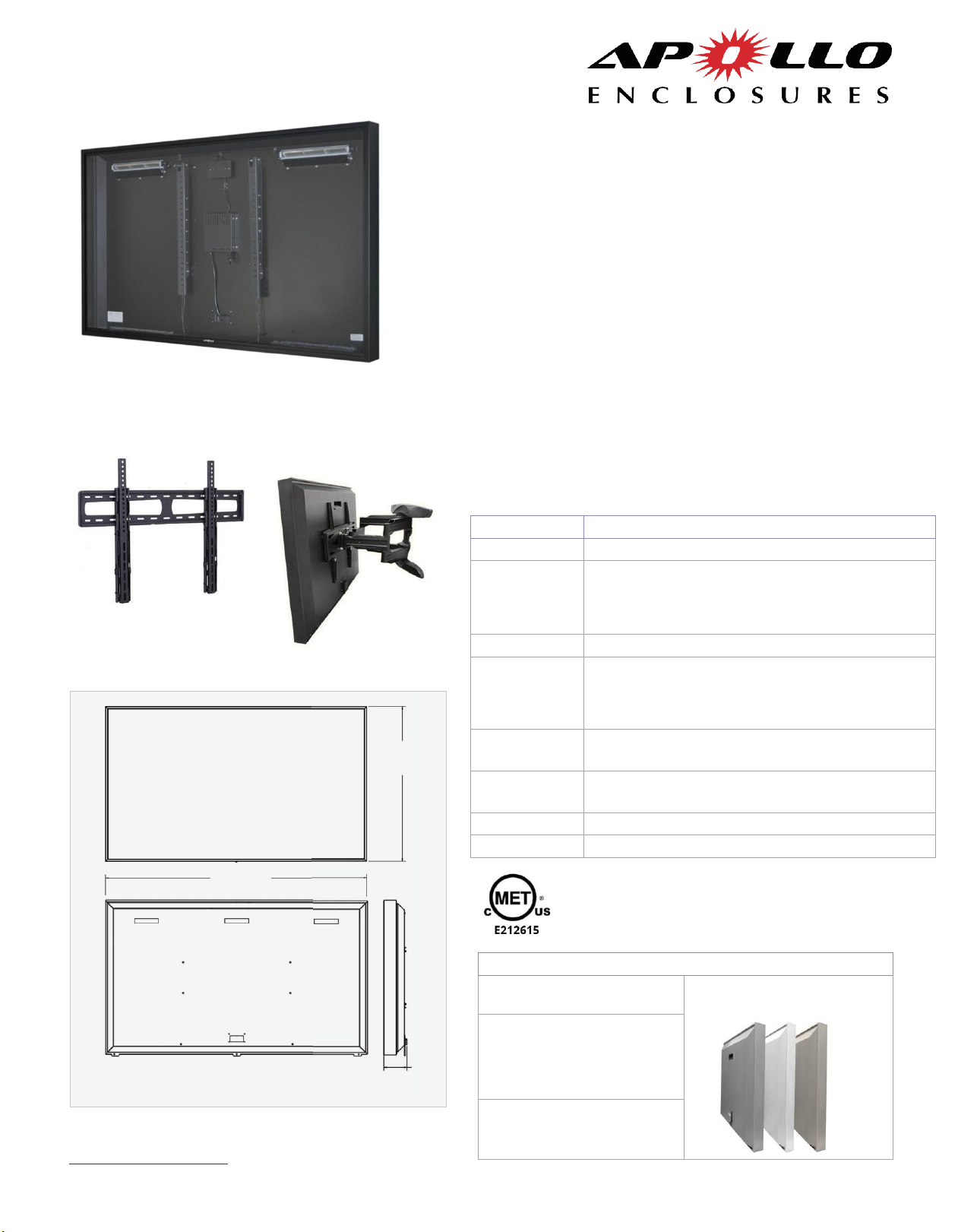

Model AE7570
All-Weather Outdoor TV Enclosure
Model 7570 fits most 70” - 75” slimline LED/LCD TVs
Available with Apollo weatherproof mount of your choice
(Mount drawings and specs on back page.)
Model AE7570 Drawings and Specs
www.apolloenc.com | 888.414.5919
Copyright 2019 Apollo Enclosures LLC. All rights reserved
Features
• All aluminum powder coated construction for durability and style
• Anti-reflective safety glass reduces glare and enhances contrast
• Tight-Seal technology seals your TV against rain, dust, and insects
• Temperature controlled, multi-filtered air-flow system
protects your TV in temperatures of -4o (-20o C) to 122oF
(50o C)
• Down-facing Sound Port transfers TV speaker audio
effectively to maximize audio performance
• E-Z mount interior TV swing brackets for simplified TV
installation and easy access to cables management
• Watertight cable cover protects cable connections to your TV
inputs and outputs
• 9’ outdoor rated power cable for safe outdoor installation
• 1’ extension power cord to accommodate internal connection
of power packs or right-angle plugs
• Available with choice of full-motion wall mount or tilt wall
mount
• Standard color in Black, with three designer color options
Specifications
Model AE7570
Fits TV Sizes
70” to 75” Slimline LED/LCD TVs
Max TV dimensions
the
enclosure
accommodates
66.5” W x 38.3” H x 3” (1689.1 x 972.82 x 76.2mm)
or up to 3.5" for some TV models with speaker bump-outs
at the bottom of the TV. See our list of TVs that Fit for
specific models.
Power Requirements
110/240 VAC
Mount Options
(Choice
of one)
Drawings &
Specs on Next Page
AWM 407 Articulating Wall mount
WM607NA – Non-articulating Wall Mount
WM808NA-HD – Heavy Duty Non-Articulating Wall
Mount
Enclosure
Dimensions
68.32” W x 40.32”H x 4.9” D (1735.33 X 1024.13 X 124.46 mm)
Shipping
Dimensions
74.5”W x 44.75” H x 9.75” D (1892.3 x 1136.65 x 247.7 mm)
Enclosure Weight
73.5 lbs (33.33 kg)
Shipping Weight
89 lbs (40.37 kg)
Complies with:
UL/CSA 60950-1
UL/CSA 60950-22
Optional Accessories and Designer Colors
DC7570 - Custom protective dust cover of
washable, durable fabric.
Designer Color Upgrades available in
Silver,
White and Metallic Sandstone
HM001i - Thermostatically controlled
Heater
Module for installation in
areas of extreme
humidity and
where temperatures dip
below -
04o F to -40o F.
MOD70 - Modesty bezels
available for
framing smaller TVs
Rev 7570-spec-190415
40.32 in.
1024.13 mm
68.32 in.
1735.33 mm
4.9 in.
124.46 mm
Page 2

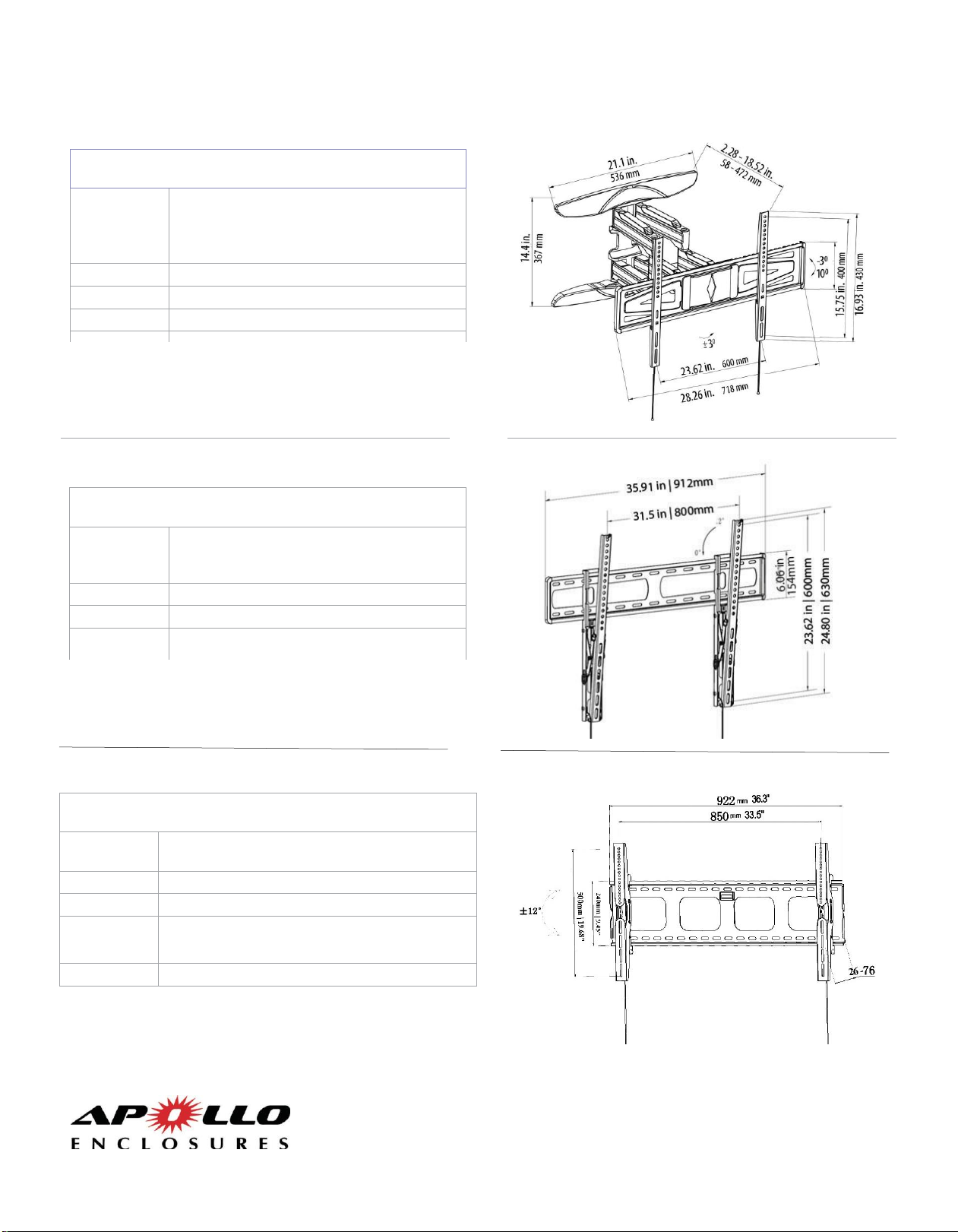

AWM407 Articulating Wall Mount Specifications
For
Model AE7570
Description
Weather resistant aluminum dual arm, full-motion, tilting
wall
mount with stainless steel hardware, Black. Max
Weight 155 lbs
Extension
2.3” to 18.5” (58.4 to 469.9 mm)
Tilt Adjustable from -3o to 10
o
Mount Weight
23.7 lbs. (10.8 kg)
Weatherproof Mount Selections for Apollo Enclosure Model AE7570
Apollo mounts are designed for outdoor installation with weatherproof construction and stainless steel
hardware.
or
WM808NA-HD Heavy Duty Non Articulating Mount
Specifications
For Model AE7570
Description
Weather resistant Heavy Duty non-articulating wall mount with
stainless steel
hardware, Black. Max Weight 255 lbs
Tilt Adjustable from 0o to 12
o
Mount Weight
9.5 lbs. (4.31 kg)
Shipping
Weight
10.7 lbs. (4.85 kg)
Shipping Carton
36.93” H x 6.61” W x 1.97” D (938.02 x 168 x 50mm)
www.apolloenc.com | 888.414.5919
Copyright 2019 Apollo Enclosures LLC. All rights reserved Rev 7570-spec-190415
WM607NA Non Articulating Mount Specifications
For Model AE7570
Description
Weather resistant non-articulating wall mount with stainless
steel
hardware, Black. Max Weight 133 lbs
Tilt Adjustable from 0o to 12
o
Mount Weight
11.02 lbs. (5.0 kg)
Shipping
12.13 lbs. (5.5 kg)
