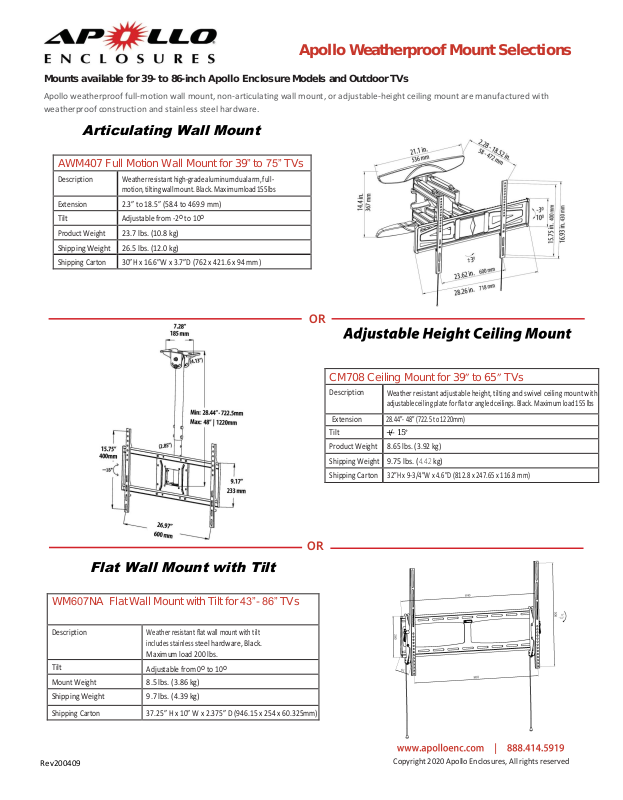

Apollo Weatherproof Mount Selections
Mounts available for 39- to 86-inch Apollo Enclosure Models and Outdoor TVs
Apollo weatherproof full-motion
wall mount, non-articulating wall mount, or adjustable-height ceiling mount
weatherproof construction and stainless steel hardware.
Articulating Wall Mount
AWM407 Full Motion Wall Mount for 39” to 75” TVs
Description
Extension
Tilt
Product Weight 23.7 lbs. (10.8 kg)
Shipping Weight 26.5 lbs. (12.0 kg)
Shipping Carton 30”H x 16.6”W x 3.7”D (762 x 421.6 x 94 mm)
Weather resistant high-grade aluminum dual arm, fullmotion, tilting wall mount. Black. Maximum load 155 lbs
2.3” to 18.5” (58.4 to 469.9 mm)
Adjustable from -2o to 10o
are manufactured with
OR
CM708 Ceiling Mount for 39” to 65” TVs
Description
Extension
Tilt
Product Weight 8.65 lbs. (3.92 kg)
Shipping Weight
Shipping Carton 32”H x 9-3/4”W x 4.6”D (812.8 x 247.65 x 116.8 mm)
Weather resistant adjustable height, tilting and swivel ceiling mount with
adjustable ceiling plate for flat or angled ceilings. Black. Maximum load 155 lbs
28.44”- 48” (722.5 to 1220mm)
+/- 15°
9.75 lbs. (
4.42
kg)
Flat Wall Mount with Tilt
WM607NA Flat Wall Mount with Tilt for 43”- 86” TVs
Description
Tilt
Mount Weight
Shipping Weight
Shipping Carton
Rev200409
Weather resistant flat wall mount with tilt
includes stainless
Maximum load 200 lbs.
Adjustable from 0o to 10
8.5 lbs. (3.86 kg)
9.7 lbs. (4.39 kg)
37.25” H x 10” W x 2.375” D (946.15 x 254 x 60.325mm)
steel hardware, Black.
o
