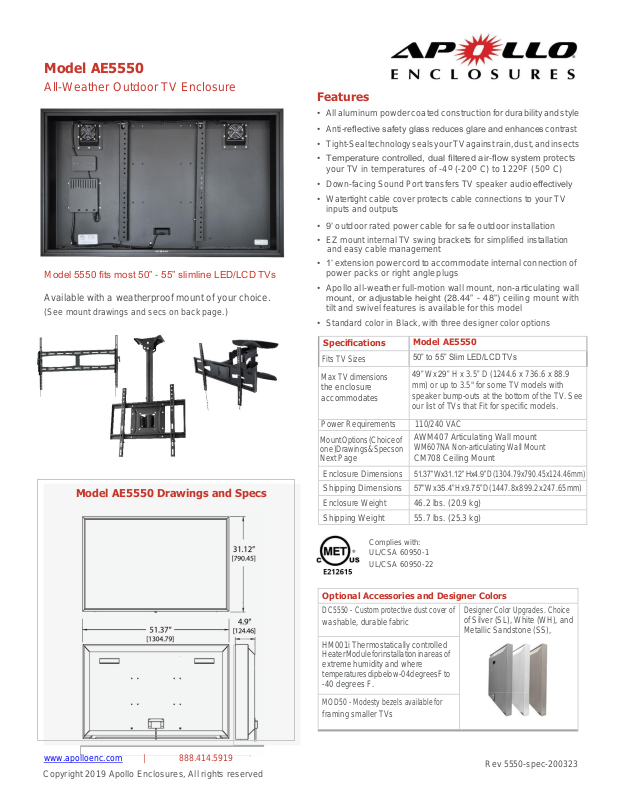

Page 1
Model AE5550
All-Weather Outdoor TV Enclosure
Model 5550 fits most 50” - 55” slimline LED/LCD TVs
Available with a weatherproof mount of your choice.
(See mount drawings and secs on back page.)
www.apolloenc.com | 888.414.5919
Copyright 2019 Apollo Enclosures, All rights reserved
Features
• All aluminum powder coated construction for durability and style
•
Anti-reflective safety glass reduces glare and enhances contrast
•
Tight-Seal technology seals your TV against rain, dust, and insects
• Temperature controlled, dual filtered air-flow system protects
your TV in temperatures of -4o (-20o C) to 122oF (50o C)
•
Down-facing Sound Port transfers TV speaker audio effectively
•
Watertight cable cover protects cable connections to your TV
inputs and outputs
• 9’ outdoor rated power cable for safe outdoor installation
•
EZ mount internal TV swing brackets for simplified installation
and easy cable management
• 1’ extension power cord to accommodate internal connection of
power packs or right angle plugs
• Apollo all-weather full-motion wall mount, non-articulating wall
mount, or adjustable height (28.44” - 48”) ceiling mount with
tilt and swivel features is available for this model
•
Standard color in Black, with three designer color options
Specifications
Model AE5550
Fits TV Sizes
50” to 55” Slim LED/LCD TVs
Max TV dimensions
the enclosure
accommodates
49” W x 29” H x 3.5” D (1244.6 x 736.6 x 88.9
mm) or up to 3.5" for some TV models with
speaker bump-outs at the bottom of the TV. See
our list of TVs that Fit for specific models.
Power Requirements
110/240 VAC
Mount Options (Choice of
one )Drawings & Specs on
Next Page
AWM407 Articulating Wall mount
WM607NA Non-articulating Wall Mount
CM708 Ceiling Mount
Enclosure Dimensions
51.37” Wx31.12” Hx4.9” D(1304.79x790.45x124.46mm)
Shipping Dimensions
57” W x 35.4” H x 9.75” D (1447.8 x 899.2 x 247.65 mm)
Enclosure Weight
46.2 lbs. (20.9 kg)
Shipping Weight
55.7 lbs. (25.3 kg)
Complies with:
UL/CSA 60950-1
UL/CSA 60950-22
Optional Accessories and Designer Colors
DC5550 - Custom protective dust cover of
washable, durable fabric
Designer Color Upgrades. Choice
of Silver (SL), White (WH), and
Metallic Sandstone (SS),
HM001i Thermostatically controlled
Heater Module for installation in areas of
extreme humidity and where
temperatures dip below -04 degrees F to
-40 degrees F.
MOD50 - Modesty bezels available for
framing smaller TVs
Rev 5550-spec-200323
Model AE5550 Drawings and Specs
Page 2
AWM407 Articulating Wall Mount
for Model AE5550
Description
Weather resistant aluminum dual arm, full-motion, tilting wall
mount with stainless steel hardware, Black.
Max load 155 lbs
Extension
2.3” to 18.5” (58.4 to 469.9 mm)
Tilt Adjustable from -3o to 10o
Mount Weight
23.7 lbs. (10.8 kg)
Shipping Weight
26.5 lbs. (12.0 kg)
Shipping Carton
30” H x 16.6”W x 3.7”D (762 x 421.6 x 94 mm)
Weatherproof Mount Selections for Apollo Enclosure Model AE5550
Apollo mounts are designed for outdoor installation with weatherproof construction and stainless steel hardware.
or
or
CM708 Ceiling Mount Specifications
For Model AE5550
Description
Weather resistant adjustable height, tilting and swivel ceiling mount
with
adjustable
c
eiling plate
for flat or slanted ceiling
.
Black.
Max
load 155 lbs.
Extension
28.4
” -
48
”
(
722.5
to
1220
mm)
Tilt
-5o to 15o
Product Weight
9.65
lbs. (
4.38
kg)
Shipping Weight
11.5
lbs. (
5.22
kg)
Shipping Carton
32
” H x
9-3/4
” W x 4” D (812.8x247.65x101.6
mm)
Copyright 2019 Apollo Enclosures, All rights reserved
Rev 5550-spec - 200323
WM607NA Non-Articulating Mount
Specifications
For Model AE5046
Description
Weather resistant non-articulating wall mount with stainless steel
hardware, Black. Maximum Weight 200 lbs
Tilt
Adjustable from 0o to 10o
Mount Weight
8 lbs. (3.62 kg)
Shipping Weight
8.5 lbs. (3.85 kg)
Shipping Carton
34” H x 8.5” W x 2.5” D (863.6 x 215.9 x 63.5mm)
