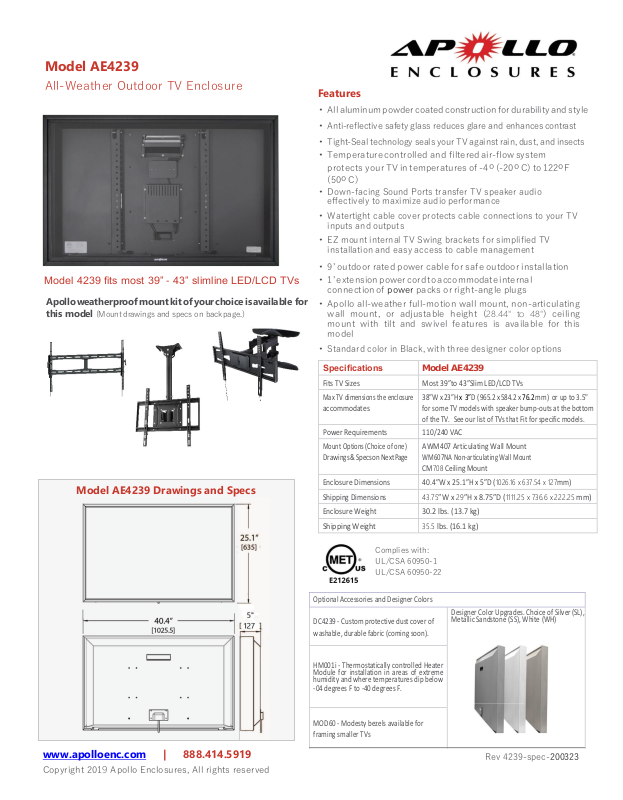

Model AE4239 Drawings and Specs
Model AE4239
All-Weather Outdoor TV Enclosure
Model 4239 fits most 39” - 43” slimline LED/LCD TVs
Apollo weatherproof mount kit of your choice is available for
this model (Mount drawings and specs on back page.)
www.apolloenc.com | 888.414.5919
Copyright 2019 Apollo Enclosures, All rights reserved
Features
• All aluminum powder coated construction for durability and style
• Anti-reflective safety glass reduces glare and enhances contrast
• Tight-Seal technology seals your TV against rain, dust, and insects
• Temperature controlled and filtered air-flow system
protects your TV in temperatures of -4o (-20o C) to 122oF
(50o C)
• Down-facing Sound Ports transfer TV speaker audio
effectively to maximize audio performance
• Watertight cable cover protects cable connections to your TV
inputs and outputs
• EZ mount internal TV Swing brackets for simplified TV
installation and easy access to cable management
• 9’ outdoor rated power cable for safe outdoor installation
• 1’ extension power cord to accommodate internal
connection of power packs or right-angle plugs
• Apollo all-weather full-motion wall mount, non-articulating
wall mount, or adjustable height (
28.44" to 48"
) ceiling
mount with tilt and swivel features is available for this
model
• Standard color in Black, with three designer color options
Specifications
Model AE4239
Fits TV Sizes
Most 39”to 43”Slim LED/LCD TVs
Max TV dimensions the enclosure
accommodates
38”W x 23”H x 3”D (965.2 x 584.2 x 76.2 mm) or up to 3.5"
for some TV models with speaker bump-outs at the bottom
of the TV. See our list of TVs that Fit for specific models.
Power Requirements
110/240 VAC
Mount Options (Choice of one)
Drawings & Specs on Next Page
AWM407 Articulating Wall Mount
WM607NA Non-articulating Wall Mount
CM
708
Ceiling Mount
Enclosure Dimensions
40.4”W x 25.1”H x 5”D (
1026.16 x 637.54 x 127
mm)
Shipping Dimensions
43.75
”W x 29”H x 8.75”D (
1111.25 x 736.6 x 222.25
mm)
Enclosure Weight
30.2 lbs. (13.7 kg)
Shipping Weight
35.5
lbs. (16.1 kg)
Complies with:
UL/CSA 60950-1
UL/CSA 60950-22
Rev 4239-spec-200323
Optional Accessories and Designer Colors
DC4239 - Custom protective dust cover of
washable, durable fabric (coming soon).
Designer Color Upgrades. Choice of Silver (SL),
Metallic Sandstone (SS), White (WH)
HM001i - Thermostatically controlled Heater
Module for installation in areas of extreme
humidity and where temperatures dip below
-04 degrees F to -40 degrees F.
MOD60 - Modesty bezels available for
framing smaller TVs
Page 2
WM607NA Flat Wall Mount with Tilt
Specifications
For Model AE4239
Description
Weather resistant non-articulating wall mount with stainless
steel
hardware, Black.
Max Load 200lbs
Tilt Adjustable from 0o to 12o
Mount Weight
8 lbs. (3.62 kg)
Shipping Weight
8.5 lbs. (3.85 kg)
Shipping Carton
34” H x 8.5” W x 2.5” D (863.6 x 215.9 x 63.5mm)
Weatherproof Mount Selections for Apollo Enclosure Model
Apollo mounts are designed for outdoor installation with weatherproof construction and stainless steel hardware.
or
or
CM708 Adjustable Height Ceiling Mount
Specifications For Model E4239
Description
Weather resistant adjustable height, tilting and swivel ceiling
mount with
swivel
ceiling plate. Black. Max. load 155 lbs
Extension
28.44" - 48" (722.5 to 1220 mm)
Tilt +/-
15o
Product Weight
9.65 lbs. (4.38 kg)
Shipping Weight
11.5 lbs. (5.22 kg)
Shipping Carton
32” H x 9-3/4” W x 4” D (812.8 x 247.65 x 101.6 mm)
H
www.apolloenc.com | 888.414.5919
Copyright 2019 Apollo Enclosures, All rights reserved
Rev 4239-spec-200323
AWM407 Dual Arm Articulating Wall Mount
Specifications
For Model AE4239
Description
Weather resistant aluminum dual arm, full-motion, tilting wall
mount with stainless steel hardware, Black. Max Weight
155 lbs
Extension
2.3” to 18.5” (58.4 to 469.9 mm)
Tilt Adjustable from -3o to 10o
Mount Weight
23.7 lbs. (10.8 kg)
Shipping Weight
26.5 lbs. (12.0 kg)
Shipping Carton
30” H x 16.6” W x 3.7” D (762 x 421.6 x 94 mm)
