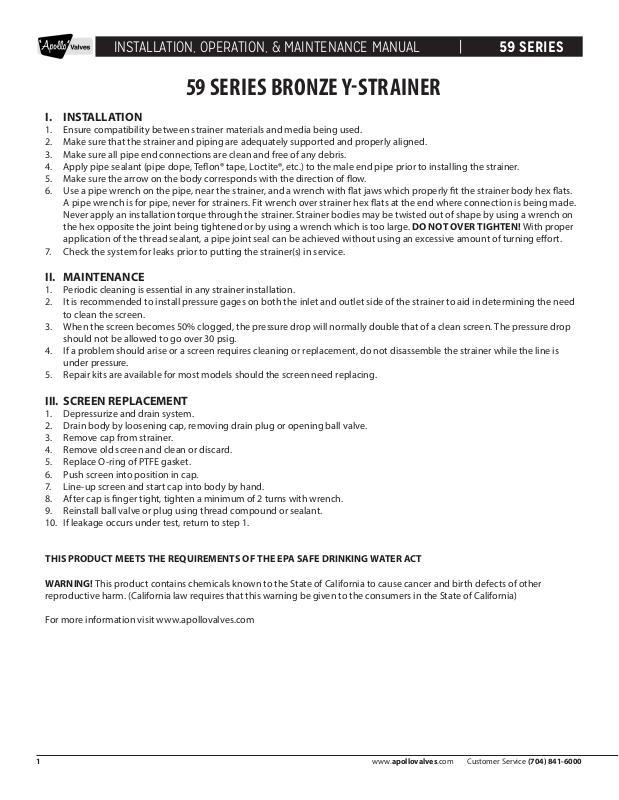

INSTALLATION, OPERATION, & MAINTENANCE MANUAL | 59 SERIES
59 SERIES BRONZE Y-STRAINER
I. INSTALLATION
1. Ensure compatibility between strainer materials and media being used.
2. Make sure that the strainer and piping are adequately supported and properly aligned.
3. Make sure all pipe end connections are clean and free of any debris.
4. Apply pipe sealant (pipe dope, Teon® tape, Loctite®, etc.) to the male end pipe prior to installing the strainer.
5. Make sure the arrow on the body corresponds with the direction of ow.
6. Use a pipe wrench on the pipe, near the strainer, and a wrench with at jaws which properly t the strainer body hex ats.
A pipe wrench is for pipe, never for strainers. Fit wrench over strainer hex ats at the end where connection is being made.
Never apply an installation torque through the strainer. Strainer bodies may be twisted out of shape by using a wrench on
the hex opposite the joint being tightened or by using a wrench which is too large. DO NOT OVER TIGHTEN! With proper
application of the thread sealant, a pipe joint seal can be achieved without using an excessive amount of turning eort.
7. Check the system for leaks prior to putting the strainer(s) in service.
II. MAINTENANCE
1. Periodic cleaning is essential in any strainer installation.
2. It is recommended to install pressure gages on both the inlet and outlet side of the strainer to aid in determining the need
to clean the screen.
3. When the screen becomes 50% clogged, the pressure drop will normally double that of a clean screen. The pressure drop
should not be allowed to go over 30 psig.
4. If a problem should arise or a screen requires cleaning or replacement, do not disassemble the strainer while the line is
under pressure.
5. Repair kits are available for most models should the screen need replacing.
III. SCREEN REPLACEMENT
1. Depressurize and drain system.
2. Drain body by loosening cap, removing drain plug or opening ball valve.
3. Remove cap from strainer.
4. Remove old screen and clean or discard.
5. Replace O-ring of PTFE gasket.
6. Push screen into position in cap.
7. Line-up screen and start cap into body by hand.
8. After cap is nger tight, tighten a minimum of 2 turns with wrench.
9. Reinstall ball valve or plug using thread compound or sealant.
10. If leakage occurs under test, return to step 1.
THIS PRODUCT MEETS THE REQUIREMENTS OF THE EPA SAFE DRINKING WATER ACT
WARNING! This product contains chemicals known to the State of California to cause cancer and birth defects of other
reproductive harm. (California law requires that this warning be given to the consumers in the State of California)
For more information visit www.apollovalves.com
