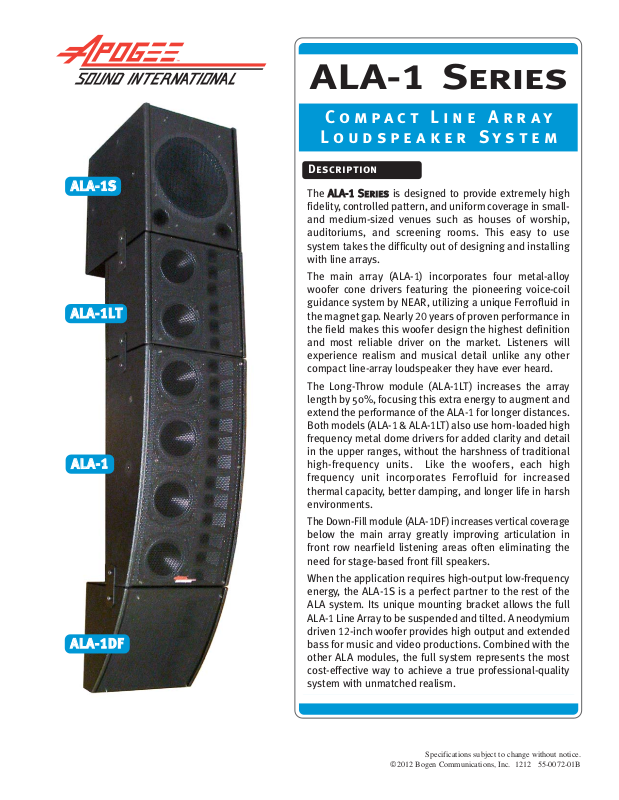

The ALA-1 Series is designed to provide extremely high
fidelity, controlled pattern, and uniform coverage in smalland medium-sized venues such as houses of worship,
auditoriums, and screening rooms. This easy to use
system takes the difficulty out of designing and installing
with line arrays.
The main array (ALA-1) incorporates four metal-alloy
woofer cone drivers featuring the pioneering voice-coil
guidance system by NEAR, utilizing a unique Ferrofluid in
the magnet gap. Nearly 20 years of proven performance in
the field makes this woofer design the highest definition
and most reliable driver on the market. Listeners will
experience realism and musical detail unlike any other
compact line-array loudspeaker they have ever heard.
The Long-Throw module (ALA-1LT) increases the array
length by 50%, focusing this extra energy to augment and
extend the performance of the ALA-1 for longer distances.
Both models (ALA-1 & ALA-1LT) also use horn-loaded high
frequency metal dome drivers for added clarity and detail
in the upper ranges, without the harshness of traditional
high-frequency units. Like the woofers, each high
frequency unit incorporates Ferrofluid for increased
thermal capacity, better damping, and longer life in harsh
environments.
The Down-Fill module (ALA-1DF) increases vertical coverage
below the main array greatly improving articulation in
front row nearfield listening areas often eliminating the
need for stage-based front fill speakers.
When the application requires high-output low-frequency
energy, the ALA-1S is a perfect partner to the rest of the
ALA system. Its unique mounting bracket allows the full
ALA-1 Line Array to be suspended and tilted. A neodymium
driven 12-inch woofer provides high output and extended
bass for music and video productions. Combined with the
other ALA modules, the full system represents the most
cost-effective way to achieve a true professional-quality
system with unmatched realism.
Description
Compact Line Array
Loudspeaker System
ALA-1 Series
ALA-1DF
ALA-1LT
ALA-1S
ALA-1
Specifications subject to change without notice.
©2012 Bogen Communications, Inc. 1212 55-0072-01B
Page 2
Format:
Passive/Two-way Line Array
Coverage Angles:
Horizontal: 130°
Vertical: Graduated 10° up,
35° down
Freq. Response (1m on axis):
64 Hz to 18 kHz (+/- 3 dB)
Sensitivity (1W @ 1m): 94 dB
Max. SPL (@1m):
121 dB cont./127 dB peak
Nominal Impedance: 8-ohms
Max. Power Handling:
500W cont./2000W peak
Dimensions:
height: 27-5/8"(702mm) H
width: 14-1/8"(359mm) W
depth: Top - 9-7/8"(251mm) D
Bottom- 6-1/4"(155mm) D
weight: 39 lb. (17.7 kg)
Driver Complement:
(4) 6-1/2” metal-alloy
cone drivers;
(12) 1” horn-loaded metal
diaphragm drivers
Input Connectors:
Barrier Strip, #8 Screw Type
Rigging Hardware:
101-2000 Yoke (sold
separately),
Allen Products MM-120
Options/Accessories:
DLC24 Digital Controller,
Stand Fitting for Yoke
(140-05)
Engineering Data
ALA-1 LOUDSPEAKER
ALA-1S SUBWOOFER
ALA-1LT
LONG-THROW
LOUDSPEAKER
ALA-1DF
DOWN-FILL
LOUDSPEAKER
Format:
Passive/Two-way Line Array
Coverage Angles:
Horizontal: 130°
Vertical: Graduated 15° up,
35° down
Freq. Response (1m on axis):
64 Hz to 18 kHz (+/- 3 dB)
Sensitivity (1W @ 1m): 95 dB
Max. SPL (@1m):
122 dB cont./128 dB peak
Nominal Impedance: 4-ohms
(Wired in parallel w/ALA-1)
Max. Power Handling:
750W cont./3000W peak
Dimensions:
height: 14-1/8"(359mm) H
width: 14-1/8"(359mm) W
depth: 9-7/8"(251mm) D
weight: 24 lb. (10.9 kg)
Driver Complement:
(2) 6-1/2” metal-alloy
cone drivers
Driver Complement
(cont’d):
(6) 1” horn-loaded metal
diaphragm drivers
Input Connectors:
Barrier Strip, #8 Screw Type
Rigging Hardware:
101-2001 Coupling Plates
(two units included w/ALA-1LT )
Options/Accessories:
DLC24 Digital Controller
Engineering Data
Format: Passive/Line Array
Coverage Angles:
Horizontal: 130°
Vertical: Graduated 10° up,
50° down
Input Connectors:
Barrier Strip, #8 Screw Type
Dimensions:
height: 13-1/2"(343mm) H
width: 14-1/8"(359mm) W
depth: Top - 11"(279mm) D;
Bottom- 2-3/4"(70mm) D
weight: 14 lb. (6.4 kg)
Driver Complement:
(6) 1” horn-loaded metal
diaphragm drivers
Rigging Hardware:
101-2001 Coupling Plates
(two units included w/ALA-1DF)
Performance Specifications when added to the ALA-1 (in blue)
Performance Specifications (in blue)
Performance Specifications (in blue)
Performance Specifications when added to the ALA-1 (in blue)
Format: Dual-Vented, Single
Amp, Electronically Coupled
Freq. Response (1m on axis):
40 Hz to 140 Hz (+/- 3 dB)
Sensitivity (1W @ 1m): 96 dB
Max. SPL (@1m):
121 dB cont./127 dB peak
Nominal Impedance: 8-ohms
Max. Power Handling:
300W cont./1200W peak
Dimensions:
height: 17-7/8"(454mm) H
width: 14-1/8"(359mm) W
depth: 16-5/8"(422mm) D
weight: 35 lb. (15.8 kg)
Driver Complement:
(1) 12” Weatherproof Cone
Woofer w/Neodynium Magnet
Structure
Input Connectors:
Barrier Strip, #8 Screw Type
Rigging Hardware:
101-2000 Yoke (sold
separately),
101-2001 Coupling Plates
(two units included w/ALA-1S)
Options/Accessories:
DLC24 Digital Controller
Engineering Data
Engineering Data
Page 3

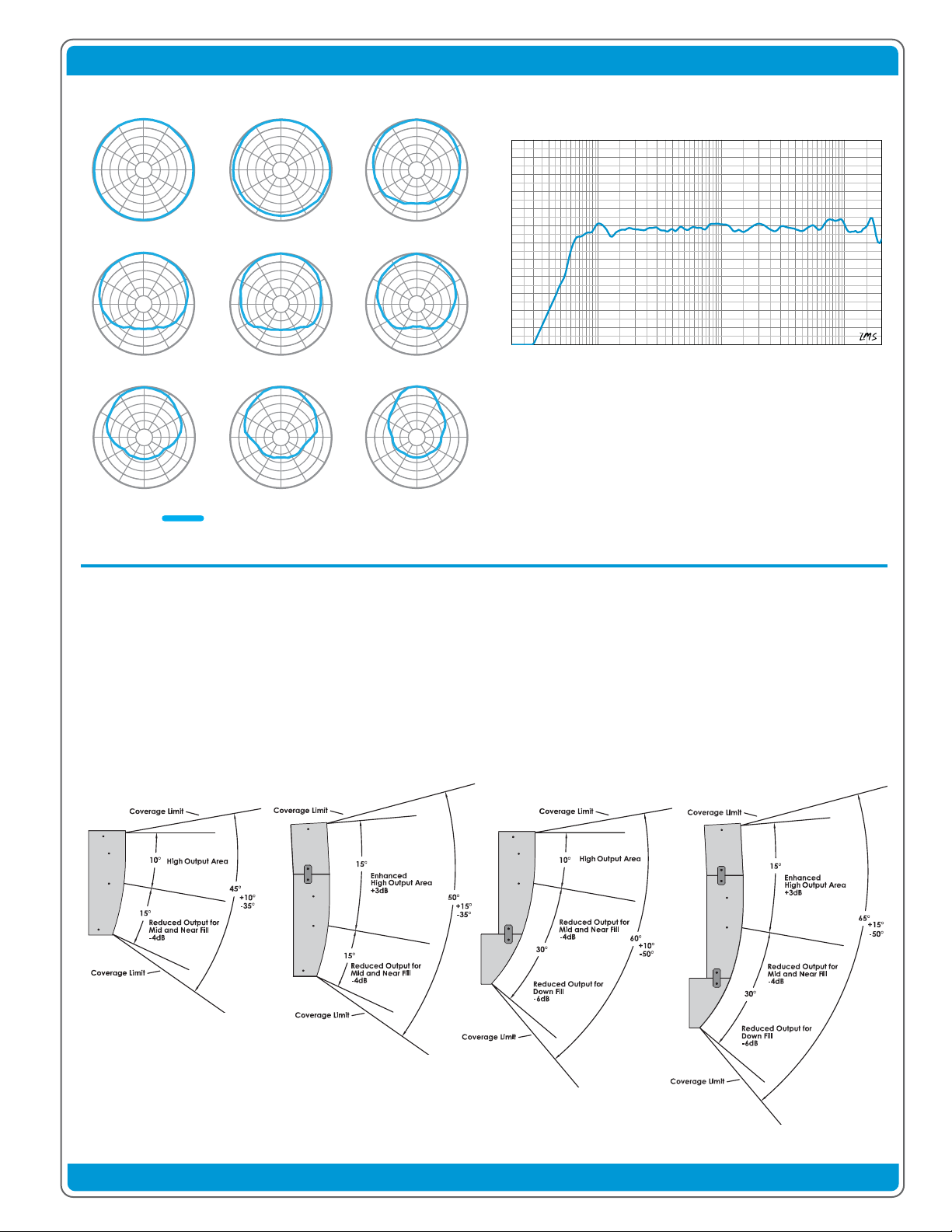

Frequency Response ALA-1 & ALA-1LT
Horizontal
Processor Notes:
The DLC24 Digital Loudspeaker Controller is a digital engine with an
analog surface. It combines the most advanced technology available
with intuitive interfaces to provide the key elements that ensure
optimal loudspeaker system performance and management in a variety
of live sound and fixed installation applications.
The controller provides factory-set equalization curves to smooth the
response, protect limiting, and active crossovers (for bi-amplified
models and subwoofers). XLR Connector inputs and outputs are
standard on the DLC24 Digital Loudspeaker Controller.
The ALA-1 is a 4 element line array, pre-articulated and fixed in a single
enclosure. The preset vertical coverage creates a 10 degree high output
zone at the top of the array to better reach the back of the average
venue. Sound Pressure Level below this high output on axis zone
gradually decreases towards the bottom of the array. Because the
listening area covered by the bottom of the array is generally closer to
the speaker and the Sound Pressure Level from the speaker is reduced
in this area, Sound Pressure levels will remain very consistent from the
back of a venue to the front.
When a greater vertical coverage angle is required to cover audience
areas at the front of the venue, the ALA-1DF (Down-Fill) module may be
added, increasing vertical coverage by 15 degrees. If higher Sound
Pressure Levels are desired, because of the use of the venue or because
of its depth, the ALA-1LT (Long Throw) module may be added. This module
increases the on axis level by 3 dB and the vertical coverage by 5 degrees.
The relative level of each module has been preset so a complete array
including the LT and DF can be connected to a single amplifier channel.
Polar Measurements ALA-1 (6 dB/division, normalized)
16,000 Hz
8,000 Hz
4,000 Hz
2,000 Hz
1,000 Hz
500 Hz
250 Hz
125 Hz
63 Hz
0°
30°
60°
90°
120°
150°
180°
150°
120°
90°
60°
30°
0°
30°
60°
90°
120°
150°
180°
150°
120°
90°
60°
30°
0°
30°
60°
90°
120°
150°
180°
150°
120°
90°
60°
30°
0°
30°
60°
90°
120°
150°
180°
150°
120°
90°
60°
30°
0°
30°
60°
90°
120°
150°
180°
150°
120°
90°
60°
30°
0°
30°
60°
90°
120°
150°
180°
150°
120°
90°
60°
30°
0°
30°
60°
90°
120°
150°
180°
150°
120°
90°
60°
30°
0°
30°
60°
90°
120°
150°
180°
150°
120°
90°
60°
30°
0°
30°
60°
90°
120°
150°
180°
150°
120°
90°
60°
30°
All polar measurements ob tained in a free-field environment at 10° in cre ments.
20 Hz 50 100 200 500 1K 2K 5K 10K 20K
dBSPL
60
65
70
75
80
85
90
95
100
105
110
115
120
SPL vs Freq
Measured in a free-field anechoic environment using a swept one-third octave input.
ALA-1 ALA-1LT & ALA-1 ALA-1 & ALA-1DF
ALA-1LT, ALA-1,
& ALA-1DF
ALA-1 Vertical Coverage
Page 4
50 Spring Street, Ramsey, NJ 07446, USA • Tel: 800-443-3979 • Fax: 800-999-9016 • www.apogee-sound.com
ALA-1 Yoke
101-2000
(sold separately)
Coupling Plate
101-2001
(2 ea. included w/ ALA-1S,
ALA-1DF, ALA-1LT )
ALA-1S Yoke
101-2002
(sold separately)
Allen Products
MultiMount MM-120
(purchase direct from Allen)

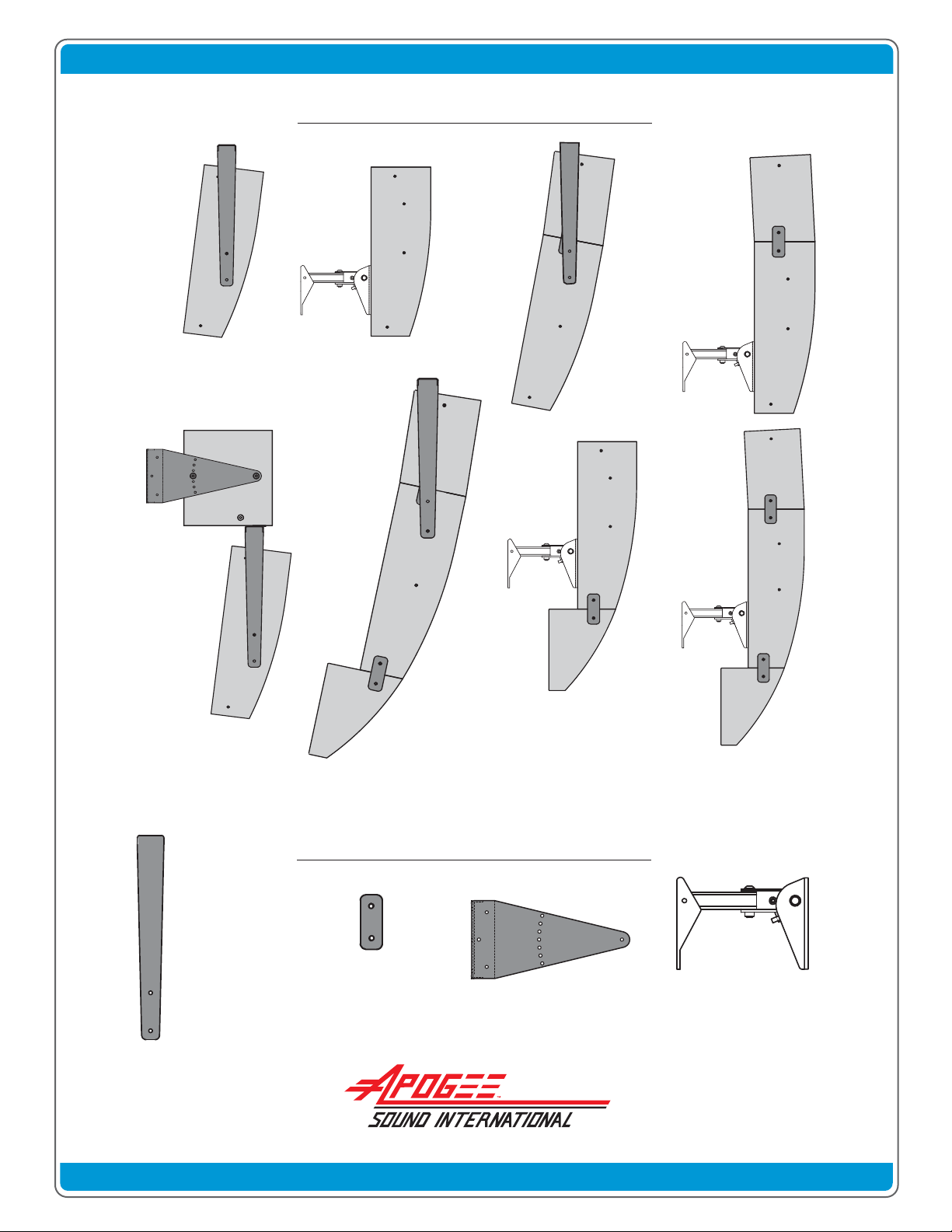

RIGGING OPTIONS
RIGGING HARDWARE
ALA-1
w/Apogee
101-2000
Yoke Assembly
ALA-1
& ALA-1LT
w/Apogee
101-2000
Yoke Assembly
ALA-1S
& ALA-1
w/Apogee
101-2002 and
101-2000
Yoke Assemblies
ALA-1LT,
ALA-1,
& ALA-1DF
w/Apogee
101-2000
Yoke AssembLY
ALA-1
& ALA-1LT
w/Allen
MM-120
MultiMount
ALA-1
& ALA-1DF
w/Allen
MM-120
MultiMount
ALA-1LT,
ALA-1
& ALA-1DF
w/Allen
MM-120
MultiMount
ALA-1
w/Allen
MM-120
MultiMount
