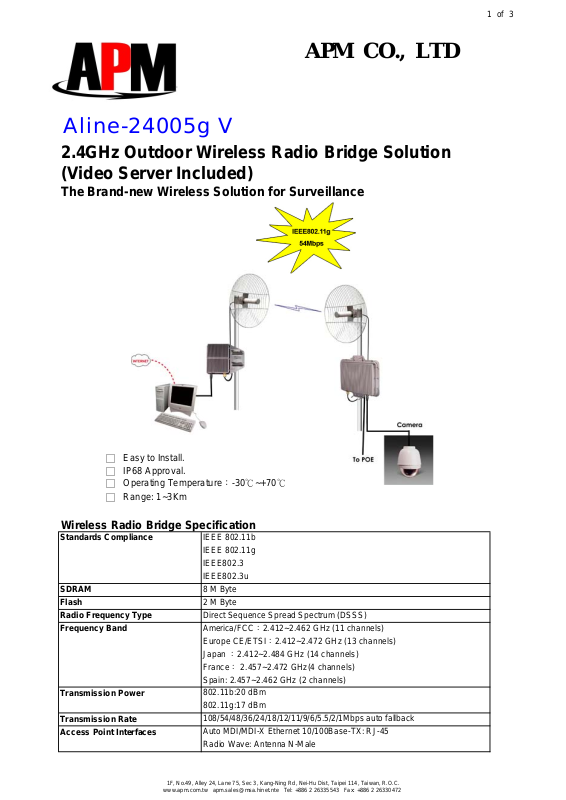

APM Aline-24005g V User Manual

APM CO., LTD

V

Aline-24005g

2.4GHz Outdoor Wireless Radio Bridge Solution
(Video Server Included)

The Brand-new Wireless Solution for Surveillance

1 of 3

□ Easy to Install.
□ IP68 Approval.
□ Operating Temperature：-30℃~+70℃

□ Range: 1~3Km

Wireless Radio Bridge Specification

Standards Compliance

SDRAM
Flash
Radio Frequency Type
Frequency Band

Transmission Power

Transmission Rate
Access Point Interfaces

IEEE 802.11b
IEEE 802.11g
IEEE802.3
IEEE802.3u
8 M Byte
2 M Byte
Direct Sequence Spread Spectrum (DSSS)
America/FCC：2.412~2.462 GHz (11 channels)
Europe CE/ETSI：2.412~2.472 GHz (13 channels)
Japan ：2.412~2.484 GHz (14 channels)
France： 2.457~2.472 GHz(4 channels)
Spain: 2.457~2.462 GHz (2 channels)

802.11b:20 dBm

802.11g:17 dBm
108/54/48/36/24/18/12/11/9/6/5.5/2/1Mbps auto fallback
Auto MDI/MDI-X Ethernet 10/100Base-TX: RJ-45
Radio Wave: Antenna N-Male

1F, No.49, Alley 24, Lane 75, Sec 3, Kang-Ning Rd, Nei-Hu Dist, Taipei 114, Taiwan, R.O.C.

www.apm.com.tw [e-mail] Tel: [phone] Fax: [phone]

APM CO., LTD

2 of 3

Sensitivity
Antenna Type
Security Systems
Wireless Setting

Software/Firmware

Operating Environment
Power

Regulatory Approval
Network Management
System OS Support
Warranty

Standard Accessories

DC Injector / RJ45

(RJ45DI)15V

-88dBm @ 11Mbps, PER < 8%; -74dBm @ 54Mbps, PER < 10%
External high gain antenna
64-bit/128-bit/152-bit WEP encryption; Wi-Fi Protected Access (WPA)
Operation Mode – AP / Wireless Client (Infrastructure and Ad Hoc) /
Repeater / WDS PtP and PtMP Mode
Site Survey
DHCP Client
WPA Support (WPA personal and enterprise)
Web-based configuration via popular browser (MS IE, Netscape…)
Windows “Locator” program to help find IP in DHCP client mode
Firmware upgrade and configuration backup via Web
Reset to default by WebUI
Operating Temperature:-30 ~ +70°C
DC 12 Volt +
DC 15 Volt +
FCC Part 15 B (US); CE
Windows 95/98/Me/NT4.0/2000/XP

One year limited

5%; 2A (Max.); AC adapter AC 100V ~ 240V;
5%(optional)

CAT5/25M-RJ45

LTWD-8BFFM-L180

RJ45 LINE-2M

Switch Adaptor 15V/2.8A Accessories

CFD200 L=1.5M

Video server
Functional Description
Features

□

MPEG-4 Advanced Simple Profile is able to deliver DVD resolution video at lower data rates and smaller file sizes.

□

The intelligent network System on a Chip (SoC) solution delivering high performance and QoS (802.1pQ)
for ensuring a stable and high quality video streaming (IP multicast, IGMP supported).

□

Digital TimeCode Embedded

□

Built-in LAN and WAN (PPPoE supported) Ports

□

DDNS supported

□

Simultaneously Analog and Digital outputs

□

Live Video Variation Setting – Brightness, Contrast, Hue and Saturation

□

MPEG-4 Living Streaming – Protocols supported by TCP, UDP, HTTP, BOOTP, DHCP, PPPoE

□

QoS Function Setting – Priority Service Scheduling

□

Authorization Setting – The system supervisor can set authorization to prevent unauthorized user.

1F, No.49, Alley 24, Lane 75, Sec 3, Kang-Ning Rd, Nei-Hu Dist, Taipei 114, Taiwan, R.O.C.

www.apm.com.tw [e-mail] Tel: [phone] Fax: [phone]

APM CO., LTD

□

Motion Detection – Customization motion detection windows. The maximum is up to 3 windows.

□

External Device Controller – Control through RS232, and RS-485

□

Hardware and Software Watch Dog.

□

System Configuration Setting – Configure through LAN

Specification

Image System

Compression MPEG-4 ASP compliant hardware compression
Resolution QCIF (160 x 112 in NTSC, 176 x 144 in PAL)

CIF (352 x 240 in NTSC, 352 x 288 in PAL)
Full D1 (720 x 480 in NTSC, 720 x 576 in PAL)

Image Frame Rate 30 fps at full D1 resolution (NTSC)

25 fps at full D1 resolution (PAL)

Network

Protocol Supported TCP, UDP, HTTP, PPPoE, DDNS, DHCP, IGMP
QoS Layer 2, 3

I/O Interface

WAN Port RJ-45 x1 (10/100base-T)
LAN Port RJ-45 x1 (10/100base-T)
Serial Port RJ-45 x1 (RS-485)
Analog Video Input Composite x1, BNC connector (NTSC/PAL)
Digital Input Terminal blocks x2 ‧ Logic Level 0: 0 ~ 0.8 V

‧ Logic Level 1: 2.31 ~ 5.3 V

Digital Output Terminal blocks x2 ‧ Logic Level 0: 0 ~ 0.5 V

‧ Logic Level 1: 2.8 ~ 3.3 V

Mechanical & Environment

Power Requirement 12 V / 0.625 A / 7.5 W
Operation Temp 5 °C ~ 50 °C (40 °F ~ 122 °F)
Humidity RH10 % ~ 90 %

Others

Watch Dog Timer 5 sec.
Security Password/username protection for restricted camera access
General Functions ‧ DI/O event triggered via Ethernet

‧ Built-in Web Server and network interface
Client Software OS Supported Win 2000, Win XP, Win 2003
Certification CE, FCC

3 of 3

Power Consumption (Wireless Radio Bridge and Video Server Integrated)

Transmit 0.31A DC48V
Stand-by 0.26A DC48V
Receive 0.26A DC48V
