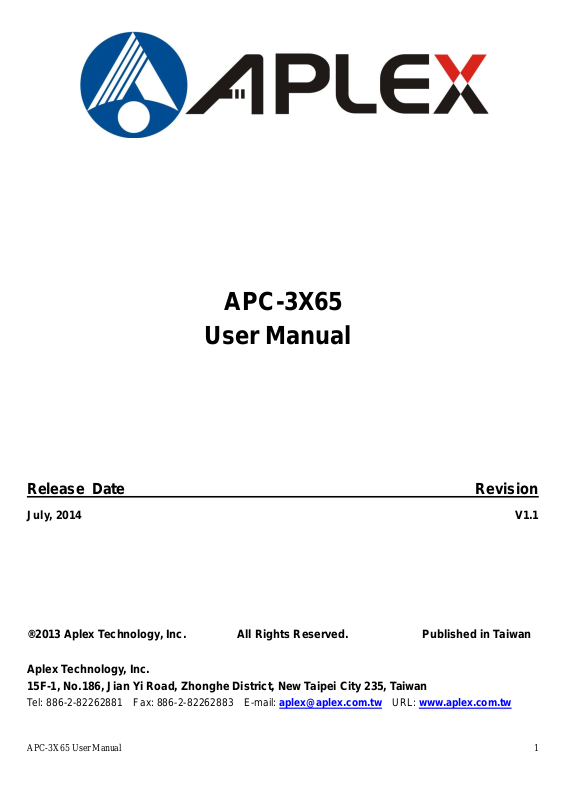

APC-3X65
User Manual
Release Date Revision
July, 2014 V1.1
® 2013 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan
Aplex Technology, Inc.
15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan
Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: aplex@aplex.com.tw URL: www.aplex.com.tw
APC-3X65 User Manual
2
Warning!_______________________________
This equipment generates, uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions manual, it may cause interference to radio
communications.
It has been tested and found to comply with the limits for a Class A computing device pursuant to
FCC Rules, which are designed to provide reasonable protection against such interference when
operated in a commercial environment. Operation of this equipment in a residential area is likely to
cause interference in which case the user at his own expense will be required to take whatever
measures may be required to correct the interference.
Electric Shock Hazard – Do not operate the machine with its back cover removed. There are
dangerous high voltages inside.
Disclaimer
This information in this document is subject to change without notice. In no event shall Aplex
Technology Inc. be liable for damages of any kind, whether incidental or consequential, arising
from either the use or misuse of information in this document or in any related materials.
APC-3X65 User Manual
3
Packing List
Accessories (as ticked) included in this package are:
□ AC power cable
□ Driver & manual CD disc
□ Other.___________________(please specify)
Safety Precautions
Follow the messages below to avoid your systems from damage:
◆ Avoid your system from static electricity on all occasions.
◆ Prevent electric shock. Don‘t touch any components of this card when the card is
power-on. Always disconnect power when the system is not in use.
◆ Disconnect power when you change any hardware devices. For instance, when you
connect a jumper or install any cards, a surge of power may damage the electronic
components or the whole system.
APC-3X65 User Manual
4
Table of Contents______________________
Warning!…………………………………………………………………………….……..….2
Disclaimer………………………………………………………………….…………………2
Packing List...................................................................................................................3
Safety Precautions........................................................................................................3
Chapter 1 Getting Started
1.1 Specifications………………………………………….………….……...…..6
1.2 Dimensions…………………………………...……………….…………......8
1.3 Brief Description of APC-3X65………...………………….………………11
Chapter 2 Hardware Installation
2.1 Mainboard Specifications………..………………..…………….…………13
2.2 Board Dimensions…………………………………………….……………16
2.2 Jumpers and Connectors Location....…………………………………….17
2.2 Jumpers Setting and Connectors ......…………………………………….19
Chapter 3 BIOS Setup
3.1 Operations after POST Screen.............................................................35
3.2 BIOS SETUP UTILITY................................................................35
3.3 System Overview.......................................................................36
3.4 Advanced Settings................................................................... 37
3.5 Chipset Settings................................................................................... 43
3.6 Boot Settings....................................................................................... 46
3.7 Security Settings.................................................................................. 49
3.8 Save & Exit Settings............................................................................ 50
Chapter 4 Installation of Drivers
APC-3X65 User Manual
5
4.1 Intel Chipset Driver.…………………………...……………………………53
4.2 Intel (R) VGA Chipset Driver..…................…......……………….......…..56
4.3 Intel(R) Network adapter Driver…........…..................................……….59
4.4 Realtek HD Audio Driver Installation………………….…………………62
Chapter 5 Touch Screen Installation
5.1 Introduction to Touch Screen Controller Board………………………....64
5.2 Windows 2000/XP USB Driver Installation………………….………..….64
Figures
Figure 1.1: Dimensions of APC-3265………...……………………………...8
Figure 1.2: Dimensions of APC-3565………...……………………………...9
Figure 1.3: Dimensions of APC-3765………...……………………………...10
Figure 1.4: Front view of APC-3x65………...……………………………...11
Figure 1.1: Rear view of APC-3265………...……………………………...11
Figure 1.1: Rear view of APC-3565………...……………………………...12
Figure 2.1: Mainboard Dimensions……………………………………………16
Figure 2.2: Jumpers and Connectors Location-TOP…………………...……17
Figure 2.3: Jumpers and Connectors Location- Bottom………………….…18
Figure 5.1: Bird’s Eye View of Control Board…………………………….......64
APC-3X65 User Manual
6
Chapter 1________________Getting Started
Model No.
Specs
APC-3265
APC-3565
APC-3765
System
Processor
Intel Atom D2550 1.8GHz
System Chipset
Intel NM 10 Express Chipset
System Memory
2 x 204-pin DDR3 SO-DIMM 800/1066MHz
Up to 4G (D2550)
Storage
1 x 2.5” SATA HDD Space
1 x External CF slot, 1 x Slim CD/DVD RW device for option(Not available if CF
have been used)
External I/O Port
USB
4 x USB 2.0 type A
Serial/Parallel
1 x RS-232/422/485 selectable default RS-232 DB9
2 x RS-232 DB9
1 x RS-422/485 selectable default RS-485 DB9
Audio
1 x MIC-in, Line-out phone jack
Graph
1 x VGA
Digital I/O
None
KB/MS
None
Power
1 x 3 pin DC power connector
1 x Rocker switch for power on/off
1 x 2pin remote power switch
2 x LED light for power and HDD indication
Expansion Slots
2xPCI expansion (default)
1xPCI and 1x PCIe x1 (option)
1 x Mini PCIe slot on board for Wifi/BT/3G/GPS and antenna (option)
OS support
Microsoft Windows 7 pro for embedded, Windows embedded standard 7
LCD
Display Type
12.1”
15”
17”
Max. Resolution
800x600
1024x768
1280x1024
Max. Color
262K
262K
16.7M
Luminance (cd/m2)
350
400
350
View Angle
140/110
160/145
170/170
Contrast
300:1
800:1
1000:1
Backlight Lifetime
50,000 hrs
1.1 Specifications
APC-3X65 User Manual
7
Touch Screen
Type
Resistive Touch
Interface
Default USB
Optional RS-232
Light Transmission
80%
Power Supply
Power Input
DC 9~32V
Mechanical
Construction
413C steel front bezel, 413C steel back cover
IP Rating
Front bezel IP65
Mounting
Panel mount
Dimensions (WxHxD)
(mm)
390x264x122.5
409 x 309 x123
457x355x129.4
Net weight(kgs)
6.4
7.4
7.4
Environmental
Operating Temperature
0℃ to 50℃
Option -20~60 ℃ (with Industrial SSD or CF)
Storage Temperature
-20℃ to 60℃
Storage Humidity
10~90% @40 ﾟ C non-condensing
Certificate
CE/FCC Class A
APC-3X65 User Manual
8
1.2 Dimensions
Figure 1.1: Dimensions of APC-3265
APC-3X65 User Manual
9
Figure 1.2: Dimensions of APC-3565
APC-3X65 User Manual
10
Figure 1.3: Dimensions of APC-3765
APC-3X65 User Manual
11
1.3 Brief Description of APC-3X65
The APC-3x65 is the fanless and low power consumption panel-mount industrial panel PC with
12.1”/15”/17” TFT LCD. It powered by Intel Atom D2550 1.8GHz. The panel PC has a rich variety of
functions and peripherals. It comes with 1 x 2.5” SATA HDD Space 1 x External CF slot for data storage ,
support DDR3 memory up to 4G, support rich I/O, wide range 9~32V DC input, and also provide 1 x
PCIe x 16 slot, it can ensure simplified connectivity to a variety of external peripheral devices. The OS
supports windows XP embedded, Windows embedded standard 7. The unit deal for a wide range of
applications including digital surveillance, data/image acquisition, factory automation and industrial
applications.
Figure 1.4: Front view of APC-3x65
APC-3X65 User Manual
Figure 1.5: Rear view of APC-3265
12
Figure 1.6: Rear view of APC-3565
APC-3X65 User Manual
13
Chapter 2__________Hardware Installation
Specifications
Board Size
170mm x 170mm
CPU Support
Intel Atom D2550 /1.86GHz (2cores,10W, onboard)
Intel Atom N2800 /1.86GHz (2cores,6.5W, option）
Intel Atom N2600 /1.60GHz (2cores,3.5W, option）
Chipset
Intel NM10 Express
Memory Support
2 x SO-DIMM (204pins)
D2550：up to 4GB DDRIII 800/1066MHz FSB
N2800：up to 4GB DDRIII 1066MHz FSB
N2600：up to 2GB DDRIII 800MHz FSB
Graphics
Integrated Intel GMA 3650 (D2550/N2800)
Integrated Intel GMA 3600 (N2600)
Display Mode
1 x CRT Port (VGA or VGA_PH)
1 x HDMI Port
1 x LVDS1 (18/24-bit single LVDS, option)
1 x LVDS2 (24-bit dual LVDS, option)
Support
Resolution
Up to 1920 x 1200 for CRT
Up to 1920 x1200 for HDMI
Up to 1440 x 900 for LVDS1 (D2550)
Up to 1366 x 768 for LVDS1 (N2600/N2800)
Up to 1920 x 1200 for LVDS2 (D2550)
Up to 1600 x 1200 for LVDS2 (N2600/N2800)
2.1 Mainboard Specifications
Introduction
ASB-M7101 is a Mini-ITX industrial motherboard developed on the basis of Intel D2550 and NM10, which
provides abundant peripheral interfaces to meet the needs of different customers. Also, it features dual
1000M LAN port, 6-COM port and one Mini PCIE configuration. To satisfy the special needs of high-end
customers, PC104+ socket (capable of adjusting IO voltage) richer extension functions. The product is
widely used in various sectors of industrial control.
Specifications
APC-3X65 User Manual
14
Dual Display
CRT+LVDS1
CRT+LVDS2
CRT+HDMI
LVDS1+HDMI
LVDS2+HDMI
Super I/O
Winbond W83627UHG
BIOS
AMIBIOS
Storage
2 x SATA Connector
1 x Compact Flash II Slot for TB-522 or TB-523 (option）
Ethernet
2 x PCIe Gbe LAN by Intel 82583V
USB
4 x USB 2.0 stack ports for external
3 x USB 2.0 box Pin header for MIO1
1 x USB 2.0 internal for mini PCIe
Serial
1 x RS232/422/485 port, DB9 connector for external (COM1)
pin 9 w/5V/12V/Ring select
1 x RS232 port, DB9 connector for external (COM2)
pin 9 w/5V/12V/Ring select
1 x RS232 header for internal (COM5)
1 x RS232 header for internal (COM6),pin 10 w/5V/12V select
I/O Card TB-522/TB-523:
1 x 422/485 select header for internal MIO1 (COM3)
1 x RS232 header for internal MIO1 (COM4)
Digital I/O
8-bit digital I/O by Pin header for MIO2
4-bit digital Input
4-bit digital Output
Battery
Support CR2477 Li battery by 2-pin header
Audio
Support Audio via Realtek ALC662 HD audio codec
Support Line-out, MIC by JACK
Support Line-in, Line-out, MIC by 2x6-pin header
Keyboard /Mouse
PS2 K/B and Mouse by MIO2
1 x PS/2 keyboard
1 x PS/2 mouse
Expansion Bus
1 x PC 104+ connector (PCI master 4, jumper for +3.3V & 5V select)
2 x PCI-express 1X extend by 4x10 pin socket (PCIe1 option)
1 x mini-PCI-express slot (PCIe1 option：MPCIE or PCIE1X）
1 x CRT 2x6 Pin Header
Power
1 x 3-pin power input connector (Wide range DC+9V~32V)
APC-3X65 User Manual
15
Management
DC12V output by 2x2 pin Connectors
Switches and
LED Indicators
Power on/off switch by TB-522 or TB-523
Reset switch by MIO2
Power LED status by MIO2
HDD LED status by MIO2
External I/O port
2 x COM Ports (COM1/COM2)
4 x USB 2.0 Ports (stack)
2 x RJ45 GbE LAN Ports
1 x CRT DB15 Port
1 x HDMI Port
1 x Audio Ports (mic, line out)
Watchdog Timer
Software programmable 1 – 255 second by Super I/O
Temperature
Operating: -20℃ to 70℃
Storage: -40℃ to 85℃
Humidity
10% - 90%, non-condensing, operating
Power
Consumption
12V /1.25A (Intel Atom D2550 processor with 2GB DDR3 DRAM)
12V /1.18A (Intel Atom N2800 processor with 2GB DDR3 DRAM)
12V /0.95A (Intel Atom N2600 processor with 2GB DDR3 DRAM)
EMI/EMS
Meet CE/FCC class A
APC-3X65 User Manual
16
2.2 Board Dimensions
APC-3X65 User Manual
Figure 2.1: Mainboard Dimensions
17
2.3 Jumpers and Connectors Location
Board Top
APC-3X65 User Manual
Figure 2.2 Jumpers and Connectors Location-TOP
18
Board Bottom
APC-3X65 User Manual
Figure 2.3: Jumpers and Connectors Location- Bottom
19
2.4 Jumpers Setting and Connectors
JP1
CMOS
Close 1-2
NORMAL (Default)
Close 2-3
Clear CMOS
Pin#
Signal Name
Pin1
VBAT
PIN2
Ground
PS_SEL1
Mode
Close 1-2
DC IN Power (Default)
Close 2-3
ATX 12V_IN (ATX Power)
JP2
Mode (DC_IN)
Close 1-2
Auto Power on (Default)
Close 2-3 or Open 1-2
ATX Power
1. JP1:
(2.0mm Pitch 1X3 Pin Header)CMOS clear jumper, CMOS clear operation will permanently reset old
BIOS settings to factory defaults.
Procedures of CMOS clear:
a) Turn off the system and unplug the power cord from the power outlet.
b) To clear the CMOS settings, use the jumper cap to close pins2 and 3 for about 3
seconds then reinstall the jumper clip back to pins open.
c) Power on the system again.
d) When entering the POST screen, press the <F1> or <DEL> key to enter CMOS Setup
Utility to load optimal defaults.
e) After the above operations, save changes and exit BIOS Setup.
2. BAT1:
(1.25mm Pitch 1X2 Pin wafer connector) 3.0V Li battery is embedded to provide power for CMOS.
3. PS_SEL1(option):
(2.0mm Pitch 1X3 Pin Header),DC in Power and ATX 12V IN Power jumper setting.
4. PS_ON:
(2.0mm Pitch 1X3 Pin Header),ATX Power and Auto Power on jumper setting.
APC-3X65 User Manual
20
5. DCIN:
Pin#
Power Input
Pin1
DC+9V~32V
Pin2
Ground
Pin3
PG
Power Mode
Location : DCIN
(5.4.5.)
Location: ATX12V
(5.4.6.)
Location: ATX1
(5.4.7.)
DC INPUT
(Default)
input
DC9~32V
output
DC 12V
NC
ATX Power
(option)
NC
Input (DC12V)
ATX Power 2*2P
PSON,GND,5VSB
ATX Power
Pin#
Power output (DCIN)
Pin1
Ground
Pin2
Ground
Pin3
DC+12V
Pin4
DC+12V
Pin#
Signal Name
Pin1
ATX PSON
PIN2
ATX Ground
PIN3
ATX 5VSB
(5.08mm Pitch 1x3 Pin Connector),DC9V ~ DC32V System power input connector。
6. ATX12V:
(2x2 Pin Connector),DC12V System power output connector.
7. ATX1 (option):
(2.0mm Pitch 1X3 Pin wafer connector),connect PSON and 5VSB and Ground signal,support ATX
Power model. Reserved.
APC-3X65 User Manual
21
8. U2:
MODEL
CPU
ASB-M7101T-D2550
Intel Atom D2550 1.86GHz
ASB-M7101B-D2550 (option)
Intel Atom D2550 1.86GHz
ASB-M7101T-N2800 (option)
Intel Atom N2800 1.86GHz
ASB-M7101B-N2800 (option)
Intel Atom N2800 1.86GHz
ASB-M7101T-N2600 (option)
Intel Atom N2600 1.60GHz
ASB-M7101B-N2600 (option)
Intel Atom N2600 1.60GHz
Pin#
Signal Name
1
Ground
2
VCC
3
Rotation detection
MODEL
Socket
Memory
ASB-M7101-D2550
SODIMM1/SODIMM2
Up to 4GB
ASB-M7101-N2800
SODIMM1/SODIMM2
Up to 4GB
ASB-M7101-N2600
SODIMM1
Up to 2GB
(FCBGA559), onboard CPU .
9. CPU_FAN/SYS_FAN:
(2.54mm Pitch 1x3 Pin wafer connector),Fan connector, cooling fans can be connected directly for
use. You may set the rotation condition of cooling fan in menu of BIOS CMOS Setup.
Note:
Output power of cooling fan must be limited under 5W.
10. SODIMM1/SODIMM2:
(SO-DIMM 204Pin socket), DDRIII memory socket, the socket is located at the Top of the board and
supports 204Pin 1.5V DDRIII 800/1066MHz FSB SO-DIMM memory module up to 4GB or 2GB. The
single RAM use SODIMM1 Slot.
11. VGA:
(CRT DB15 Connector),Video Graphic Array Port, provide high-quality video output. they can not
work at the same time for VGA and VGA_PH.
APC-3X65 User Manual
22
Signal Name
Pin#
Pin#
Signal Name
CRT_RED
1 2 Ground
CRT_GREEN
3 4 Ground
CRT_BLUE
5 6 VGA_EN
CRT_H_SYNC
7 8 CRT_DDCDATA
CRT_V_SYNC
9
10
CRT_DDCCLK
Ground
11
12
Ground
VGA hot plug setting for Windows XP：
VGA1（Pin Header）
Function
Pin4-Pin6（Close）
VGA Simulation Disabled
Pin4-Pin6（Open）
VGA Simulation Enabled
use the 2.0mm jumper cap to close pin 4 and pin6
Pin#
Signal Name
1
+DC12V
2
+DC12V
3
Ground
4
Ground
5
BKLT_EN
6
BKLT_CTRL
12. VGA_PH(option):
(CRT 2.0mm Pitch 2X6 Pin Header), Video Graphic Array Port, Provide 2x5Pin cable to VGA Port,
they can not work at the same time for VGA and VGA_PH.
13. INVT1:
(2.0mm Pitch 1x6 Pin wafer connector), Backlight control connector for LVDS1.
Note:
Pin6 is backlight control signal, support DC or PWM mode, mode select at BIOS CMOS menu.
APC-3X65 User Manual
23
Signal Name
Pin#
Pin#
Signal Name
LVDS1_VDD5
2
1
LVDS1_VDD5
Ground
4
3
Ground
LVDS1_VDD33
6
5
LVDS1_VDD33
NC 8 7
LVDS_TX0_DN
NC
10
9
LVDS_TX0_DP
Ground
12
11
Ground
NC
14
13
LVDS_TX1_DN
NC
16
15
LVDS_TX1_DP
Ground
18
17
Ground
NC
20
19
LVDS_TX2_DN
NC
22
21
LVDS_TX2_DP
Ground
24
23
Ground
NC
26
25
LVDS_CLK_DN
NC
28
27
LVDS_CLK_DP
Ground
30
29
Ground
32
31
LVDS_DDC_CLK
Ground
34
33
Ground
NC
36
35
LVDS_TX3_DN
NC
38
37
LVDS_TX3_DP
NC
40
39
NC
14. LVDS1:
(1.25mm Pitch 2x20 Connector, DF13A-40DP-1.25V),For 18/24-bit LVDS1 output connector, Fully
supported by U2 Intel Processor, the interface features single channel 18/24-bit output. Low
Voltage Differential Signaling, A high speed, low power data transmission standard used for
display connections to LCD panels.
APC-3X65 User Manual
15. U13:
(2.54mm Pitch 2x4Pin Socket), AT24C02 socket, The EEPROM is set for the resolution of LVDS2.
The resolution default is:1280*1024. According to the needs of customers set.
16. INVT2:
(2.0mm Pitch 1x6 Pin wafer connector), Backlight control connector for LVDS2.
24
Pin#
Signal Name
1
+DC12V
2
+DC12V
3
Ground
4
Ground
5
BKLT_EN
6
BKLT_CTRL
Signal Name
Pin#
Pin#
Signal Name
LVDS2_VDD5
2
1
LVDS2_VDD5
Ground
4
3
Ground
LVDS2_VDD33
6
5
LVDS2_VDD33
LB_D0_N
8
7
LA_D0_N
LB_D0_P
10
9
LA_D0_P
Ground
12
11
Ground
LB_D1_N
14
13
LA_D1_N
LB_D1_P
16
15
LA_D1_P
Ground
18
17
Ground
LB_D2_N
20
19
LA_D2_N
LB_D2_P
22
21
LA_D2_P
Ground
24
23
Ground
LB_CLKN
26
25
LA_CLKN
LB_CLKP
28
27
LA_CLKP
Ground
30
29
Ground
LVDS2_DDC_DATA
32
31
LVDS2_DDC_CLK
Ground
34
33
Ground
LB_D3_N
36
35
LA_D3_N
LB_D3_P
38
37
LA_D3_P
NC
40
39
NC
Note:
Pin6 is backlight control signal, support DC or PWM mode, mode select at BIOS CMOS menu.
17. LVDS2(option):
(1.25mm Pitch 2x20 Connector, DF13A-40DP-1.25V), For 18/24-bit LVDS2 output connector, Fully
supported by Parad PS8625(DP to LVDS), the interface features dual channel 24-bit output. Low
Voltage Differential Signaling, A high speed, low power data transmission standard used for
display connections to LCD panels.
APC-3X65 User Manual
25
18. HDMI:
JP2 Pin#
Function
Close 1-2
COM1 RI (Ring Indicator) (default)
Close 3-4
COM1 Pin9=+5V (option)
Close 5-6
COM1 Pin9=+12V (option)
Function
JP1A Pin#
RS232
(Default)
Close: Pin1-3, Pin2-4, Pin7-9, Pin8-10,
Pin13-14
RS422
(option)
Close: Pin3-5, Pin4-6, Pin9-11, Pin10-12,
Pin17-18
RS485
(option)
Close: Pin3-5, Pin4-6, Pin9-11, Pin10-12,
Pin15-16,
Hardware Flow Controll Jumper Setting
JP1A Pin#
Hardware Flow Controll
Pin19-Pin20
Close (Yes) default
Pin19-Pin20
Open (No)
(HDMI 19P Connector), High Definition Multimedia Interface connector.
19. BTN:
POWER on/off Button, They are used to connect power switch button. The two pins are
disconnected under normal condition. You may short them temporarily to realize system
startup & shutdown or awaken the system from sleep state.
20. JP2:
(2.0mm Pitch 2x3 Pin Header),COM1 jumper setting, pin 1~6 are used to select signal out of pin 9
of COM1 port.
21. JP1A:
(2.0mm Pitch 2x10 Pin Header),COM1 jumper setting, it provides selectable RS232 /
RS422/RS485 and hardware flow control serial signal output.
22. COM1:
(Type DB9),Rear serial port, standard DB9 Male serial port is provided to make a direct
connection to serial devices. COM1 port is controlled by pins No.1~6 of JP2,select output Signal RI
or 5V or 12v, For details, please refer to description of JP2.
APC-3X65 User Manual
26
COM1/RS232 (Default):
Pin#
Signal Name
1
DCD# (Data Carrier Detect)
2
RXD (Received Data)
3
TXD (Transmit Data)
4
DTR (Data Terminal Ready)
5
Ground
6
DSR (Data Set Ready)
7
RTS (Request To Send)
8
CTS (Clear To Send)
9
RI/5V/12V (JP2 select Setting)
COM1/RS422 (option):
Pin#
Signal Name
1
422_RX+
2
422_RX-
3
422_TX-
4
422_TX+
5
Ground
6
NC 7 NC 8 NC
9
5V/12V (JP2 select Setting)
COM1/RS485 (option):
Pin#
Signal Name
1
NC 2 NC
3
485-
4
485+
5
Ground
6
NC 7 NC
8
NC
9
5V/12V (JP2 select Setting)
APC-3X65 User Manual
27
JP3 Pin#
Function
Close 1-2
COM2 RI (Ring Indicator) (default)
Close 3-4
COM2 Pin9=+5V (option)
Close 5-6
COM2 Pin9=+12V (option)
Pin#
Signal Name
1
DCD# (Data Carrier Detect)
2
RXD (Received Data)
3
TXD (Transmit Data)
4
DTR (Data Terminal Ready)
5
Ground
6
DSR (Data Set Ready)
7
RTS (Request To Send)
8
CTS (Clear To Send)
9
RI/5V/12V (JP3 select Setting)
Signal Name
Pin#
Pin#
Signal Name
DCD
1
2
RXD
TXD
3
4
DTR
Ground
5
6
DSR
RTS
7
8
CTS
RI
9
10
NC
23. JP3:
(2.0mm Pitch 2x3 Pin Header),COM2 jumper setting, pin 1~6 are used to select signal out of pin 9
of COM2 port.
24. COM2:
(Type DB9),Rear serial port, standard DB9 Male serial port is provided to make a direct
connection to serial devices.
25. COM5:
(2.0mm Pitch 2X5 Pin Header),COM5 Port, standard RS232 ports are provided. They can be used
directly via COM cable connection.
APC-3X65 User Manual
28
26. JP4:
JP4 Pin#
Function
Close 1-2
COM6 RI (Ring Indicator) (default)
Close 3-4
COM6 Pin9=+5V (option)
Close 5-6
COM6 Pin9=+12V (option)
Signal Name
Pin#
Pin#
Signal Name
DCD
1 2 RXD
TXD
3 4 DTR
Ground
5 6 DSR
RTS
7 8 CTS
RI/5V/12V (JP4 select Setting)
9
10
NC
(2.0mm Pitch 2x3 Pin Header) COM6 setting jumper, pin 1~6 are used to select signal out of pin 9
of COM6 port.
27. COM6:
(2.0mm Pitch 2X5 Pin Header), COM6 Port, standard RS232 ports are provided. They can be used
directly via COM cable connection. COM6 port is controlled by pins No.1~6 of JP4,select output
Signal 5V or 12v, For details, please refer to description of JP4.
28. USB4/USB5/USB6/USB7:
(Double stack USB type A), Rear USB connector, it provides up to 4 USB2.0 ports, speed up to
480Mb/s.
Each USB Type A Receptacle (2 Ports) Current limited value is 1.5A.
If the external USB device current exceeds 1.5A, please separate connectors into different
Receptacle.
APC-3X65 User Manual
29
29. LAN1/LAN2:
Signal Name
Pin#
Pin#
Signal Name
SPK_OUTL_P
1
2
SPK_OUTR_P
SPK_OUTL_N
3
4
SPK_OUTR_N
FRONT_JD
5
6
LINE1_JD
LINE-IN-L
7
8
LINE-IN-R
MIC2-IN-L
9
10
MIC2-IN-R
Ground
11
12
MIC2_JD
(RJ45 Connector), Rear LAN port, Two standard 10/100/1000M RJ-45 Ethernet ports are provided.
Used Intel 82583V chipset, LINK LED (green) and ACTIVE LED (yellow) respectively located at the
left-hand and right-hand side of the Ethernet port indicate the activity and transmission state of
LAN.
30. JACK:
(Diameter 3.5mm Double stack Jack), HD Audio port, An onboard Realtek ALC662 codec is used to
provide high quality audio I/O ports. Line Out can be connected to a headphone or amplifier, MIC is
the port for microphone input audio.
31. AUDIO(option):
(2.0mm Pitch 2X6 Pin Header), Front Audio, An onboard Realtek ALC662 codec is used to provide
high-quality audio I/O ports. Line Out can be connected to a headphone or amplifier. Line In is used
for the connection of external audio source via a Line in cable. MIC is the port for microphone input
audio.
32. BUZZ:
APC-3X65 User Manual
Onboard buzzer.
30
33. JP_104P:
JP_104P Pin#
PC104+ VIO Voltage
All Open
Default
Close 1-2
+3.3V PCI Card
Close 2-3
+5V PCI Card
Model
PC104+ Connector
ASB-M7101T-D2550
Top
ASB-M7101B-D2550
Bottom (option)
ASB-M7101T-N2800
Top (option)
ASB-M7101B-N2800
Bottom (option)
ASB-M7101T-N2600
Top (option)
ASB-M7101B-N2600
Bottom (option)
Model
PCIE1X Connector
ASB-M7101T-D2550
Top
ASB-M7101B-D2550
Bottom (option)
ASB-M7101T-N2800
Top (option)
ASB-M7101B-N2800
Bottom (option)
ASB-M7101T-N2600
Top (option)
ASB-M7101B-N2600
Bottom (option)
(2.0mm Pitch 1X3 Pin Header) PC104+ port voltage selection jumper, select voltage for PCI-104
Plus devices. The default for this jumper is “all open”,meaning the user must select the
voltage to be used.
34. PC104+ (option):
(4x30 Pin), PC104 plus connector, it conforms to standard PC104+ specification. Can expand
support four PCI devices.
35. PCIE1X (option):
(4x10 Pin), PCIe bus connector, it conforms to standard PCI Express x1 specification. Can expand
support two PCIe devices.
PCIe1 Signal for PCIE1X or MPCIE Socket.
PCIe4 Signal for PCIE1X Socket.
36. MPCIE:
APC-3X65 User Manual
(Socket 52Pin),mini PCIe socket, it is located at the top, it supports mini PCIe devices with
USB2.0,Smbus,SIM and PCIe signal. MPCIe card size is 30x30mm or 30x50.95mm.
PCIe1 Signal for PCIE1X or MPCIE Socket.
31
Function
Signal Name
Pin#
Pin#
Signal Name
Function
COM3
RS422
422RX+
1 2 485+ / 422TX+
COM3
RS422 or 485
422RX-
3 4 485- / 422TX-
Ground
5 6 WLAN_LED+
WLAN LED
NC 7 8
WLAN_LED-
5V_S5
9
10
5V_S5
COM4
RS232
DCD4-
11
12
RXD4
COM4
RS232
TXD4
13
14
DTR4-
Ground
15
16
DSR4-
RTS4-
17
18
CTS4-
RI4-
19
20
5V_S5
USB3
5V_S5
21
22
5V_USB_01
USB0
USB3_N
23
24
USB0_N
USB3_P
25
26
USB0_P
Ground
27
28
Ground
Ground
29
30
Ground
USB1
5V_USB_01
31
32
PWR_LED+
Power
LED
USB1_N
33
34
PWR_LED-
USB1_P
35
36
MIO_PSON
Power
Button
Ground
37
38
Ground
NC
39
40
AUTO_PS_ON
37. LED1:
LED1：Power LED Status.
38. LED2:
LED2：LED Status. Green LED for Motherboard Standby Power Good status, Yellow LED for HDD
status.
39. MIO1:
(DF13-40P Connector),For expand output connector, It provides two RS232 ports or one RS485
port, three USB ports, one power led, one power button, via a dedicated cable connected to
TB-522 MIO1or TB-523 MIO1.
APC-3X65 User Manual
32
40. MIO2:
Function
Signal Name
Pin#
Pin#
Signal Name
Function
H_LED+
HDD_LED
1 2 PWR-LED
P_LED+
NC 3 4
Ground
P_LED-
NC 5 6
MIO_PSON-
PSON+
RESET+
RESET
7 8 Ground
PSON-
BUZZER+
BUZZER+
9
10
BUZZER-
BUZZER-
GPIO_IN_1
SIO_GPIO60
11
12
SIO_GPIO20
GPIO_OUT_1
GPIO_IN_2
SIO_GPIO61
13
14
SIO_GPIO21
GPIO_OUT_2
GPIO_IN_3
SIO_GPIO62
15
16
SIO_GPIO22
GPIO_OUT_3
GPIO_IN_4
SIO_GPIO63
17
18
SIO_GPIO23
GPIO_OUT_4
PS2_K/B
Ground
19
20
5V_S5_USB
PS2_Mouse
PS2_KBDATA
21
22
PS2_MSDATA
PS2_KBCLK
23
24
PS2_MSCLK
5V_S5_USB
25
26
5V_S5_USB
NC
27
28
NC
NC
29
30
NC
Ground
31
32
Ground
5V_S5_USB
33
34
5V_S5_USB
NC
35
36
NC
NC
37
38
NC
Ground
39
40
Ground
(DF13-40P Connector),Front panel connector.
Pin1/Ground: HDD LED, They are used to connect hard disk activity LED. The LED blinks when
the hard disk is reading or writing data.
Pin2/Pin4: POWER LED, They are used to connect power LED. When the system is
powered on or under S0/S1 state, the LED is normally on, when the system is
under S4/S5 state, the LED is off.
Pin7/Ground: RESET Button, They are used to connect reset button. The two pins
are disconnected under normal condition. You may short them temporarily to
realize system reset.
Pin6/Pin8: POWER on/off Button, They are used to connect power switch button.
The two pins are disconnected under normal condition. You may short them
temporarily to realize system startup & shutdown or awaken the system from
sleep state.
APC-3X65 User Manual
Pin9/Pin10: BUZZER, They are used to connect an external buzzer.
33
Pin#
Signal Name
1
+DC5V
2
Ground
Pin#
Signal Name
1
SMB_CLK_MAIN_IO
2
3.3V
3
Ground
4
SMB_DATA_MAIN_IO
Pin11~Pin18: GPIO IN/GPIO OUT, General-purpose input/output port, it provides a
group of self-programming interfaces to customers for flexible use.
Pin19~Pin24: PS2 KB/MS, PS/2 keyboard and mouse port, the port can be connected to
PS/2 keyboard and mouse via a dedicated cable for direct used.
Note:
When connecting LEDs and buzzer and GPIO and USB, pay special attention to the signal
polarity. Make sure that the connector pins have a one-to-one correspondence with chassis wiring,
or it may cause boot up failure.
41. SATA_P1/SATA_P2:
(2.5mm Pitch 1x2 Pin wafer connector), Two onboard 5V output connectors are reserved to provide
power for SATA devices.
Note:
Output current of the connector must not be above 1A.
42. SATA1/SATA2:
(SATA 7P), SATA Connectors, Two SATA connectors are provided, with transfer speed up to
3.0Gb/s.
43. CON1(option):
(2.0mm Pitch 1x4 Pin wafer connector),Smbus Signal connector.
APC-3X65 User Manual
44. SIM1(option):
(SIM Socket 7Pin), Support SIM Card devices.
45. HS1/HS2/HS3/HS4(CPU SCREW HOLES):
CPU FAN SCREW HOLES, Four screw holes for fixed CPU Cooler assemble.
34
46. H5/H6:
MPCIE1 SCREW HOLES, H5 for mini PCIE card (30mmx30mm) assemble. H6 for mini PCIE card
(30mmx50.95mm) assemble.
49. TB-520P2:
TB-520P2 connect to ASB-M7101T PC104+ connector, PC104+ is located at the top,
It provides two PCI slots.
50. TB-520P1E1:
TB-520P1E1 connect to ASB-M7101T PC104+ and PCIE1X connector,PC104+ and PCIE1X are
located at the top, It provides one PCI slot and one PCIE slot.
APC-3X65 User Manual
35
Chapter 3 BIOS Setup
Version 2.15.1226. Copyright (C) 2012 American Megatrends, Inc.
BIOS Date: 05/14/2013 22:29:02 Ver: M7101V006
Press 〈DEL〉or〈ESC〉to enter setup
A3
3.1 Operations after POST Screen
After CMOS discharge or BIOS flashing operation,.Press [Delete] key to enter CMOS Setup.
After optimizing and exiting CMOS Setup, the POST screen displayed for the first time is as follows and
includes basic information on BIOS, CPU, memory, and storage devices.
Press F11 to load default values and continue 0085
APC-3X65 User Manual
3.2 BIOS SETUP UTILITY
Press [Delete] key to enter BIOS Setup utility during POST, and then a main menu containing
system summary information will appear.
36
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main
Advanced
Chipset
Boot
Security
Save & Exit
BIOS Information
BIOS Vendor American Megatrends
Core Version 4.6.5.3
Compliancy UEFI 2.3; PI 1.2
Project Version 7101V006
►Intel RC Version
System Language [English]
System Date [Sun 01/01/2012]
System Time [00:00:09]
Access Level Administrator
Intel Reference Code
Version
→←: Select Screen
↑↓ : Select Item
Enter: Select
+/- : Charge Opt.
F1 : General Help
F2: Previous Values
F3:Optimized Defaults
F4:Save and Exit
ESC Exit
Version 2.15.1226. Copyright (C) 2012 American Megatrends , Inc.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main
Advanced
Chipset
Boot
Security
Save & Exit
BIOS Information
BIOS Vendor American Megatrends
Core Version 4.6.5.3
Compliancy UEFI 2.3; PI 1.2
Project Version 7101V006
►Intel RC Version
Intel Reference Code
Version
3.3 Main Settings
APC-3X65 User Manual
37
System Language [English]
System Date [Sun 01/01/2012]
System Time [00:00:09]
Access Level Administrator
→←: Select Screen
↑↓ : Select Item
Enter: Select
+/- : Charge Opt.
F1 : General Help
F2: Previous Values
F3:Optimized Defaults
F4:Save and Exit
ESC Exit
Version 2.15.1226. Copyright (C) 2012 American Megatrends , Inc.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main
Advanced
Chipset
Boot
Security
Save & Exit
►PCI Subsystem Settings
►ACPI Settings
►CPU Configuration
►Thermal Configuration
►IDE Configuration
►USB Configuration
►W83627UHG Super IO Configuration
PCI,PCI-X and PCI
Express Settings
System Time:
Set the system time, the time format is:
Hour : 0 to 23
System Date:
Set the system date, the date format is:
Day: Note that the ‘Day’ automatically changes when you set the date.
Month: 01 to 12
Date: 01 to 31
Year: 1998 to 2099
3.4 Advanced Settings
Minute : 0 to 59
Second : 0 to 59
APC-3X65 User Manual
38
►W83627UHG HW Monitor
►Serial Port Console Redirection
►PPM Configuration
→←: Select Screen
↑↓ : Select Item
Enter: Select
+/- : Charge Opt.
F1 : General Help
F2: Previous Values
F3:Optimized Defaults
F4:Save and Exit
ESC Exit
Version 2.15.1226. Copyright (C) 2012 American Megatrends , Inc.
3.4.1 PCI Subsystem Settings
PCI Bus Driver Versio V2.05.02
PCI Common Settings:
PCI Latency Timer:
[32 PCI Bus Clocks]
[64 PCI Bus Clocks]
[96 PCI Bus Clocks]
[128 PCI Bus Clocks]
[160 PCI Bus Clocks]
[192 PCI Bus Clocks]
[224 PCI Bus Clocks]
[248 PCI Bus Clocks]
VGA Palette Snoop:
[Disabled]
[Enabled]
PERR# Generation:
[Disabled]
[Enabled]
SERR# Generation:
[Disabled]
[Enabled]
[Disabled]
[Enabled]
APC-3X65 User Manual
3.4.2 ACPI Settings
Enable ACPI Auto Conf:
39
Enable Hibernation:
[Enabled]
[Disabled]
ACPI Sleep State:
[Both S1 and S3 available for OS to choose from]
[Suspend Disabled]
[S1 only (CPU Stop Clock）]
[S3 only (Suspend to RAM) ]
Lock Legacy Resources:
[Disabled]
[Enabled]
S3 Video Repost:
[Disabled]
[Enabled]
3.4.3 CPU Configuration
Processor Type Intel(R) Atom(TM) CPU
EMT64 Not Supported
Processor Speed 1865 MHz
System Bus Speed 533 MHz
Ratio Status 14
Actual Ratio 14
System Bus Speed 533 MHz
Processor Stepping 30661
Microcode Revision 269
L1 Cache RAM 2x56 k
L2 Cache RAM 2x512 k
Processor Core Dual
Hyper-Threading Supported
Hyper-Threading:
[Disabled]
Execute Disable Bit:
[Disabled]
APC-3X65 User Manual
[Enabled]
[Enabled]
40
Limit CPUID Maximum:
[Disabled]
[Enabled]
3.4.4 Thermal Configuration
CPU Thermal Configuration
DTS SMM
[Disabled]
[Enabled]
Platform Thermal Configuration
Critical Trip Point [15C]
Active Trip Point Lo [55 C]
Active Trip Point Hi [71C]
Passive Trip Point [95]
Passive TC1 Value 1
Passive TC2 Value 5
Passive TSP Value 10
3.4.5 IDE Configuration
SATA Port0 Not Present
SATA Port1 Not Present
SATA Controller(S):
[Enabled]
[Disabled]
Configure SATA as:
[IDE]
[AHCI]
Misc Configuration for hard disk
3.4.6 USB Configuration
USB Configuration
USB Devices:
1 keyboard
Legacy USB Support:
[Disabled]
EHCI Hand-off:
[Enabled]
APC-3X65 User Manual
[Enabled]
[Disabled]
41
USB hardware delays a
USB transfer time-out:
[20 sec]
[10 sec]
[5 sec]
[1 sec]
Device reset time-out:
[20 sec]
[10 sec]
[30 sec]
[40 sec]
Device power-up delay
[Auto]
[Manual]
3.4.7 W83627UHG Super IO Ch Configuration
W83627UHG Super IO ch W83627UHG
Serial Port 1 Configuration
Serial Port 2 Configuration
Serial Port 3 Configuration
Serial Port 4 Configuration
Serial Port 5 Configuration
Serial Port 6 Configuration
3.4.8 W83627UHG HW Monitor
PC Health Status
Smart Fan Mode Configuration
System temperature1 : +46 C
System Speed : N/A
CPU Fan Speed : 5000 RPM
VCORE : +1.184 V
+12V : +12.512 V
+3.3V : +3.288 V
APC-3X65 User Manual
+1.5V : +1.528 V
AVCC : +5.170 V
VCC5V : +5.182 V
VSB5 : +5.170 V
VBAT : +3.368 V
3.4.9 Serial Port Console Redirection
42
COM0
Console Redirection
[Enabled]
[Disabled]
Console Redirection Settings
Serial Port for Out-of-Band Management/
Windows Emergency Management Services (EMS)
Console Redirection
[Disabled]
[Enabled]
Console Redirection Settings
3.4.10 PPM Configuration
PPM Configuration
EIST:
[Enabled]
[Disabled]
CPU C state Report
[Enabled]
[Disabled]
Enhanced C state
[Enabled]
[Disabled]
CPU Hard C4E
[Enabled]
[Disabled]
CPU C6 state
[Enabled]
[Disabled]
C4 Exit Timing
[Fast]
[Default]
[Slow]
C-state POPDOWN
[Disabled]
C-state POPUP
[Disabled]
APC-3X65 User Manual
[Enabled]
[Enabled]
43
3.5 Chipset Settings
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main
Advanced
Chipset
Boot
Security
Save & Exit
►Host Bridge
►South Bridge
Host Bridge Parameters
→←: Select Screen
↑↓ : Select Item
Enter: Select
+/- : Charge Opt.
F1 : General Help
F2: Previous Values
F3:Optimized Defaults
F4:Save and Exit
ESC Exit
Version 2.15.1226. Copyright (C) 2012 American Megatrends , Inc.
3.5.1 Host Bridge
►Memory Frequency and Timing
►Intel IGD Configuration
******* Memory Information *******
Memory Frequency 1067 MHz(DDR3)
Total Memory 2048 MB
DIMM#0 Not Present
DIMM#1 2048 MB
Memory Frequency and Timing
MRC Fast Boot
Max TOLUD
[Enabled]
[Disabled]
[Dynamic]
[1GB]
APC-3X65 User Manual
44
[1.25GB]
[1.5GB]
[1.75GB]
[2GB]
[2.25GB]
[2.5GB]
[2.75GB]
[3GB]
[3.25GB]
Intel IGD Configuration
IGFX – Boot Type
[VBIOS Default]
[CRT]
[LVDS1]
[LVDS2]
[VGA + LVDS]
[VGA + HDMI]
LCD Panel Type
Active LFP
[VBIOS Default]
[640x480,18bit]
[800x480,18bit]
[800x600,18bit]
[1024x600,18bit]
[1024x768,18bit]
[1280x768,18bit]
[1280x800,18bit]
[1280x1024,18bit]
[1366x768,18bit ]
[1024x768,24bit ]
[1280x768,24bit ]
[1280x800,24bit ]
[1280x1024,24bit ]
[1366x768,24bit ]
APC-3X65 User Manual
[LVDS]
[No LVDS]
[EDP]
IGD Clock Source
[Internal Clock]
[External Clock]
45
Fixed Graphics Memory
[128MB]
[256MB]
ALS Support
[Disabled]
[Enabled]
Back light Control
[DC]
[PWM]
Backlight Logic
[Positive]
[Negative]
Backlight Control Lev
[Level 8]
[Level 0]
LVDS1 Setting:
IGFX – Boot Type: [LVDS1] or [CRT+LVDS]
[Level 1]
[Level 2]
[Level 3]
[Level 4]
[Level 5]
[Level 6]
[Level 7]
[Level 9]
[Level 10]
[Level 11]
[Level 12]
[Level 13]
[Level 14]
[Level 15]
Active LFP: [LVDS]
LVDS2 Setting:
IGFX – Boot Type: [LVDS2] or [CRT+LVDS]
Active LFP: [EDP]
3.5.2 South Bridge
TPT Devices
APC-3X65 User Manual
46
PCI Express Root Port 0
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main
Advanced
Chipset
Boot
Security
Save & Exit
Boot Configuration
Setup Prompt Timeout 1
Bootup Numlock State [On]
Quiet Boot [Disabled]
Fast Boot [Disabled]
CSM16 Module Version 07.69
Gatea20 Active [Upon Request]
Option ROM Messages [Force BIOS]
Interrupt 19 Capture [Immediate]
Number of seconds to
Wait for setup
Activation key.
65535(0xFFFF)means
Indef inite waiting.
PCI Express Root Port 1
PCI Express Root Port 2
PCI Express Root Port 3
DMI Link ASPM Control
[Enabled]
[Disabled]
PCI-Exp. High Priorit
[Disabled]
[Enabled]
High Precision Event Timer Configuration
High Precision Timer
[Enabled]
[Disabled]
SLP_S4 Assertion Widt
[1-2 Seconds]
[2-3 Seconds]
[3-4 Seconds]
[4-5 Seconds]
3.6 Boot Settings
APC-3X65 User Manual
47
Driver Option Priorities
Boot Option Priorities
Boot Option #1 [SATA PM: Hitachi…]
Boot Option #2 […]
Hard Drive BBS Priorities
►CSM Parameters
→←: Select Screen
↑↓ : Select Item
Enter: Select
+/- : Charge Opt.
F1 : General Help
F2: Previous Values
F3:Optimized Defaults
F4:Save and Exit
ESC Exit
Version 2.15.1226. Copyright (C) 2012 American Megatrends , Inc.
Setup Prompt Timeout [1]
Bootup Numlock State
[On]
[off]
Quiet Boot
[Disabled]
[Enabled]
Fast Boot
[Disabled]
[Enabled]
CSM16 Module Version 07.69
Gatea20 Active
[Upon Request]
[Always]
Option ROM Messages
[Force BIOS]
[Keep Current]
Interrupt 19 Capture
[Enabled]
[Disabled]
Boot Option #1
Sets the system boot order
APC-3X65 User Manual
Boot Option #2
……
48
Hard Drive BBS Priorities [SATA PM:*** … ]
Boot Option #1
SATA PM:***…
******
Disabled
CSM Parameters
Launch CSM
[Always]
[Never]
Boot option filter
[UEFI and Legacy]
[Legacy only]
[UEFI only]
Launch PXE OpROM poli
[Legacy only]
[Do not Launch]
[UEFI only]
Launch Storage OpROM
[Legacy only]
[Do not Launch]
[UEFI only]
Launch Video OpROM po
[Do not Launch]
[UEFI only]
[Legacy only]
Other PCI device ROM
[UEFI OpROM]
[Legacy OpROM]
APC-3X65 User Manual
49
3.7 Security Settings
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main
Advanced
Chipset
Boot
Security
Save & Exit
Password Description
If ONLY the Administrator’s password is set,
Then this only limits access to Setup and is
Only asked for when entering Setup.
If ONLY the User’s password is set, then this
Is a power on password and must be entered to
Is a power on password and must be entered to
Boot or enter Setup. In Setup the User will
Have Administrator rights.
The password length must be
In the following range:
Minimum length 3
Maximum length 20
Administrator Password
User Password
Set Administrator
Password
→←: Select Screen
↑↓ : Select Item
Enter: Select
+/- : Charge Opt.
F1 : General Help
F2: Previous Values
F3:Optimized Defaults
F4:Save and Exit
ESC Exit
Version 2.15.1226. Copyright (C) 2012 American Megatrends , Inc.
3.7.1 Administrator Password
To clear the password, just press Enter key when password input window pops up. A
Once the password feature is used, you will be requested to type the password each time you enter
APC-3X65 User Manual
3.7.2 User Password
Type the password with up to 20 characters and then press Enter key. This will clear all
previously typed CMOS passwords. You will be requested to confirm the password. Type the
password again and press Enter key. You may press Esc key to abandon password entry
operation.
confirmation message will be shown on the screen as to whether the password will be disabled. You
will have direct access to BIOS setup without typing any password after system reboot once the
password is disabled.
50
BIOS setup. This will prevent unauthorized persons from changing your system configurations.
Aptio Setup Utility – Copyright (C) 2012 American Megatrends, Inc.
Main
Advanced
Chipset
Boot
Security
Save & Exit
Save Changes and Exit
Discard Changes and Exit
Save Changes and Reset
Discard Changes and Reset
Save Options
Save Changes
Discard Changes
Restore Defaults
Save user Defaults
Restore user Defaults
Boot Override
SATA PM:*** …
Launch EFI Shell from filesystem device
Exit system setup after
Saving the changes.
→←: Select Screen
↑↓ : Select Item
Enter: Select
+/- : Charge Opt.
F1 : General Help
F2: Previous Values
F3:Optimized Defaults
F4:Save and Exit
ESC Exit
Version 2.15.1226. Copyright (C) 2012 American Megatrends , Inc.
Also, the feature is capable of requesting users to enter the password prior to system boot to
control unauthorized access to your computer. Users may enable the feature in Security Option
of Advanced BIOS Features. If Security Option is set to System, you will be requested to enter
the password before system boot and when entering BIOS setup; if Security Option is set to
Setup, you will be requested for password for entering BIOS setup.
3.8 Save & Exit Settings
Save Changes and Exit
Save & Exit Setup save Configuration and exit ?
[Yes]
Discard Changes and Ext
Exit Without Saving Quit without saving?
[Yes]
Save Changes and Reset
APC-3X65 User Manual
[No]
[No]
51
Save & reset Save Configuration and reset?
[Yes]
[No]
Discard Changes and Reset
Reset Without Saving Reset without saving?
[Yes]
[No]
Save Changes
Save Setup Values Save configuration?
[Yes]
[No]
Discard Changes
Load Previous Values Load Previous Values?
[Yes]
[No]
Restore Defaults
Load Optimized Defaults Load optimized Defaults?
[Yes]
[No]
Save user Defaults
Save Values as User Defaults Save configuration?
[Yes]
[No]
Restore user Defaults
Restore User Defaults Restore User Defaults?
[Yes]
[No]
Launch EFI Shell from filesystem device
WARNING Not Found
[ok]
APC-3X65 User Manual
52
Chapter 4 Installation of Drivers
Important Note:
After installing your Windows operating system (Windows XP), you must install
first the Intel Chipset Software Installation Utility before proceeding with the
installation of drivers.
This chapter describes the installation procedures for software and drivers under the windows XP. The
software and drivers are included with the motherboard. The contents include Intel (R) Chipset NM10
Express, Intel (R) VGA Chipset, Intel 82583V Driver, Realtek ALC662 HD Audio Driver, Touch
Panel Driver.
Installation instructions are given below.
I
APC-3X65 User Manual
53
4.1 Intel Chipset Driver
To install the Intel chipset driver, please follow the steps below.
Step 1. Access Industrial Panel PC. Select Intel(R) Chipset NM10 Express.
Step 2. Click Next to setup program.
APC-3X65 User Manual
54
Step 3. Read the license agreement. Click Yes to accept the terms of the license agreement.
Step 4. Click Next to continue.
APC-3X65 User Manual
55
Step 5. Click Next.
Step 6. Select Yes, I want to restart this computer now. Click Finish then remove any installation
media from the drives.
APC-3X65 User Manual
56
4.2 Intel (R) VGA Chipset Driver
To install the VGA drivers, follow the steps below to proceed with the installation.
Step 1. Select Intel(R) VGA Chipset Driver.
Step 2. Tick Automatically run WinSAT and enable the Windows Aero desktop theme (if supported.)
Click Next to continue.
APC-3X65 User Manual
57
Step 3. Read license agreement. Click Yes to continue.
Step 4. Click Next.
APC-3X65 User Manual
58
Step 5. Click Next.
Step 6. Select Yes, I want to restart this computer now. Click Finish.
APC-3X65 User Manual
59
4.3 Intel(R) Network Adapter Driver
To install the Intel 82574L Network adapter Driver, please follow the steps below.
Step 1. Select Intel 82583V Driver.
Step 1. Click Next to continue.
APC-3X65 User Manual
60
Step 2. Select I accept the terms in the license agreement. Click Next.
Step 3. Select Drivers/Intel(R) PROSet for Windows* Device Manager/Advanced Network
Services. Click Next to continue.
APC-3X65 User Manual
61
Step 4. Click Install to begin the installation.
Step 5. Click Finish to compete the installation.
APC-3X65 User Manual
62
4.4 Realtek HD Audio Driver Installation
To install the Realtek High Definition (HD) Audio driver, please follow the steps below.
Step 1. Select Realtek ALC662 HD Audio Codec Driver from the list.
Step 2. Wait for extracting the files then click Next to continue.
APC-3X65 User Manual
63
Step 3. Select Yes, I want to restart my computer now. then click Finish.
APC-3X65 User Manual
64
Chapter 5 Touch Screen Installation
This chapter describes how to install drivers and other software that will allow your PenMount 6000
Controller Board to work with different operating systems.
NOTE: PenMount USB drivers support up to 15 USB controllers.
5.1 Introduction to Touch Screen Controller Board
PenMount 6300 USB control board is a touch screen control board designed for USB interface and
specific for 4, 5, 8-wire touch screens. It is designed with USB interface features with multiple devices
supporting function. PenMount 6300 control board using PenMount 6000 controller that has been
designed for those who may like and all-in-one solution with 10-bit A/D converter built-in to make the
total printed circuit board denser, circuit diagram also designed for 12-bit ADC for optional. There are
two connectors on this board, one connector is for 4, 5, 8-wire touch screen cable (optional), and
another is for 4-pin USB A type cable (optional).
Figure 5.1: Bird’s Eye View of Control Board
5.2 Windows 2000/XP/2003/Vista Universal Driver Installation
for PenMount 6000 Series
Before installing the Windows 2000/XP driver software, you must have the Windows 2000/XP system
installed and running on your computer. You must also have one of the following PenMount 6000
series controller or control boards installed: PM6500, PM6300.
5.2.1 Installing Software
If you have an older version of the PenMount Windows 2000/XP driver installed in your system, please
remove it first. Follow the steps below to install the PenMount DMC6000 Windows 2000/XP driver.
APC-3X65 User Manual
65
Step 1. Please make sure your PenMount 6000 device had plugged in advance. If your device uses
RS232 interface, please plugged in before the machine is turned on. When the system first detects the
controller board, a screen appears that shows “Unknown Device”. Do not use this hardware wizard.
Press Cancel.
Step 2. Insert the Aplex product CD install setup.exe. the screen below would appear. Se touch panel
driver
Step 3. Click Next to continue.
APC-3X65 User Manual
66
Step 4. Read the license Agreement. Click I agree to agree the license agreement.
Step 5. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to
start the installation.
APC-3X65 User Manual
67
Step 6. Wait for installation. Then click Next to continue.
Step 7. Click Continue Anyway.
APC-3X65 User Manual
68
Step 8. Click Finish to compete installation.
APC-3X65 User Manual
69
5.2.2 Software Functions
Standard Calibration
Click this button and arrows appear
pointing to red squares. Use your finger or
stylus to touch the red squares in
sequence. After the fifth red point
calibration is complete. To skip, press
‘ESC’.
Upon rebooting, the computer automatically finds the new 6000 controller board. The touch screen is
connected but not calibrated. Follow the procedures below to carry out calibration.
1. After installation, click the PenMount Monitor icon “PM” in the menu bar.
2. When the PenMount Control Panel appears, select a device to “Calibrate.”
PenMount Control Panel
The functions of the PenMount Control Panel are Device, Multiple Monitors, Tools and About,
which are explained in the following sections.
Device
In this window, you can find out that how many devices are detected on your system.
Calibrate
This function offers two ways to calibrate your touch screen. ‘Standard Calibration’ adjusts most touch
screens. ‘Advanced Calibration’ adjusts aging touch screens.
APC-3X65 User Manual
70
Advanced Calibration
Advanced Calibration uses 4, 9, 16 or 25
points to effectively calibrate touch panel
linearity of aged touch screens. Click this
button and touch the red squares in
sequence with a stylus. To skip, press
ESC’.
Command Calibration
Command call calibration function. Use
command mode call calibration function,
this can uses Standard, 4, 9, 16 or 25
points to calibrate E.g. Please run ms-dos
prompt or command prompt c:\Program
Files\PenMount Universa Driver\Dmcctrl.exe
-calibration 0 ( Standard Calibration)
Dmcctrl.exe - calibration ($) 0= Standard
Calibration 4=Advanced Calibration 4
9=Advanced Calibration 9 16=Advanced
Calibration 16 25=Advanced Calibration 25
Step 1. Please select a device then click Configure. You can also double click the device too.
APC-3X65 User Manual
71
Step 2. Click Standard Calibration to start calibration procedure
NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an
accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the
step as below:
APC-3X65 User Manual
72
Step 3. Come back to PenMount Control Panel and select Tools then Click Advanced
Calibration.
Step 4. Select Device to calibrate, then you can start to do “Advanced Calibration”.
NOTE: Recommend to use a stylus during Advanced Calibration for greater accuracy.
APC-3X65 User Manual
73
Setting
APC-3X65 User Manual
74
About
This panel displays information about the PenMount controller and driver version.
APC-3X65 User Manual
75
Multiple Monitors
Multiple Monitors supports two to six touchscreen displays for one system. PenMount
drivers for Windows 2000, XP 32/64bit, and 2003 support Multiple Monitors. This
function supports from two to six touchscreen displays for one system. Each monitor
requires its own PenMount touchscreen control board, either installed inside the displayor
in a central unit. The PenMount control boards must be connected to the computer COM
ports via the RS-232 interface. Driver installation procedures are the same as for a single
monitor. Multiple Monitors supports the following modes:
Windows Extends Monitor Function
Matrox DualHead Multi-Screen Function
nVidia nView Function
NOTE: The Multiple Monitor function is for use with multiple displays only. Do not use this
function if you have only one touch screen display. Please note once you turn on this
function the rotating function is disabled.
Requirements
Before using the Multiple Monitors function you need the following:
* A display card that supports multiple monitors such as the Matrox, nVidia, ATI, etc.
* (Two or more display cards supported by Windows are also ok.)
* Two or more touchscreens
* Two or more Serial Ports or USB ports.
* Two or more PenMount 6000 control boards such as 6200x, 6202x,6300 or 6500.
* The PenMount Windows Universal Driver (for 2000/XP/2003/VISTA/7).
Before using Multiple Monitors you must have two or more monitors that are in extension
mode. For display cards that support multiple monitors, we suggest you consider Matrox,
nVidia, or ATI cards and inquire about operation and usability issues.
Note: Before you can use multiple monitors you need to map each monitor.
Enable the multiple display function as follows:
Step 1.In PenMount Control Panel, under Multiple Monitors tag, check the “Multiple
Monitor Support” box. Then click “Map Touchscreens” to assign touch controllers to
displays.
APC-3X65 User Manual
76
Step 2. When the mapping screen message appears, click OK.
APC-3X65 User Manual
77
Step 3. Touch each screen as it displays Please touch this monitor. Press ‘S’ to skip
Draw
Tests or demonstrates the PenMount touch
screen operation.
Advanced Calibration
Enable Advanced Calibration function
Right Button Icon
Enable right button function. The icon can
show on Desktop or System Tray (menu bar).
Following this sequence and touching each screen is called mapping the touch screens.
Step 4. After the setting procedure is finished, maybe you need to calibrate for each panel and
controller.
NOTES:
1. If you used a single VGA output for multiple monitors, please do not use the Multiple
Monitors function. Just follow the regular procedure for calibration on each of your desktop
monitors.
2. The Rotating function is disabled if you use the Multiple Monitors function.
3. If you change the resolution of display or screen address, you have to redo Map Touch
Screens so the system understands where the displays are.
4. If you more monitor mapping one touch screen, Please press ‘S’ to skip mapping step.
Tools
APC-3X65 User Manual
78
About
You can see how many devices of PenMount controller that are plugged to your system
PenMount Monitor Menu Icon
The PenMount monitor icon (PM) appears in the menu bar of Windows 2000/XP system when you
turn on PenMount Monitor in PenMount Utilities.
APC-3X65 User Manual
79
PenMount Monitor has the following function
PenMount Rotating Functions
The PenMount driver for Windows 2000/XP supports several display rotating software packages.
Windows Me/2000/XP support display rotating software packages such as:
• Portrait’s Pivot Screen Rotation Software
• ATI Display Driver Rotate Function
• nVidia Display Driver Rotate Function
• SMI Display Driver Rotate Function
• Intel 845G/GE Display Driver Rotate Function
Configuring the Rotate Function
1. Install the rotation software package.
2. Choose the rotate function (0°, 90°, 180°, 270°) in the 3rd party software. The calibration screen
appears automatically. Touch this point and rotation is mapped.
APC-3X65 User Manual
80
NOTE: The Rotate function is disabled if you use Monitor Mapping
APC-3X65 User Manual
Loading...
