Aplex APC-3229A User Manual

1

APC-3XX9A

Panel PC User Manual

Release Date _ Revision

Nov. 2014 V1.1

Aplex Technology, Inc. 15F-1, No.186, Jian Yi Road, Zhonghe District, New Taipei City 235, Taiwan

Tel: 886-2-82262881 Fax: 886-2-82262883 E-mail: aplex@aplex.com.tw URL: www.aplex.com.tw

APC-3XX9A User Manual

2

Warning!___________________________________

This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions manual, it may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures may be required to correct the interference.

Electric Shock Hazard – Do not operate the machine with its back cover removed. There are dangerous high voltages inside.

APC-3XX9A User Manual

3

Packing List

Accessories (as ticked) included in this package are:

□ AC power cable

□ Driver & manual CD disc

□ Other.___________________(please specify)

Safety Precautions

Follow the messages below to prevent your systems from damage:

◆ Avoid your system from static electricity on all occasions.

◆ Prevent electric shock. Don‘t touch any components of this card when the card is

power-on. Always disconnect power when the system is not in use.

◆ Disconnect power when you change any hardware devices. For instance, when you connect a jumper or install any cards, a surge of power may damage the electronic components or the whole system.

APC-3XX9A User Manual

4

Table of Contents______________________

Warning!…………………………………………………………………………….……..….2 Disclaimer………………………………………………………………….…………………2 Packing List…………………………………………………………………………………..3 Safety Precautions…………………………………………………………………………..3

Chapter 1 Getting Started

1.1 Features……..………………………………………………………………6

1.2 Specifications……………………………………………………………….6

1.3 Dimensions………………………………………………………………….8

1.4 Installation of HDD………………………………………………………..10

1.5 Installation of PCIe Add-on &CF………………..…………………….…12

1.6 Brief Description of APC-3XX9A………………………………………14

Chapter 2 Hardware

2.1 Mainboard Specifications...……………………………………………….16

2.2 Jumpers and Headers Setting Guide.……………………...……………18

2.3 I/O Panel……………………………………………………………….......27

2.4 Installation……………………………………………………………….…28

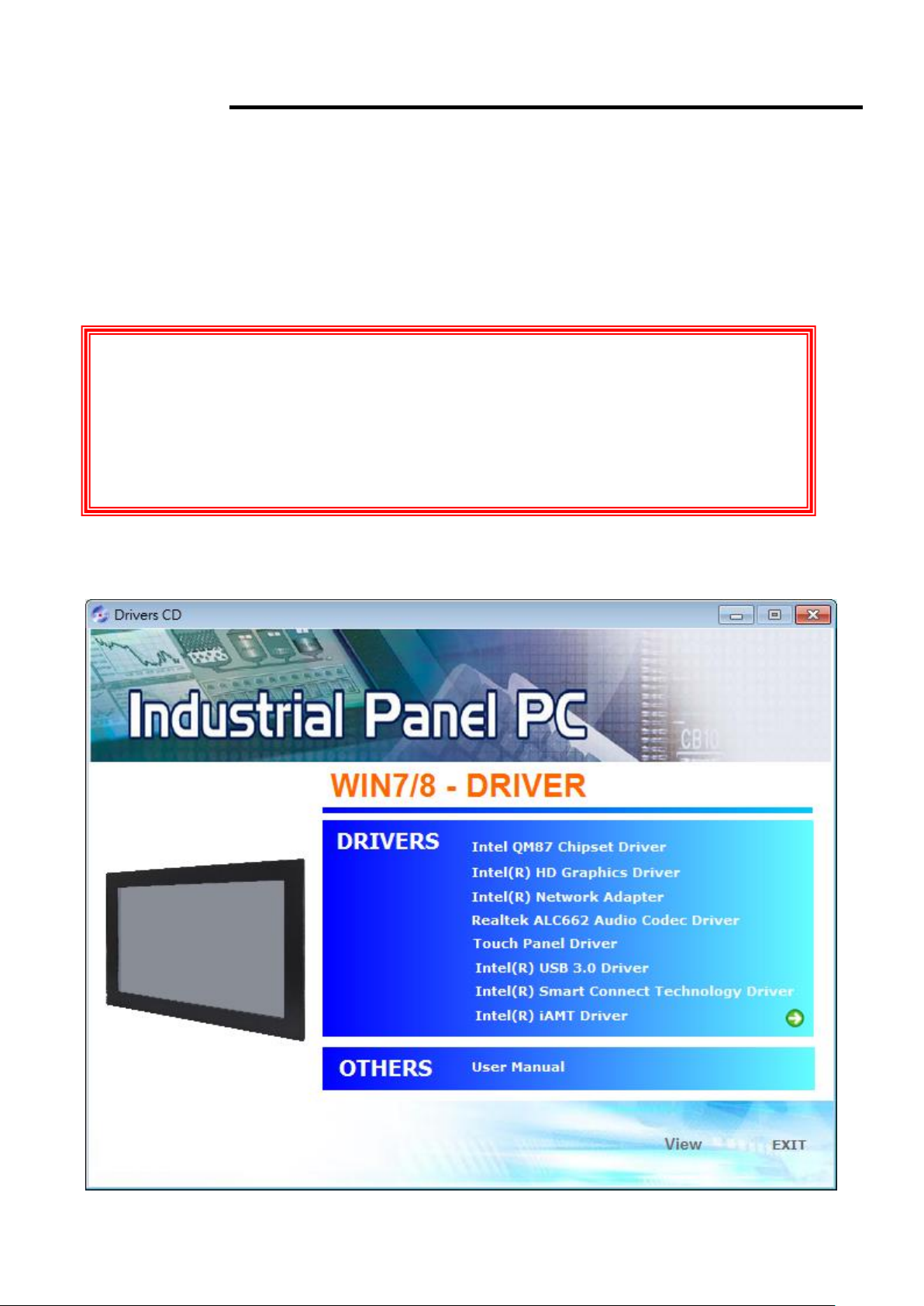

2.5 Driver Installation Guide………………………………………..…………31

Chapter 3 BIOS Setup

3.1 Introduction …....................................................................................32

3.2 Main Screen……………………………………………………….………33

3.3 Advanced Screen…………………………………………………………34

3.4 Hardware Health Event Monitoring Screen…………………………….48

3.5 Boot Screen……………………………………………………………..…49

3.6 Security Screen……………………………………………………………51

3.7 Exit Screen………………………………………………………………...52

Chapter 4 Installation of Drivers

4.1 Intel Chipset Driver............................................................................. 54

4.2 Intel Graphics Media Accelerator Driver............................................. 57

APC-3XX9A User Manual

4.3 Intel(R) Network Adapter………………….......................................... 60

4.4 Realtek ALC662 Audio Codec Driver Installation…………...…………63

4.5 Intel(R) USB 3.0 DRIVER………………………………………………..65

4.6 Intel(R) Smart Connect Technology Driver…………………….……….68

4.7 Intel(R) iAMT Driver……………………………………………….………72

5

Chapter 5 Touch Screen Installation

5.1 Windows7/8 Universal Driver Installation for PenMount 6000 Series…..

……………………………………………………………………………..75

5.2 Installing Software………………………..……………………………….75

5.3 Software Functions………………………..………………………………78

Figures

Figure 1.1: Dimensions of APC-3229A……………………………………..…8 Figure 1.2: Dimensions of APC-3249A………………………………………..9 Figure 1.3: Front View of APC-3229A……………………………………….14 Figure 1.4: Rear View of APC-3229A………………………………………..14 Figure 1.5: Front View of APC-3249A……………………………………….15 Figure 1.6: Rear View of APC-3249A………………………………………..15

APC-3XX9A User Manual

6

Chapter 1 Getting Started

APC-3229A

APC-3249A

System

CPU

Intel 4th Gen Core i5-4402E 1.6GHz processor (Haswell) TPD 25W

System Memory

2 x 204 Pin DDR3 SO-DIMM, default 4GB (one slot), up to 8GB 1066/1333MHz

System Chipset

Intel QM87

I/O port

 2 x DB9 RS-232/422/485 default RS-232 (COM1/COM2)  1 x DB9 RS-232 (COM3 for Option)  1 x VGA  1 x HDMI with Cover  2 x DisplayPort  2 x RJ45 GbE LAN  4 x USB 3.0  1 x Mic-in, Line-Out  1 x 8 pin 3in/out/VCC/GND terminal block connector (for option)  1 x 3pin DC power connector  1 x Rocker switch for power on/off (for option)  2 x LED light for power and HDD indication

Storage

2 x 2.5" SATA HDD space (Easily Accessible storage design) Support RAID 0/1

CD/DVD-R Device

1 x Slim DVDRW device for option

1.1 Features

Intel 4th Gen Core i5-4402E 1.6GHz processor (Haswell) Intel QM87 2 x DDR3 1600MHz SO-DIMM, up to 16GB system memory Fanless Design Support 1 x PCIe x16 slot DC 11~32V Power input Front Panel IP65

1.2 Specifications

APC-3XX9A User Manual

7

1 x External CF slot by TB-503 for option.

OS Support

Windows XP embedded, Windows embedded standard 7, Windows 7 Pro for embedded, Windows 8

LCD

LCD Size/ Brand

21.5” AUO

24” AUO

Max. Resolution

1920x1080

Max. Color

16.7M

Luminance (cd/m2)

250

300

Contrast Ratio

3000 : 1

View Angle

H178 / V178

H178/V178

Backlight Lifetime

30,000 hrs

50,000hrs

Touch Screen (Optional) - Resistive Type

Interface

Default USB Optional RS-232

Projected Capacitive Touch

Interface

Default USB

TS control Board

On board touch tail

Power Supply

Power Input

11~32V DC on board

Mechanical

Front Bezel

Panel mount Steel black/VESA mount 100x100

Rear Panel

Steel black

Environmental

Operating Temperature

0~50 ﾟ C

Storage Temperature

-20~60 ﾟ C

Storage Humidity

10~90% @40℃ non-condensing

Vibration

1G / 5 ~ 500Hz (Random) / Operation

Shock

19G peak acceleration(11 msec. duration)/operation

Certificate

Meet CE/FCC Class A

Waterproof / Dustproof

Panel IP65

APC-3XX9A User Manual

8

1.3 Dimensions

APC-3XX9A User Manual

Figure 1.1: Dimensions of the APC-3229A

9

APC-3XX9A User Manual

Figure 1.2: Dimensions of the APC-3249A

10

1.4 Installation of HDD

Step 1

There are 2 screws to deal with when Installing

of HDD.

Step 2

Loosen screw and draw the HDD bracket out as shown in the picture.

Step 3

Tighten four screws as shown in the picture

APC-3XX9A User Manual

11

Step 4

Push into the HDD bracket as shown in the picture.

Step 5

Tighten the 2 screws as shown in the picture.

APC-3XX9A User Manual

12

1.5 Installation of PCIe Add-on &CF

Step 1

There are 2 screws to deal with when enclosing or removing the chassis.

Step 2

Remove the storage cover.

Step 3

The PCIe slot is inside.

APC-3XX9A User Manual

13

Step 4

Now slide the addon into the PCIe slot, making sure the golden part faces the slot. When the part that is interfaced together come into the right contact, slightly push the addon into the rail of the slot.

Step 5

After sliding the addon into the PCIe expansion slot, get the one screw as circled tightened to finish the connection.

Step 6

To finish the job, just fasten the 2 screws as shown in the picture.

APC-3XX9A User Manual

14

1.6 Brief Description of the APC-3XX9A

APC-3XX9A is a fanless and high-performance panel-mount industrial panel PC with 21.5”/24” TFT LCD. It is powered by an Intel 4th Gen Core i5-4402E 1.6GHz processor. The panel PC has a rich variety of functions and peripherals. It comes with two 2.5” SATA HDD space and one optional External CF slot by TB-503 for data storage, support 2 x 204-pin DDR3 SO-DIMM 1066/1333MHz, up to 8GB, support rich I/O, and also provide 1 x PCIe x 16 slot, it can ensure simplified connectivity to a variety of external peripheral devices. The OS supports Windows XP Embedded, Windows Embedded Standard 7, Windows 7 Pro for Embedded, Windows 8.

Figure 1.3: Front View of APC-3229A

Figure 1.4: Rear View of APC-3229A

APC-3XX9A User Manual

15

Figure 1.5: Front View of APC-3249A

Figure 1.6: Rear View of APC-3249A

APC-3XX9A User Manual

16

Chapter 2 Hardware

Form Factor

Dimensions

Mini-ITX (6.7-in x 6.7-in)

Processor System

CPU

Socket BGA 1364 for Intel® Core i7/i5/i3/mobile processor (Haswell)

Core Number

(By CPU, Max 4) MAX Speed

(By CPU)

L3 Cache

(By CPU)

Chipset

QM87

BIOS

UEFI

Expansion Slot

PCI

0

Mini-PCIe

1 (Full size)

mSATA 1 (Full size)

1 (Full size)

PCIe

1 (x16) with Riser card extend to x8+x8 or x8+x4+x4

CFast Card Socket

0

Memory

Technology

Dual Channel DDR3 1066/1333/1600 MHz SDRAM

Max.

16GB

Socket

2 x SO-DIMM

Graphics

Controller

Intel® HD Graphics (By CPU)

VRAM

Shared Memory

VGA

Supports max resolution 1920x1200

LVDS

1

HDMI

Supports HDMI 1.4a, max resolution 4096x2304

DVI

No

Display Port

Supports max resolution 3840x2160

Multi Display

Yes (Three Display)

Ethernet

10/100/1000 Mbps

Controller

GbE LAN1: Intel® I210, LAN2: Intel® I217LM (with v-Pro support)

2.1 Mainboard Specifications

APC-3XX9A User Manual

17

Connector

2 x RJ-45

SATA

Max Data Transfer Rate

SATA2 (3.0Gb/S), SATA3 (6.0Gb/S), Supports RAID 0/1/5/10

Rear I/O

VGA

1

DVI

0

HDMI

1

Display Port

2

Ethernet

2

USB

4 x USB 3.0 compliant

Audio

2 (Mic-In, Line-Out)

Serial

2 (RS-232/422/485)

PS/2

0

Internal Connector

USB

- 8 (4 x USB Header 2.54mm pitch)

- 1 Vertical Type A USB Connector

LVDS/ Inverter

24 bit dual channel LVDS VGA

0

Serial

4 (RS-232)

SATA

4 x SATA3 (6.0Gb/s), Support RAID 0/1/5/10

mPCIe

1

Parallel

1

mSATA

1

IrDA

0

GPIO 8-bit

4 x GPI + 4 x GPO

SATA PWR Output Con

1

Speaker Header

0

Watchdog Timer

Output

Output from super I/O to drag RESETCON#

Interval

256 Segments, 0,1,2…255 Sec/Min

Power Requirements

Input PWR

DC-in 11V~32V

Power On

AT/ATX Supported

-AT : Directly PWR on as power input ready

-ATX : Press button to PWR on after power input ready

Environment

Temperature

0ºC – 60ºC

APC-3XX9A User Manual

18

2.2 Jumpers and Headers Setting Guide

1 : ATX Power Connector

11 : Digital Input / Output Pin Header

21 : BLT_PWM1 Header

2 : 2-pin UPS Module Power Input Connector

12 : PS2_KB_MS1 Header

22 : 3W Audio AMP Output Wafer

3 : SATA Power Output Connector

13 : Chassis Intrusion Headers

23 : Front Panel Audio Header

4 : TPM Header

14 : System Panel Header

24 : LVDS Panel Connector

5 : 4-Pin CPU FAN Connector

15 : SATA3 Connectors

25 : Backlight Volume Control

6 : 3-Pin Chassis FAN Connector

16 : USB2.0 Connectors

26 : Backlight Power Connector

7 : Digital Input / Output Power Select

17 : USB2.0 Port (USB12)

8 : ATX/AT Mode Jumper

18 : Clear CMOS Header

9 : COM3, 4, 5, 6 Headers (RS232)

19 : BKT_PWR1 Header

10 : Printer Port Header

20 : PNL_PWR1 Header

APC-3XX9A User Manual

19

Jumpers Setup

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default

setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, user default profile and MAC address will be cleared only if the CMOS battery is removed.
