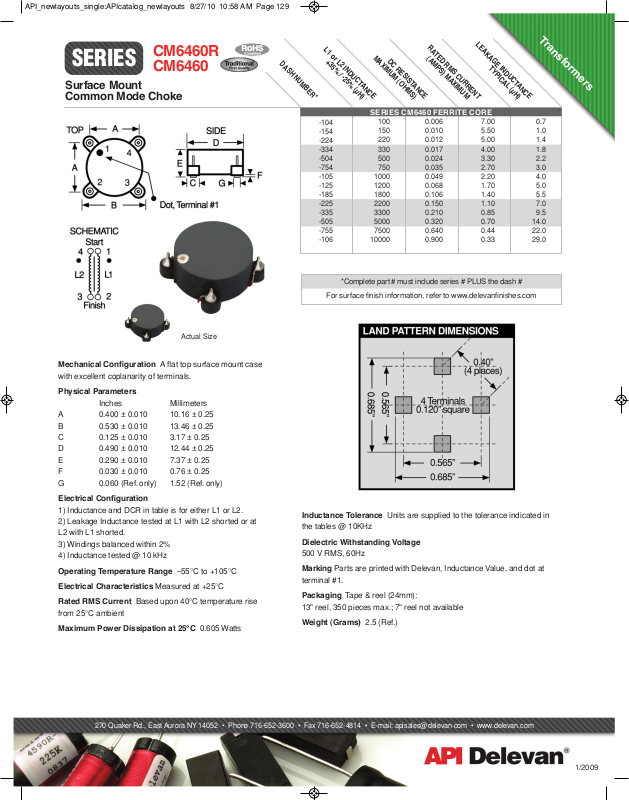

CM6460R
SERIES
Surface Mount
Common Mode Choke
CM6460
D
A
S
H
N
U
MB
E
R
*
-104
-154
-224
-334
-504
-754
-105
-125
-185
-225
-335
-505
-755
-106
L
XIMU
EA
K
AGE INDUCTANCE
T
U
R
YPICAL (µH)
R
EN
M
T
7.00
5.50
5.00
4.00
3.30
2.70
2.20
1.70
1.40
1.10
0.85
0.70
0.44
0.33
ESIST
O
H
MS)
R
AT
ED
(
A
R
MPS)
MS C
MA
A
N
C
E
0.006
0.010
0.012
0.017
0.024
0.035
0.049
0.068
0.106
0.150
0.210
0.320
0.640
0.900
L
1
o
r L
+
2
3
IN
5
% / -
2
*Complete part # must include series # PLUS the dash #
For surface finish information, refer to www.delevanfinishes.com
MA
D
C
XIMU
D
U
C
5
T
% (
A
N
µ
H
)
R
M (
C
E
SERIES CM6460 FERRITE CORE
100
150
220
330
500
750
1000
1200
1800
2200
3300
5000
7500
10000
Transformers
0.7
1.0
1.4
1.8
2.2
3.0
4.0
5.0
5.5
7.0
9.5
14.0
22.0
29.0
Actual Size
Mechanical Configuration A flat top surface mount case
with excellent coplanarity of terminals.
Physical Parameters
Inches Millimeters
A 0.400 ± 0.010 10.16 ± 0.25
B 0.530 ± 0.010 13.46 ± 0.25
C 0.125 ± 0.010 3.17 ± 0.25
D 0.490 ± 0.010 12.44 ± 0.25
E 0.290 ± 0.010 7.37 ± 0.25
F 0.030 ± 0.010 0.76 ± 0.25
G 0.060 (Ref. only) 1.52 (Ref. only)
Electrical Configuration
1) Inductance and DCR in table is for either L1 or L2.
2) Leakage Inductance tested at L1 with L2 shorted or at
L2 with L1 shorted.
3) Windings balanced within 2%
4) Inductance tested @ 10 kHz
Operating Temperature Range –55°C to +105°C
Electrical Characteristics Measured at +25°C
Rated RMS Current Based upon 40°C temperature rise
from 25°C ambient
Maximum Power Dissipation at 25°C 0.605 Watts
Inductance Tolerance Units are supplied to the tolerance indicated in
the tables @ 10KHz
Dielectric Withstanding Voltage
500 V RMS, 60Hz
Marking Parts are printed with Delevan, Inductance Value, and dot at
terminal #1.
Packaging Tape & reel (24mm):
13" reel, 350 pieces max.; 7" reel not available
Weight (Grams) 2.5 (Ref.)
270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com
1/2009
