Aphex 1788A User Manual

Instruction

Manual

IMPORTANT NOTICE

This manual contains valuable information you will
need to install and use the 1788A.

A separate remote control manual has been
created to deal with remotely controlling the 1788A,
use of the PC and Mac software, and use of the
1788A-R dedicated hardware remote control unit.
Please be sure to maintain a copy of that manual
together with this one.

P/N 999-4320 Revision 1 Released 05/12/2005

Manufactured by

Aphex Systems Ltd.

11068 Randall St.

Sun Valley, CA 91352 USA

S Y S T E M S

Copyright 2005 Aphex Systems Ltd. All rights reserved.

Produced by: Donn Werrbach. Creation tool: Adobe InDesign 2.0. Printed by: Stuart F. Cooper Co., Los Angeles.

MICROPHONE PREAMPLIFIER

A MESSAGE FROM THE PRESIDENT

Dear Aphex Customer,

Congratulations on your purchase of the Model 1788A remote controlled microphone preamplifier. Years of
research and development were required to overcome the hurdles that similarly purposed products do not even
address. Additional years of use of the original Model 1788A in some of the most critical audio applications
resulted in the significant improvements that are embodied in the 1788A.

The primary improvement is the use of TCP/IP protocol over Ethernet for remote control. Execution of control
commands as well as metering feedback is almost instantaneous for 128 channels.. The control can be achieved
via an extremely powerful yet easy to use software package (PC or Mac), a dedicated hardware remote controller
Model 1788A-R, or anything that talks MIDI.

Of course, the same unique features that made the 1788A so functional and great sounding are still included
in the 1788A. Included is the Digitally Controlled Low Noise Amplifier (LeNA™) that provides glitchless and
noiseless gain changes. The MicLim™ is a limiter that is in front of the preamp that virtually prevents overload.
The Drift Stabilized A/D™ eliminates the need for the high pass filter in the digital domain and also assures
maximum resolution. All these patented features make the 1788A an indispensable tool for live or studio
applications.

We are extremely pleased that you have joined the elite of the audio world that appreciate the benefits that
only the 1788AA system provides.

Very truly yours,

Marvin Caesar
President

Safety Declarations

CAUTION: For protection against electric shock, do not remove the cover. No user serviceable parts inside.

WARNING: This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the operating guide, may cause interference to radio communica­tions. Operation of this equipment in a residential area is likely to cause interference in which case the user will be required
to correct the interference at his own expense.

The user is cautioned that changes and modifications made to the equipment without approval of the manufacturer could
void the user’s authority to operate this equipment.

It is suggested that the user use only shielded and grounded cables to ensure compliance with FCC Rules.

Page 2

|

®

C US

59887

Conforms to standards

UL60950 and EN60950.

Instruction Manual

CONTENTS

1. INTRODUCTION – 4

2. QUICK START – 6

3. INSTALLATION – 10

4. FUNCTIONS IN DETAIL – 15

5. USING THE DIGITAL MODULE – 23

6. TYPICAL OPERATION – 29

7. Warranty & Service – 34

8. Specifications – 35

APPENDICES - 47

CONTENTS

1.1 LOGICAL CONTROL BLOCKS — 4

1.2 PATENTED TECHNOLOGY — 4

1.3 SIGNAL & CONTROL — 4

1.4 SIMPLIFIED BLOCK DIAGRAM — 5

2.1 FRONT PANEL — 6

2.2 REAR PANEL — 7

2.3 GETTING UP & RUNNING — 8

3.3 REAR PANEL VIEW — 10

3.1 UNPACKING AND INSPECTING — 10

3.2 MOUNTING — 10

3.3 REAR PANEL VIEW — 10

3.4 POWER CONNECTION — 10

3.5 MICROPHONE INPUT — 11

3.6 OUTPUT CONNECTORS — 11

3.7 INPUT TRANSFORMER MODE — 12

3.8 MIDI CONNECTIONS — 12

3.9 COM PORT — 13

3.10 INSTALLING NEW FIRMWARE INTO THE 1788A — 13

3.11 AUX OUTPUT POST/PRE MODE SETTING — 13

4.1 LOCAL BLOCK — 15

4.2 CONTROL BLOCK — 18

4.3 DIGITAL BLOCK — 20

4.4 MONITOR BLOCK — 21

4.5 TEST BLOCK — 21

4.6 SECONDARY FUNCTIONS — 22

4.6.1. Display Brightness — 22

4.6.2. Flash Version — 22

4.6.3. Synchronize — 22

4.6.4. Sysex Dump — 22

5.1 SYNCHRONIZATION — 23

5.2 SENDING DIGITAL AUDIO — 28

6.1 BYPASSING A CONSOLE’S MICROPHONE PREAMPLIFIERS — 29

6.2 DIRECT TRACKING — 30

6.3 USING ALL OUTPUTS TO FEED FIVE DESTINATION DEVICES — 31

6.4 USING THE MICROPHONE OUTPUT LIMITER — 32

6.5 USING POLARITY REVERSE — 32

6.6 GROUPING CHANNELS — 33

7.12 WARRANTY — 34

6.2 SERVICE INFORMATION — 34

8.1 GENERAL SPECIFICATIONS — 35

8.2 ARCHITECT’S SPECIFICATIONS — 36

Appendix A: Balanced and Unbalanced Lines and Operating Levels — 37
Appendix B: Dealing With Grounds and Hum — 38
Appendix C: Proper Wiring Techniques — 39
Appendix D: Standard Cable Wiring — 41
Appendix E: Helpful Wiring Table — 45
Appendix F: Word Clock Cabling — 47

Page 3

1. INTRODUCTION

The Aphex Model 1788A is a premium 8-channel remote controlled microphone
preamplifier with sophisticated features. Remote control means the preamps can be
located anywhere they are needed for optimum performance. By locating 1788A’s just
off-stage, near the microphones for example, many difficulties can easily be overcome
such as long mic lines picking up noise and RF interference; capacitance of long mic
lines degrading the high end response; mic splitters dumping multiple loads onto the mic
knocking down output level and making mics sound dull and lifeless.

1.1 LOGICAL CONTROL BLOCKS
Controls on the front are graphically divided into five separate blocks: Local, Control,

Digital, Monitor and Test.

The Local Block includes the individual meters and function lights for all eight channels,
and a single set of assignable function control buttons plus a multipurpose ADJUST knob.
The Control Block manages port and NET parameters. The Digital Block manages the
digital audio parameters when the Digital Option is installed. The Monitor Block puts the
selected channel’s sound up on headphones. The Test Block is used to calibrate system
levels.

MICROPHONE PREAMPLIFIER

1.2 PATENTED TECHNOLOGY
MicLim™, our patented “microphone output limiter”, limits in front of the preamplifier

to prevent overloading the front end. Now you don’t have to worry about clipping and
you can run higher gain and higher average output level. This translates not only to
distortion prevention, but to digital audio with maximum resolution and no “overs”. Low

level signals that used to be lost in the noise will be audible, making your tracks more detailed and
dimensional.

LeNA™, our patented digitally controlled low noise amplifier, allows glitchless and
noiseless local and remote control over gain.

Our patented Drift Stabilized A/D Converter further advances the quality of digital
audio by perfectly balancing the ADC and eliminating its digital highpass filter.

1.3 SIGNAL & CONTROL

Analog I/O

The Model 1788A has three analog signal groups:

1. Eight Balanced MIC Inputs on XLR

2. Eight Servo-Balanced MAIN Line Outputs on XLR

3. Eight Active Balanced AUX Line Outputs on one 25 Pin D-Sub following Tascam
pinout.

Remote Control

1788A’s are controlled through MIDI protocol. Both standard MIDI and special Ethernet
LAN ports are provided. Anything producing MIDI such as a light controller board, a show
control system, a sequencer, a DAW, a MIDI controller, or a keyboard can act as the 1788A’s
controller. The Ethernet connection facilitates high speed remote control networking of a
constellation of 1788A’s. Up to 300 units (2400 mics) can be controlled by software and
64 banks of 16 units can be controlled by the hardware remote simultaneously.

Page 4

Instruction Manual

Gain

Input Gain Control

MIC

INPUT

Tone Bus

+48V

Phantom Power

Test Tone Pad

+20dB

Front End

HPF

Lo Cut

Servo

Bal

.

MAIN

OUTPUT

(XLR)

AUX

OUTPUT

(DB25)

-26dB

Bal.

AES3

OUTPUT

(DB15)

Limiter

Limiter

Other Channel

Underlined Italics
indicate digital controls

Clip Light

Limit Light

Peak Meter

A/D

Conv

.

Polarity

0-39dB

Clip Det.

Level Det.

+6dB

Attn.

0 -27dB

Attn.

0-27dB

Pre

Post

Main Output Ref.

Aux Output Ref.

+6dB

ADAT

OPTICAL

WORD CLOCK

Input (BNC)

PLL

Internal

Clock

AES3 Outputs Paired
As 1&2, 3&4, 5&6, 7&8

Main Mute

Aux Mute

Clock Int/Ext.

Sample Rate

WORD CLOCK

Output (BNC)

TDIF

X4

Optional Digital I/O

When the optional digital audio output module is installed, three 8-channel simultaneous
digital outputs are available:

1. Alesis ADAT® Output, Optical Fiber Interface

2. Tascam® TDIF™ Output, 25 Pin D-SUB

3. Aphex specific AES/EBU Output, 15 Pin D-Sub

Digital sync is derived from a selectable internal clock, or externally from either the BNC
clock I/O or the TDIF connector. A Dip Switch is provided to set certain critical parameters
relating to sync. Please refer to section 3 for the dip switch chart.

How LeNA™ Changes Everything

Other manufacturers’ remotely controlled preamps provide whopping and popping gain
steps of 4 to 10dB. Events often call for trimming the mic gain, and jumping through
such large steps can be painfully obvious to the audience and the talent. We worked
on this problem until we invented and patented a new technology that we call LeNA™
(Digitally Controlled Low Noise Amplifier). With LeNA we give you gain “stops” (stable
gain set-points) in 1dB increments that are ramped through inaudibly minute 1/4dB steps

- smooth as a baby’s bottom!

1. INTRODUCTION

Presets - Another Advantage

1.4 SIMPLIFIED BLOCK DIAGRAM

The ability to create and save presets is a side benefit of having a comprehensive digital
remote control system. The whole eight channel array of preamp functions can be stored
to presets and recalled. You can reconfigure a single 1788A or a very large array of them
just by recalling a preset. This works out great when you need to re-set mics by the scene
or act, or to get fast setups at new venues.

Page 5

2. QUICK START

2.1 FRONT PANEL

MICROPHONE PREAMPLIFIER

2

5,6,7,8

9,10,11

12,13,14,15

17

21

23

1

1. CHANNEL SELECT buttons select one of
eight channels for local control.

2. CHANNEL STATUS READOUT displays input
gain and maximum output settings; function
status and headroom.

3. MULTIPLE SELECT button allows
simultaneous control of a group of channels.

4. ADJUST CONTROL adjusts gain setting for
the input, maximum output for the MAIN OUT
and AUX OUT, and the Channel, Device, and
Net numbers in the Status Readout Display. For
secondary control it sets the display brightness.

5. GAIN SELECT button determines the
function of the GAIN control: Input, Main
Output or Aux Output.

6. MUTE shuts down the analog output of the
selected channel. Gain and other functions can
be adjusted while a channel is muted.

7. PHANTOM +48V engages the 48V phantom
power for condensor microphones.

8. 26dB PAD inserts a 26dB PAD (attenuation)
on the input stage.

9. POLARITY REVERSE reverses polarity on the
input stage.

10. ENABLE LIMITER engages the MicLim™
limiter on the output of the microphone.

11. LOW CUT 75Hz engages a 12dB/octave
low cut filter with a corner frequency of 75hz.

12. ADJUST/STORE arms the ADJUST control

4

3

16

18,19

20

22

24

so that MIDI Channel and Device numbers and
Net numbers can be adjusted. After adjustment
the STORE saves the selected numbers.

13. MODE selects whether the remote control
will be MIDI or LAN.

14. SET I.D. selects which number (Channel,
Device or Net) is being adjusted.

15. LOCAL CONTROL button allows
adjustments from the front panel.

16. REMOTE ACTIVITY LED indicates the
1788A is receiving control data from a remote
device.

17. GLOBAL STATUS READOUT displays values
for the elected function.

18. CLOCK button selects either an internal or
external digital clock synchronization reference.

19. RATE button selects the sampling rate when
using the internal digital clock.

20. MONITOR CHANNEL selects the channel
sent to the head phone monitor. Selected
channel is indicated on the Channel Status
Readout.

21. VOLUME control adjusts headphone
monitor level.

22. PHONE JACK is used for headphones.

23. 700Hz TEST TONE is used to adjust system

levels. It is bussed to selected channel at one of
two levels (0dBFS or - 0dBFS).

24. POWER On switch.

Page 6

Instruction Manual

AUX

OUTPUT

CH 8

MIC IN

LINE OUT

CH 7

MIC IN

CH 6

MIC IN

CH 5

MIC IN

CH 4

MIC IN

CH 3

MIC IN

CH 2

MIC IN

CH 1

MIC IN

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT

THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

LINE OUT

LINE OUT

LINE OUT

LINE OUT

LINE OUT

LINE OUT

LINE OUT

2.2 REAR PANEL

2. QUICK START

2

1 3

4

7 8 9

5

6

10

Optional

Digital Module

1. POWER RECEPTACLE: works on 80 to 280
VAC without any jumper changes or switches.

2. MIDI CONNECTORS: provided for controlling
the Model 1788A remotely.

3. LAN CONNECTOR: for standard CAT5
Ethernet connection.

4. RS-232 COM Port: for downloading new
firmware into the preamp.

5. DIP SWITCH: sets priority for external
synchronization.

6. AES/EBU DB-15 DIGITAL OUTPUT: provides
four stereo pairs of AES3.

7. ADAT OPTICAL OUTPUT: provides direct
connection to ADAT compatible equipment.

11

12

8. TDIF DIGITAL OUTPUT (Tascam format):
routes all eight channels directly to a Tascam
DA-88 or compatible input.

9. BNC Clock I/O: syncs the Model 1788A to an
external clock source (word clock or super-clock)
and links multiple 1788A’s to the same clock.

10. AUX ANALOG OUTPUTS: DB-25 connector
with eight active-balanced transformerless
outputs.

11. XLR MIC INPUTS: balanced, transformer
isolated.

12. XLR MAIN ANALOG OUTPUTS: servo­balanced, transformerless.

All five signal outputs can be used simultaneously.

Page 7

2.3 GETTING UP & RUNNING

Here’s a step by step instruction on using the 1788A. Please plug a
microphone into Channel 1 and connect the CH1 Main Output to a
mixer or recorder input. Turn all units on.

1. Press the LOCAL CONTROL button in the Control Block to enable
the front panel controls. It’s a good idea to get into the habit of
tapping the LOCAL CONTROL button every time you need to make new
adjustments at the front panel just to make sure you have access.

2. Press the CHANNEL SELECT button on the front panel labeled “1”.
This attaches the preamp controls to channel 1.

3.. If the microphone you are using requires phantom power, press the
Phantom +48V button. You should see the +48V light come on in

the first channel’s Channel Status Readout. If you are using a dynamic
or ribbon microphone, leave the +48V off or turn it off if it is on.

MICROPHONE PREAMPLIFIER

CAUTION 1: Beware of the potential shock hazard with
phantom power. Don’t touch the contacts.

CAUTION 2: It has been reported that some ribbon mics may be

damaged by phantom power. This is unusual, but it’s a good idea to
keep it turned off when not required.

4. At this point you can try all the other parameters like PAD, POL, etc.
by pressing their buttons to get the feel. You should be able to adjust
the preamp gain, and hear the mic through your system. Next, we
need to set the maximum output level to match your mixer or recorder.
Turn all the preamp functions off. Turn down your speaker volume.

5. Turn on the 0dB test tone by holding down the 0dB 700Hz TEST
button and tapping the channel 1 select button. The Ch 1 bargraph
meter should go to full scale indicating tone presence. You should hear
the tone and see it’s presence on your equipment.

6. Select Main Out with the GAIN SELECT button and adjust the
output level with the ADJUST control. If you know the rated maximum
input level (MIL) to your recorder or mixer, set the 1788A’s output to
that value. For example, if your recorder can take +24dBu max input,
set the 1788A’s output to 24 as indicated on the 1788A’s digital gain
readout. That makes sure the dynamic range of the 1788A is matched

Page 8

Instruction Manual

to your equipment and that our MIcLim protection will indeed protect
you from clipping your gear. If you don’t know the MIL of your input,
then use your mixer or recorder’s meters to indicate full scale input.
Simply adjust the 1788A’s Main Output Gain to get just under a full
scale reading. When done, tap the TONE button to kill it.

NOTE: If completely in doubt, simply set the output level to a number

that is 20dB above your 0dB reference level. If +4dBu, set it to
+24. If -10dBV (equal to approx. -12dBu), set it to 8.

7. Give the microphone some sound and monitor the Headroom
meter in the Channel Status Readout. Select Input Gain with the
GAIN SELECT button and adjust the input gain so that the peaks fall
approximately between 12dB and 6dB of headroom.

8. If the input gain is set at its lowest setting (26dB) and the level is still
too hot, use the 26dB PAD.

2. QUICK START

9. To test the MicLim protection, select ENABLE LIMITER. You will

easily verify that it’s working on loud shouts. Try shouting into the mic
with the Limiter on and off to see the difference. With MicLim on, you
will be able to safely run higher gain and level without fear of clipping
on loud sounds.

10. When mic’ing a vocal, the LOW CUT 75Hz function will provide
pop protection. For deepest musical bass when mic’ing an instrument,
you’ll probably want to leave it off.

11. You can monitor your mic channel with headphones on the front
panel. Turn down the phones volume, plug in the phones. Press the
Monitor Channel Select until 1 appears and adjust the volume to
suit. Now you can hear channel 1 in high fidelity.

12. Running remote control will require additional instructions that are
covered in the separate Remote Control Manual.

Page 9

3. INSTALLATION

AUX

OUTPUT

CH 8

MIC IN

LINE OUT

CH 7

MIC IN

CH 6

MIC IN

CH 5

MIC IN

CH 4

MIC IN

CH 3

MIC IN

CH 2

MIC IN

CH 1

MIC IN

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT

THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

LINE OUT

LINE OUT

LINE OUT

LINE OUT

LINE OUT

LINE OUT

LINE OUT

3.1 UNPACKING AND INSPECTING

Your Aphex product was carefully inspected and packaged at the factory prior to shipment.
The carton and packing materials are designed to protect the unit during shipment, but
you should inspect the carton and its contents for signs of physical damage before use.
It is your responsibility to file a damage claim with the shipper. We encourage you to
save the original packing materials in case you should ever need to ship this unit out for
servicing.

3.2 MOUNTING

The Model 1788A occupies 2RU (90mm or 3.5 inches) of a standard EIA equipment rack.
Allow at least an additional 3” to 4” of depth for connectors. Place the Model 1788A in
the desired rack space and secure with the cushioned rack screws supplied or equivalent
hardware. Don’t position the Model 1788A directly above power amplifiers or power
supplies that produce strong hum fields or heat.

A word on rack mounting and ventilation

All electronic equipment will experience premature failure if operated at excessive
temperatures. The 1788A requires adequate vented air space for proper cooling. What
is adequate depends on the ambient temperature, proximity of other heat producing
equipment, and whether the air is moving or still. It is always best to err on the safe side.

MICROPHONE PREAMPLIFIER

We recommend at least one free rack space be allowed between each 1788A. The space
between units may be filled with perforated filler panels, but we recommend against
solid panels as they will restrict air flow. In severe cases, such as very hot climates or tight,
unventilated closets, a rack-top exhaust fan may be required to keep the air moving. One
of the best ways to know if you have adequate ventilation for a stack of 1788A’s is to feel if
the top unit’s chassis is substantially hotter then the bottom unit. If so, you should provide
better ventilation.

3.3 REAR PANEL VIEW

3.4 POWER CONNECTION

The Model 1788A uses a standard IEC power cord with a voltage range of 80 -280 VAC.
The appropriate mains plug for each country is normally shipped with each unit. However,
if you must install or replace the plug use the correct wiring code as follows:

USA IEC/Continental

Black = Live Brown = Live

White = Neutral Blue = Neutral

Green = Ground Yellow/Green = Earth

Page 10

Instruction Manual

1

2

3

3

3

1

2

3

2

2

1

1

1

14 15 16 17 18 19 20 21 22 23 24 25

2 3 4 5 6 7 8 9 10 11 12 1

3

13

25 24 23 22 21 20 19 18 17 16 15 14

12 11 10 9 8 7 6 5 4 3 2 1

Ground Loops

Ground loops hardly ever cause problems within the 1788A since it was designed with
high immunity. However, other equipment connected to the 1788A may experience hum
and noise from a ground loop. Ground loops can occur when various interconnected
equipment is powered from separate AC circuits that are fed from opposite phases of the
power feeder. Most service panels assign odd numbered breakers to one phase and even
to the other. Rooms that are powered from more than one circuit can have outlets that are

out of phase. Adjacent rooms may be powered with opposite phase.

NOTE: If your system is plagued with ground loop troubles, you should try to get all
the equipment onto the same phase or use a local power isolation transformer.

3.5 MICROPHONE INPUT

The eight transformer coupled microphone INPUT CONNECTORS are locking female 3-pin
XLR’s wired with pin 2 positive.

3.6 OUTPUT CONNECTORS

Two separate analog outputs per channel are provided:

1. Transformerless servo-balanced Main Outputs on eight separate XLR’s

3. INSTALLATION

2. Eight transformerless active balanced Aux Outputs on a single DB-25 connector.

Main and Aux outputs have separate individual output level control. Using these two
outputs, the 1788A can serve as an active mic splitter.

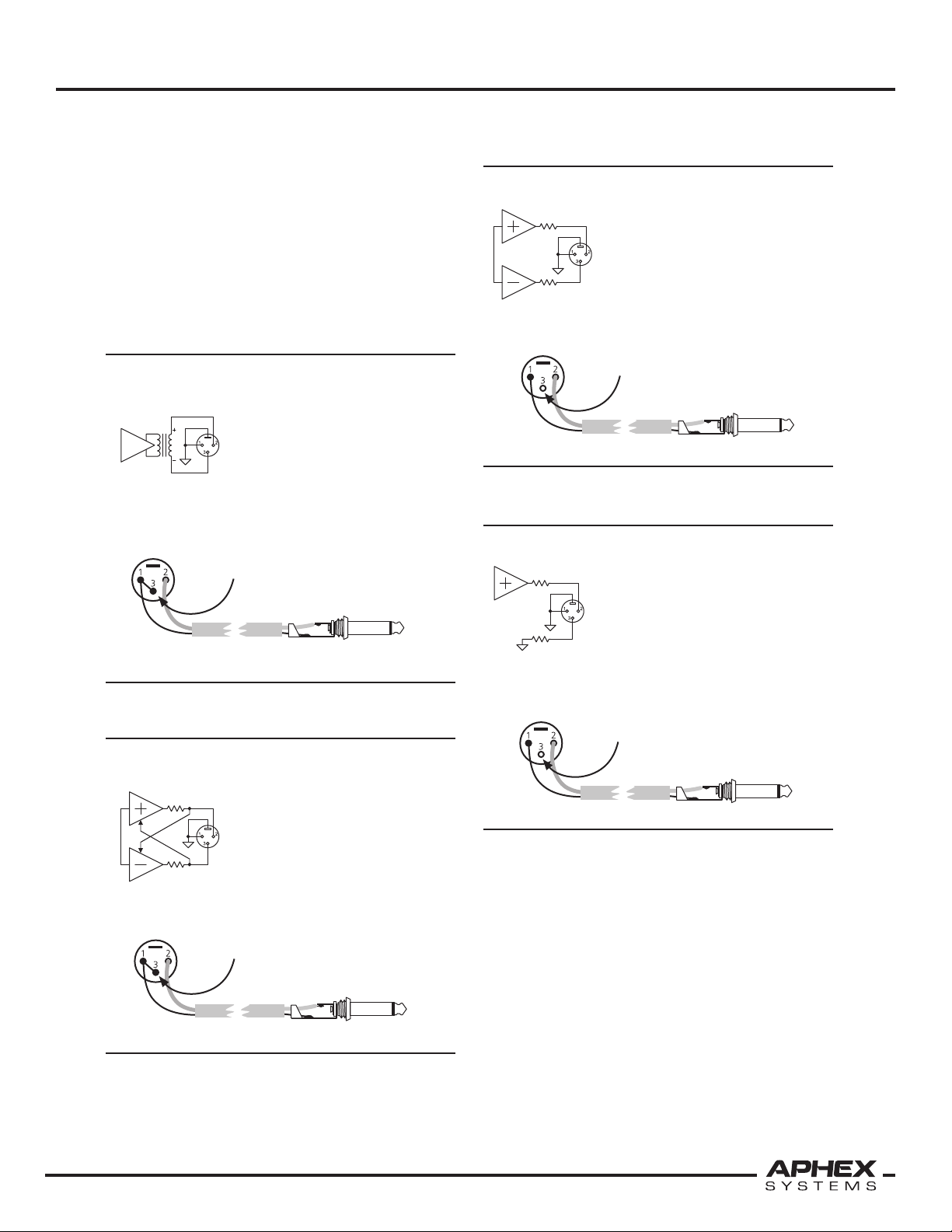

Pin connections for the XLR type connectors follow the international standard of pin-1
ground, pin-2 positive and pin-3 negative as shown below.

MALE AND FEMALE 3-PIN XLR CONNECTORS

NOTE: Read more information about audio wiring practices in the appendices.

DB-25 PIN CONFIGURATION (AUX OUTPUT)

The following chart is a pin configuration for the analog DB-25 connector.

Male

CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8

(+) 24 10 21 7 18 4 15 1

(-) 12 23 9 20 6 17 3 14

Female

GND 25 11 22 8 19 5 16 2

2 Positive (+)

3 Negative (-)

1 Shield (Ground)

Page 11

This connector pinout matches the Tascam Analog DB-25 connector that has also been

(LOADED) JP1

(UNLOADED) JP2

INPUT

XFRMR

MIDI

IN OUT THRU

1

2

3

4

5

Not Connected

Data +

Data ­Ground

Not Connected

adopted by many other manufacturers such as Mackie and Yamaha. Ready made cables
can be purchased to connect with other products, or to obtain a break-out to XLR plugs.

Refer to Sections 5 for more information about using the Main and Aux Outputs.

3.7 INPUT TRANSFORMER MODE

The 1788A’s Jensen® microphone input transformers can be operated in one of two
modes: LOADED and UNLOADED. The loaded mode places a load resistor on the
transformer secondary according to the transformer manufacturer’s specifications. This
maximally flattens the frequency and phase response between 20Hz and 20KHz. The
sound, of course, is outstanding. We have received many kudos. However, in our design
lab we discovered that leaving the transformer unloaded opens up the definition and
adds “sparkle” to many microphone sources. For analog and digital recording we feel the
user may deeply appreciate this added dimension, so we gave you a jumper option. The
LOADED mode is shipped by default, and the user will have to change the jumper to try
the UNLOADED mode.

CHANGING THE MODE

Remove the 1788A’s top cover and locate the set of
jumper pins JP1 and JP2 near each transformer. Move the
shorting device to the appropriate position as shown in the
illustration below (one jumper must always be left open).

MICROPHONE PREAMPLIFIER

3.8 MIDI CONNECTIONS

operation. MIDI cables are specially grounded and shielded to ensure efficient data
transmission.

MIDI CONNECTOR

Only the MIDI Out and MIDI Thru Ports connect Pin #2 to Ground.

NOTE: Remote control software for the 1788A is continually under development and
will go through new releases from time to time. To avoid obsoleting this manual,

we have moved the instructions covering remote operation to a separate dedicated
manual. Please locate and review that manual when planning your remote control
system.

The external remote control is based
on MIDI protocol. The Model 1788A
is fitted with MIDI and Ethernet
ports for this purpose. MIDI data is transmitted via a special five­conductor cable. Not just any 5 pin cable will suffice for proper

Page 12

Instruction Manual

3.9 COM PORT

This is a standard RS-232 Com Port that runs at a fixed 9600 Baud. It is provided to allow
downloading of new firmware into the 1788A. It has no other purpose. Read ahead
for instructions on this procedure.

3.10 INSTALLING NEW FIRMWARE INTO THE 1788A

Aphex is always striving to improve the performance of its equipment. The firmware that
was programmed into your unit was the latest available at the time it was shipped. There
may be updates to the firmware that were made from time to time. Please check the
Aphex website at www.aphex.com to see if there are any updates made to the firmware
from the time you had purchased or last updated the unit.

Determine your current firmware version by going into Local Control, depressing both Test
Tone buttons and Channel 8 at the same time. The firmware version will appear in the
Global Readout Display. If a new version is available, you may install it on your 1788A as
follows.

NOTE: Do not attempt to download any firmware designed for the 1788A onto older
Model 1788 units.

3. INSTALLATION

DOWNLOAD PROCEDURE:

1. Download to your computer the update program from the Aphex web site or other
media that you may have received.

2. Connect a NULL MODEM cable from your computer’s Com Port to the 1788A’s Com
Port.

3. Power up the 1788A while holding down both Test Tone buttons. “Load-A” will appear
in the Global Readout Display.

4. Run the update program on your computer and follow the on-screen instructions.

5. At the end of a successful 1788A download, the computer screen will show the
message: “End of Load”.

6. Cycle the 1788A’s power normally off and on. Verify the new firmware version as
described above. The new version should now appear in the Global Readout Display.

3.11 AUX OUTPUT POST/PRE MODE SETTING

Two Aux Output modes are provided: PRE and POST mic gain control. This mode feature
was created after many requests from users. As the default, the 1788A is normally shipped
in the POST mode. This would normally be considered the “normal” mode except that
many users will find advantages to the PRE mode as will be explained below.

HERE’S THE DIFFERENCE

The POST mode sources the Aux Output signal from the preamplifier’s variable gain stage
just as the Main Output does. Thus, the Aux Output will vary as a function of the preamp
gain setting. This makes the Aux Output pretty much equivalent to the Main Output
except for its own output gain variability. The PRE mode sources the Aux Output from the
preamp’s 20dB first stage, before gain control is applied. This way, the Aux Output does
not respond to variations of the preamp gain adjustment. This is well illustrated in the
figure below.

Page 13

EXAMPLE OF USING PRE MODE

JP1

JP2

PRE

POST

PRE

POST

INPUT

XFRMR

VR4 VR3 VR2 VR1 VR6

Mic

Input

Main

Output

Selectable
26dB Pad

0 or -26dB

Input
Stage

POSTPRE

+20dB

Digitally

Controlled

Amplifier

0 to +39dB

1 dB stops

Output

Stage

+6dB

Main Output

Attenuation

0 to -27dB

AUX

Output

Output

Stage

+6dB

Aux Output

Attenuation

0 to -27dB

1 dB stops

1 dB stops

The FOH position has control over the 1788A’s but the monitor position doesn’t
want to be affected by the FOH’s gain changes.

MICROPHONE PREAMPLIFIER

In this case, the monitor position gets a fixed gain of 20dB from the microphone that
will not change. This represents a moderately amplified mic signal that is normally easy
to accommodate by the monitor mixing console. The Aux Output level can be adjusted
downward to reduce the Aux output level back approximately to mic level if necessary, but
you’re better off taking the hotter level and reducing your console’s preamp gain.

Note: Pad, Polarity and Lo Cut controls are in front of the variable gain amplifier

and will therefore affect the Aux Output in both PRE and POST modes. In the above
example, if the pad is suddenly engaged by the FOH operator, then a drop in level will
be seen at the Monitor position. These are usually fixed settings that should be

decided upon during set up and left alone thereafter.

CHANGING THE PRE/POST SETTING

Remove the top cover and locate the jumper on each preamp module as illustrated below.
Move the jumper to the appropriate position.

Default

Page 14

Instruction Manual

4. FUNCTIONS in DETAIL

4.1 LOCAL BLOCK

Channel Select and Channel Status Readout

Select LOCAL CONTROL and use the CHANNEL SELECT buttons to choose one of eight
channels. Only one channel can be selected at a time, unless the MULTIPLE SELECT
button is engaged, making it possible to create a group of channels.

4. FUNCTIONS IN DETAIL

Each channel has its own Channel Status Readout. At the top is a two-digit gain
readout LED displaying the input or output gain setting depending on the status of the
GAIN SELECT button. The vertical 12 segment LED meter on the right side indicates
the available peak headroom measured in dB (4dB increments). To indicate that Local
Block functions (Polarity Reverse, Low Cut 75Hz, 26dB PAD, Phantom +48V and Enable
Limiter) have been engaged, the associated LED in the individual channel status readouts
is illuminated. When MUTE is engaged, the two-digit GAIN display at the top of the
individual channel status readout will flash double dash marks to indicate their muted
status. The flashing dash marks will alternate with the current gain setting. Even though
both analog outputs are muted, the digital outputs will not be muted. All indicators and
metering can be monitored at the remote location.

Gain Select

The GAIN SELECT button determines the function of the ADJUST control and the status
of the gain display in the individual channel status readout. The gain LED readout reflects
either the input or output setting depending on the position of the GAIN SELECT button.
Continually depressing the button will cycle through the three modes: Input, Main
Output and Aux Output. When Input is selected, ADJUST controls the input gain. When
Output (Main or Aux) is selected, the ADJUST controls the maximum output level.

8

Input Gain Control

The input gain is the actual gain of the front-end preamp section, before the variable Main
or Aux output settings take effect. Use Input Gain to bring the microphone’s signal level up
to the appropriate range as indicated on the channel’s Headroom Meter. The available
range of control is from +26dB to +65dB in 1dB stops (not “steps”) with individual
precision within +/- 0.08dB.

Page 15

NOTE: The gain does not move in 1dB steps. It ramps in small increments (1/4dB steps)

between 1dB “stops” to eliminate all gain adjustment glitches.

This brings us to making a comment about gain steps. While there are several remote

controlled preamps on the market, the problem is that they have stepped gain control
and the step size can be as large as 10dB. Even a 3dB step, up or down, in a microphone
preamp will cause an audible click or pop when it is changed. Only the Aphex Model
1788A overcomes this problem by the use of our patented LeNA™ digitally controlled
low noise amplifier technology. This method makes the step size very small, eliminating
the artifacts of sudden gain changes. This is especially appreciable when you have to roll
through a gain change of 6dB or more very quickly. The 1788A just sounds like a fader was
moved with no jumps, pops or zips. The 1788A rolls through the full span of 26 to 65dB
in 250 milliseconds. A single 1dB stop is completed in less than 15 milliseconds. In other
words, the 1788A’s smooth gain control is also fast and responsive.

Output Gain Control

The Main and Aux outputs have their own separate settings but work in the same way.
The gain is set for Main and Aux outputs depending on the position of the GAIN SELECT
button. The output gain programs an output stage attenuator to bring the 1788A’s
internal reference peak level down as necessary to match the maximum input levels of
external devices.

MICROPHONE PREAMPLIFIER

CAUTION: If you’re driving an unbalanced input from the Main Output, the actual output

reading on the channel status readout will be accurate up to +21dB as that is the
maximum output level when running Main Output unbalanced. Higher gain settings
than +21dBu will be inaccurate but will not cause any distortion. If you are using Aux
output and running a unbalanced input, the actual output will be 6dB lower than

what is indicated on the channel status readout.

There are many input stages that have odd maximum input levels (e.g. +18dBu). In order
to retain the function of the microphone limiter and maximize noise performance of the
entire audio system, the Model 1788A has output level trim of up to 27dBu balanced.
Once the maximum input level of the device following the Model 1788A is defined, the
output level of the Model 1788A can be trimmed to that level. The input gain of the
1788A is then adjusted to optimum performance. In addition to the 27dB of output
adjustment, each output may be muted.

In the event the input gain level is used to adjust the maximum output level, the benefit
of the MicLim™ function will be lost. The output level should be considered as a
“set-up and forget” function. Once it is adjusted properly, there should be no need
to make further adjustments. The displayed output level on the individual channel status
readout indicates the absolute full-scale output peak level of the output signal. This means
that no further considerations have to be taken regarding headroom when setting up the
system’s overall gain structure. For this reason, it is not recommended that the Main and
Aux output levels are adjusted remotely, even though it is possible. The test tones are quite
useful for set up purposes (described later in this section).

Mute

When the MUTE function is selected on an individual channel, both analog outputs are
muted. If MUTE is engaged when MULTIPLE SELECT is engaged then the entire group of

Page 16

Instruction Manual

channels is muted. The channel or channels that have been muted will flash double dash
marks in the Gain display of the individual channel status readout to indicate their muted
status. The flashing dash marks will alternate with the current gain setting. All parameters
may be adjusted while a channel is muted. When receiving gain settings (input or output)
remotely, the MUTE readout indication in the channel status readout will be overwritten
on any muted channel. To re-display the MUTE function, the GAIN SELECT button or the
CHANNEL SELECT button must be pressed again. The MUTE function does not affect the
headphone monitor output or the digital outputs.

Polarity Reverse

The POLARITY REVERSE button reverses the microphone preamp’s output polarity.
This can be a very useful feature in tracking down polarity differences in microphones
and/or cables. It is much easier and quicker than the alternative of swapping cables
and equipment. When the POLARITY REVERSE is inserted into a selected channel, the
corresponding POL REV LED indicator will illuminate on that channel’s status readout.
Additionally, the POLARITY REVERSE button itself will be illuminated.

Refer to Section 5.6 for instructions on how to properly use the POLARITY REVERSE
function.

4. FUNCTIONS IN DETAIL

Low Cut 75Hz

To help reduce low frequency rumble that can be caused by wind, handling of the
microphone or bad vocal articulation (popping “P’s”), a 75 Hz, 12dB per octave low cut
filter is provided. In general, this filter could be engaged when mic’ing vocals as it will
not usually affect the tonality of the human voice. When mic’ing instruments with very
wide bandwidth in the low frequency range, you may want to defeat the filter unless
there is substantial extraneous low frequency noise. When the LOW CUT 75Hz filter is
inserted into a selected channel, the corresponding LOW CUT LED indicator will illuminate
on that channel’s status readout. Additionally, the LOW CUT 75Hz button itself will be
illuminated.

26dB PAD

Using the 26dB PAD attenuates the preamp’s input signal by 26dB. It allows the channel
to receive line level inputs from a wireless microphone receiver or other high level device.

When the 26dB PAD is inserted into a selected channel, the corresponding PAD LED
indicator will illuminate on that channel’s status readout. Additionally, the 26dB PAD
button will be illuminated.

PHANTOM +48V

Pressing the PHANTOM +48V button engages the internal phantom power source. The
48 volt microphone power ramps up and down very slowly to avoid glitches. The ramping
also protects powered microphones from current surges, which have been known to
cause microphone damage. When the PHANTOM +48V power source is used on a
selected channel, its corresponding +48V LED lights up on the channel’s status readout.
Additionally, the PHANTOM +48V button itself will be illuminated.

CAUTION: Hot-plugging a microphone into a phantom powered input causes a very loud

impulse which can cause speaker damage. To be safe, allow at least 20 seconds for the
phantom power to discharge before plugging or unplugging a microphone.

Page 17

Enable Limiter

Enabling the LIMITER engages the proprietary Microphone Output Limiter (MicLim™)
which virtually eliminates the possibility of input overload. The MicLim provides up to
20dB of additional headroom. When the MicLim is inserted into a selected channel, the
corresponding LIM ON LED indicator will illuminate on that channel’s status readout as
well as the ENABLE LIMITER button. In the event the input exceeds the limiter threshold,
the CLIP/LIM indicator will illuminate.

Multiple Select

Normally, the preamp functions are controlled on a channel by channel basis. The
MULTIPLE SELECT button allows group control.

Activating MULTIPLE SELECT lets you chose any combination of the 8 channels for
simultaneous function control. Press any channel button to add it, and press again to
remove it.

When channels are added to the group, the function buttons of the Local Block will light
up to display the status of the lowest numbered channel. Other added channels do not
change status, and remain as they were until one of the function buttons in the Local
Block is pressed. Then, all grouped channels will take up that particular function state.
All uncommanded functions of the grouped channels will remain in their prior individual
state.

MICROPHONE PREAMPLIFIER

4.2 CONTROL BLOCK

Global Status Readout

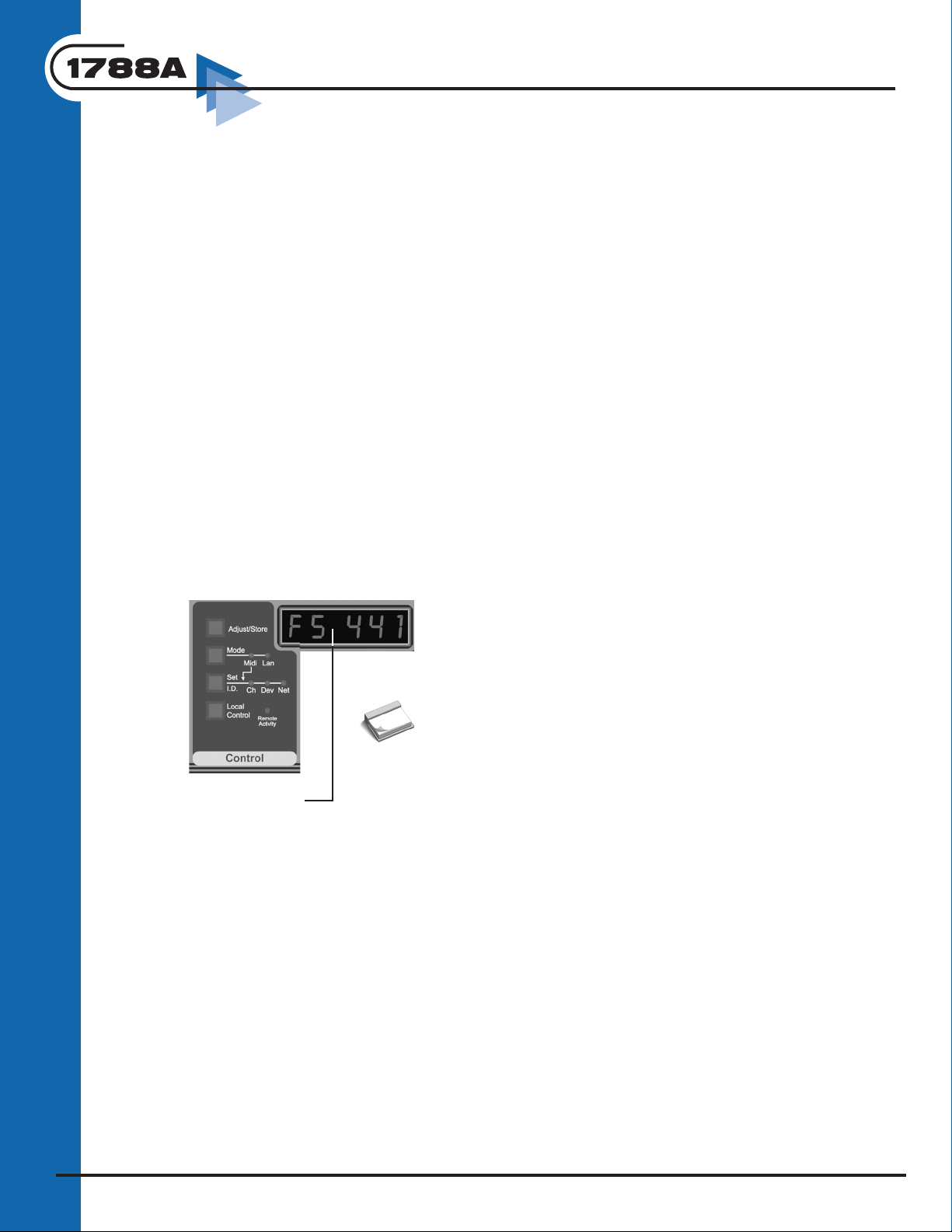

The six-digit display of the global status readout indicates whatever data value is relevant
to functions that are presently selected for control or view in the Control, Digital or
Monitor Blocks.

Adjust/Store

This button enables the adjustment and storing of the Channel, Device, and Net numbers
that this specific 1788A will respond to for remote control. To provide a level of protection
from inadvertent modification of the settings, the procedure for using this button has
been made quite specific and you should become thoroughly familiar with it to avoid
confusion.

The Adjust/Store button is inactive if it is not lit. You cannot light it just by pressing it alone.
You must first select a parameter to adjust. That is a measure of protection from
inadvertent misconfiguration of the Channel, Device, and Net numbers which are critical
to successful remote control.

Note: The first time any function button is depressed, it
will not change status of the selected function, it will only
indicate its current status in the global status readout.

Page 18

Instruction Manual

Once the Adjust/Store button is lighted, you are committed to a new store. You can use
the ADJUST dial to change the displayed number to what is wanted. Pressing the Adjust/
Store button again commits the displayed number into effect. The button will then go
dark telling you the adjust and store sequence is completed and no further changes can
be made without re-starting the sequence.

How To Escape From A Commitment

There are two ways to escape if you are into a commitment but you really don’t want to
change anything.

1. Don’t change the displayed number, or if you did, put it back to it’s old value and
press Adjust/Store again. The old value will be re-committed, which is like doing
nothing.

2. Press the Mode button. This will act like an “Escape” button and dump out of the
adjust and store sequence without committing any changes you may have made to
the number displayed.

CAUTION: Pressing any button other than Mode in the Control Block will act as a
STORE command, just as if you pressed the Adjust/Store button a second time.

4. FUNCTIONS IN DETAIL

Mode

This selects which port handles remote control communications for the 1788A: MIDI or
LAN. No matter whether you are using the MIDI or the LAN port for remote control, you
must first put the Mode into MIDI in order to be able to change the Set I.D. parameters.
Once the Set I.D. parameters have been stored, you can change the Mode back to LAN if
appropriate.

Set I.D.

This button steps through the three key unit identification parameters of Channel, Device
and Net numbers. The presently in effect values will appear in the Global Status Readout.

How To Change The Channel, Device, and Net Numbers

When you need to set or change these values, you must go through the Adjust/Store
procedure as follows.

1. Press Local Control. The button will light up indicating you now have local control
of the 1788A’s front panel.

2. Set the Mode to MIDI.

3. Toggle the Set I.D. button to Channel, Device or Net - whichever is due to be
updated.

4. Press Adjust/Store. It will light up.

5. Spin the ADJUST dial to set the correct number in the General Status Readout.
Select other I.D.’s as desired and adjust their values.

6. When the desired numbers are updated, press Adjust/Store again to store the
update. The Adjust/Store button will go off indicating the values were stored and
you’re back in safe mode.

7. Put the 1788A into the correct remote interface port by using the Mode button.

8. Press Local to return the unit to remote control state.

Page 19

Local Control

The LOCAL button allows front panel control. Press it once, you’re in local. Press it again,
you’re back in remote. The LOCAL button is lighted when the 1788A is in the local state
and dark in the remote state.

NOTE: None of the front panel buttons will be lighted while the 1788A is in the remote

control state.

While in local control state, all remote control is rejected. Because the 1788A was created
to be used primarily in remote controlled applications, the local control state is deemed to
be temporary, for emergency or infrequent control. To prevent permanent remote control
lockout, the local control state will time out automatically five minutes after the

last front panel operation was detected.

When in the remote control state, every front panel control is locked out except
for the LOCAL and MONITOR SELECT buttons. Depress the LOCAL button once to

regain control of the front panel.

Store Upon Release of Local Control

Whether the control state is set back to remote manually with the Local button or through
the automatic time-out feature, all the settings on the Model 1788A will be stored upon
entering the remote control state. This insures that the locally made changes will not revert
to the prior state and will become the new default condition upon power-up.

MICROPHONE PREAMPLIFIER

Remote Activity LED

Flashes when the Model 1788 is receiving remote control data.

4.3 DIGITAL BLOCK

Clock

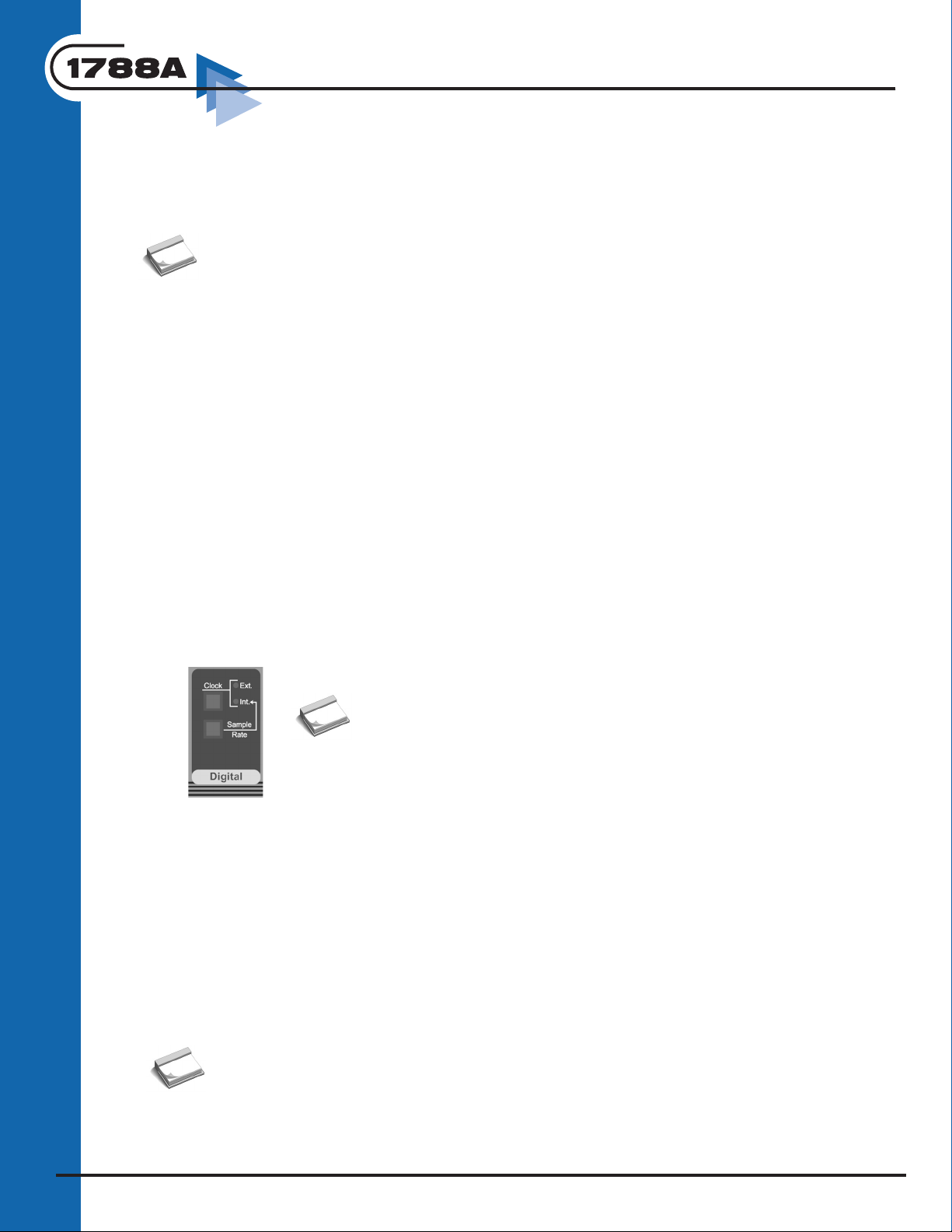

The CLOCK button selects either the internal (Int.) or an external (Ext.) digital clock as a
synchronization reference and the corresponding LED will illuminate depending on which
one is selected.

When the Int. mode is selected, the 1788A locks to an internal clock generator that can
be set at one of three sample rates (32k, 44.1k and 48k) using the SAMPLE RATE button.
The chosen sample rate is displayed in the Global Status Readout.

In the Ext. mode, external clock is taken from one of two sources (BNC Word Clock In or
the DB-25 TDIF) on a priority basis. The highest priority input is the Word Clock. If no
Word Clock is detected, the 1788A then tries to lock to the TDIF.

NOTE: This block is only active with the optional digital module
inserted into the rear panel of the Model 1788A.

NOTE: In Ext. mode, the incoming sample rate is displayed in the Global Status
Readout. The indication will be of the nearest standard rate of 32, 44.1, 48, or 96KHz,
and not a precise frequency measurement.

Page 20

Instruction Manual

Sample Rate

The RATE button toggles through the three available sample rates of 32, 44.1, 48, or
96KHz when running the 1788A on internal clock only.

4.4 MONITOR BLOCK
Channel Select

Repeatedly pressing the CHANNEL SELECT button toggles through all eight
channels which will be displayed in the General Status Readout. The audio
of the displayed channel is sent to the headphone jack. It is only possible
to monitor one channel at a time. When the unit is in remote control, the
Channel Select button is still functional.

Volume Control and Phone Jack

The VOLUME control sets only the headphone volume and does not affect the mic pre or
line output gains. Any headphone with a 1/4” stereo or mono phone plug is suitable. With
stereo headphones, both ears hear the same signal.

4. FUNCTIONS IN DETAIL

TIP: Turn down the volume control before plugging in phones to avoid ear damage.

4.5 TEST BLOCK

700Hz Test Tone

A 700Hz test tone is provided for adjusting the system levels and checking the
full function of each 1788A mic channel. Why 700Hz? Because it sounds nice
and you won’t mistake it for other test tones. When the test tone is activated

for any given channel or group of channels, several things happen. First, a low
level tone is substituted for the mic input jack. Second, the preamp gain is reprogrammed
to the precise level necessary to achieve the calibrated output level. This checks the
function of the whole amplifier chain from the mic input back to the line outputs. Also,
two precisely calibrated output levels are available for system setup. When the tone is
stopped, all the original gain programming is clicklessly restored.

This puts two extremely useful tools into your hands. First, you have a complete confidence
check of all preamp channels of your 1788A, as well as the optional A/D converters.
Second, you have a definitive system level reference for matching the 1788A’s output level
to any following equipment. By using the tones for level calibration, you can guarantee
the highest signal to noise ratio and that MicLim will absolutely protect your system
downstream from overload.

Two tone levels are available: -20dB and 0dB.

The dB reference is the maximum level before clipping of the preamp and the A/D
converters. So, the 0dB tone represents the maximum undistorted output level available
and maximum digital level. The -20dB tone represents the 20dB headroom point and

Page 21

typically is where you want to set your 0VU reference, or average operating level of all
following equipment.

The Gain indicators in the individual channel status readout are used to show when the
channel is in a test tone mode with a blinking bar. When the test tone is activated, it is
not possible to adjust the input gain on the channel being tested. Also, the MicLim™ and
26dB PAD functions are defeated.

Starting and Stopping the Test Tone

1. Put the 1788A in Local Control.

2. Hold down either the -20dBfs or 0dBfs button at the same time as you press the
CHANNEL SELECT button(s) of the channel or channels you wish to test.

When the test tone is activated the two test tone buttons will start flashing.

To deactivate the test tone, press either one of the two test tone buttons
again.

4.6 SECONDARY FUNCTIONS

4.6.1. Display Brightness

You can dim or brighten the front panel display by holding down BOTH TONE BUTTONS
and pressing the Channel 7 button. This puts the 1788A into “display mode”. Turning the
ADJUST dial will vary the display through 5 levels that are indicated in the Global Status
Readout window as D-0 (dimmest) through D-4.

MICROPHONE PREAMPLIFIER

To exit the display mode, press any other Channel Select button.

4.6.2. Flash Version
To determine the version of firmware that is installed in the 1788A, hold down BOTH

TONE BUTTONS and press the Channel 8 button. The version number will be displayed

in the Global Status Readout window.

4.6.3. Synchronize
BOTH TONE BUTTONS plus Channel 6. This is used in transferring all the parameters of

one 1788A to another 1788A through the MIDI ports.

4.6.4. Sysex Dump
BOTH TONE BUTTONS plus Channel 5. This is used to send a complete SysEx snapshot

of the 1788A’s controls to a MIDI controller.

NOTE: The procedures used for 3 and 4 above are described in the Remote Control
manual’s Using MIDI section.

Page 22

Instruction Manual

1 2 3 4

ON

Super Clock

Word Clock

1 2 3 4

ON

Phase 90

Phase 0

1 2 3 4

ON

AES3 In

Word Clock In

1 2 3 4

ON

Out 75Ω

Out 10Ω

Default Settings

1 2 3 4

ON

5. USING THE DIGITAL MODULE

When you have the 1788A’s digital audio option installed, you have a very versatile digital
front end for any digital recorder, mixer, or DAW. The mic preamp and A/D Converters are
perfectly matched for headroom and low noise. There are only two areas you need to deal
with in using the digital module:

1. Synchronization (internal or external)

2. Sending digital audio data to other equipment

5.1 SYNCHRONIZATION

The 1788A can run on selectable internal crystal oscillators at 32Khz. 44.1KHz, 48Khz,
and 96KHz. When running from externally supplied sync, it can lock up on any frequency
between 32KHz and 96KHz.

NOTE: Beware that you will run into problems trying to use TDIF and ADAT Optical
outputs with any external clock sampling above 48KHz.

External Sync

The 1788A can take three types of external sync. All are received at the BNC Word Clock
IN jack.

5. USING THE DIGITAL MODULE

1. Word Clock

2. Superclock (256 times sampling frequency)

3. AES/EBU Signal

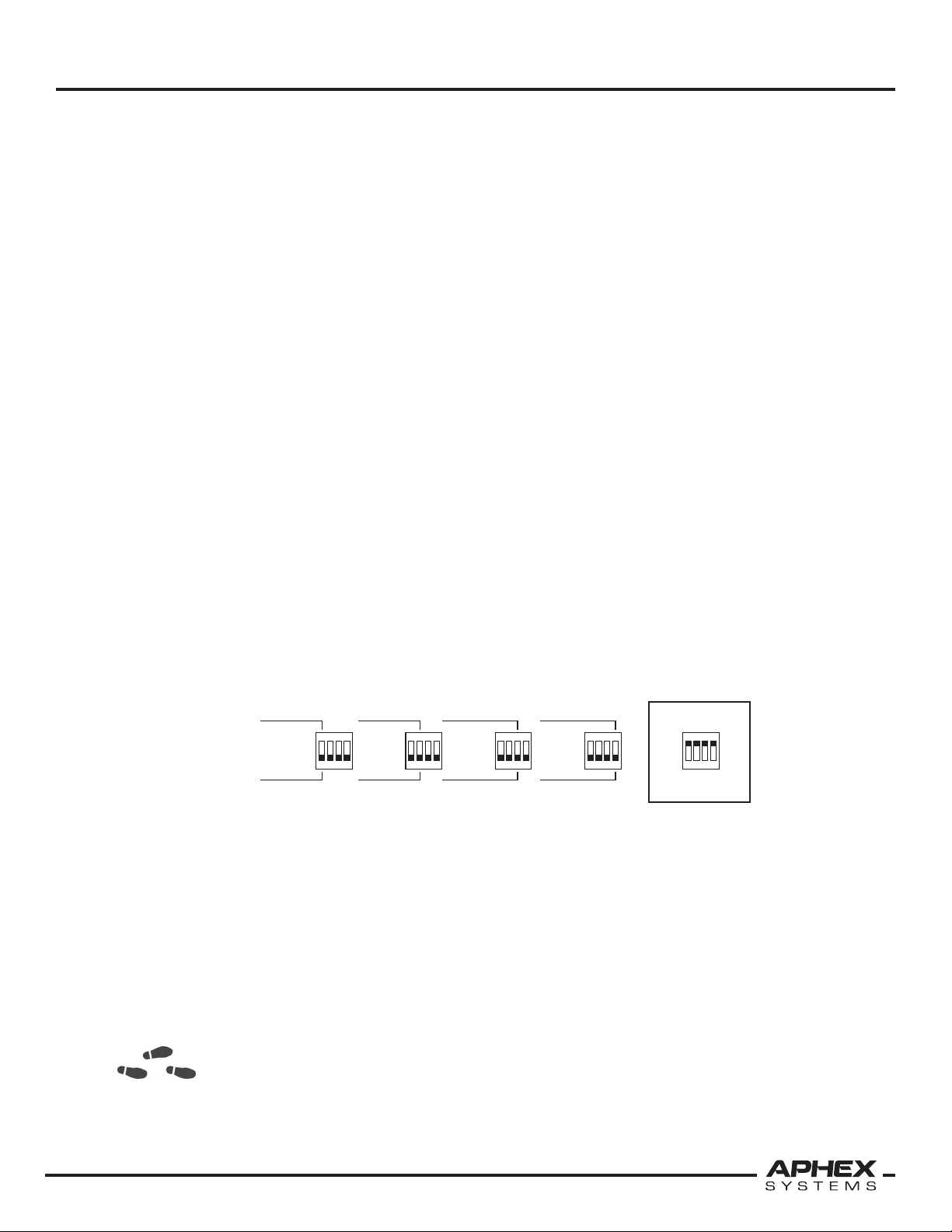

Dip Switch Settings

Sync is detected according to the setting of three dip switches as illustrated below.

Switch 1: Determines if Word Clock at the sampling frequency or Superclock at 256X the
sampling frequency is accepted.

Switch 2: Determines if incoming Word Clock is expected to be shifted by 90 degrees. It’s
part of the Tascam TDIF specifications, but not all TDIF interfaces conform. Most seem to
produce standard in-phase Word Clocks. Try this switch if you have a DA-88 that won’t
recognize digital audio from the 1788A.

Switch 3: Determines if the source of switch 1 or AES/EBU input is accepted.

Switch 4: Word Clock output impedance; 10 ohms or 75 ohms. Allows either brute force
or impedance matched transmisison.

Refer to inset or Appendix F.

Page 23

BNC Clock I/O

The sync capability is made even more flexible by providing a feed-through port. When in
external sync mode, the BNC output jack is tied directly to the BNC input jack. This allows
the sync signal to pass through and be sent on to another unit. Depending on the quality
of the driver, up to eight 1788A’s may be looped together from a single clock source.
When the 1788A is set for internal sync, the BNC input jack is ignored and the BNC output
jack is connected to an output driver that supplies a low jitter Word Clock suitable for
sync’ing seven other 1788A’s and additional equipment.

Clock In

This BNC jack is provided to receive your master clock source. It also accepts AES/EBU (or
S/PDIF) and Superclock depending on the dip switch settings.

The Model 1788A can operate equally well from a typical “brute force” 5V word clock
output or from a matched impedance master clocking distribution. Please refer to
Appendix F for a thorough discussion of clock wiring and distribution systems.

MICROPHONE PREAMPLIFIER

NOTE: The BNC jack input range for good lock is 1V to 5V p-p. This means it can be

used with both terminated and unterminated word clock sources.

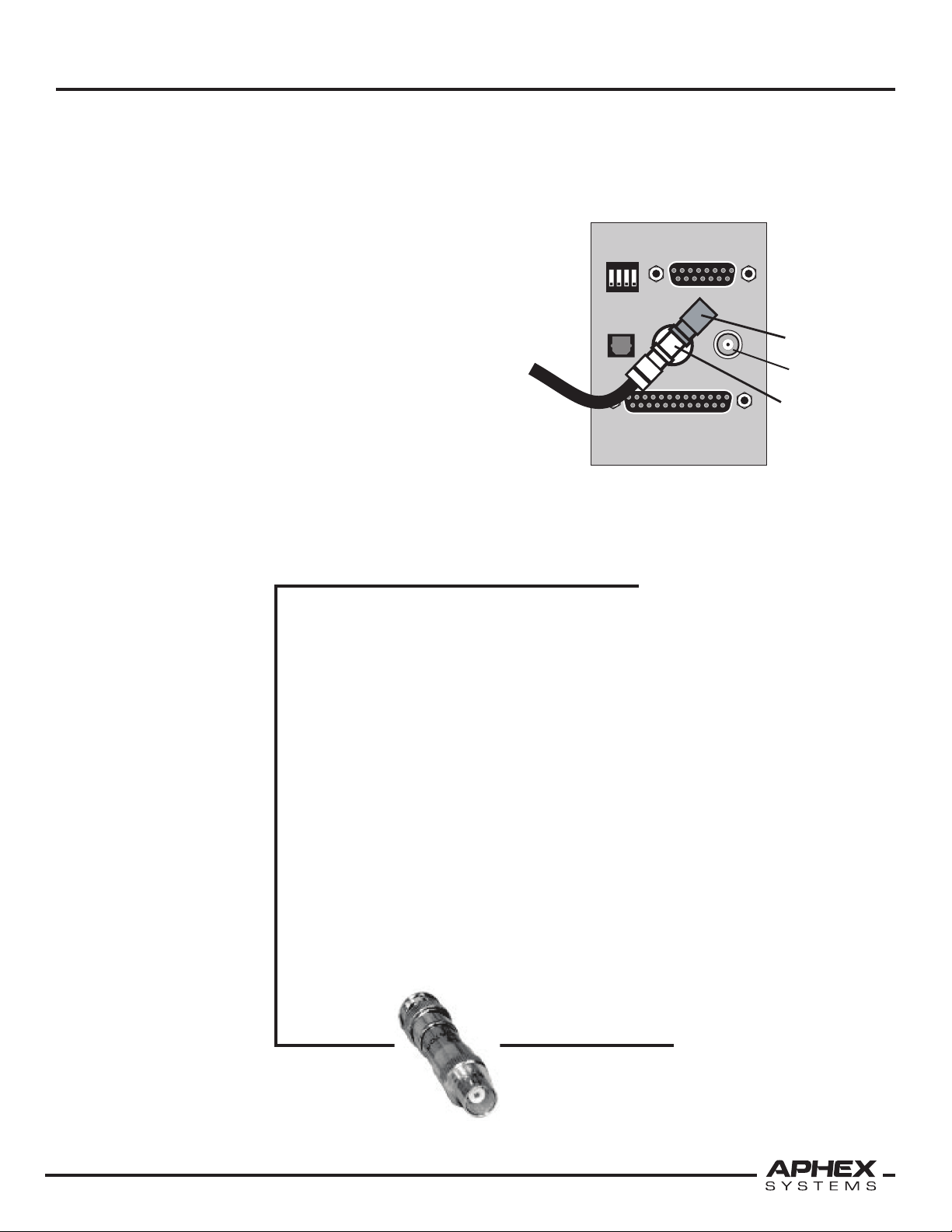

When the Model 1788A is operating in external clock mode, the Clock In jack is tied
directly to the Clock Out jack through a metal relay contact. The input load is light enough
to daisy-chain up to eight units by looping straight through. The final unit should have
a 50 or 75 ohm (as dictated by your distribution cable impedance) BNC terminator plug
inserted in its Clock Out jack to properly terminate the transmission line. If only one unit is
connected, then simply place the terminator plug on the single unit’s Clock Out jack.

When the Model 1788A is operating in the internal clock mode, the Clock In jack is
isolated and unterminated.

Clock Out

As previously described, this jack is directly tied to the Clock In jack to facilitate daisy­chaining multiple units to a master clock source when the unit is operating in external clock
mode. You’ll need to decide whether to use the brute force or matched impedance output
mode. We generally recommend impedance matched, as shown in the examples of this
chapter. However, if the unit to be driven is a short distance away, it is more cusromary in
the industry to use brute forced clock. Appendix F tells more about these choices.

When the Model 1788A is operating in internal clock mode, the Clock Out jack is
disconnected from Clock In and reconnected to the unit’s internal clock source. Thus,
any Model 1788A operating in internal clock mode can serve as a master clock source
when required. The internal clock is derived from a low jitter crystal oscillator and is fully
competent as a master clock.

Local Clock Mastering

You can use one Model 1788A as a clock master and slave everything else to it. For
example, to synchronize a group of Model 1788A’s, simply set the first unit to internal
clock mode and all the others to external. Daisy-chain the Clock Out of the first unit
through the clock ins and outs of the remaining units. This way all digital audio outputs
will be locked together to the first unit’s clock reference. You can also loop the clock
output of the last unit in line to your digital recorder or workstation, but remember to
terminate the last unit in line.

Page 24

Instruction Manual

<<P

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AUX

OUTPUT

CH 8
MIC IN

LINE OUT

CH 7

MIC IN

LINE OUT

CH 6

MIC IN

LINE OUT

CH 5

MIC IN

LINE OUT

CH 4
MIC IN

LINE OUT

CH 3
MIC IN

LINE OUT

CH 2

MIC IN

LINE OUT

CH 1
MIC IN

LINE OUT

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

<<P

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AUX

OUTPUT

CH 8
MIC IN

LINE OUT

CH 7

MIC IN

LINE OUT

CH 6

MIC IN

LINE OUT

CH 5

MIC IN

LINE OUT

CH 4
MIC IN

LINE OUT

CH 3
MIC IN

LINE OUT

CH 2

MIC IN

LINE OUT

CH 1
MIC IN

LINE OUT

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

<<P

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AUX

OUTPUT

CH 8
MIC IN

LINE OUT

CH 7

MIC IN

LINE OUT

CH 6

MIC IN

LINE OUT

CH 5

MIC IN

LINE OUT

CH 4
MIC IN

LINE OUT

CH 3
MIC IN

LINE OUT

CH 2

MIC IN

LINE OUT

CH 1
MIC IN

LINE OUT

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

1

2

N=8

Max

<<P

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AUX

OUTPUT

CH 8
MIC IN

LINE OUT

CH 7

MIC IN

LINE OUT

CH 6

MIC IN

LINE OUT

CH 5

MIC IN

LINE OUT

CH 4
MIC IN

LINE OUT

CH 3
MIC IN

LINE OUT

CH 2

MIC IN

LINE OUT

CH 1
MIC IN

LINE OUT

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

<<P

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AUX

OUTPUT

CH 8
MIC IN

LINE OUT

CH 7

MIC IN

LINE OUT

CH 6

MIC IN

LINE OUT

CH 5

MIC IN

LINE OUT

CH 4
MIC IN

LINE OUT

CH 3
MIC IN

LINE OUT

CH 2

MIC IN

LINE OUT

CH 1
MIC IN

LINE OUT

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

<<P

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AUX

OUTPUT

CH 8
MIC IN

LINE OUT

CH 7

MIC IN

LINE OUT

CH 6

MIC IN

LINE OUT

CH 5

MIC IN

LINE OUT

CH 4
MIC IN

LINE OUT

CH 3
MIC IN

LINE OUT

CH 2

MIC IN

LINE OUT

CH 1
MIC IN

LINE OUT

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

1

2

N=8
Max

Termination or Sync to
Other Equipment

5. USING THE DIGITAL MODULE

LOCAL CLOCK MASTERING

Remote Clock Mastering

Depending on your system design, you may need to sync one or more 1788A’s to an
existing clock source. That is made simple by series-looping from the clock sourcebut you
you can also use a clock distribution amplifier and configure a parallel clocking scheme.

Series Remote Clocking

Terminator Plug

Page 25

From Clock Source

<<P

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AUX

OUTPUT

CH 8

MIC IN

LINE OUT

CH 7
MIC IN

LINE OUT

CH 6
MIC IN

LINE OUT

CH 5

MIC IN

LINE OUT

CH 4

MIC IN

LINE OUT

CH 3

MIC IN

LINE OUT

CH 2

MIC IN

LINE OUT

CH 1

MIC IN

LINE OUT

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

<<P

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AUX

OUTPUT

CH 8

MIC IN

LINE OUT

CH 7
MIC I

N

LINE OUT

CH 6
MIC IN

LINE OUT

CH 5

MIC I

N

LINE OUT

CH 4

MIC I

N

LINE OUT

CH 3

MIC IN

LINE OUT

CH 2

MIC I

N

LINE OUT

CH 1

MIC IN

LINE OUT

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

<<P

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AUX

OUTPUT

CH 8

MIC IN

LINE OUT

CH 7
MIC I

N

LINE OUT

CH 6
MIC IN

LINE OUT

CH 5

MIC I

N

LINE OUT

CH 4

MIC I

N

LINE OUT

CH 3

MIC IN

LINE OUT

CH 2

MIC I

N

LINE OUT

CH 1

MIC IN

LINE OUT

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

<<P

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AUX

OUTPUT

CH 8

MIC IN

LINE OUT

CH 7
MIC I

N

LINE OUT

CH 6
MIC IN

LINE OUT

CH 5

MIC I

N

LINE OUT

CH 4

MIC I

N

LINE OUT

CH 3

MIC IN

LINE OUT

CH 2

MIC I

N

LINE OUT

CH 1

MIC IN

LINE OUT

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

<<P

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OUT THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AUX

OUTPUT

CH 8

MIC IN

LINE OUT

CH 7
MIC I

N

LINE OUT

CH 6
MIC IN

LINE OUT

CH 5

MIC I

N

LINE OUT

CH 4

MIC I

N

LINE OUT

CH 3

MIC IN

LINE OUT

CH 2

MIC I

N

LINE OUT

CH 1

MIC IN

LINE OUT

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

Clock D.A.

From Clock Source

MICROPHONE PREAMPLIFIER

Parallel Remote Clocking

To Additional 1788A’s
or Other Gear

Variations

As you can see, clocking is usually pretty simple. Sometimes, especially with the use of
many channels and multiple 1788A’s, you may need to work out an optimal clocking

If Impedance Matched, Use Terminations

scheme depending upon what equipment is involved outside the 1788A’s. You might, for
example, need to fan out from a parallel clock D.A. to several racks of 1788A’s which are
locally series-looped. With long distance clock runs, you should use impedance matched
transmission to minimize jitter problems.

Refer to Appendix F for information about word clock distribution methods and
cabling.

Page 26

Instruction Manual

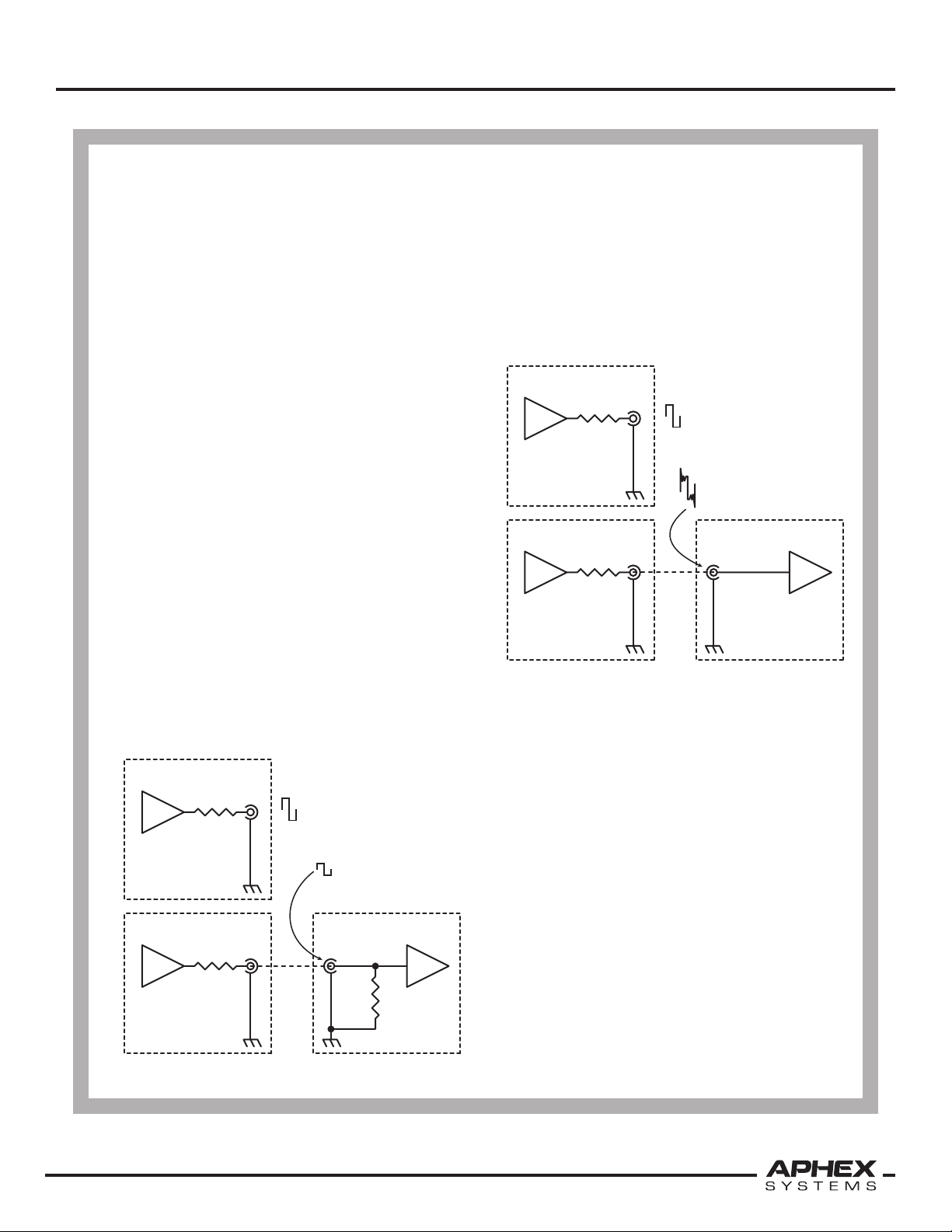

5Vp-p Output Level
Open Circuit

Still 5Vp-p But With Ringing
(Worse With Longer Cable)

Coax

Line

Brute Force

Clock Transmitter

Brute Force

Clock Transmitter

Clock Receiver

<10Ω

Source

Impedance

<10Ω

Source

Impedance

5Vp-p Open Circuit

2.5Vp-p With Termination

75Ω

Load

Termination

75Ω

Source

Termination

75Ω

Coax

Line

Clock

Transmitter

Clock
Receiver

75Ω

Source

Termination

Clock

Transmitter

BACKGROUND

Brute Force Transmission

Impedance Matched Transmission

5. USING THE DIGITAL MODULE

BRIEF TUTORIAL

BRUTE FORCE AND IMPEDANCE MATCHED TRANSMISSION

Synchronization of digital audio equipment shouldn’t be a problem but it is. All the problems would
disappear if impedance matched transmission were used by every piece of gear. But, this just isn’t
the case, even though it is simple and cheap. “Brute Force” transmission (the kind that causes
trouble) is still found throughout the industry.

What’s “brute force”? It refers to driving the Word
Clock output jack directly from a line driver logic
chip. The driver’s output impedance is too low,
usually around 10 ohms. This assures a good and
clean unloaded output pulse at full logic level
(5Vp-p) but does not consider transmission line
characteristics. Over distances less than 6 feet this
method seems to work ok, but with longer lines,
heavy ringing and overshoot occur which causes
high jitter and in the extreme cases equipment
may not even be able to lock.

Impedance matching changes a few things, but
is not complicated. If a transmission line (like
75 ohm coax cable) is sourced and loaded by its
characteristic impedance, then there will be no overshoot or ringing of the word clock, even at great
distances. The only complication is that the pulse amplitude received will be half the amplitude of
the logic driver’s output. That means the clock receiver must have a greater sensitivity, or effectively

a lower logic threshold to detect the clock’s level
transitions.

PROBLEM: A lot of word clock inputs use standard
logic chips that won’t work on a halved input level.
If they did, it would be easy to convert any brute
forced clock system to matched lines by adding a
resistor at each end.

SOLUTION: Aphex has made the 1788A capable
of receiving Word Clock down to 1/2 volt p-p
so you can safely run very long Word Clock
cables to its remote location while getting no
cable induced jutter. The 1788A’s Word Clock
output impedance can be switched from 10
ohms (brute force) to 75 ohms (matched)
in order to meet any requirement. We highly
recommend the use of impedance matching
whenever possible.

Page 27

5.2 SENDING DIGITAL AUDIO

1

9 10 11 12 13 14 1

5

2 3 4 5 6 7 8

8

15 14 13 12 11 10 9

7 6 5 4 3 2 1

25 24 23 22 21 20 19 18 17 16 15 14

13 12 11 10 9 8 7 6 5 4 3 2

1

DIN 1&2 *

DGND

DGND

DGND

DGND

EMPH IN *

FS0 IN *

FS1 OUT

EMPH OUT

DGND

DIN1&2

DGND

DGND

DIN 3&4 *

DIN 5&6 *

DIN 7&8 *

LRCK IN *

FS1 IN *

DGND

FS0 OUT

LRCK OUT

DOUT 7&8

DOUT 5&6

DOUT 3&4

DOUT 1&2

* PINS NOT CONNECTED IN THE 1788A

The digital module provides three simultaneous 8-channel outputs:

1. Four AES/EBU 110 ohm pairs on a 15-pin D-Sub

2. ADAT® Optical on a TOSLINK Jack

3. Tascam TDIF® on a 25-pin D-Sub

Connect your digital audio receivers to any or all of these outputs. You need to take into
account the clocking requirements of all outboard equipment. In some special cases this
may prevent you from usinng all the outputs at once.

AES/EBU Output

Four 2-channel standard professional AES/EBU outputs are provided. The pinout of the
15-pin D-Sub is according to our own standard. The chart below shoes the wiring pinout
so you can make suitable breakout adapters.

MICROPHONE PREAMPLIFIER

TDIF® Jack

Male

CH1&2 CH3&4 CH5&6 CH7&8

(+) 1 3 5 7

(-) 2 4 6 8

Female

GND 9 - 15

The pinout is standardized by Tascam. We have reproduced their wiring diagram for you
for reference only. We highly recommend that you obtain commercially available cables.

ADAT® Optical

This runs on a plastic optical fiber that can transmit over a limited distance of typically 10
meters maximum. It is most suitable when the ADAT device is located in or next to the
same rack as the 1788A.

Page 28

Instruction Manual

AUX

OUTPUT

CH 8

MIC IN

LINE OUT

CH 7

MIC IN

LINE OUT

CH 6

MIC IN

LINE OUT

CH 5

MIC IN

LINE OUT

CH 4

MIC IN

LINE OUT

CH 3

MIC IN

LINE OUT

CH 2

MIC IN

LINE OUT

CH 1

MIC IN

LINE OUT

<<P<<P

<<P<<P

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

6. TYPICAL OPERATION

This section suggest ways to get the most out of your Model 1788A. Let these ideas
serve as inspiration more than instruction. The 1788A is flexible enough to fill many
requirements we have not illustrated and probably haven’t even thought of.

6.1 BYPASSING A CONSOLE’S MICROPHONE PREAMPLIFIERS

6. TYPICAL OPERATION

Use Line Level Inputs

Mixing Console

Console mic preamps are not always top rate. They tend to be of minimal quality for the
sake of economical production. Using the 1788A as a front end to your console can give
you great benefits. Of course, this is especially true when you avail yourself of the remote
control capability and place the preamps at front-of-house or off-stage, close to the mics
themselves.

USING LINE -vs- MIC INPUTS

Some consoles are equipped with separate mic and line level inputs, but you should
check the manual for your console to assure that the line input does indeed bypass the
microphone preamp stage. Many consoles route the line input through a loss pad right
into the mic preamp. In such a case, you will still hear the deficiencies of the console
preamps, and not be able to realize the full sonic value of the 1788A.

SAVED BY THE INSERT JACK

If your console does not have separate line inputs, but does have “Insert” jacks, you can
use these to bring in the audio from the Model 1788A and reap the sonic benefits. Console
channel inserts with a “send” and “return” allow you to interrupt the signal path following
the input gain stage to introduce signal processing or effects. On some consoles, there
are separate connectors for send and return. If this is the case with your console, simply
connect the Model 1788A’s output(s) to the Return jack(s).

Page 29

AUX

OUTPUT

CH 8

MIC IN

LINE OUT

CH 7

MIC IN

LINE OUT

CH 6

MIC IN

LINE OUT

CH 5

MIC IN

LINE OUT

CH 4

MIC IN

LINE OUT

CH 3

MIC IN

LINE OUT

CH 2

MIC IN

LINE OUT

CH 1

MIC IN

LINE OUT

<<P<<P

úúúúúúúú

úúúúúúúú

<<P<<P

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

6.2 DIRECT TRACKING

Use Line Level Inputs

MICROPHONE PREAMPLIFIER

NOTE: You may run into issues of balanced and unbalanced inserts. The 1788A can

drive both types just as easily. You can refer to this manual’s appendix on proper wiring
to get information on how to match the 1788A’s Main and Aux Outputs to balanced
and unbalanced inputs (there is a difference between Main and Aux unbalanced

wiring).

On many consoles, particularly lower priced units, the inserts are a single 3-contact 1/4”
TRS phone jack on which the sleeve is ground and the other two contacts are send and
return. In this case, it will be necessary to configure the 1788A’s output as unbalanced
and fabricate the correct adapter cable. Refer to your console’s user manual to determine
which TRS contact (tip or ring) is the return. Your cables should be configured so that the
Model 1788A’s output feeds the return circuit without shorting or disturbing the send.

NOTE: You should adjust the 1788A’s Main or Aux Output to match the maximum
input level of the console. This will guarantee the absolute best signal to noise ratio
and protection from clipping that is afforded by MicLim.

When in the initial tracking phase of the
recording process, often the signal fed to
the individual recorder tracks is kept pure
and natural. Effects and processing are
added later, during the mix-down process.
In this situation, you can bypass the
mixing console altogether by connecting
the Model 1788A’s outputs directly to
the designated inputs on the recorder. By
shortening the distance of the signal path,
and eliminating unnecessary electronic
circuitry and connectors, you will likely
realize the best possible performance from
the Model 1788A. The accompanying
illustration demonstrates the simplicity of
this configuration. You can monitor the
recording by simply routing the additional
outputs provided on the Model 1788A
to either the console’s Tape Return or
individual channel inputs.

The multiple analog outputs of the Model
1788A makes it possible to use both the
eight main analog outputs and the analog
DB-25 output simultaneously, creating
a split. For instance, use the eight XLR
type connections to bypass your console’s
microphone preamplifiers as described in
the previous section. Then use the analog
DB-25 connector to feed all eight channels
to a recorder. If you have opted for the

Page 30

Instruction Manual

AUX

OUTPUT

CH 8

MIC IN

LINE OUT

CH 7

MIC IN

LINE OUT

CH 6

MIC IN

LINE OUT

CH 5

MIC IN

LINE OUT

CH 4

MIC IN

LINE OUT

CH 3

MIC IN

LINE OUT

CH 2

MIC IN

LINE OUT

CH 1

MIC IN

LINE OUT

<<P<<P

<<P<<P

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

1

2

3

MODEL 1788A - 8 Channel Mic Pre

Aphex Systems Sun Valley, CA

MIDI

IN OU

T

THRU

90-260 V~50/60Hz 60 WATTS

RS-232

WORD
CLOCK

OPTICAL

AES/EBU OUTPUT

LAN

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

1

2

3

úú

optional digital module, you can use the AES/EBU DB-15 digital output, the DB-25 TDIF
(Tascam type) or the ADAT optical output to route all eight channels directly to the digital
inputs of a digital recorder or console.

Refer to the illustration in Section 5.4 (Using All Outputs to Feed Five Destination Devices)

for details on using all available outputs simultaneously. Also, see Section 5.4 (Using
the Optional Digital Module) for additional information and hook-up illustrations.

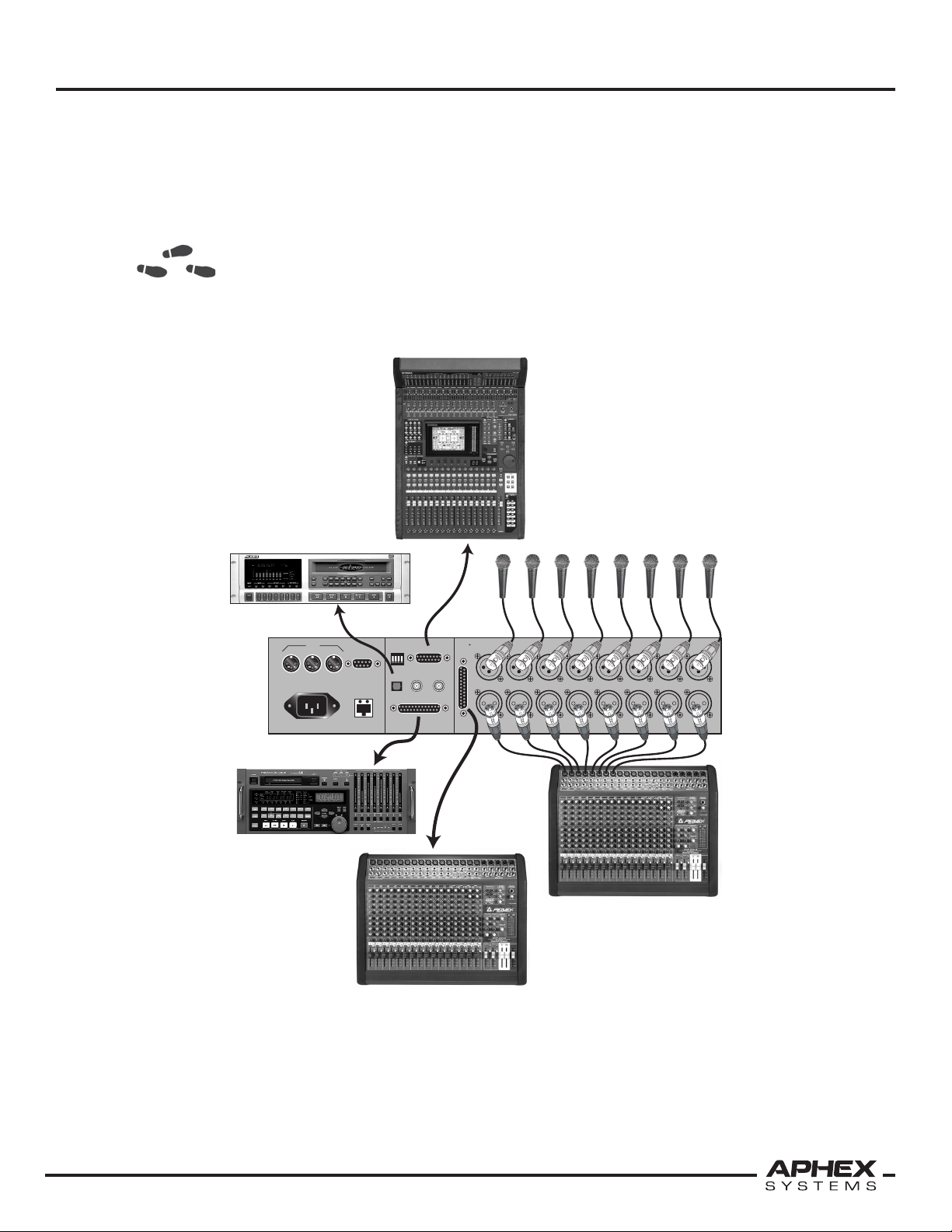

6.3 USING ALL OUTPUTS TO FEED FIVE DESTINATION DEVICES

Digital Mixer
Live Broadcast

6. TYPICAL OPERATION

ADAT Recorder

DA-88 / DA-98
Recorder

Analog House Mix

Analog Monitor Mix

A picture is worth a thousand words. The above illustration gives you an idea of the
flexibility of the 1788A. Substitute a digital house or monitor mixer, analog recorder, or
any other combination as your design may require. The point is, all the audio outputs are
available for use at the same time.

Page 31

6.4 USING THE MICROPHONE OUTPUT LIMITER

Microphone limiters traditionally consist of a mic preamp followed by a limiter circuit.
Until MicLim was devised, that was the only practical way to do it. Everybody is familiar
with the clipped overload that’s heard when a performer suddenly gets on the mic too
loudly. The compressor/limiter held down the P. A. level, but the preamp was clipping
horribly. Until MicLim, there was no other choice except to constantly keep a hand on the
preamp’s gain knob.

MICROPHONE PREAMPLIFIER

Pre

Amp

Conventional Mic Limiter

The difference with MicLim is that the limiter works with the microphone itself, before

the preamplifier has any chance to clip at all. Patent pending technology had to be devised
to make that possible since just about anything inserted between the mic and preamp
will add noise or distortion. With MicLim now available you will seldom find it possible
to overload the Model 1788A mic preamp, even under severe conditions. That’s because
there is typically 20dB of limiting headroom. Effectively that means you get 20dB more
preamp headroom before distortion.

6.5 USING POLARITY REVERSE

There will be times when you need to reverse the polarity (phase) of a mic signal. Vocalists
monitoring themselves on headphones will hear a different sound when the phase is
reversed. The reversed phase may sound fuller and more truthful or hollow and far away.
That is because there is a cancellation of frequencies within the ear when the external
sound from the headphone mixes with the sound directly conducted to the ear. “Flipping
the phase” can make the problem either more or less noticeable.

Peak

Limiter

Distance

to Mic1

Distance

to Mic2

Still

Heavily

Clipped

Optically
Coupled

Attenuator

Peak

Detector

Aphex MicLim Mic Limiter

Pre

Amp

No

Clipping

Sound

=

Cancelled

Another time when phase reversing can be helpful is in mixing multiple microphones that
are within each other’s coverage areas. The “crosstalk” between mics may come through
different delays due to the differing distances from the sound. These sounds may tend
to cancel out in the mix. You may get a “nasal” or hollow effect when all mics are on.

Page 32

Instruction Manual

30

35

45

55

50

55

65

65

85

30

35

45

55

Ramp Up

Group 20dB

Ramp Group
Back Down 20dB

Internal Over
Range Memory

Internal Under
Range Memory

Upper Limit

Lower Limit

Changing the polarity of one or more mics will often clear up the problem. It is always
worth the time to experiment with mic polarity.

6.6 GROUPING CHANNELS

It is possible to create a group of channels, and treat them all together with any or all of
the preamp control functions.

Grouping Caveats

Several properties of group operation are important to know as they may affect the way
you use grouping.

1. The Model 1788A computes the modified individual channel gains in an invisible
workspace that can retain over- and under-range values. This allows the unit to be
able to restore the channels’ gain relationships if you reverse the direction of group
gain shift after one or more channels have limited out. However, the workspace
memory is erased when exiting the MULTIPLE SELECT mode, and all channel gains
become normalized with their new ratios or differences.

6. TYPICAL OPERATION

2. The individual channel functions will remain unchanged within the group until a
function is operated. At that time, whatever function is operated passes to all in the
group and the function will not revert to the original values upon leaving MULTIPLE
SELECT mode.

Creating a Group

To create a group, first go into LOCAL control. Then press the MULTIPLE SELECT button.
Now individually press the buttons for the channels you want to group. The grouped
channel buttons will all be lit. To remove a channel, press its button again.

Disengaging the Group

Press the MULTIPLE SELECT button again and the group will disappear.

NOTE: Once a group has been created, it’s definition stays in memory. Next time you press

the MULTIPLE SELECT button, the previous group will appear. You can change the
group simply by pressing the channel buttons to remove or add channels.

HOW GROUP GAIN CONTROL WORKS

Page 33

7. Warranty & Service

PERIOD

One year from date of purchase

SCOPE

All defects in workmanship and materials. The following are not covered:
a. Voltage conversions
b. Units on which the serial number has been defaced, modified, or removed
c. Damage or deterioration:

1. Resulting from installation and/or removal of the unit.

2. Resulting from accident, misuse, abuse, neglect, unauthorized product modification or failure to
follow instructions contained in the User’s Manual.

3. Resulting from repair or attempted repair by anyone not authorized by Aphex Systems.

4. Occurring from shipping (claims must be presented to shipper).

WHO IS PROTECTED

This warranty will be enforceable by the original purchaser and by any subsequent owner(s) during the warranty
period, so long as a copy of the original Bill of Sale is submitted whenever warranty service is required.

WHAT WE WILL PAY FOR

We will pay for all labor and material expenses for covered items. We will pay return shipping charges if the repairs
are covered by the warranty.

MICROPHONE PREAMPLIFIER

7.1 Limited Warranty

LIMITATION OF WARRANTY

No warranty is made, either expressed or implied, as to the merchantability and fitness for any particular purpose.
Any and all warranties are limited to the duration of the warranty stated above.

EXCLUSION OF CERTAIN DAMAGES

Aphex Systems’ liability for any defective unit is limited to the repair or replacement of said unit, at our option, and
shall not include damages of any other kind, whether incidental, consequential, or otherwise.

Some States do not allow limitations on how long an implied warranty lasts and/or do not allow the exclusion or
limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

7.2 SERVICE INFORMATION

If it becomes necessary to return this unit for repair, you must first contact Aphex Systems, Ltd. for a
Return Authorization (RMA number), which will need to be included with your shipment for proper
identification. If available, repack this unit in its original carton and packing material. Otherwise,
pack the equipment in a strong carton containing at least 2 inches of padding on all sides. Be sure
the unit cannot shift around inside the carton. Include a letter explaining the symptoms and/or
defect(s). Be sure to reference the RMA number in your letter and mark the RMA number on the
outside of the carton. If you believe the problem should be covered under the terms of the warranty,
you must also include proof of purchase. Insure your shipment and send it to:

Aphex Systems, Ltd.

11068 Randall Street

Sun Valley, CA. 91352

PH: [phone] FAX: [phone]

Page 34

Instruction Manual

8. Specifications

8.1 GENERAL SPECIFICATIONS

MIC INPUT

ANALOG OUTPUTS

DIGITAL OUTPUTS

HEADPHONE

AUDIO

DIGITAL AUDIO

FUNCTIONS

Maximum Input Level (MIL):

Maximum Output Level (MOL):

LOCAL
BLOCK

Connector:

Type:

Input Z:

Nominal Preamp Gain:

Output Z Balanced:

Output Z Unbalanced:

Internal Sample Rates:

External Sample Rates:

Word Clock Output:

Channel Select
Input Gain
Main Output Gain
Aux Output Gain
Polarity
Mute
75Hz Low Cut Filter
26dB PAD
Enable Limiter
Phantom Power
Multiple Select

CMRR:

Phantom Power:

Word Clock Input:

Level Equivalency:

Pad:

EIN:

Tube Type:

Connector:

Type:

Nominal Level

Connectors:

Type:

Impedance:

Connector:

Impedance:

Freq. Response:

Noise:

THD+N:

SMPTE IMD:

DIM:

Crosstalk

Resolution:

Dynamic Range:

Noise Dither:

XLR-3F
Jensen Transformer Coupled

1.6KΩ nominal
+27dBu (with input pad)
99dB @60Hz, -72dB @ 10KHz
26 to 65dB
+48VDC
26dB

-124dBu (Input Shorted)

Main Out: 8 ea. XLR-3M; Aux Out: DB-25
Main is Servo Balanced, Aux is is Impedance Balanced
66Ω
33Ω
+4dBu
XLR: +27dBu

AES/EBU DB-15 Male, ADAT® Optical, DB-26 TDIF®
Data, Digital Audio
Stanfdard

TRS 1/4” Phone Jack
8-600Ω

+/- 0.2dB 10Hz-20KHz

-124dBu EIN

0.003% @ +4dBu Out
<0.02%
.005%
Better than -96dB

32KHz, 44.1KHz, 48KHz
Automatically syncs to any word clock between 32KHz and 96KHz
24 Bits
BNC Jack, High Z, Captures <2.5Vp-p to 5Vp-p
BNC Jack, 75 Ohms, 5Vp-p
Digital dynamic range greater than analog front end.
Dithered by analog preamp noise floor. Equivalent to 16-bit digital audio dither.

-20dBFS Digital = +4dBu Analog

CONTROL

BLOCK

ADJUST/STORE
Mode MIDI/LAN
Set I.D. DEV/CHAN/NET
Local/Remote
Remote Activity LED

DIGITAL

BLOCK

Clock
Rate

MONITOR

BLOCK

Monitor Select
Volume

8. SPECIFICATIONS

TEST

BLOCK

700Hz Tone -20dB
700Hz Tone 0dB

OTHER SPECS

Power Consumption (maximum):

All specifications are subject to change without notice.

Power requirements:

Depth Behind Front Panel:

Dimensions:

Net Weight:

Shipping Weight:

85 to 260V~, 50-60Hz
60 Watts
19” W x 3.5” H x 13.25” overall depth (483mm W x 89mm H x 337mm overall depth)
12” (305mm)
Rack-mounted: 14lbs. (6.37kg)
19lbs. (8.6kg)

Page 35

8.2 ARCHITECT’S SPECIFICATIONS

Basic Description

A multichannel microphone preamplifier comprising eight identical channels that are
both locally controllable and remotely controllable by MIDI protocols through MIDI and
Ethernet ports. The multichannel preamp shall further comprise an optional digital audio
output module.

The microphone preamps shall comprise the following selectable functions: 1.)
+48VDC Phantom Power; 2.) Polarity Reversal; 3.) 26dB Pad; 4.) 75Hz 12dB/Octave Low
Cut Filter; 5.) Continuous Gain Control from 26 to 65dB; 6.) MicLim™ Microphone Limiter;

7.) Channel Mute. The gain adjustment of the preamp channels shall take place in 1dB
stops with gain changes stepping through small fractions of a dB.

The analog outputs shall comprise a Main and an Aux balanced line output for each
channel. The Main and Aux outputs shall have their own separate gain adjustment in
addition to the preamp’s gain adjustment. The Main outputs shall occupy individual
XLR 3-pin male connectors. All eight Aux outputs shall occur on a single 25-pin D-Sub
connector conforming to the Tascam analog standard pinout.

The digital outputs shall comprise a 15-pin D-Sub connector carrying four AES/EBU
signal pairs, an ADAT® Optical jack, and a 25-pin D-Sub TDIF ® connector all operating
simultaneously. There shall be provisions to synchronize the digital module from Word
Clock (LR Clock), Superclock, and TDIF clock as well as an internal crystal oscillator reference.
The internal sample rates shall be selectable among 32KHz, 44.1KHz, and 48KHz.

MICROPHONE PREAMPLIFIER

Physical Properties

The device shall be packaged in an all metal chassis measuring 19” (482.23mm) wide,

3.5” (89mm) high, with an overall depth of 14.5” (355mm). Depth behind the front panel
shall be approximately 13” (330mm). The device shall have a net weight of approximately
14lbs. (6.37kg) and is capable of mounting in a standard electronic equipment rack.

Power

The unit shall have a self contained power supply operating on ac line voltages from 85 to
260V~ 50/60Hz. Connectorization and agency listings shall be appropriate to meet local
requirements.

Page 36

Instruction Manual

APPENDIX A

Appendix A: Balanced and Unbalanced
Lines and Operating Levels

Interfacing all types of equipment with balanced and
unbalanced lines and can sometimes be trouble­some. First you have to somehow connect balanced
to unbalanced and then you have to deal with dif­ferent levels. This tutorial will teach you about the
principles of balanced and unbalanced lines, wiring
standards, and how to effectively interface them.

Standards

Professional audio equipment usually comes
equipped with inputs and outputs that are balanced
using 3-pin XLR connectors and sometimes 1/4 inch
phone jacks as well. This equipment most often is
designed to operate at +4dBu, a professional indus­try standard. That translates to a magnitude of 1.23
volts RMS (Root-Mean-Squared).

Consumer gear has unbalanced I/O as standard, usu­ally on RCA jacks. The normal operating signal level
follows the IHF (Institute of High Fidelity) standard
of -10dBV, or 0.316 volts (316mV) RMS. Converting
to dBu dimensions, this works out to be the same as

-7.79dBu. There is therefore a difference of 11.79dB

between pro and consumer operating levels.

Grounding

There is the notion that some king of earthly “ground”
exists out there that sinks all the noise and acts as
some kind of a shield. You see wires connected to
ground rods and water pipes that are supposed to
get a good ground. This is not a correct interpreta­tion of grounding from an audio standpoint. Proper
grounding of equipment and wiring is important and
you will gain a better understanding of that as you
read along.

Balanced -vs- Unbalanced

Every audio signal is connected through a circuit. The
circuit must contain two conductors to create a com­plete return path. In other words, a signal voltage is
conducted to a piece of equipment by injecting a cur­rent into a wire. That current has flow though to the
destination through the wire and return back to the
source through another wire. Since audio is an alter­nating voltage, swinging through negative and posi­tive polarity, the current through the two conductors
changes direction each alternate half cycle. Which
wire is the source and which is the return alternates
accordingly. In this regard, balanced and unbalanced

lines are the same. They both need two conductors.

What makes a system unbalanced is when one of
the wires is formed into a tube that wraps around
the other conductor, without touching it, such that
the outer conductor can be said to “shield” the inner
conductor. This describes all of the coaxial cable used
for video, cable-TV and radio as well as most of the
high fidelity audio cables.

Balancing

If both conductors are identical insulated wires that

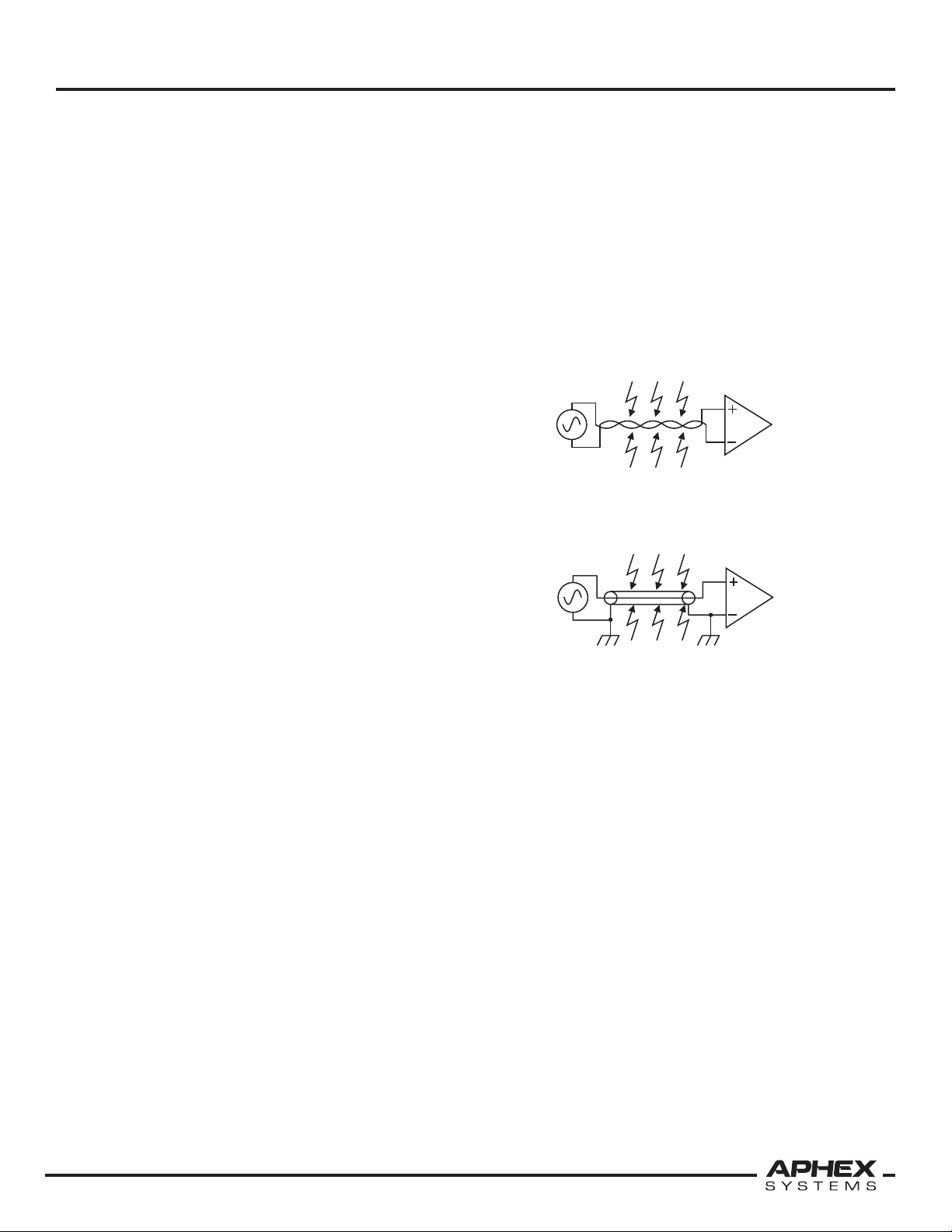

Figure 1 Balanced Line Model

Figure 2 Unbalanced Line Model

are twisted together, then they form a balanced line.
This describes telephone lines, microphone cables,
and most professional audio cables. Typical balanced
cables include an additional shield wrap around the
twisted pair, but this is not strictly required for bal­anced lines to work properly.

Many people, because they have more experience
with unbalanced wiring, think that balanced is
confusing. Believe it or not, balanced lines are really
easier to understand than unbalanced. There is no
grounding issue with balanced, and the way it works
is perfectly natural and simple. Balancing naturally
rejects hum and noise and eliminates all sorts of
complications in interfacing.

Balanced transmission works something like this.
Your balanced input stage looks at the two wires
and detects only the potential (voltage) difference
between them. Anything that is the same on the two
wires (for all practical purposes as seen measuring
from ground) is called a common mode signal and
is cancelled out by the differential amplifier. Figure

Page 37

MICROPHONE PREAMPLIFIER

1 illustrates how the hum is induced into both wires
equally and therefore is cancelled out.

Since the balanced line has wires that are twisted
together, each wire tends to pick up the same
amount of induction from external sources. Induction
will create no significant voltage difference between
the wires, hence the noise (or hum) will not be picked
up by the differential input stage.

It can be seen that the signal generator driving the
twisted pair will cause a difference between the
wires, and that signal will be readily picked up by
the differential input stage. One of the beauties of
the balanced line is that it is completely independent
from ground. Nothing is connected to ground at all,
nor does it care about ground. Nevertheless, most
professional cable has an overall shield wrap that is
intended to be connected somehow to ground. You
may well ask why, and the answer is less than glori­ous. Simply, nothing is perfect, not even balanced
cable. Under some circumstances the shield can over­come extreme interference problems that can’t be
adequately rejected by the twisted pair alone. Things
like 2-way radios, television transmitters, and light
dimmers can induce very heavy interference that may
be reduced by shielding. You are going to find virtu­ally all balanced cables include a shield so you need
to deal with it, even if it is not actually needed. That
subject will be addressed a little later.

Unbalancing

Unbalanced wiring works a little differently. Figure 2
shows the basic plan. In this case, the wires are not
twisted, they are coaxial. The unbalanced input stage
is somewhat like the balanced input stage because
amplifies a difference signal, but this time it is the
difference between two non-symmetrical conduc­tors. To make things even less symmetrical, the outer
conductor is connected to ground at both ends. The
principle is that the outer shield conductor shields
the inner conductor from induced noises. This can
only work well if the cable is relatively short and the
ground at each end of the cable is somewhat equal,
i.e., there is no “grounding difference” that can
cause current to flow through the shield conductor.
Grounding difference is a serious problem in studios,
because often the equipment grounds are connected
to power outlet grounds, and there can be a sig­nificant difference of ac voltage between alternating
wall outlet grounds. For this reason, unbalanced sys­tems can sometimes never be made hum free, and

just changing one piece of equipment in a studio can
cause hum to appear somewhere else. When you are
using unbalanced gear, it is a very good procedure
to power all your equipment from one large power
isolation transformer. At the very least, make sure all
equipment is powered together off the same distri­bution panel circuit (same circuit breaker).

Appendix B: Dealing With Grounds and Hum

Ground Loops

Many people equate this term with hum, and that’s
just about the bottom line of it. If you have a ground
sensitive system, like unbalanced audio equipment
for example, then hum will result from ground
currents that flow from the ac power system. It is
sometimes very difficult to isolate and stop ground
currents between unbalanced equipment, but it is
quite easy to clean up balanced gear. That’s why pro
gear is always balanced! The cost of balancing is that
of more expensive connectors, cable, and electronics
but the cost is worth it when you depend on your
audio quality. That’s why the Model 230 is equipped
with a fully balanced I/O. Now that we’ve sold you
on only using really expensive pro gear, lets show you
how to get away with the really cheap stuff! At least
from the standpoint of killing ground hum.

A ground loop is an ac current that has become
routed through your audio ground system. The cur­rent comes mainly from ground potential differences
that exist between different wall outlets that return to
opposite phases at the power distribution panel. Sec­ondarily, however, many pieces of equipment contain
line filters and transformers that leak a small amount
of ac power into the chassis and ground return.

You may once have had the experience of getting
zapped by touching two pieces of gear at the same
time. That illustrated the ground loop effect going
straight through you! No matter what you do, you
may not be able to prevent some of your equipment
from generating ground currents. The most likely cul­prits are digital products because they use switching
power supplies that require heavy line filters to pre­vent conducted EMI from going out of the box. These
line filters often take the ground leakage current right
up to the UL safety limits. Although it probably won’t
kill you, that is a lot of ground loop current for audio
cables to handle.

There are basically three ways to attack the prob-

Page 38

Instruction Manual

APPENDIX B & C

lem of a ground loop. First is to eliminate it from
its source, and the second is to re-route it through
another path. The third is to balance out your unbal­anced audio interfaces.

Identify the Sources

A good way to identify grounding problems is to use
a multimeter to check the ac voltage between the
chassis of your various gear when no audio cables are
hooked up and all gear is plugged in and switched
on. Just start touching the two probes to the metal
chassis of different pieces of gear. Ideally, you should
always see zero volts. Warning! You may see as much
as the whole line voltage between two different
chassis! It does happen. This voltage between chassis
will be responsible for your ground loop problems.
If you find there is more than about 1 volt between
equipment grounds, you should start looking for a
remedy.

Commonize the Power

Try plugging all of your equipment into the same
outlet strip. Get one that has enough outlets in one
strip or string more than one together. Of course, you
need to make sure you don’t overload the one ac cir­cuit your strip is plugged into. If the load is too great
for one circuit, use a second or third circuit that is
tapped off the same 120 volt phase in your distribu­tion panel. That means all outlets should be on odd
or even numbered circuit breakers. That’s because,
as you go down the column, the circuit breakers
tap into alternating legs of your incoming electric
power. Be sure you’re always on the same leg. You
can tell you’re on the same leg by measuring the ac
voltage between the hot slots of the different outlets
you’ve chosen. It should be very low or zero. That will
remedy 50 percent of the cases.

Check the Cord Polarity

For products that have 2-wire power cords, try revers­ing one of the power cords in the socket. That may
reduce the ground current generated by the internal
electronics of the offending gear.

Redirect Ground Loops

Sometimes it just comes down to brute force ground­ing. That means providing such heavy, low resistance,
ground current paths that little current is left to flow
through your audio grounds. You can try adding
heavy gauge, for example 12 gauge, copper wire
from chassis to chassis. You will need to locate a
metal screw that solidly binds to the metal chassis of

the gear. You may even need to drill a hole through
the chassis and install a screw yourself. Equipment in
rack shelves can have their chassis grounded to the
metal rack frame by a heavy wire and the frame itself
can act as a brute force ground. You just have to try
everything you can think of. Usually a combination of
all these methods will be needed to completely clean
up a badly humming audio system.

Balance Out the Audio

Remember, balanced lines are inherently hum free.
If you can balance out your unbalanced equipment,
you will be able to stop the hum.

Pseudo Balancing

You will find in Appendix D an interconnecting
method called Pseudo Balanced. This works when
connecting an unbalanced output to a balanced
input. This breaks up the ground loop by requiring
the shield to be grounded only at one end. For best
results always ground the shield only at the receiving
end.

Level Interface Units

Aphex manufactures the Model 124 Level Interface
box which is designed to electronically convert two
unbalanced inputs and outputs into two balanced
inputs and outputs, and at the same time translate
the -10dBV IHF unbalanced levels to the pro +4dBu
balanced levels. This cost effectively gives your non­professional unbalanced equipment a fully profes­sional I/O equal to the world’s best pro audio gear.
Seriously consider putting one of these on each

unbalanced piece of gear you use.

Avoid Transformers

The use of balancing transformers is an option, but
you will invariably lose audio quality due to trans­former limitations. Try everything else first.

Appendix C: Proper Wiring Techniques

A true balanced line should be used wherever your
equipment allows. Use “twisted pair” shielded cable.
For unbalanced wiring you should use high grade,
low capacitance shielded wire for best results. If you
have an unbalanced output but have a balanced
input, the “pseudo-balanced” configuration may
help deal with ground loop hum. This method and
others are illustrated in Table 2.

Page 39

MICROPHONE PREAMPLIFIER

CONNECTOR WIRING STANDARDS

The 3 pin XLR, 1/4” (63.5 mm) TS mono phone and
the 1/4” (63.5 mm) TRS stereo phone are the most
commonly used line level connectors in pro audio.
Less common is the use of the “RCA” phono jack,
which is essentially a consumer type connector. The
XLR and the TRS are three conductor and are used
for balanced connections. The TS and the RCA are
two conductor and are used for unbalanced connec­tions.

In addition to the three main contacts on an XLR
there is also a grounding lug contact. This lug is con­nected to the connector’s case (shell). In all Aphex
products audio ground and chassis ground are one
and the same. Aphex products that use XLR connec­tors tie Pin I to the XLR case automatically. Therefore
it is not necessary to use the XLR case-ground lug.
This also makes possible the use of XLR ground drop
adapters (see Note 3).

TABLE 1: The wiring convention shown is now
standardized in 17 countries including the USA.
Please note that any equipment that still uses Pin 3
as positive on XLR connectors is not adhering to the
standard.

THE PIN 1 DILEMMA AND HOW IT AFFECTS
CABLE SHIELD CONNECTIONS

The three main contacts on an XLR (or TRS) and
the accepted wiring assignments shown above are
only part of the picture. The standard for terminat­ing ground is Pin 1 (Sleeve). But which ground? It
could be connected to audio signal ground or chassis
ground depending on the method of grounding used
by the equipment manufacturer. In all Aphex prod­ucts audio ground and chassis ground are one and
the same at all I/O jacks. This is just good, common
sense engineering practice (which is what you would
expect from us, course). Unfortunately, many prod­ucts are designed so that the noisy currents from
the shield drain into signal ground instead of chas­sis ground. This practice creates a real hum and
noise problem for end-users. The appropriate overall
grounding scheme of an audio system would be a lot
easier to predict without this problem1.

The standard balanced line wiring recommenda-

tion from Aphex Engineering is this: In the majority
of cases maximum noise rejection occurs when the
shield is connected to the input ground only (espe­cially in locations with high levels of RFI). That means
the sending end shield should be left disconnected.

However, if you already have cables with the
shield connected at both ends, go ahead and
try them out. If you are connecting a fairly
simple audio system it may be fine as is.

A word on optional shield connections: Con-

necting the cable shield of a balanced line at both
ends creates unnecessary ground loops which may
carry noise and hum currents that can be ampli­fied. Connecting the shield only at the sending
end (instead of the receiving end) may exaggerate
common mode noises at the receiving input stage. It
can actually increase RFI and noise more than having
no shield at all. Because of the “Pin I Dilemma” (men­tioned above) you may be forced, in some situations,
to experiment with how the cable shield is connected
to ground to eliminate a pesky hum or radio interfer­ence problem. It might be good to try XLR ground
drop adapters (see Note 3) as a method of trying
these conflicting methods out and being able to
change easily if necessary.

IMPEDANCE

Regardless of inaccuracies, it has become more or
less standard over the years to refer to balanced
lines as low impedance and unbalanced lines as high
impedance. The fact is, however, that both balanced
and unbalanced lines are operated at low imped­ance in modern practice owing to the fact that all
output stages have become low impedance. A few
exceptions might be outputs from passive mixers,
instrument pickups, electric guitars and some key­board synthesizers. It is generally ideal to drive any
audio line from a low impedance and receive into a
high impedance. Generally, a minimum 1: 10 ratio is
possible. This is called “bridging”. This has become
modern practice and all balanced inputs are normally
running 10K ohms or higher impedance. Because of
these developments, it is now no longer as critical to
consider impedance when dealing with interfacing
pro line level equipment (impedance “matching” is
mostly a requirement of the past).

Page 40

Instruction Manual

TABLE 1 - BALANCED & UNBALANCED CONNECTOR WIRING STAN-

3-Pin XLR 1/4” TRS Phone Standard Wiring Convention (Balanced)

Pin-1 Sleeve Ground/Shield (Earth, Screen)

Pin-2 Tip Positive (Signal, High, Hot)

Pin-3 Ring Negative (Signal Reference, Return, Low, Common)

1/4” TS Phone RCA Standard Wiring Convention (Unbalanced)

Tip Center Pin Positive (Signal)

Sleeve Shell Ground/Shield (Signal Reference/Return)

A word on impedance and interfacing adapt­ers: If you are connecting between two line level

devices and they have different connectors (example:
1/4” phone to XLR or vice-versa), you do not need to
use an impedance matching transformer. With very
few exceptions you are strictly dealing with a differ­ence in connector types and should only use hard­wired adapters (or cables) for this situation.

APPENDIX D: Standard Cable Wiring

In relation to 1/4” phone jacks, you may see the terms
“TS” and “TRS” as abbreviations. Here is a what that
means: TS refers to the Tip-Sleeve or “mono” 2­conductor type and TRS refers to Tip-Ring-Sleeve or
“stereo” 3 conductor type 1/4” phone connectors.
This applies to jacks (female connectors) and plugs
(male connectors).

Note: We recommend using only conventional
1/4” phone plugs with the Model 230 and with
all other audio equipment. Professional patch bay
cords using brass PJ055 telephone type plugs are
designed only for patch bays and will not make
proper contact with standard 1/4” phone jacks.

The following instructions show all the different ways
you will probably ever need to hook up your 230 as
well as any other equipment you may own. You will
see that connecting balanced outputs to balanced
inputs is ultimately simple and the same cable will
work for all flavors of output stages.

APPENDIX D

Connecting a balanced output to an unbalanced
input requires a little more knowledge and care.
You should refer to your equipment manuals and
determine the type of balanced output stage that is
provided, then use the correct “transition cable” as
depicted in this section. Improper transition cables
can cause crosstalk, hum, and distortion problems
within your system.

TYPES OF BALANCED OUTPUTS

Believe it or not, there are at least 5 types of balanced
output stages in use today. They may be placed
into two main classes: transformer balanced, and
transformerless balanced, usually called “active bal­anced”. Transformer balanced outputs are becoming
outdated because of their high cost and their sonic
limitations. However, they can still be found on a lot
of older equipment.

Within the transformerless class, there are several
types of circuits that are used by different manufac­turers. These different types of output circuits all look
just about alike to any balanced line, but they act dif­ferently when driving an unbalanced line. You need
to observe the proper cable wiring for each type of
output circuit. We strongly recommend that you refer
to your various equipment manuals to find out what
is used in each case before hooking up to unbalanced
lines.

When connecting a balanced output to a balanced
input, however, you don’t need to know what kind
of balanced output you are dealing with. Simply
treat it generically.

Page 41

MICROPHONE PREAMPLIFIER

XLR to XLR

OK for Microphones

Standard store-bought cable. Shield grounded at both ends.
Positives: Good for microphones.
Negatives: May cause ground loops through the shield grounds if used to
connect equipment together.

PART 1: BALANCED OUT to BALANCED IN

1/4” TRS Phone to 1/4” TRS Phone Balanced Cables

OK

Standard store-bought cable. Shield is grounded at both ends.
Positives: Both ends are interchangeable.
Negatives: May cause ground loops through shield contacts.

BETTER

Custom cable. Shield is grounded at receiving end only.
Positives: Stops ground loops and reduces noise.
Negatives: Should be oriented so lifted shield is at sending end.

From an Output

Female XLR

No Connect

XLR to 1/4” TRS Phone Balanced Cables

Preferred for Line Levels

Shield grounded at receiving end only.
Positives: Stops ground loops and reduces noise.
Negatives: None

To an Input

Male XLR

No Connect

Stops Ground Loops

To an Input

Stereo Phone Plug

From an Output

Stereo Phone Plug

Page 42

No Connect

Stops Ground Loops

Instruction Manual

APPENDIX D

PART 2: BALANCED OUT to UNBALANCED IN

It was mentioned that there are several types of
balanced output stages in use today. The follow­ing diagrams show you how to properly unbal­ance each type of output. If you follow these
instructions, you should have no problems.

Transformer Balanced Outputs

SIMPLIFIED SCHEMATIC

Unbalancing loses no output level.
You retain full gain.

Female XLR

Ground Pin 3 Directly to Pin 1.
Alternatively, Carry Pin 3 Through Twisted Pair Cable
and Ground at Other End

Mono Phone Plug

Voltage Balanced Outputs

SIMPLIFIED SCHEMATIC

Unbalancing loses half the output level.
You lose 6dB of gain.

Female XLR

Don’t Ground or Connect Pin 3

Mono Phone Plug

Impedance Balanced Outputs

SIMPLIFIED SCHEMATIC

Servo Balanced Outputs

SIMPLIFIED SCHEMATIC

Unbalancing loses no output level.
You retain full gain.

Ground Pin 3 Directly to Pin 1

Female XLR

Do Not Carry Pin 3 Through Cable and Ground
at Other End

Mono Phone Plug

Female XLR

Unbalancing loses no output level.
You retain full gain.

Pin 3 Doesn’t Matter
OK Grounded or Not Grounded

Mono Phone Plug

Page 43

PART 3: UNBALANCED to UNBALANCED

Standard Cable (Guitar Cord)

Mono (TS) Phone Plug Mono (TS) Phone Plug

PART 4: UNBALANCED OUT to BALANCED IN

MICROPHONE PREAMPLIFIER

Standard Method

Mono (TS) Phone Plug Stereo (TRS) Phone Plug

(Guitar cord of Part 3 above usualy works just as well)

Mono (TS) Phone Plug

Male XLR

PART 5: “Y” INSERT CABLES

Male XLR

To Equipment Input

Female XLR

Enhanced Method (Pseudo Balanced)

Advantage: Reduced Hum and Noise Pickup

Mono (TS) Phone Plug Stereo (TRS) Phone Plug

Ground Shield This End Only

Mono (TS) Phone Plug

Sleeve

Tip

Ring

Not Used

Male XLR

Not Used

Stereo Plug

To TRS

Insert Jack

From Equipment Output

To Equipment Input

From Equipment Output

Don’t Connect Pin 3

Mono (TS) Phone Plug

Ground Shield This End Only

Mono (TS) Phone Plug

Ground Shield This End Only

To TRS

Insert Jack

Ground Shield This End Only

Page 44

Instruction Manual

APPENDIX E: HELPFUL WIRING TABLE
Also see next page...

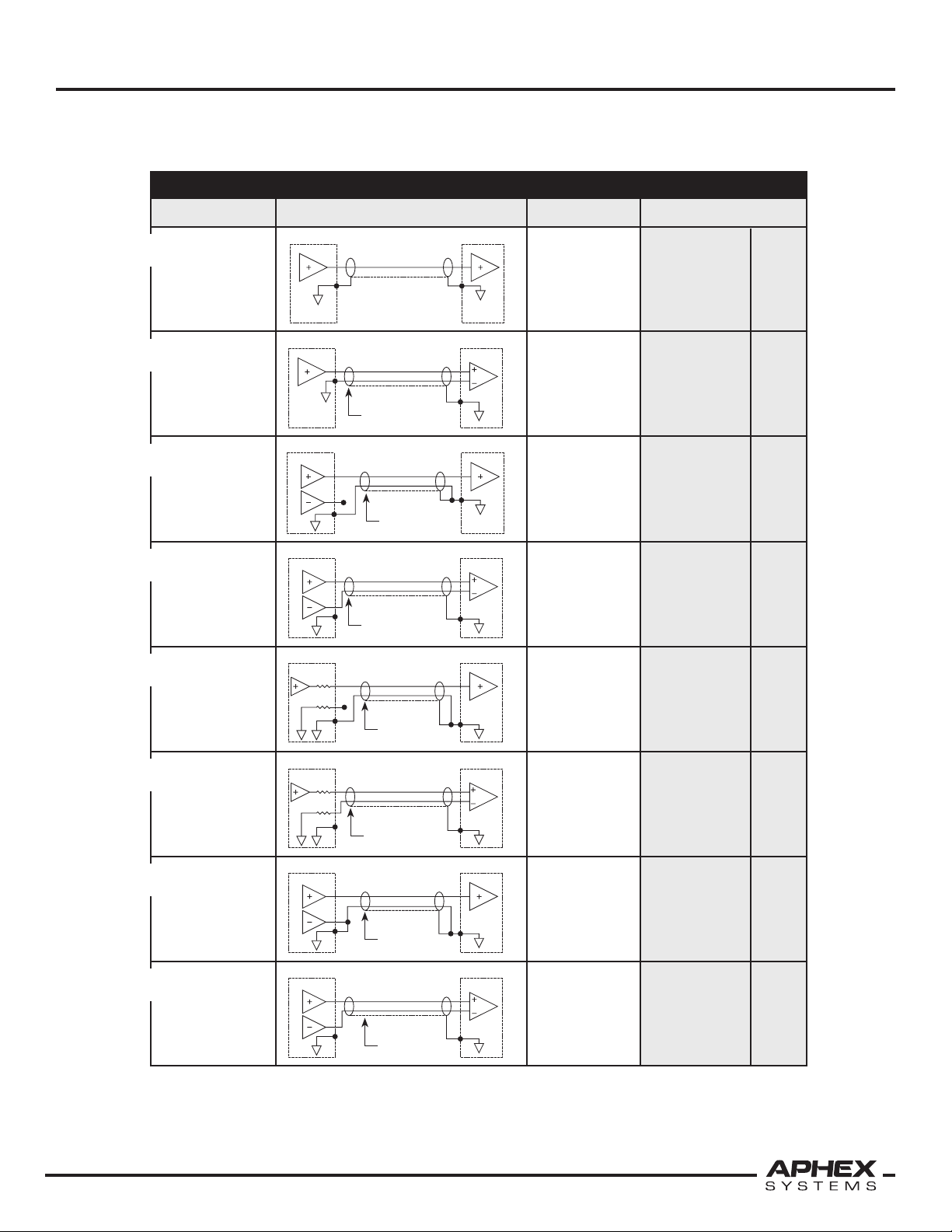

TABLE 2 - - TYPES OF ACTIVE BALANCED INPUT/OUTPUT CIRCUITS & INTERFACE WIRING

OUTPUT

TYPE

(Interface from OUTPUT to INPUT)

Wire: single conductor with a shield (coax style)

1

Unbalanced Unbalanced

Wire: two conductor with a shield (twisted pair)

2

Unbalanced Balanced

Wire: two conductor with a shield (twisted pair)

3

Voltage

Balanced

Wire: two conductor with a shield (twisted pair)

4

Voltage

Balanced

WIRING DIAGRAM

POSITIVE (HIGH)

SHIELD (GND)

POSITIVE (HIGH)

NEGATIVE (LOW)

SHIELD (GND)

No Connection (see Note 4)

POSITIVE (HIGH)

NEGATIVE (LOW)

SHIELD (GND)

No Connection (see Note 5)

POSITIVE (HIGH)

NEGATIVE (LOW)

SHIELD (GND)

NC Optional (see Note 6)

INPUT

TYPE

Resulting Interface

METHOD / LEVEL

Unbalanced

Pseudo

Balanced

(see Note 4 for

Unbalanced

wiring)

Unbalanced Unbalanced

Balanced Balanced

APPENDIX E

Unity

2

Gain

Unity

2

Gain

6dB

2

Loss

Unity

2

Gain

5

Impedance

Balanced

6

Impedance

Balanced

Cross-

7

Coupled

Balanced

(Aphex Servo

Balanced)

Cross-

8

Coupled

Balanced

(Aphex Servo

Balanced)

Wire: two conductor with a shield (twisted pair)

POSITIVE (HIGH)

NEGATIVE (LOW)

SHIELD (GND)

NC Optional (see Note 6)

Wire: two conductor with a shield (twisted pair)

POSITIVE (HIGH)

NEGATIVE (LOW)

SHIELD (GND)

NC Optional (see Note 6)

Wire: two conductor with a shield (twisted pair)

POSITIVE (HIGH)

NEGATIVE (LOW)

SHIELD (GND)

NC Optional (see Note 6)

Wire: two conductor with a shield (twisted pair)

POSITIVE (HIGH)

NEGATIVE (LOW)

SHIELD (GND)

NC Optional (see Note 6)

Unbalanced Unbalanced

Balanced Balanced

Unbalanced Unbalanced

Balanced Balanced

Unity
Gain

Unity
Gain

Unity
Gain

Unity
Gain

2

2

2

2

Page 45

MICROPHONE PREAMPLIFIER

NOTES

The following notes are referenced in the text and in Table 2 on the preceding pages.

Note 1: ADDITIONAL READING SUGGESTIONS: Sound System Engineering by Don Davis and Carolynn Davis (Howard W.
Sams and Co.), Handbook for Sound Engineers (The New Audio Cyclopedia) Edited by Glen Ballou (Howard W. Sams and
Co.) and Sound Reinforcement Handbook by Gary Davis and Ralph Jones (Hal Leonard Publishing Corp.).

For more information on the “Pin 1 Dilemma” see the June 1995 issue of the Journal of the AES (Vol.43/No.6, Audio Engi­neering Society, New York). This issue is dedicated to “Shields & Grounds.”

Note 2: TABLE 2: LEVEL CHARACTERISTICS (unity gain verses 6dB loss)
Diagrams 1, 2 and 4 through 8: The effective interface gain will remain at OdB for all of the interfaces shown.

Diagram 3 Balanced to Unbalanced: This configuration should be used with equipment incorporating a conventional active
balanced output stage. Most non-Aphex equipment uses this kind of output stage because of its simplicity and low cost.
Therefore, you will find yourself using diagram 3 fairly often when interfacing typical equipment together. In this case, the
interface gain will be 50% down, giving a 6dB loss of level. This is because each output driver has fixed gain and supplies
only half the balanced output amplitude. You can usually compensate for the loss by adjusting the output level or input
level settings on the associated equipment.

Note 3: XLR GROUND DROP ADAPTERS A word on using XLR ground drop adapters (and mic cables): A secondary advan­tage to not using the XLR case lug as a ground is the ability to use barrel style XLR “ground drop” adapters (hard-wired
female to male XLR adapters with Pin 1 disconnected). These can be used on one side of the cable to disconnect the ground
as discussed earlier. If the case lug is tied to the cable’s shield (with or without Pin 1) the cable will still be grounded to the
equipment’s ground though the XLR ground drop’s case. XLR ground drops are useful especially for live sound situations
where the same stock of XLR cable may be used for line level patching and/or for patching microphones. The reason is
that XLR cables used for microphones should never have the shield disconnected at one end. This is a safety issue for the
performing artist - microphones should always be grounded!

Note 4: If you have an unbalanced output but have a balanced input, the “pseudo-balanced” configuration may help deal
with ground loop hum. However, it is possible to wire this as an unbalanced interface. To wire unbalanced - use a coax cable
with a single conductor and a shield, wire as follows: Output (From) - connect the ground contact to the cable shield, con­nect the positive contact to the positive conductor; Input (To) - connect the ground and the negative contacts to the cable
shield, connect the positive contact to the positive conductor. Please note that this in fact occurs by default when plugging
an unbalanced cable with a 1/4” TS (Tip-Sleeve) phone plug into a TRS (Tip-Ring-Sleeve) phone jack.

Note 5: Some electronically balanced output circuits from other manufacturers exhibit problems when the negative output
amplifier is shorted to ground to in order to drive an unbalanced load. The grounded output amplifier pumps current onto
the ground which may cause distortion or cause the amplifier to fail. When wiring this type of output be careful to leave
the negative contact unterminated.

Note 6: Shield Option: Connect receiving end only. See text preceding Table 2 titled - THE PIN 1 DILEMMA AND HOW IT
AFFECTS CABLE SHIELD CONNECTIONS

Note 7: Single-Ended, Impedance-Balanced

Note 8: It is possible to wire this as an unbalanced interface. To wire unbalanced - use a coax cable with a single conduc-

tor and a shield, wire as follows: Output (From) - connect the ground and the negative contacts to the cable shield, con­nect the positive contact to the positive conductor; Input (To) - connect the ground contact to the cable shield, connect
the positive contact to the positive conductor.

Page 46

Instruction Manual

5Vp-p Open Circuit

2.5Vp-p With Termination

75Ω

Load

Termination

75Ω

Source

Termination

75Ω

Coax

Line

Clock

Transmitter

Clock
Receiver

75Ω

Source

Termination

Clock

Transmitter

75Ω Coax Line

Input Jack

75Ω

Load

Adapter

Loop-Through Jack

75Ω Clock
Receiver

APPENDIX F

APPENDIX F: WORD CLOCK CABLING

Transmission Systems

There are basically two systems in use for distributing word

clock by coaxial lines: 75Ω matched, and unmatched with

unspecified impedance. We sometimes call the unmatched

method “brute force”. You’ll see why as you go through

this tutorial.

Matched Coaxial Transmission

This is by far the better way to send pulse shaped wave-

forms over a long distance. Coaxial cable is manufactured

to several standard impedance characteristics. The most

common are 50 and 75 ohms (Ω). 50Ω cable has tradition-

ally been popular around radio transmission apparatus,

but television has long adopted 75Ω cable to carry video

signals. Industry has also adopted 75Ω for the lead-in and

internal house wiring for cable TV. More recently, the AES

adopted, by standard AES3-ID 2001, 75Ω cable for distri-

bution of digital audio.

Figure 1

Principle of 75Ω Matched Transmission

useful bandwidth of the line is maximized under these con-

ditions, and the pulse waveform is best preserved.

That is not to say the pulse waveform won’t undergo some

degradation. All matched transmission lines have losses,

especially at high frequencies. When the cable exceeds

a certain length, depending on the cable’s quality, cable

equalization may be required to recover additional band-

with. Nevertheless, a general rule is that matched transmis-

sion lines will always have better bandwidth and less jitter

than unmatched lines of equal length.

It should be noted from figure 1 that when a matching line

driver is not loaded by the line, its output voltage rises by

double. This is something to take into account when mea-

suring or specifying word clock output levels.

A slight revision of figure 1 is shown in figure 2. The inter-

nal termination resistor is replaced by a “loop-through”

jack and an external load adapter. The principle is the

same, but the loop-through jack allows daisy-chaining

of many clock recipients from a single clock source over a

single clock cable. As you could imagine, this can greatly

simplify clock distribution among compatible equipment.

For practical purposes, transmission line theory need not

be studied at great length. The basic idea is very simple.

To create a matched transmission line, you terminate both

ends of the line by a resistance equal to the line’s own

characteristic impedance.

This configuration causes all the power launched from

the sending end to be absorbed at the receiving end. The

Figure 2

75Ω Transmission Loop-Through Jacks

Daisy-Chain Example

Figure 3 expands upon figure 2 to show the principle of

daisy-chaining a matched transmission. Note that only the

last unit in a daisy-chain needs a load adapter to properly

terminate the 75Ω line.

Unmatched Lines

In the simplest context, an unmatched line is one that is

Page 47

MICROPHONE PREAMPLIFIER

Input Jack

Loop-Through Jack

Input Jack

75Ω Coax Feed

75Ω Coax75Ω Coax

Loop-Through Jack

Hi-Z Clock Receiver

Hi-Z Clock Receiver

Hi-Z Clock Receiver

First

Device

N

Devices

Last

Device

Input Jack

75Ω

Load

Adapter

Loop-Through Jack

5Vp-p Output Level
Open Circuit

Still 5Vp-p But With Ringing
(Worse With Longer Cable)

Coax

Line

Brute Force

Clock Transmitter

Brute Force

Clock Transmitter

Clock Receiver

<10Ω

Source

Impedance

<10Ω

Source

Impedance

not terminated in its characteristic impedance. In most cas-

es, unmatched word clock lines are driven by a low output

impedance voltage driver and loaded by a high impedance

receiver.

A length of coax driven by a brute forced output driver will

cause edge ringing and wave distortion of the clock pulses.

If the length is too long, the distortion can cause clock jitter.

It is important to minimize the cable length.

Figure 3

Transmission Daisy-Chain

Though ugly from an engineering viewpoint, the only solu-

tion is such cases is to apply unmatched transmission lines

as best as one can and then rely on “brute force” clocking

to hold it all together.

With brute force clocking, 5Vp-p clock pulses are fed out

from a low impedance line driver with no intention of

impedance matching the coaxial cable. Daisy chaining is

not usually possible because the magnitude of jitter rapidly

rises. Very short cable runs are necessary. Every piece of

gear gets a separately driven feed, and no terminating load

is used.

Figure 4

Principle of Unmatched Lines

And Brute Force Clocking

Brute Force Clocking

It is an unfortunate fact that transmission line techniques

for word clock have not been implemented in much of

the digital audio equipment presently available. This leads

to real clocking compatibility problems in today’s studios.

Obvious problems are usually seen as “no lock” but less

obvious is sound degrading jitter.

Figure 4 above illustrates the Brute Force clock principle. We

have found that many of the commercially available clock

detangler and regenerator/driver boxes actually source out

brute force clock as their hedge against unknown studio

equipment characteristics.

Clocking The 1788A With 75Ω Matched Lines

First, you need to be aware that when switched to the

external clock mode, the 1788A automatically connects the

word clock input jack to the word clock output jack through

a metal relay contact. This permits direct feed-through of

clock with almost no loading from the 1788A. If using a

75Ω clock system, then you can daisy-chain the W.C. input

to additional 1788A’s or other equipment. If the 1788A is

Page 48

Instruction Manual

WORD
CLOCK

OPTICAL

AES/EBU OUTPUT

TDIF

ADAT

IN

OUT

UTIL

1 2 3 4

ON

APPENDIX F

the last unit in line, the best option for terminating the line

as shown in figure 5.

Clocking The 1788A With Brute Force

Not knowing what the 1788A’s word clock input may be

driven by, we made it automatically accept the brute force

voltage levels.

When accepting brute force clock, do not install

a termination adapter - it would be of no benefit.

When the driving source is not matched to the line

impedance, then adding a load impedance will not

improve the transmission characteristics.

Maximum Brute Force cable length depends on several fac-

tors, but you probably shouldn’t attempt distances greater

than 4 feet.

Figure 5

End-of-Line Termination

Last Unit In Line

75Ω Terminator

Terminator Can
Go Here Instead

Tee

NOTE ON CONVERTING TO A
MATCHED LINE: because of the

1788A’s automatic input level adap­tation, you can convert a brute forced
clock source into a workable matched
line by inserting an in-line 75Ω, 10dB
pad at the sending end of the
cable, and then installing a 75Ω ter-
mination adapter at the receiving end.
This may reduce or eliminate jitter
problems when the word clock distri­bution cable is of appreciable length.

Typical 75Ω Attenuator

Page 49

MICROPHONE PREAMPLIFIER

This product is protected under one or more of the following Aphex patents.

4,578,648
4,633,501
4,843,626
4,939,471
5,115,471
5,155,769
5,334,947
5,359,665
5,422,602
5,424,488
5,450,034
5,463,695
5,483,600
5,485,077
5,612,612
5,737,432
5,848,167
5,896,458
5,898,395
5,930,374
6,266,423

Page 50
