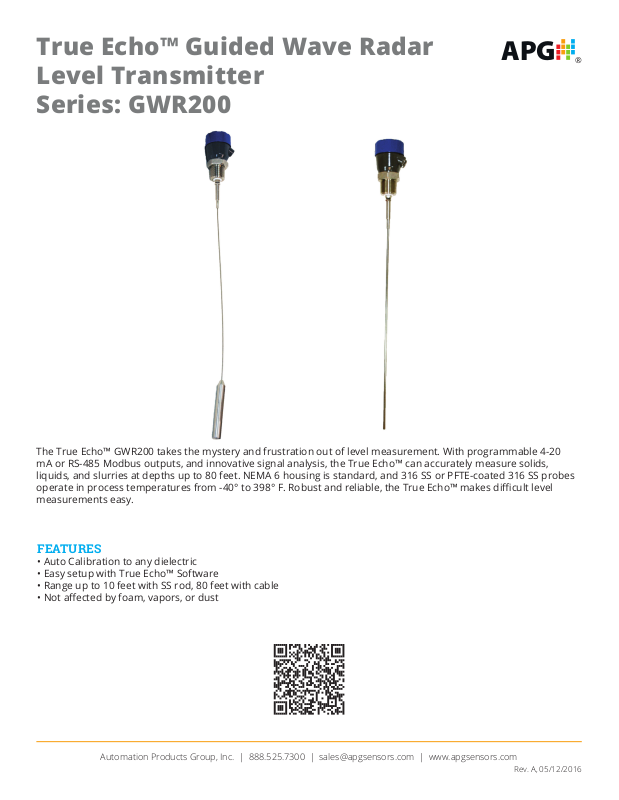

Page 1
APG
True Echo™ Guided Wave Radar
Level Transmitter
Series: GWR200
®
The True Echo™ GWR200 takes the mystery and frustration out of level measurement. With programmable 4-20
mA or RS-485 Modbus outputs, and innovative signal analysis, the True Echo™ can accurately measure solids,
liquids, and slurries at depths up to 80 feet. NEMA 6 housing is standard, and 316 SS or PFTE-coated 316 SS probes
operate in process temperatures from -40° to 398° F. Robust and reliable, the True Echo™ makes dicult level
measurements easy.
FEATURES
• Auto Calibration to any dielectric
• Easy setup with True Echo™ Software
• Range up to 10 feet with SS rod, 80 feet with cable
• Not aected by foam, vapors, or dust
Automation Products Group, Inc. | 888.525.7300 | sales@apgsensors.com | www.apgsensors.com
Rev. A, 05/12/2016
Page 2
APG
True Echo™ Specications
4.3”
110 mm
1.5”
38.1 mm
6”
154 mm
Performance
• Measurement Range:
1.25’ to 80’ with minimum dielectric constant of 0.3
• Accuracy:
+/- 0.039” or 0.02% of measured distance
(whichever is larger)
• Response Time:
100 samples/second
Connectivity
• Output:
4-20 mA, Isolated 4-20 mA
RS-485 Modbus
Environmental
• Maximum Operating Temp:
Electronics: -40º to 158ºF (-40 to 70ºC)
Process/Probe: -40º to 398ºF (-40 to 203ºC)
• Maximum Operating Pressure:
-14.50 PSI to 580 PS
• Enclosure:
NEMA 6: Coated Epoxy Aluminum with IP67 Sealing
Electrical
• Loop Resistance:
750 ohms with 24 VDC loop supply
250 ohms with 24 VDC internal supply
• Input Voltage:
12-30 VDC
• Power Consumption:
<3W @ 24 VDC
Programming
• Programmable using APG True Echo™ software and
True Echo™ Communication Tool
Physical
• Probe
Rod: 316 SS, 0.25” diameter
PFTE-coated 316 SS, 0.395” diameter
Cable: 316 SS, 0.195” diameter
PFTE-coated 316 SS, 0.34” diameter
• Max Tensile Load
4,270 lbs
Automation Products Group, Inc. | 888.525.7300 | sales@apgsensors.com | www.apgsensors.com
®
2
Rev. A, 05/12/2016
Page 3
APG
Model Conguration Options
Model Number: GWR200 - ____ - _____ - _____ - _____ - _____ - _____ - _____
A B C D E F G
A. Wiring Option
□ 4 4-wire
B. Probe Type
□ R 316 SS Rod (120” max)
□ T 316 SS PTFE Coated Rod (120” max)
□ W Wire Cable (960”/80 ft max)
□ X PTFE Coated Wire Cable (960”/80 ft max)
C. Enclosure Rating
□ N6 NEMA 6
D. Process Connection
▲
□ 0
1.5” NPT
□ 1 1.5” ANSI 150# Flange
▲
This option is standard
E. Conduit Entries
▲
□ 1
Two 1/2” NPT
□ 2 Two Cable Glands
□ 3 One 1/2” NPT, One Cable Gland
F. Probe Length
□ ___ Probe Length in Inches (15” to 120” or 960”/80 ft)
G. Options
▲
□ NN
None
□ 04 PTFE Isolation Gasket
Automation Products Group, Inc. | 888.525.7300 | sales@apgsensors.com | www.apgsensors.com
®
3
Rev. A, 05/12/2016
Page 4
APG
®
Automation Products Group, Inc. | 888.525.7300 | sales@apgsensors.com | www.apgsensors.com
Document #9004785 Rev. A, 05/12/2016
