WHICH IS THE RIGHT INFLATABLE FOR YOU?

First, you need to consider how you intend to use your inflatable.
This will influence the design and size of the boat that best meets your
needs. Such considerations should include:

- Number of passengers and gear you will normally carry to estimate
the weight capacity.

- Room needed for bulky equipment and supplies.

- What type of conditions and elements you will expose your boat to

Ultra Violet (UV), etc.

- Do you intend to use the boat as a tender, sport-boat, or for fishing,
diving, hunting, charter, etc.?

- Would the performance and low maintenance of a Rigid Inflatable
Boat be more beneficial or the easy of Rolling and Storage of Roll Up
or Collapsible needed?

www.apexinflatables.com

- 4 -

Categories of Boats

Four (4) main categories of inflatable boats exist on the market: 1) Rigid
Inflatables Boats (R.I.B). 2) Performance Rigid Roll Up. 3) Collapsible boat

with floorboards). 4) Flat-bottom boat with slatted floor and no keel (often
wrongly marketed as a performance Roll-Up.

1. The RIBs offer higher performance capability and stability as a sport
boat. In comparison to traditional power boats, there are lighter in weight,
allowing them to deliver higher performance with a smaller size engine.
They also offer virtually maintenance free use and are very popular both
as tenders and sport boats.

2. The performance Rigid Roll Up is designed to provide ease of storage
and its full-length floor allows the addition of an inflatable keel. This
model can be rolled up and stored with the floor system still inside the
boat. Allowing you to inflate the boat in any position or area.

3. The Collapsible with floorboards, although often accused of fingernail
breaking, offers a more rigid floor system. The floor system is typically
made of wood, which requires maintenance, and assembly and
disassembly time increase, because the boards must be removed every
time the boat is collapsed. The boats accept more horsepower than roll
ups, but less than R.I.Bs.

4. The flat-bottom boat with a slatted floor offers easy storage and
assembly, but at the price of several drawbacks! These boats are
extremely difficult to stand in. In addition, they cannot have a keel and,
therefore, will no track or plane, thereby greatly reducing performance,
stability and enjoyment.

See pg. 10

www.apexinflatables.com

- 5 -

MATERIALS

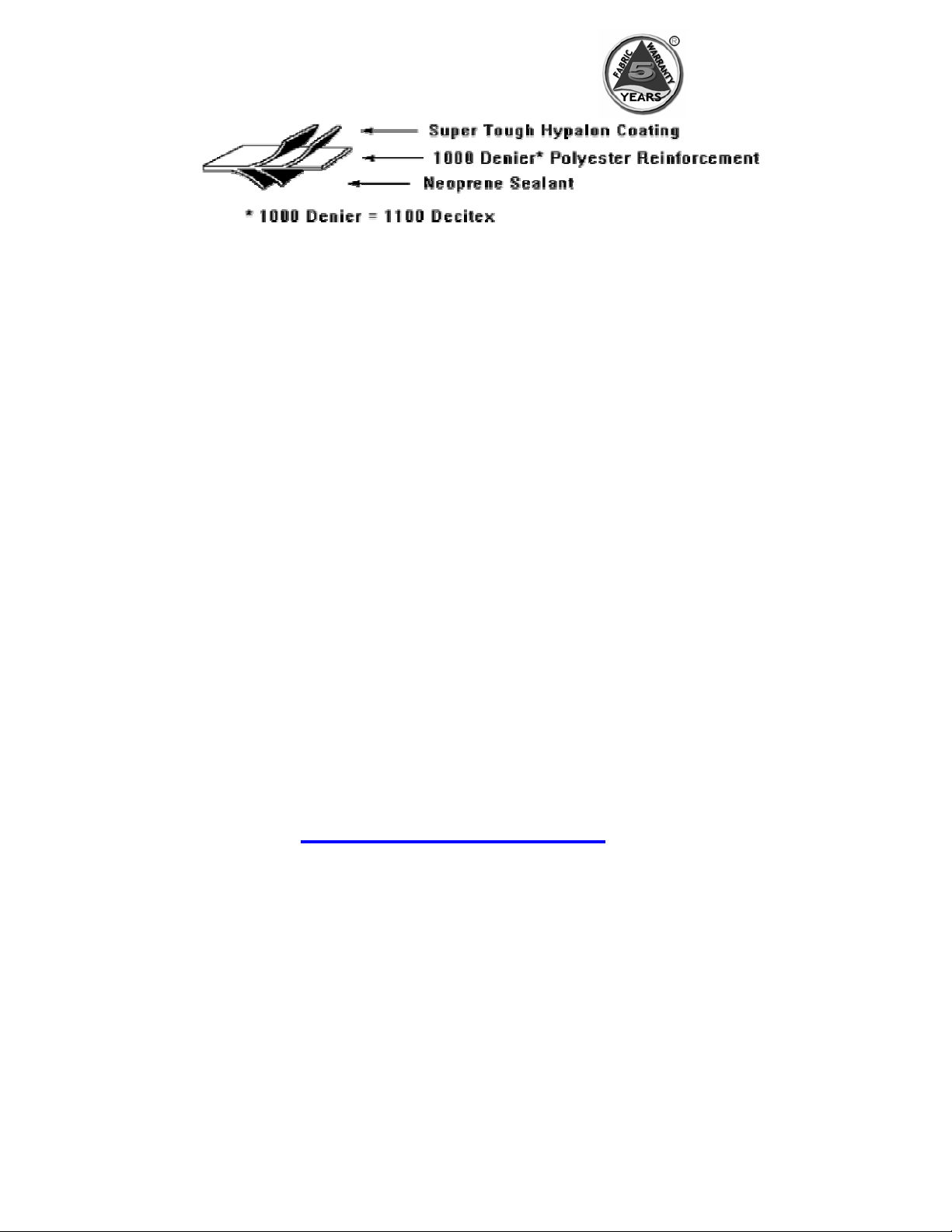

APEX Fabric

Inflatable boats are typically manufactured from a fabric that is reinforced
with a coating on both sides, creating a material with several layers, as
follows:

Outer Layer – To protect the boat against the elements and abrasions, this
layer must be extremely tough. The layer must be resistant to ultraviolet (UV)
sun rays, as well as gasoline products, water, environmental pollutants and
temperature variations. The two most popular products used on the market
are Hypalon, the registered trade name for a DuPont patented product, and
polyvinyl chloride, commonly known as PVC.

Middle Layer- The boat’s strength comes from this layer, which is made
from a heavy-weaved fabric of either polyester or nylon. Polyester is more
expensive, but will stretch significantly less than nylon, has better resistance
and better memory.

Inner Layer – This layer ensures that the boat remains air-tight and that the
seams are well bonded. The products used for this layer are usually
Neoprene, Hypalon, or PVC

Outer Layer – Hypalon or PVC?

For the outer layer, we at APEX insist on using Hypalon®. This tough
synthetic rubber by DuPont has proven to be the most resistant in the marine
environment to UV sunrays, gasoline, oils, and extreme temperature. It also
stands up to abrasions and punctures. Hypalon is an expensive material
which requires hand gluing. Remember to ensure that the boat you buy has
been built in humidity controlled environment (under 80%). If not, you may
encounter problems with bonding.

www.apexinflatables.com

- 6 -

PVC materials are cheaper, lighter products that can be machine welded.
However, they have much less resistance to UV rays and will become brittle
upon contact with chemicals such as oils and gasoline. Do not be confused
by fancy names given to PVC by some boat manufactures, they are all part
of the PVC family of products. PVC is PVC

!

Apex recommends Hypalon for a tough material that give extended
durability. If Hypalon® is required by Navy, Army, and Coast Guard, etc;
why not by you?

Middle Layer – Polyester or Nylon?

Polyester reinforcement, although more expensive than nylon, has definite
advantages. The higher resistance to stretch allows the boat to maintain a
uniform shape, thus improving both performance and stability. Its high tensile
strength increases its resistance to punctures and ensures that it will retain
its shape for years to come under pressure, especially for the Roll Ups
improving Rigid duty.
Polyester and nylon reinforcement are measured in Denier or Decitex. The
higher the Denier or Decitex number the stronger the material. Denier is
used in the United States, while Decitex is used in countries using the metric
system. However, some manufacturers are now using Decitex in their U.S.
brochures, which can confused the costumer on the quality of material, the
Decitex numbers are always higher than the Denier references. Please do
not be confused, just remember: 1,100 Decitex approx=1,000 Denier.

We at APEX use 1,000 denier (and more on large R.I.B) polyester reinforced
Hypalon to ensure top quality for all our boats.

Inner Layer-Neoprene, Hypalon, or PVC?

APEX inflatable Boats have an inner layer of neoprene. This proven closed­cell elastomer has superior qualities for making material airtight and seams
perfectly bonded. This ensures that the tubes remain airtight for a longer
period of time.

Seam Construction

All Hypalon boats require a hand-gluing assembly process. Although time
consuming, this process is used by all high-end inflatable boat
manufacturers, and requested by commercial and military customers. We
believe that hand-glued seams that are overlapped and taped are highly
superior to those that are not.

www.apexinflatables.com

- 7 -

DESIGN FEATURES

APEX A-9 Typical 10’

Overall Length 8’ 11” 10’ 0”
Overall Beam 5’ 2” 4’ 10”
Tube Diameter 16” 1/2 15”

Innovation in design is important to us at APEX. We are constantly striving to
improve the performance and reliability of our boats while maintaining a
superior value for the price.
Certain design features are important to the customer in their search for a
boat. We have outlined these features and recommend that you make the
comparison.

You pay for it
You do not need it

www.apexinflatables.com

- 8 -

www.ape

es.co

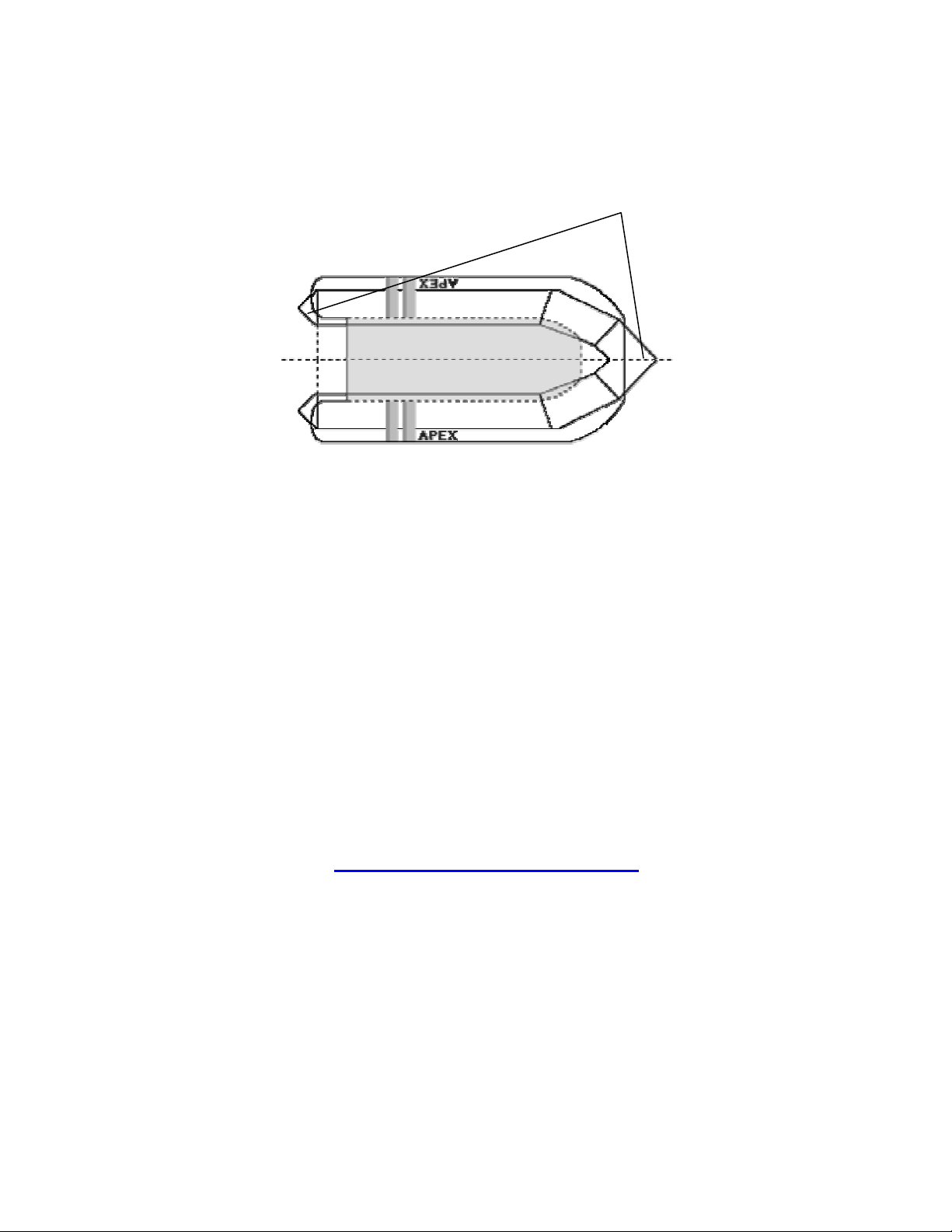

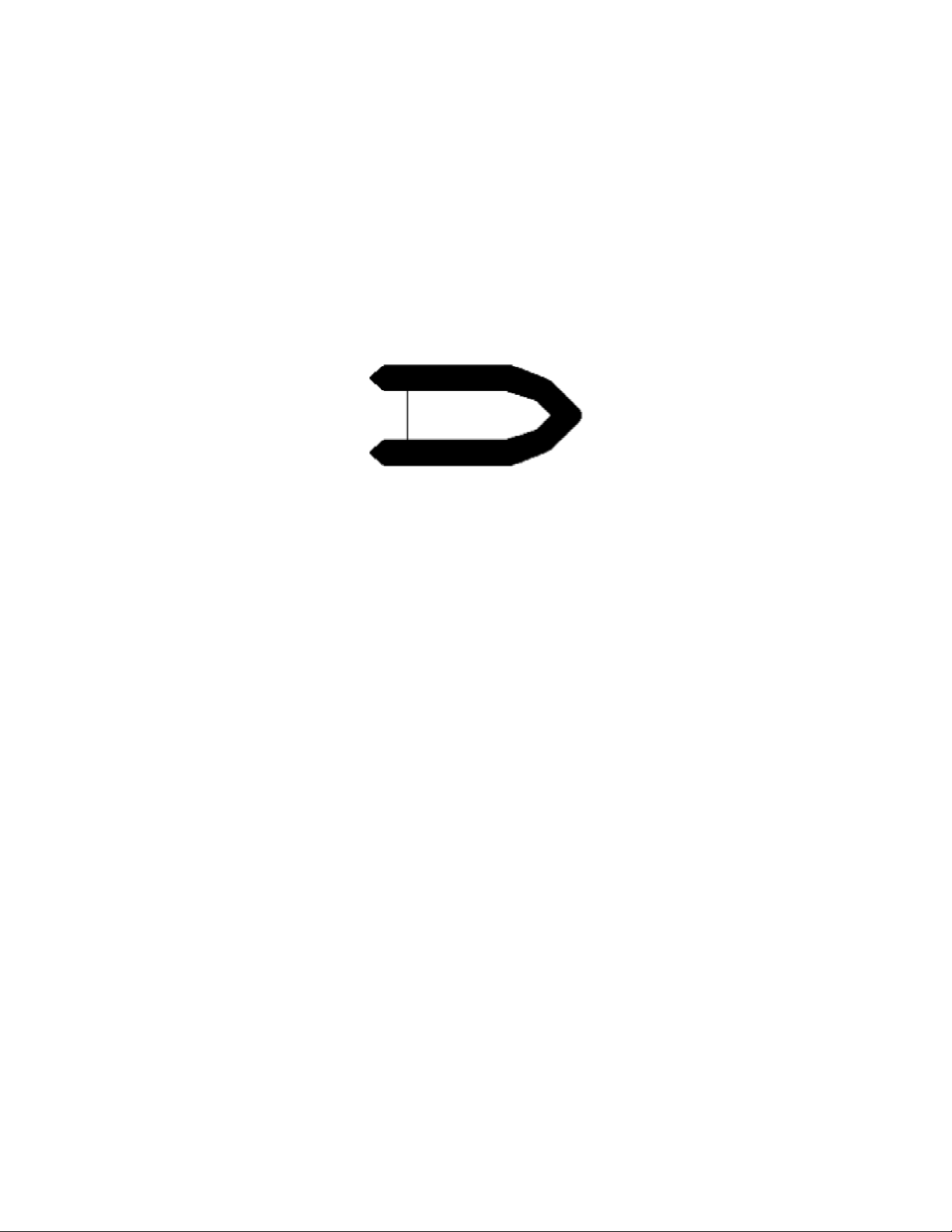

The overall exterior lengths of Inflatables boats are measured tip to tip.
Almost all manufacturers build boats with a long cone at the rear. This is a
cheap method of finishing off the stern of the boat. The cone adds to the
overall length without increasing buoyancy or the usable interior space of the
boat and, therefore, gives a false impression of the usable capacity of a boat
and value.

APEX boats are constructed with rounded ends and, consequently, have a
shorter exterior length than their major competitors. We build our boats with
rounded ends despite the additional cost because we want our tough
rubbing strake to extend around and protect the stern of the boat. This
shorter length eases storage on davits or dinghy racks.

Beware of Boats with points on the wrong end!

INTERIOR SPACE

See pg. 8

In addition, when choosing a boat, it is the interior space of the boat that is
key. Some boats are more pointed than others, some include extended
cone ends, and all have various widths. The effect of the cone ends and
others differences are show in our comparison chart at the end of this
booklet. Here are two examples:
Exterior Approximate Interior

Length Square Feet

APEX 11 RIB 11’ 19
Zodiac YL340R 11’ 2” 19
Avon R 340 11’ 1” 17

APEX 27RI (Roll Up) 9’ 15
Avon R280 9’ 13
Zodiac YL 285 9’ 4” 14

Notice that shorter exterior length do not mean you have to compromise on
interior space!

xinflatabl

m

- 9 -

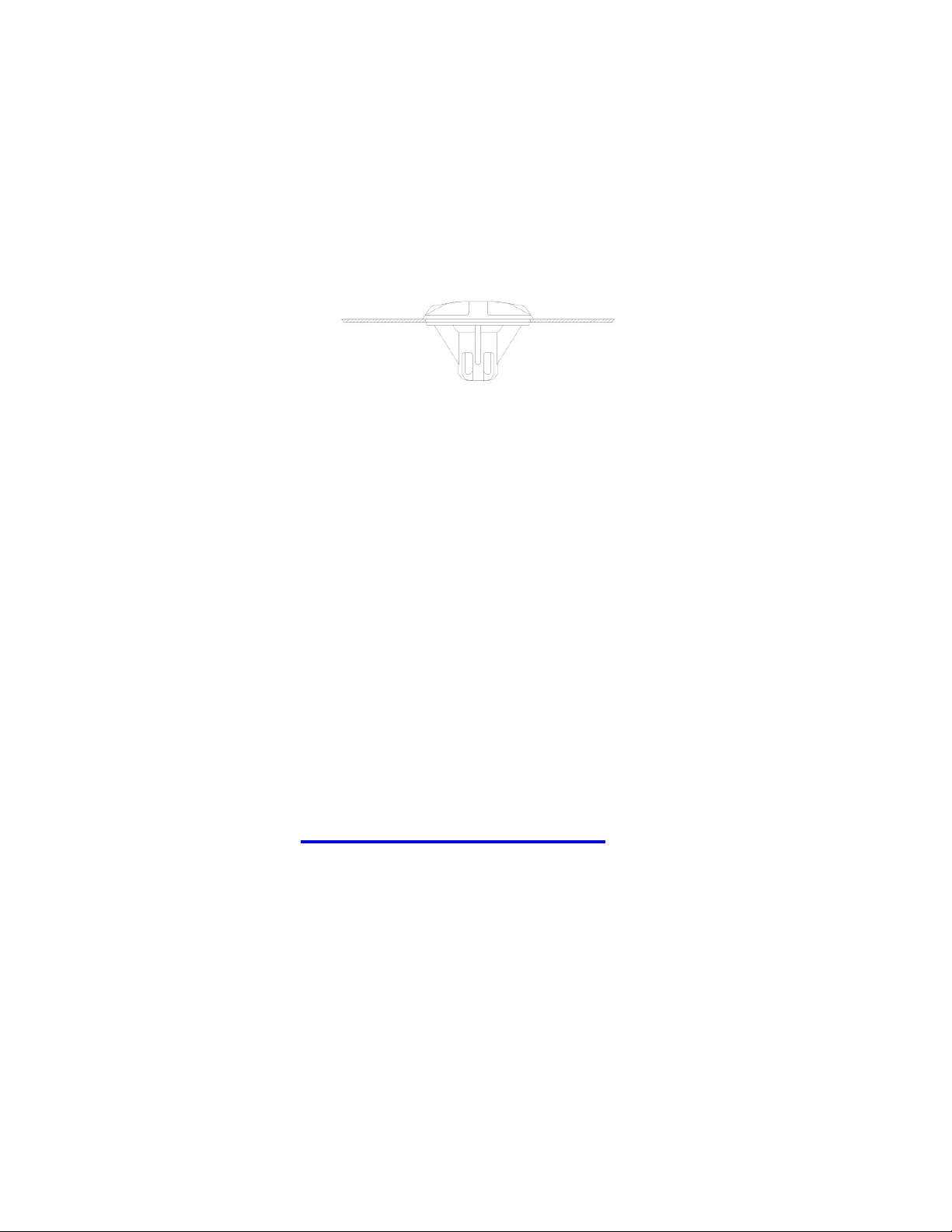

TUBES

One thing is certain with tubes: bigger is better!

Larger tubes:
Increase buoyancy, thus allowing higher payloads.
Create more stability

A-8

Compare the APEX boat with their competitors. We are consistently at the
top of market for tube size.

Provide a drier ride by keeping water out of the boat.
Create more interior depth and space inside the boat.

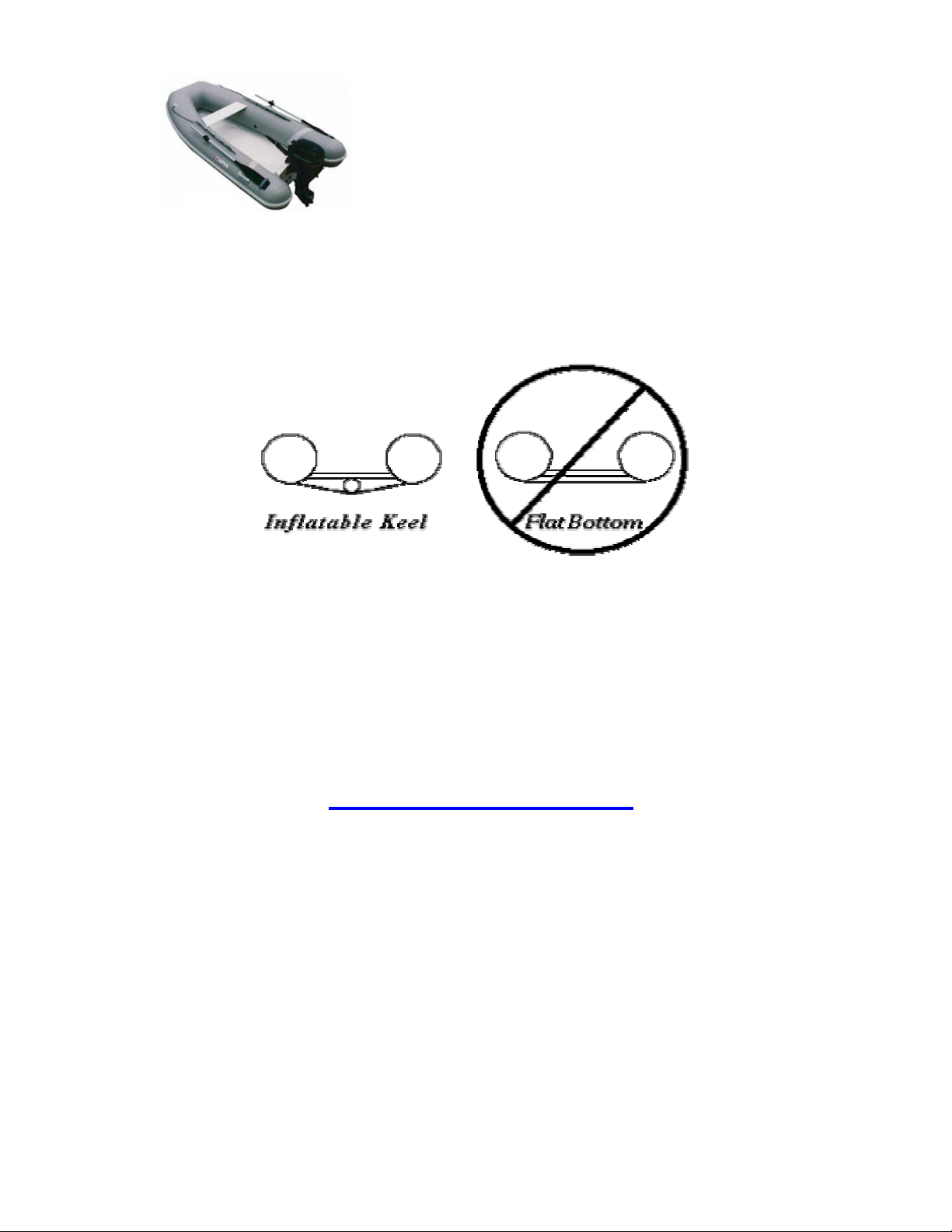

Inflatable keel

The keels allow the boat to plain and change direction faster, while providing
more directional stability and less leeway drifting. For collapsible boats, Roll
Up a keel is must to provide tracking and planning

www.apexinflatables.com

- 10 -

FLOORS, TRANSOMS

For fully collapsible models, floors are generally made from wood or
aluminum. The wood must be marine grade. Some wood floors are
varnished. This may have a nice appearance when new, but can create
more maintenance afterwards.

APEX boats are made with marine grade plywood transoms and floors
protected by 2 layer of 2 components epoxy barrier and then a layer of
polyurethane. We use a light Grey paint to better resistance to fading under
UV.

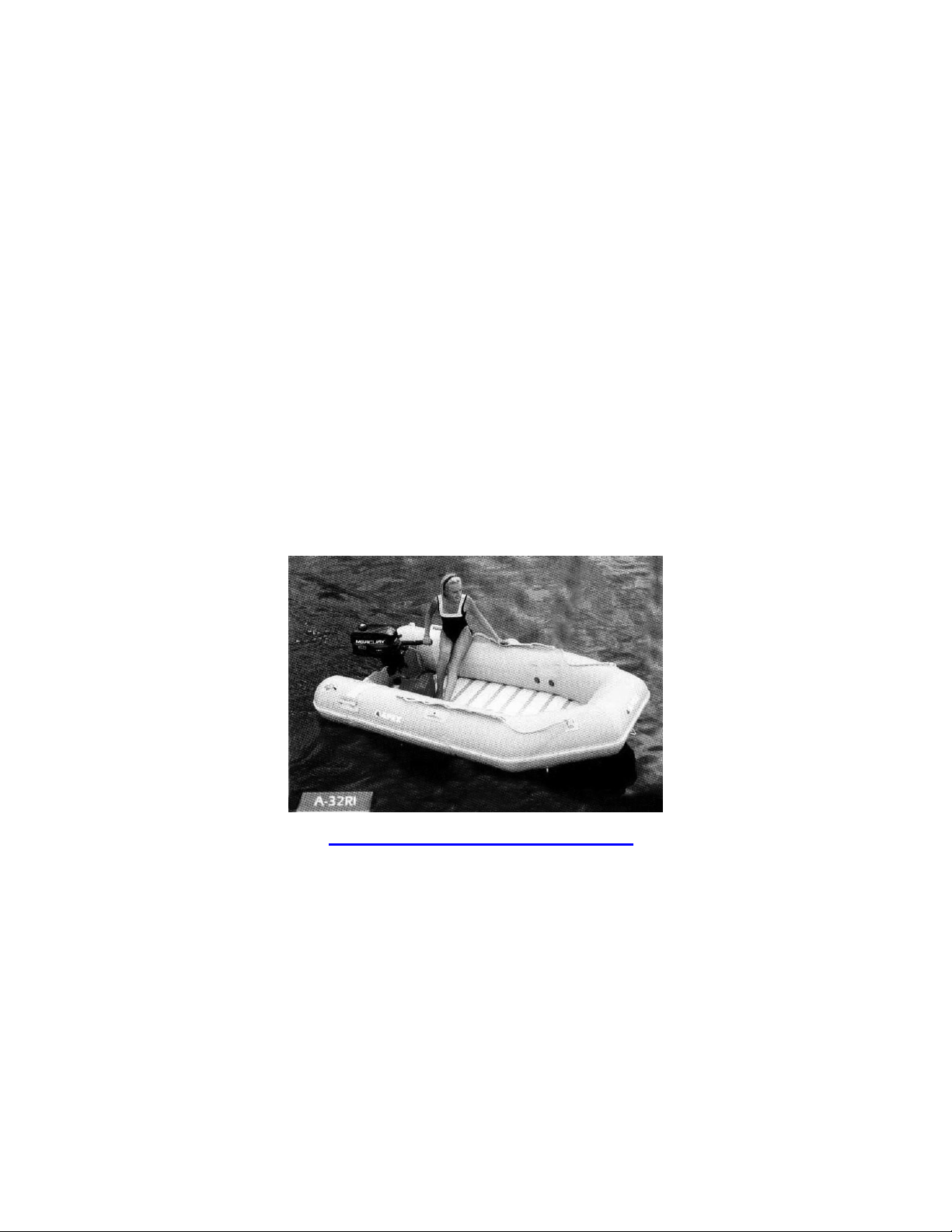

ROLL UP TECHNOLOGY

Certain manufacturers, including APEX, have models, which allow the boat
to be rolled with the floor in place, and to have an inflatable keel. These
models usually have a hinged, segmented floor that combines rigidity for
performance and stability with ease of handling and storage. Do not confuse
these floors with slatted floors, which are not full-length floors. Such floors
cannot compare with roll up floors for rigidity, stability and performance, and
do not allow for a keel. Remember with polyester reinforce fabric the tube
are more rigged and there for the floor is stiffer and stable.

www.apexinflatables.com

- 11 -

OTHER IMPORTANT FEATURES

Rubbing Strake

The rubbing strake is the tough rubber strip that goes around the boat to
protect it from abrasions, and from splash & spray keeping you dry. Make
sure that this streaking is made of a thick, tough material in a light color.
Dark colors attract more UV, heat, dirt, and will deteriorate faster leaving
marks on other vessels. APEX boats have a tough, raised, light Grey non­marking strake for better protection.

Valves

These should be recessed to avoid objects catching on them. The larger the
size, the faster inflation and deflation. APEX recessed valves have spring­loaded diagrams to allow for one-way airflow when desired. These valves
can be easily removed for maintenance.

Towing Rings

Collapsible models should have two large D-rings attached with heavy duty
material located under both sides, forward of the boat for towing with a
bridle. RIBs should have an U-bolt through the fiberglass hull in the bow.
APEX boats have towing rings or U-bolts standard on all models.

Oars

The oars provided must be comfortable to use. Therefore, APEX tenders
come with oars that can be adjusted to the needs of the user and pinned
oarlock system that locks the oars in place and allows for feathering of the
oar blades.

Other Accessories

Handles- For transportation, handles are a great help. APEX provides one
on each side and another in front. Lifelines: Make sure well placed, heavy­duty lifelines are provided. APEX does!

www.apexinflatables.com

- 12 -

APEX MODELS

Rigid Inflatables Boat

Model Length Beam

A-8 8’ 5’ 16 “1/2 4 94
A-9 8’11” 5’2” 16” 1/2 4 115
A-9LT 8’11” 5’1” 16” 1/2 4 79
A-10 10’ 5’7” 17” 5 135
A-10LT 10’ 5’7” 17” 5 88
A-11 11’ 5’7” 17” 5 145
A-12 12’ 5’10” 18” 1/2 6 165
A-15 Tender 14’6” 6’7” 20” 7 418
A-15OPEN 14’6” 6’7” 20” 7 333
A-17 Sport 17’3” 7’7” 23” 8 790
A-17OPEN 17’3” 7’7” 23” 8 638
A-20 Sport 19’8” 8’2” 23” 12 950
A-20OPEN 19’8” 8’2” 23” 10 790
A-24 RIB 24’6” 9’9” 24” 20 2130

Tube ∅

Persons Weight

Roll-Up/ Collapsible

Model Length Beam

A-24RIL 8’ 4’6” 15” 4 56
A-24RI 8’ 4’6” 15” 4 66
A-24WI 8’ 4’6” 15” 4 69
A-27RIL 9’ 5’ 16”1/2 4 72
A-27RI 9’ 5’ 16”1/2 4 82
A-27WI 9’ 5’ 16”1/2 4 94
A-32RIL 10’3” 5’5” 17” 5 83
A-32RI 10’3” 5’5” 17” 5 93
A-32WI 10’3” 5’5” 17” 5 115
A-42WI 13’10” 6’6” 20” 8 232
A-47WI 15’6” 6’6” 20” 10 298

Tube ∅

Persons Weight

For more detail info visit: www.apexinflatables.com, under

Specifications.

- 13 -

INFLATABLES BOAT COMPARTION CHART

RIGID INFLATABLES BOAT

Approx. Sugg.

External Internal Internal Tube Max Capacity Payload Weight Retail

∅

Name Model Length Beam Length Beam Sq. Ft

APEX A-8 8’ 5’ 5’4” 2’4” 12 16”½ 10 4 750 94 Hyp/Poly 1000

Avon R 280 9’3” 5’3” 6’2” 2’6” 12 17” 10 3 1010 135 Hyp/Nylon 840

Quicksilver Rigid 8’10” 5’2” 5’9” 2’2” 12 15”½ 8 4 925 166 PVC/Poly 1000

Zodiac YL 275R 9’ 4’11” 4’11” 2’4” 13 15”½ 8 4 947 99 PVC/Poly 1000

APEX A-11 11’ 5’7” 7’11” 2’8” 19 17” 25 5 1150 145 Hyp/Poly 1000

Avon R340 Rib 11’2” 5’3” 7’10” 2’6” 17 17” 25 5 1250 180 Hyp/Nylon 840

Novurania 335 DL 10’11” 5’4” 17 16”½ 30 4 944 310 Hyp/Poly 1000

Zodiac YL340R 11’2” 5’7” 7’7” 2’8” 19 18” 25 5 1212 167 PVC/Poly 1000

APEX A-9 LITE 8’11” 5’1” 6’2” 2’6” 14 16”½ 10 4 850 79 Hyp/Poly 1000

APEX A-10 LITE 10’ 5’7” 7’1” 2’8” 18 17” 15 5 950 88 Hyp/Poly 1000

ROLL UP INFLATABLE BOAT WITH KEEL

APEX A-24RI 8’ 4’6” 5’3” 2’ 11 15” 6 4 850 66 Hyp/Poly 1000

Avon R 250 8’3” 4’6” 5’7” 2’2” 12 14” 5 3 682 58 Hyp/Nylon 840

Zodiac 260 YL 8”6” 4’11” 5’3” 2’4” 12 16½” 4 4 970 66 PVC/Poly 1000

COLLAPSIBLE INFLATABLE BOAT

APEX A-24WI 8’ 4’6” 5’3” 2’ 11 15” 6 4 850 69 Hyp/Poly 1000

QuickSilver Sport 7’6” 4’ 4’4” 2’ 9 15” 5 2 771 68 PVC/Poly 1000

Achilles LEX 235 7’9” 4’4” 5’4” 2’1” 11 14” 5 2 550 62 Hyp/Poly 750

Zodiac C 240 7’11” 4’7” 4’11” 2’4” 11 14” 4 3 727 37 PVC/Poly 1000

APEX A-27WI 9’ 5’ 6’2” 2’4” 15 16” ½ 10 4 970 94 Hyp/Poly 1000

Avon R 280 9’3” 5’3” 6’2” 2’6” 13 17” 10 4 1060 130 Hyp/Nylon 840

Zodiac C 285 S 9’4” 4’11” 6’1” 2’4” 14 15”½ 6 4 1080 63 PVC/Poly 1000

Note: Dimensions and specifications are approximate based on information Hyp: Hypalon
Available at time of printing in manufactures literature. Poly: Polyester
Not responsible for typographical errors or omissions, subject to change at any time
Without notice.

HP Persons Lbs. Lbs. Fabric Denier Price

Apex offers many different models of Rigid Hull, Collapsible and Roll Up

Boats, as well as White Water Raft and Banana Tubes.

For more information and copy of our catalogue, please visit

WWW.APEXINFLATABLES.COM or call 1-800-422-5977

Your APEX® Dealer:

United States APEX® Inflatables

919 Bay Ridge Road

Annapolis, Maryland 21403 USA

Telephone [phone] Fax [phone]

E-mail: [email protected]

Factory Costa Rica APEX® Inflatables

America’s Yate S.A. El Coyol Alajuela

P.O. Box 2247-4050 Alajuela, Costa Rica

Telephone [phone] Fax [phone]

E-mail: [e-mail]

WEBSITE:

www.apexinflatables.com
