Page 1
PRODUCT
20
GUIDE
www.apertura-audio.com
18
Page 2
APERTURA
2
Page 3
TABLE OF
CONTENTS
Something about us 04
Portfolio 06
Customized finishes 08
Ariana mkII 09
Armonia 10
Armonia 11
Edena 12
Edena 13
Onira 14
Kalya 15
Adamante 16
Enigma mkII 17
Page 4
APERTURA
4
SOMETHING
ABOUT US
Celebrating 35
years of passion
for music.
In 1983, Christian YVON introduced the
first Apertura speaker: “the Reference”.
Since this date, many Apertura models have
been launched, sharing the same
philosophy: the faithfull reproduction of
the sound.
Page 5
Since 35 years we follow our own path, far from received ideas and “esoteric” theories.
OUR ASSETS:
Non usual cabinet shape and laminate construction.
Intensive damping treatments for standing waves
cancellation.
Every single crossover adjusted to match drivers sets
measurements.
“DRIM” proprietary crossover technology.
Exquisite finishes with real high quality wood veneer
and satin/ high-Gloss lacquer.
Apertura speakers are built like no others.
Quality is mandatory for us and attention to details a
concern of every moment.
Apertura speakers are proudly handcrafted in our
900m² facility, closed to Nantes, west coast of France,
from crossover to final product.
Page 6
APERTURA
6
OUR PORTFOLIO
APERTURA RANGE
ARIANA
mkII
ARMONIA EDENA ARMONIA
EVOLUTION
NEW 2018 NEW 2018
EDENA
EVOLUTION
Page 7
ONIRA KA LYA ADAMANTE ENIGMA
mkII
Page 8
APERTURA
8

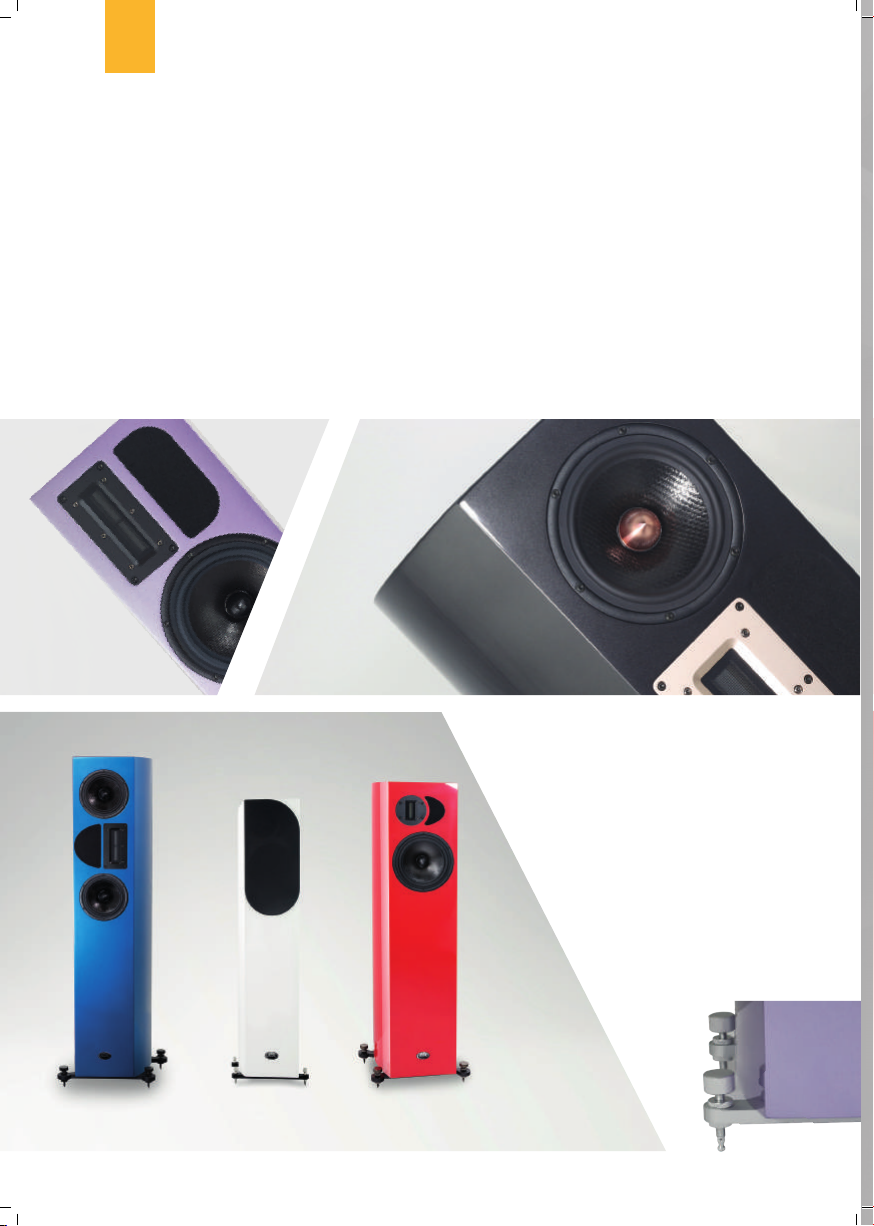

CUSTOMIZED
FINISHES
We now have the pleasure to offer customized new
finishes.
for these premium high gloss laquer finishes, we
work in partnership with a French player in the
luxury industry.
Choose among a wide range of color: high
gloss, satin, metallic or even pearl-like and
you might just get your wish!
Page 9
ARIANA
Ariana is the gateway of the
world of Apertura: a slim column
which by its compact size would
match to any interior.
2 way, 2 drive units,
oor-standing loudspeaker
FREQUENCY RANGE : 37-30 000Hz/ +-3dB
DRIVE-UNITS : 6,5” Reed/Paper pulp cone, Bass/mid
DIMENSIONS : 244x254x1050mm (WxDxH)
WEIGHT : 17,5kg net - 22kg (shipping weight)
FINISHES
SENSITIVITY : 88 dB/2,83v/1m
range unit, “Ring Radiator” tweeter
CROSSOVER FREQUENCY : 2,6kHz ,
TERMINALS : Single wire binding posts
(*)
: White high-gloss, Black high-gloss,
Satin White, satin Black, Cherry satin
IMPEDANCE : 8Ω
LOAD : Vented box
« DRIM structure »
(bananas or spades)
Page 10
APERTURA
10
ARMONIA
Armonia is an elegant two way
column, a pure summary of the
Apertura spirit.
2 way, 2 drive units,
oor-standing loudspeaker
FREQUENCY RANGE : 37-30 000Hz/ +-3dB
SENSITIVITY : 88dB/2,83v/1m
IMPEDANCE : 8Ω
LOAD : Vented box
DRIVE-UNITS : 6,5’’ Isotactic Matrix cone
Bass/Mid range unit, 3’’ ribbon tweeter
CROSSOVER FREQUENCY : 3kHz ,
« DRIM structure »
TERMINALS : Single wire binding posts
(bananas or spades)
DIMENSIONS : 216x271x1030mm (WxDxH)
(with metal stands) 350x293x1081mm
WEIGHT : 26kg net - 32kg (shipping weight)
FINISHES : White satin, White high-gloss,
Black high-gloss, Black satin, Cherry satin,
Figured Mapple, Rosewood high-gloss
Page 11
Preliminary
ARMONIA
The Armonia is the rst Apertura model
available in a new Alternative version,
based on a concept called “Evolution”.
In the same form factor as the original
version, the challenge is, using more
performing tweeter and components, to
get the uppermost performances.
2 way, 2 drive units,
oor-standing loudspeaker
FREQUENCY RANGE : 37-30 000Hz/ +-3dB
DIMENSIONS : 219x291x1030mm (WxDxH)
WEIGHT : 27kg net - 32kg (shipping weight)
FINISHES
Cherry satin, Figured Maple HG, Rosewood HG
(*) Metal stands & spikes available in Black or Silver.
SPECIAL FINISHES : Any colour high-gloss
SENSITIVITY : 88 dB/2,83v/1m
DRIVE-UNITS : 6,5” Isotactic Matrix Cone,
bass/mid range units, 5” ribbon tweeter
TERMINALS : Single wire binding posts
(with metal stands) 292x291x1069mm
(*)
: White high-gloss, Black high-gloss,
or Metallic paint - Contact us.
IMPEDANCE : 8Ω
LOAD : Bass-reflex
CROSSOVER FREQUENCY : -
(bananas or spades)
Page 12
APERTURA
12
EDENA
Following a long tradition of Apertura
products, Edena is the successor of
Tanagra & Tanagra Signature speakers.
2 way, 2 drive units,
oor-standing loudspeaker
FREQUENCY RANGE : 35-30 000Hz/ +-3dB
SENSITIVITY : 89dB/1v/1m
IMPEDANCE : 8Ω
LOAD : Bass-Reflex
DRIVE-UNITS : 8’’ Isotactic Matrix cone
Bass/Mid range unit, 3’’ ribbon tweeter
CROSSOVER FREQUENCY : 2,1kHz ,
« DRIM structure »
TERMINALS : Single wire binding posts
(bananas or spades)
DIMENSIONS : 248x300x1110 mm (WxDxH)
(with stands) 379x315x1161 mm
WEIGHT : 33kg net - 47kg (shipping weight)
FINISHES : White high-gloss, Black high-gloss, Cherry
satin, Figured Mapple, Rosewood high-gloss
(*) Metal stands & spikes available in Black or Silver.
SPECIAL FINISHES : Any colour high-gloss
or Metallic paint - Contact us.
Page 13
NEW
2018
EDENA
The Edena “Evolution” is an
improved version of the new
Edena mkII speaker.
It differs from the standard version
by a bigger ribbon tweeter, better
crossover components and many
internal details.
2 way, 2 drive units,
oor-standing loudspeaker
FREQUENCY RANGE : 35-30 000Hz/ +-3dB
DRIVE-UNITS : 8’’ Isotactic Matrix cone
Bass/Mid range unit, 3’’ ribbon tweeter
TERMINALS : Single wire binding posts
DIMENSIONS : 248x300x1110MM (WxDxH)
WEIGHT : 37kg net - 45kg (shipping weight)
FINISHES : White high-gloss, Black high-gloss,
Cherry satin, Figured mapple, Rosewood high-gloss
(*) Metal stands & spikes available in Black or Silver.
SPECIAL FINISHES : Any colour high-gloss
SENSITIVITY : 89dB/1v/1m
IMPEDANCE : 8Ω
LOAD : Vented box
CROSSOVER FREQUENCY : 2,1kHz ,
(with stands) 379x315x1161 mm
or Metallic paint - Contact us.
« DRIM structure »
(bananas or spades)
Page 14
APERTURA
14
ONIRA
Onira is an ambitious two way/
three drive units speaker.
An original cabinet design com-
bined a bass-reex and an acous-
tic line loading.
2 way, 3 drive units,
oor-standing loudspeaker.
FREQUENCY RANGE : 35-30 000Hz/ +-3dB
SENSITIVITY : 91dB/2,83v/1m
IMPEDANCE : 4Ω
LOAD : Vented box / Acoustic line
DRIVE-UNITS : 2x6,5’’ Isotactic Matrix cone
Bass/Mid range unit, 5’’ ribbon tweeter
CROSSOVER FREQUENCY : 3kHz ,
« DRIM structure »
TERMINALS : Single wire binding posts
(bananas or spades)
DIMENSIONS : 220x340x1200mm (WxDxH)
(with metal stands) 369x385x1250mm
WEIGHT : 42kg net - 51kg (shipping weight)
FINISHES : Black high-gloss, Cherry high-gloss Figured
Mapple, Rosewood high-gloss
(*) Metal stands & spikes available in Black or Silver.
SPECIAL FINISHES : Any colour high-gloss
or Metallic paint - Contact us.
Page 15
KALYA
Kalya has not been designed on classic
bookshelf standards and limitations,
but as a real non-compromise
high-end loudspeaker.
2 ways, stand mount
loudspeaker
FREQUENCY RANGE : 35-30 000Hz/ +-3dB
DIMENSIONS : 317x447x420mm (WxDxH)
SENSITIVITY : 88dB/2,83v/1m
DRIVE-UNITS : 8’’ Isotactic Matrix cone
Bass/Mid range unit, 3’’ ribbon tweeter
CROSSOVER FREQUENCY : 2,8kHz ,
TERMINALS : Single wire binding posts
(with stands) 328x447x1228mm
WEIGHT : 20kg - with stands: 40 kg
Rosewood, Rosewood Santos high-gloss
IMPEDANCE : 8Ω
LOAD : Bass-reflex
« DRIM structure »
(bananas or spades)
FINISHES :
Page 16
APERTURA
16
ADAMANTE
Derived from the
experience gained in the
Enigma, Adamante offers
cutting edge performances
in a room-friendly cabinet
suitable for most modern
interiors.
2 way, 3 drive units,
oor-standing loudspeaker.
FREQUENCY RANGE : 32-30 000Hz/ +-3dB
SENSITIVITY : 91dB/2,83v/1m
IMPEDANCE : 4Ω
LOAD : Vented box / Acoustic line
DRIVE-UNITS : 2x6,5’’ Isotactic Matrix cone
Bass/Mid range unit, 5’’ ribbon tweeter (Pro version)
CROSSOVER FREQUENCY : 1,8 kHz,
« DRIM structure »; Two seperate circuit boards for high
and low frequencies;
TERMINALS : Single wire binding posts
(bananas or spades)
DIMENSIONS : 20x353x1150mm (WxDxH)
(with stands) 358x390x1213mm
WEIGHT : 52kg - with stands: 61kg (shipping weight)
FINISHES : Black high-gloss, Cherry high-gloss
Figured Mapple, Rosewood high-gloss
(*) Metal stands & spikes available in Black or Silver.
SPECIAL FINISHES : Any colour high-gloss
or Metallic paint - Contact us.
Page 17
ENIGMA
Reference speaker, Enigma is a
blend of proprietary cutting-edge
technologies developed by Apertura
over the last 20 years
2 way, 3 drive units,
oor-standing loudspeaker
FREQUENCY RANGE : 30-30 000Hz/ +-3dB
DRIVE-UNITS : 2x8’’ Isotactic Matrix cone
Bass/Mid range unit 5’’ ribbon tweeter (Pro version)
CROSSOVER FREQUENCY : 2,1kHz , « DRIM structure » ; Two
seperate circuit boards for high and low frequencies
TERMINALS : Single wire binding posts
DIMENSIONS : 205x406x1270mm (WxDxH)
(with metal stands) 404x406x1346mm
WEIGHT : 76kg net - 95kg (shipping weight)
Rosewood, Cherry high-gloss, Rosewood santos
(*) Metal stands & spikes available in Black or Silver.
SPECIAL FINISHES : Any colour high-gloss
SENSITIVITY : 94 dB/1v/1m
IMPEDANCE : 4Ω
LOAD : Vented box / Acoustic line
(bananas or spades)
FINISHES :
or Metallic paint - Contact us.
Page 18
APERTURA
18
CABLES KAMI
Same design goal for our Kami
cable as per our other products
: carring information to speakers
extremelly accuratelly, with no sonic
signature.
Loudspeaker cable
CONDUCTORS : multi strand silver plated copper
INSULATION : PTFE+specific process
JACKET : cotton tubing
TERMINALS :
AVAI LABLE LENGTH : 2x2m
Gold plated banana plugs, Cherry wood veneer
jacket
2x3m
2x4m
2x5m (other dimensions on demand)
Page 19
APERTURA
19
RESELLER STAMP
Page 20
All Apertura speakers are using specic proprietary
All cabinets are made of multi-layers high density MDF
material. Curved side panels of different radius are
pressure molded. Multiple bracing and double thickness
panels are used for mechanical damping optimisation.
Apertura speakers are free from any standing waves,
thanks to the use of three different damping materials, in
very specic quantities and locations.
Crossovers are based on Christian Yvon « DRIM » structure.
We use only the nest components, heavy copper Pcb, and
custom design internal wirring.
Driver units are coming from World kown manufacturers.
They are modied either according to our specications or
All drivers used in Apertura speakers are measured
individually, and crossovers are tuned according to their
All our speakers are assembled, controlled and tested by
our qualied technicians, in our facilities on the west cost
Apertura products are aimed at music lovers worldwide and
are represented by a network of dedicated High End audio
technologies.
at Apertura workshop.
specic responses.
of France.
resellers.
www.apertura-audio.com
FRENCH HIGH END
LOUDSPEAKERS
35 years of passion for music
