Aperion S-10 Brochure

Customer Support 1-866-APERION

(1-866-273-7466)

A P E R I O N ’ S I N T I M U S S E R I E S

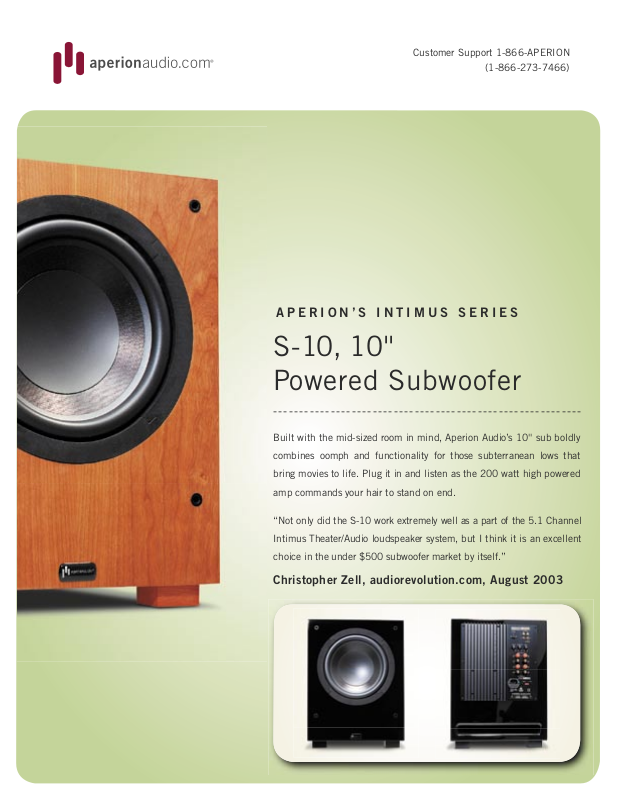

S-10, 10''
Powered Subwoofer

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Built with the mid-sized room in mind, Aperion Audio’s 10'' sub boldly

combines oomph and functionality for those subterranean lows that

bring movies to life. Plug it in and listen as the 200 watt high powered

amp commands your hair to stand on end.

“Not only did the S-10 work extremely well as a part of the 5.1 Channel

Intimus Theater/Audio loudspeaker system, but I think it is an excellent

choice in the under $500 subwoofer market by itself.”

Christopher Zell, audiorevolution.com, August 2003

A P E R I O N ’ S I N T I M U S S E R I E S

S-10, 10'' powered subwoofer

SPECIFI CATIO NS

Fr e quency response: 2 5hz to 160hz

Am p l i f i e r p o w e r o u tput: 20 0 w a t t s ( R M S ) 350 Peak

Sp e a k e r e n c l o s u r e type: R e ar Ported

Variable crossover ran g e : 40-160hz

Variable phase adjustm e n t : 0 t o 1 8 0 °

Volume control: Variable

Woofer diameter: 10”

Di m e n s i o n s ( H x W x D ) : 17.5'' x 13.25'' x 19''

Weight: 5 6 pounds

Warranty: 5 years on driver & enclosure.

1 year on subwoofer amplifi er.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

FEATURES

200 Watt High Power Amplifi er: If your room is mid-sized, Aperion’s S-10 will lavish it with expansive depth and power. 200

watts of continuous power to be exact, thanks to the integrated amplifi er. This 10'' subwoofer comes standard with line level
and speaker level inputs/outputs, low pass crossover adjustment, phase adjustment, auto on/off switching, a detachable
power cord and the occasional noise complaint from the people next door.

Dual Composition Enclosure: Aperion’s S-10 weighs in at a muscular 56 pounds. That’s 56 pounds of state-of-the-art com­ponents inside, 1'' thick High Density Fiberboard (HDF) and acoustic-damping profi ciency. You also have the choice between
a stunning cherry wood fi nish and a high gloss black fi nish. This sub is a perfect 10 in every sense.

Asymmetrical Internal Bracing System: Warning, standing waves are not welcome. That said, the Aperion S-10 employs
an internal, asymmetric bracing system that brings standing waves to a halt. That, together with enclosure construction,
a high power amplifi er and a custom engineered long-throw driver, let’s just say your inner ear is about to become an
erogenous zone.

Detachable Power Cord: No matter where you are in the world, you can switch between 110V and 220V. Now plug in the
three-pronged AC cord, give the S-10 a listen and prepare your hair to stand on end.

High Level Inputs and Outputs: If you don’t have a sub-out connection on your receiver, you can use speaker level connec­tions to run your subwoofer. Aperion’s S-10 and speakers connect directly to your A/V receiver via the 5-way binding posts.

Line Level Inputs and Outputs: Every Aperion subwoofer comes standard with a line level input that connects to any receiver’s
sub-out. The line output on your sub is able to send a bass-managed signal back to your amplifi er.

30-Day No Risk Audition + Free Shipping = Absolutely Nothing To Lose: We are so joyfully confi dent in the sound, looks
and price of our S-10 subwoofer, that if you are not wholeheartedly satisfi ed, just return the subwoofer within 30 days. We’ll
refund your money in full, pay the return shipping fee, and all with a no-sweat smile.

18151 SW Boones Ferry Road, Portland, OR 97224 Business Hours: 8:30am - 5:30pm (pst) Monday - Friday
