American Power Conversion PDRPPNX10, PD60L6FK1, PD60G6FK1, PD60F6FK1 User Manual
60kW InfraStruXure PDU
PD60F6FK1
PD60G6FK1
PD60L6FK1
PDRPPNX10
Operation and Configuration
208/400/600V Input
About This Manual
Audience
This manual is intended for end-users of a 60kW InfraStruXure PDU. It covers the operation and
basic network configuration of the PDU, and includes basic InfraStruXure system operation.
For additional information about the InfraStruXure system, see the InfraStruXure 60kW Installation
and Start-Up Manual (990-1638B) which covers the installation and start-up of UPS power
distribution to the rack and power distribution within the rack.
Companion manuals
For information about specific components in your InfraStruXure system, see the documentation
included with each component. Before installing or operating any component, refer to the safety
instructions in the component’s manual.
The illustrations of products in this manual may vary slightly from the products in your InfraStruXure
system.
How to find updates to this manual
You can check for updates to this manual by clicking on the User Manuals link on the Support page
of the APC Web site (www.apc.com). In the list of InfraStruXure Manuals, look for the latest letter
revision (A, B, etc.) of the part number on the back cover of this manual.
60 kW InfraStruXure PDU—Operation and Configuration i
Contents
Safety ......................................................................1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Save these instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety symbols used in this manual . . . . . . . . . . . . . . . . . . . 1
Cross-reference symbols used in this manual . . . . . . . . . . . . . 1
Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Receiving/moving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Installation/Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Maintenance performed while the
PDU is receiving input power
Total power off procedure . . . . . . . . . . . . . . . . . . . . . . . . . 3
Emergency Power Off (EPO) . . . . . . . . . . . . . . . . . . . . . . . . 3
EMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . . . . . . . . . . . . . 2
Overview .................................................................5
InfraStruXure PDU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Front view . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Front view (interior) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Rear view of PDU with transformer (interior) . . . . . . . . . . . . . 7
Rear view of PDU without transformer (interior) . . . . . . . . . . . 8
PDU monitoring unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
User connection plate . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Multi-Branch Cordset Adapters . . . . . . . . . . . . . . . . . . . . . . . . 11
PDU Display Interface.............................................13
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Top-level status screens . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Top-level menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Navigating through screens . . . . . . . . . . . . . . . . . . . . . . . 14
Password-protected screens . . . . . . . . . . . . . . . . . . . . . . . 15
Load-Meter Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
60 kW InfraStruXure PDU — Operation and Configuration iii
Volt-Meter Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Contacts Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Breakers Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Alarms Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
View Active Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Alarm/Event Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Alarm Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Alarm Beeper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
PDU Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Panel Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Branch Ckt Loading . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Branch Ckt Limits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Panel Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Global Panel Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Config Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
System/Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Electrical Config . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Manufacturer Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
System ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Firmware Updates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Operation ............................................................. 31
How to Apply Power to the System . . . . . . . . . . . . . . . . . . . . . 31
How to Ensure Total Power Off . . . . . . . . . . . . . . . . . . . . . . . 33
Communication Configuration ............................... 35
InfraStruXure PDU Management Options . . . . . . . . . . . . . . . . . 35
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
InfraStruXure Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Network management interfaces . . . . . . . . . . . . . . . . . . . . 35
Configuring the InfraStruXure Manager . . . . . . . . . . . . . . . . . . 36
iv 60 kW InfraStruXure PDU — Operation and Configuration
Configuring the Network Management Interface . . . . . . . . . . . 37
Connect the InfraStruXure PDU to your network . . . . . . . . . 37
Configuration Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 37
TCP/IP configuration methods . . . . . . . . . . . . . . . . . . . . . . 38
Device IP Configuration Wizard . . . . . . . . . . . . . . . . . . . . . 38
BOOTP & DHCP configuration . . . . . . . . . . . . . . . . . . . . . . 39
Local access to the control console . . . . . . . . . . . . . . . . . . . 41
Remote access to the control console . . . . . . . . . . . . . . . . . 41
Control console . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
How to Access a Network Management
Interface on a Configured InfraStruXure PDU. . . . . . . . . . . . . . 43
Web interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Telnet and SSH . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
SNMP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
FTP and SCP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
How to Recover From a Lost
Network Management Interface Password. . . . . . . . . . . . . . . . 46
Customizing and Updating the PDU .......................47
Important Safety Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . 47
PDU Orderable Part List. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
How to Add Circuit Breakers and Power Cables . . . . . . . . . . . . 50
How to Connect User Input Contacts and
Relay Outputs to the User Connection Plate . . . . . . . . . . . . . . 52
How to Test the EPO Switch . . . . . . . . . . . . . . . . . . . . . . . . . . 54
How to Download Firmware Up grades . . . . . . . . . . . . . . . . . . .57
Specifications .........................................................59
60kW InfraStruXure PDU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
60 kW InfraStruXure PDU — Operation and Configuration v
Product Information .............................................. 61
InfraStruXure Standard Warranty . . . . . . . . . . . . . . . . . . . . . . . 61
Life-Support Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
How to Obtain Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Appendix: Changes in This Manual ........................ 65
vi 60 kW InfraStruXure PDU — Operation and Configuration
Safety
d
o
Overview
Save these instructions
This manual contains important instructions that must be followed during installation, operation, and
maintenance of the InfraStruXure PDU.
Safety symbols used in this manual
Indicates an electrical hazard, which, if not avoided, could result in injury or
Electrical
Hazar
Warning
death.
Indicates a hazard, which, if not avoided, could result in personal injury or
damage to product or other property.
Indicates a potential hazard which could result in damage to product or other property.
Caution
Indicates important information.
Note
Indicates a heavy load that should not be lifted without assistance.
Heavy
Indicates a standby state. When in standby, the unit is not operating, but it may still
contain hazardous voltage. It is not safe to service until the equipment is
disconnected from all sources of electrical power.
Cross-reference symbols used in this manual
Indicates that more information is available on the same subject in a different section
of this manual.
Indicates that more information is available on the same subject in a different manual.
See als
60 kW InfraStruXure PDU — Operation and Configuration 1
Warnings
Receiving/moving
Do not tilt the PDU greater than 45° from its vertical axis. Never lay the PDU on its side.
Installation/Maintenance
Only a certified electrician can:
• Connect the PDU to its power source
• Connect a switch to the EPO interface on the PDU
• Install a customer-specified, hard-wired power cable
Only a certified electrician or an APC Field Service Engineer can perform maintenance of the PDU.
When connecting the PDU to utility, a circuit breaker must be installed to protect the PDU against
over-current. Determine the type of circuit breaker that you need to install:
Input Voltage Circuit Breaker Sizing
208V 225A
480V 90A
600V 75A
Maintenance performed while the PDU is receiving input power
APC does not recommend that you perform maintenance of the PDU while it is receiving input
power. However, due to the critical nature of data center loads, this may occur. If you must perform
maintenance while the PDU is receiving input power, observe the following precautions to reduce the
risk of electric shock:
1. Never work alone.
2. Perform the maintenance only if you are a certified electrician who is trained in the hazards of
live electrical installation.
3. Know the procedure for disconnecting electricity to the PDU and the data center in case of an
emergency.
4. Wear appropriate personal protective equipment.
5. Use double-insulated tools.
6. Always follow local and site regulations when working on the PDU.
2 60 kW InfraStruXure PDU — Operation and Configuration
Total power off procedure
1. Open (turn OFF) the main circuit breaker of the power source feeding the PDU.
2. Open (turn OFF) the Main Input on the InfraStruXure PDU.
3. If applicable, open (turn OFF) the Main Output circuit breakers on the front of the PDU.
For more information, see “How to Ensure Total Power Off” on page 33.
Emergency Power Off (EPO)
Hazardous voltage from the branch circuit must be isolated from the 24VAC, 24VDC, and contact
closure. 24VAC and 24VDC are considered Class 2 circuits as defined in Article 725 of the National
Electrical Code (NFPA 70) and Section 16 of the Canadian Electrical Code (C22.1).
A Class 2 circuit is a source having limited voltage and energy capacity as follows:
a. If an Inherently Limited Power Source, voltage and energy are limited to less than 30VAC,
less than 30VDC, and 8A.
Safety
b. If not an Inherently Limited Power Source, voltage and energy are limited to less than
30VAC, less than 60VDC, 250VA, and the current is limited to 1000/V max. The fuse is
limited to 5A if less than 20VAC or 20VDC, or 100/ Vmaximum if less than 30VAC or
60VDC.
If you choose to use a 24VAC, 24 VDC, or contact closure connection to the EPO, use one of the
following UL-listed wire types:
• CL2 Class 2 cable for general purpose use
• CL2P Plenum cable for use in ducts, plenums, and other space used for environmental air
• CL2R Riser cable for use in a vertical run shaft from floor to floor
• CL2X Limited Use cable for use in dwellings and for use in a raceway
• For installation in Canada, the cable should be CSA Certified, type ELC (extra-low-voltage
control cable).
If you do not use a CL2 cable, route the EPO wiring in conduit that does not contain any branch
circuit wiring.
60 kW InfraStruXure PDU — Operation and Configuration 3
Safety
EMI
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with this user manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference. The user will
bear sole responsibility for correcting such interference.
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
4 60 kW InfraStruXure PDU — Operation and Configuration
Overview
InfraStruXure PDU
Front view
The PDU Shielding
Tro ug h accommodates the
power cables exiting the
roof of the PDU, and
separates power cables
from data cables.
The PDU power cables
supply power to equipment
racks; they are fed through
knockouts on the top of the
PDU. There are the
following two options for
PDU power cables:
• Multi-circuit power
cables that terminate
with an L21-20 outlet
(shown).
• Single-circuit power
cables that terminate
with an L6-30 outlet.
The number of power
cables installed in the PDU
depends on your system
configuration. Each power
cable accepts a variety of
APC InfraStruXure rack-
mount power distribution
accessories.
Leveling feet adjust to level the enclosure. All enclosures must be level before installation of
the system begins.
The display interface provides a local interface for viewing status data. It has an LCD, five-
button interface, basic status lights, and a beeper.
60 kW InfraStruXure PDU—Operation and Configuration 5
Overview
Front view (interior)
!
!
!
The 42-position circuit breaker panels provide 84 total pole positions. Each single
pole provides power at 120 volts L-N or two single poles provide 208 volts L-L. The
amperage each position provides depends on the size of the circuit breaker used.
The document pocket provides storage of documents relating to the circuit breaker
panels, such as the PDU Panel Board Schedules (provided).
The Main Output breaker protects the distribution circuit breaker panels (versions
with a transformer only).
The user connection plate is connected to the PDU monitoring unit, and provides
easy access to input contact, relay output, network, and EPO connections. Make
connections from inside the enclosure, and route wires through the knockout
provided on the plate.
6 60 kW InfraStruXure PDU—Operation and Configuration
Rear view of PDU with transformer (interior)
Overview
The Main Input switch connects to your main power source. The switch
accepts 208V, 480V, or 600V input and requires 3-wire input conductors.
The PDU monitoring unit has several current and voltage monitoring
boards that report to a central board assembly located in PDU monitoring
unit. The PDU monitoring unit has one 10Base-T (Cat-5) connection to
the Information Controller hub (or switch), four relay output connections,
four input contact connections, and one EPO input connection. Make
these connections at the user connection plate located on the roof of the
PDU.
The delta-wye Input Transformer is based on your input voltage
(208V, 480V, or 600V input). The output of the transformer feeds the
circuit breaker that protects the panel boards.
60 kW InfraStruXure PDU—Operation and Configuration 7
Overview
Rear view of PDU without transformer (interior)
!
The Main Input circuit breaker connects to the main power source
(UPS or utility). The breaker accepts 208V input and requires 4-wire
input conductors.
Note: This circuit breaker also serves as the Main Output (disconnect)
circuit breaker.
The PDU monitoring unit has several current and voltage monitoring
boards that report to a central board assembly located in the PDU
monitoring unit. The PDU monitoring unit has one 10Base-T (Cat-5)
connection to the Information Controller hub (or switch), four relay
output connections, four input contact connections, and one EPO input
connection. Make these connections at the user connection plate located
on the roof of the PDU.
8 60 kW InfraStruXure PDU—Operation and Configuration
PDU monitoring unit
This connection provides the input power for the PDU monitoring
unit. The power is supplied by the monitoring unit circuit breaker
on the front of the PDU. If the panel is on, and the monitoring unit
circuit breaker is closed, the monitoring unit is powered.
Connects to sensors monitoring values such as, voltage, current,
and power.
Overview
Digital input sensing for monitoring such as, circuit breaker status,
transformer temperature, fans, etc.
The Display port (RJ-45) connects the PDU monitoring unit to the
PDU display interface.
The Power LED indicates wether the monitoring unit is receiving
power.
Use the Console port (DB-9) to connect a laptop computer to the
monitoring unit using an appropriate communication cable (APC
part number 940-0103). This port is used to configure items
relating to servicing the PDU.
EPO DIP switches configure the EPO input for the type of EPO
switch that is connected—Normally Open (NO) or Normally
Closed (NC).
When the EPO Arm/Test rocker is in the Tes t position, engaging
the EPO switch will not cause the load to be powered off. When the
rocker is in the Armed position, engaging the EPO switch will
cause the PDU’s Main Input switch to be switched OFF. See
“How to Test the EPO Switch” on page 54 for more information on
testing the EPO switch.
The EPO Armed LED is green when the rocker is in the Armed
position. The LED is dark when the rocker is in the Test position.
The EPO Tripped LED is red when the EPO switch is engaged
(the EPO button is pressed), regardless of the state of the EPO
Arm/Test rocker.
885-2288
USER / EPO CONTACTS
TO U PS
NETWORK
RESET
ARMED
EPO
LINK RX/TX
STATUS
TRIPPED
TEST
NC
NO
12345678910111213
25 24 23 22 21 20 19 18 17 16 15 14
10= GRN
100=ORN
DISPLAY
POW ER
RS-232
9600-8-N-1
CONSOLE PORT
The Reset button resets the network processor; it does not reset the PDU or the PDU monitoring unit.
Connect to the InfraStruXure Manager through the network port.
Not used on this model PDU.
The optional User/EPO Contacts port is connected to wire harnesses that connect to the User Connection Plate
in the roof (or floor) of the PDU. The port allows for relay outputs (4), input contacts (4), and an EPO input (1).
See “Contacts Screen” on page 18 and “How to Test the EPO Switch” on page 54 for more information.
The branch current monitoring boards connect to the Branch Current Monitor ports (RJ-11). These
ports are on the top side of the PDU monitoring unit, and are labeled on the face of the unit. Each port
corresponds to a section of circuit breakers on the PDU distribution circuit breaker panel:
Note
upper left=[01..41]; upper right =[02..42]; lower left=[43..83]; lower right =[44..84].
60 kW InfraStruXure PDU—Operation and Configuration 9
Overview
–

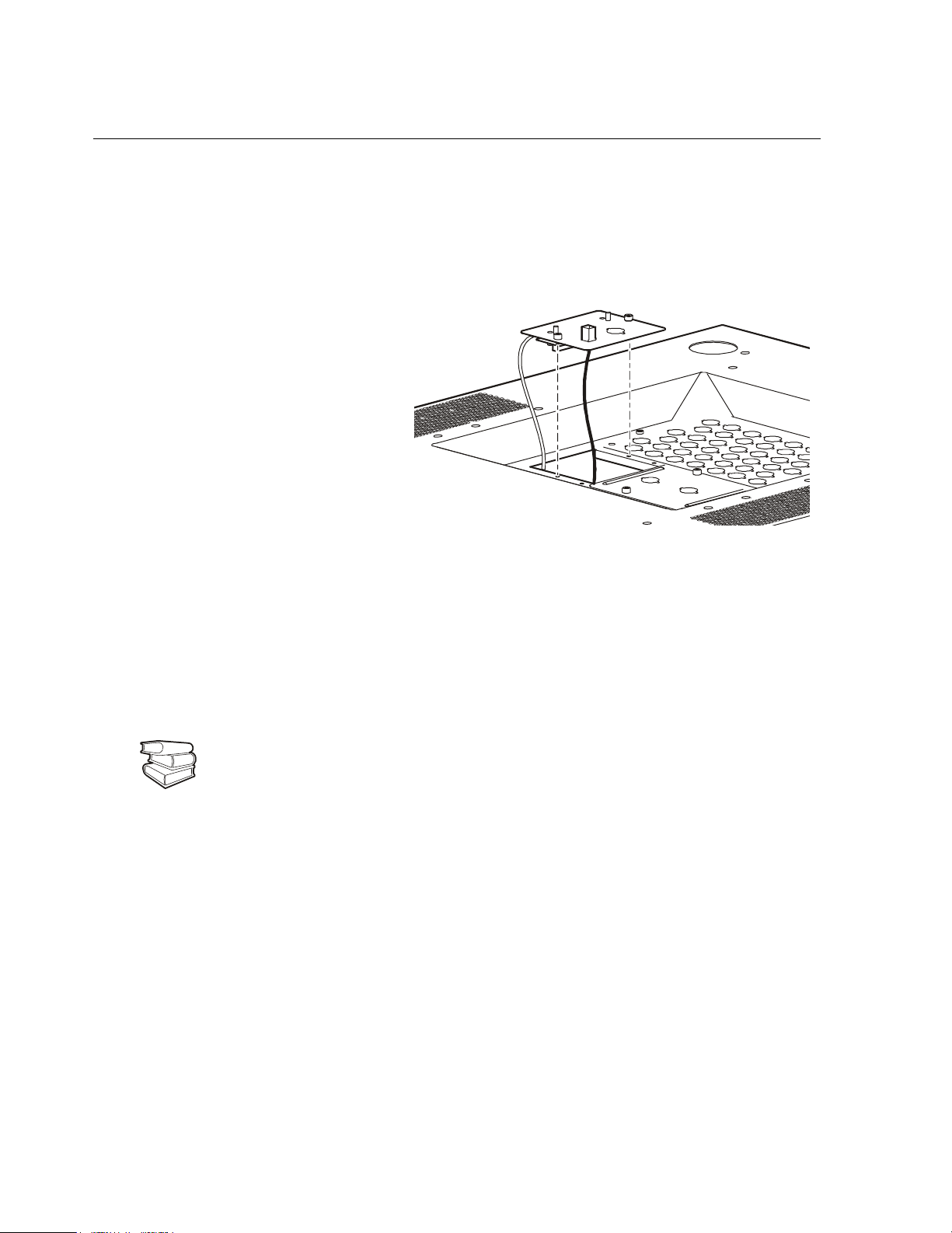

User connection plate
For a description and location of the user connection plate, see () on page 6. For clarity, the
following illustration shows the user connection plate in greater detail.
!
!
USER INTERFACE
© 2001 APC
MADE IN USA
1 234
Contact Inputs
Contact Outputs
ATS 0
+
EPO 24V
EPO
ATS 1
ATS 2
AC/DC
Contact
ATS EN
Connect the InfraStruXure PDU to the network or the InfraStruXure Manager through the
ethernet port.
The user connection plate has four input contact connections for monitoring Normally Open
(NO) or Normally Closed (NC) dry contacts. See page 20 and page 53 for more information.
The user connection plate has four relay output connections for connection of Normally Open
(NO) or Normally Closed (NC) dry contacts. See page 20 and page 53 for more information.
Connect an Emergency Power Off (EPO) switch at one of three choices of EPO connections
(24VDC, 24VAC, or contact closure). See page 54 for more information.
10 60 kW InfraStruXure PDU—Operation and Configuration
Multi-Branch Cordset Adapters
A
APC offers three Multi-Branch Cordset Adapters. The adapters connect to a multi-branch power cord
(whip) on the PDU and distribute three separate branches to Rack PDUs in your equipment racks. See
the table below for compatible APC Rack PDUs.
P9882
L21-20P 5-20R
AP9883
L21-20P
AP9884
L21-20P
L5-20R
L6-20R
0
Compatible APC 120V PDUs
SKU # Plug Outlets Manageable
AP7530 L5-20P (24) NEMA 5-20R No
AP9551 L5-20P (14) NEMA 5-15R No
AP9563 L5-20P (10) NEMA 5-20R No
AP9564 L5-20P (10) NEMA 5-20R No
AP7830 L5-20P (24) NEMA 5-20R Yes
AP7901 L5-20P (24) NEMA 5-20R Yes
AP7930 L5-20P (24) NEMA 5-15R Yes
AP7930J L5-20P (24) NEMA 5-15R Yes
AP9510520 L5-20P (2) NEMA L5-20R No
SU042X163 L5-20P (1) NEMA L5-20R No
60 kW InfraStruXure PDU—Operation and Configuration 11
Overview
Compatible APC 208V PDUs
SKU # Plug Outlets Manageable
AP7540 L6-20P (20) IEC 320 C13
(4) IEC 320 C19
AP7840 L6-20P (20) IEC 320 C13
(4) IEC 320 C19
AP7940 L6-20P (21) IEC 320 C13
(3) IEC 320 C19
AP9510L620 L6-20P (1) NEMA L6-20R Yes
SU045X163 L6-20P (1) NEMA L6-30R No
No
Ye s
Ye s
12 60 kW InfraStruXure PDU—Operation and Configuration
PDU Display Interface
Overview
Use the display interface to configure settings, set alarm thresholds, and provide audible and visual
alarms.
Load
Powered
Check
Log
Bypass
Alarm
ESC
?
Load Powered LED When green, all output phases are within the limits
specified by the output alarm limit thresholds.
Check Log LED When yellow, at least one new alarm condition has been
detected.
Bypass LED Not used on this model PDU.
Alarm LED When red, an alarm condition exists.
LCD View alarms, status data, instructional help, and
configuration items.
Up and Down
navigation keys
ENTER key Opens menu items and inputs changes to system
Selects menu items and accesses information.
parameters.
HELP key Launches context-sensitive help. Press the HELP key for
information about each item on the screen and for
instructions on how to perform certain tasks (i.e. placing
the UPS into Maintenance Bypass operation).
ESC key Returns to previous screen displayed.
60 kW InfraStruXure PDU — Operation and Configuration 13
PDU Display Interface
Top-level status screens
After system start-up, the display interface displays a brief start-up screen and then scrolls
automatically and continuously through four screens of basic status information. Press the Up and
Down arrow keys to interrupt the automatic scrolling if you wish to view a specific status screen.
Volts In
L1-2: 000
L2-3: 000
L3-1: 000
Total Output Loading
kW:
000
kVA:
000
Freq:
00.0
Volts Out
L1: 000
L2: 000
L3: 000
PF:
000
%LD:
000
Load Current
L1: 000
L2: 000
L3: 000
No Active Alarms
System Date/Time:
Jun-24 2003 07:58
Neut:
Top-level menu screen
On any top-level status screen, press the ENTER key to open the top-level menu screen.
Load-Meter
Volt-Meter
Contacts
Breakers
Alarms
Panel
Config
Help
If the display interface is inactive for the time specified as the Time-out setting, the
interface reverts to the initial basic monitoring screens.
Note
000
For descriptions of the top-level menu choices, see the individual sections starting on
page 16.
Navigating through screens
To open any screen, press the Up and Down arrow keys until the selector arrow ( rests next to your
desired selection. Press the
When configuring settings, press the Up and Down arrow keys
until the selector arrow (
change, and press the
an input arrow (
will appear next to the setting. Press the Up and
Down arrow keys until your desired change is listed. Press the
ENTER key to select the setting.
ENTER key to view the selected screen.
Load-Meter
Volt-Meter
Contacts
Breakers
Alarms
Panel
Config
Help
Contacts In: 02of04
Name: User Switch #2
Normal: Open
Status: Open
rests next to the setting you want to
ENTER key. If the setting is a list of choices,
Contacts In: 02of04
Name: User Switch #2
Normal: Open
Status: Open
14 60 kW InfraStruXure PDU — Operation and Configuration
PDU Display Interface
On some screens, continue arrows ( indicate that there
are additional screens to view in the category. Press the Up
or Down arrow key to view the additional screens.
System/Network
Electrical Configuration
Panel Configuration
Manufacturer Data
Product Data
Factory Defaults
Firmware Updates
Password-protected screens
When configuring or changing settings, you will be prompted for your password. To enter your
password:
1. Press the Up or Down arrow key until the correct letter is
displayed, and then press the
ENTER key.
Enter Password:
*******
After you press the ENTER key, the character you
entered is displayed as an asterisk and the input
Note
arrow moves to the next space for you to select
the next password character.
2. Press the
ENTER key twice after you enter your password.
See “System Password” on page 28 to change your password.
60 kW InfraStruXure PDU — Operation and Configuration 15
Load-Meter Screen
From the Load-Meter screen, you can select the following items:
Total Load by Phase The load supported by each phase in kVA, in RMS current (Irms),
and as a percentage of the maximum allowable load (%LD).
Total Load Summary For the total load supported:
• kW: The power provided, in kilowatts.
• kVA: The actual power drawn by the load, in kilovolt-amperes.
• Freq: Frequency.
• PF: The power factor, which affects the power available to the
load.
• %LD: The load as a percentage of the maximum allowable
load.
Power Factor For each phase:
• kVA: The actual power drawn by the load, in kilovolt-amperes.
• kW: The power, in kilowatts, provided by the phase.
• PF: The power factor (kW/kVA) that affects the power
available to the load.
16 60 kW InfraStruXure PDU — Operation and Configuration
Loading...
