Read the following information before installing or operating your APC by Schneider
Electric Rack Power Distribution Unit (PDU).

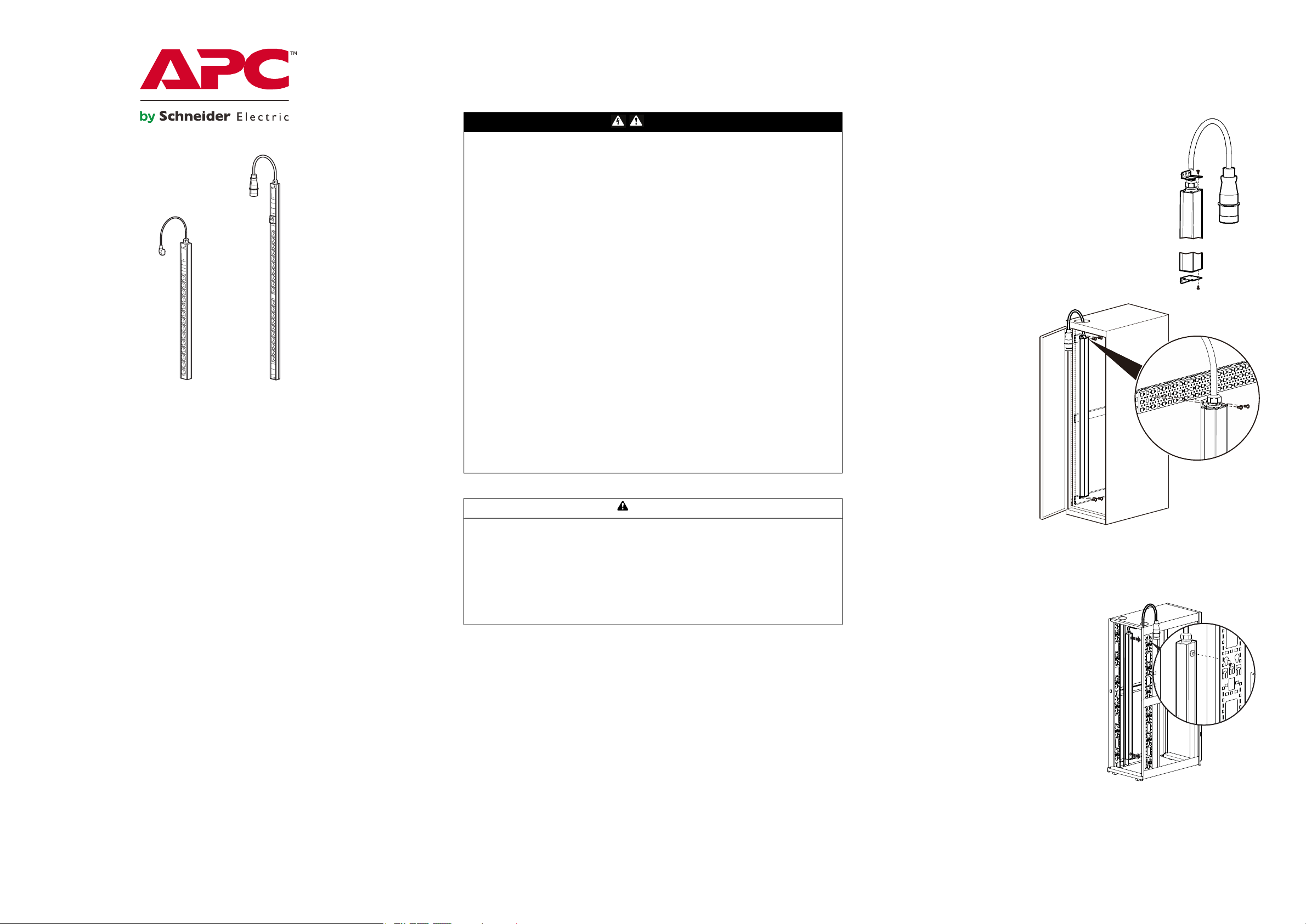

Installation
Mount the Rack PDU vertically in an Easy rack or any standard EIA-310 rack.
Option 1 - Vertical Installation with Brackets
Easy PDU Basic Rack Power Distribution Unit Installation
Worldwide Customer Support
Customer support for this product is available at www.apc.com
© 2021 APC by Schneider Electric. APC and NetShelter are trademarks owned by Schneider
Electric SE. All other trademarks are property of their respective owners.
990-6253A 10/2021
DANGER
HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• The Rack PDU is intended to be installed and operated by a skilled person in a
controlled location.
• Do not operate the Rack PDU with the covers removed.
• This Rack PDU is intended for indoor use only.
• Do not install this Rack PDU where excessive moisture or heat is present.
• Never install any wiring, equipment, or Rack PDUs during a lightning storm.
• Plug this Rack PDU into a grounded power outlet only. The power outlet must be
connected to appropriate branch circuit/mains protection (fuse or circuit breaker).
Connection to any other type of power outlet may result in a shock hazard.
• Do not use extension cords or adapters with this Rack PDU.
• If a socket-outlet is not accessible to the equipment, a socket-outlet shall be
installed.
• Do not work alone under hazardous conditions.
• Check that the power cord, plug, and socket are in good condition.
• Disconnect the Rack PDU from the power outlet before you install or connect
equipment to reduce the risk of electric shock when you cannot verify grounding.
Reconnect the Rack PDU to the power outlet only after you make all connections.
• Do not handle any kind of metallic connector before the power has been removed.
• Use one hand, whenever possible, to connect or disconnect signal cables to avoid a
possible shock from touching two surfaces with different grounds.
• This unit does not have any user-serviceable parts. Repairs are to be performed only
by factory-trained service personnel.
• High leakage current from attached loads is possible. If total leakage current will
exceed 3.5mA, attach a ground wire from the Rack PDU supplementary ground (M5
thread) to a reliable ground in your facility before energizing the Rack PDU.
Failure to follow these instructions will result in death or serious injury.
1. Install the two (2) brackets to the Rack PDU with the screws
provided.
2. Install the PDU to the rack
with the provided four (4)
M5x10mm self tapping
screws.
Overview
This sheet provides installation information for your Easy PDU. Read the instructions
carefully.
Receiving
Inspect the package and contents for shipping damage. Make sure all parts were sent.
Immediately report any shipping damage to the shipping agent. Report missing
contents, product damage, or other problems with the product to APC by Schneider
Electric or your APC by Schneider Electric reseller.
Material recycling
The shipping materials are recyclable. Please save them for later use, or dispose of
them
WARNING
FIRE HAZARD
• This equipment should be connected to a single-outlet dedicated circuit protected by
a circuit breaker or fuse with the same current rating as the Rack PDU.
• The plug or inlet serves as the disconnect for the Rack PDU. Make sure the utility
power outlet for the Rack PDU will be close to the Rack PDU and readily accessible.
• Some models of Rack PDUs are provided with IEC C14 or C20 inlets. Use of the
proper power cord is the user’s responsibility.
Failure to follow these instructions can result in death or serious injury.
Option 2 - Toolless Mounting Pegs
The mounting pegs of the Rack PDU are
installed at the factory. Slide both mounting
pegs into the holes located in the channel in
the rear panel of the rack. Snap the Rack PDU
into place by pushing it downward until it locks
into position.
NOTE: When installing the Rack PDU, ensure
that the power cord plug is accessible and that
it is connected to a grounded outlet.
Specifications
EPDU1116B-SCH EPDU1132B-SCH
Electrical
Nominal Input Voltage 200 - 240 VAC 1 PHASE
Maximum Input Current
(Phase)
Input Frequency 50/60Hz
Input Connection SCHUKO 16A IEC 309 32A 2P+E
Output Voltage 200 - 240 VAC 1 PHASE
Output Connections
Circuit Breakers None
Physical
Dimensions
(H x W x D)
Input power cord length 3 m (9.8 ft) 3 m (9.8 ft)
Shipping dimensions
(H x W x D)
Weight/Shipping weight
Environmental
Maximum elevation
(above
MSL)
Operating/Storage
Temperature:
Operating/Storage
Humidity: Operating/Storage 5–95%
Compliance
EMC verification CE EN55035, EN55032, EN55024
Safety verification CE, TUV, EAC, KC, UKCA, EN/IEC62368-1
CE EU Contact Address
Environmental RoHS & Reach
DIN49440-SCHUKO (14)
Max. output current 16A
(35.5 x 2.44 x 1.74 in)
1320 x 160 x 110 mm
(52.0 x 6.30 x 4.33 in)
16A 32A
DIN49440-SCHUKO (10)
Max. output current 16A
DIN49440-SCHUKO (11)
Max. output current 16A
hydraulic-magnetic circuit
902 x 62 x 44.4 mm
(59.29 x 2.44 x 1.74 in)
1.94 kg (4.27 lb)/
2.84 kg (6.26 lb)
0–3000 m (0–10,000 ft) /
0–15000 m (0–50,000 ft)
–5 to 45°C (23 to 113°F)/
–25 to 65°C (–13 to 149°F)
Bank1:
Bank2:
Two (2) 16A 1-pole
breakers
1506 x 62 x 44.4 mm
1660 x 160 x 110 mm
(65.35 x 6.30 x 4.33 in)
4.3 kg (9.47 lb)/
5.5 kg (12.12 lb)
RH, non-condensing
Schneider Electric, 35 rue Joseph Monier
92500 Rueil Malmaison, France
Life Support Policy
General policy
APC by Schneider Electric does not recommend the use of any of its products in the following
situations:
• In life-support applications where failure or malfunction of the APC by Schneider Electric
product can be reasonably expected to cause failure of the life-support device or to affect
significantly its safety or effectiveness.
• In direct patient care.
APC by Schneider Electric will not knowingly sell its products for use in such applications unless it
receives in writing assurances satisfactory to APC by Schneider Electric that (a) the risks of injury
or damage have been minimized, (b) the customer assumes all such risks, and (c) the liability of
APC by Schneider Electric is adequately protected under the circumstances.
Examples of life-support devices
The term life-support device includes but is not limited to neonatal oxygen analyzers, nerve
stimulators (whether used for anesthesia, pain relief, or other purposes), autotransfusion devices,
blood pumps, defibrillators, arrhythmia detectors and alarms, pacemakers, hemodialysis systems,
peritoneal dialysis systems, neonatal ventilator incubators, ventilators (for adults and infants),
anesthesia ventilators, infusion pumps, and any other devices designated as “critical” by the U.S.
FDA.
Hospital-grade wiring devices and leakage current protection may be ordered as options on many
APC by Schneider Electric UPS systems. APC by Schneider Electric does not claim that units with
these modifications are certified or listed as hospital-grade APC by Schneider Electric or any other
organization. Therefore these units do not meet the requirements for use in direct patient care.
Radio frequency interference
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
1 Year Factory Warranty
This warranty applies only to the products you purchase for your use in accordance with this
manual.
Terms of warranty
APC by Schneider Electric warrants its products to be free from defects in materials and
workmanship for a period of one year from the date of purchase. APC by Schneider Electric
will repair or replace defective products covered by this warranty. This warranty does not
apply to equipment that has been damaged by accident, negligence or misapplication or
has been altered or modified in any way. Repair or replacement of a defective product or
part thereof does not extend the original warranty period. Any parts furnished under this
warranty may be new or factory-remanufactured.
Non-transferable warranty
This warranty extends only to the original purchaser who must have properly registered the
product. The product may be registered at the APC by Schneider Electric website,
www.apc.com.
Exclusions
APC by Schneider Electric shall not be liable under the warranty if its testing and
examination disclose that the alleged defect in the product does not exist or was caused by
end user’s or any third person’s misuse, negligence, improper installation or testing. Further,
APC by Schneider Electric shall not be liable under the warranty for unauthorized attempts
to repair or modify wrong or inadequate electrical voltage or connection, inappropriate onsite operation conditions, corrosive atmosphere, repair, installation, exposure to the
elements, Acts of God, fire, theft, or installation contrary to APC by Schneider Electric
recommendations or specifications or in any event if the APC by Schneider Electric serial
number has been altered, defaced, or removed, or any other cause beyond the range of the
intended use.
THERE ARE NO WARRANTIES, EXPRESS OR IMPLIED, BY OPERATION OF LAW OR
OTHERWISE, OF PRODUCTS SOLD, SERVICED OR FURNISHED UNDER THIS
AGREEMENT OR IN CONNECTION HEREWITH. APC BY SCHNEIDER ELECTRIC
DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY, SATISFACTION
AND FITNESS FOR A PARTICULAR PURPOSE. APC BY SCHNEIDER ELECTRIC
EXPRESS WARRANTIES WILL NOT BE ENLARGED, DIMINISHED, OR AFFECTED BY
AND NO OBLIGATION OR LIABILITY WILL ARISE OUT OF, APC BY SCHNEIDER
ELECTRIC RENDERING OF TECHNICAL OR OTHER ADVICE OR SERVICE IN
CONNECTION WITH THE PRODUCTS. THE FOREGOING WARRANTIES AND
REMEDIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES AND
REMEDIES. THE WARRANTIES SET FORTH ABOVE CONSTITUTE APC BY
SCHNEIDER ELECTRIC’S SOLE LIABILITY AND PURCHASER’S EXCLUSIVE
REMEDY FOR ANY BREACH OF SUCH WARRANTIES. WARRANTIES EXTEND ONLY
TO PURCHASER AND ARE NOT EXTENDED TO ANY THIRD PARTIES.
IN NO EVENT SHALL APC BY SCHNEIDER ELECTRIC, ITS OFFICERS, DIRECTORS,
AFFILIATES OR EMPLOYEES BE LIABLE FOR ANY FORM OF INDIRECT, SPECIAL,
CONSEQUENTIAL OR PUNITIVE DAMAGES, ARISING OUT OF THE USE, SERVICE
OR INSTALLATION, OF THE PRODUCTS, WHETHER SUCH DAMAGES ARISE IN
CONTRACT OR TORT, IRRESPECTIVE OF FAULT, NEGLIGENCE OR STRICT
LIABILITY OR WHETHER APC BY SCHNEIDER ELECTRIC HAS BEEN ADVISED IN
ADVANCE OF THE POSSIBILITY OF SUCH DAMAGES. SPECIFICALLY, APC BY
SCHNEIDER ELECTRIC IS NOT LIABLE FOR ANY COSTS, SUCH AS LOST PROFITS
OR REVENUE, LOSS OF EQUIPMENT, LOSS OF USE OF EQUIPMENT, LOSS OF
SOFTWARE, LOSS OF DATA, COSTS OF SUBSTITUENTS, CLAIMS BY THIRD
PARTIES, OR OTHERWISE.
NO SALESMAN, EMPLOYEE OR AGENT OF APC BY SCHNEIDER ELECTRIC IS
AUTHORIZED TO ADD TO OR VARY THE TERMS OF THIS WARRANTY. WARRANTY
TERMS MAY BE MODIFIED, IF AT ALL, ONLY IN WRITING SIGNED BY AN APC BY
SCHNEIDER ELECTRIC OFFICER AND LEGAL DEPARTMENT.
Warranty claims
Customers with warranty claims issues may access the APC by Schneider Electric
customer support network through the Support page of the APC by Schneider Electric
website, www.apc.com/support. Select your country from the country selection pull-down
menu at the top of the Web page. Select the Support tab to obtain contact information for
customer support in your region.
