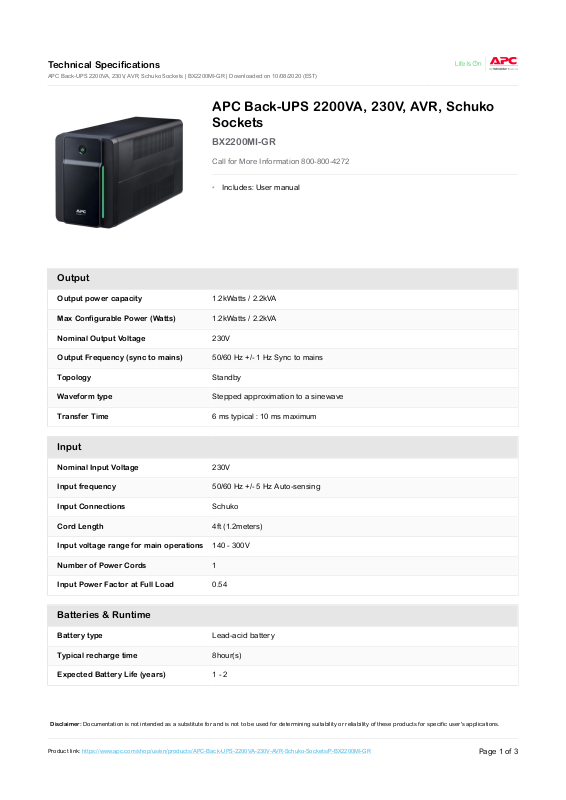

Technical Specifications
APC Back-UPS 2200VA, 230V, AVR, Schuko Sockets | BX2200MI-GR | Downloaded on 10/08/2020 (EST)
APC Back-UPS 2200VA, 230V, AVR, Schuko
Sockets
BX2200MI-GR
Call for More Information 800-800-4272
• Includes: User manual
Output
Output power capacity 1.2kWatts /2.2kVA
Max Configurable Power (Watts) 1.2kWatts /2.2kVA
Nominal Output Voltage 230V
Output Frequency (sync to mains) 50/60 Hz +/- 1 Hz Sync to mains
Topology Standby
Waveform type Stepped approximation to a sinewave
Transfer Time 6 ms typical : 10 ms maximum
Input
Nominal Input Voltage 230V
Input frequency 50/60 Hz +/- 5 Hz Auto-sensing
Input Connections Schuko
Cord Length 4ft (1.2meters)
Input voltage range for main operations 140 - 300V
Number of Power Cords 1
Input Power Factor at Full Load 0.54
Batteries & Runtime
Battery type Lead-acid battery
Typical recharge time 8hour(s)
Expected Battery Life (years) 1 - 2
Disclaimer: Documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user's applications.
Product link: https://www.apc.com/shop/us/en/products/APC-Back-UPS-2200VA-230V-AVR-Schuko-Sockets/P-BX2200MI-GR
Page 1 of 3
Technical Specifications
APC Back-UPS 2200VA, 230V, AVR, Schuko Sockets | BX2200MI-GR | Downloaded on 10/08/2020 (EST)
Communications & Management
Interface Port(s) 36 Pin Battery Mgmt, USB
Control panel LED Status display with on line : on battery
Audible Alarm Alarm when on battery : distinctive low battery alarm
Surge Protection and Filtering
Surge energy rating 273Joules
Data Line Protection RJ45 10/100/1000 Base-T Ethernet protection
Physical
Maximum Height 7.5inches (190MM, 19.0CM)
Maximum Width 5.5inches (140MM, 14.0CM)
Maximum Depth 15.4inches (390MM, 0.0CM)
Net Weight 27.12lbs. (12.3KG)
Shipping weight 29.32lbs. (13.3KG)
Shipping Height 11.7inches (297MM, 29.7CM)
Shipping Width 9.3inches (235MM, 23.5CM)
Shipping Depth 19.5inches (495MM, 49.5CM)
Color Black
SCC Codes 10731304410888
Environmental
Operating Temperature 32 - 104 °F (0 - 40 °C)
Operating Relative Humidity 0 - 95 (Non-condensing) %
Operating Elevation 0 - 3000ft (0 - 914.4meters)
Storage Temperature -15 - 40 °C
Storage Elevation 0 - 3000ft (0 - 914.4meters)
Audible noise at 1 meter from surface of
unit
40.0dBA
Protection Class IP20
Disclaimer: Documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user's applications.
Product link: https://www.apc.com/shop/us/en/products/APC-Back-UPS-2200VA-230V-AVR-Schuko-Sockets/P-BX2200MI-GR
Page 2 of 3
