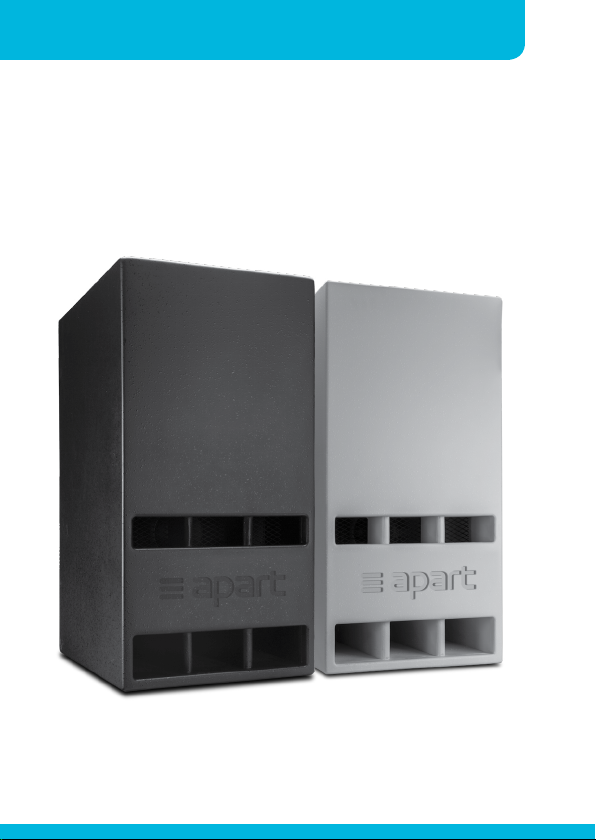

SUB2400 subwoofer
Instruction manualSUB2400
3
Page 4
4
Passive professional subwoofer
Introduction
Please read this manual carefully before using the product. This
will give you the necessary product and installation instructions to
assure a seamless installation and non-compromised overall sound
quality.
Thank you for purchasing loudspeakers of the SUB series.
The SUB2400 subwoofer has two band pass chambers where each
chamber is equipped with a 10” dual coil woofer. Together with
the push-pull technology this results in a relative small cabinet with
a huge output and very low distortion. Thanks to the small size of
the woofers, less mass has to be moved. The bass reproduction
is a lot more “punchy” and “faster” compared to 15” or 18”
cabinets. The SUB2400 has been compared with a single 15” and
18” subwoofers and the results were astonishing in favour of the
SUB2400!
SUB2400 can be driven at 4 ohms or 16 ohms. Selection is done by
the large switch at the back of the subwoofer. Especially with long
cable runs, the 16 ohms mode is advised. Less power is lost and the
bass response will be a lot better. The 16 ohms mode also allows
you to use multiple cabinets.
Page 5
Instruction manualSUB2400
Safety instructions
• Keep this manual for future reference.
• Take care of your speaker wires, they should be free of damage.
Damaged speaker wires may result in poor sound quality and
can damage amplifiers.
• No main power shall be connected to the speakers, doing so
will damage the speaker.
• This speaker should only be serviced by qualified personnel. If
not, warranty might be void.
• Use cables of the right gauge, certainly for long runs.
• Use cables with clear color indication and maintain polarity
throughout the whole system.
• Avoid loud feedback for this is a main speaker killer.
• Clean only with dry cloth.
• Do not operate near heaters or place it on other apparatus
which produce a lot of heat.
• Only use accessories specified by the manufacturer.
• Make sure the mounting surface can easily support the
speaker’s weight.
• Use only industry-accepted rigging tools and methods.
• Use sufficient loudspeakers and avoid death spots.
• Being exposed to loud levels over a long time can cause severe
hearing loss.
• Don’t forget to consult the local law directions regarding
producing sound in public places.
• Please check the unit’s condition after unpacking. If the outside
of the carton box has been damaged, inform your shipper
immediately.
5
Page 6
6
Passive professional subwoofer
Features and benefits
• Neutral black or white design
• Mono 4 or 16 ohm driven
• Band pass (6
• Dual coil 10” subwoofers in push pull configuration
• 600 W power handling
• Smooth punchy bass
th
order)
Installation

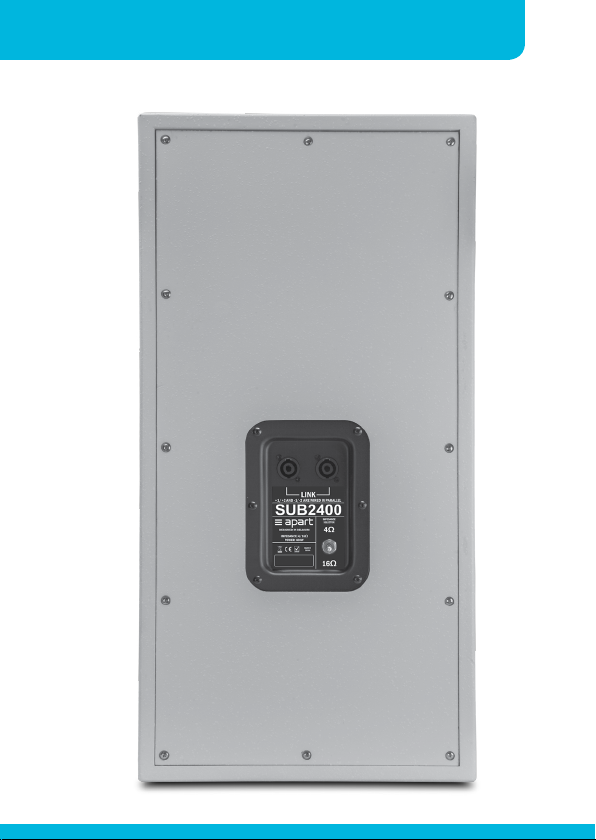

The two speakon connectors are wired in parallel. The rocker switch
gives you the possibility to turn your SUB2400 into a 4 or 16 ohm
version.
To get the best result in producing low frequencies, you should
keep the minimal impedance of your subwoofer system as high as
possible, certainly when cables of more than 10 meters are used.
Four subwoofers at 16ohm will produce a higher sound pressure
than two subwoofers at 4 ohm. The 16 ohm subwoofer will also
draw less power from your power amplifier!
The -1/-2 and the +1/+2 speakon connectors are wired in parallel.
Recommended cable length vs. load vs. cable diameter.
Load 2.5 mm² 4 mm²
2 ohms (2 x SUB2400 at 4 ohms) < 7.5 m < 12.5 m
4 ohms (4 x SUB2400 at 16 ohms) < 15 m < 25 m
8 ohms (2 x SUB2400 at 16 ohms) < 30 m < 50 m
16 ohms (1 x SUB2400 at 16 ohms) < 60 m < 100 m
Page 7
Instruction manualSUB2400
7
Page 8
8
Passive professional subwoofer

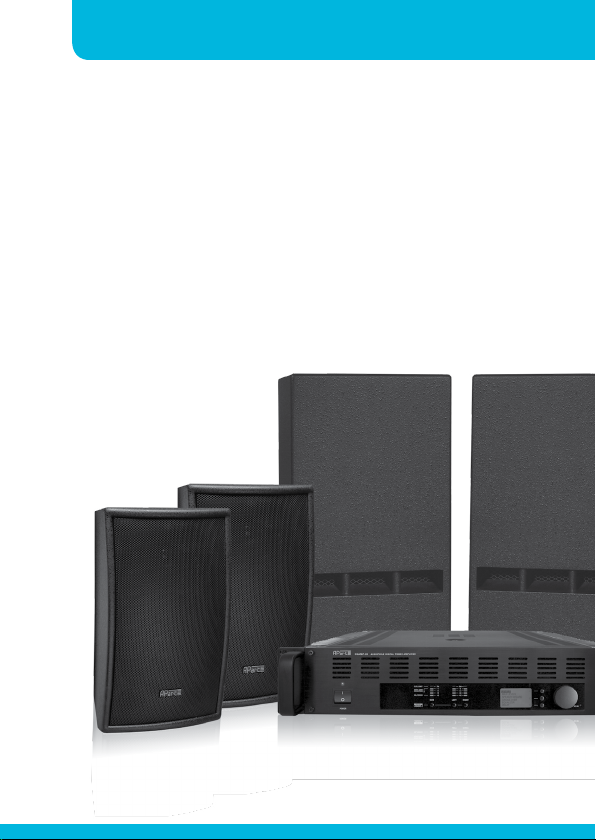

Subwoofer configuration
The SUB2400 is a perfect match with the CHAMP-3D and the
MASK8 in the combination shown below.
Page 9

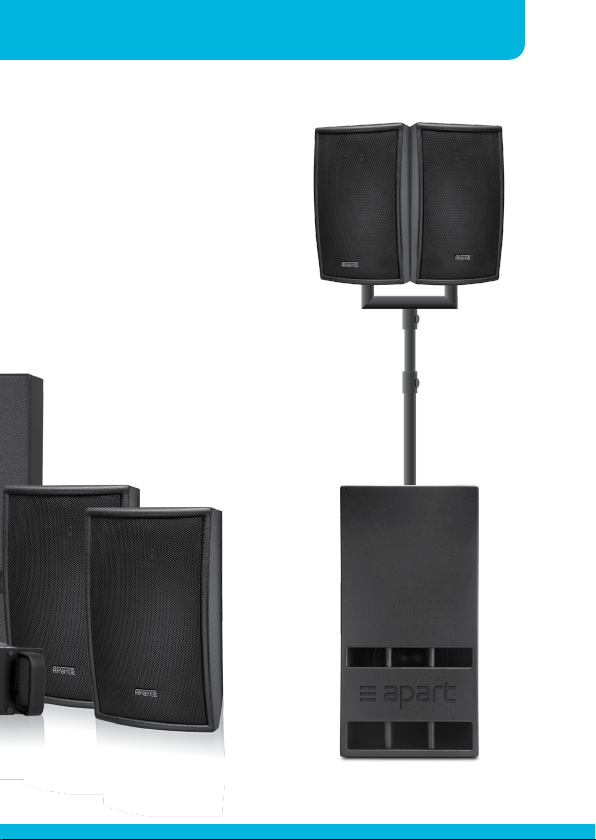

Please note that the
SUB2400 has a 35 mm
pole mounting hole
to mount the STSUB
pole and one MASK8
loudspeaker or 2
MASK8 loudspeakers
if you add the STT
bracket to the STSUB
pole.
Instruction manualSUB2400
9
Page 10
10
Passive professional subwoofer

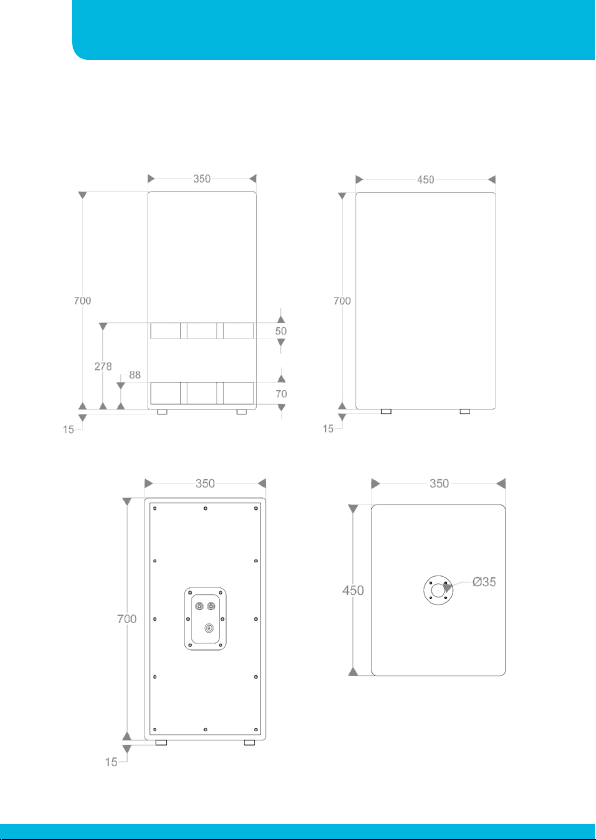

Technical drawing
(mounting hole for STSUB only
available on the black model)
Page 11
11
Passive professional subwoofer
Notes
Page 12
Notes
Instruction manualSUB2400
12
Page 13
13
Passive professional subwoofer
warranty info
Warranty claims and claims for hidden defects can be considered
only if the defects appear within the warranty period of 24
months and are notified within 8 days following their appearance
per registered letter. The warranty is not valid in case of an
incident, wear, for moving parts, power surges, inadequate
packing or shipping, improper use or storage and the disregard of
recommendations of Apart Audio. The warranty only concerns the
spare parts and not the involved labor, transportation or any other
costs. The product must be returned in the original packaging with
the proof of purchase by an Apart Audio authorized reseller.
The general terms and conditions can be found here:
http://www.apart-audio.com/conditions/General_Terms_and_Conditions_
Apart_Audio.pdf
