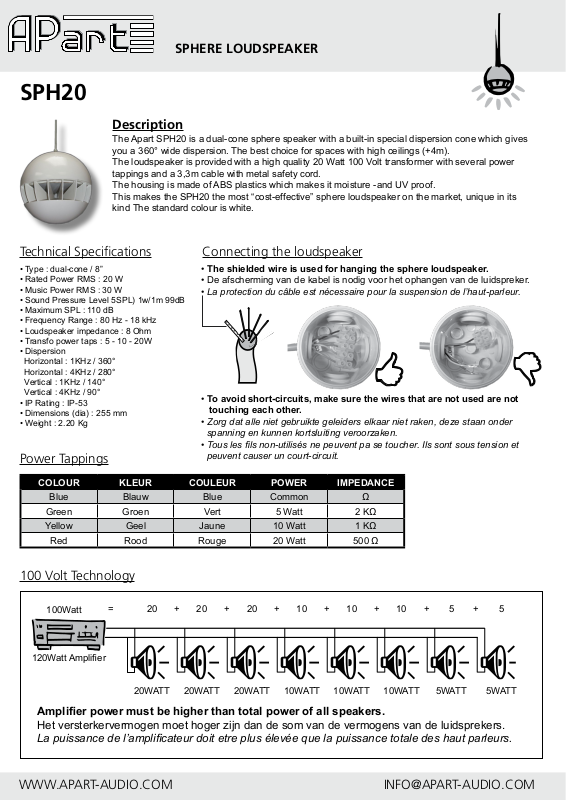

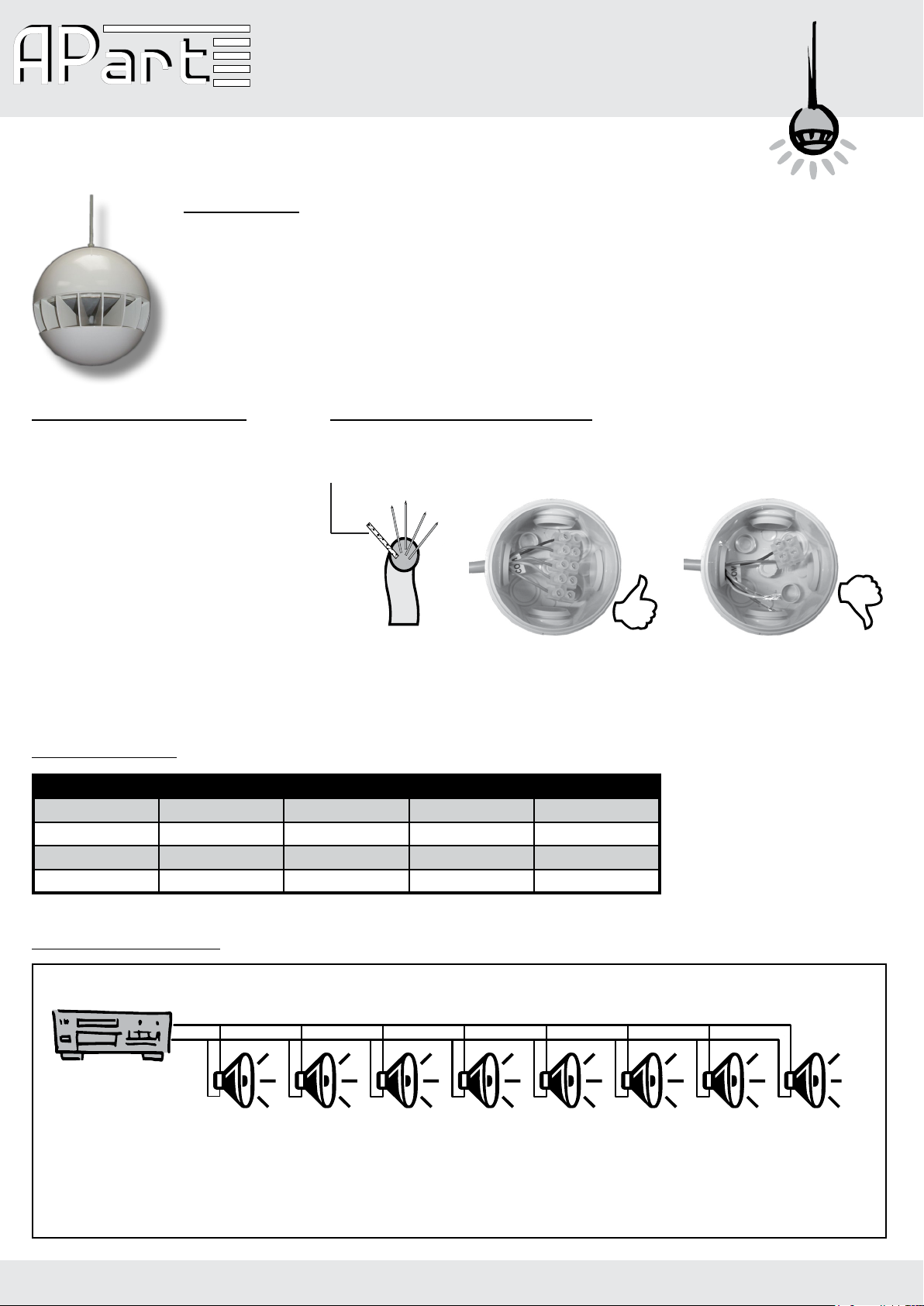

SPH20
SPHERE LOUDSPEAKER
Description
The Apart SPH20 is a dual-cone sphere speaker with a built-in special dispersion cone which gives
you a 360° wide dispersion. The best choice for spaces with high ceilings (+4m).
The loudspeaker is provided with a high quality 20 Watt 100 Volt transformer with several power
tappings and a 3,3m cable with metal safety cord.
The housing is made of ABS plastics which makes it moisture -and UV proof.
This makes the SPH20 the most “cost-effective” sphere loudspeaker on the market, unique in its
kind The standard colour is white.
Technical Specifications
• Type : dual-cone / 8”
• Rated Power RMS : 20 W
• Music Power RMS : 30 W
• Sound Pressure Level 5SPL) 1w/1m 99dB
• Maximum SPL : 110 dB
• Frequency Range : 80 Hz - 18 kHz
• Loudspeaker impedance : 8 Ohm
• Transfo power taps : 5 - 10 - 20W
• Dispersion
Horizontal : 1KHz / 360°
Horizontal : 4KHz / 280°
Vertical : 1KHz / 140°
Vertical : 4KHz / 90°
• IP Rating : IP-53
• Dimensions (dia) : 255 mm
• Weight : 2.20 Kg
Power Tappings
COLOUR KLEUR COULEUR POWER IMPEDANCE
Blue Blauw Blue Common Ω
Green Groen Vert 5 Watt 2 KΩ
Yellow Geel Jaune 10 Watt 1 KΩ
Red Rood Rouge 20 Watt 500 Ω
Connecting the loudspeaker
• The shielded wire is used for hanging the sphere loudspeaker.
• De afscherming van de kabel is nodig voor het ophangen van de luidspreker.
• La protection du câble est nécessaire pour la suspension de l’haut-parleur.
• To avoid short-circuits, make sure the wires that are not used are not
touching each other.
• Zorg dat alle niet gebruikte geleiders elkaar niet raken, deze staan onder
spanning en kunnen kortsluiting veroorzaken.
• Tous les ls non-utilisés ne peuvent pa se toucher. Ils sont sous tension et
peuvent causer un court-circuit.
100 Volt Technology
100Watt
120Watt Amplier
=
Amplier power must be higher than total power of all speakers.
Het versterkervermogen moet hoger zijn dan de som van de vermogens van de luidsprekers.
La puissance de l’amplicateur doit etre plus élevée que la puissance totale des haut parleurs.
20 20 20 10 10 10 5 5++ + + +
20WATT 20WATT 20WATT 10WATT 10WATT 10WATT 5WATT 5WATT
+
+
WWW.APART-AUDIO.COM [email protected]
