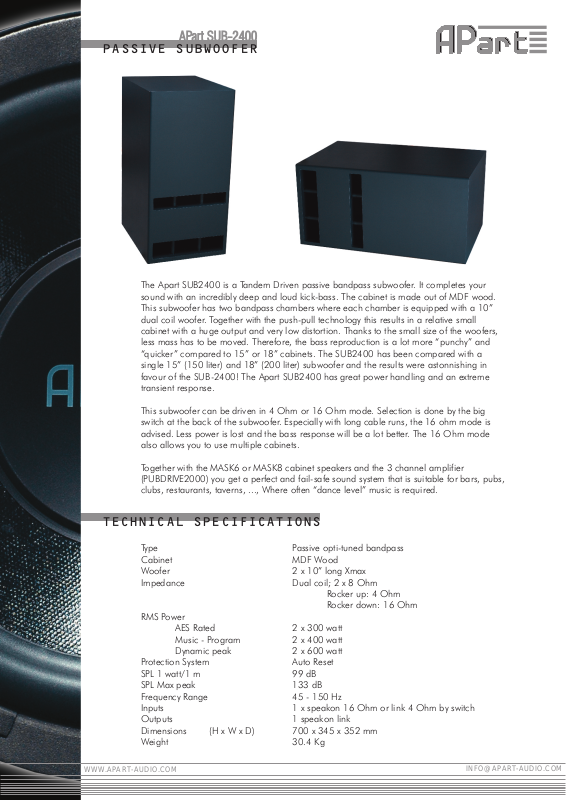

APart SUB-2400
PASSIVE SUBWOOFER
The Apart SUB2400 is a Tandem Driven passive bandpass subwoofer. It completes your
sound with an incredibly deep and loud kick-bass. The cabinet is made out of MDF wood.
This subwoofer has two bandpass chambers where each chamber is equipped with a 10”
dual coil woofer. Together with the push-pull technology this results in a relative small
cabinet with a huge output and very low distortion. Thanks to the small size of the woofers,
less mass has to be moved. Therefore, the bass reproduction is a lot more “punchy” and
“quicker” compared to 15” or 18” cabinets. The SUB2400 has been compared with a
single 15” (150 liter) and 18” (200 liter) subwoofer and the results were astonnishing in
favour of the SUB-2400! The Apart SUB2400 has great power handling and an extreme
transient response.
This subwoofer can be driven in 4 Ohm or 16 Ohm mode. Selection is done by the big
switch at the back of the subwoofer. Especially with long cable runs, the 16 ohm mode is
advised. Less power is lost and the bass response will be a lot better. The 16 Ohm mode
also allows you to use multiple cabinets.
Together with the MASK6 or MASK8 cabinet speakers and the 3 channel amplifier
(PUBDRIVE2000) you get a perfect and fail-safe sound system that is suitable for bars, pubs,
clubs, restaurants, taverns, ..., Where often “dance level” music is required.
TECHNICAL SPECIFICATIONS
Type
Cabinet
Woofer
Impedance
RMS Power
AES Rated
Music - Program
Dynamic peak
Protection System
SPL 1 watt/1 m
SPL Max peak
Frequency Range
Inputs
Outputs
Dimensions (H x W x D)
Weight
Passive opti-tuned bandpass
MDF Wood
2 x 10” long Xmax
Dual coil; 2 x 8 Ohm
2 x 300 watt
2 x 400 watt
2 x 600 watt
Auto Reset
99 dB
133 dB
45 - 150 Hz
1 x speakon 16 Ohm or link 4 Ohm by switch
1 speakon link
700 x 345 x 352 mm
30.4 Kg
Rocker up: 4 Ohm
Rocker down: 16 Ohm
WWW.APART-AUDIO.COM
