Page 1

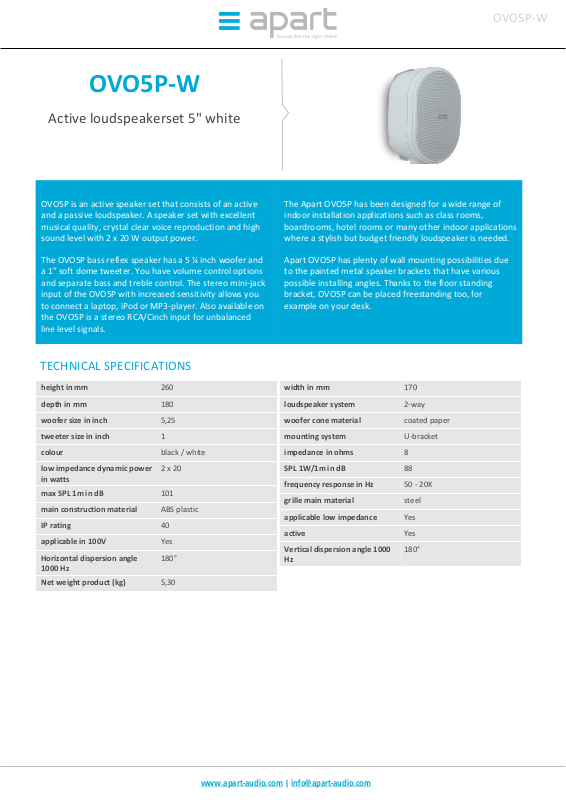

OVO5P-W
Active loudspeakerset 5" white
TECHNICAL SPECIFICATIONS
height in mm
260
depth in mm
180
woofer size in inch
5,25
tweeter size in inch
1
colour
black / white
low impedance dynamic power
in watts
2 x 20
max SPL 1m in dB
101
main construction material
ABS plastic
IP rating
40
applicable in 100V
Yes
Horizontal dispersion angle
1000 Hz
180°
Net weight product (kg)
5,30
width in mm
170
loudspeaker system
2-way
woofer cone material
coated paper
mounting system
U-bracket
impedance in ohms
8
SPL 1W/1m in dB
88
frequency response in Hz
50 - 20K
grille main material
steel
applicable low impedance
Yes
active
Yes
Vertical dispersion angle 1000
Hz
180°
OVO5P is an active speaker set that consists of an active
and a passive loudspeaker. A speaker set with excellent
musical quality, crystal clear voice reproduction and high
sound level with 2 x 20 W output power.
The OVO5P bass reflex speaker has a 5 ¼ inch woofer and
a 1” soft dome tweeter. You have volume control options
and separate bass and treble control. The stereo mini-jack
input of the OVO5P with increased sensitivity allows you
to connect a laptop, iPod or MP3-player. Also available on
the OVO5P is a stereo RCA/Cinch input for unbalanced
line level signals.
The Apart OVO5P has been designed for a wide range of
indoor installation applications such as class rooms,
boardrooms, hotel rooms or many other indoor applications
where a stylish but budget friendly loudspeaker is needed.
Apart OVO5P has plenty of wall mounting possibilities due
to the painted metal speaker brackets that have various
possible installing angles. Thanks to the floor standing
bracket, OVO5P can be placed freestanding too, for
example on your desk.
www.apart-audio.com | info@apart-audio.com
OVO5P-W
Page 2
MORE PICTURES
www.apart-audio.com | info@apart-audio.com
OVO5P-W
