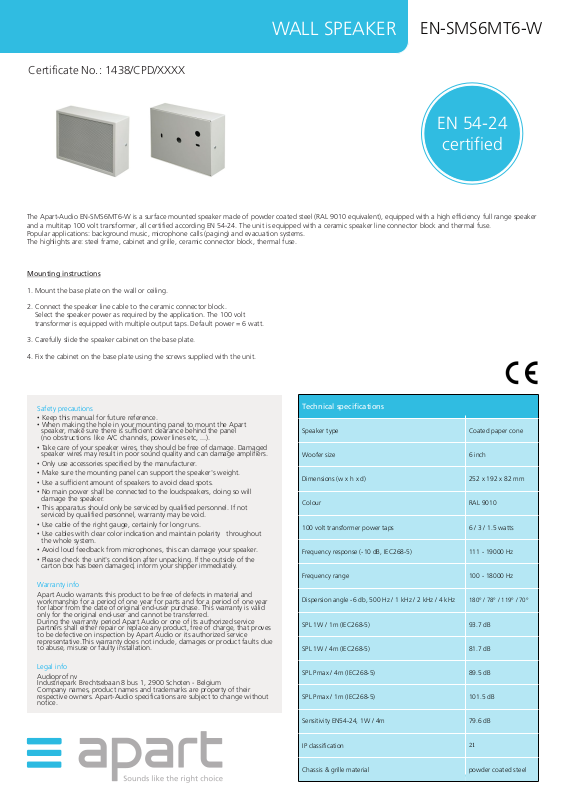

WALL SPEAKER
EN-SMS6MT6-W
Certificate No.: 1438/CPD/XXXX
EN 54-24
certified
The Apart-Audio EN-SMS6MT6-W is a surface mounted speaker made of powder coated steel (RAL 9010 equivalent), equipped with a high efficiency full range speaker
and a multitap 100 volt transformer, all certified according EN 54-24. The unit is equipped with a ceramic speaker line connector block and thermal fuse.
Popular applications: background music, microphone calls (paging) and evacuation systems.
The highlights are: steel frame, cabinet and grille, ceramic connector block, thermal fuse.
Mounting instructions
1. Mount the base plate on the wall or ceiling.
2. Connect the speaker line cable to the ceramic connector block.
Select the speaker power as required by the application. The 100 volt
transformer is equipped with multiple output taps. Default power = 6 watt.
3. Carefully slide the speaker cabinet on the base plate.
4. Fix the cabinet on the base plate using the screws supplied with the unit.
Safety precautions
• Keep this manual for future reference.
• When making the hole in your mounting panel to mount the Apart
speaker, make sure there is sufficient clearance behind the panel
(no obstructions like A/C channels, power lines etc, ...).
• Take care of your speaker wires, they should be free of damage. Damaged
speaker wires may result in poor sound quality and can damage amplifiers.
• Only use accessories specified by the manufacturer.
• Make sure the mounting panel can support the speaker's weight.
• Use a sufficient amount of speakers to avoid dead spots.
• No main power shall be connected to the loudspeakers, doing so will
damage the speaker.
• This apparatus should only be serviced by qualified personnel. If not
serviced by qualified personnel, warranty may be void.
• Use cable of the right gauge, certainly for long runs.
• Use cables with clear color indication and maintain polarity throughout
the whole system.
• Avoid loud feedback from microphones, this can damage your speaker.
• Please check the unit's condition after unpacking. If the outside of the
carton box has been damaged, inform your shipper immediately.
Warranty info
Apart Audio warrants this product to be free of defects in material and
workmanship for a period of one year for parts and for a period of one year
for labor from the date of original end-user purchase. This warranty is valid
only for the original end-user and cannot be transferred.
During the warranty period Apart Audio or one of its authorized service
partners shall either repair or replace any product, free of charge, that proves
to be defective on inspection by Apart Audio or its authorized service
representative.This warranty does not include, damages or product faults due
to abuse, misuse or faulty installation.
Technical specifications
Speaker type Coated paper cone
Woofer size 6 inch
Dimensions (w x h x d) 252 x 192 x 82 mm
Colour RAL 9010
100 volt transformer power taps
Frequency response (-10 dB, IEC268-5) 111 - 19000 Hz
Frequency range 100 - 18000 Hz
Dispersion angle -6 db, 500 Hz / 1 kHz / 2 kHz / 4 kHz
SPL 1W / 1m (IEC268-5)
SPL 1W / 4m (IEC268-5) 81.7 dB
6 / 3 / 1.5 watts
180° / 78° / 119° / 70°
93.7 dB
Legal info
Audioprof nv
Industriepark Brechtsebaan 8 bus 1, 2900 Schoten - Belgium
Company names, product names and trademarks are property of their
respective owners. Apart-Audio specifications are subject to change without
notice.
SPL Pmax / 4m (IEC268-5) 89.5 dB
SPL Pmax / 1m (IEC268-5) 101.5 dB
Sensitivity EN54-24, 1W / 4m
IP classification
Chassis & grille material powder coated steel
79.6 dB
