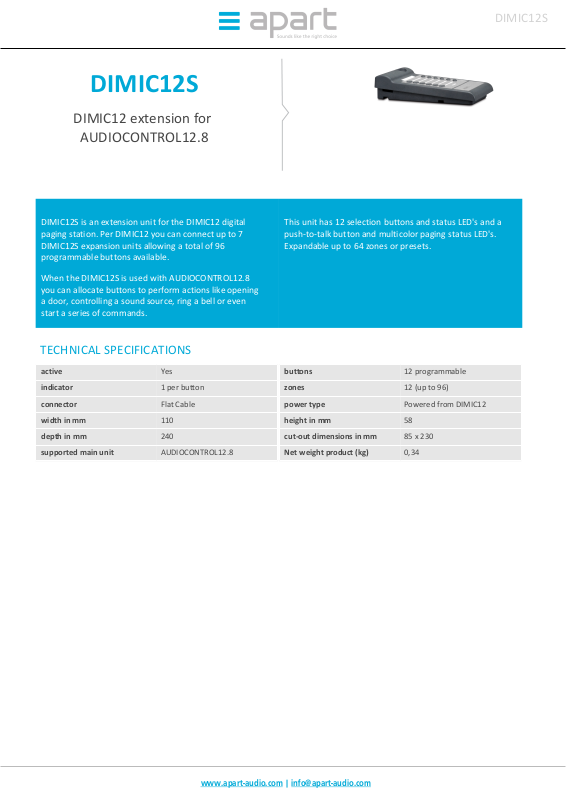

Page 1
DIMIC12S
DIMIC12 extension for
AUDIOCONTROL12.8
TECHNICAL SPECIFICATIONS
active
Yes
indicator
1 per button
connector
Flat Cable
width in mm
110
depth in mm
240
supported main unit
AUDIOCONTROL12.8
buttons
12 programmable
zones
12 (up to 96)
power type
Powered from DIMIC12
height in mm
58
cut-out dimensions in mm
85 x 230
Net weight product (kg)
0,34
DIMIC12S is an extension unit for the DIMIC12 digital
paging station. Per DIMIC12 you can connect up to 7
DIMIC12S expansion units allowing a total of 96
programmable buttons available.
When the DIMIC12S is used with AUDIOCONTROL12.8
you can allocate buttons to perform actions like opening
a door, controlling a sound source, ring a bell or even
start a series of commands.
This unit has 12 selection buttons and status LED's and a
push-to-talk button and multicolor paging status LED's.
Expandable up to 64 zones or presets.
www.apart-audio.com | info@apart-audio.com
DIMIC12S
Page 2
MORE PICTURES
www.apart-audio.com | info@apart-audio.com
DIMIC12S
