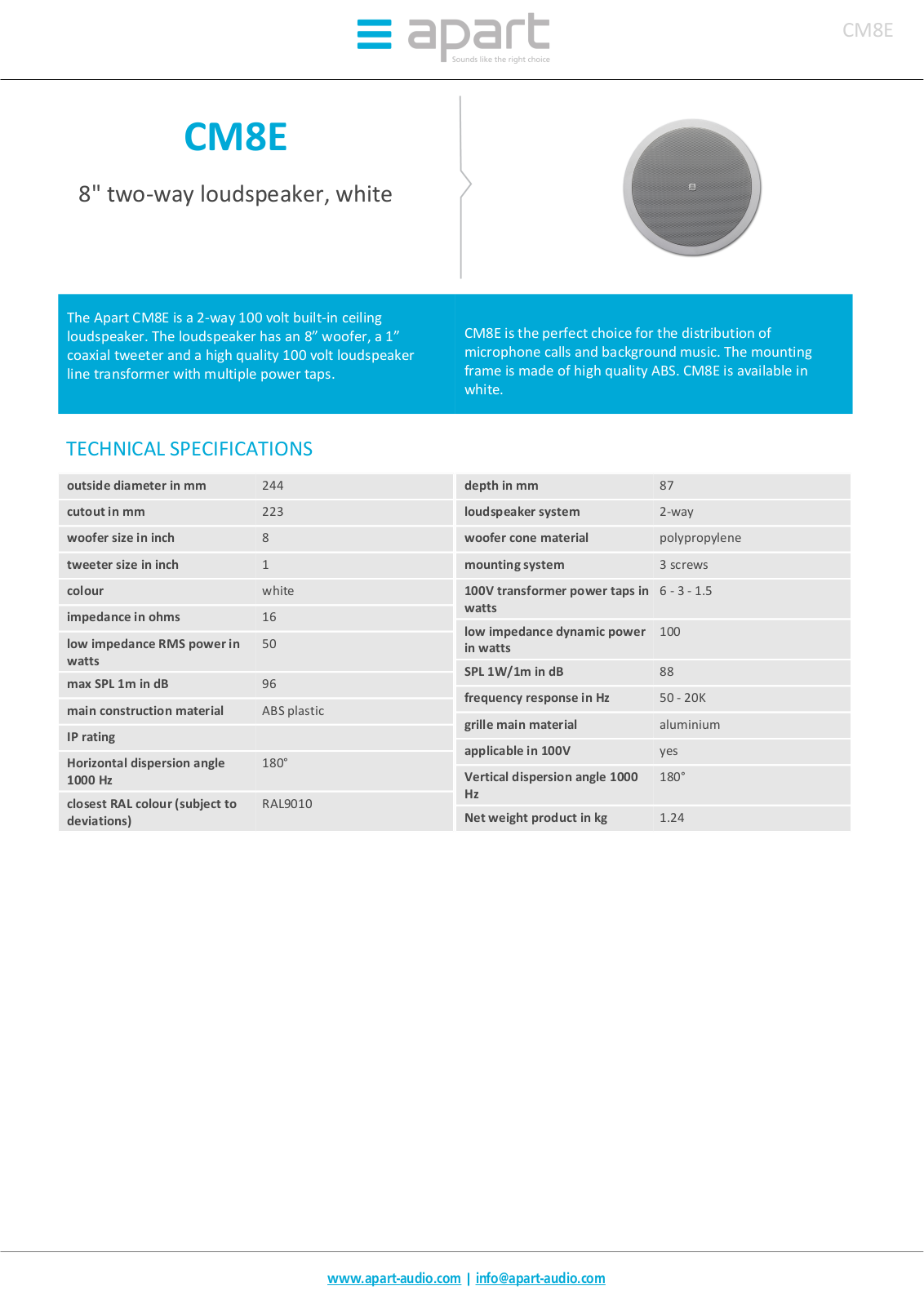

Page 1
CM8E
8" two-way loudspeaker, white
TECHNICAL SPECIFICATIONS
outside diameter in mm
244
cutout in mm
223
woofer size in inch
8
tweeter size in inch
1
colour
white
impedance in ohms
16
low impedance RMS power in
watts
50
max SPL 1m in dB
96
main construction material
ABS plastic
IP rating
Horizontal dispersion angle
1000 Hz
180°
closest RAL colour (subject to
deviations)
RAL9010
depth in mm
87
loudspeaker system
2-way
woofer cone material
polypropylene
mounting system
3 screws
100V transformer power taps in
watts
6 - 3 - 1.5
low impedance dynamic power
in watts
100
SPL 1W/1m in dB
88
frequency response in Hz
50 - 20K
grille main material
aluminium
applicable in 100V
yes
Vertical dispersion angle 1000
Hz
180°
Net weight product in kg
1.24
The Apart CM8E is a 2-way 100 volt built-in ceiling
loudspeaker. The loudspeaker has an 8” woofer, a 1”
coaxial tweeter and a high quality 100 volt loudspeaker
line transformer with multiple power taps.
CM8E is the perfect choice for the distribution of
microphone calls and background music. The mounting
frame is made of high quality ABS. CM8E is available in
white.
www.apart-audio.com | info@apart-audio.com
CM8E
Page 2

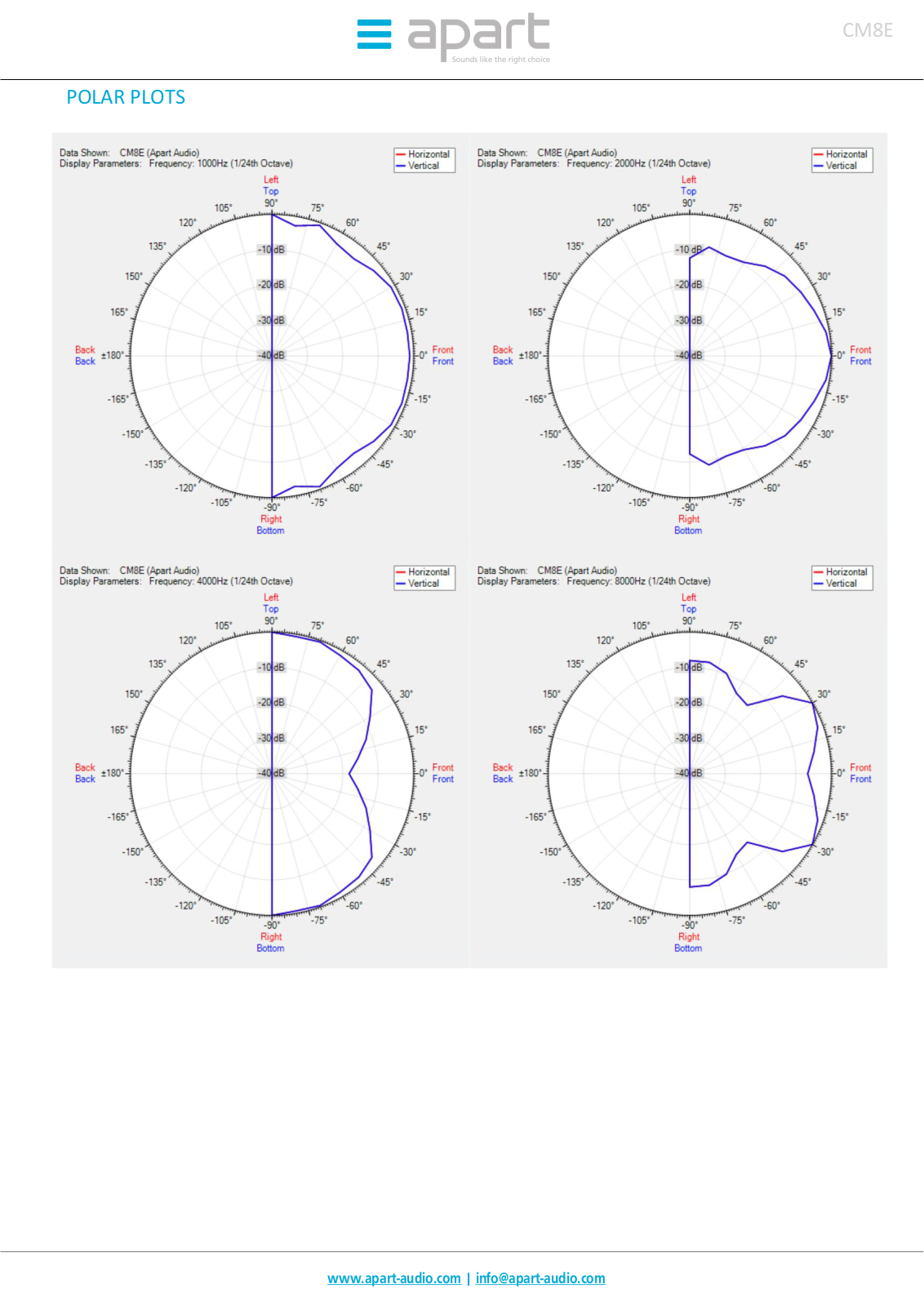

POLAR PLOTS
www.apart-audio.com | info@apart-audio.com
CM8E
Page 3

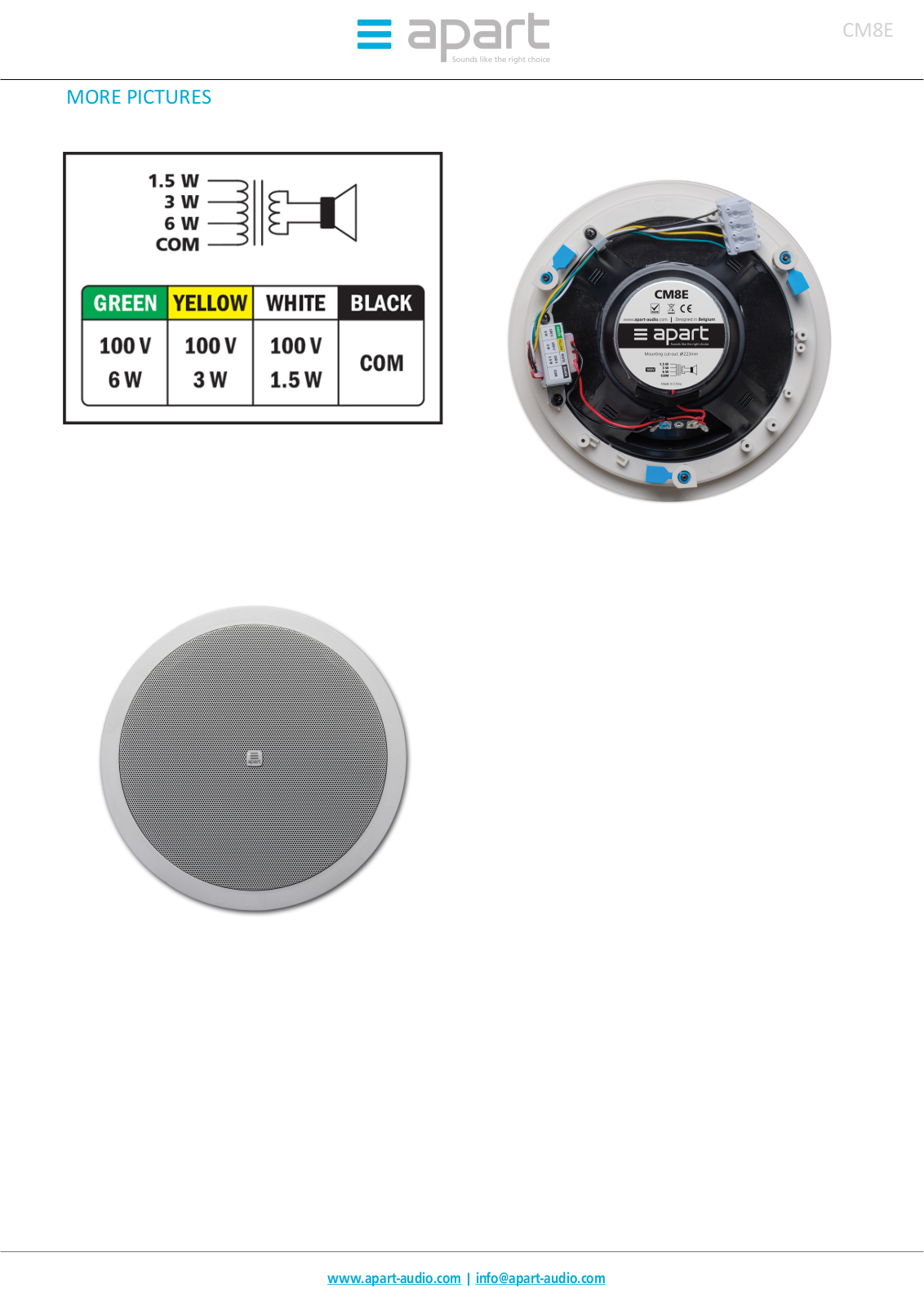

MORE PICTURES
www.apart-audio.com | info@apart-audio.com
CM8E
