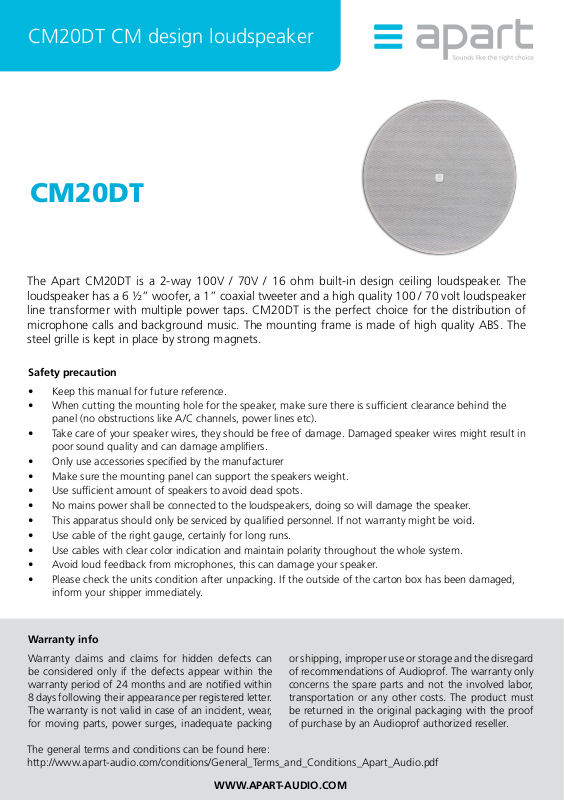

Page 1
CM20DT CM design loudspeaker
CM20DT
The Apart CM20DT is a 2-way 100V / 70V / 16 ohm built-in design ceiling loudspeaker. The
loudspeaker has a 6 ½” woofer, a 1” coaxial tweeter and a high quality 100 / 70 volt loudspeaker
line transformer with multiple power taps. CM20DT is the perfect choice for the distribution of
microphone calls and background music. The mounting frame is made of high quality ABS. The
steel grille is kept in place by strong magnets.
Safety precaution
• Keep this manual for future reference.
• When cutting the mounting hole for the speaker, make sure there is sufficient clearance behind the
panel (no obstructions like A/C channels, power lines etc).
• Take care of your speaker wires, they should be free of damage. Damaged speaker wires might result in
poor sound quality and can damage amplifiers.
• Only use accessories specified by the manufacturer
• Make sure the mounting panel can support the speakers weight.
• Use sufficient amount of speakers to avoid dead spots.
• No mains power shall be connected to the loudspeakers, doing so will damage the speaker.
• This apparatus should only be serviced by qualified personnel. If not warranty might be void.
• Use cable of the right gauge, certainly for long runs.
• Use cables with clear color indication and maintain polarity throughout the whole system.
• Avoid loud feedback from microphones, this can damage your speaker.
• Please check the units condition after unpacking. If the outside of the carton box has been damaged,
inform your shipper immediately.
Warranty info
Warranty claims and claims for hidden defects can
be considered only if the defects appear within the
warranty period of 24 months and are notified within
8 days following their appearance per registered letter.
The warranty is not valid in case of an incident, wear,
for moving parts, power surges, inadequate packing
The general terms and conditions can be found here:
http://www.apart-audio.com/conditions/General_Terms_and_Conditions_Apart_Audio.pdf
WWW.APART-AUDIO.COM
or shipping, improper use or storage and the disregard
of recommendations of Audioprof. The warranty only
concerns the spare parts and not the involved labor,
transportation or any other costs. The product must
be returned in the original packaging with the proof
of purchase by an Audioprof authorized reseller.
Page 2
Mounting the loudspeaker
1
2
The loudspeaker is easy to install, due to its simple mounting system.
(1) Use the cutout template to mark the mounting hole.
(2) When making the hole in your mounting panel, double check if there are no cables
or any other obstructions behind the mounting panel. Cutting the mounting panel
without this check might result in damaged infrastructure or power lines. Please make
sure that the mounting structure is capable of safely supporting the speaker’s weight.
(3) Remove the speaker grille.
(4) Turn the dog-ears inwards and tighten the dog-ear screws slightly to make them stay
in the inward position.
(5) Connect the speaker wires and insert the speaker in the precut speaker opening.
(6) Fasten the dog-ear screws carefully until the speaker sits safely in place. Do not
overtighten the dog-ear screws!
(7) The speaker grille is held in place by powerful magnets.
NOTE: for use in low impedance systems, always disconnect the 100 / 70 volt
transformer and connect the low impedance loudspeaker wires directly at the
loudspeaker.
3
6
outside diameter 210 mm
depth 80 mm
cutout 186 mm
loudspeaker system 2-way
woofer size 6.5 inch
woofer cone material polypropylene
tweeter size 1 inch
100 V / 70 V power taps 20 - 10 - 5 - 2.5* watts
mounting system 3 screws
impedance 16 ohms
low impedance dynamic power 60 watts
4
7
5
SPL 1W/1m 86 dB
max SPL 1m 104 dB
frequency response 60 - 20K Hz
main construction material ABS plastic
grille main material steel
IP rating 50
applicable low impedance yes
applicable in 100 V / 70 V yes
dispersion angle (1000 Hz) 180°
min / max ceiling thickness 3 - 27 mm
*2.5 W: 70 volt only
