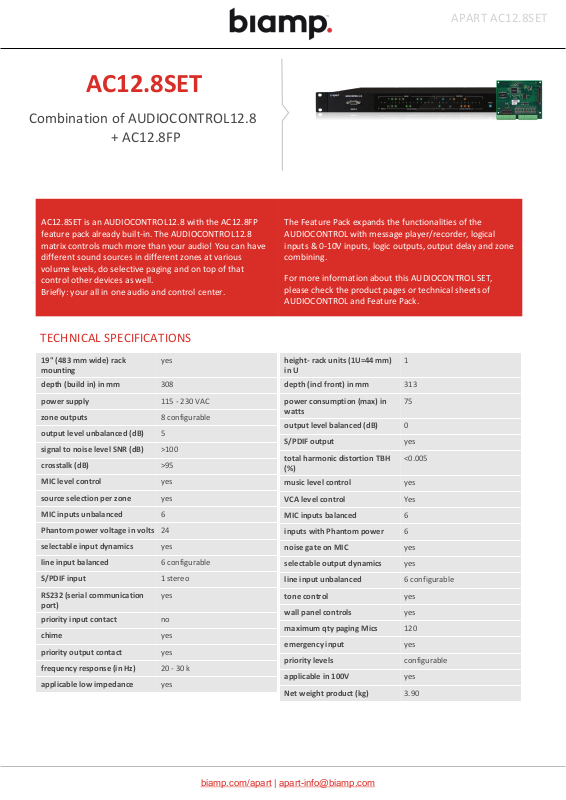

Page 1
AC12.8SET
Combination of AUDIOCONTROL12.8
+ AC12.8FP
TECHNICAL SPECIFICATIONS
19" (483 mm wide) rack
mounting
yes
depth (build in) in mm
308
power supply
115 - 230 VAC
zone outputs
8 configurable
output level unbalanced (dB)
5
signal to noise level SNR (dB)
>100
crosstalk (dB)
>95
MIC level control
yes
source selection per zone
yes
MIC inputs unbalanced
6
Phantom power voltage in volts
24
selectable input dynamics
yes
line input balanced
6 configurable
S/PDIF input
1 stereo
RS232 (serial communication
port)
yes
priority input contact
no
chime
yes
priority output contact
yes
frequency response (in Hz)
20 - 30 k
applicable low impedance
yes
height- rack units (1U=44 mm)
in U
1
depth (incl front) in mm
313
power consumption (max) in
watts
75
output level balanced (dB)
0
S/PDIF output
yes
total harmonic distortion TBH
(%)
<0.005
music level control
yes
VCA level control
Yes
MIC inputs balanced
6
inputs with Phantom power
6
noise gate on MIC
yes
selectable output dynamics
yes
line input unbalanced
6 configurable
tone control
yes
wall panel controls
yes
maximum qty paging Mics
120
emergency input
yes
priority levels
configurable
applicable in 100V
yes
Net weight product (kg)
3.90
AC12.8SET is an AUDIOCONTROL12.8 with the AC12.8FP
feature pack already built-in. The AUDIOCONTROL12.8
matrix controls much more than your audio! You can have
different sound sources in different zones at various
volume levels, do selective paging and on top of that
control other devices as well.
Briefly: your all in one audio and control center.
The Feature Pack expands the functionalities of the
AUDIOCONTROL with message player/recorder, logical
inputs & 0-10V inputs, logic outputs, output delay and zone
combining.
For more information about this AUDIOCONTROL SET,
please check the product pages or technical sheets of
AUDIOCONTROL and Feature Pack.
biamp.com/apart | apart-info@biamp.com
APART AC12.8SET
Page 2
MORE PICTURES
biamp.com/apart | apart-info@biamp.com
APART AC12.8SET
Page 3
ACCESSORIES
DIPEX
Digital Priority/Emergency Extender for AUDIOCONTROL12.8
N-VOL10K-W
10 K-ohm volume control, white
