Apantac MINIDE-4-UHD Users Guide

MT HOOD

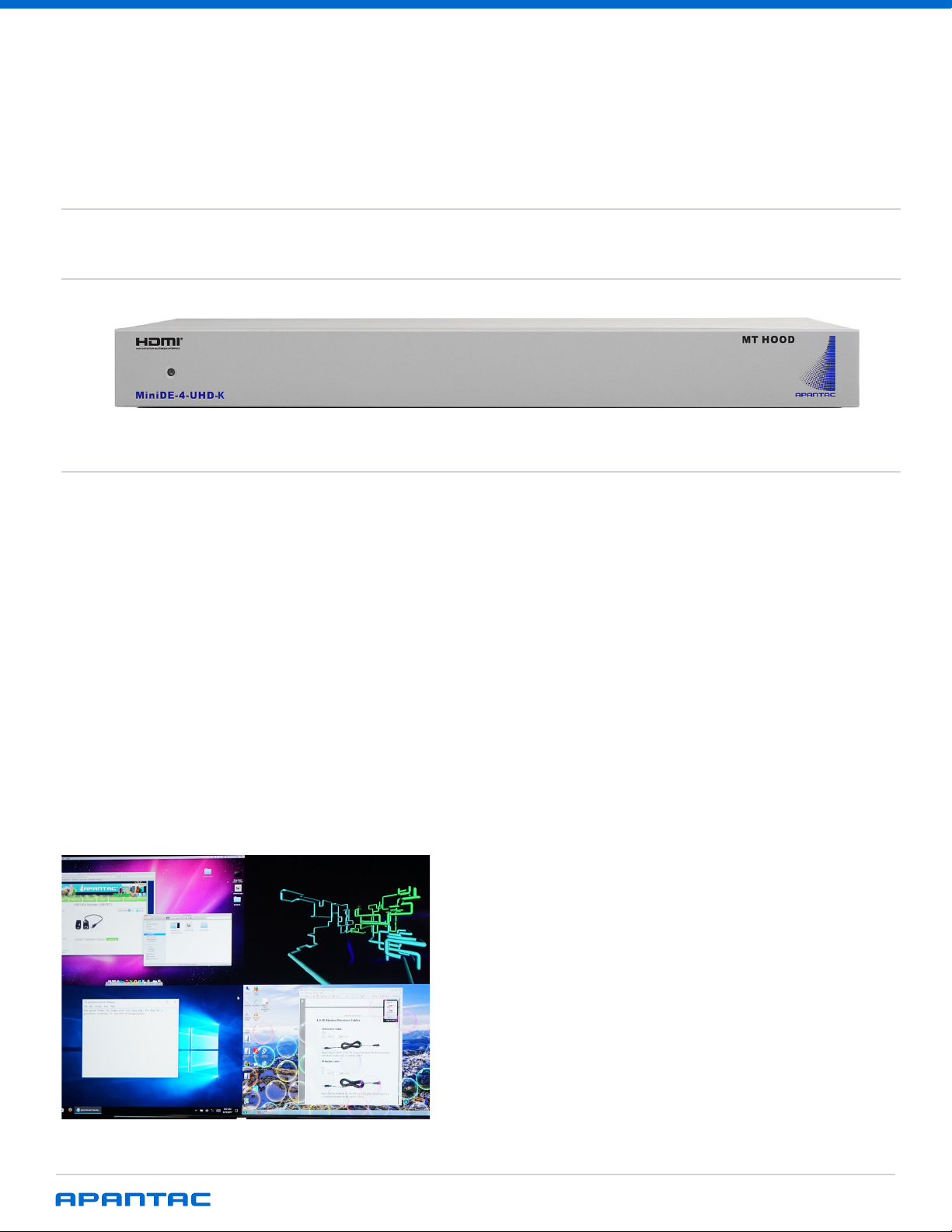

MiniDE-4-UHD-K

HDMI 2.0 UHD Multiviewer with KVM (Keyboard and Mouse Switching)

MiniDE-4-UHD-K

Key Features

• Can display up to 4 computers with keyboard and mouse

function on a single screen

• Supports 4x HDMI inputs (UHD, FHD and SD)

• Multiviewer is a fixed quad split

• Double click on the scroll wheel to go full screen

• Supports true 4K/UHD inputs up to 4K@60Hz at 4:4:4

• Supports deep color, HDCP 1.4 and 2.2

• Supports Dolby Digital 5.1 and uncompressed 7.1

• Analog stereo audio monitoring output

MiniDE-4-UHD-K-01-2019

Layout Example: actual screen output captures

and not artist renderings

44

apantac.com

MT HOOD

MiniDE-4-UHD-K

Rear view

2x USB Type A outputs (keyboard and mouse)

4x USB Type B inputs (connect up to 4 computers)

1x HDMI output that supports up to 4K/UHD@60Hz output

4x HDMI inputs that supports up to 4K/UHD@60Hz inputs

1x3 pin for audio output

1x RJ45 (reserved for future Ethernet control)

1x DB9 (reserved for RS-232 control)

1x USB Type A port for FW upgrade

12V DC power inlet

Specications

Related Products

UE-4-K

4 input UHD mutliviewer
with advanced OSD and KVM
functionality

UE-8-K

8 input UHD mutliviewer
with advanced OSD and KVM
functionality

MiniDE-4-UHD

4 input UHD mutliviewer with
both HDMI and DisplayPort

MiniDE-4-UHD-II

4 input HDMI UHD
mutliviewer

Model MiniDE-4-UHD-K

Description UHD Multiviewer with KVM functions

Inputs 4x HDMI

Output HDMI 2.0 UHD 4:4:4 with quad-split multiviewer

Keyboard Mouse 2x USB Type A for keyboard and mouse

Max Resolution 4096x2160 @ 60Hz 4:4:4

Power DC 12V, 3.34A, 40W

Power Consumption 15W

Operating temperature: 0 ~ 45 C

Environment

Dimension 1RU - 440.4 x 230 x 45 mm (L x W x H)

Weight 2.72 kg

Operating humidity: 20 ~ 90% RH

Storage temperature: -20 ~ 60 C
