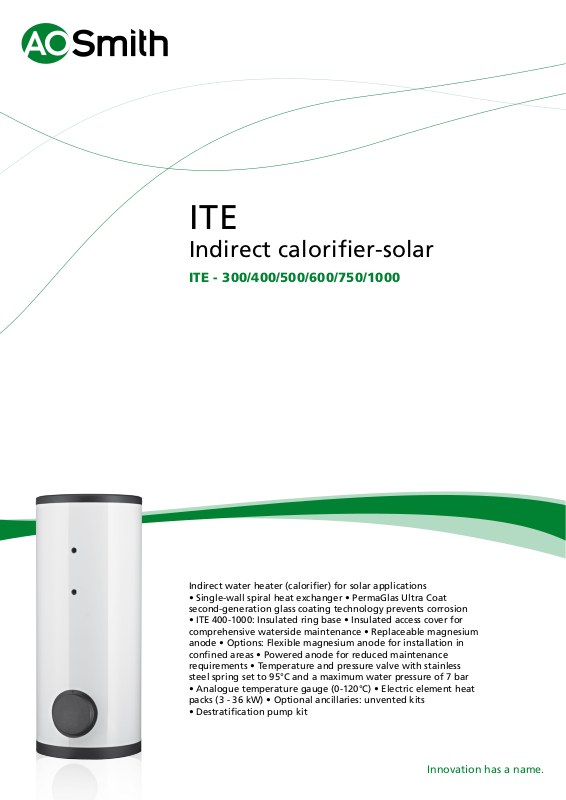

ITE

Indirect calorifi er-solar

ITE - 300/400/500/600/750/1000

Indirect water heater (calorifi er) for solar applications

• Single-wall spiral heat exchanger • PermaGlas Ultra Coat

second-generation glass coating technology prevents corrosion

• ITE 400-1000: Insulated ring base • Insulated access cover for
comprehensive waterside maintenance • Replaceable magnesium
anode • Options: Flexible magnesium anode for installation in
confi ned areas • Powered anode for reduced maintenance
requirements • Temperature and pressure valve with stainless

steel spring set to 95°C and a maximum water pressure of 7 bar

• Analogue temperature gauge (0-120°C) • Electric element heat
packs (3 - 36 kW) • Optional ancillaries: unvented kits

• Destratifi cation pump kit

ITE

Technical specifications

ITE 400

ITE 500

ITE 600

ITE 750

Technical data

Output coil kW 52 68 72 80 87
Surface area coil m
Water capacity coil l 14.8 18.8 29.3 31.6 40.9
Flow rate coil (80-60°C) l/h 2236 2924 3096 3440 3741
Pressure drop coil mbar 244 489 104 128 259
Maximum working pressure tank bar 10 10 10 10 10
Maximum working pressure coil bar 16 16 16 16 16
Maximum operating temperature tank °C 95 95 95 95 95
Maximum operating temperature coil °C 110 110 110 110 110
Standby loss
Anodes - 1 1 1 1 1
Maximum weight kg 520 657 881 971 1338

2

2.45 3.11 3.45 3.72 4.82

kWh/24h

1.60 1.88 1.85 2.03 2.19

Draw-off capacity

Storage capacity l 389 478 652 734 1024
30 min. ∆T=44°C l 882 1120 1345 1504 1882
60 min. ∆T=44°C l 1390 1784 2048 2286 2733
90 min. ∆T=44°C l 1898 2449 2752 3068 3583
120 min. ∆T=44°C l 2406 3113 3455 3856 4433
Continuous ∆T=44°C l/h 899 1525 1955 2033 2189
Heating-up time ∆T=44°C min. 20 15 15 19 20
30 min. ∆T=50°C l 776 985 1183 1324 1656
60 min. ∆T=50°C l 1223 1570 1802 2012 2405
90 min. ∆T=50°C l 1670 2155 2422 2700 3153
120 min. ∆T=50°C l 2118 2740 3041 3388 3901
Continuous ∆T=50°C l/h 791 1342 1720 1789 1926
Heating-up time ∆T=50°C min. 22 17 16 22 23
30 min. ∆T=55°C l 705 896 1076 1203 1506
60 min. ∆T=55°C l 1112 1427 1639 1829 2186
90 min. ∆T=55°C l 1518 1959 2201 2454 2866
120 min. ∆T=55°C l 1925 2491 2764 3080 3546
Continuous ∆T=55°C l/h 719 1220 1564 1626 1751
Heating-up time ∆T=55°C min. 25 19 18 24 25

Shipping data

Weight empty kg 131 179 229 237 314
Weight incl. packaging kg 153 201 251 260 348
Width packaging mm 780 780 870 870 1010
Height packaging mm 1850 2150 1930 2150 2100
Depth packaging mm 780 780 870 870 1010

ITE 1000
