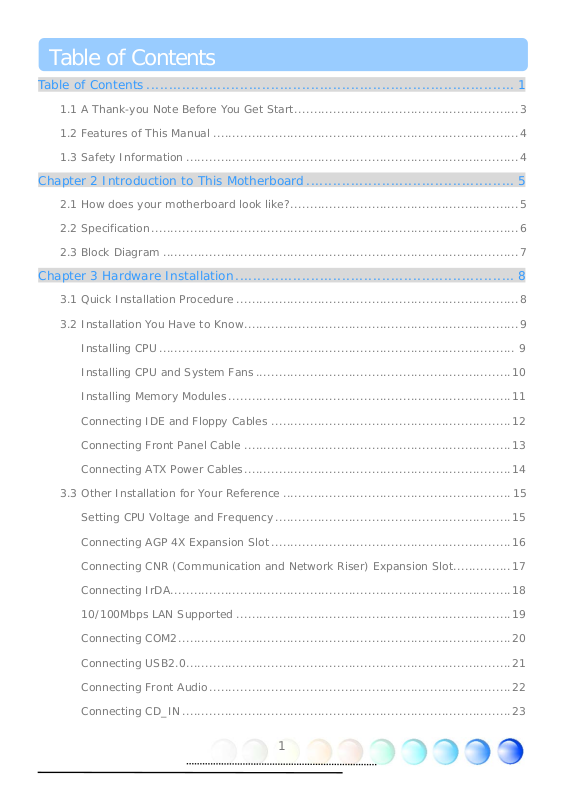

Table of Contents

Table of Contents

Table of Contents ................................................................................... 1
1.1 A Thank-you Note Before You Get Start..........................................................3
1.2 Features of This Manual ...............................................................................4
1.3 Safety Information ......................................................................................4
Chapter 2 Introduction to This Motherboard............................................... 5
2.1 How does your motherboard look like?...........................................................5
2.2 Specification...............................................................................................6
2.3 Block Diagram ............................................................................................7
Chapter 3 Hardware Installation............................................................... 8
3.1 Quick Installation Procedure .........................................................................8
3.2 Installation You Have to Know.......................................................................9
Installing CPU............................................................................................ 9
Installing CPU and System Fans ..................................................................10
Installing Memory Modules.........................................................................11
Connecting IDE and Floppy Cables ..............................................................12
Connecting Front Panel Cable .....................................................................13
Connecting ATX Power Cables.....................................................................14
3.3 Other Installation for Your Reference ...........................................................15
Setting CPU Voltage and Frequency.............................................................15
Connecting AGP 4X Expansion Slot ..............................................................16
Connecting CNR (Communication and Network Riser) Expansion Slot...............17
Connecting IrDA........................................................................................18
10/100Mbps LAN Supported .......................................................................19
Connecting COM2......................................................................................20
Connecting USB2.0....................................................................................21
Connecting Front Audio..............................................................................22
Connecting CD_IN.....................................................................................23
1
Connecting S/PDIF (Sony/Philips Digital Interface) ........................................24
Colored Coded Back Panel ..........................................................................25
LED Indication ..........................................................................................26
3.4 Jumper Settings........................................................................................27
Chapter 4 Special Features and Utilities................................................... 28
Other Useful Features......................................................................................28
Chapter 5 Setting BIOS......................................................................... 29
Introduction .............................................................................................29
How To Use Phoenix-Award™ BIOS Setup Program .......................................30
How To Enter BIOS Setup ..........................................................................30
BIOS Upgrade under Windows environment..................................................31
Vivid BIOS technology ...............................................................................33
Chapter 6 Installing Drivers................................................................... 34
6.1 Installing Drivers.......................................................................................35
6.2 Installing Utilities ...................................................................................... 36
Chapter 7 Troubleshooting..................................................................... 37
Chapter 8 Technical Support .................................................................. 38
Model Name and BIOS Version....................................................................39
Register Your Motherboard .........................................................................39
Technical Support......................................................................................40
2

1.1 A Thank-you Note Before You Get Start

First of all, we would like to express our gratitude for purchasing AOpen products. Once again, this motherboard is designed uniquely to meet all your personal needs with our gre at industr y-d esigning ability and our ev erlasti ng perse ver ance to the quality of all our products. This manual will introduce you how this motherboard is installed. Please keep it well for your future reference. If you lost your printed manual, you may also go to our website at Now, we would like to invite you to personally experience this user-friendly manual and all of the powerful functions this AOpen product offers.
The logos of Adobe and Acrobat are the registered trademarks of Adobe Systems Incorporated.
The logos of AMD, Athlon, and Duron are the registered trademarks of Advanced Micro Devices, Inc.
The logos of Intel, Intel Celeron, Pentium II, III and Pentium 4 are the registered trademarks of Intel Corporation.
The logos of nVidia are the registered trademarks of nVidia Corporation. The logos of Microsoft, Windows are the registered trademarks of Microsoft Corporation in
America and other countries.
http://www.aopen.com to download the updated file.
All the titles of the products and the trademarks mentio ned in this manual are for the purpose of illustrative conveniences and are possessed by their respective firms.
We regret not informing about any changes in usage standards and other related information. AOpen reserves the right of altering or modifying the content of this manual. In case of any mistakes or incorrect descriptions, which include those on the products, AOpen makes no guarantee or commitments.
This document is based on the copyright laws in order to protect our company and reserve all rights.
Under no circumstances are any types of duplicating and loading this brochure in any databases and media permitted except the permission signed on formal document by AOpen Company.
1996-2004 Copyrights, AOpen Ltd. All rights reserved.
3

1.2 Features of This Manual

T o help you g rab the useful information of this motherboard and aware of certain conditions that you might need to know, you will see the icons below frequently:
Note
Warning / Caution
Warning
Tip
Warning
This contains knowledge you should know in process of assembling, or some helpful tips.
Please be careful when you see this mark. It highlights mistakes that occur often during assembling, or something you need to pay attention to.
This tip tells you some useful information that will make your installation smoothly.

1.3 Safety Information

Please wear a wrist strap and attach it to a metal part of the syste m unit before handling a component. Alternatively, you can also touch an object that is of ground connection or with metal surface.
Always unplug the power before you make any jumper setting.
Before you install or remove any components on the motherboard, please make sure to disconnect the power first in case of damaging motherboard or other components.
4
15 16
18

Chapter 2 Introduction to This Motherboard

Chapter 2 Introduction to This Motherboard

2.1 How does your motherboard look like?

13
14
17
19
20
21
22
2
4
6
23
25
27
24
26
28
8
10
12
1. SYSFAN1 Connector 15. Front Audio Connector
2. Resetable Fuse 16. Onboard AC’97 CODEC
3. COM2 Connector 17. CD_IN Connector
4. 4-pin 12V ATX Power Connector 18. SIS 10/100Mbps LAN Chip
5. AGP 4X Expansion Slot 19. CNR Expansion Slot
6. 478-pin CPU socket supporting Intel P4 CPU 20. 32-bit PCI Expansion Slots X 3
7. SIS 651/962L Chipsets 21. AGP Protection LED
8. CPUFAN Connector 22. USB 2.0 Connector
9. 184-pin DIMMs X 2 23. JP14 CMOS Data Clear Jumper
10. ATX Power Connector 24. STBY LED
11. DieHard BIOS Lite 25. IRDA Connector
12. FDD Connector 26. SYSFAN2 Connector
13. JP28 PS2 KB/Mouse Wakeup Jumper 27. Front Panel
14. S/PDIF Connector 28. Connector IDE Connectors x 2
1
3
5
7
9
11
5

2.2 Specification

Here is the main function of your motherboard.
Models s651m
CPU
Chipset Intel 651/962L
Main Memory
Graphics
IDE LAN SIS 10/100Mbps LAN
Sound Realtek AC'97 CODEC onboard, support 2.1 Channel USB Integrated in chipset, USB 2.0 x 6
Slots
Back Panel I/O
On Board Connector
BIOS Award PnP 2Mb Flash ROM BIOS Board Size 244 mm x 220 mm
Intel Pentium 4 CPU Socket 478 400/533MHz
Dual Channel Mode DDR 266/333MHz DDR DIMM x 2 DIMM Type : 64/128/256/512MB & 1GB Max Memory : 2GB Integrated VGA Engine in chipset 4X AGP slot Integrated ATA133 Controller Max Disk: 144,000,000GB [by 48 bits LBA Spec.]
AGP x 1 PCI x 3 PS/2 Keyboard x 1, PS/2 Mouse x 1 USB Port x 4, LAN Port x 1, VGA Port x 1 COM Port x 1, Printer Port x 1 Speaker_Out x 1, Line_In x 1 MIC_In x 1 Front Panel x 1 Front Audio x 1 CPU FAN x 1,System FAN x 1,Chassis FAN x 1 COM2 x 1 CD_IN x 1 IrDA x 1 S/PDIF x 1 USB Port x 2
6

2.3 Block Diagram

p
VGA Onboard
AGP 4X
AGP 4X Slot
DIMM Sockets x2
SIS
10/100
LAN Chip
LAN connect Com
onent
400/533MHz System Bus
AGP bus
DDR333/266 RAM Up to 2GB
USB Ports x6
Floppy Disk Drive
Serial Ports x2
Socket 478
Intel
Pentium 4
CPU
SIS 651
chipset
PCI Bus
ATA 66/100/133
32-bit PCI Slot x3
IDE Drives x 4
RealTek
AC97
CODEC
962L
2Mbits Flash EEPROM
Parallel Port
7

Chapter 3 Hardware Installation

Chapter 3 Hardware
q
Installation

3.1 Quick Installation Procedure

2. Installing CPU Fan & System Fan
3. Installing Memory Module
4. Installing HD, CD-ROM and SATA Disk, etc
5. Connecting Front Panel Cable
1. Installing CPU
6. Connecting ATX Power Cable
12. Installing Drivers & Utilities
11. Installing Operating System (such as, Windows XP)
8. Installing Other Devices (USB, Front Audio, etc)
7. Installing AGP & PCI Cards
10. Loading Default BIOS, Setting CPU
uency
Fre
9. Connecting Back Panel Ports (Keyboard, Mouse, etc)
8

3.2 Installation You Have to Know

Installing CPU

This socket supports FC-PGA2 package CPU, which is the latest CPU package developed by Intel. Other forms of CPU package are impossible to be fitted in.
1. Pull up the CPU socket lever and up to 90-degree angle.
2. Locate Pin 1 in the socket and look for a golden arrow on the CPU upper interface. Match Pin 1 and golden arrow. Then insert the CPU into the socket.
3. Press down the CPU socket lever to finish CPU installation.
CPU socket lever
Socket Pin 1
Golden arrow
9

Installing CPU and System Fans

Plug the CPU fan cable to the 3-pin CPUFAN connector. If you have chassis fan, you can also plug it in SYSFAN1 or SYSFAN2 connector.
SYSFAN2 Connector
GND +12V SENSOR
SYSFAN1 Connector
CPUFAN Connector
Note: Some CPU fans do not have sensor pin so that they cannot support fan monitoring.
GND +12V SENSOR
GND +12V SENSOR
10

Installing Memory Modules

DIMM slots are designed in black which are very easy to recognize. Insert the module straight down to the DIMM slot with both hands and press down firmly until the DIMM module is securely in place.
Tab
Pin 1
Key
Note: The tabs of the DIMM slot will clip to hold the DIMM in place when the DIMM touches the slot’s bottom.
11

Connecting IDE and Floppy Cables

(
(
(
(
Connect the 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector and IDE connector. Be careful of the pin1 orientation. Wrong orientation may cause system damage.
FDD Connector
Pin 1
Pin 1
IDE 1 (Primary)
Primary
2nd)
Slave
ATA 66/100/133 IDE Connector
Secondary Slave
Primary Master
12
4th)
IDE 2 (Secondary)
Pin 1
1st)
Secondary Master
3rd)

Connecting Front Panel Cable

Attach the power LED, speaker and reset switch connectors to the corresponding pins. If you enable “Suspend Mode” item in BIOS Setup, the ACPI & Power LED will keep flashing while the system is in suspend mode. Locate the power switch cable from your ATX housing, which is a 2-pin female connector from the housing front panel. Plug this connector to the soft-power switch connector marked SPWR.
13

Connecting ATX Power Cables

This motherboard comes with a 20-pin and 4-pin ATX power connector as shown below. Make sure you plug them in the right direction. We strongly recommend you to insert the 4-pin connector before connecting the 20-pin connector.
+12V +12V Ground Ground
14

3.3 Other Installation for Your Reference

Setting CPU Voltage and Frequency

Setting CPU Core Voltage
This motherboard supports Voltage ID (VID) function to detect CPU voltage automatically during power-on.
Setting CPU Frequency
This motherboard is of CPU jumper-less design; you can set CPU frequency by 1MHz stepping CPU Overclocking in the BIOS.
clock x CPU Ratio
. However, all CPU now sold in market belong to "Fixed Multiplier". That means users can not adjust the CPU Ratio but change CPU FSB clock to achieve overclocking only.
BIOS Setup > Frequency / Voltage Control > CPU Speed Setup
(Users will do the overclocking at their own risks!!)
Northwood CPU
Pentium 4 1.8G 1800MHz 100MHz 400MHz 18x Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x Pentium 4 2.2G 2200MHz 100MHz 400MHz 22x Pentium 4 2.2G 2200MHz 133MHz 533MHz 16x Pentium 4 2.26G 2260MHz 133MHz 533MHz 17x Pentium 4 2.4G 2400MHz 100MHz 400MHz 24x Pentium 4 2.4G 2400MHz 133MHz 533MHz 18x Pentium 4 2.53G 2530MHz 133MHz 533MHz 19x Pentium 4 2.66G 2660MHz 133MHz 533MHz 20x Pentium 4 2.8G 2800MHz 133MHz 533MHz 21x Pentium 4 3.06G 3066MHz 133MHz 533MHz 23x
Note: With CPU speed changing r apidly , there might be faster CPU on the market by the time you received this installation guide. This table is kindly for your references only.
CPU Core Freq.
FSB Clock
System Bus
CPU Core Frequency = CPU FSB
Ratio
Warning:
SIS 651 chipset support maximum 533MHz (133MHz*4) system bus and 66MHz AGP clock; higher clock setting may cause serious system damage.
CPU Ratio 8x, 10x… 20x, 21x, 22x, 23x, 24x CPU FSB (Adjustment
manually)
FSB = 100MHz-248MHz by 1MHz Stepping CPU Overclocking
15

Connecting AGP 4X Expansion Slot

s651m provide an AGP 4X slot. The AGP 4X is a bus interface targeted for high-performance 3D graphic, and the data transfer rate could achieve 66MHz x 4bytes x 4 = 1056MB/s.
16

Connecting CNR (Communication and Network Riser) Expansion Slot

CNR is a riser card specification to replace the AMR (Audio/Modem Riser) that supports V.90 analog modem, multi-channel audio, and phone-line based networking. Owing to CPU computing power getting stronger, the digital processing job can be implemented in main chipset and share CPU power. The analogy conversion ( design, which is put on CNR card. This motherboard implements sound CODEC on board, but reserves CNR slot for the option of modem function. Note that you can still use PCI modem card. Please note that if you want to use CNR audio card on CNR slot, you must disable the sound output of CODEC from BIOS to prevent the CODEC from making out noises at the same time.
CODEC) circuit requires a different and separate circuit
17

Connecting IrDA

The IrDA connector can be configured to support wireless infrared module, with this module and application software such as Laplink or Windows Direct Cable Connection, user can transfer files to or from laptops, notebooks, PDA devices and printers. This connector supports both HPSIR (115.2Kbps, 2 meters) and ASK-IR (56Kbps). Install an infrared module onto the IrDA connector and enable the infrared function from BIOS Setup, UART Mode, you can use this function. Please make sure you connect correct orientation when plugging IrDA module.
Pin 1
18

10/100Mbps LAN Supported

On the strength of 10/100Mbps LAN controller on board, this motherboard provides 10/100Mbps Ethernet for office and home use. The Ethernet RJ45 connector is located on the top of USB connectors. The right hand side LED indicates link mode; it lights in yellow when linking to n etwork. The left hand side LED indicates the transfer mode and will light in green when data is transferring at 100Mbps (never lights while at 10Mbps). To enable or disable this function, you may simply adjust it through BIOS. To enable LAN wakeup function, you have to set the “Wake on PCI Card” enable in the BIOS “Power Management Setup” section.
Speed LED (Left)
Green 100Mbps
ACT LED (Right)
Yellow
19

Connecting COM2

This motherboard provides two serial ports. One of them is on back panel connector, and the other is on the upper left of board between PCI slots. With proper cable, you can connect it to the back panel of chassis.
Pin 1
GND
RI#
RTS#
1
SIN DTR# DSR# CTS#
DCD#
SOUT
20

Connecting USB2.0

This motherboard provides six USB 2.0 ports to connect USB devices such as mouse, keyboard, modem, printer, etc. There are four ports on the back panel. You can use proper cables to connect Front USB connector to USB modules or chassis front panel.
Pin 1
21

Connecting Front Audio

If the housing is designed with an audio port on the front panel, you’ll be able to connect onboard audio to front panel through this connector. By the way, please remove the jumper cap from the Front Audio Connector before you connect the cable. Do not remove this yellow jumper cap if your housing doesn’t have an audio port on the front panel.
Pin1
22

Connecting CD_IN

This connector is designed to connect CD Audio cable from CDROM or DVD drive to onboard sound.
23

Connecting S/PDIF (Sony/Philips Digital Interface)

S/PDIF (Sony/Philips Digital Interface) is a newest audio transfer file format, which provides impressive audio quality through optical fiber and allows you to enjoy digital audio instead of analog audio. Through a specific audio cable, you can connect the S/PDIF connector to other end of the S/PDIF audio module, which bears S/PDIF digital output. Normally there are two S/PDIF outputs as shown, one for RCA connector, the most common one used for consumer audio products, and the other for optical connector with better audio quality. Same as outputs, you can also connect RCA or optical audio products to input connectors on the module and have the voice or music come out from your computer . However, you must have a S/PDIF supported speaker/amplifier/decoder with S/PDIF digital input/output to connect to the S/PDIF digital input/output to make the most out of this function.
1
Pin 1
+5V NC SPDIFOUT GND SPDIFIN
(RCA)
S/PDIF OUT
S/PDIF IN
S/PDIF OUT
S/PDIF IN
(Optical)
S/PDIF Module
(User Upgrade Optional)
S/PDIF Cable
24

Colored Coded Back Panel

The onboard I/O devices have PS/2 Keyboard, PS/2 Mouse, RJ-45 LAN Connector , COM1, VGA port, Printer, USB, AC’97 sound and game ports. The view angle of drawing shown here is from the back panel of the housing.
PS/2 Mouse
Connector
PS/2 Keyboard
Connector
USB 2.0
Ports
SPP/EPP/ECP Parallel Port
COM 1 Port
VGA Port
RJ45
LAN Jack
USB 2.0
Ports
Line-In
Speaker Out
MIC-In
PS/2 Keyboard: For standard keyboard, which use a PS/2 plug. PS/2 Mouse: For PC-Mouse, which use a PS/2 plug. USB Port: Available for connecting USB devices. Parallel Port: To connect with SPP/ECP/EPP printer. COM1 Port: To connect with pointing devices, modem or others serial
devices.
RJ-45 LAN Port: To connect Ethernet for home or office use. VGA Connector: To connect with PC monitor. Speaker Out: To External Speaker, Earphone or Amplifier. Line-In: Comes from the signal sources, such as CD/Tape player. MIC-In: For Microphone
25

LED Indication

LED indication are AO pen’s c onsiderat e designs that aim at providing you friendly system information. STBY LED will light up when power is provided to the motherboard, giving you a convenient indication check the system power status in circumstances such as power on/off, stand-by mode and RAM power status during Suspend to RAM mode. AGP LED aims to protect your motherboard from being damaged by over voltage of AGP card. When AGP Protection T echnolog y is imp lemente d, this mo therboa rd will automatically detect the voltage of AGP card and prevent your chipsets from being burnt out.
AGP LED
STBY LED
26

3.4 Jumper Settings

JP28 Keyboard / Mouse Wakeup Jumper
This motherboard provides PS2 keyboard / mouse wake-up function.
JP14 Clear CMOS Data
1
Normal (default)
JP28 PS2 KB/Mouse Wakeup Jumper
1
Disable
(Default)
1
JP14 Clear CMOS Jumper
Clear CMOS
You can clear CMOS to restore system default setting. To clear the CMOS, follow the procedure below.
1. Turn off the system and unplug the AC power.
2. Remove ATX power cable from connector PWR2.
3. Locate JP14 and short pins 2-3 for a few seconds.
4. Return JP14 to its normal setting by s horting pin 1 & pin 2.
5. Connect ATX power cable back to connector PWR2.
1
Enable
27
Chapter 4 Special Features and Utilities

Chapter 4 Special Features and Utilities

Other Useful Features

With excellent design ability of R&D team, AOpen boasts for its various powerful and handy features that come with our product like follows. You are welcomed to visit our technical website to learn more about those features.
http://english.aopen.com.tw/tech/techinside
28
Chapter 5 Setting BIOS

Chapter 5 Setting BIOS

Introduction

System parameters can be modified by going into BIOS Setup menu; this menu allows you to configure the system parameters and save the configuration into the 128 bytes CMOS area (normally in the RTC chip or in the main chipset). The Phoenix-Award BIOS™ that installed in the Flash ROM of the motherboard is a custom version of an industry standard BIOS. The BIOS provides critical low-level support for standard devices such as hard disk drives, serial and parallel ports. AOpen’s R&D engineering team had optimized most BIOS settings of this motherboard. However, some default settings of BIOS cannot fi ne-tune those sections that controlled by chipset. Therefore, this chapter is intended to guide you and help you to configure some other settings. T o enter BIOS setup menu, press <Del> when POST (P ower-On Self Test) screen is shown on your monitor.
Note: Because BIOS code is the most often changed part on motherboard, the BIOS information contained in this manual may be different from the BIOS version that comes with your motherboard.
29

How To Use Phoenix-Award™ BIOS Setup Program

Generally, you can use arrow keys to highlight items that you want to choose, press <Enter> key to select, and use <Page Up> and <Page Down> keys to change setting values. You can press <Esc> key to quit Phoenix-Award™ BIOS setup program. The following table provides details about how to use keyboard in the Phoenix-Award BIOS setup program. Alternatively, it's strongly recommended to install AOpen’s newest WinBIOS Utility to get more detailed description, further powerful functions and advanced setting of BIOS.
Key Description
Page Up or + Change setting to next value or increase the value. Page Down or - Change setting to previous value or decrease value. Enter Select the item. Esc In main menu: Quit without saving any changes.
In sub menu: Exit current menu to main menu.
Up Arrow Highlight previous item. Down Arrow Highlight next item. Left Arrow Move the light bar to left side of menu. Right Arrow Move the light bar to right side of menu. F6 Load Setup Default setting value from CMOS. F7 Load turbo setting value from CMOS. F10 Save changed settings and exit setup program.

How To Enter BIOS Setup

After finishing the jumper settings and connecting cables, you can power on and enter the BIOS Setup. Press <Del> during POST (Power-On Self T est) and choose "Load Setup Defaults" for recommended optimal performance.
Del
Warning: Please avoid of using “Load Turbo Defaults”, unless you are certain your system components (CPU, SDRAM, HDD, etc.) are good enough for turbo setting.
30

BIOS Upgrade under Windows environment

y p
With outstanding R&D ability of AOpen, we now bring you a whole new BIOS Flash wizard ---- EzWinFlash. With an eye to convenience for users, EzWinFlash combines the BIOS binary code and flash module together, so the only thing you have to do is just c lic kin g o n th e u tilit y y ou do wnloa d ed fro m web and le t it help you complete the flash process automatically. EzWinFlash detects your motherboard and checks the BIOS version cleverly to prevent your system from any possible failure. Moreover, EzWinFlash has been taken into consideration to go with any windows platform you might be using, no matter if you’re using Windows 95/98, 98SE/ME, NT4.0/2000, or Windows XP. In the meanwhile, in order to provide a much more user-friendly operating environment, AOpen EzWinFlash is natively designed to have multi-language function to provide easier way for user in changing BIOS setting.
Caution: You are taking a risk of BIOS flash failure when you update your system. If your motherboard is working stable, and there are no major bugs to be fixed by a latter BIOS revision, we recommend that you DO NOT upgrade your BIOS. If you intent on upgrade PLEASE MAKE SURE you get the right BIOS revision for your motherboard model so as to avoid an
ossible failure.
Note: The model name on this BIOS picture is for reference only. It may not be the same model with your motherboard.
31
You may accomplish BIOS upgrade procedure with EzWinFlash according to following steps, and it’s STRONGLY RECOMMENDED to close all applications before you start the upgrades. Download the latest ve rsion of BIOS package (Ex:
http://english.aopen.com.tw/)
zip file from AOpen official web site.
Unzip the downloaded BIOS package (ex: WS651M102.ZIP) with WinZip (
http://www.winzip.com) in Windows environment. Save the unzipped files into a folder, for example, WS651M102.EXE & WS651M102.BIN. Double click WS651M102.EXE; EzWinFlash will detect the model name and BIOS version of your motherboard. If you collect wrong BIOS, you will not be allowed to proceed with the flash steps. You may select a preferred language in main menu, then click [Start Flash] to begin the BIOS upgrade procedure. EzWinFlash will complete all the process automatically, and a dialogue box will pop up to ask you to restart Windows. Click [YES] to reboot Windows. Press <Del> at POST to enter BIOS setup screen; choose "Load Setup Defaults", then “Save & Exit Setup”. Done! It is strongly recommended NOT to turn off the power or run any applications during FLASH PROCESS.
Warning: The new BIOS upgrade will permanently replace your original BIOS setting when flashing. You may need to reconfigure the BIOS setting before your system goes back to work as normal.
32

Vivid BIOS technology

Have you been fed up with the conservative and immutable POST screen? Let’s rule out the tradition idea that POST screen are stiff and frigid, and let AOpen show you the newly developed VividBIOS to experience the lively vivid colorful POST screen! Unlike earlier graphic POST screen which could occupy the whole screen and mask text information during POST, AOpen VividBIOS deals with graphics and texts separately , and makes them running simultaneously during POST. With this innovative design, VividBIOS now brings you a beautiful and sleek 256 colors screen without missing any important information shown on POST screen. In addition, the limited space of BIOS ROM is another big issue. When all of the traditional BIOS can only show space-consuming and uncompressed Bitmap, AOpen has considerately tuned the BIOS to next generation, to recognize the smaller-sized GIF format and even dynamic-showing GIF animation.
Vivid BIOS shares the same fundamental technology with Open JukeBox CD Player , you may use the same EzSkin utility to change your VividBIOS screen or to download your fav orite Open JukeBo x skin. If you se e this little logo s hown beside
your model name on the motherboard download page,
http://english.aopen.com.tw/tech/ezskin/vivid.htm, it is assured
that your motherboard supports this innovative feature!
33
Chapter 6 Installing Drivers

Chapter 6 Installing Drivers

You may think that installing drivers and utili ties would be a repeated task of going through those installation wizards and steps-by-steps. Now, you will be surprised with how “Ez” EzInstall could do. Without wizards or steps, all you have to do is to do one click and then it’s done. Click and done. Yes. EzInstall makes installation easy and even foolproof! After putting in the CD, you will be prompted with AOpen welcome page and our branches information. First, click on the install driver ICON at left side for necessary drivers. Second, click on the install utility ICON at left side for preferred utilities. Practically , it’ s done. But you may a lso browse CD contents, R eadme to get more information or just exit the CD installation.
Install driver
Install utility
Browse CD Contents
Readme
Click to install online manual
AOpen branches information
Exit CD
34

6.1 Installing Drivers

As you may see from the Installing driver page, EzInstall had picked up necessary for your motherboard. All you have to do is just click on the “GO”, a n d n o m or e steps afterward, of all listed drivers, grey checks indicate necessary drivers; you cannot click them off. Red checks can be disabled if you don’t want to install them now.
Press the icon will prompt the “Install Driver” page. You may also press “Back” to return to the Main page.
Once clicking “GO”, EzInstall will run the installing procedure automatically, and prompt a reboot dialog (Some drivers or utilities may skip the reboot part).
35

6.2 Installing Utilities

Installing Utilities is virtually the same as installing drivers. AOpen provides you many friendly and powerful utilities to manage your system. Y ou may find lots of fabulous utilities l iste d th ere, a nd a ll you ha ve to d o is to click o n th e “ GO”, then it will install the utilities to your system right away without complicated steps.
Press the icon will prompt the “Install Utilities” page for your selection. You may also press “Back” to get back to the Main page.
36

Chapter 7 Troubleshooting

g
Chapter 7 Troubleshootin
37
Chapter 8 Technical Support
L

Chapter 8 Technical Support

Dear Customer, Thanks for choosing AOpen products. We invite you to register at
http://www.aopen.com to become a Gold Member of Club AOpen so as to
ensure quality service in the future. In order to maintain the best service to every customer of us, we recommend you to follow the procedures below and seek help from our branches according to the region you buy the product. With your help, we can then continue to provide efficient and the best quality service to every customer. Thanks very much for your understanding! AOpen Technical Supporting Team
Europe
AOpen Computer b.v. Tel: 31-73-645-9516
Support@AOpen.N
Email:
Germany
AOpen Computer GmbH. Tel: 49-2131-1243-710 Fax: 49-2131-1243-999
Europe Email: Support@AOpen.NL Pacific Rim: http://www.aopen.com.tw/tech/default.htm China: http://www.aopen.com.cn/tech/default.htm Germany: http://www.aopencom.de/tech/default.htm America: http://usa.aopen.com/tech/default.htm Japan: http://www.aopen.co.jp/tech/default.htm
China
艾爾鵬國際貿易(上海)有限公司 Tel: 86-21-6225-8622
Fax: 86-21-6225-7926
Japan
AOpen Japan Inc. Tel: 81-048-290-1800 Fax: 81-048-290-1820
Pacific Rim
AOpen Inc. Tel: 886-2-3789-5888 Fax: 886-2-3789-5899
America
AOpen America Inc. Tel: 1-510-489-8928 Fax: 1-510-489-1998
38

Model Name and BIOS Version

Model name and BIOS version can be found on upper left corner of first boot screen (POST screen). For example:
Phoenix AwardBIOS v6.00PG, An Energy Star Ally
Copyright (C) 2003, Phoenix Technologies, LTD.
s651m R1.02 Mar. 01. 2003 AOpen Inc.
s651m is model name of motherboard; R1.02 is BIOS version

Register Your Motherboard

Thanks for choosing AOpen product, please register this motherboard at
http://club.aopen.com.tw/productreg/ to become a Gold member of Club AOpen,
and to ensure high service quality and priority from AOpen. You will also have a chance to play slot machine game to win prize from AOpen. Please prepare the following information before you start: Model Name, Part Number (P/N), Serial Number (S/N) and Purchase Date. The Part Number and Serial number are printed on bar code label. You can find this bar code label on the outside packing or on component side of PCB. For example:
P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.
Phoenix-Award BIOS ERROR Message
Beep Sound Message 1 short(Beep) System booting is normally. 1 long - 1 short(Beep) DRAM ERROR 1 long - 2 short(Beep) Display card or monitor connected error 1 long - 3 short(Beep) Keyboard Error Long(Beep) continuous DRAM hasn't inset correctly.
Part No. Serial No.
39
Technical Support Technical Support
40
40
Loading...
